Pakistan Popular 800/1600 Vertical PVC Hot&Cool Plastic Mixing Machine for Sale

Customization:	Available
After-sales Service:	One Year Quality Guarantee
Automatic Grade:	Semi-Automatic

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SRL-Z800/1600

Structure

Vertical

Warranty

1 Year

Motor Power

110kw/22kw

Capacity

7000-7500kg/Hour

Barrel Steel

SS304, 8mm Thickness

Mixing Method

Blades Mixing

Operation

Manual/Auto

HS Code

84778000

Production

30sets/Year

📦 Packaging & Delivery

Package Size

5170.00cm * 3200.00cm * 4480.00cm

Gross Weight

9800.000kg

Package Type

Export Packing

Delivery Time

50 Days

⚙️ Product Description

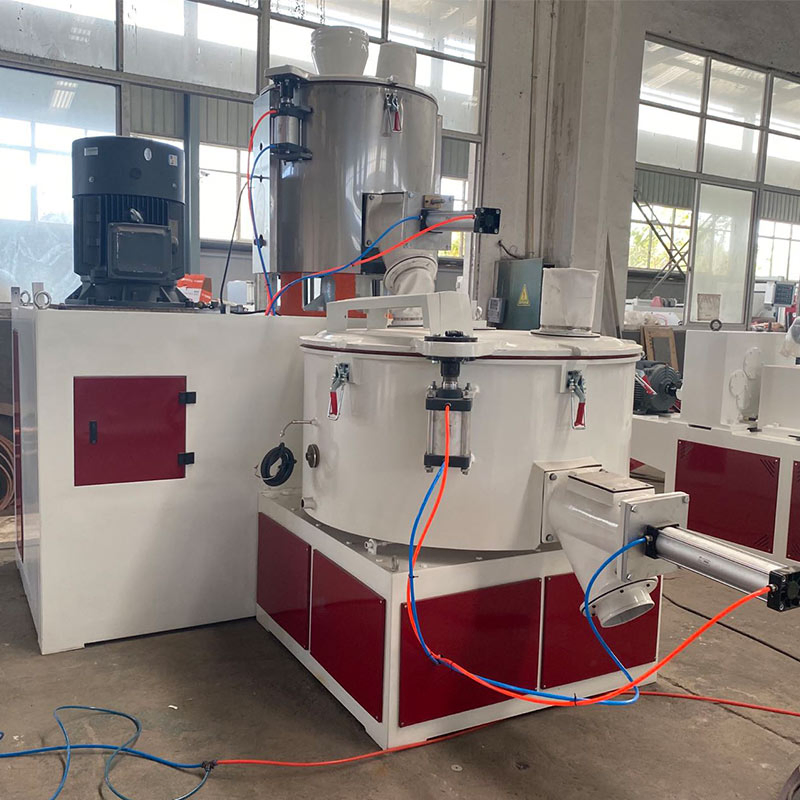

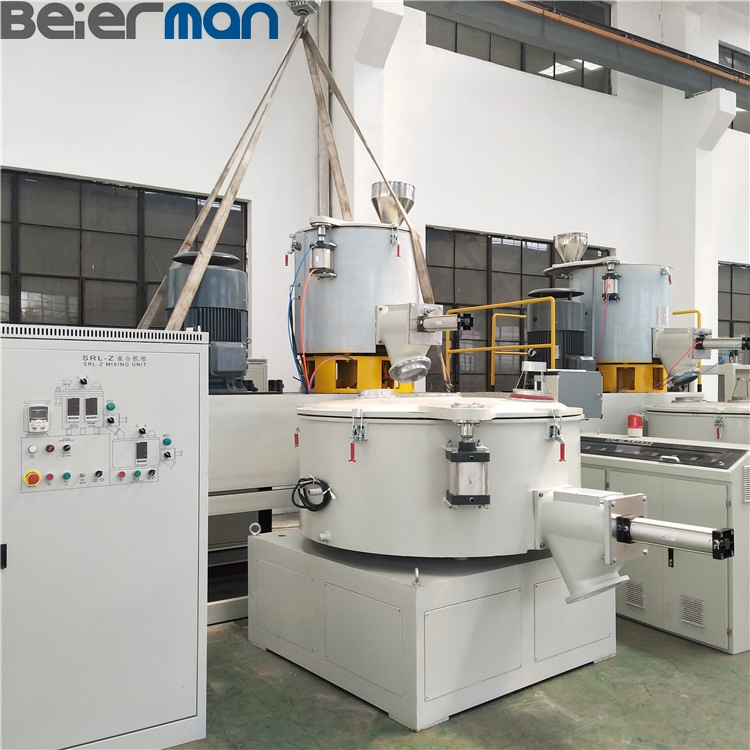

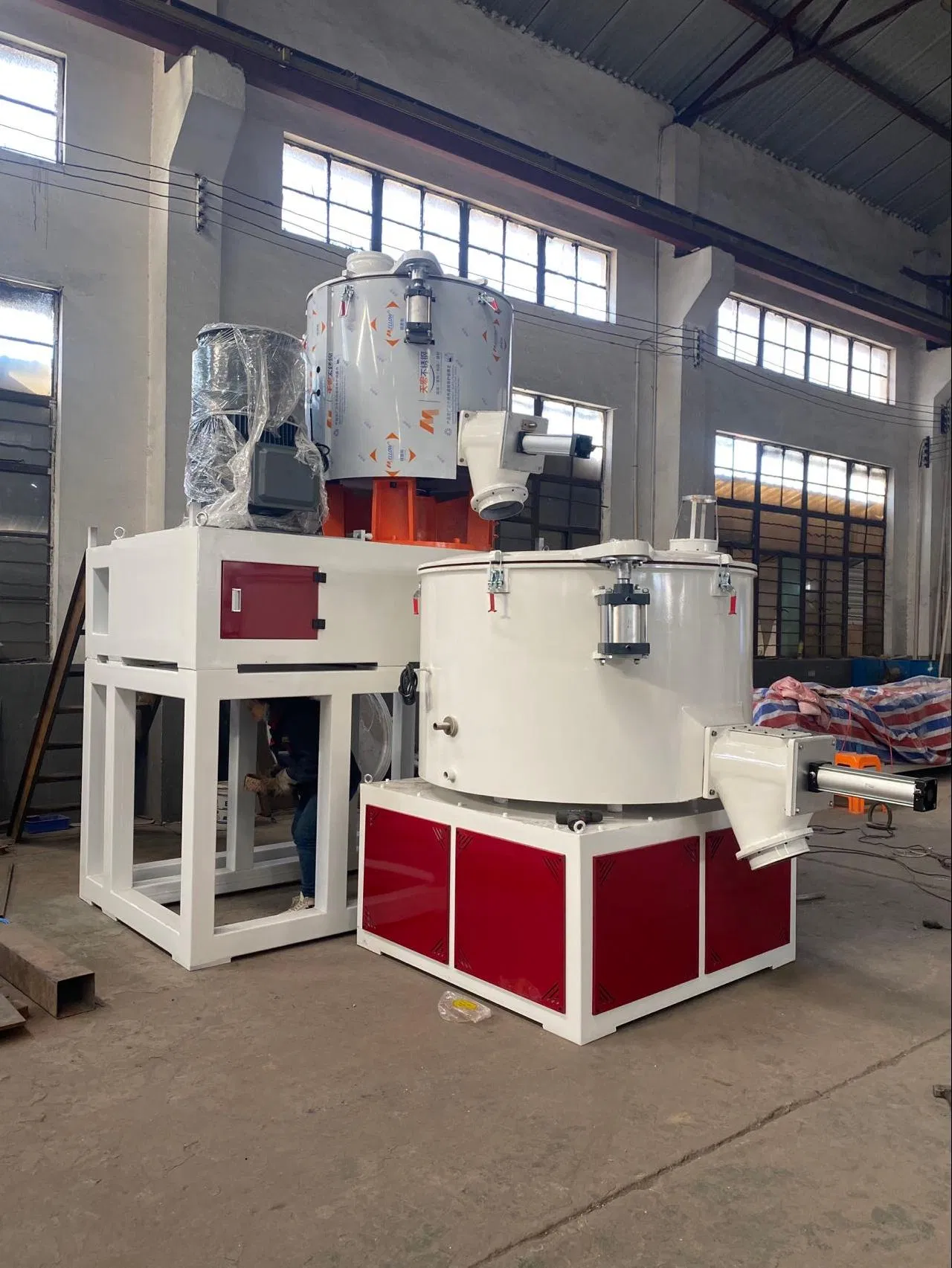

Pakistan Popular 800/1600 Vertical PVC hot & cool Plastic Mixing Machine

Key Applications:
• PVC + CaCO3 powder high speed mixing
• PE + Wood high speed mixing
• Plastic + chemical agent mixing
• Ideal for plastic pipe factories, profile factories, and pelletizing facilities.

Technical Details:
• Mixer Volume: Hot mixer-800L (600L effective); Cool mixer-2500L (1875L effective).
• Heating Method: Raw material self-friction for hot mixer.
• Cooling Method: Circuit water cooling via barrel jacket for cool mixer.
• Control System: Dual Manual + Auto control methods, interchangeable.
• Power Components: 110KW + 22KW SIEMENS motors with ABB AC inverters for speed control.

📋 Technical Specifications

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total Volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	75/150	150/375	225/450	375/750	600/1200
Mixing Speed (rpm)	650/1300/200	475/950/130	475/950/100	430/860/70	370/740/50
Heating/Cooling	Electric / self-friction / recycling water
Mixing Time (min)	8-12	8-12	8-12	8-15	8-15
DS Driving Motor (kw)	14/22/7.5	30/42/7.5	40/55/11	47/67/15	80/110/22
Inverter Motor (kw)	22/7.5	45/7.5	55/11	75/15	110/22
Dimension (m)	1.95X1.6X1.8	4.58X2.24X2.47	4.8X2.64X2.48	5.6X3X3.1	5.17X3.2X4.48
Weight (kg)	2200	3400	3600	6500	9800

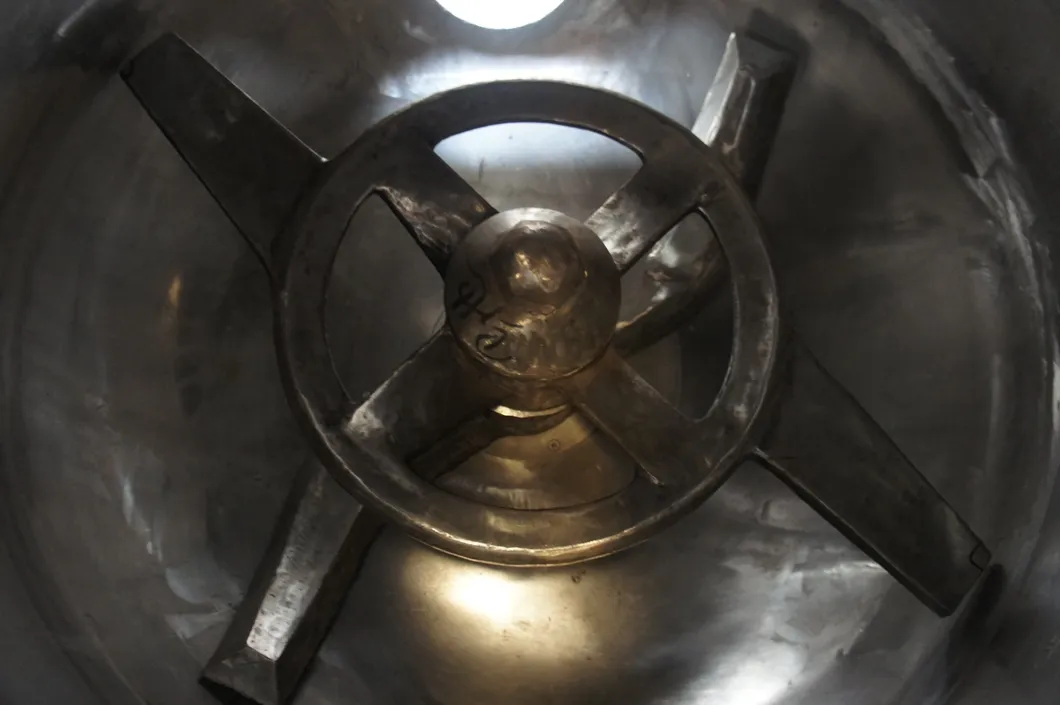

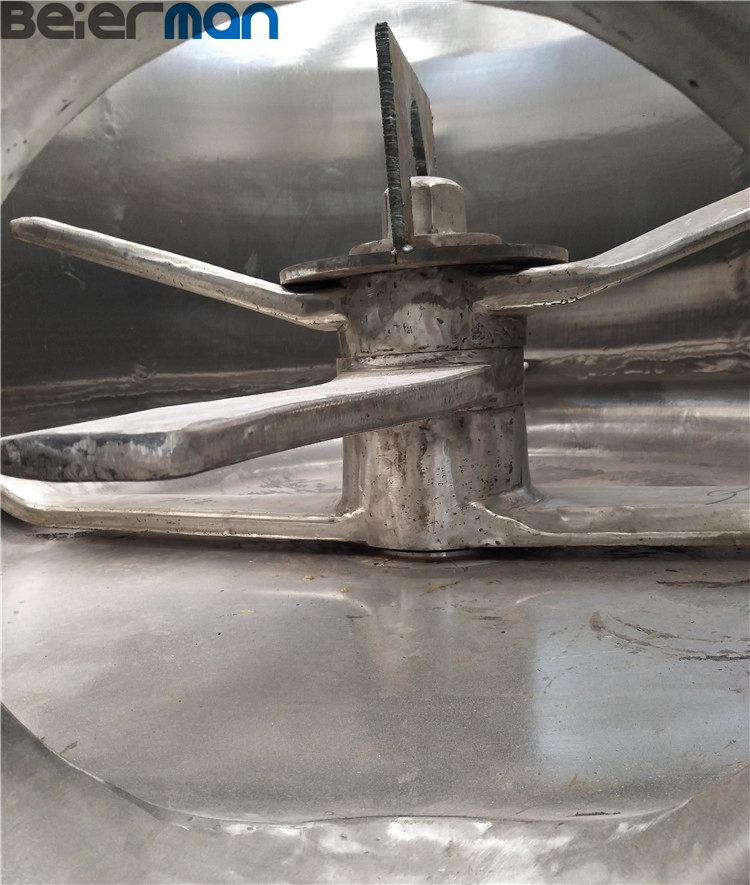

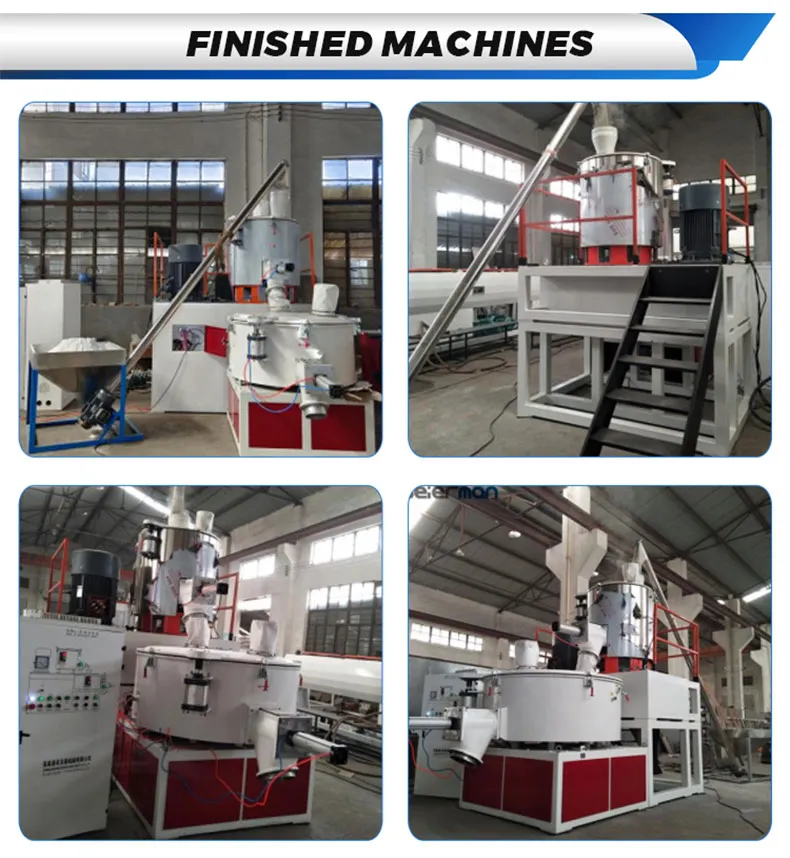

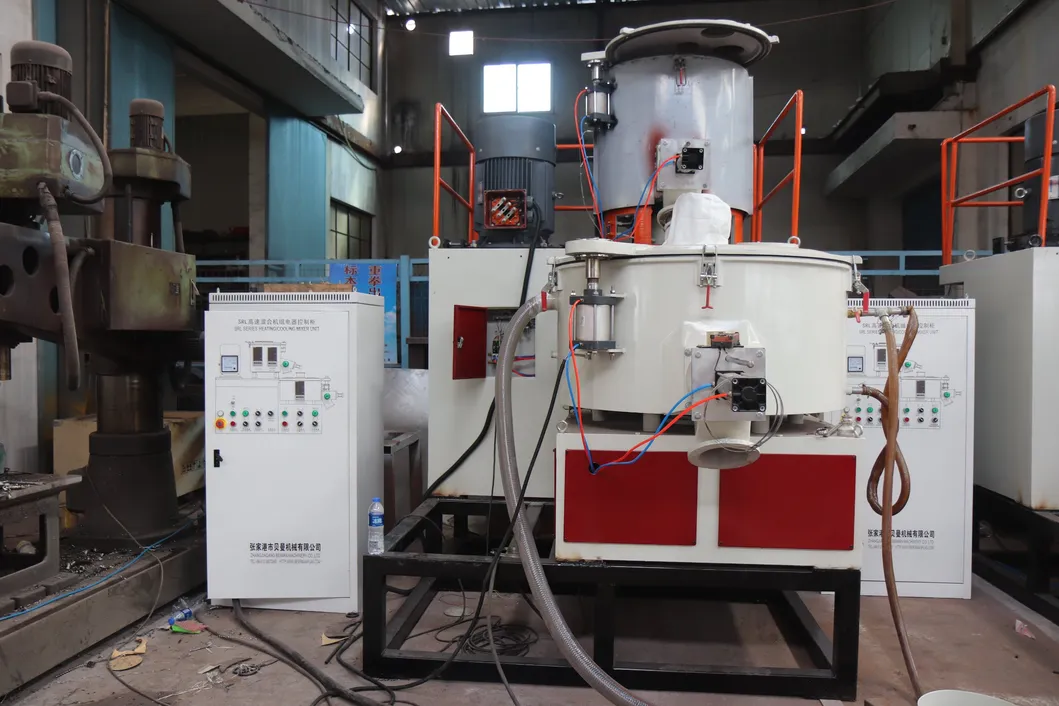

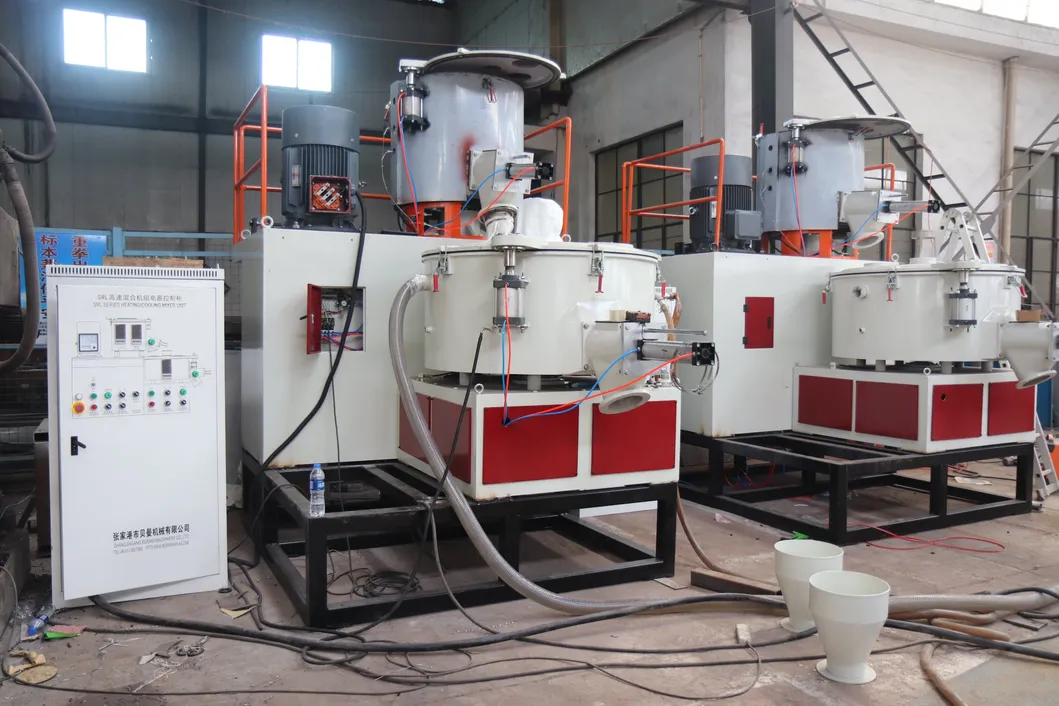

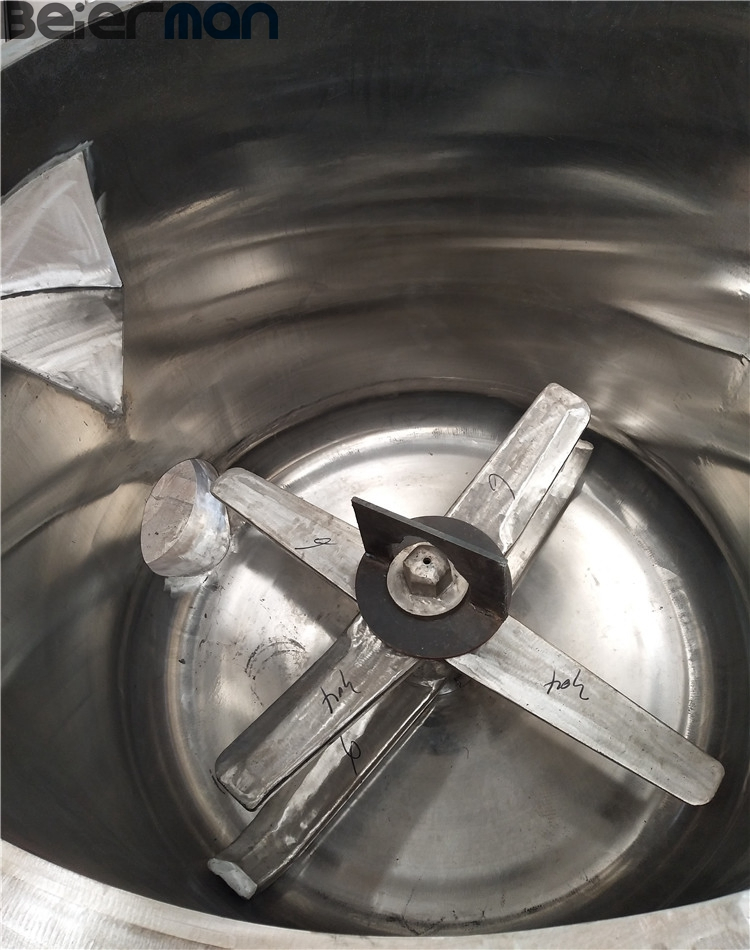

📷 Component Showcase

❓ Frequently Asked Questions

1. What are the primary applications for this mixing machine?

This machine is specifically designed for high-speed mixing of PVC with CaCO3 powder, PE with wood, and various plastic-chemical agent combinations. It is widely used in plastic pipe, profile, and pelletizing factories.

2. How does the machine handle heating and cooling?

The hot mixer utilizes raw material self-friction to increase temperature efficiently. The cool mixer uses a circuit water cooling system within the barrel jacket to maintain optimal temperatures.

3. What are the motor and control specifications?

The SRL-Z800/1600 model features high-quality SIEMENS brand motors (110kw/22kw) and utilizes ABB brand AC inverters for precise speed control.

4. Can the mixing process be automated?

Yes, the machine supports both manual and automatic control methods. These can be adjusted or revised according to your specific production requirements.

5. What is the production capacity and mixing time?

The machine has a mixing capacity of 700-750kg per hour, depending on the formulation. The standard mixing cycle typically ranges from 8 to 15 minutes.

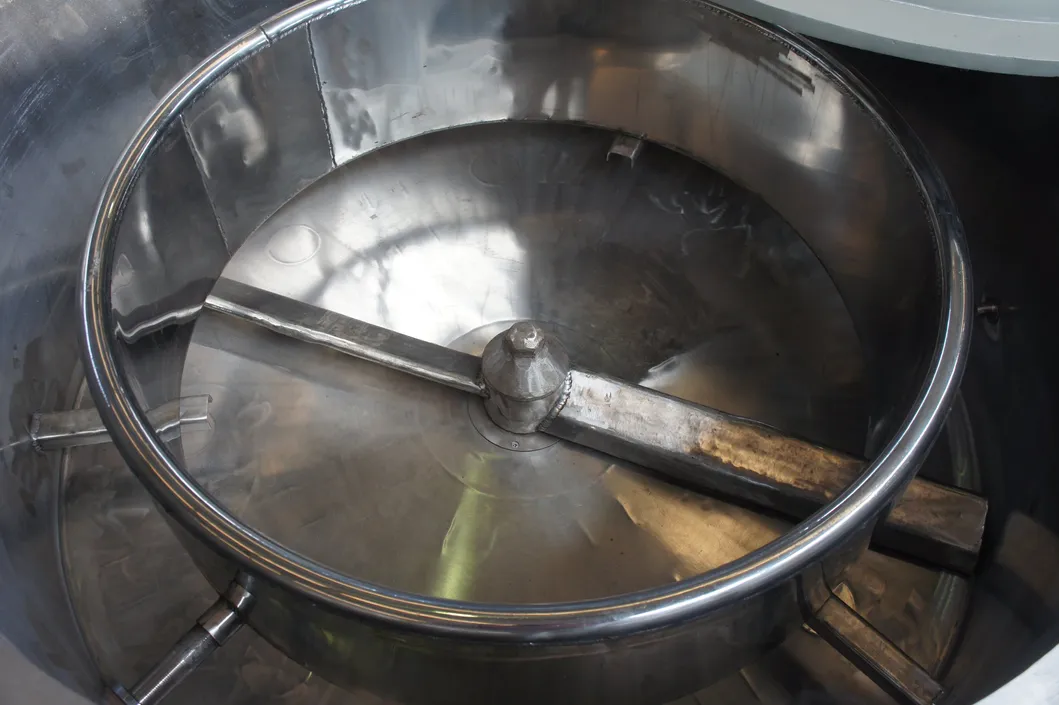

6. What is the material used for the mixer barrel?

The barrel is constructed from high-grade SS304 stainless steel with a robust thickness of 8mm to ensure durability and prevent contamination.
