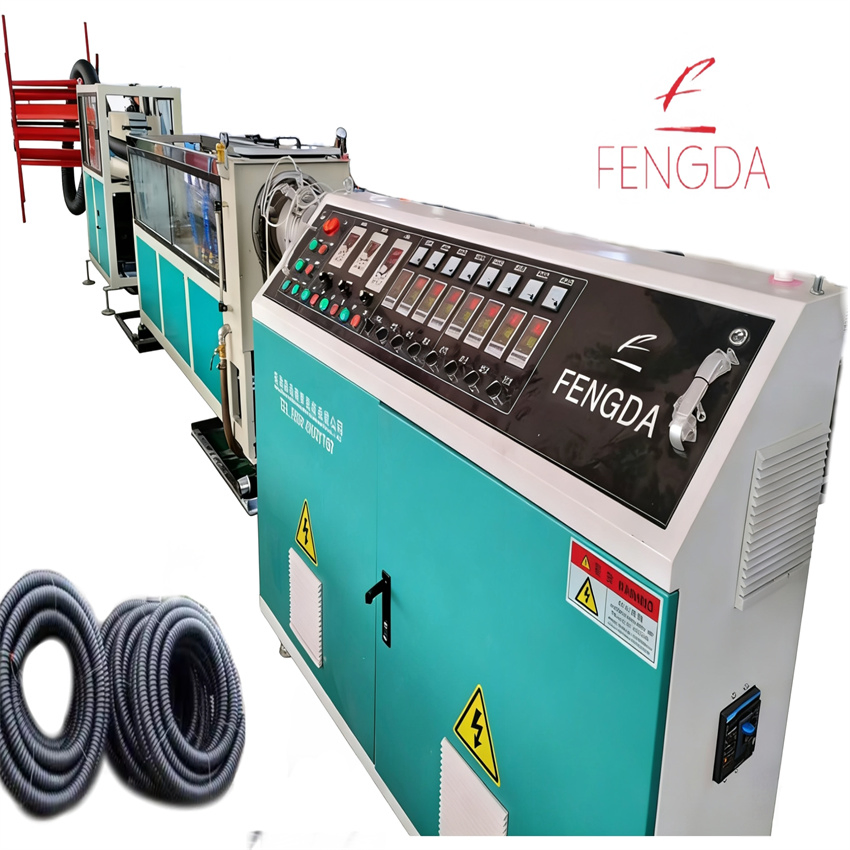

PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
1 / 5
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine

PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine

Customization: Available
Warranty: 12months
Product Type: PE/PP Carbon Spiral Pipe
Send Inquiry

Product Description

Basic Info

Model NO.
SJ45/30
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
Customized
Customized
Condition
New
After-sales Service
12months
Extruder
80-120kg/H
Main Motor
45kw
Cooling Method
Water Cooling
Line Length
15m
Screw Speed
100r/Min
Barrel Heating
Ceramic Heating
Temperature Control
Omron
Material of Mould
45steel Forging Treatment
HS Code
84772000
Capacity
20sets/Year

Product Description

PE Pipe Production Line

PE/PP Carbon Spiral Pipe Machine

This production line is designed for high brightness, energy efficiency, and environmental protection. Featuring a waterproof rating of IP67 and CE certification, it is suitable for various infrastructure projects including schools, parks, and roadsides. The equipment provides versatile styles to meet specific industrial needs with a standard 3-year warranty focus on reliability.

High-strength and high-toughness pipe production
Corrosion-resistant materials for diverse geological conditions
Efficient power communication and municipal engineering application

Available Pipe Sizes

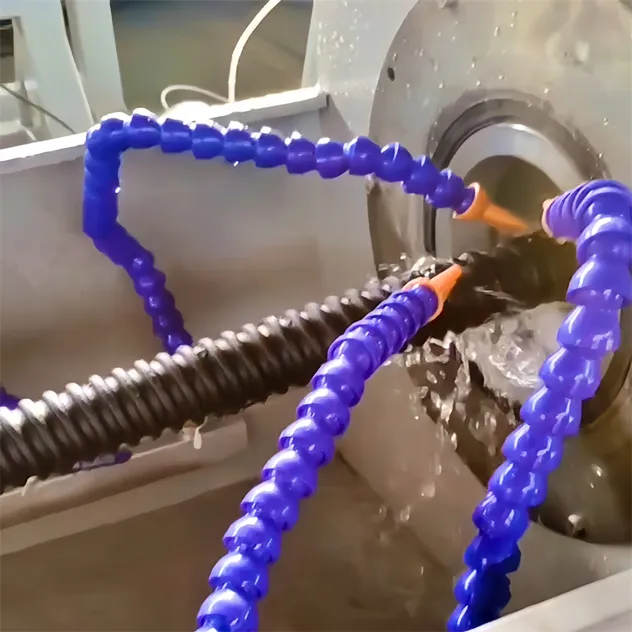

16mm-50mm

16mm - 50mm

50mm-160mm

50mm - 160mm

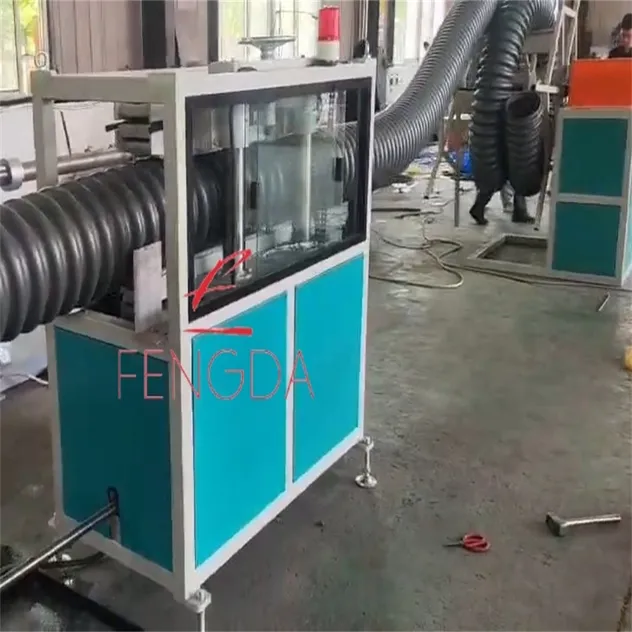

110mm-200mm

110mm - 200mm

PE/PP Carbon Spiral Pipe Production: Small diameter pipes offer advantages in installation and space occupancy, ideal for protecting indoor communication lines and small base station cables. Larger diameters (50-160mm) are widely used in municipal street lighting and agricultural irrigation due to their high strength and impact resistance.

Key System Components

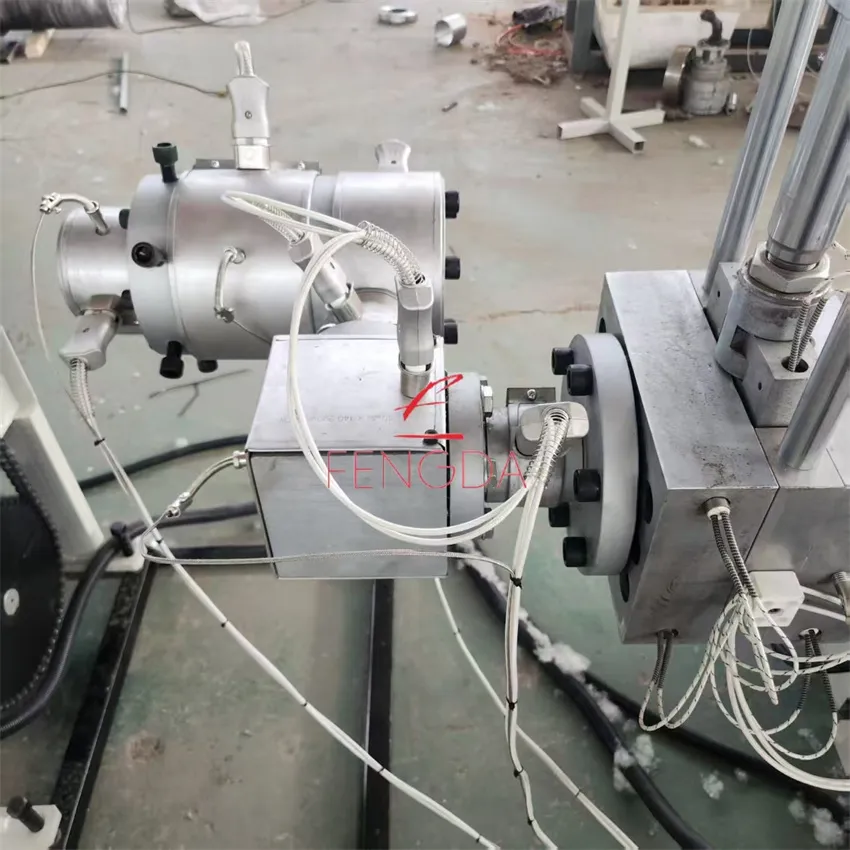

Mold System

Precision Mold System

Consists of a die head, core mold, and shaping sleeve to ensure accurate diameter and stable cooling.

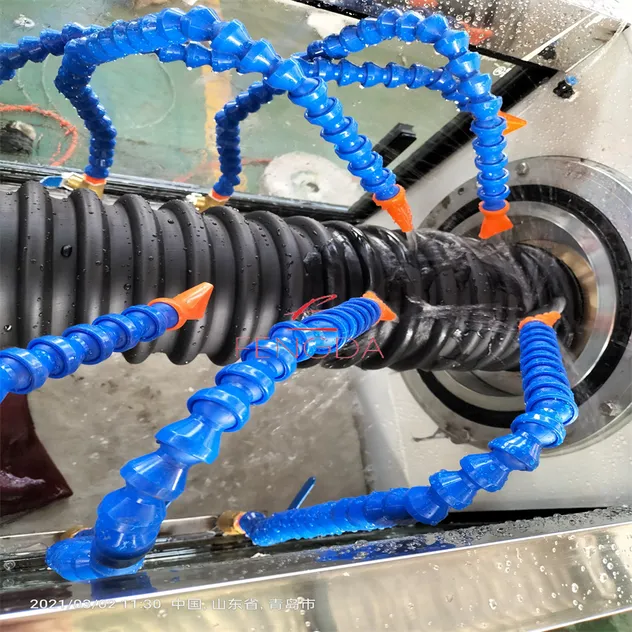

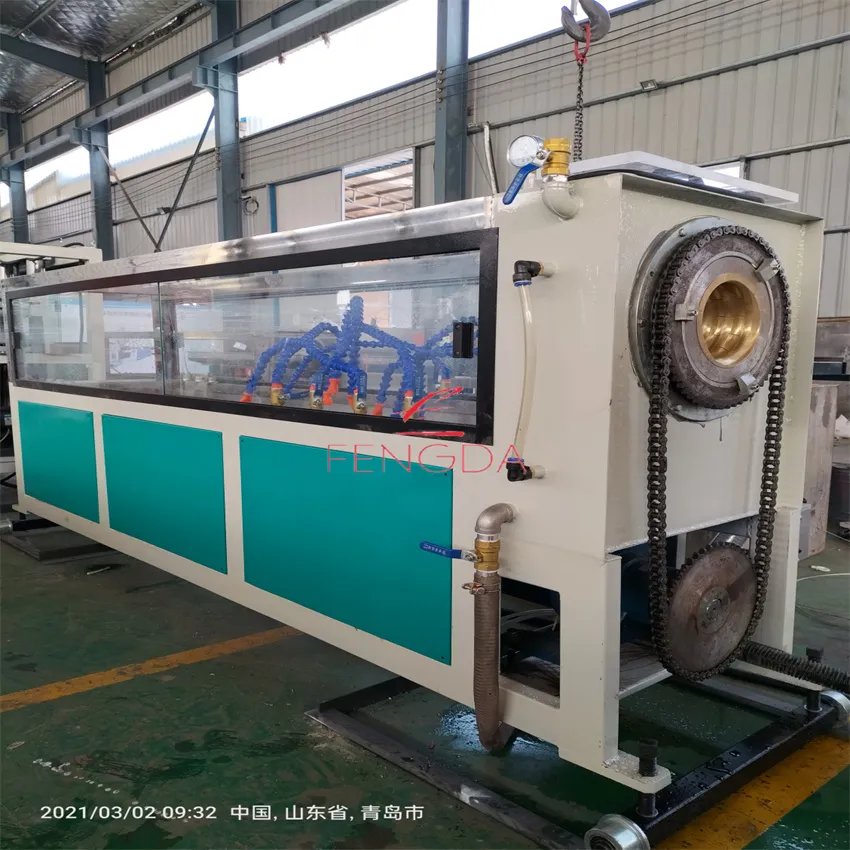

Water Cooling Box

Stainless Steel Water Box

Features a 20-head spray system (0.3-0.5MPa) achieving 30% higher efficiency than immersion methods.

Traction & Winding System

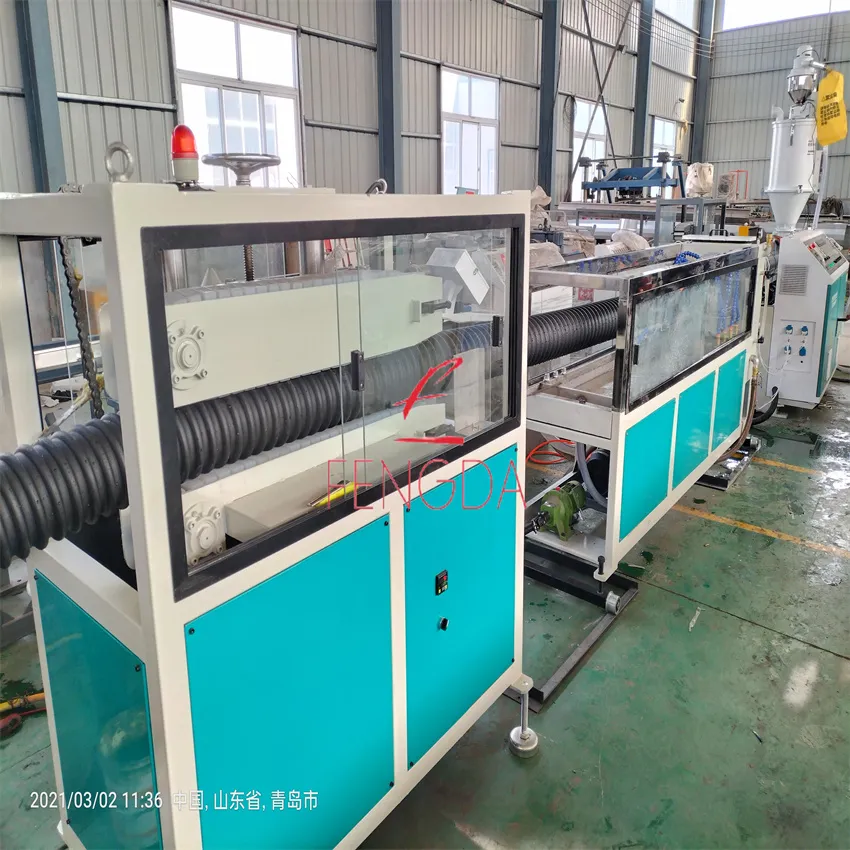

Traction Machine

Crawler Traction

Servo-motor controlled tracks (1-5m/min) prevent pipe deformation through synchronized tension control.

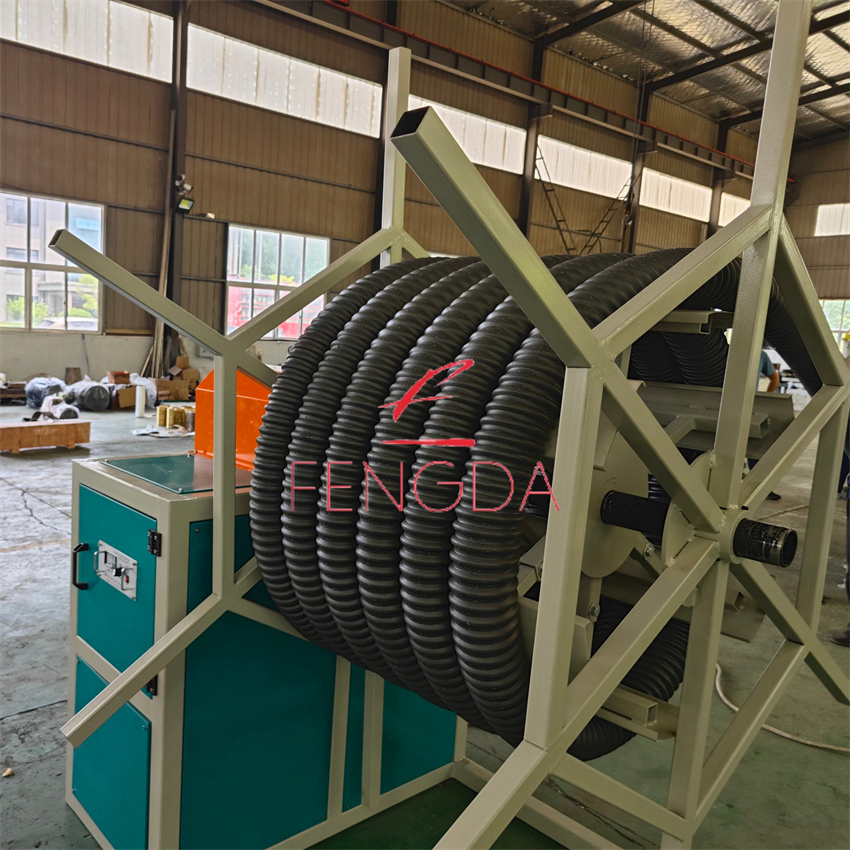

Winding Machine

Automatic Reel System

Available in horizontal and vertical configurations with disc diameters up to 2.0 meters.

Technical Specifications

Screw Size SJ65/30 SJ75/30 SJ90/30
Pipe Size (mm) 20-50 50-125 160-200
Extrusion Volume 60-80KG/H 80-120KG/H 120-150KG/H
Motor Power 30KW 45KW 55KW
Cooling Method Water Cooling Water Cooling Water Cooling
Raw Material PP / PE PP / PE PP / PE
Line Length 15m 20m 25m

Equipment Showcase

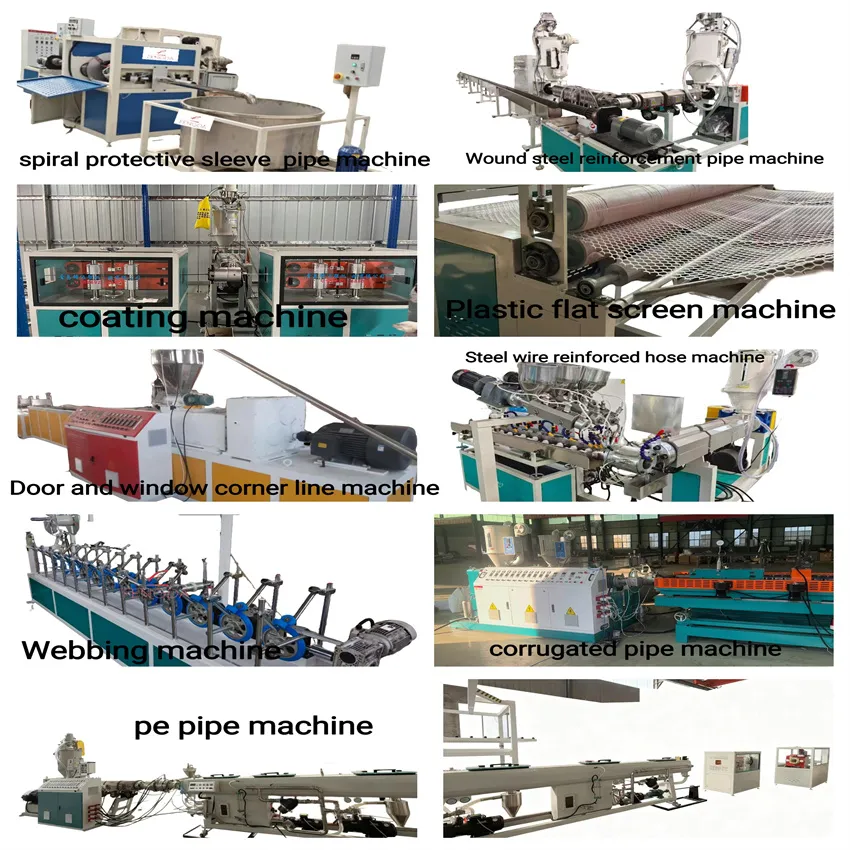

Hot Sale 1

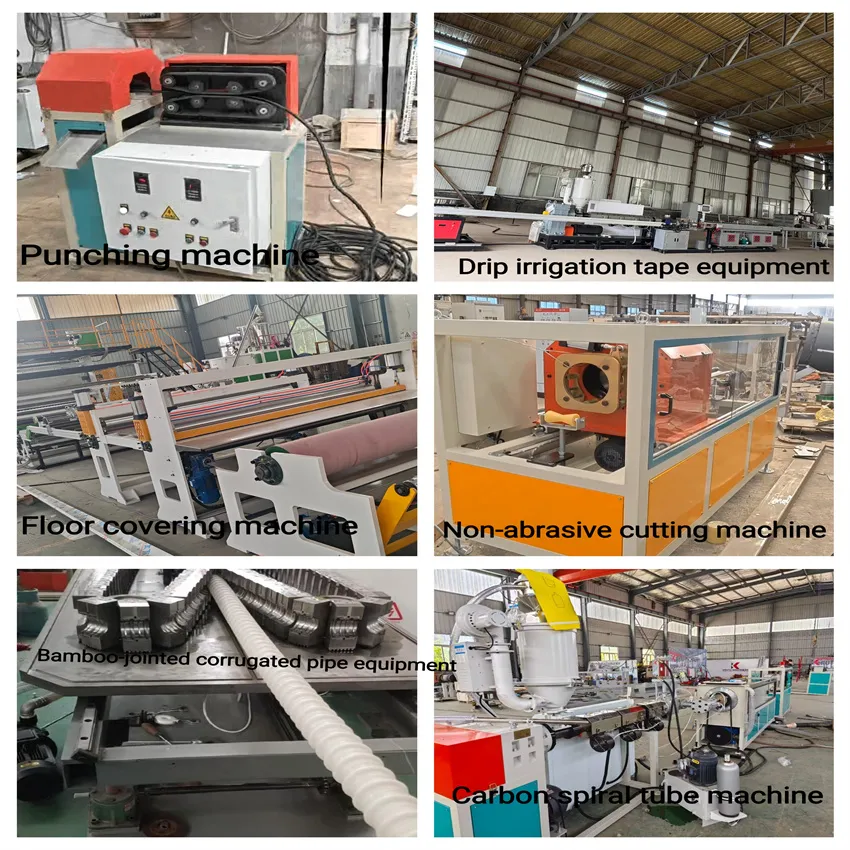

Hot Sale 2
Workshop 1
Workshop 2

Frequently Asked Questions

What is the standard purchasing process for your machines?
Confirm specifications -> Prepare contract -> Pay deposit -> Production -> Completion notification -> Testing at factory -> Buyer inspection -> Balance payment -> Shipment -> On-site installation and debugging.
What kind of quality assurance and after-sales service is provided?
All equipment comes with a one-year warranty. We provide free vulnerable parts upon delivery, online video guidance for technical issues, and professional debugging personnel for on-site support.
Are you a trading company or a source factory?
We are a dedicated source factory with fifteen years of rich experience in the field of mechanical equipment manufacturing and innovation.
How does the cooling system differ from traditional methods?
Our system uses a 20-nozzle stainless steel spray method. This provides 30% higher cooling efficiency than traditional immersion and prevents water marks on the pipe surface.
Can the machine produce different pipe sizes?
Yes, depending on the model (SJ65 to SJ90), the machine can be configured to produce pipes ranging from 20mm up to 200mm in diameter using specific mold sets.
Is customization available for specific industrial requirements?
Yes, our equipment is fully customizable. We can adjust configuration parameters, motor power, and line lengths to meet your specific production needs.

Related Products

Plastic HDPE Pipe Polyethylene Tube Making Machine Agricultural Irrigation Hose PE PPR Water Hose Extruded Manufacturer

Plastic HDPE Pipe Polyethylene Tube Making Machine Agricultural Irrigation Hose PE PPR Water Hose Extruded Manufacturer
Conical Twin Screw PVC Pipe Extrusion Machinery Manufacturer Plastic Drainage/Sewege PVC Plastic Pipe Production Line

Conical Twin Screw PVC Pipe Extrusion Machinery Manufacturer Plastic Drainage/Sewege PVC Plastic Pipe Production Line
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine

Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine

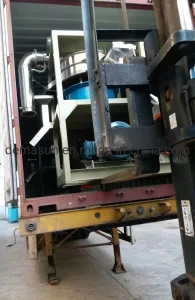

Good Performance Plastic Machine PVC Pulverizer Plastic Powder Milling Machine Pipe Line PVC Recycling Machine PVC Powder Grinding Machine

Good Performance Plastic Machine PVC Pulverizer Plastic Powder Milling Machine Pipe Line PVC Recycling Machine PVC Powder Grinding Machine

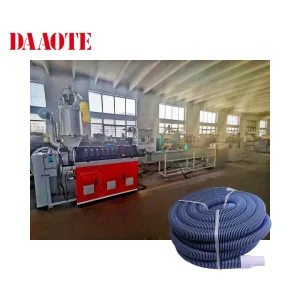

Plastic EVA Spiral Helix Corrugated Flexible Vacuum Dust Cleaner Pipe Extrusion Machinery

Plastic EVA Spiral Helix Corrugated Flexible Vacuum Dust Cleaner Pipe Extrusion Machinery

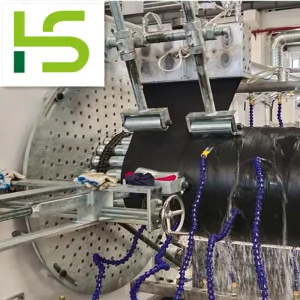

Pre-Insulated Pipe Making Machine HDPE Jacket Pipe Extrusion Machine/Plastic Pipe Machine

Pre-Insulated Pipe Making Machine HDPE Jacket Pipe Extrusion Machine/Plastic Pipe Machine

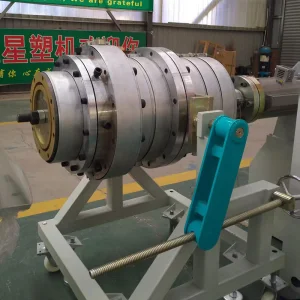

High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion

High-Efficiency PE Water Supply Pipe Extruder Manufacturing Machine/Plastic Pipe Extrusion
PPR PVC HDPE Plastic Pipe Threading Machine for Internal External Threads

PPR PVC HDPE Plastic Pipe Threading Machine for Internal External Threads
PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine

PE Pipe/Cod Cable Porous Pipe Production Line/Plastic Carbon Spiral Pipe/Conduit Tube/Making Machine

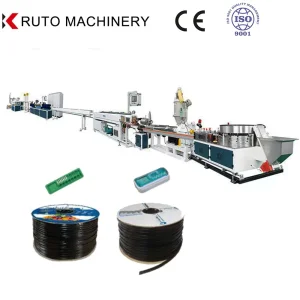

Flat Type PE Irrigation Drip Pipe Agricultural PE Pipe Extrusion Line Drip Irrigation Hose Making Machine PE Water Pipe Making Machine
