| Model NO. | TH-HB160-230L | Raw Material | PE |
|---|---|---|---|
| Making Method | Extrusion-Blow Molding | Automation | Automatic |
| Certification | CE, ISO9001:2008 | Control System | Gefran |
| Screw Diameter | 100-120mm | L/D Ratio | 30 |
| Product Capacity | 160-230L | HS Code | 84772090 |

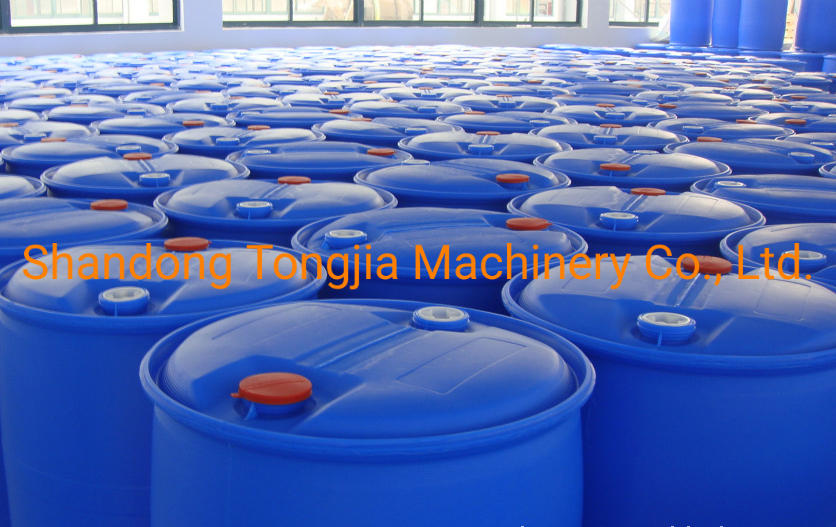

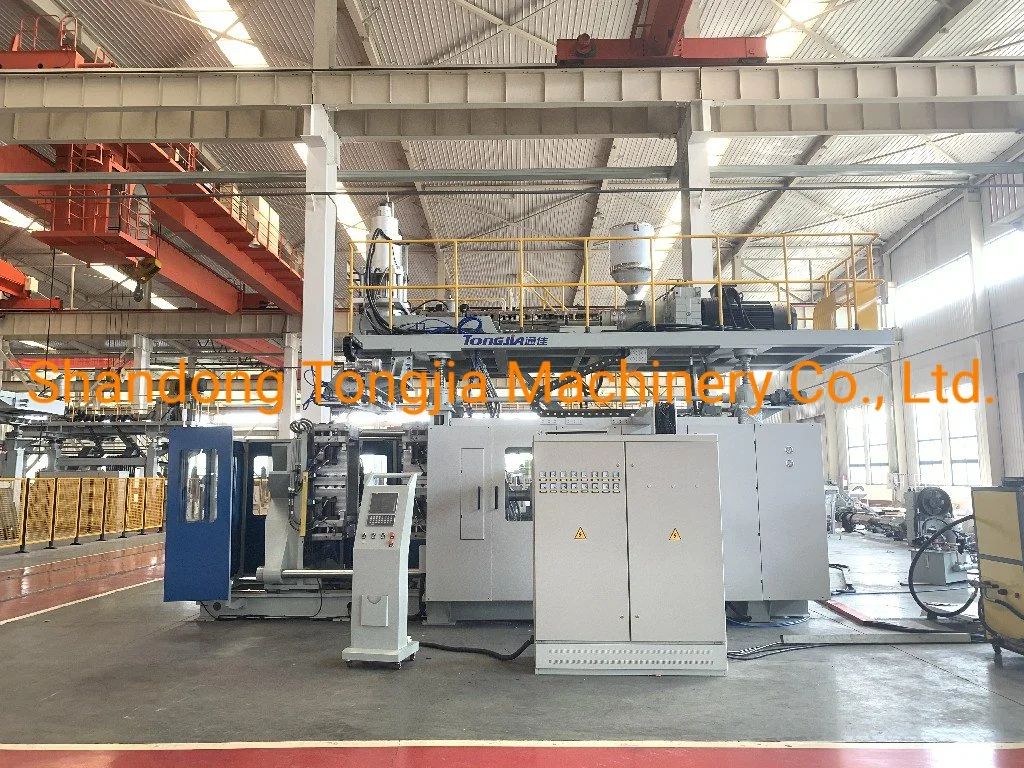

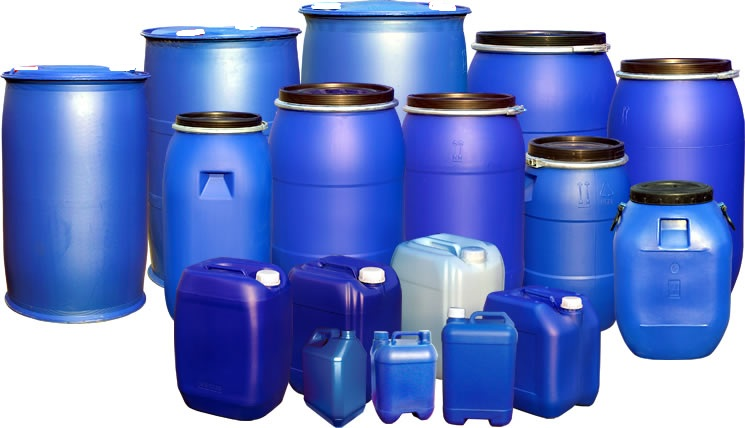

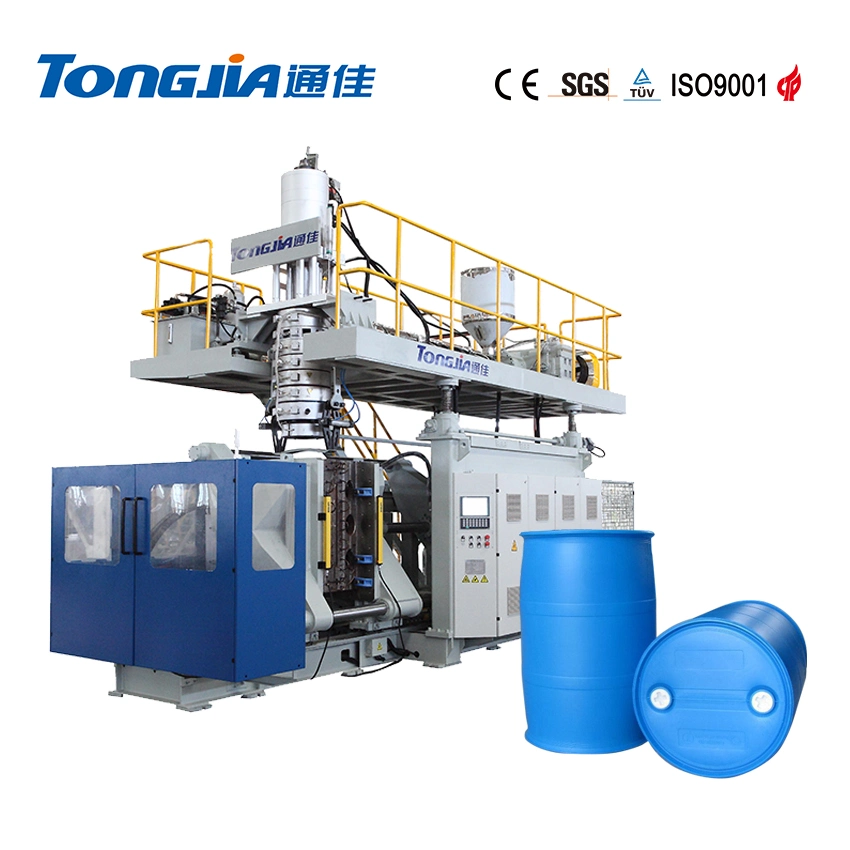

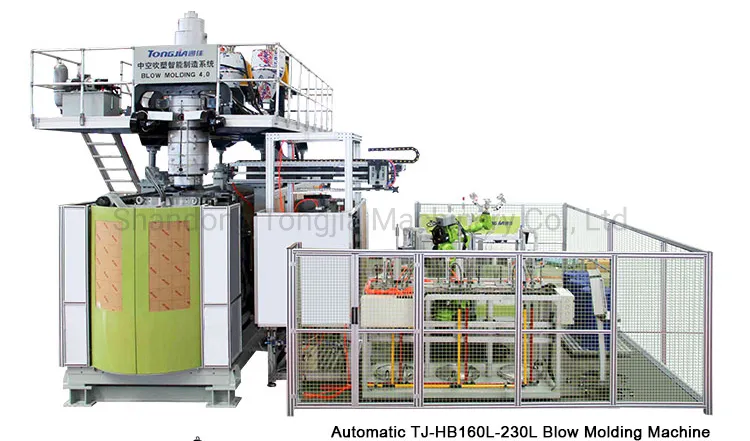

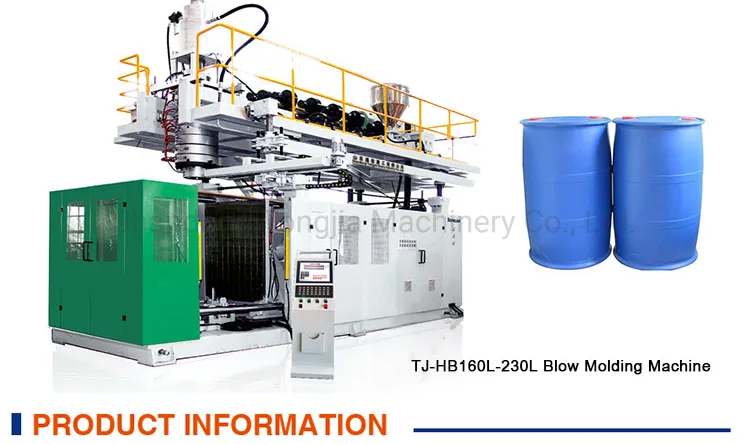

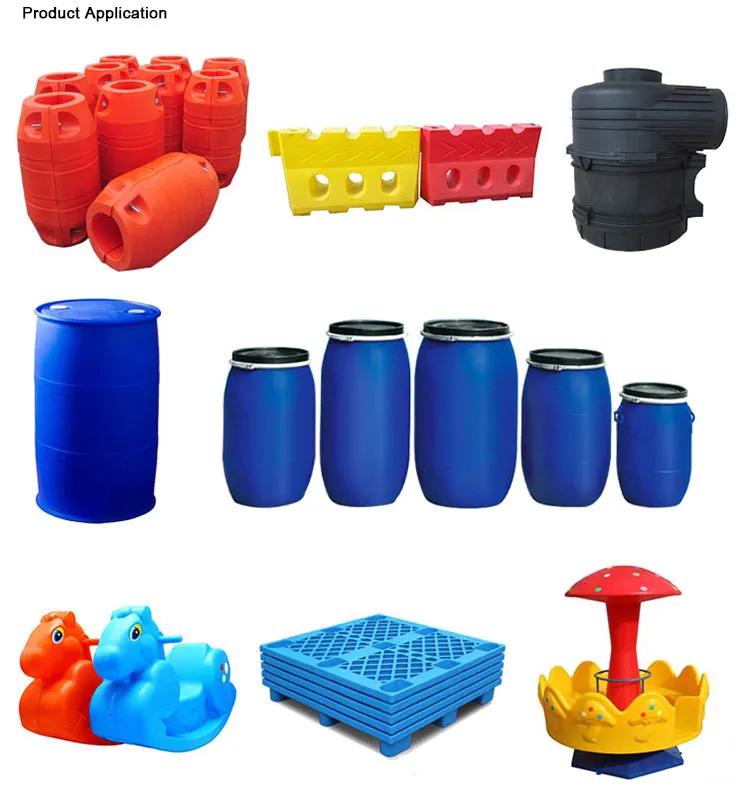

The series blow molding machine is a new generation of fully automatic equipment specially developed for 120-220L closed barrels and open barrels. The system adopts hydraulic servo control, which is highly energy-saving and efficient. It is designed to produce high-quality single-ring and double-ring barrels.
Featuring a storage die head and a new runner design, the machine ensures fast color changes. Multi-layer die heads can be integrated based on specific requirements. The mold shifting system moves back and forth to maintain stability and provides convenience during mold changes without moving the overall extruder platform.
| Specifications | Units | Model 160L | Model 230L |
|---|---|---|---|
| Max. product capacity | L | 160 | 230 |
| Machine dimension | m | 6.5x4.1x4.0 | 8.4x4.9x5.5 |
| Machine weight | Ton | 20 | 38 |
| Mold platen size | mm | 1020x1250 | 1320x1600 |
| Plasticising capacity | kg/hr | 180 | 280 |
| Extruder driving power | KW | 90 | 132 |
Q1: What is the warranty policy for the machinery?
A1: We provide a guarantee for 18 months from the date of shipment or 12 months from the completion of installation and adjustment, whichever comes first.
Q2: What is the minimum order quantity (MOQ)?
A2: The minimum order quantity is 1 set, or it can be negotiated based on specific requirements.
Q3: How is the equipment packaged for shipping?
A3: The machine is coated with anti-corrosion oil, covered with plastic film, and then securely packed in a wooden box for transport.
Q4: Do you provide on-site technical support and training?
A4: Yes, we provide high-quality overseas service, including technical support, on-site assembly, testing, and staff training at your facility.
Q5: What are the accepted terms of payment?
A5: We accept multiple payment methods including T/T, L/C, D/P, Western Union, Paypal, and Money Gram.
Q6: Are there technical manuals included with the purchase?
A6: Yes, a detailed user manual is provided. Our team is also available for further assistance if specific problems cannot be solved via the manual.
