Product Description

Basic Information
Model NO.
HR
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Capacity
1000kg/H
Washing Type
Hot Washing
Final Product
Clean PET Flakes
Flakes Size
12mm-20mm
Product Description

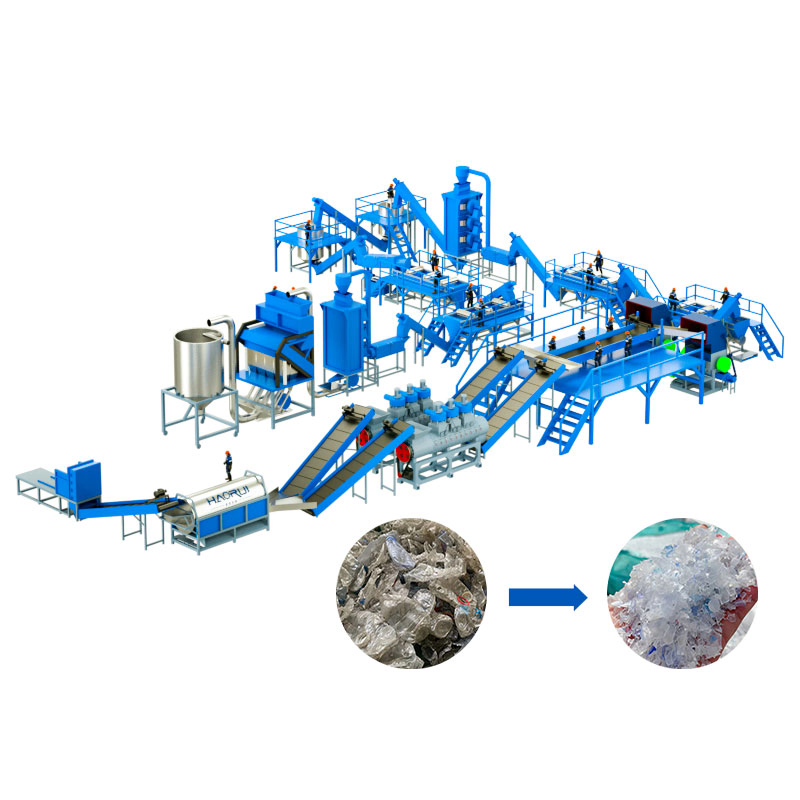

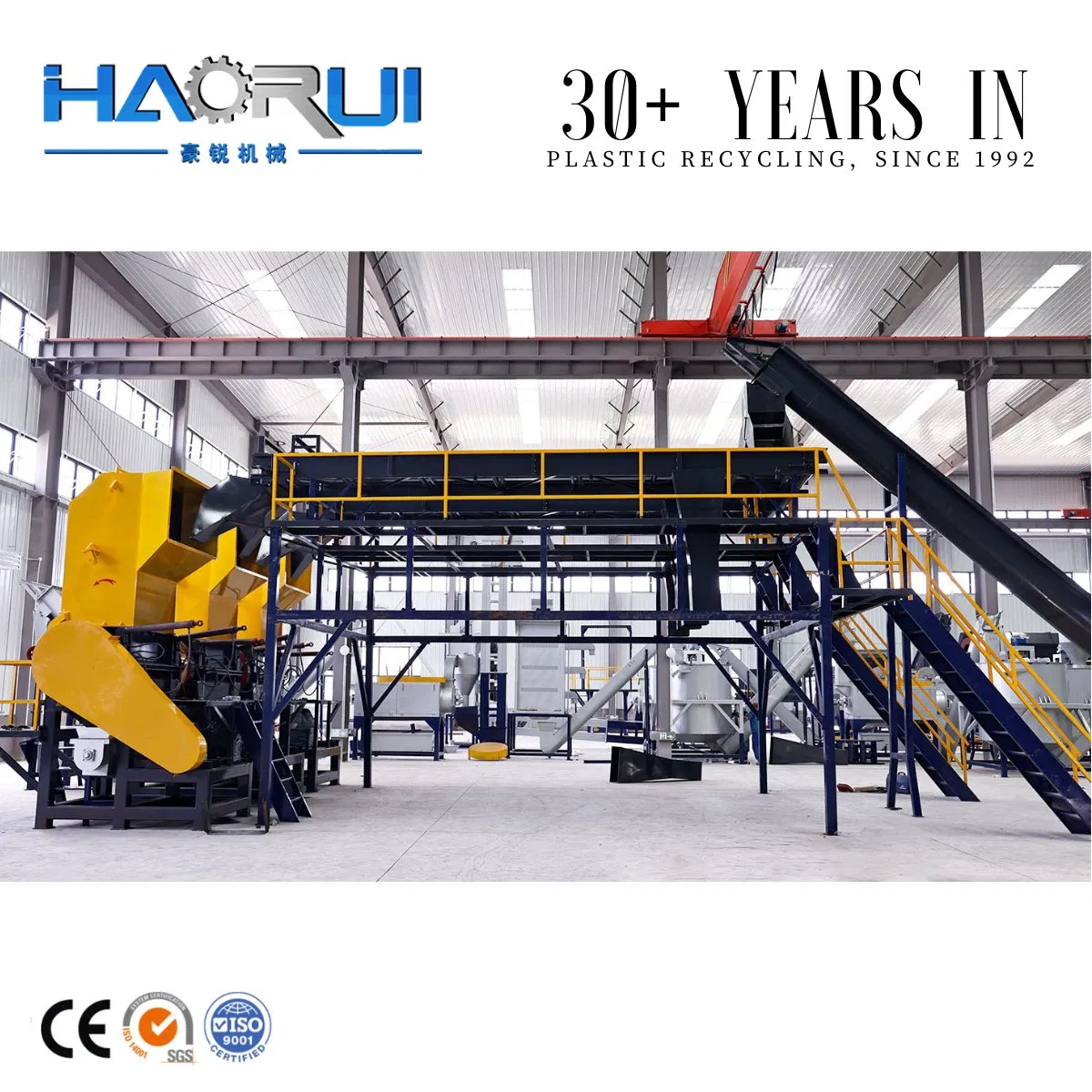

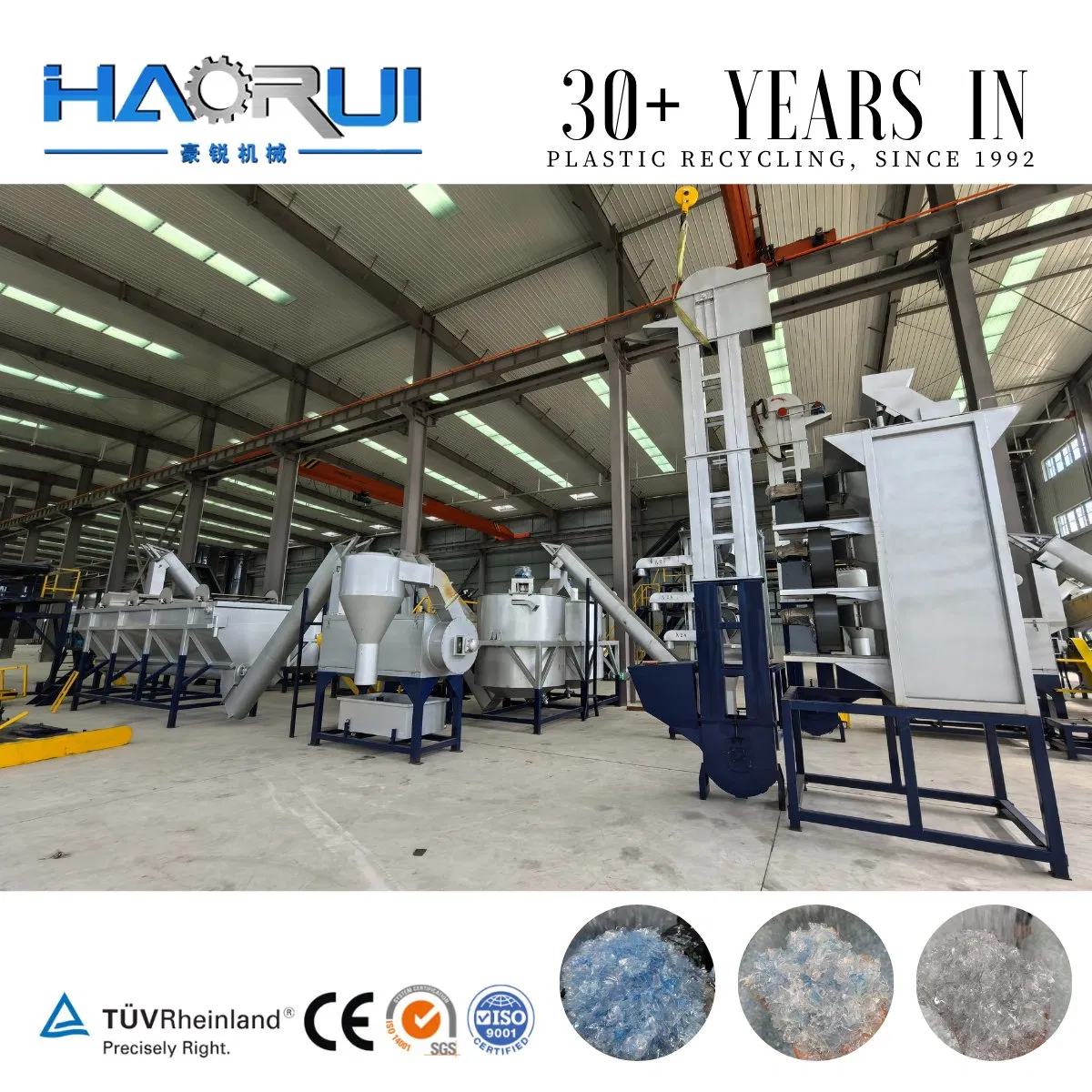

Plastic Bottle Recycling Equipment

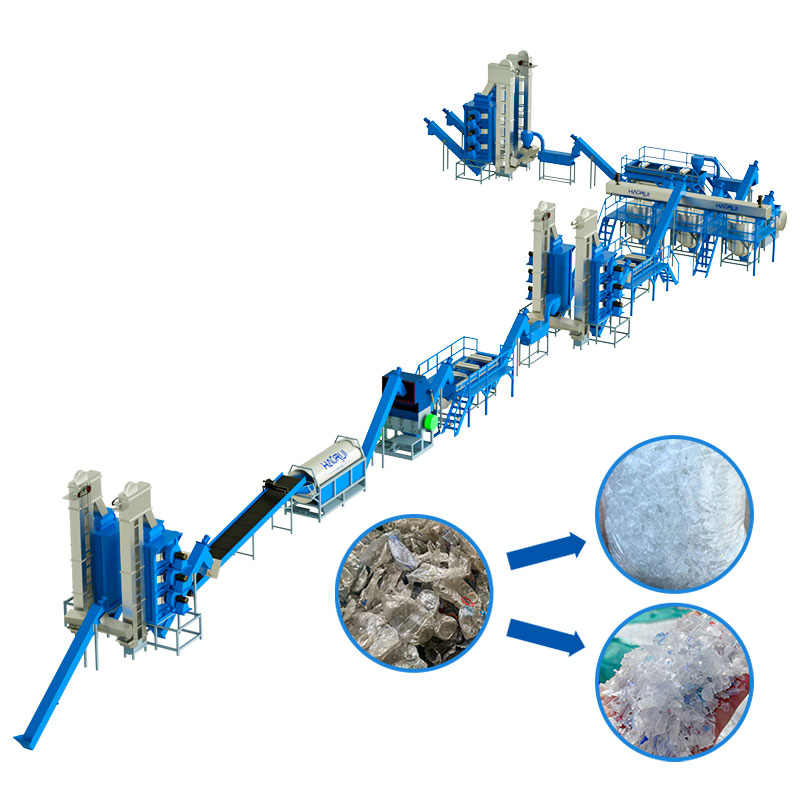

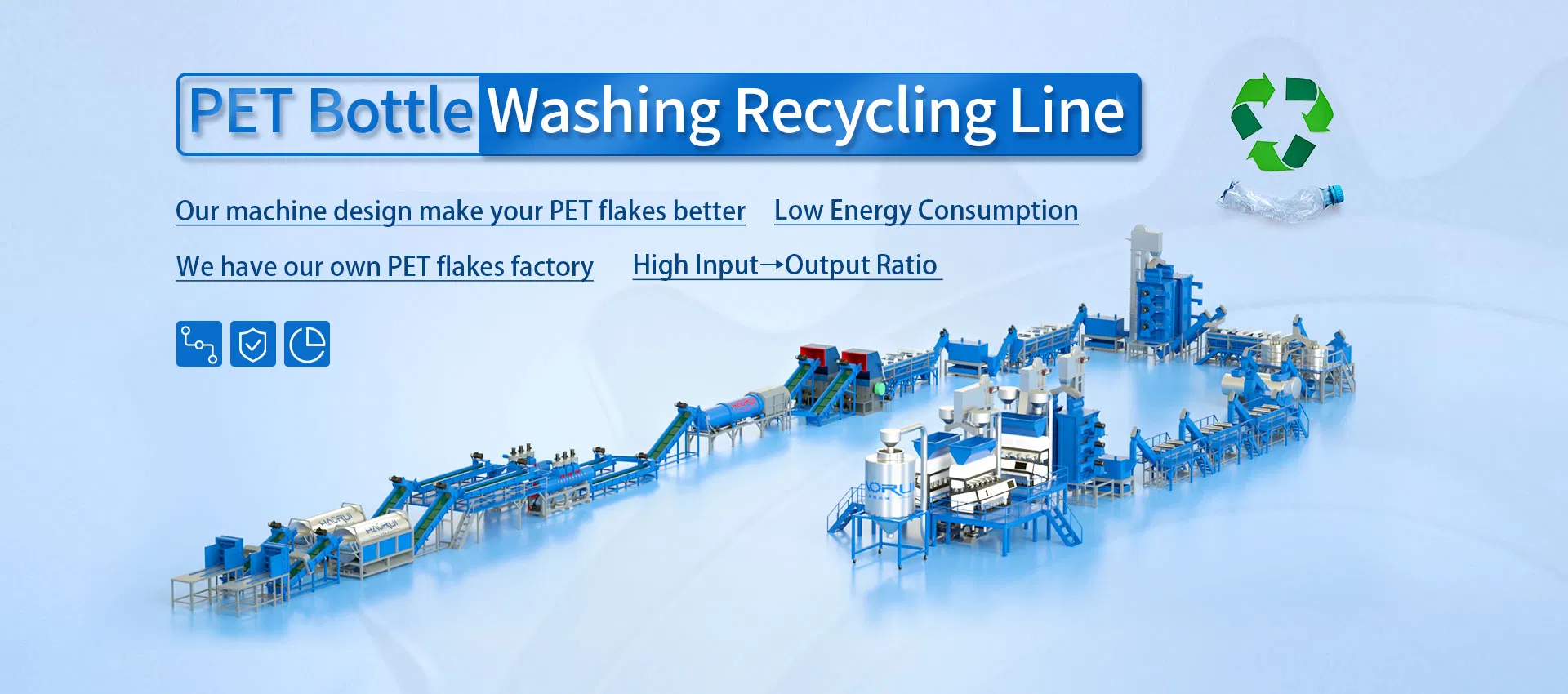

PET Bottle Recycling & Washing Line Profile

This professional production line is engineered to transform contaminated post-consumer PET bottles (such as mineral water and soft drink bottles) into clean, dry, and high-purity PET flakes.

Input Materials: Post-consumer PET bottles (baled or loose).
Output Materials: High-purity rPET Flakes.
Applications: Recycled polyester filament, PET strapping, packaging sheets, and Food Grade recycled materials.
Technical Specifications
Type Capacity Power Factory Area Weight
500800kg/h80kw~150kw500sqm20t
10001500kg/h100kw~200kw800sqm20t
20002500kg/h200kw~250kw1200sqm30t
30003500kg/h300kw~350kw1500sqm40t
50005500kg/h500kw~600kw2000sqm50t
60006500kg/h600kw~800kw3000sqm70t
End Product Quality Indicators:
Moisture Content: < 1%
PVC Content: < 100 ppm (down to 30ppm available)
Label & Impurity Content: < 0.03%
All-in-One Recycling Solutions
Recycling Solutions

Integrating modular solutions for the entire spectrum of plastic recycling. From bottle-to-bottle grade washing to high-performance PP/PE recovery systems, we maximize your purity and profit.

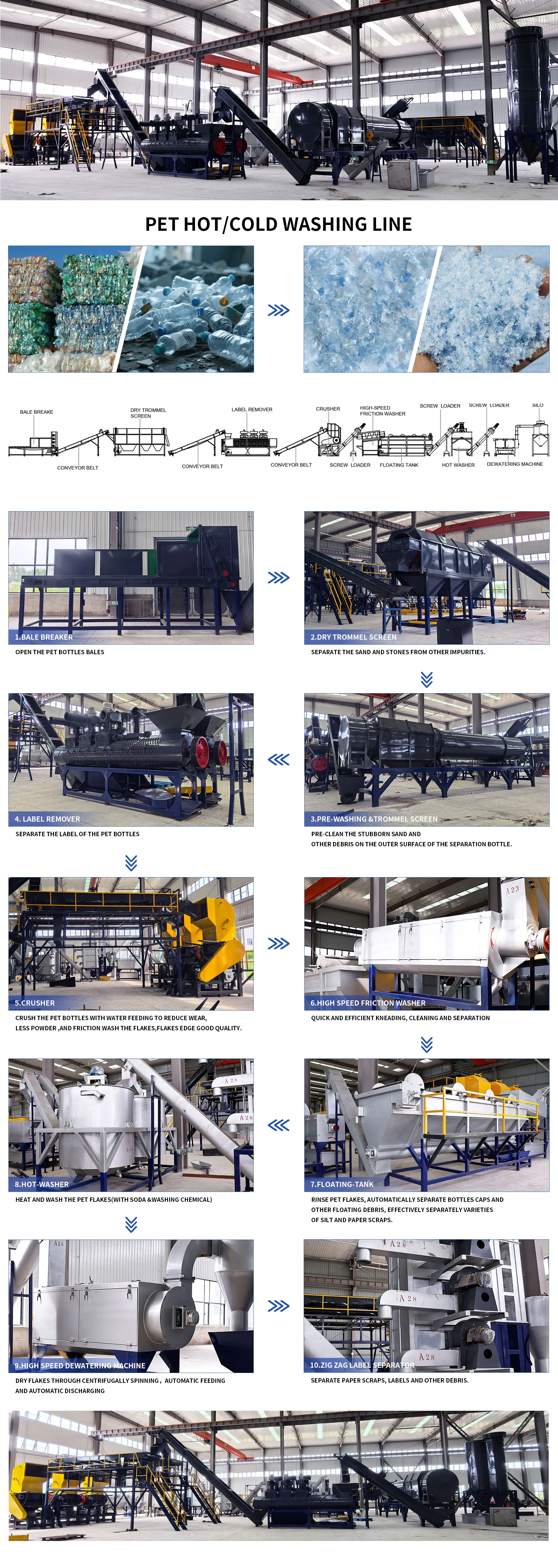

1. PET Bottle Washing: Label scraping, high-temperature alkaline washing, and multi-stage rinsing.
2. PP/PE Flexible & Rigid Line: Versatile modular platform for agricultural films and industrial containers.
Professional Manufacturing

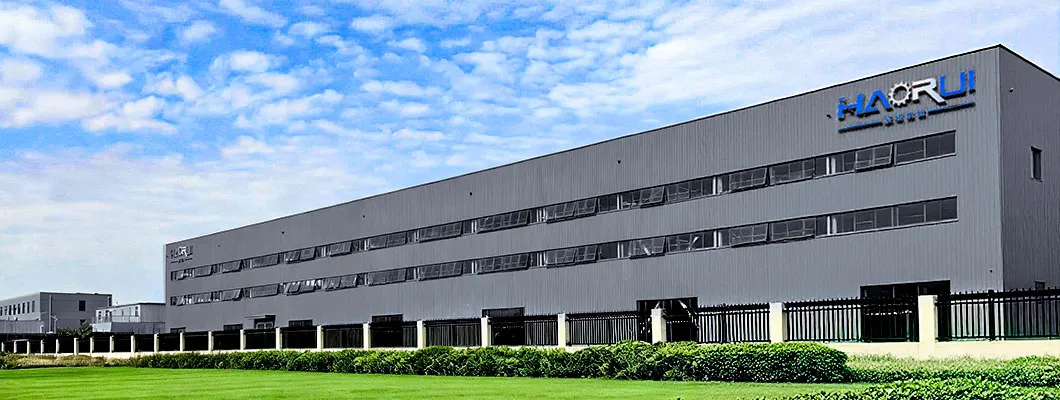

Factory Overview

Established in 1992, we are a professional manufacturer and exporter of PET bottle recycling machines and pelletizing systems. With over 30 years of experience and a dedicated R&D team, our designs ensure efficiency and durability.

Our workshop covers 76,666 m² and features a global sales network covering over 80 countries including the USA, Turkey, and various nations across Africa and Asia.

Equipment Manufacturing
Certifications & After-Sales
Certification 1 Certification 2
Support Services:
  • Free insurance for goods.
  • 24/7 online technical support.
  • Detailed installation videos and manuals.
  • On-site engineer commissioning and training.

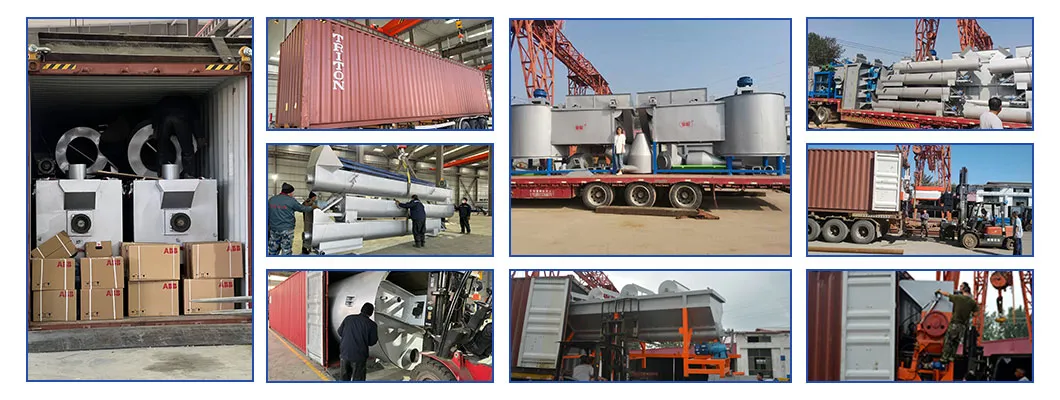

Packaging & Shipping:
  • Film, pallet, or wooden case options.
  • Photographic loading records for clients.
  • Direct warehouse delivery services.
Shipping
Frequently Asked Questions
What is the production capacity of the PET washing lines?
We provide scalable solutions with standard capacities ranging from 500 kg/h to 7,000 kg/h, designed for either Fiber Grade or Food Grade (B2B) output.
What is the purity level of the final flakes?
Our technology ensures moisture content is less than 1%, and PVC contamination can be reduced to less than 100 ppm (or as low as 30 ppm with specialized separators).
How does the system handle labels and stubborn adhesives?
The line features a mechanical Label Remover and an Intensive Hot Washing System using heated water and chemical dosing to dissolve organic residues.
What are the key stages of the recycling process?
The automated line includes bale opening, label stripping, crushing with water, sink-float separation, hot washing, friction scrubbing, and centrifugal drying.
What kind of installation support is available?
We provide free CAD plant layouts. Professional engineers are available for on-site installation, commissioning, and staff training globally.
What is the standard lead time and warranty?
Production time typically ranges from 30 to 70 days. All equipment is backed by a 1-year warranty and lifetime technical support.
