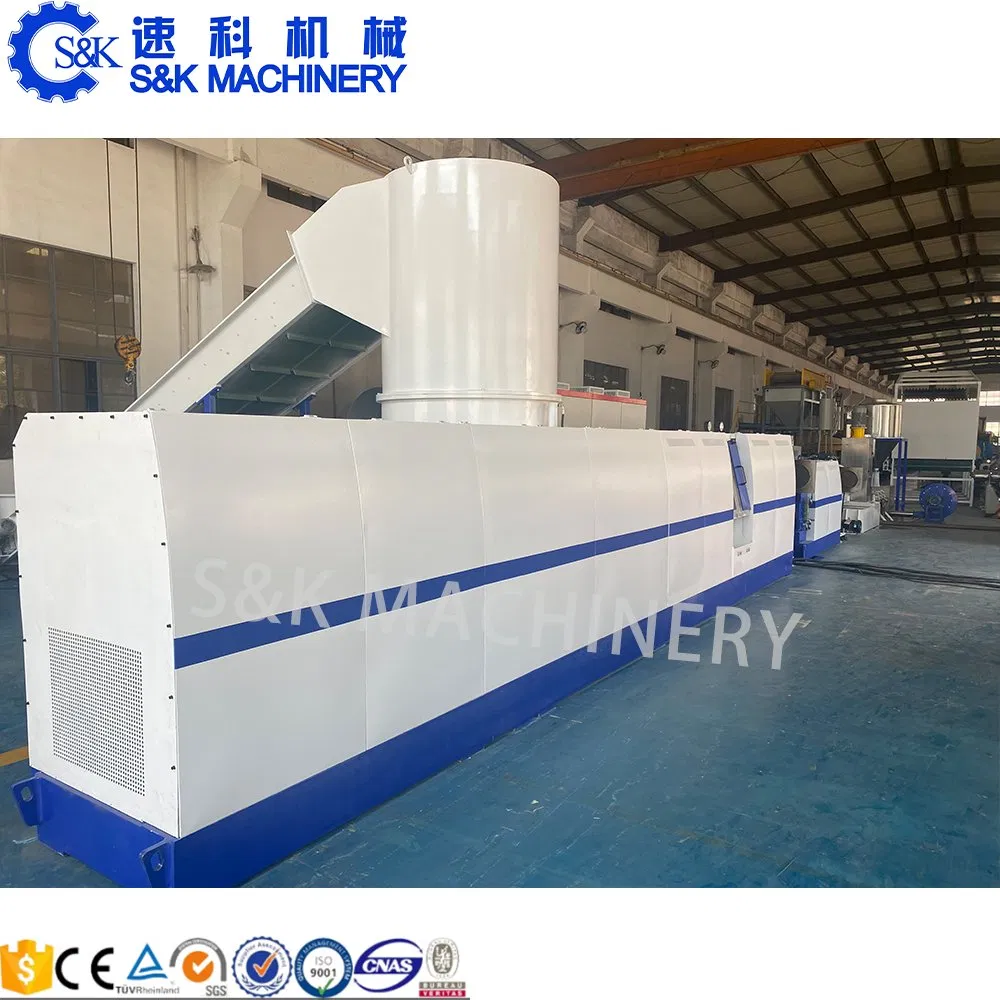

Plastic Pet Bottle Recycling Pelletizing Granulator Granulation Line PE PP HDPE Bottle Bucket Pallet Recycling Pelletizing Granulator Granulation Machine

Customization: Available
After-sales Service: 2 Year
Warranty: 2 Year

Product Description

Basic Product Information

Raw Material:
PE, PP, PVC, PA, PS, PET, HDPE, LDPE
Screw:
Single-Screw
Automation:
Automatic / Computerized
Condition:
New
Power Range:
10-295kw
Voltage:
380V / 220V Customized
Weight:
5-20t
Certification:
CE, ISO9001:2008
Capacity:
20 Sets Per Month
HS Code:
8479820090

Product Description & Workflow

Plastic Recycling Granulator Line
Recycling Granulation Process

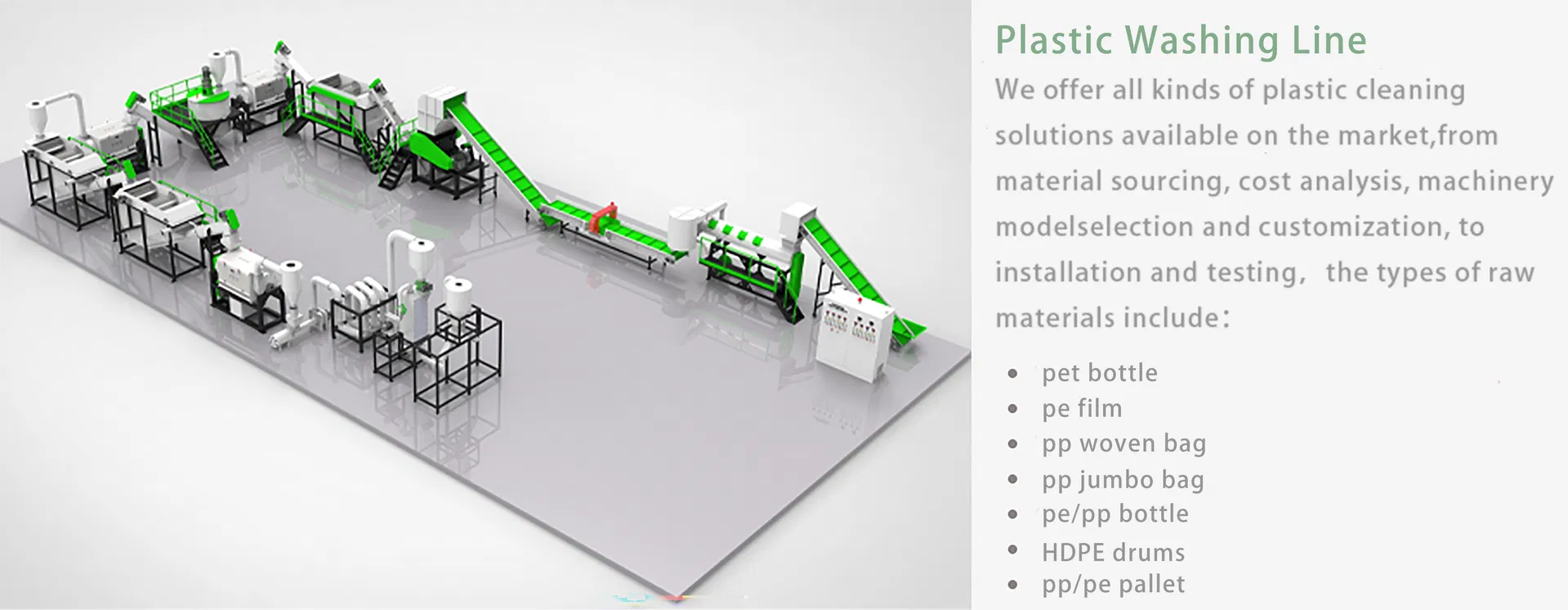

Recycling Machine Components
Main Technical Parameter: PE PP Film & Woven Bag Washing Line
Capacity (kg/h) Total Power (kw) Area Required (m2) Labour Required Water (m³/h)
3001302402-3 workers0.5
5002003602-3 workers0.7
10003004503-4 workers1
20005006504-5 workers2
Main Technical Parameter: PET Bottle Washing Line
Capacity (kg/h) Total Power (kw) Area Required (m2) Labour Required Steam (kg/h) Water (m³/h)
5002006506-8 workers3201
100045010008-10 workers4802
2000700150010-12 workers8304

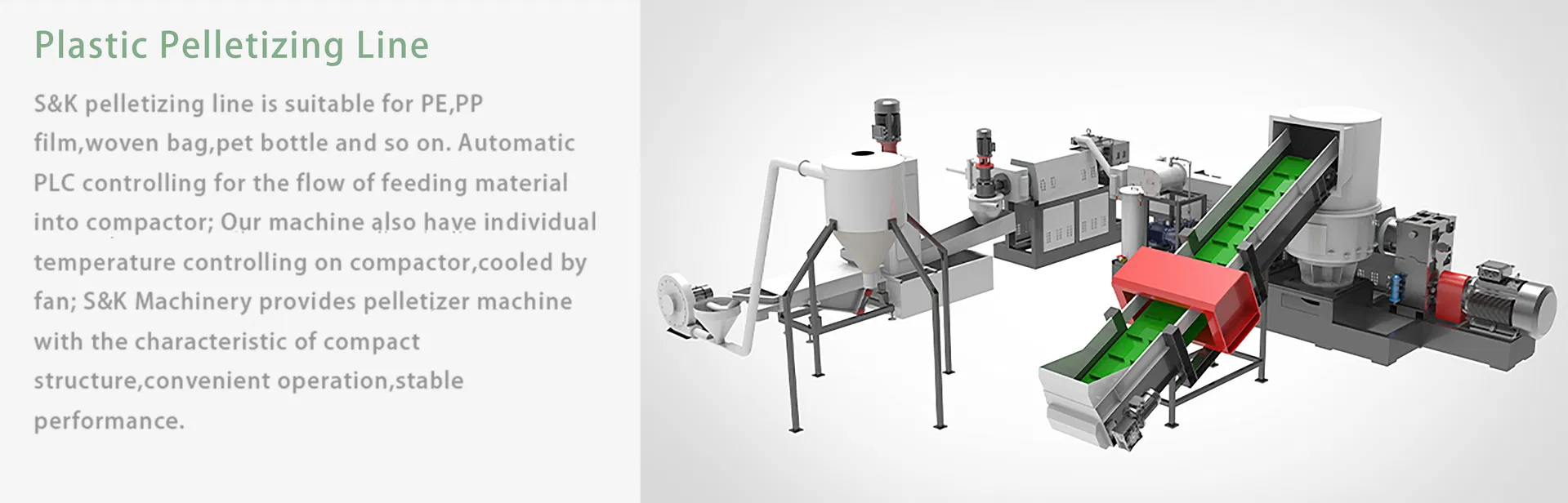

Woven Bag Pelletizing Line
PE PP Film & Woven Bag Pelletizing Line Specs
Model Capacity (kg/h) Compactor Power Stage 1 Power Stage 2 Power
SJ-100/100250-35055kw90kw30kw
SJ-130/130500-60090kw132kw55kw
SJ-180/200900-1000132kw200kw90kw

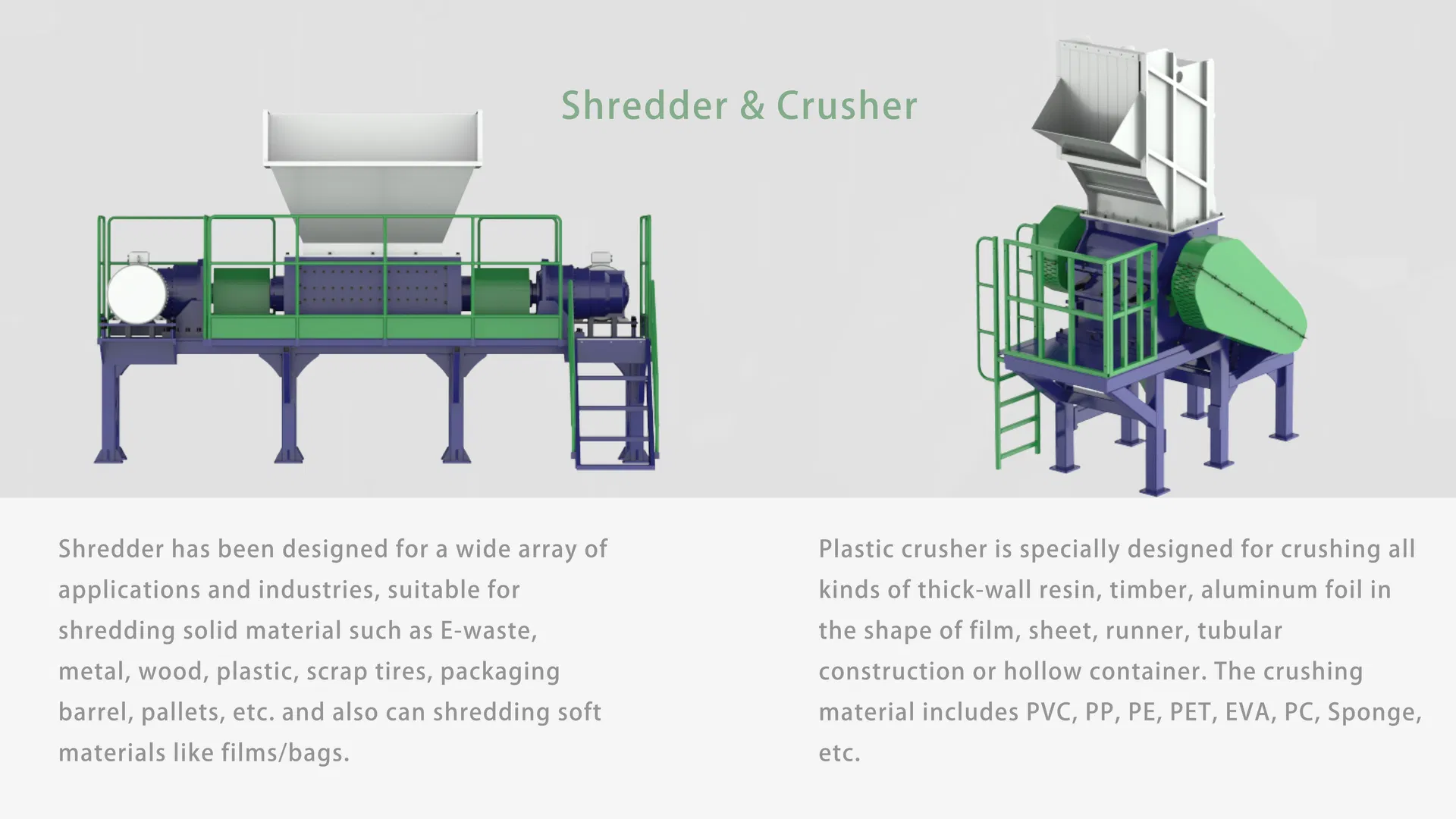

Pelletizing Granulator Details
Machine Structure

Professional Certification

Industry Certification

Packing & Delivery

To provide customers with efficient, convenient and safe cross-border trade one-stop import and export services.
Package Size:
12000.00cm * 700.00cm * 2000.00cm
Gross Weight:
10000.000kg
Transport Package:
Wooden Case

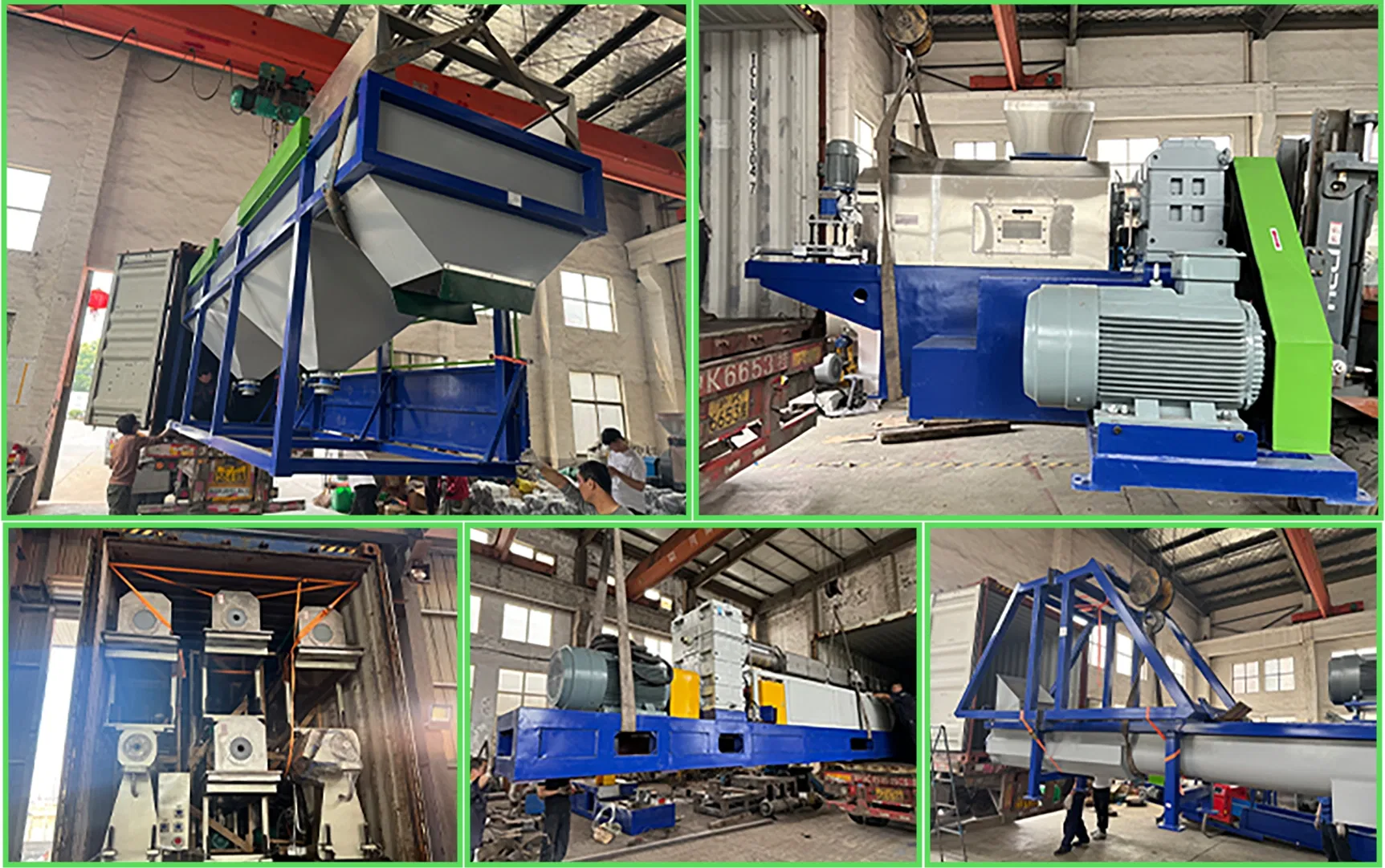

Packaging Process

Customer Cooperation

Working with Customers

Frequently Asked Questions

What types of plastic can this granulation line recycle?
The system is designed to process a wide range of materials including PE, PP, PVC, PA, PS, PET, HDPE, and LDPE in various forms such as films, woven bags, and rigid plastics.
What is the production capacity of the machinery?
Depending on the specific model and material, capacity ranges from 150 kg/h up to 3000 kg/h for high-end washing and pelletizing lines.
Is the equipment energy efficient?
Yes, our machines utilize Siemens brand components and electromagnetic heaters to ensure high thermal efficiency and reduced power consumption.
Can the machine specifications be customized?
Absolutely. We offer customized solutions for voltage, machine color, and specific technical parameters to meet your local requirements and facility space.
How many workers are required to operate the line?
Due to the high level of automation and computerized controls, most lines require only 2 to 5 workers per shift, depending on the scale of the operation.
What certifications does the machinery hold?
The equipment is fully compliant with CE and ISO9001:2008 standards, ensuring international safety and quality benchmarks are met.
