Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
1 / 5
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines
Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines

Factory Prices Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines

Customization: Available
After-sales Service: 12months
Warranty: >12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.:YRF- PVC pelletizer production line
Raw Material:PVC
Screw:Double-Screw
Automation:Automatic
Motor:Siemens
Inverter:ABB
Certification:CE, ISO9001:2008, SGS
Capacity:100kg/h-600kg/h
Object:Recycled PVC Plastic Flakes
Condition:New
Packaging & Delivery
Package Size:450.00cm * 230.00cm * 210.00cm
Gross Weight:4500.000kg
Product Description

Plastic Compounding Hot Cutting PVC Granules Pellets Extruder Making Machines

Twin screw extruder PVC pelletizers are applied to waste materials that require high processing performance for melting, volatilization, and filtering. It is primarily designed for PVC scraps recycling and re-pelletizing.

This specialized system is engineered for recycling washed plastic PVC flakes and scraps, such as PVC pipe fragments and sheet scraps. The final products are high-quality PVC plastic pellets/granules ready for manufacturing new products.

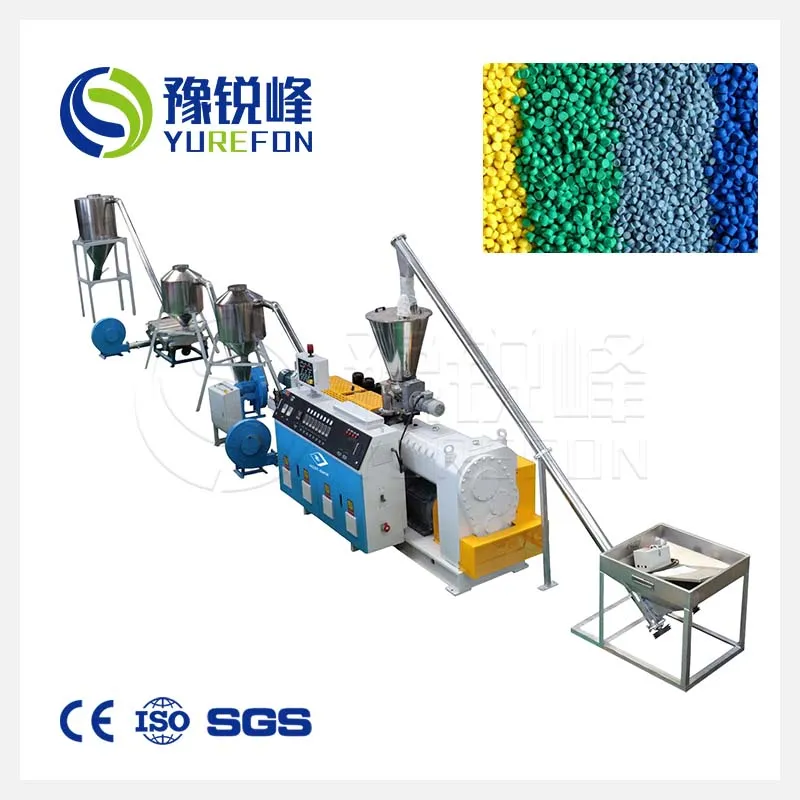

PVC Granules Pellets Extruder

Key Features

  • High tool steel 38 CrMoALA or W6Mo5Cr4V2 screw construction.
  • Innovated heater-tightened design for high heat transfer efficiency.
  • Parallel three-axis driving system for high torque and low noise operation.
  • Double-zone vacuum degassing system to remove volatiles and moisture efficiently.
  • Automatic constant temperature control for stable production.

Working Workflow

Screw feeder → Efficient extruder → Non-stop hydraulic screen filter changer → Cutting → Blower → Storage hopper → Electric control panel

Technical Parameters
Model Power (kw) Screw Dia (mm) Screw Qty Rotation Speed (rpm) Output (kg/h) Dimension (mm)
YRF-55/110 22 Φ55/110 2 34.7 150 3620x1050x2157
YRF-65/132 37 Φ65/132 2 34.7 300 3715x1520x2450
YRF-80/156 55 Φ80/156 2 34.7 400 4750x1550x2460
YRF-92/188 110 Φ92/188 2 34.7 750 6725x1550x2814
Detailed Photos

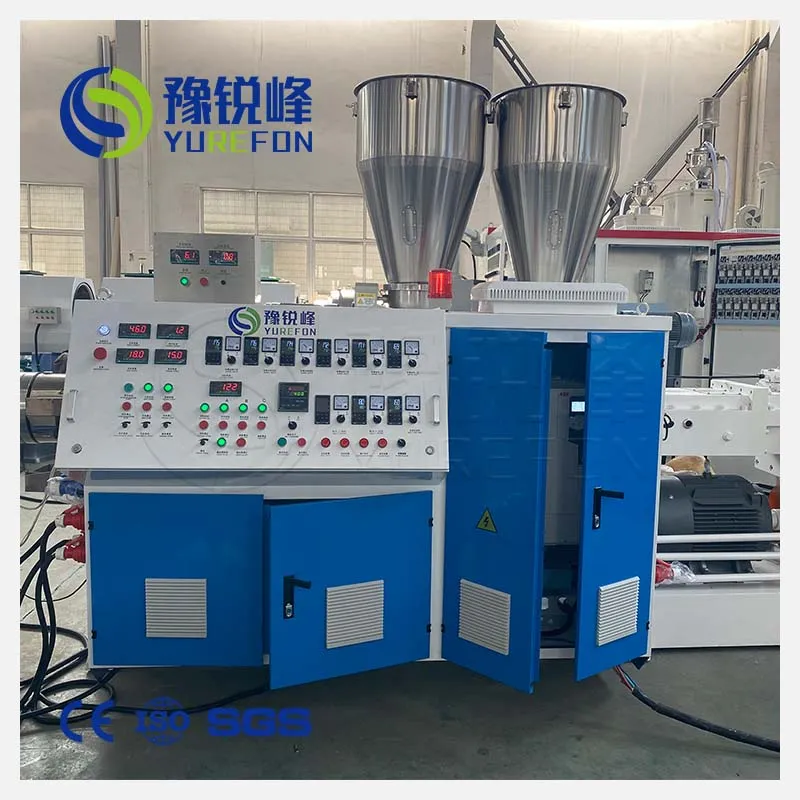

PVC pelletizer details 1
PVC pelletizer details 2

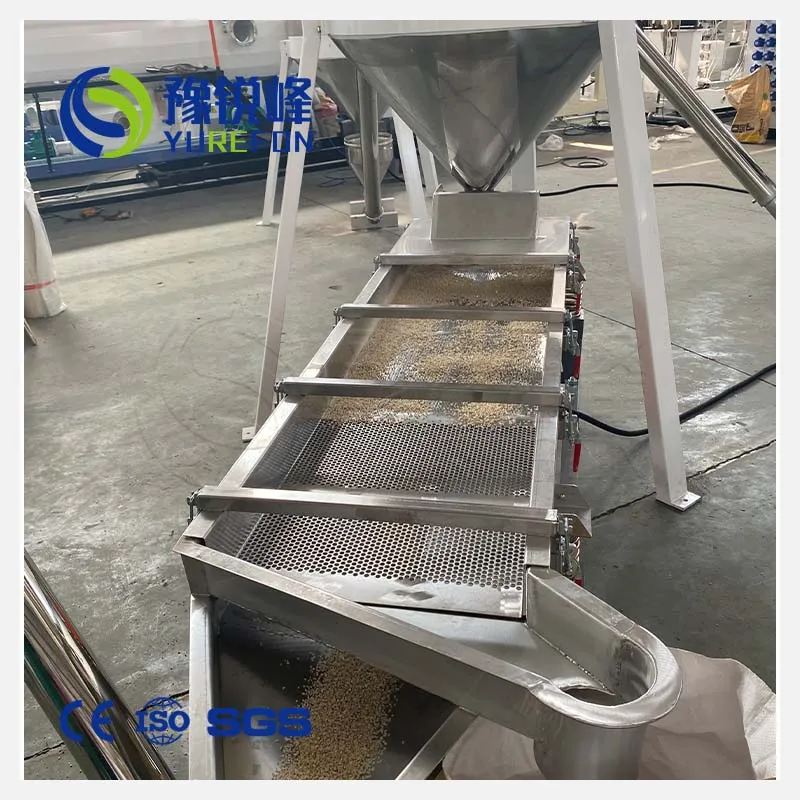

PVC pelletizer details 3

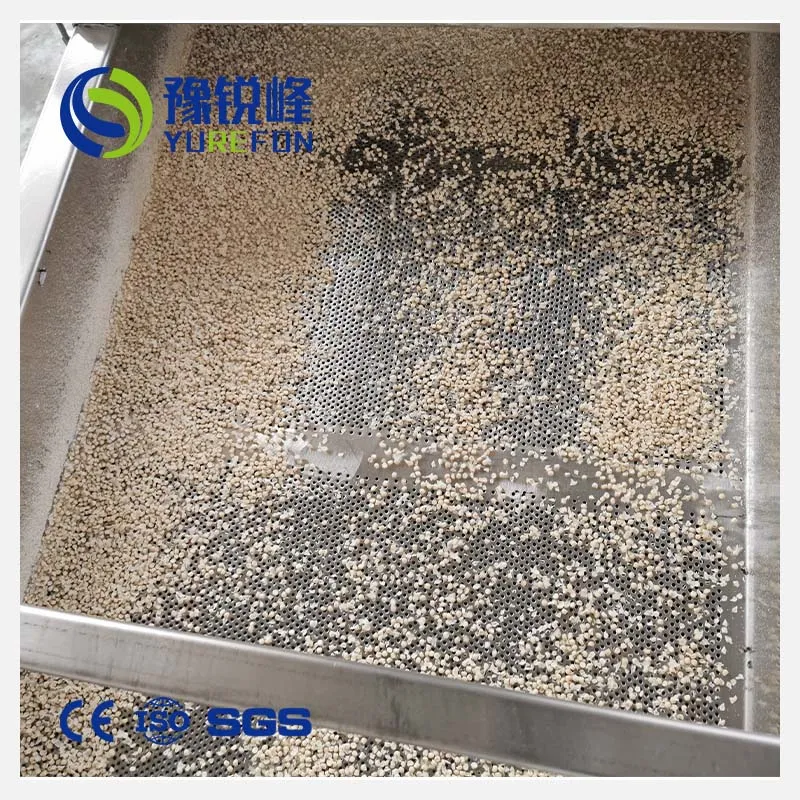

PVC pelletizer details 4

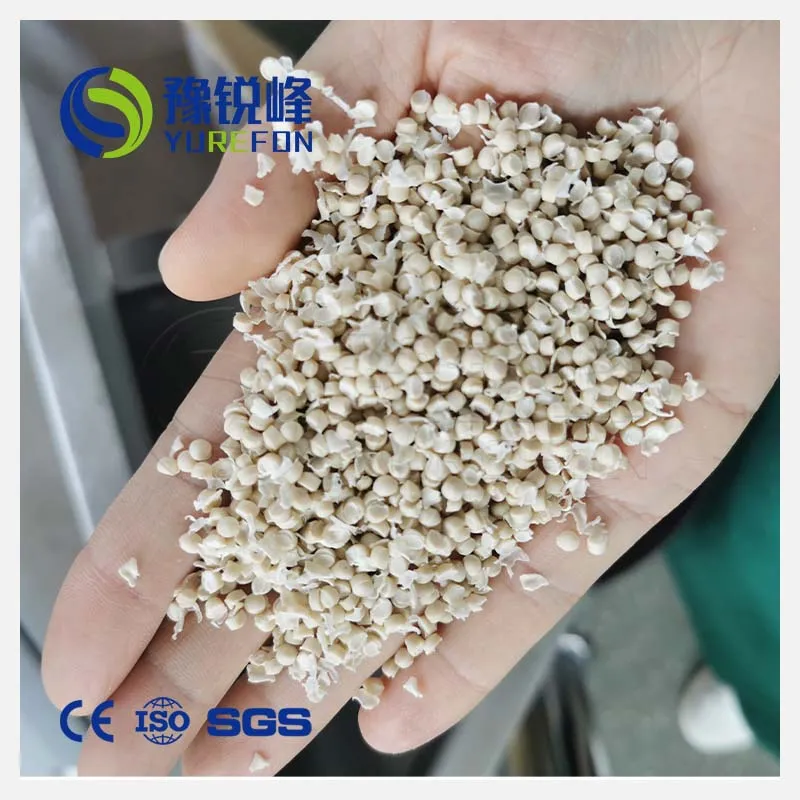

PVC pelletizer details 5

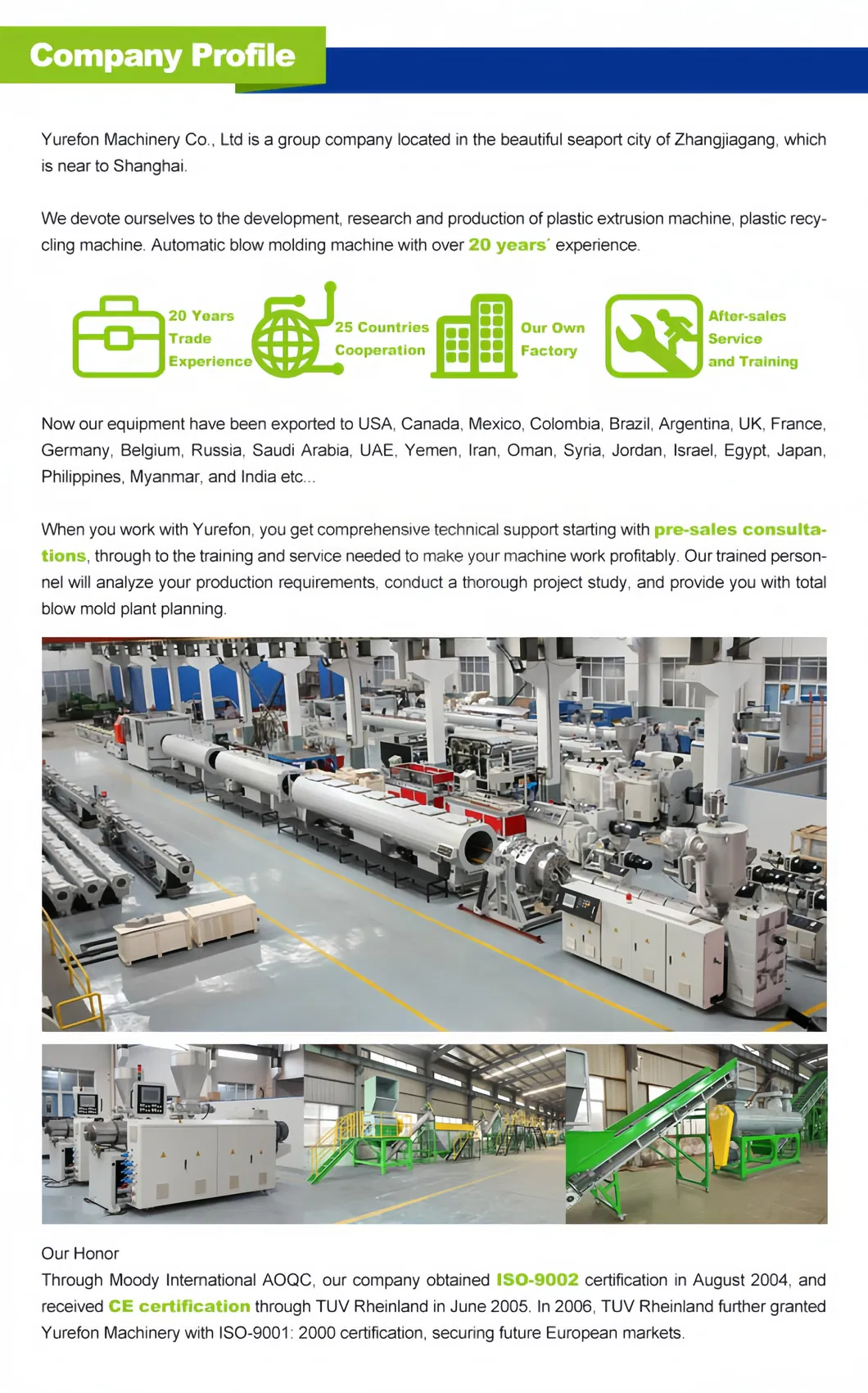

Process diagram 1
Process diagram 2
Frequently Asked Questions
What types of PVC materials can this line process?
The PVC pelletizer is specifically designed for recycling washed PVC flakes, scraps from PVC pipes, and PVC sheet materials.
What is the advantage of the double-screw design?
The conical twin-screw extruder provides superior melting, better degassing, and more efficient plasticization compared to single-screw systems, especially for PVC compounds.
Does the machine handle moisture in the recycled material?
Yes, it features a double-zone vacuum degassing system that efficiently removes volatiles and moisture, making it suitable for material with some water content.
What safety and quality certifications does this equipment hold?
The production line is fully certified with CE, ISO9001:2008, and SGS standards for international compliance.
How does the automatic feeding system work?
The screw feeder is equipped with a sensor that detects material levels in the hopper. It automatically stops when full and restarts when empty to ensure continuous operation.
What is the expected production capacity?
Depending on the model chosen, the production capacity ranges from 150 kg/h for the entry-level model up to 750 kg/h for the high-output YRF-92/188 model.
