Plastic PE/PP/HDPE/LDPE/LLDPE/BOPP Film/Bag/Woven Bag/Non Woven/Fiber/Granulating Line/Agglomeration Recycling/Compact Pelletizing Machine

Customization:	Available
Material Processed:	Film
Plastic Type:	PE

Send Inquiry

Product Description

⚙ Basic Information

Model NO.

Screw

Single-Screw

Automation

Certification

ISO9001:2008, CE

Applicable Plastic

PP, PE, LDPE, HDPE, ABS, EPS, PC

Type

Recycling Granulator

Capacity

100-1500kg/H

Warranty

One Year

Main Motor

Siemens Beide

Screw Diameter

85mm - 200mm

📝 Product Description

Waste Plastic Pelletizing Recycling Machine

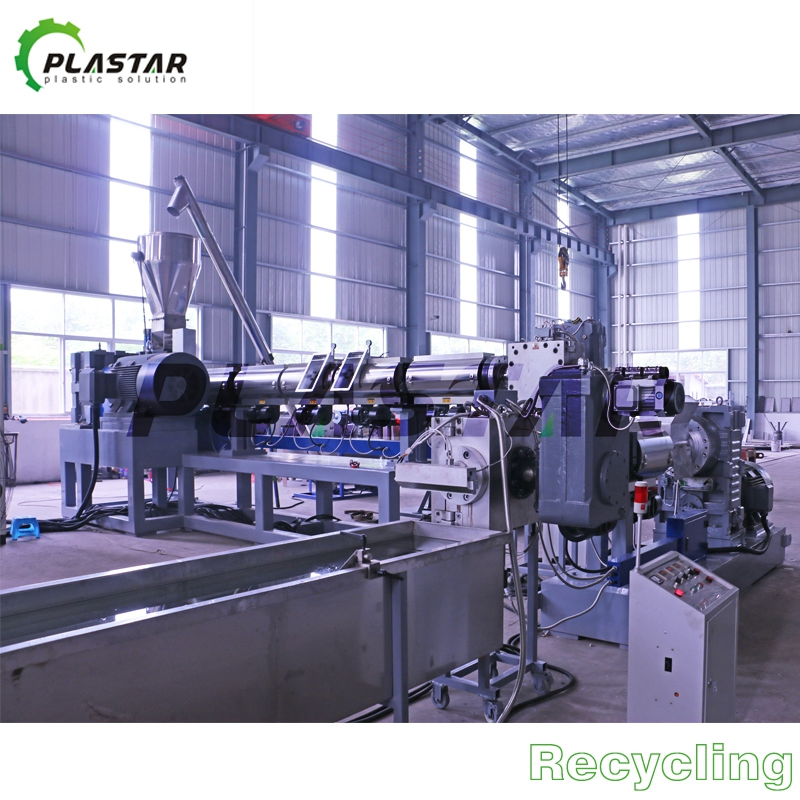

The PL series compacting and pelletizing system combines the functions of crushing, compacting, plasticization, pelletizing, and storage into one step. This system is a reliable and efficient solution for plastic films, barrels, drums, raffias, filaments, nylon, bags, woven bags, and foaming materials re-pelletizing.

Final products are in the form of pellets/granules, which can be directly put into the production line for film blowing, pipe extrusion, and plastic injection.

⭐ Key Features

Increased Output: Compared with traditional designs, output has been increased by approximately 20%.
Energy Efficiency: Power consumption reduced by around 15%.
High Automation: Only 2 workers are required to operate the entire production line.

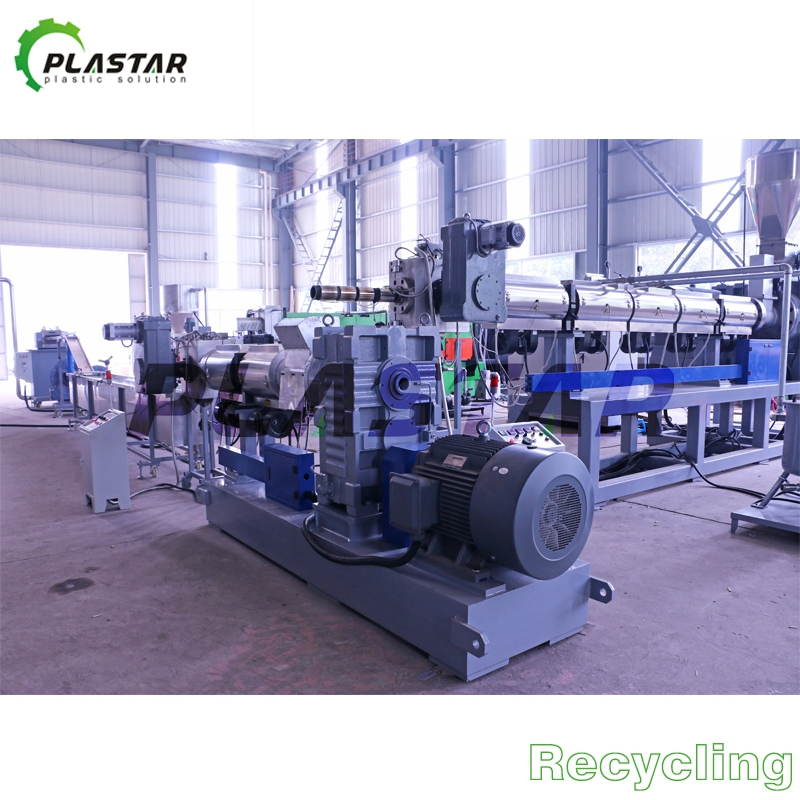

Superior Performance: Two-stage waste plastic pelletizing line achieves better degassing and filtration for excellent final pellets.
Safety Design: Extruder body safety cover keeps operators away from potential danger.

🔄 Production Process

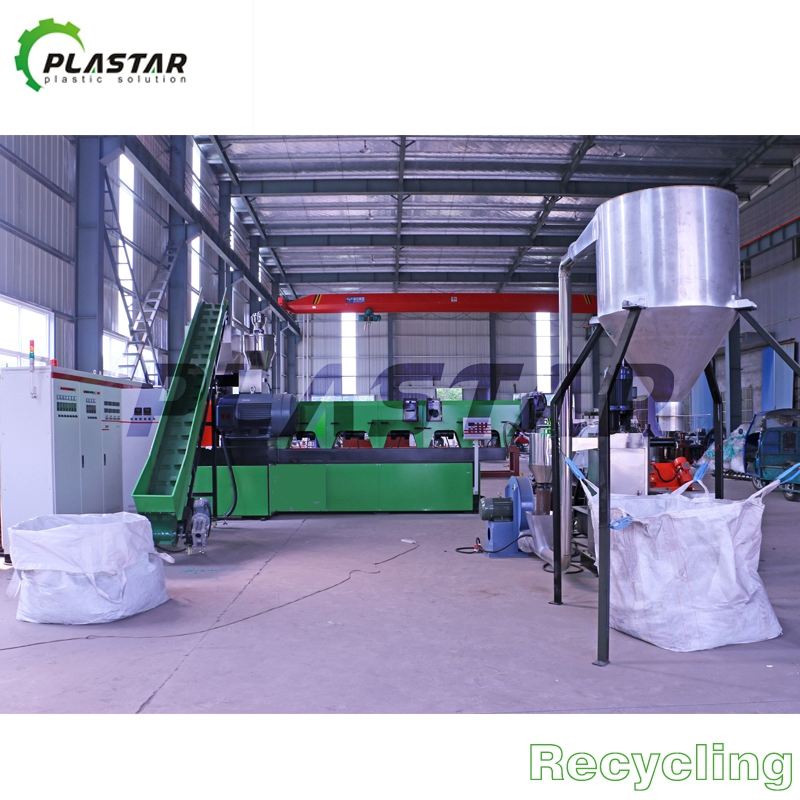

Belt conveyor → Metal detector (optional) → Compactor → Extruder → Hydraulic screen changer → Die head → Cutting system → Dewatering equipment → Air transmission → Vibration → Silo

📊 Technical Specifications

System Composition & Details
Model Name	PL series
Recycling Material	HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS, ABS, PET
Final Product Shape	Pellets/ Granules
Compactor Volume	300 Liters - 1400 Liters
Screw Material	38CrMoAlA nitride steel (SACM-645), Bimetallic (Optional)
Vacuum Degassing	Double vented degassing (Standard)

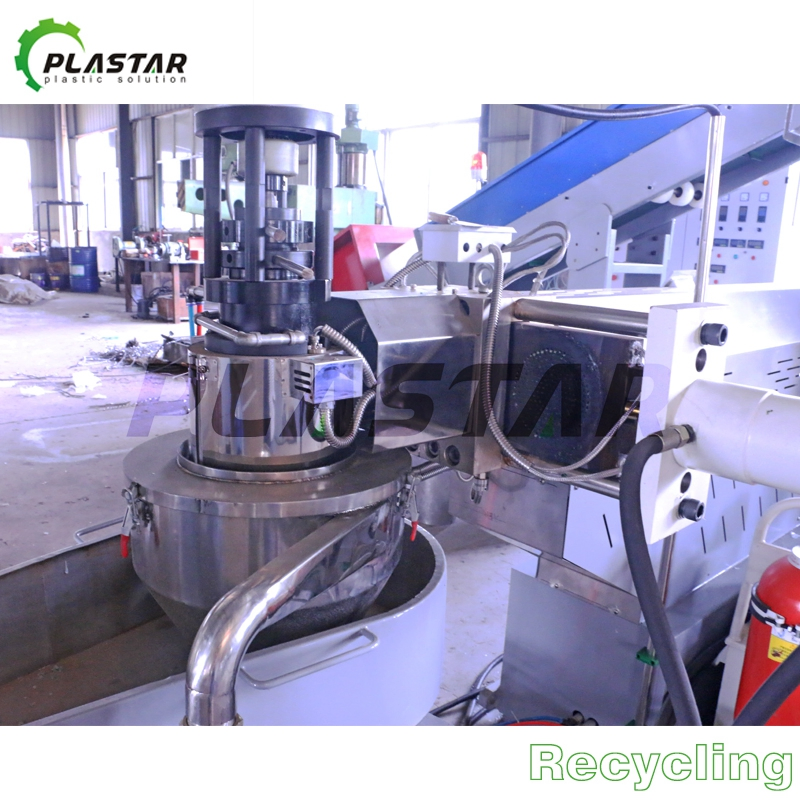

Pelletizing Type	Water ring die-face hot pelletizing
Delivery Time	60 days after order takes effect

PL Series Single Stage Granulator Machine
Model	SJ-65	SJ-80	SJ-100	SJ-120
Screw Dia.	65	80	100	120
L/D	28-30	28-30	28-30	28-30
Capacity	60-80kg/h	80-100kg/h	150kg/h	300kg/h

📸 Product & Material Display

Suitable Raw Materials:

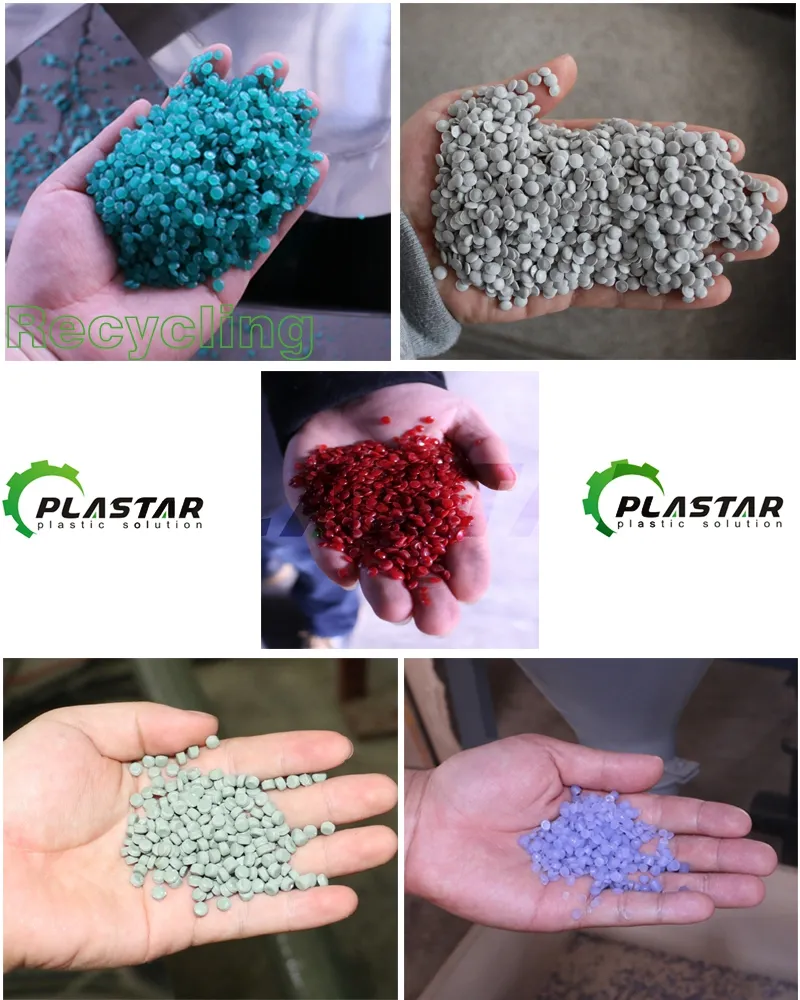

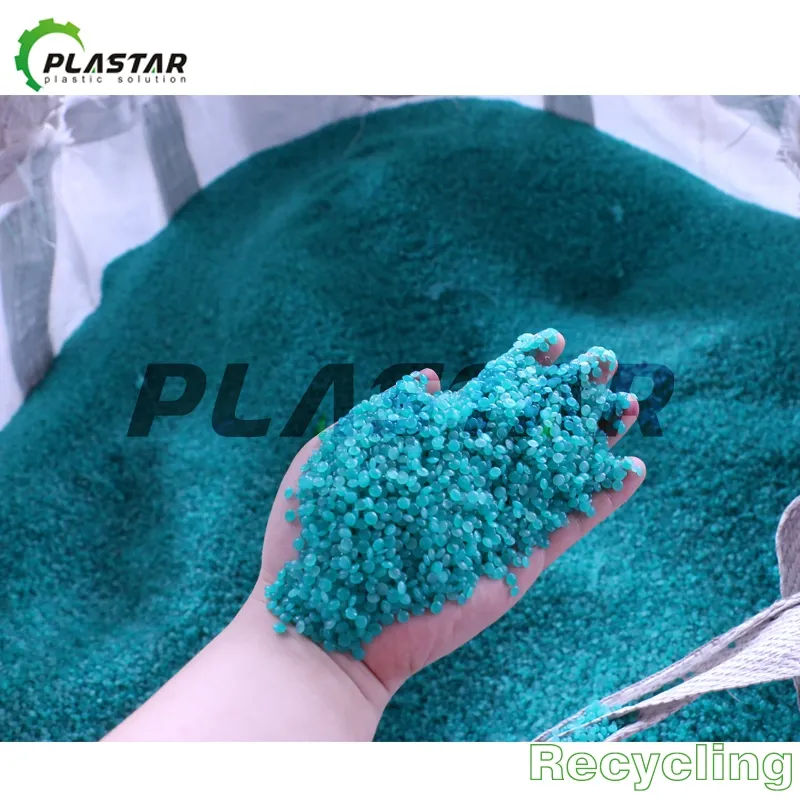

Finished Pellets:

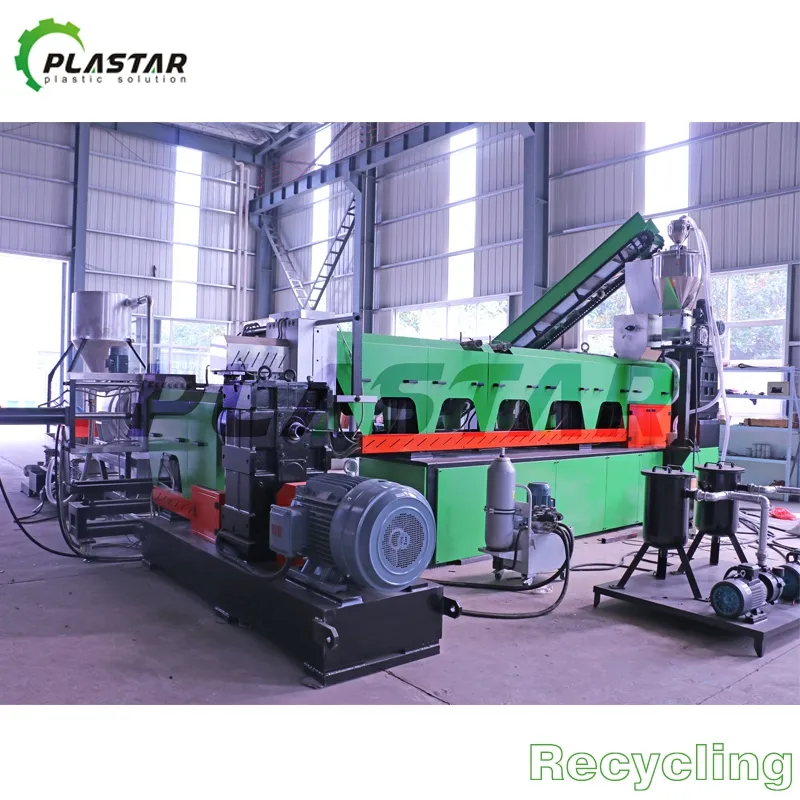

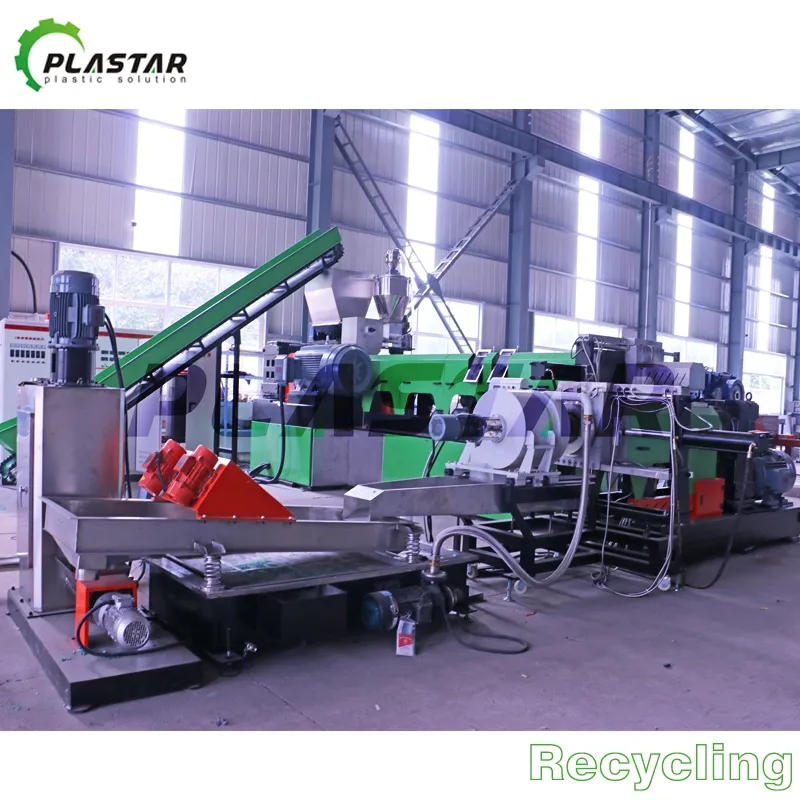

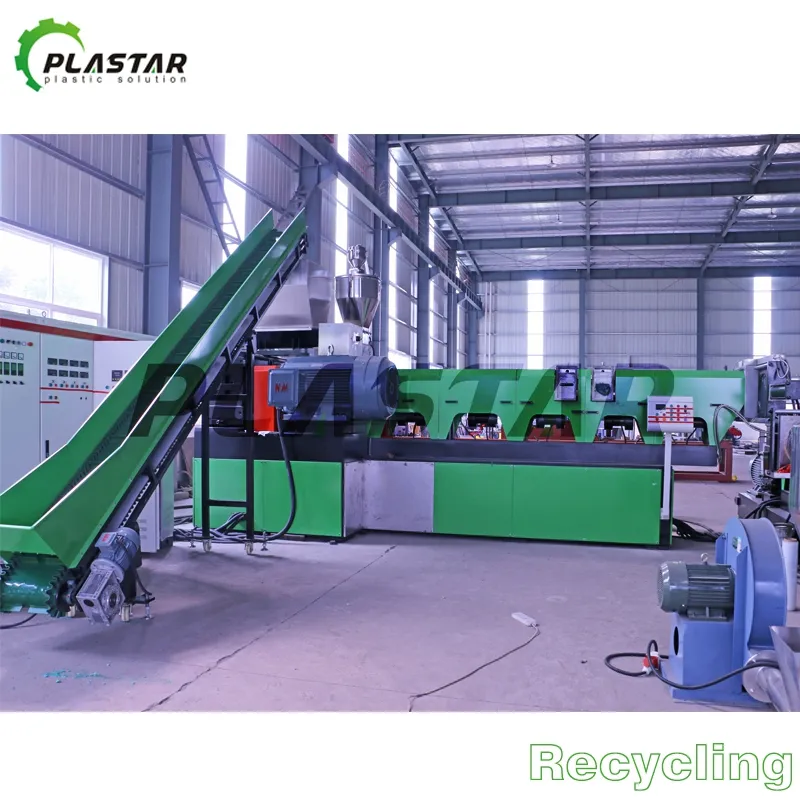

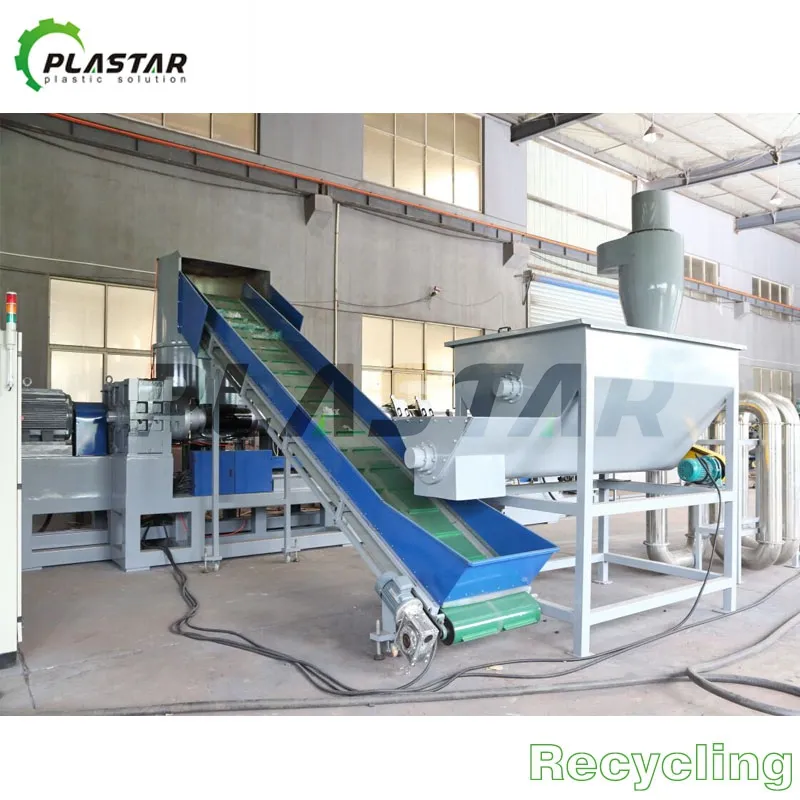

Machine Components (Compactor & Screen Changer):

Customer Visits & Shipping:

❓ Frequently Asked Questions

What types of plastics can this machine recycle?

The system is designed for a wide range of materials including HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS, ABS, and PET in forms such as films, bags, filaments, and foams.

How much space is saved compared to traditional lines?

By combining crushing, compacting, and pelletizing into one integrated system, it significantly reduces the footprint and simplifies the workflow compared to separate traditional units.

What is the energy saving capability of the PL series?

The new generation system reduces power consumption by approximately 15% through optimized design and efficient motor performance.

Is the machine easy to operate?

Yes, the high degree of automation means that only 2 workers are required to manage and operate the entire production line.

What kind of pelletizing method does it use?

It standardly uses a water ring die-face hot pelletizing system, which ensures uniform and high-quality granule production.

What is the warranty period for this equipment?

We provide a 13-month warranty starting from the date of the bill of lading, ensuring reliable technical support for your investment.
