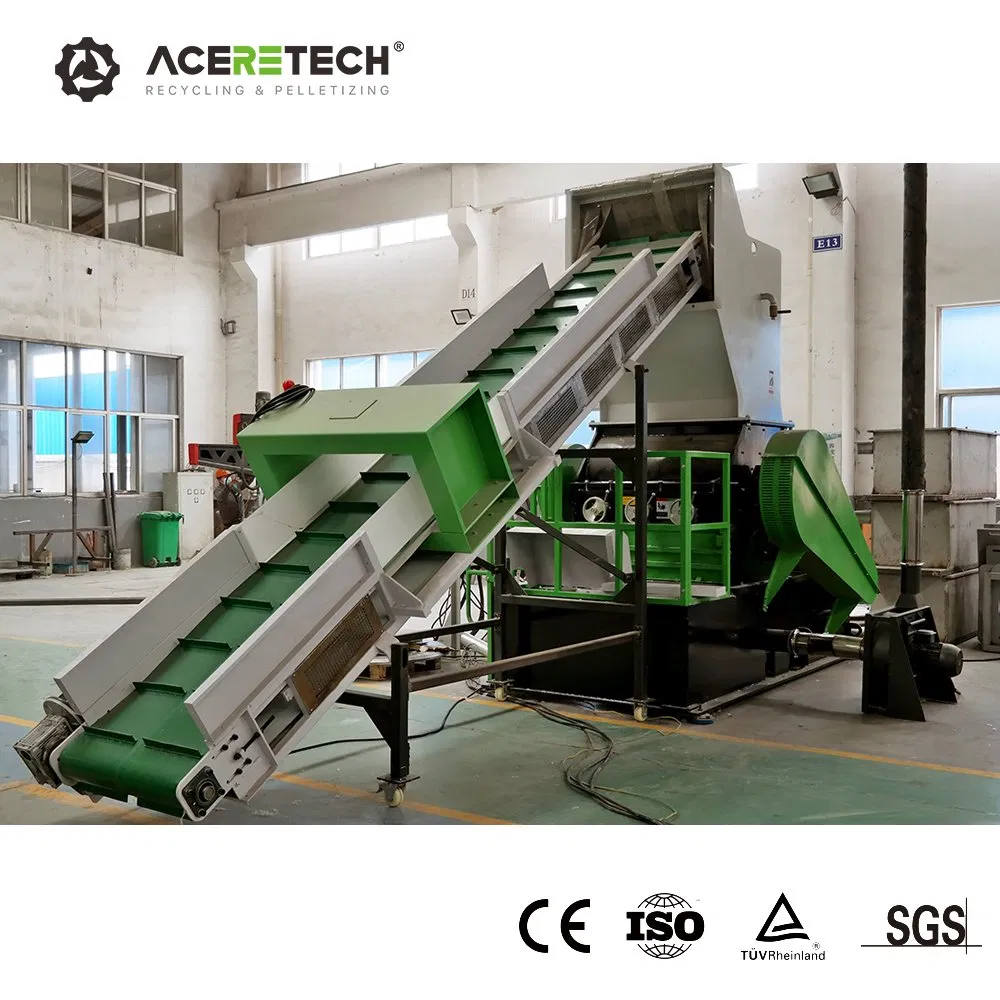

High Output Plastic Films/Pet Bottles/HDPE Milk Bottles Recycling Crusher Machine Price

Customization: Available
After-sales Service: Local Service Available
Warranty: 2 Years

Product Description

Basic Information
Model NO.
GF
Type
Plastic Crusher
Raw Material
Post-Consumer / Industry Waste
Structure
Tangential Feed
Automation
Automatic / Computerized
Certification
CE, ISO9001, SGS
Capacity
200-6000 Kg/H
Shaft Design
Single
Control
PLC Control (Imported Brand)

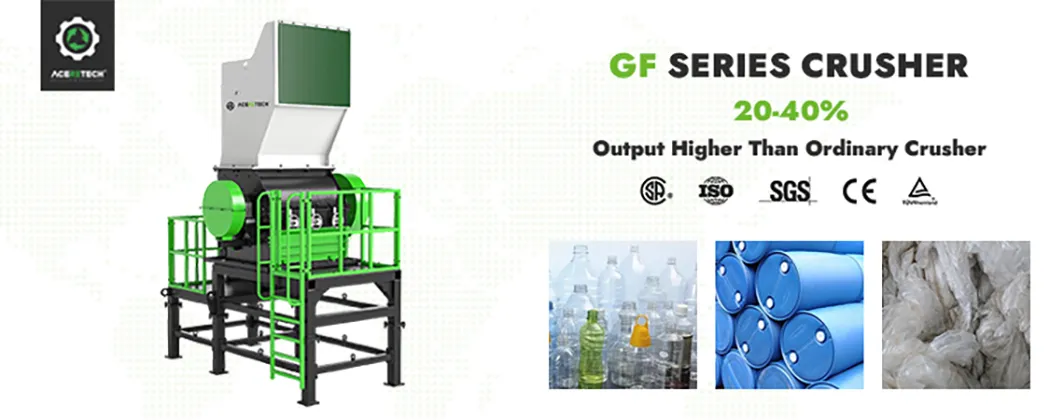

Plastic Crusher Machine
Product Description
GF series is a high-efficiency and low energy consumption crusher, specially designed for films, small hollow bottles and PET bottles. According to the characteristics of different materials, the crusher is equipped with a variety of rotor models for choosing. The diameter of the rotor ranges from 500mm to 800mm. The minimum width of the rotor is 700mm and the maximum is 1600mm. A targeted rotor structure can be designed to achieve the best crushing effect. It adopts a special welding process for the overall steel structure to meet the demand for the materials which are not easily broken. Large rotor bearings, tool holders and rotors are combined with standard V-shaped cutting technology, which is beneficial to improve cutting and recycling efficiency and reduce the dust content in recycled materials.
📌 Core Application:

GF series crusher has special cutting technology to recycle various film, small hollow material, including injection mold parts, bottles, blow mold parts, films and other materials. The crushed flakes are uniform.

Our Advantages
  • The optimized design of rotor and crushing cavity reduces energy consumption while increasing total output.
  • Ideal rotor blade configurations specifically suited for heavy material crushing tasks.
  • Precise clearance between rotary and fixed knives ensures particle uniformity and minimizes operating noise.
  • Equipped with famous brand motors and high-quality PLC control systems for stable performance.
Product Parameters
Technical Specification GF500/700 GF700/1000 GF700/1200 GF800/1600
Machine Weight (KG) 2500 3500 4200 6000
Machine Dimension (mm) 2230x1630x3450 2530x1990x3600 2750x2230x3700 3150x2710x3900
Chamber Size (mm) 500x700 700x1000 700x1176 800x1600
Power (kw) 45 75 90 160
Rotary Blades Quantity 5x2 5x2/7x2 5x2/7x2 5x4/7x4
Stator Blades Quantity 2 2 2 2
Rotor Diameter (mm) 500 700 700 800

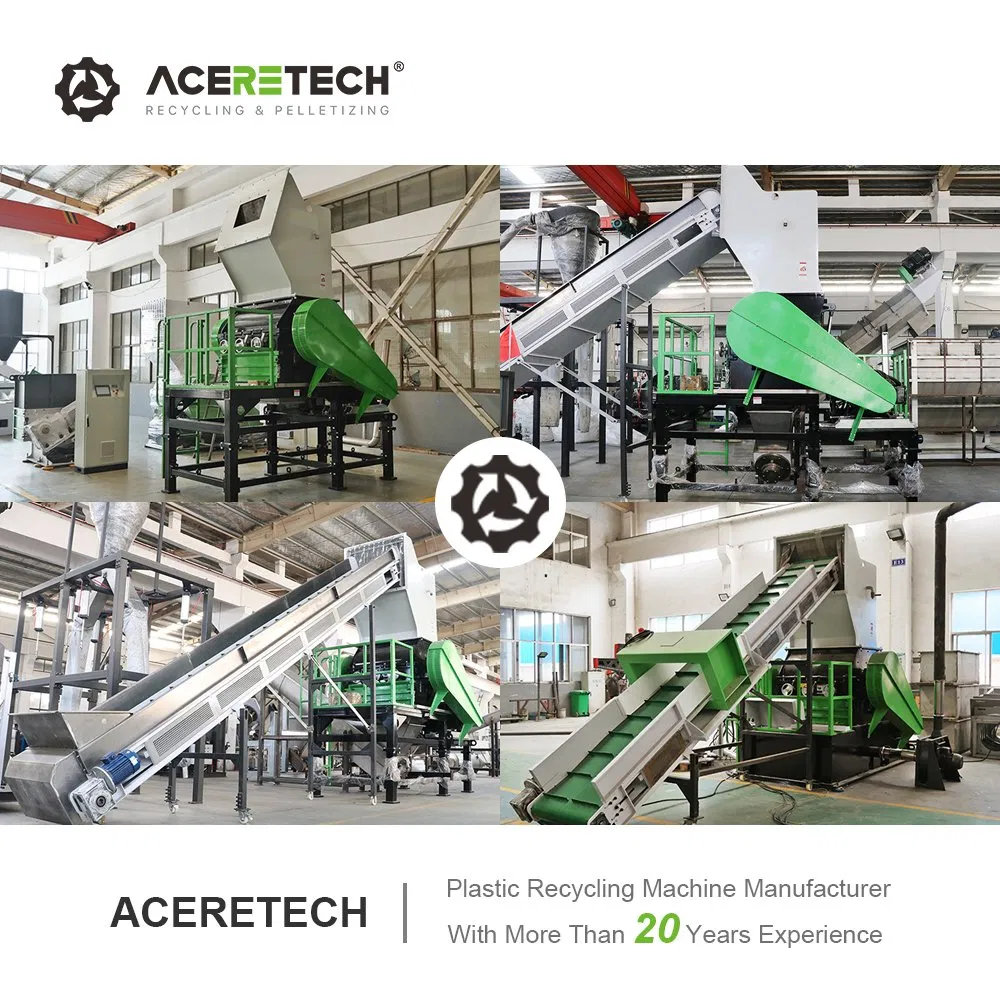

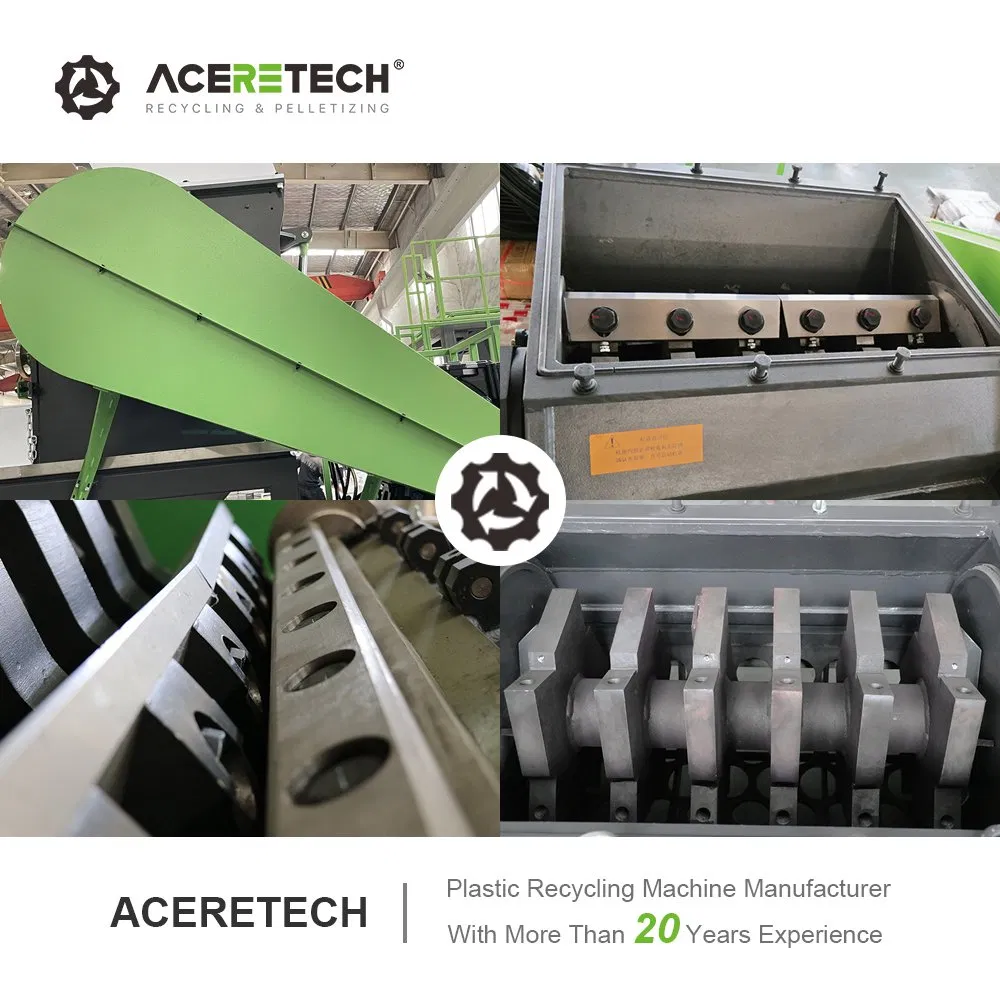

Detailed Photos

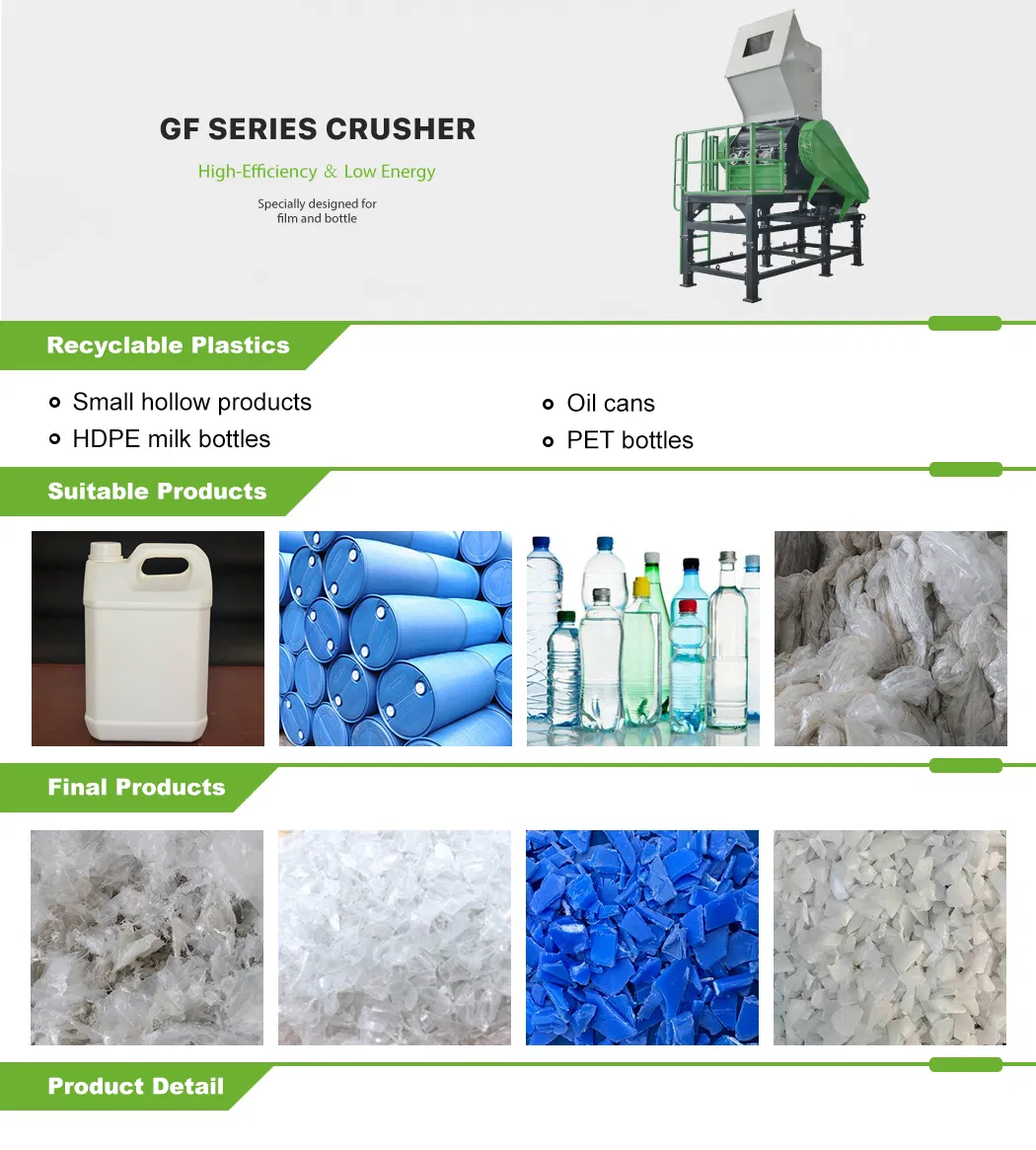

Crusher Detail 1

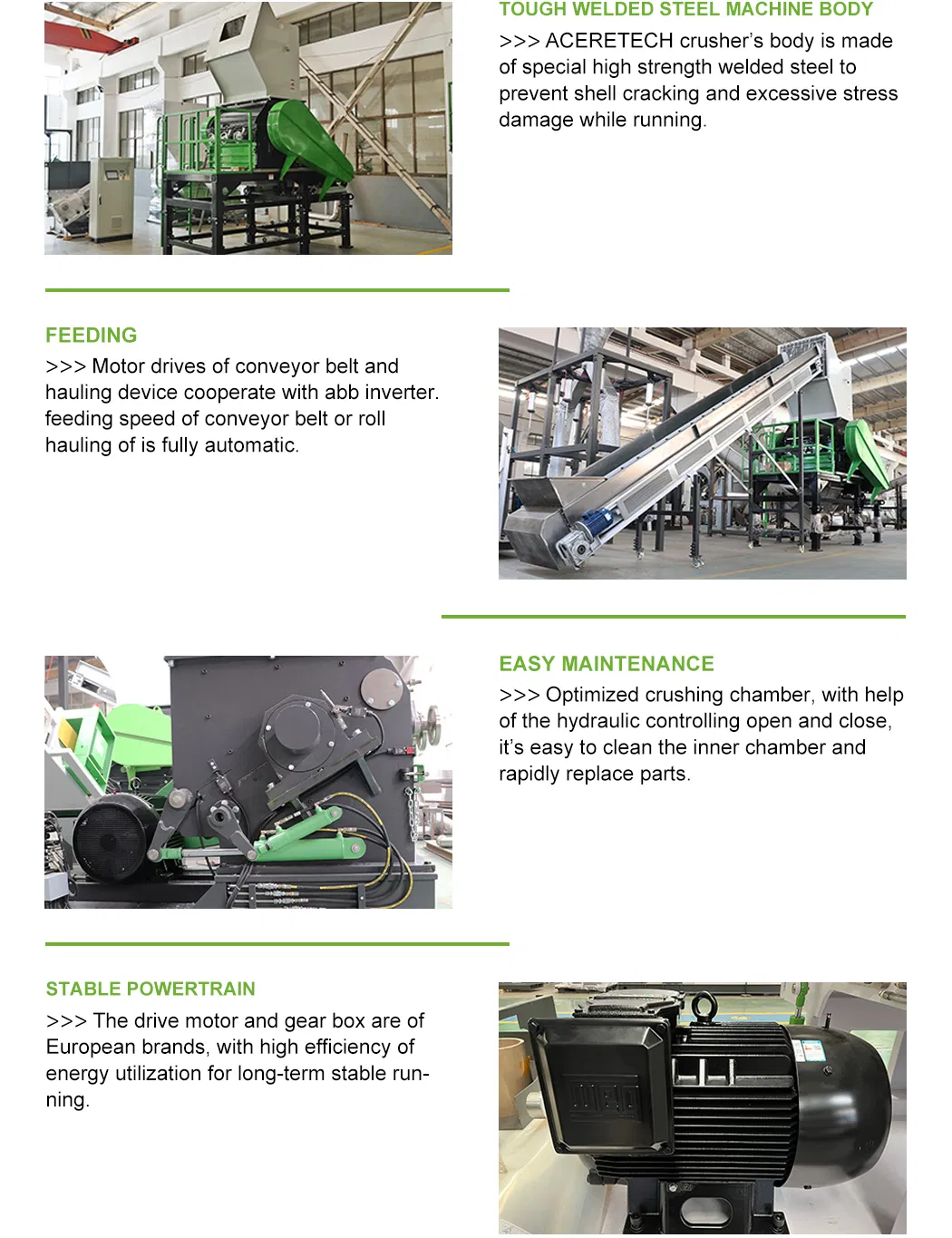

Crusher Detail 2

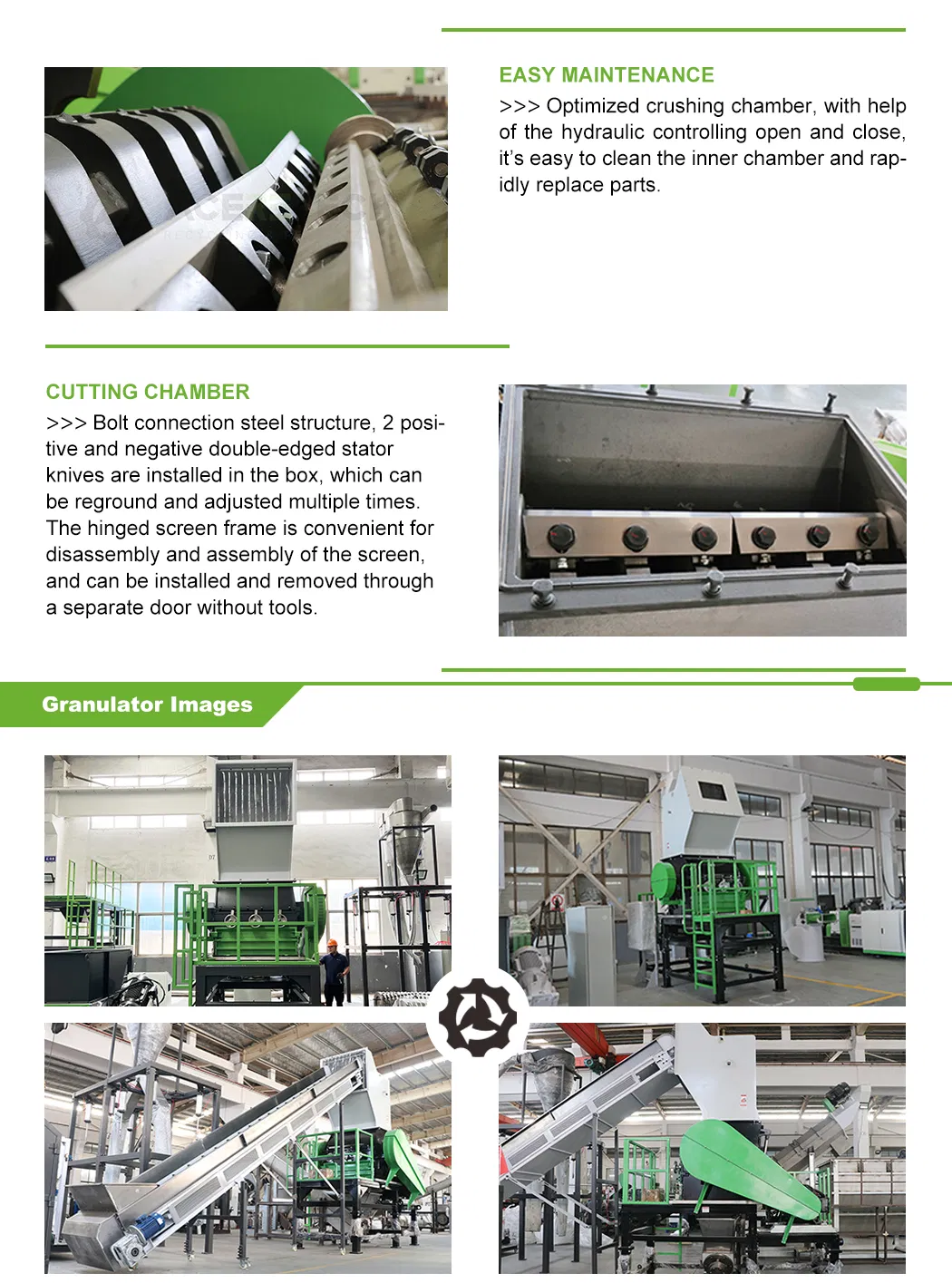

Crusher Detail 3
Crusher Detail 4

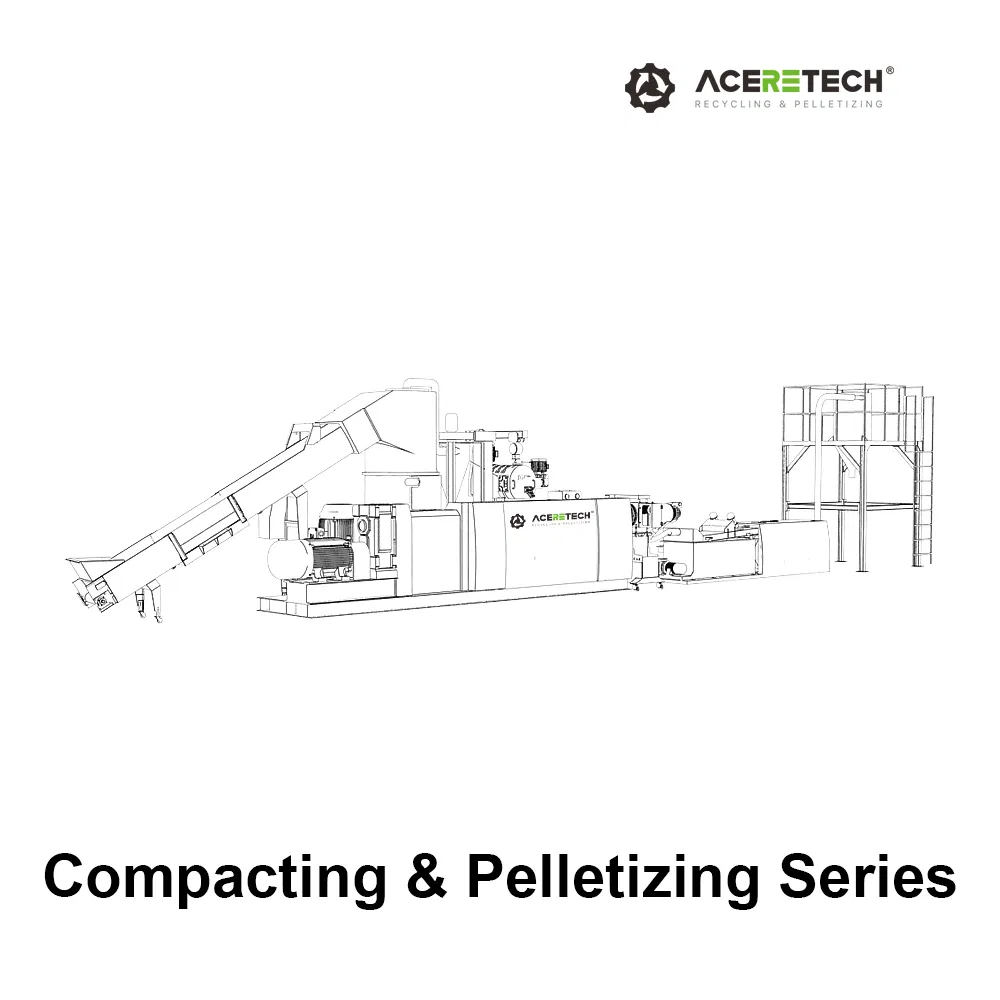

Accessory 1

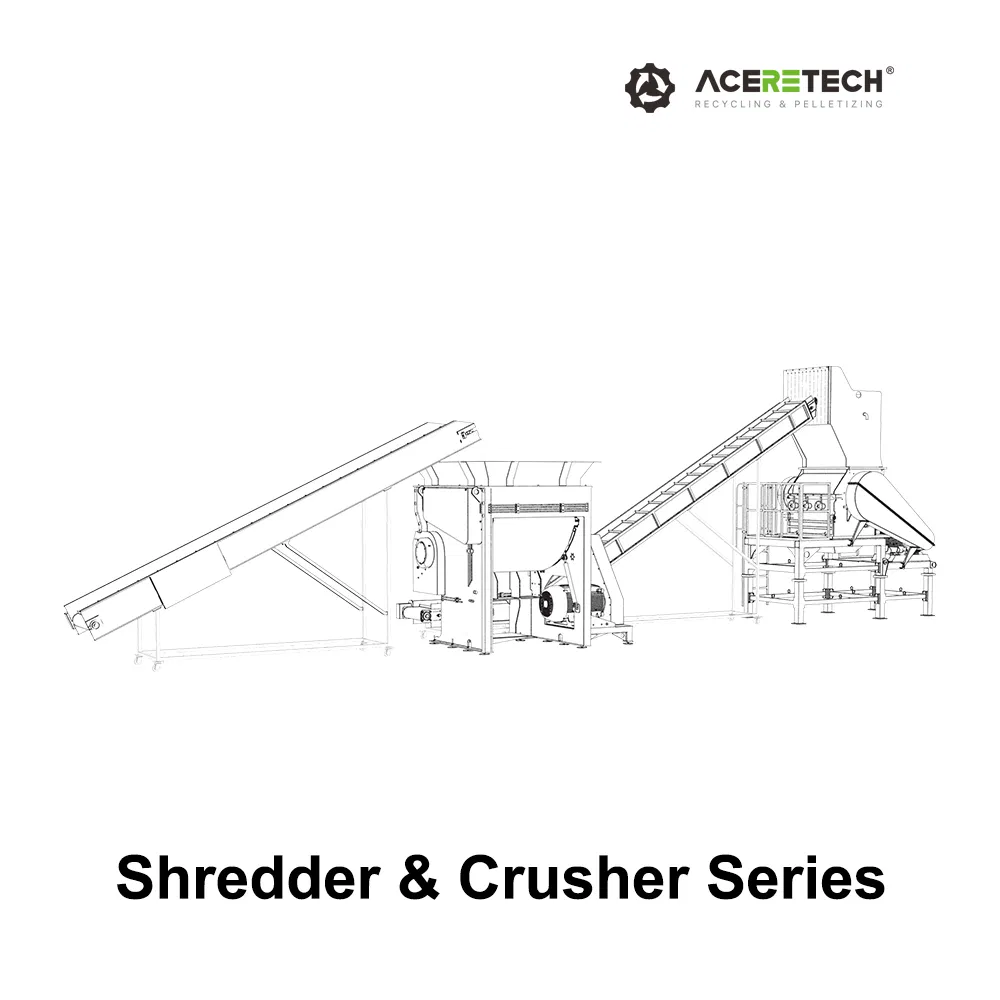

Accessory 2

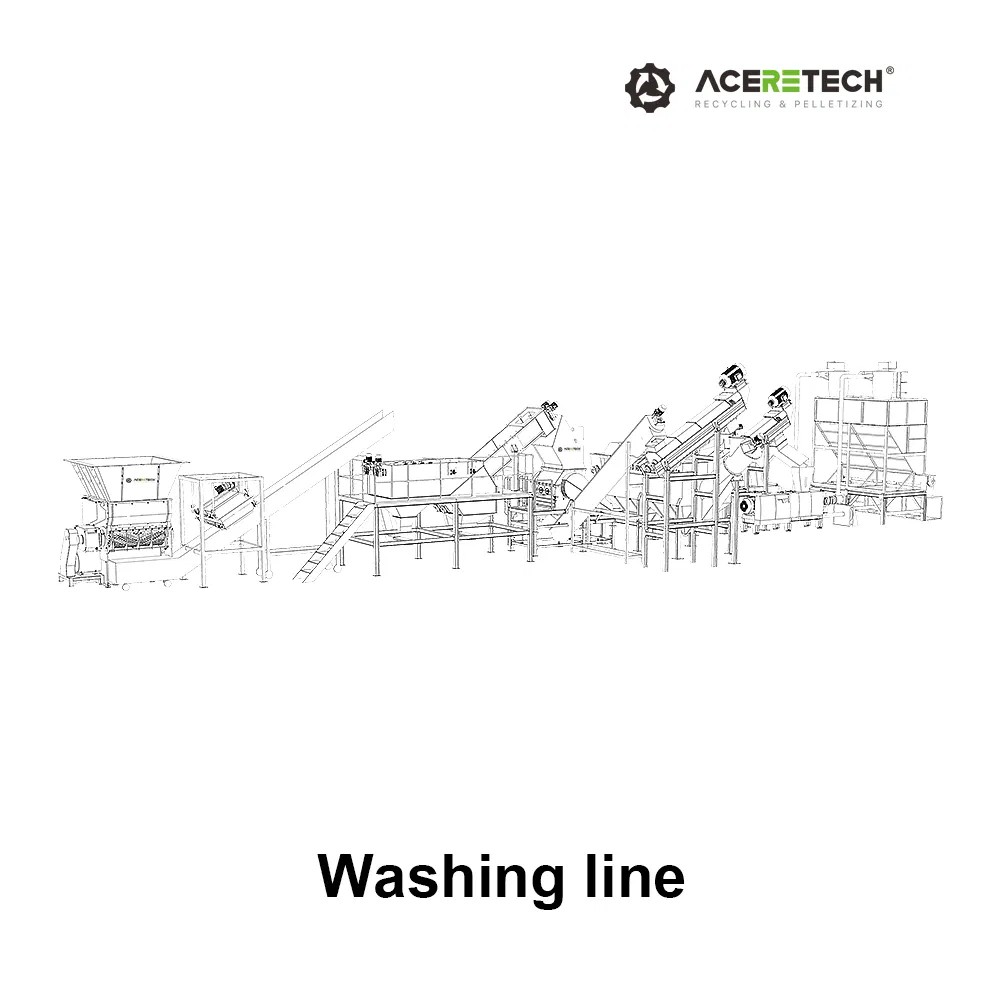

Accessory 3
Quality Assurance

To ensure the accuracy of each part, we are equipped with a variety of professional processing equipment. Each component undergoes strict inspection before assembly. All machines are connected and run for at least 12 hours before shipment to ensure stability in the customer's factory.

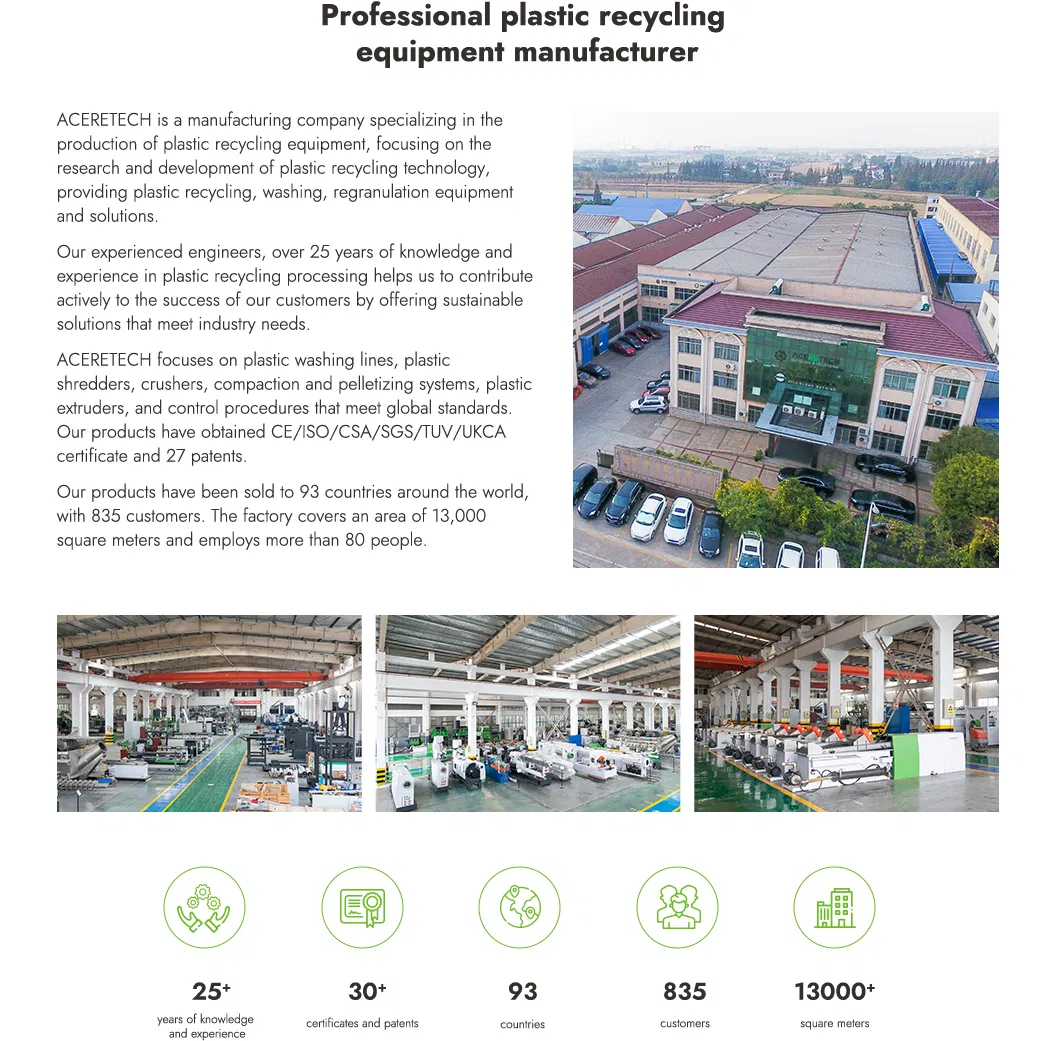

Factory View 1
Factory View 2

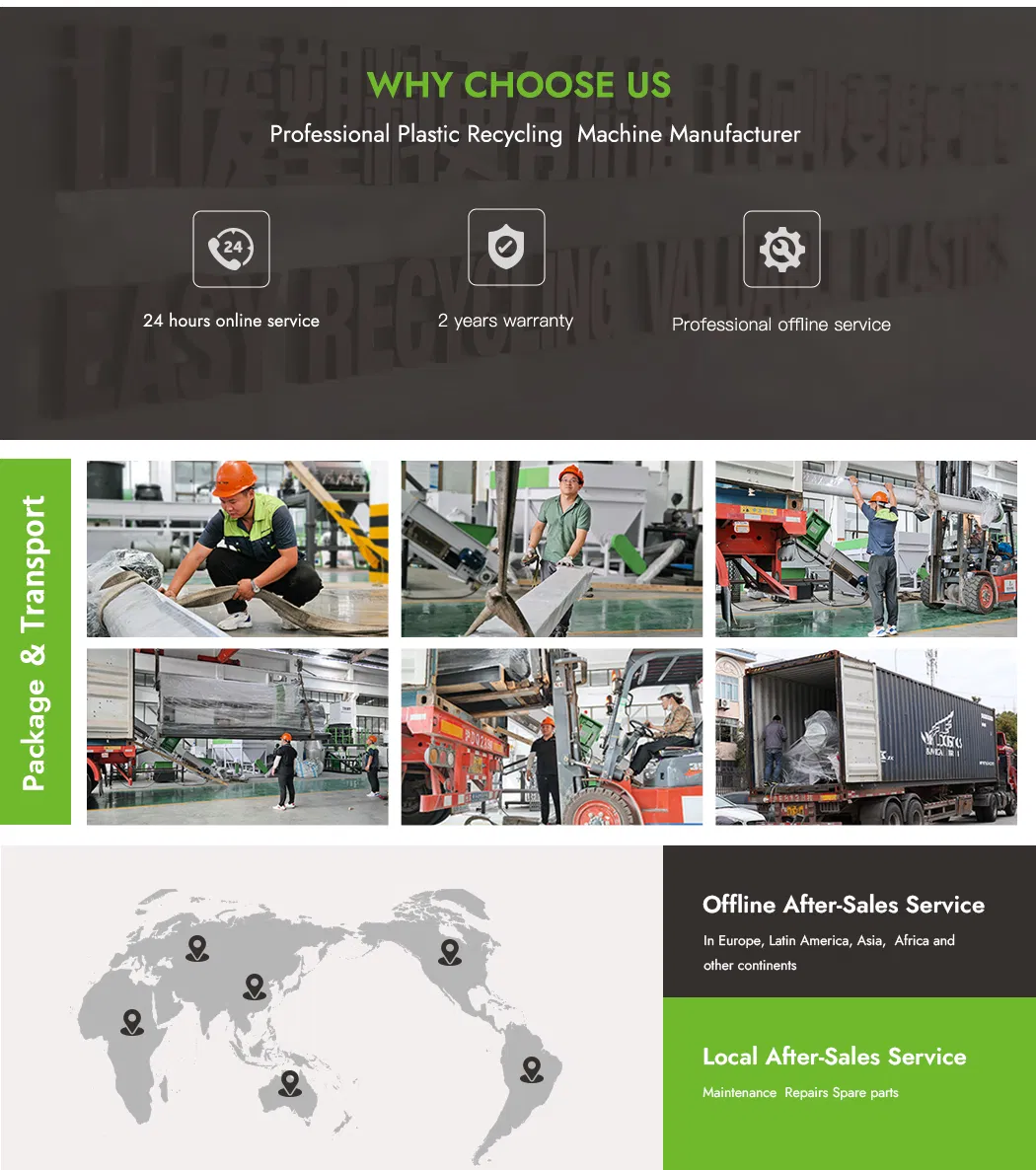

Production Line 1
Production Line 2
Shipment Package
Frequently Asked Questions
What materials can the GF series crusher handle?
It is specifically designed for recycling plastic films, PET bottles, HDPE milk bottles, small hollow materials, and injection or blow-molded parts.
How do you ensure the precision of machine components?
We utilize professional processing equipment and accumulated methods. Every component is strictly controlled by inspecting personnel before assembly.
What is the production capacity of these machines?
The GF series offers a wide range of production capacities, from 200 kg/h up to 6000 kg/h, depending on the model and material.
Do you offer after-sales technical support?
Yes, we provide online and offline support, including machine debugging videos, standard export packaging, and on-site installation/training by our engineers.
Is the machine tested before shipment?
Absolutely. We connect all machines and run the full production line for at least 12 hours to ensure stable operation before it leaves our facility.
What control system is used in the machine?
The machine utilizes a high-quality PLC control system from imported professional brands to ensure reliable and automated operation.
