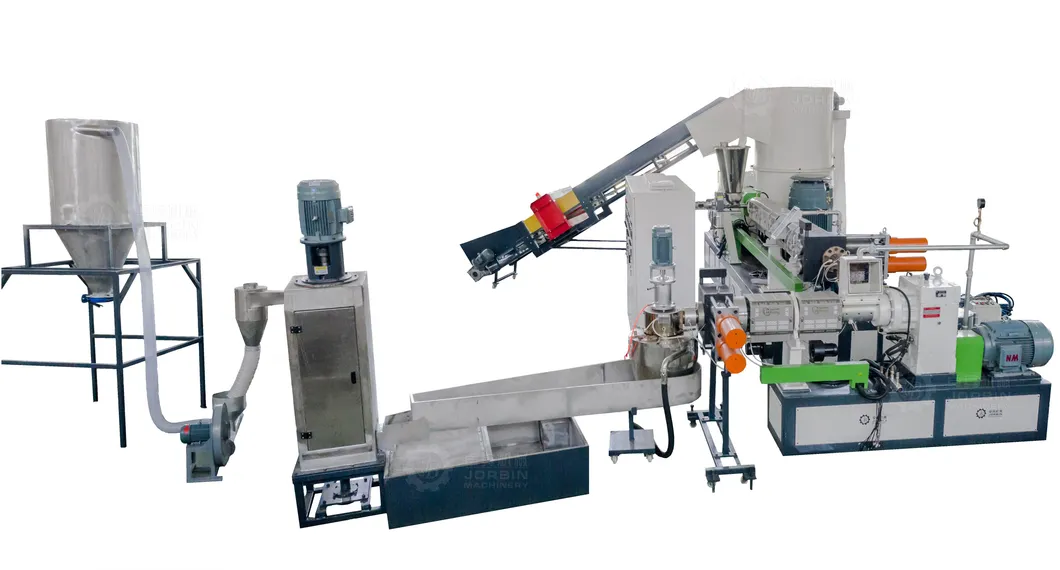

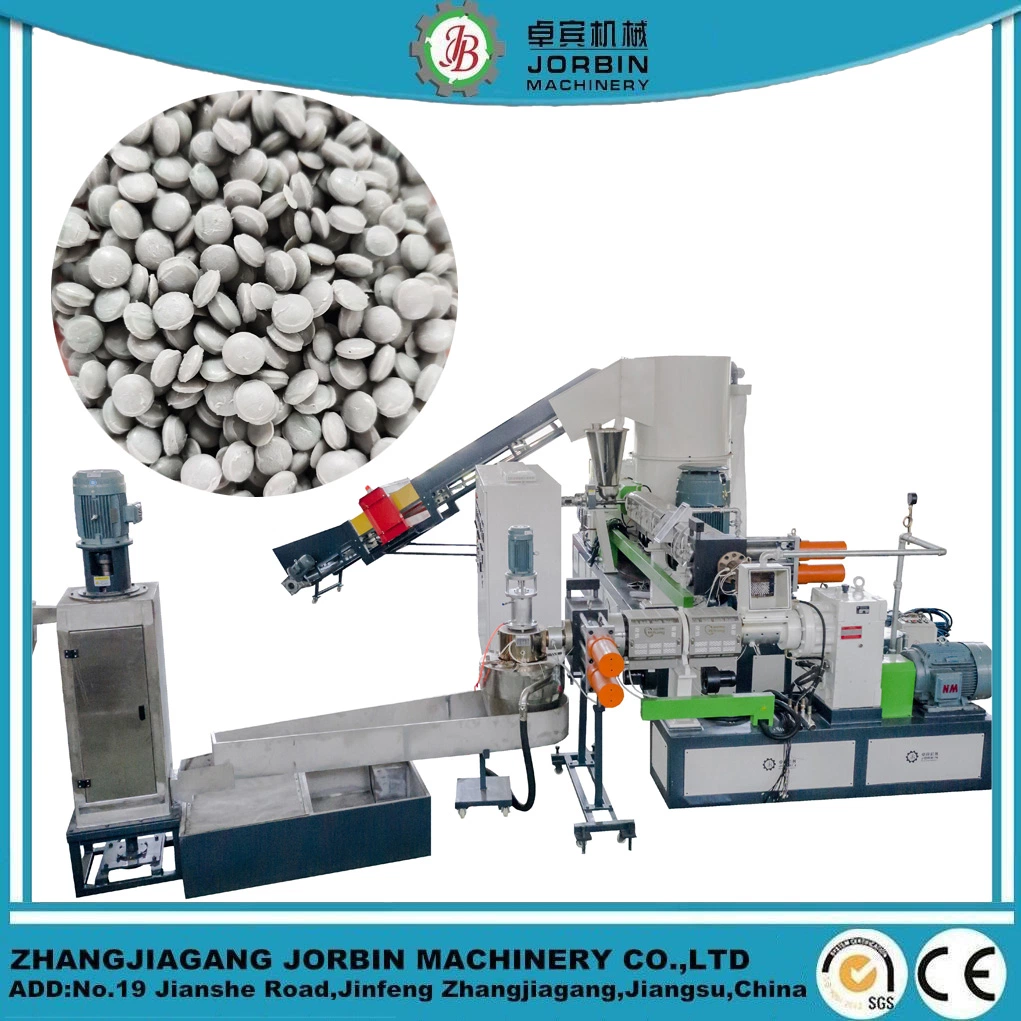

Introducing our state-of-the-art plastic recycling granulation machine, the ML130-130. This innovation is designed to process a diverse array of films including POLYPROPYLENE, PE, PP, CPP, BOPP, PA, PS, EPE, EPS, PET, UPS, ABS, and more. Engineered for versatility and efficiency, it is the ultimate solution for sustainable plastic waste management.

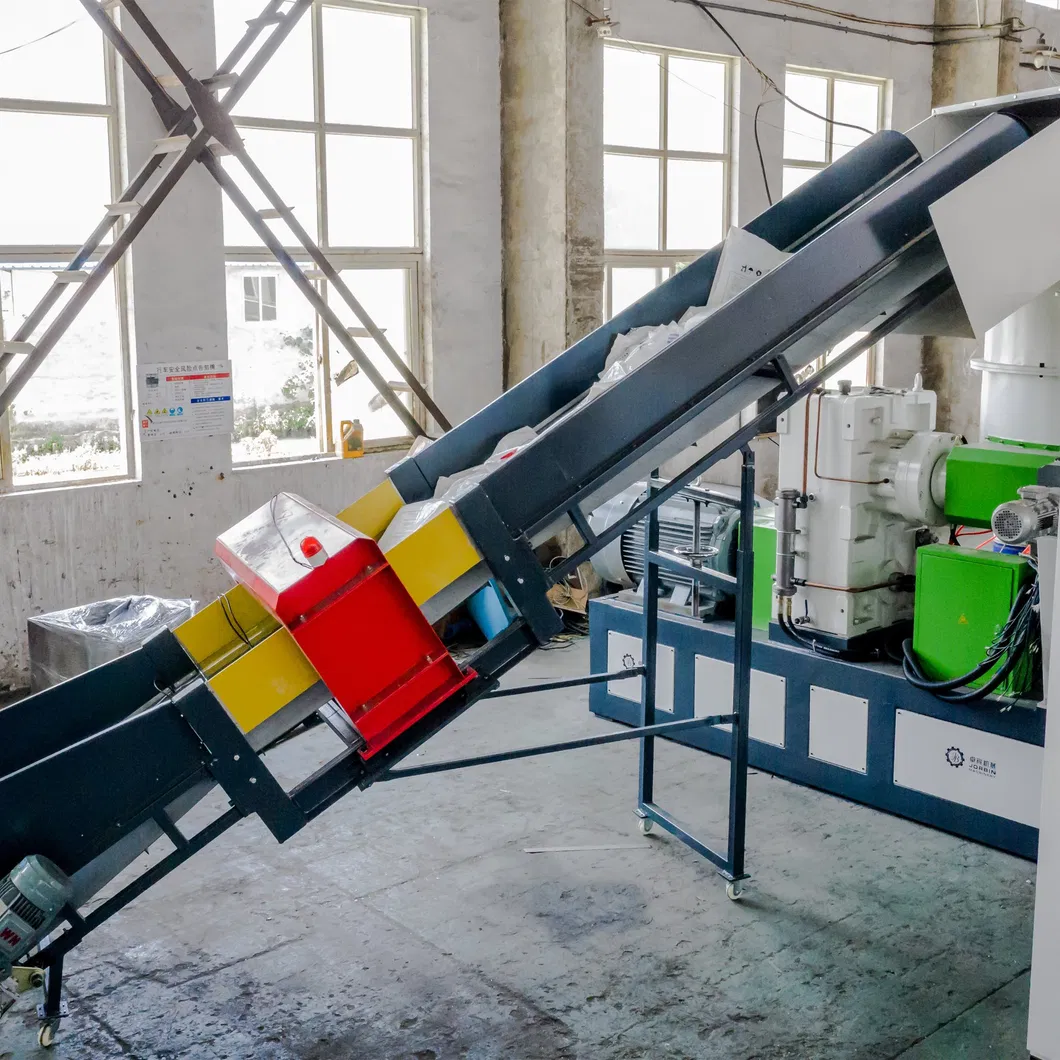

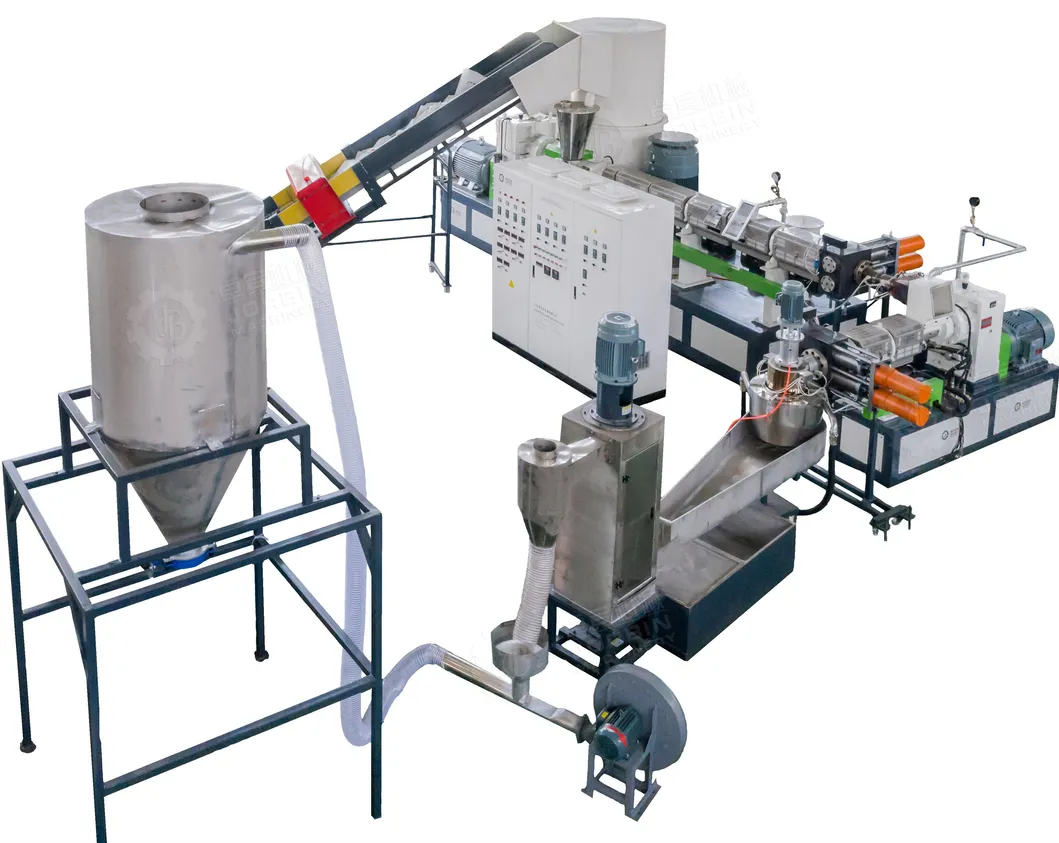

The film material is efficiently fed into the compactor through a belt conveyor system. High-speed rotary cutters crush the material into small fragments. The friction heat densifies the material and evaporates residual moisture before it is propelled into the extruder via centrifugal force.
Counter Current Technology Ensures process stability and consistently high output across various temperatures.
Smart Start Simplified interface with a high degree of automation and recipe management for easy parameter loading.
Energy Efficiency Revolutionary direct drive for the extruder screw and energy-efficient motors reduce operational costs.

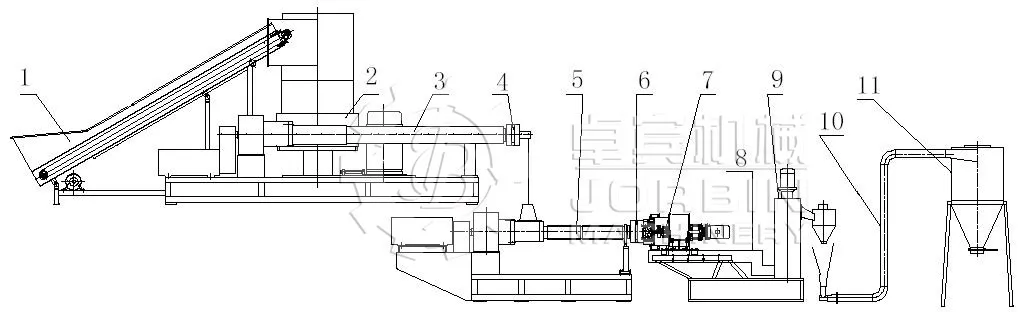

| Item NO. | Item Name | Quantity | Power |
|---|---|---|---|
| 1 | Belt conveyor | 1 set | 2.2kW |
| 2 | Φ130/28 Single screw extruder | 1 set | 130kW |
| 3 | Compactor | 1 set | 90kW |

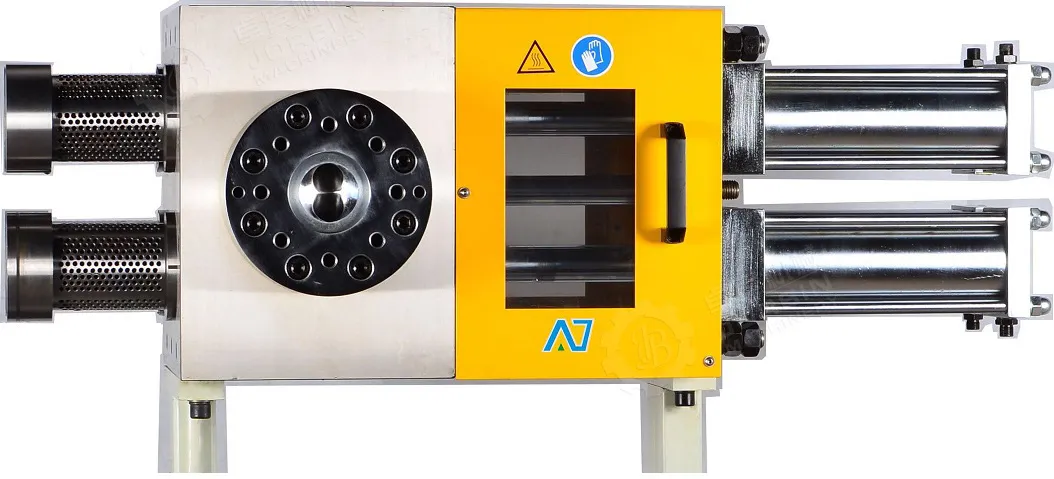

| 4 | Hydraulic screen changer system | 1 set | 5.5kW |
| 5 | Φ130/10 Single screw extruder | 1 set | 75kW |
| 7 | Water-ring die face cutting system | 1 set | 2.2kW |
| 9 | Centrifugal dryer | 1 set | 7.5kW |
| Model | Screw Diameter (mm) | L/D Ratio | Capacity (kg/h) |
|---|---|---|---|
| ML-100/100 | 100 | 26~33 / 10 | 250~300 |
| ML-120/120 | 120 | 26~33 / 10 | 300~400 |
| ML-150/150 | 150 | 26~33 / 10 | 500~600 |
| ML-180/180 | 180 | 26~33 / 10 | 800~1000 |
