Pet/PP/PE/Agricultural Film/Woven Bag/Bottle Flakes Single/Double Stage Plastic Granules PVC Pet ABS Flakes Film Pelletizing Recycling Granulation Machine

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

Send Inquiry

Product Description

📊 Overview & Basic Info

Model NO.	XTZL1000	Raw Material	PE
Screw	Single-Screw	Inverter	ABB, Honeywell
Automation	Automatic	Motor	ABB
Certification	CE, ISO9001:2008, QS, GMP, BV	Screw Speed	0-115rpm
Water Consumption	According to Capacity	Screw L:D	10-35:1
Production Capacity	300-2000KG/HR	HS Code	8477800000

⚙️ Product Description

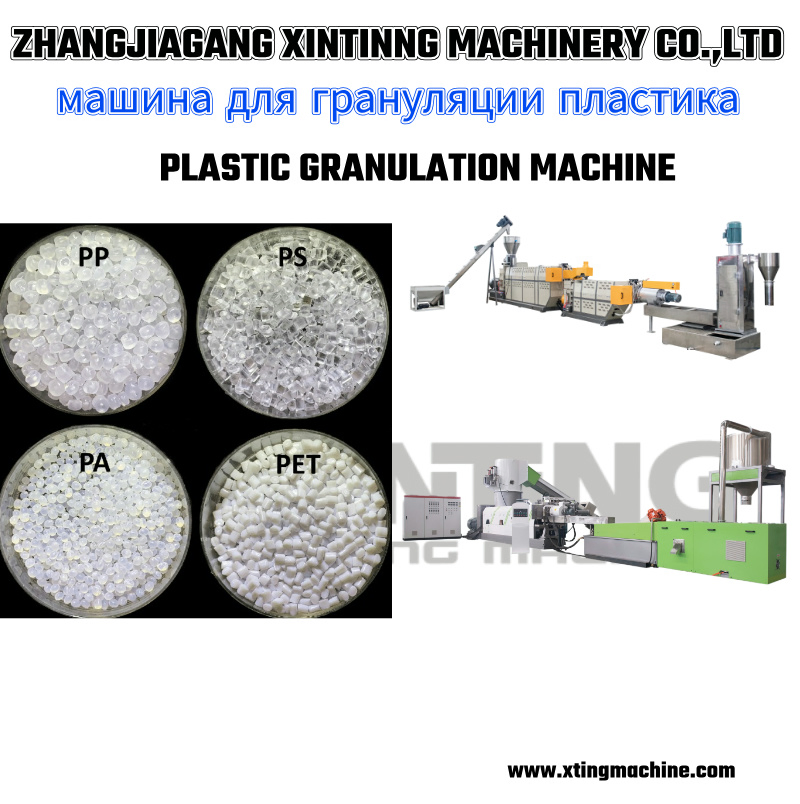

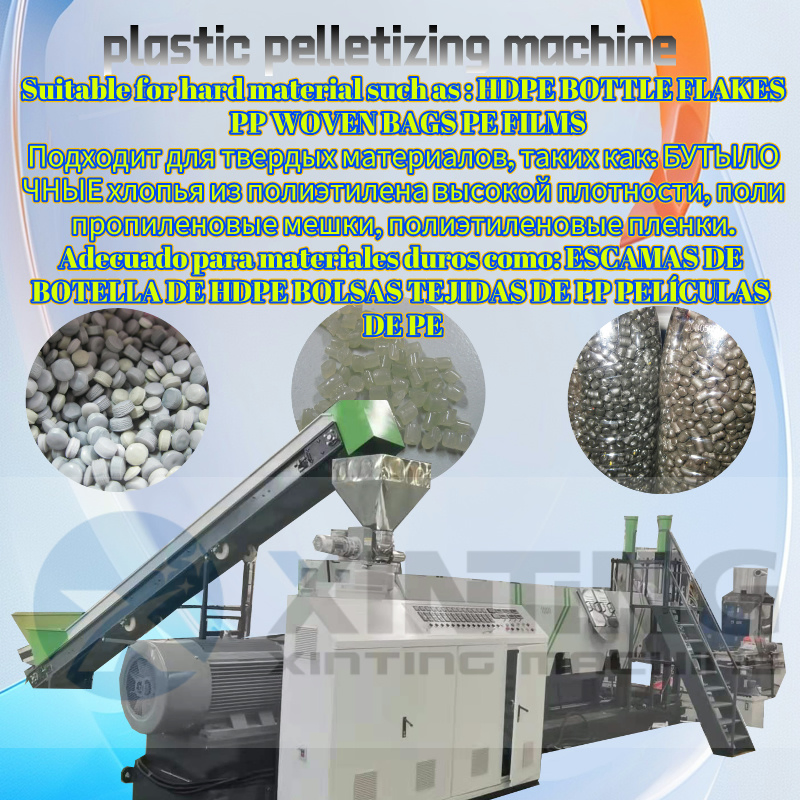

Recycling Granulation Machine Summary:

Waste Plastic film/bags after washing recycling can be processed into high-quality plastic granules. These granules can be reused for blow molding or injection molding to create new products such as bags, bottles, pallets, and barrels. Suitable for PE, PP, HDPE, LDPE, and LLDPE materials.

Our equipment offers specialized solutions for diverse needs:

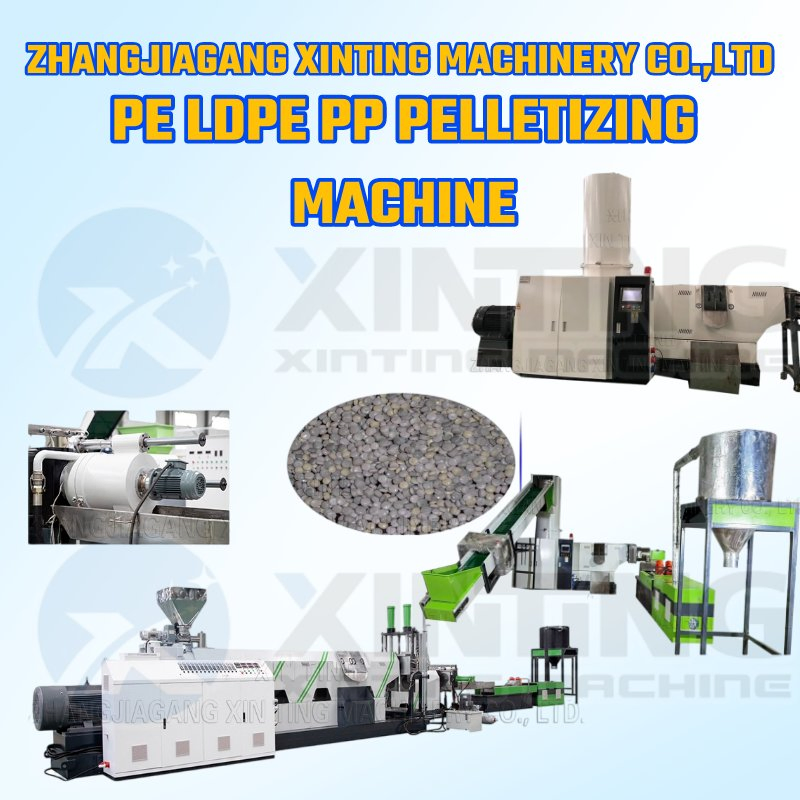

PE Film Pelletizing: Converts waste films into reusable pellets efficiently.

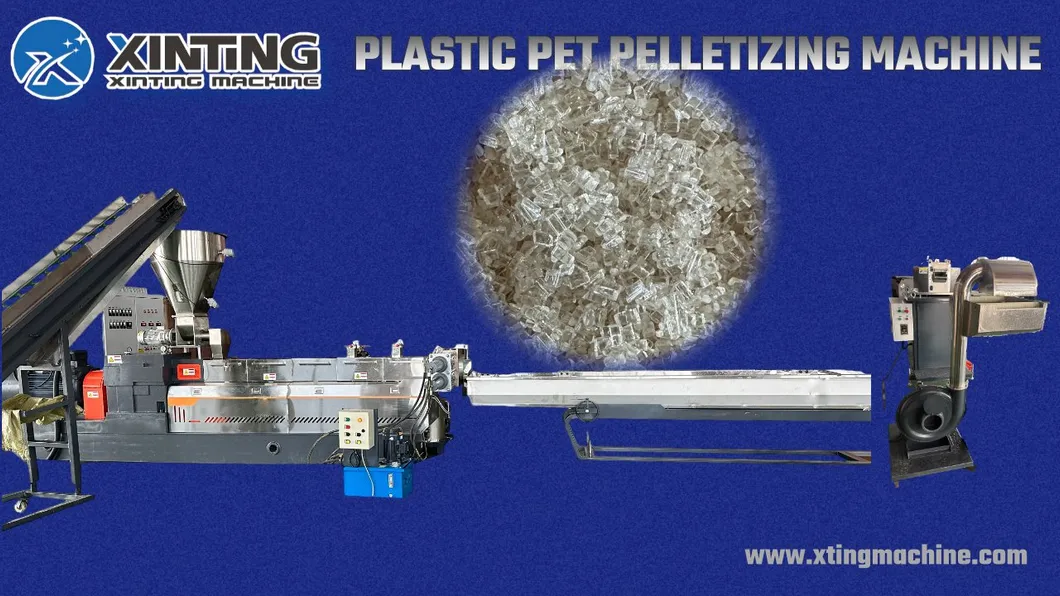

PET Pelletizing: Optimized for bottle flakes and fibers.

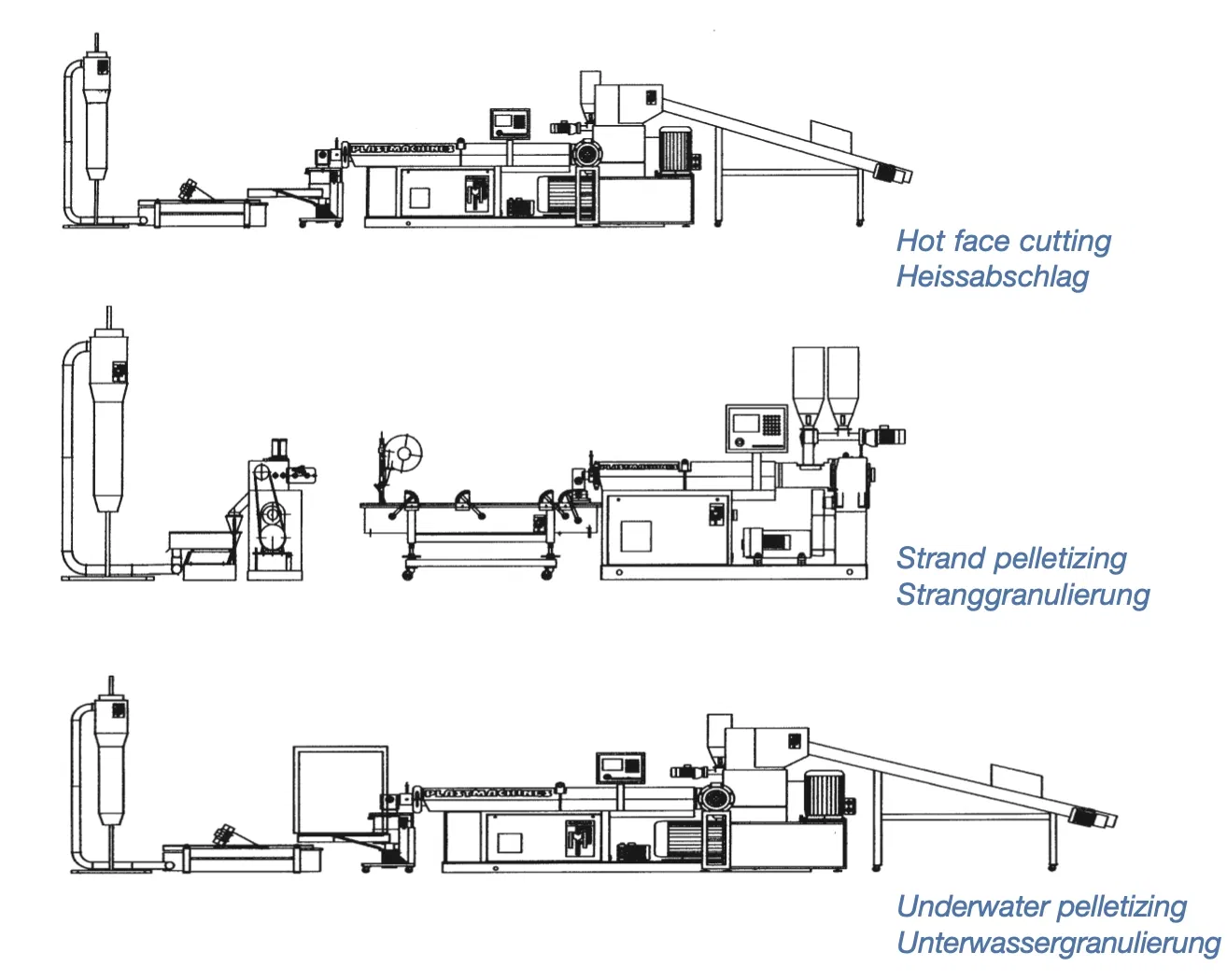

Process Options: Strand pelletizing (noodle type) or Water ring pelletizing for rapid cooling.
Stages: Single-stage for compact budgets or Two-stage for precise plasticizing and higher quality.

🛠️ Production Line Layout

1 Conveyor belt

2 Semi-automatic metal detector

3 Compactor force feeder

4 First stage extruder

5 Hydraulic screen changer

6 Second stage extruder

7 Die face cutting system

8 Water cooling & Dewatering system

📋 Technical Parameters

Model	Screw Diameter	Screw L/D	Main Motor	Capacity
RDL-SJ85	85mm	28-33:1	55KW	150-200kg/hr
RDL-SJ100	100mm	28-33:1	75KW	200-300kg/hr
RDL-SJ130	130mm	28-33:1	90KW	300-400kg/hr
RDL-SJ150	150mm	28-33:1	110KW	400-500kg/hr
RDL-SJ160	160mm	28-33:1	132KW	500-600kg/hr
RDL-SJ200	200mm	28-33:1	200KW	800-1000kg/hr

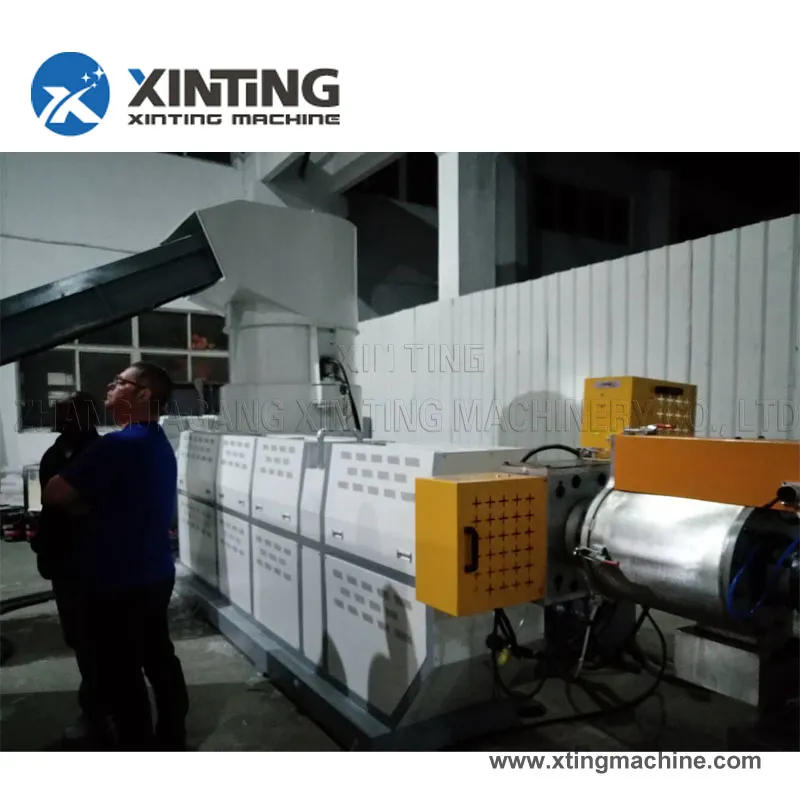

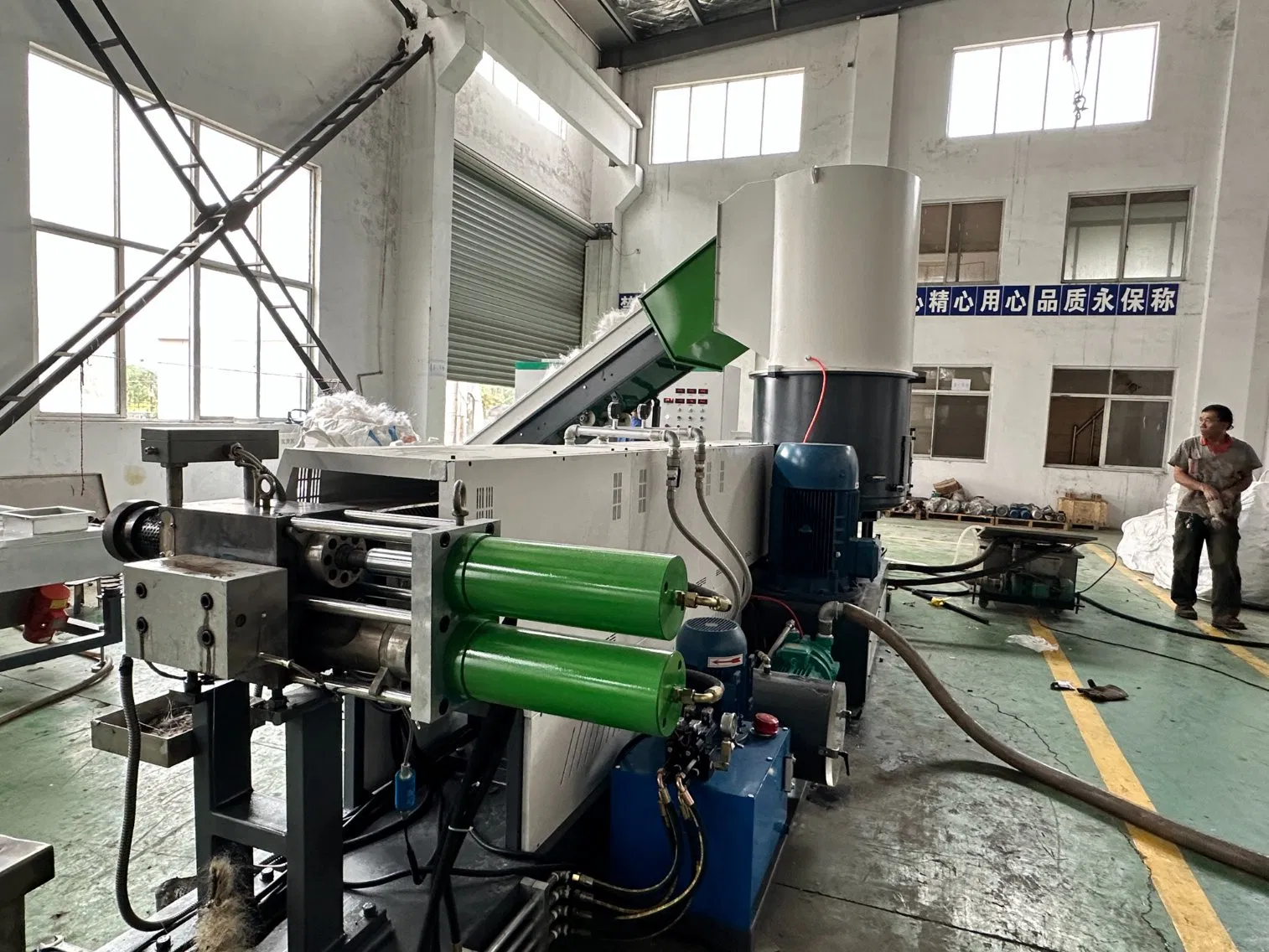

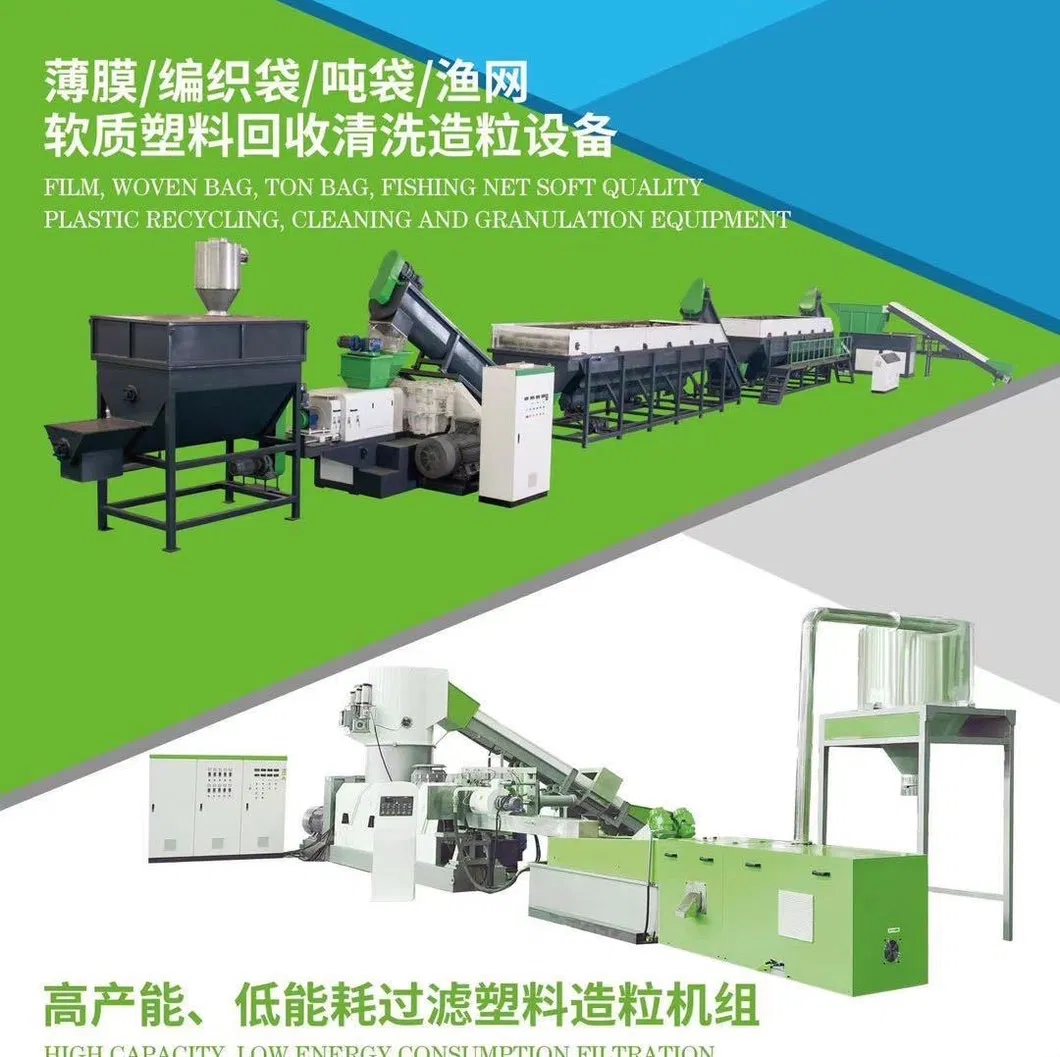

📸 Detailed Equipment Photos

Frequently Asked Questions

What types of plastic materials can this machine process?

The machine is designed for PE, PP, HDPE, LDPE, LLDPE, PET, and ABS, including films, woven bags, and bottle flakes.

What is the difference between single-stage and double-stage pelletizing?

Single-stage is more compact and cost-effective, while double-stage (mother-baby type) involves two plasticizing processes for better material filtration and higher pellet quality.

Can the production capacity be customized?

Yes, we offer various models with capacities ranging from 100kg/hr up to 2000kg/hr to meet different industrial requirements.

What cooling methods are available for the pellets?

We provide two main options: Strand pelletizing (noodle type) for regular shapes and Water Ring pelletizing for high-efficiency rapid cooling.

Is the operation system easy to use?

Absolutely. The line utilizes a computerized touch screen control system for intuitive operation and high automation levels.

What key components are used in the machine?

We use high-quality international brands such as ABB motors and Honeywell or ABB inverters to ensure stable and long-term performance.
