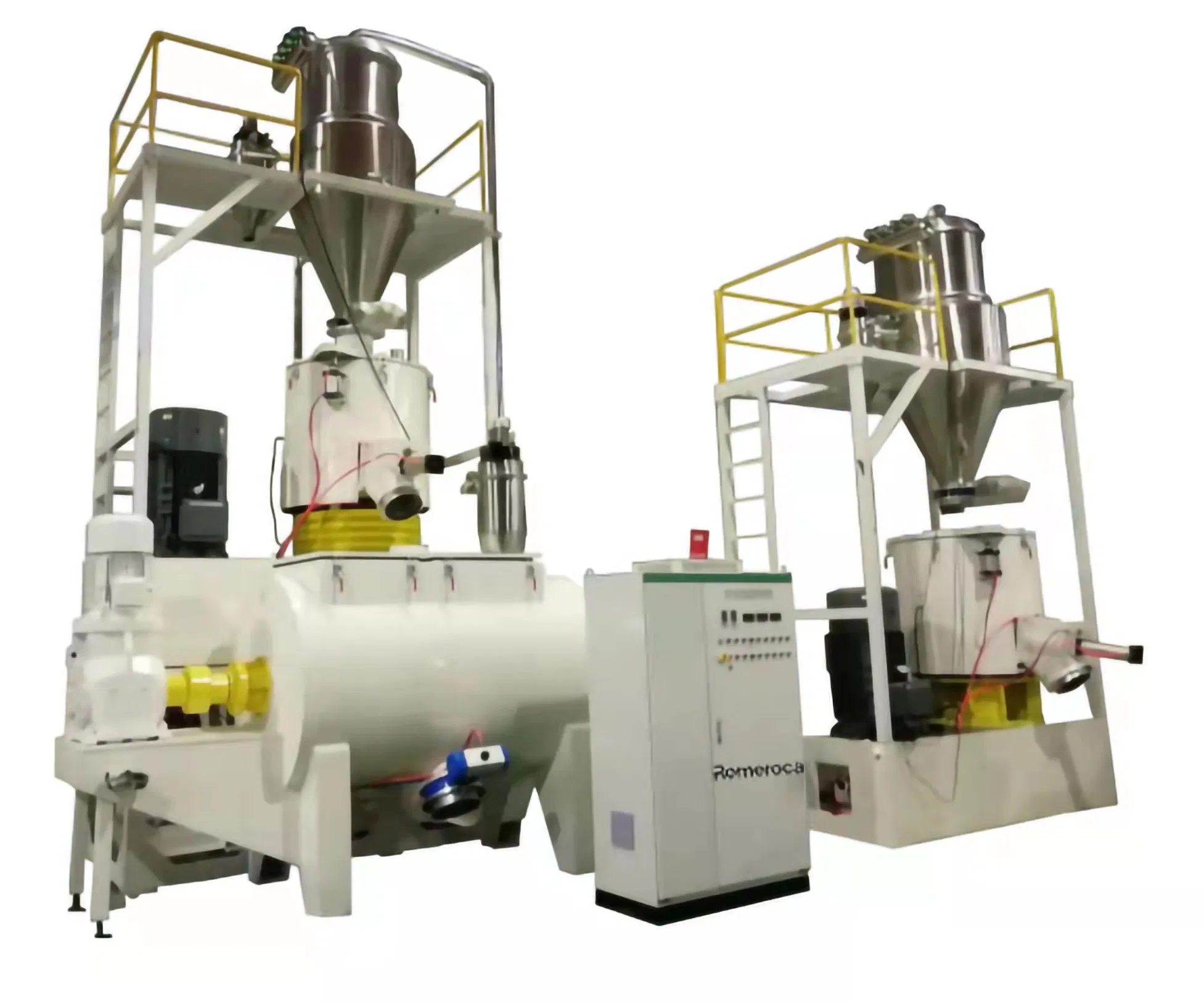

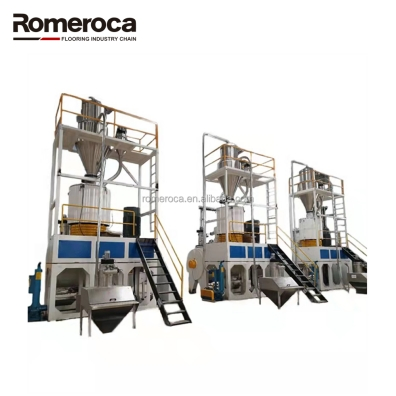

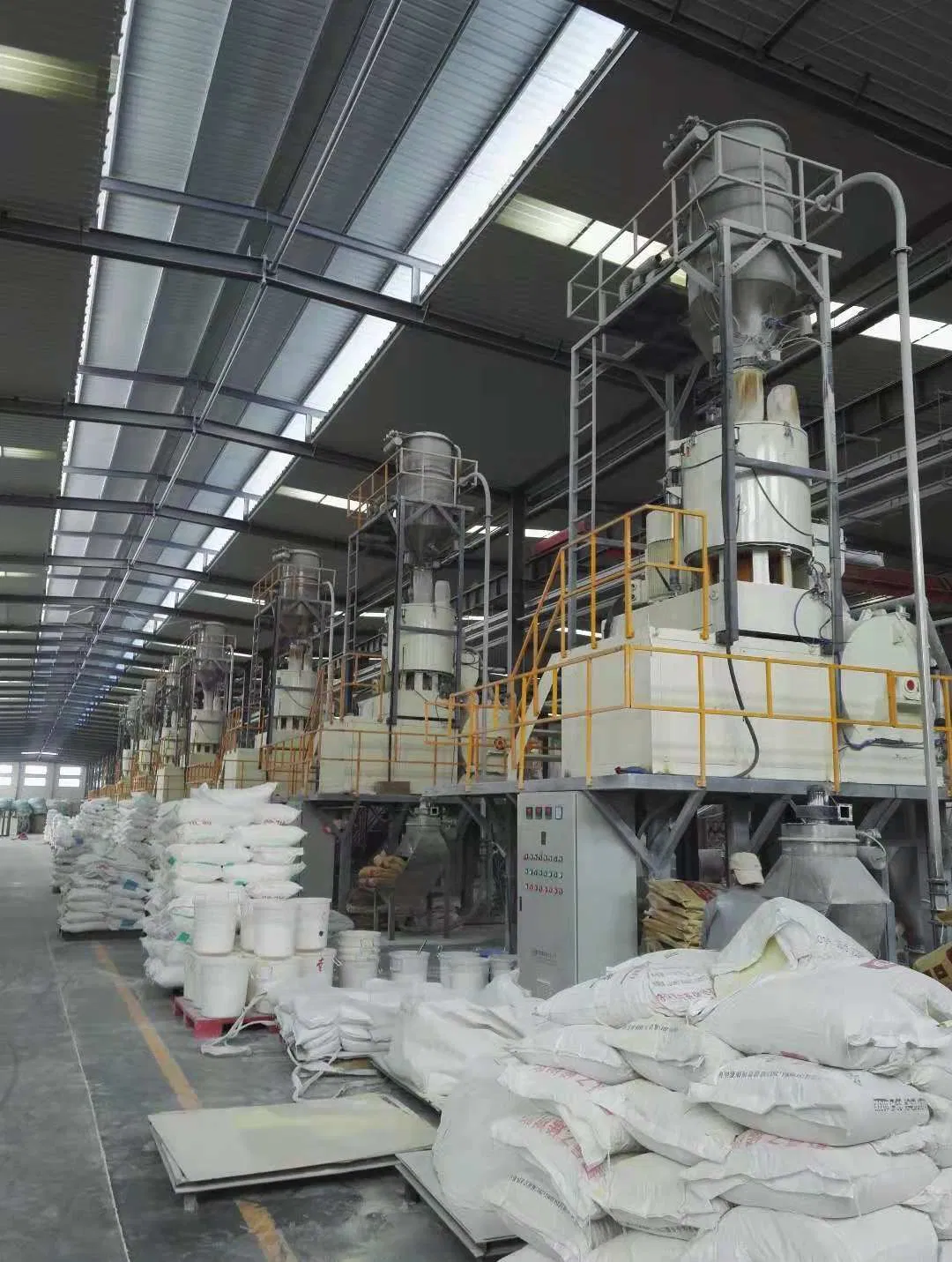

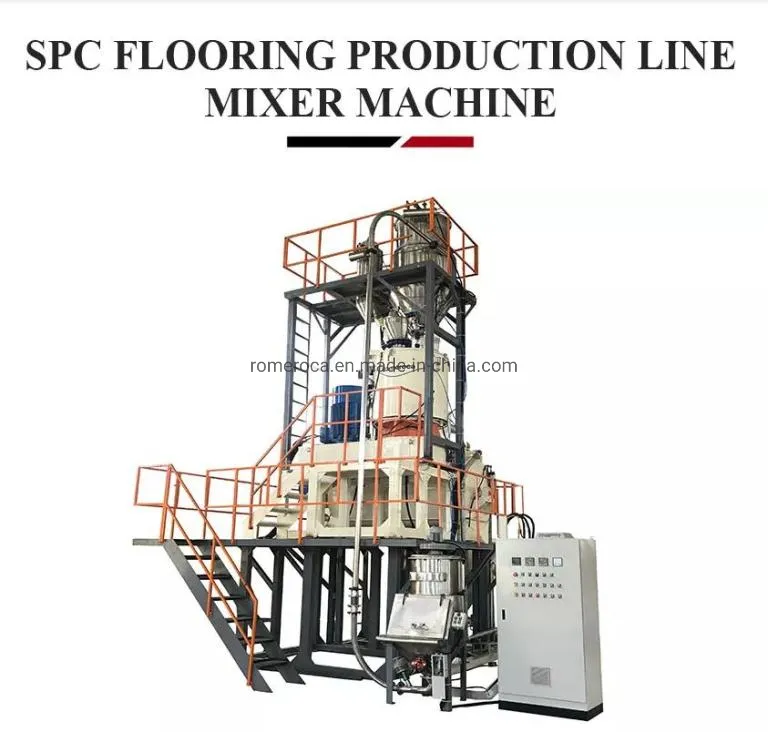

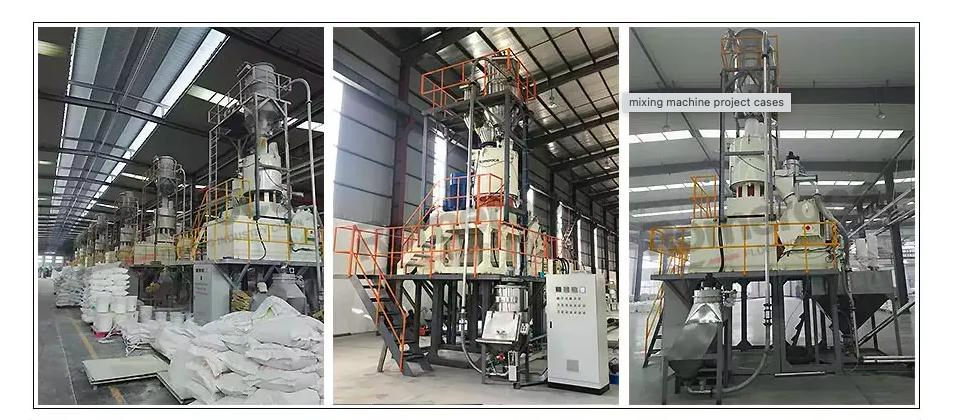

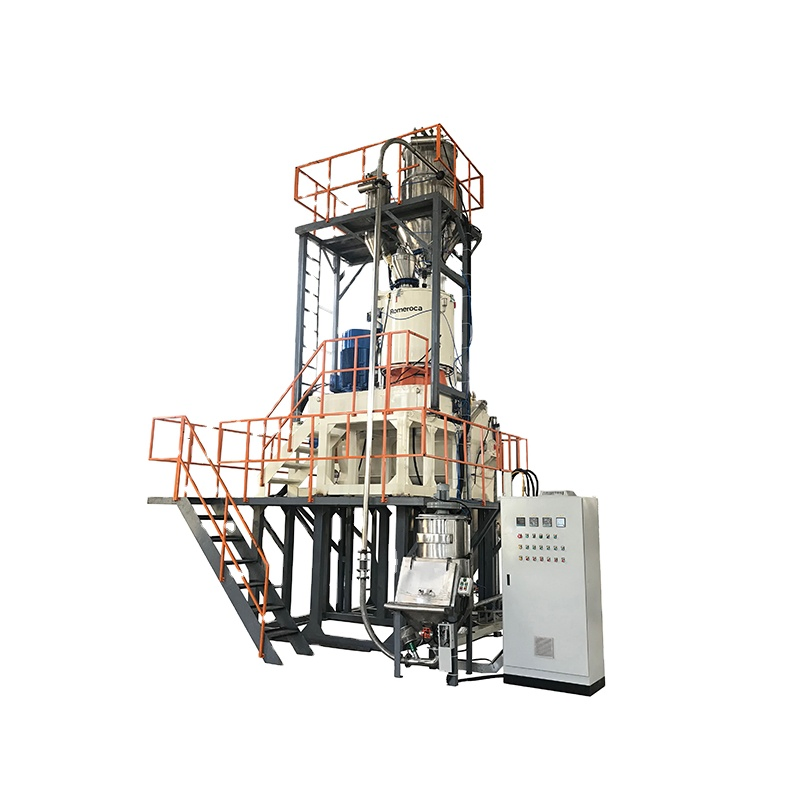

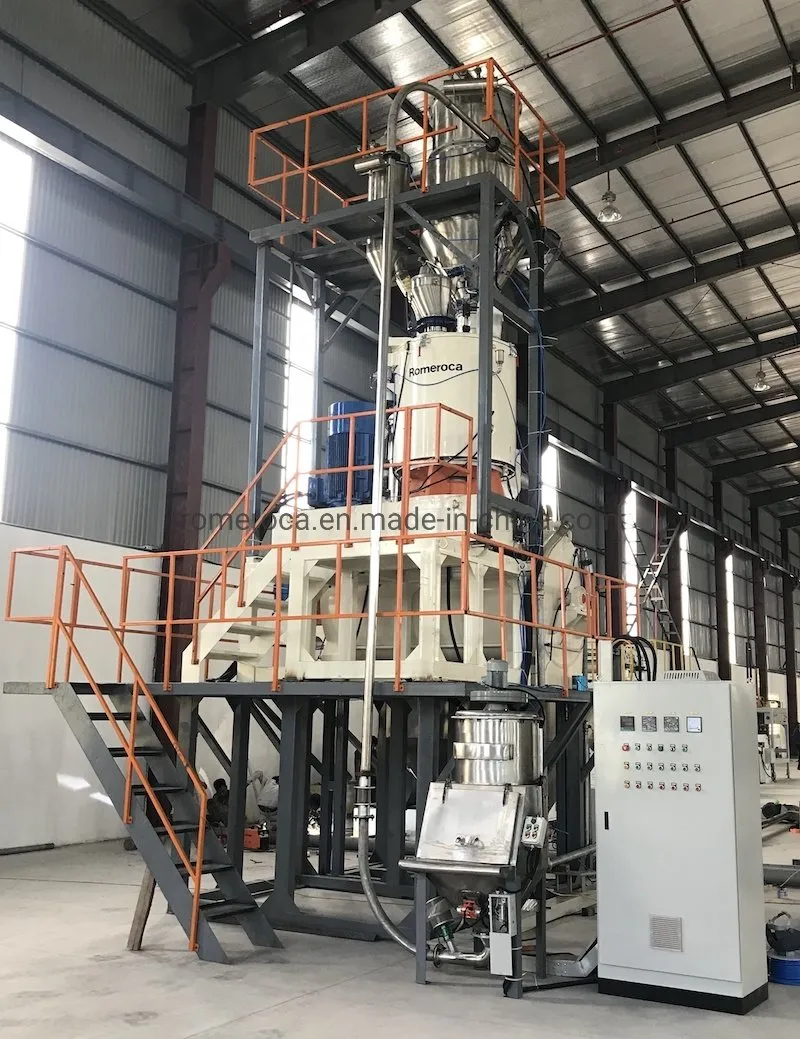

The mixer machine is the critical first step in the SPC flooring production process. It is designed to blend raw materials including PVC-SG5, CaCo3, stabilizers, and PE wax according to precise ratios. Our mixing system features convenient feeding, dust-free operation, high production efficiency, and an exceptionally low failure rate.
| Machine Type | 500/1000 | 800/2500 | 1000/3000 | 1500/6000 |
|---|---|---|---|---|
| Hot Mixing Volume | 500L | 800L | 1000L | 1500L |
| Cool Mixing Volume | 1000L | 2500L | 3000L | 6000L |
| Component | Feature | Details |
|---|---|---|
| Vacuum Feeder | Material/Silo | SUS304, 200L/800L |
| Hot Mixing | Motor Power | 160KW, Siemens Standard |
| Hot Mixing | Mixing Time | 6~8 Min/Barrel |
| Cooling Mixing | Motor Power | 22KW |
| Cooling Mixing | Capacity | >2000KG/H |
| Transition Silo | Motor | 1.1KW |
12-Month Warranty on all machinery products (non-consumable parts).
36-Month Tracking service with prompt responses within 24 hours.
Full Factory Layout and production process design services.
Comprehensive Technical Guidance, training, and support.

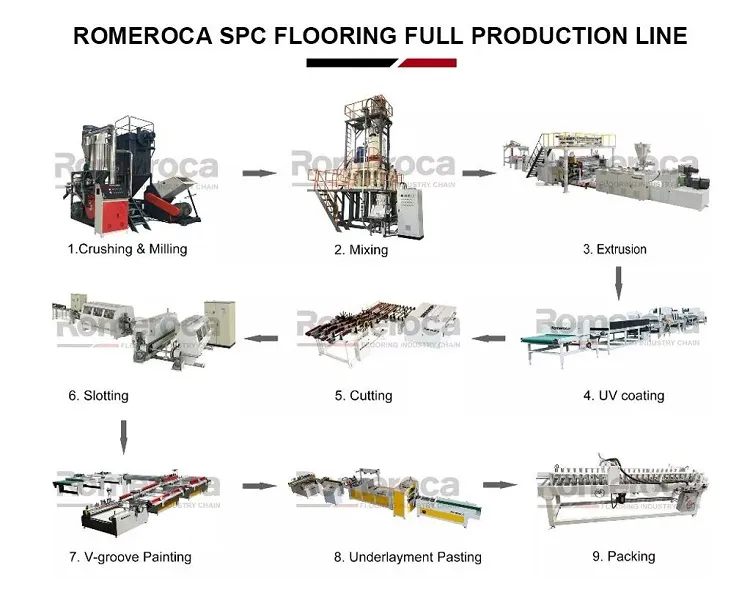

Recycle waste materials by crushing and grinding them into powder to be reused as raw materials.

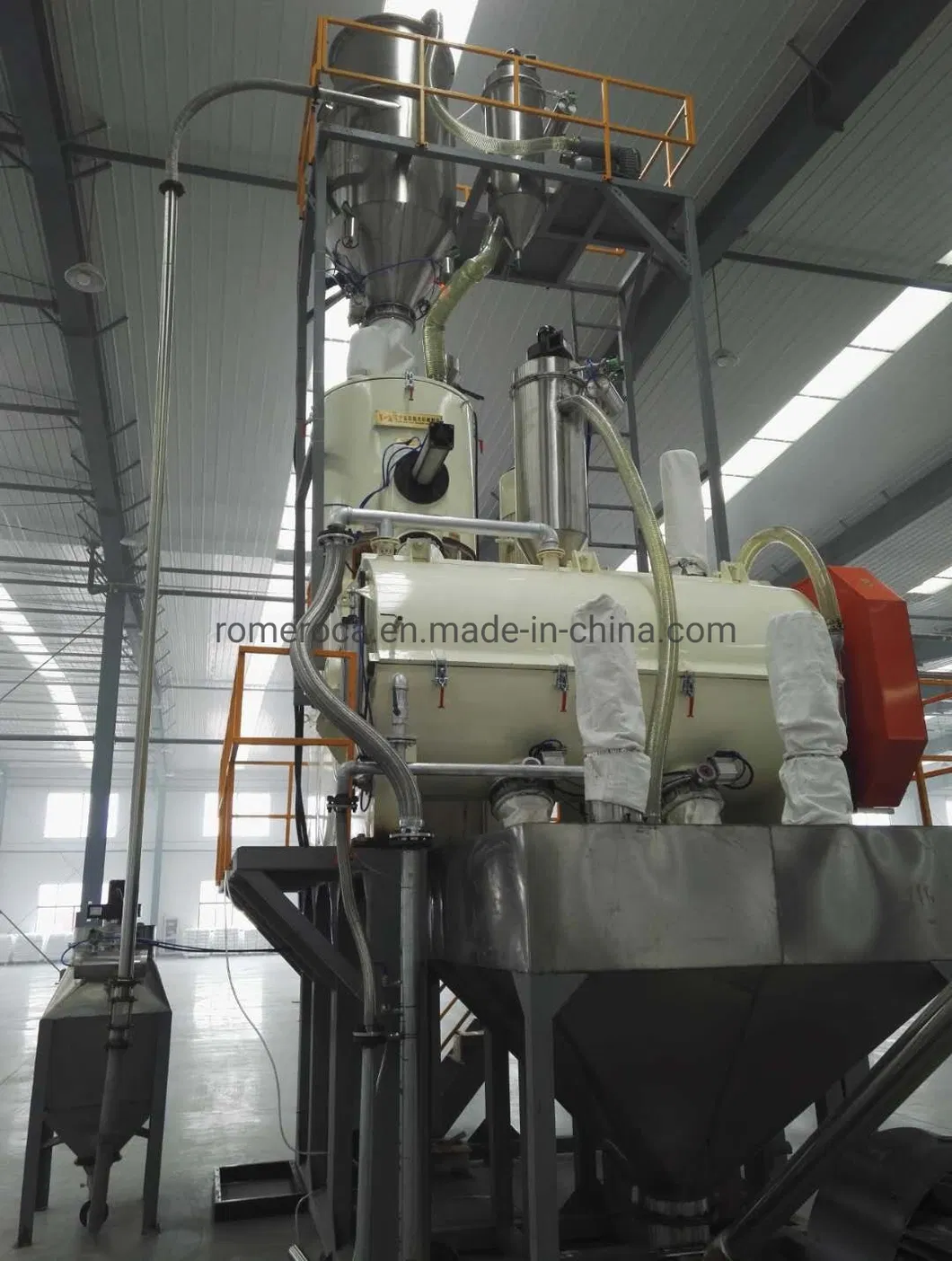

Uniformly blend materials in the high-speed mixer. Hot mixing removes moisture, followed by cooling to prevent agglomeration.
Materials are extruded into sheets via twin cone screws and laminated with wear-resistant layers and color films.
Surface coating to prevent dust and scratching while increasing abrasion resistance.
Automatic rip saws cut large boards into standard plank sizes.
Processing the edges into lock shapes using double-end tenoner machines for click-system installation.
Painting the edges of SPC flooring to create a premium V-groove aesthetic.
Attaching acoustic padding to the back for better sound insulation and walking comfort.

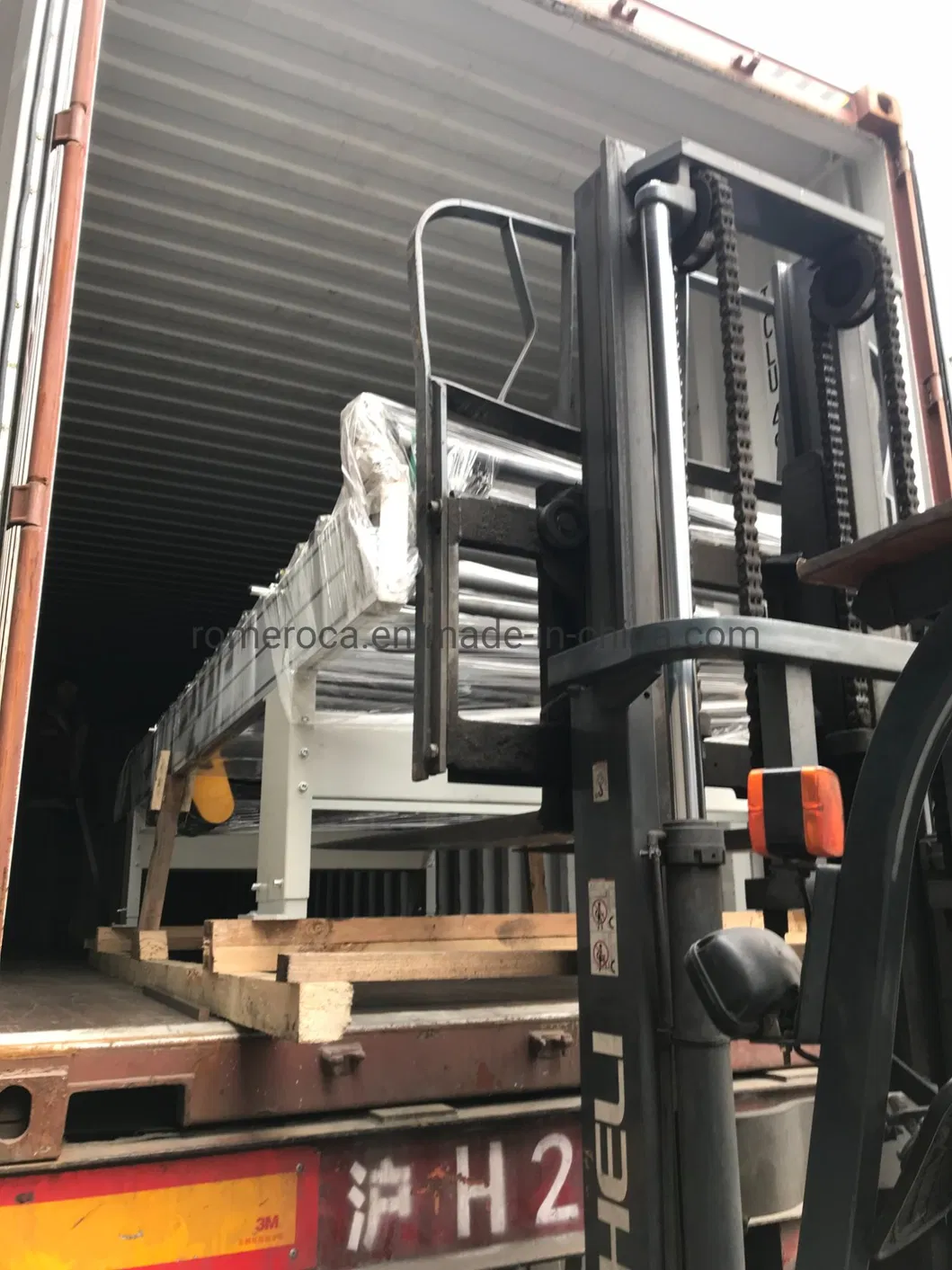

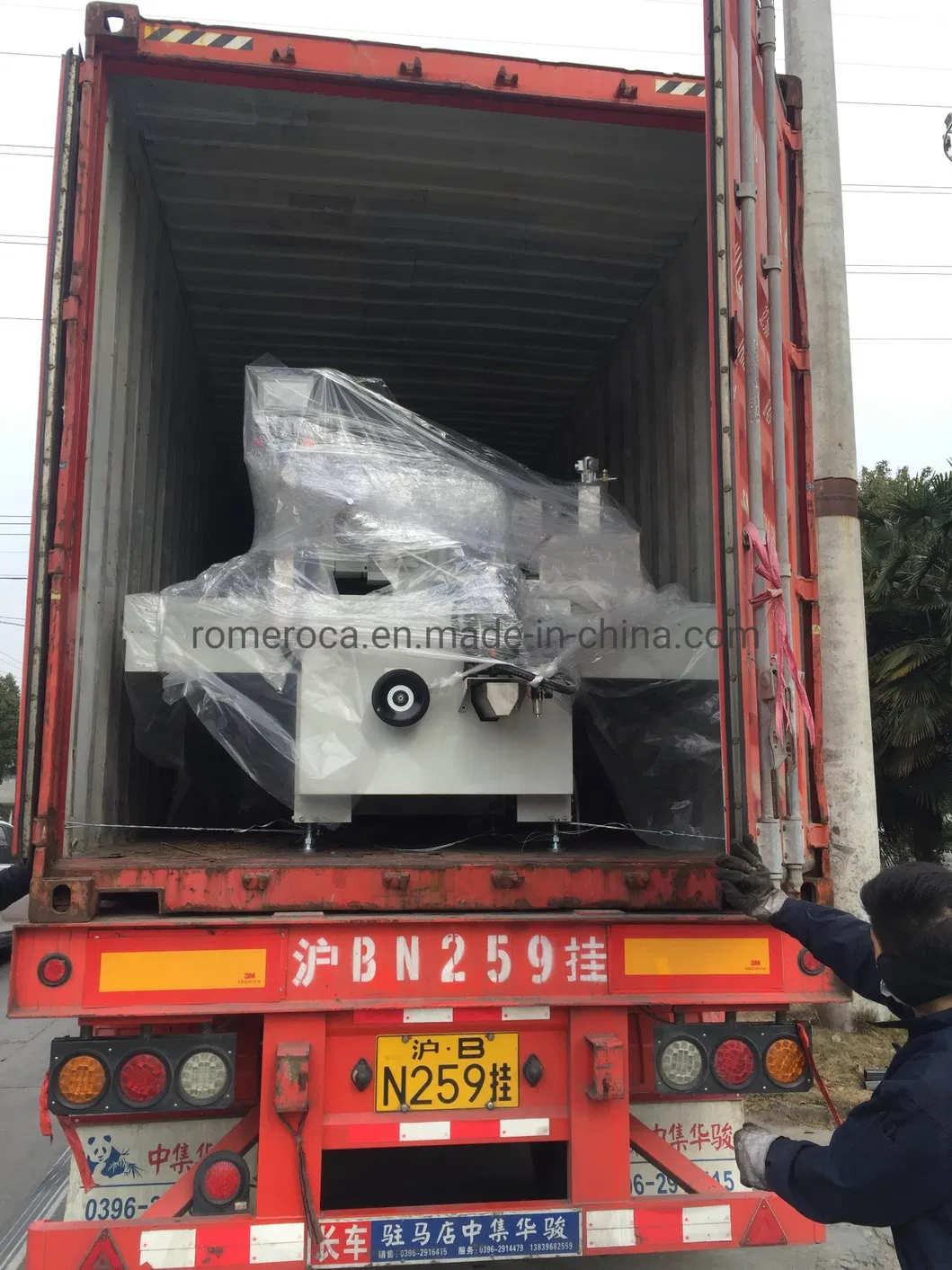

Final packaging using semi-automatic or fully automatic systems.
