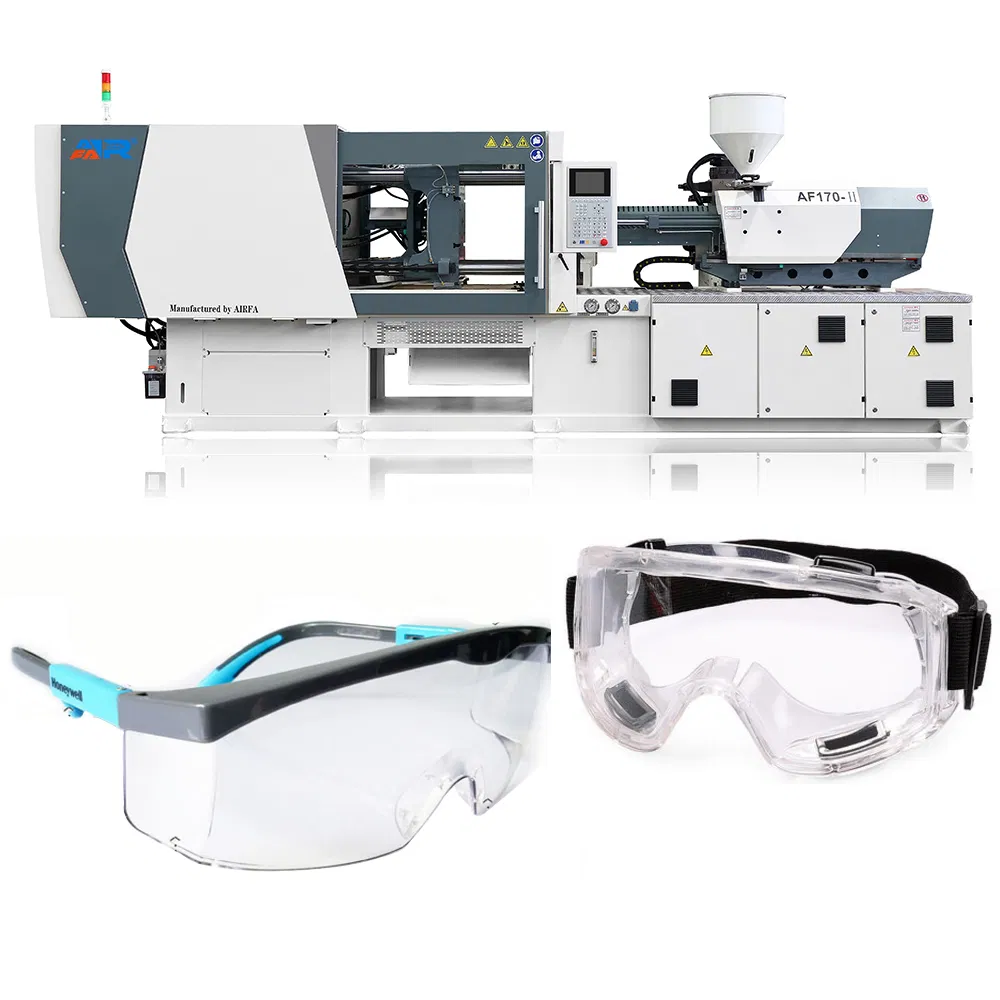

Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
1 / 5
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame
Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame

Plastic Making Machine Small Injection Molding Machine to Make Eye Glasses Frame

Customization: Available
After-sales Service: Video
Warranty: 1 Year
Send Inquiry

Product Description

Product Overview

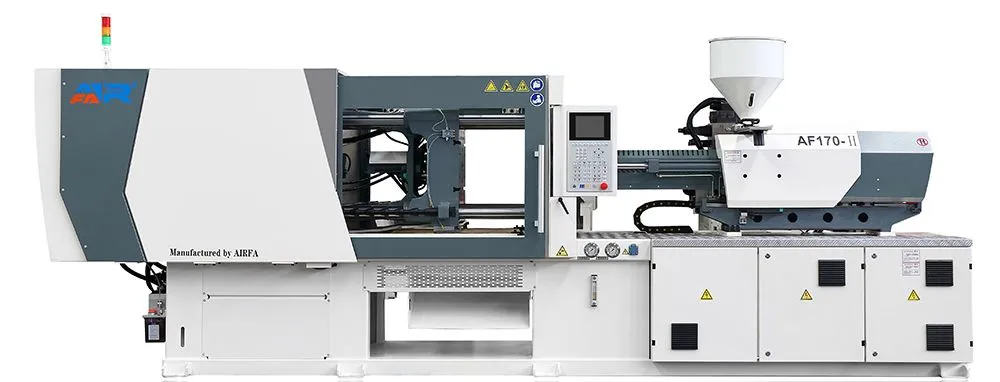

Injection Molding Machine Overview

This series of injection molding machines adapts fast and reliable linear motion, equipped with a servo control energy-saving system. With experienced technology, we provide the best solutions for precise injection products.

Basic Specifications
Model NO.:AF100
Type:Injection Blow Molding
Structure:Horizontal
Plastic Type:Thermoplastic
Plasticizing Way:Plunger Type
Clamping Way:Hydraulic
Automation:Automatic
Certification:CE, ISO9001:2008, GMP
Customizable:Yes
Production Capacity:100 Units/Year
Key Features & Technical Units

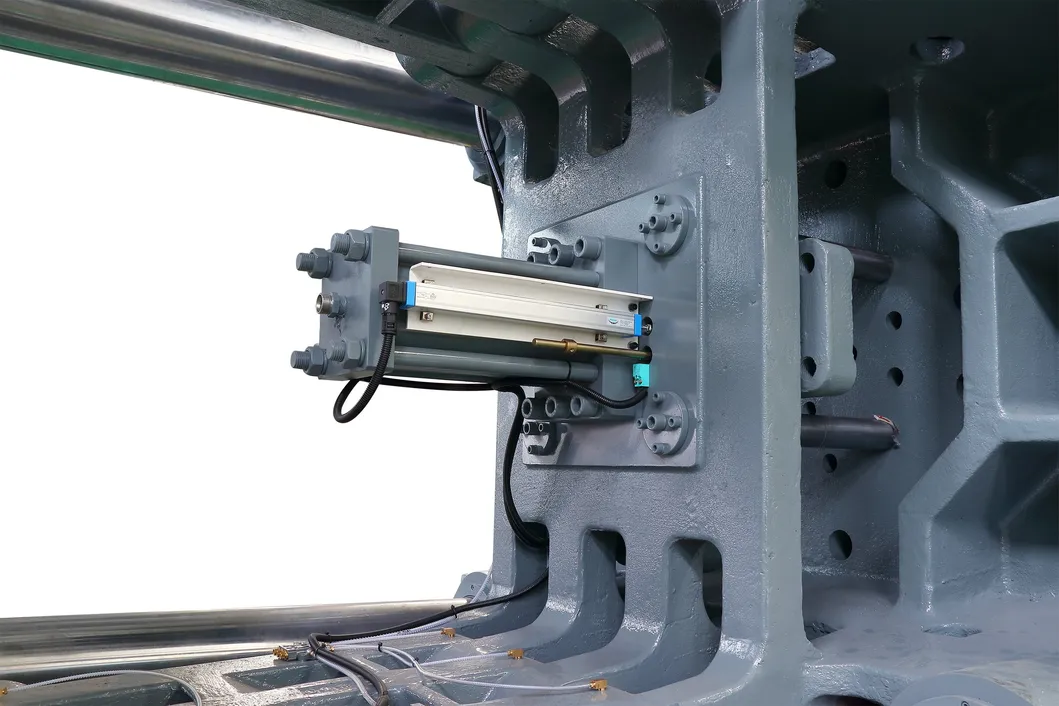

Clamping Unit

⚡ Clamping Unit

  • Optimized platen design with high rigidity.
  • Euromap-based platen layout with T-slot & tap holes.
  • New ejection system with longer stroke and better rigidity.
  • Hydraulic driven gear-type mold height adjustment.
  • Relocation of mechanical safety interlock for easier operation.

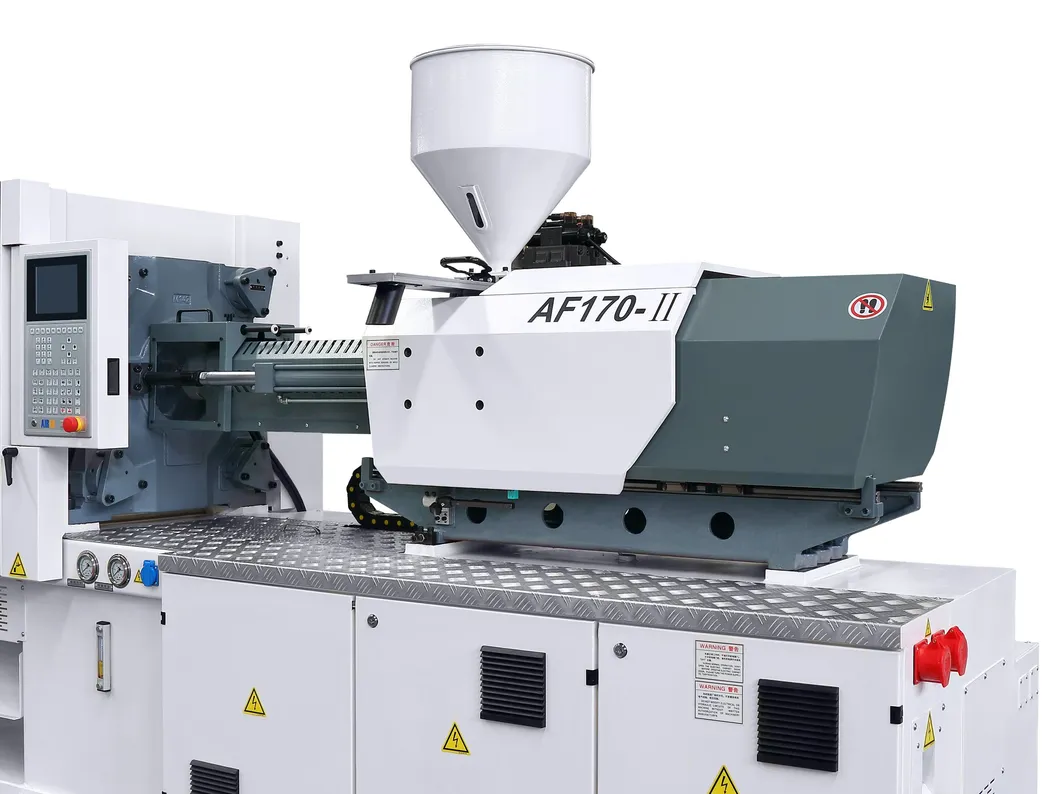

Injection Unit

⚡ Injection Unit

  • High-quality linear motion guide for accuracy.
  • High speed and pressure injection structure.
  • Twin nozzle cylinder ensures stable structure.
  • Specialized screw barrel design for various materials.

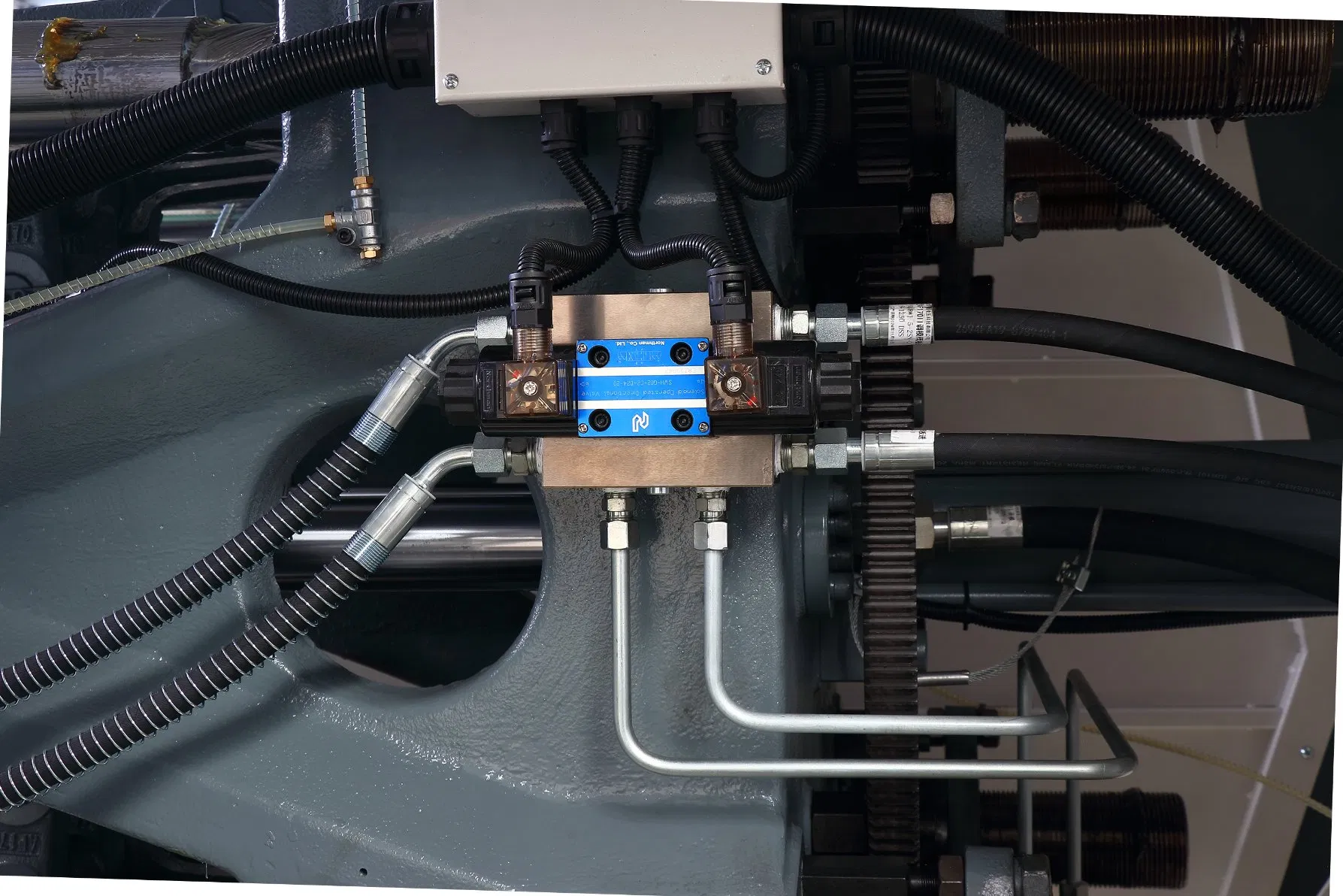

Hydraulic System

⚡ Hydraulic System

  • Double proportional compound valve control.
  • Imported high-quality pump with low noise levels.
  • Servo hydraulic system optional for energy saving.
  • Precise feedback control for pressure and flow.
  • Low pressure mold protection system.
Technical Specifications - AF100-II
Parameter Unit A B C
Screw Diametermm323640
Screw L/D RatioL/D23.82119
Shot Volumecm³140178220
Shot Weight (PS)g128162200
Injection PressureMpa249196159
Clamping ForceKN1000
Opening Strokemm350
Platen Sizemm550x550
Max. Daylightmm750
Machine Weightton3.7
Workshop & Quality Control

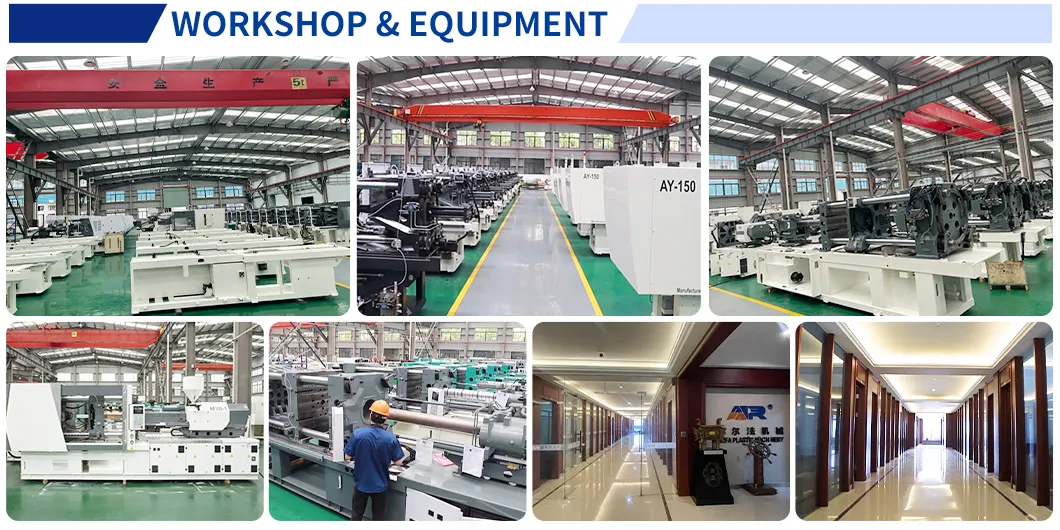

Workshop
Certifications
Exhibition
Packaging
Frequently Asked Questions
Q1: What is the primary advantage of the AF Series servo system?
A: The servo system provides high-precision control (error <0.3%), high sensitivity (0.5s response time), lower noise (1/10 lower than traditional pumps), and saves 30-80% energy.
Q2: Can the machine's technical parameters be stored?

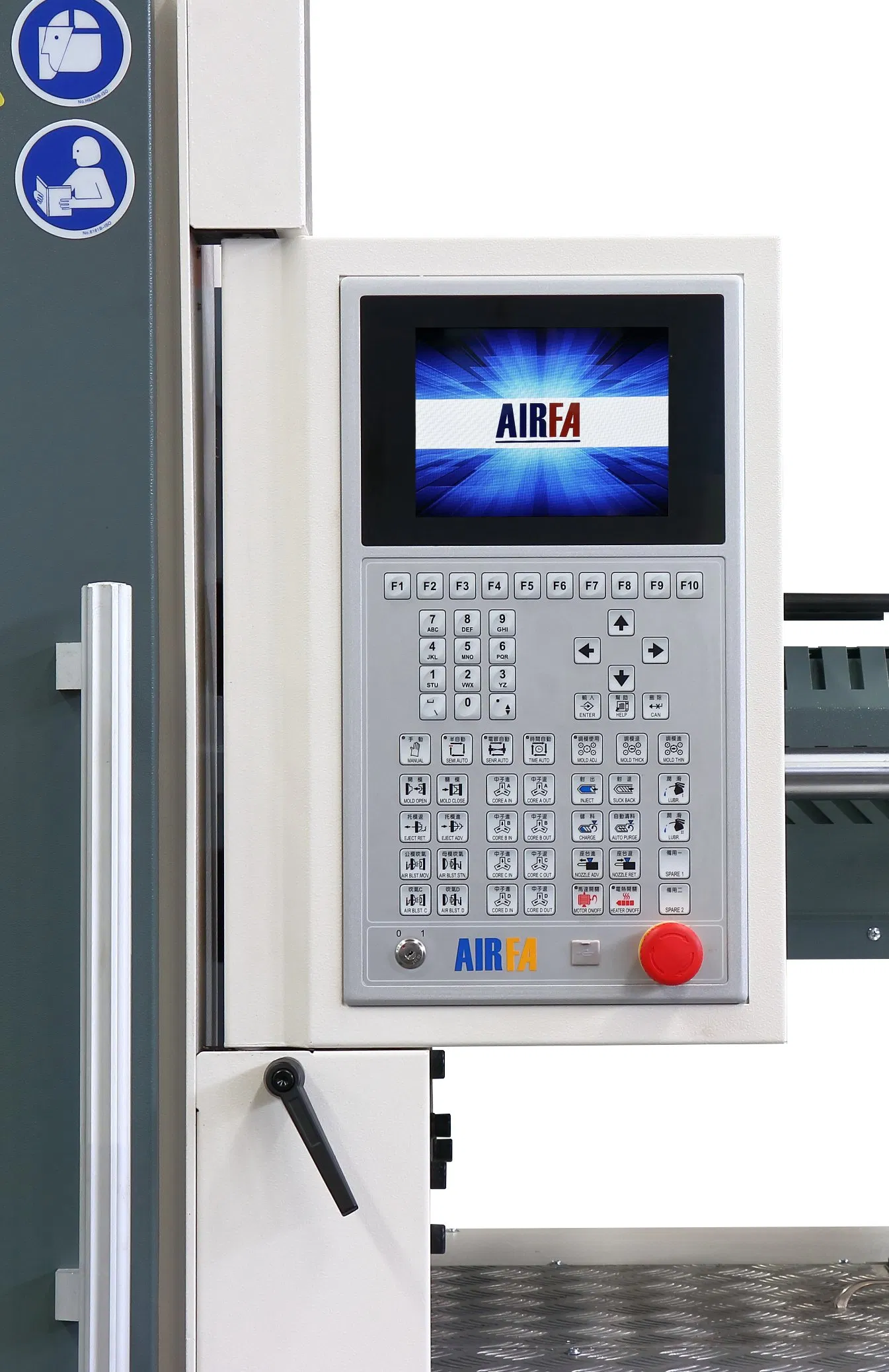

A: Yes, the computerized system allows up to 120 technological parameters to be stored and accessed via standard USB drives.
Q3: What is the typical delivery time for the AF100 model?
A: The standard delivery time is approximately 30 days from the date of order confirmation.
Q4: Is the machine compatible with international molds?
A: Yes, it features a Euromap-based platen layout with both T-slots and tap holes to accommodate various international mold designs.
Q5: What safety features are integrated into the clamping unit?
A: The machine includes a low-pressure mold protection system and a mechanical safety interlock relocated for safer and easier operation.
Q6: What certifications do these machines hold?
A: Our injection molding machines are fully certified with CE, ISO9001:2008, and GMP standards.
