| Model NO. | HDPE |
|---|---|
| Type | Pipe Extruder |
| Plastic Processed | PE |
| Product Type | Extrusion Molding Machine |
| Feeding Mode | Multiple Feed |
| Assembly Structure | Integral Type Extruder |
| Screw | Single-Screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008 |
| Application | Produce HDPE Pipes |
| Transport Package | Woodbox with Film Wrapped |
| Package Size | 1000.00cm * 1000.00cm * 1000.00cm |
|---|---|
| Package Gross Weight | 1000.000kg |
HDPE Pipe Extrusion Line Introduction
In the plastic pipe industry, manufacturers care most about stable product quality, reliable production efficiency, and controllable operating cost. Our high-speed production machine solutions are tailored to different factory needs and market conditions.

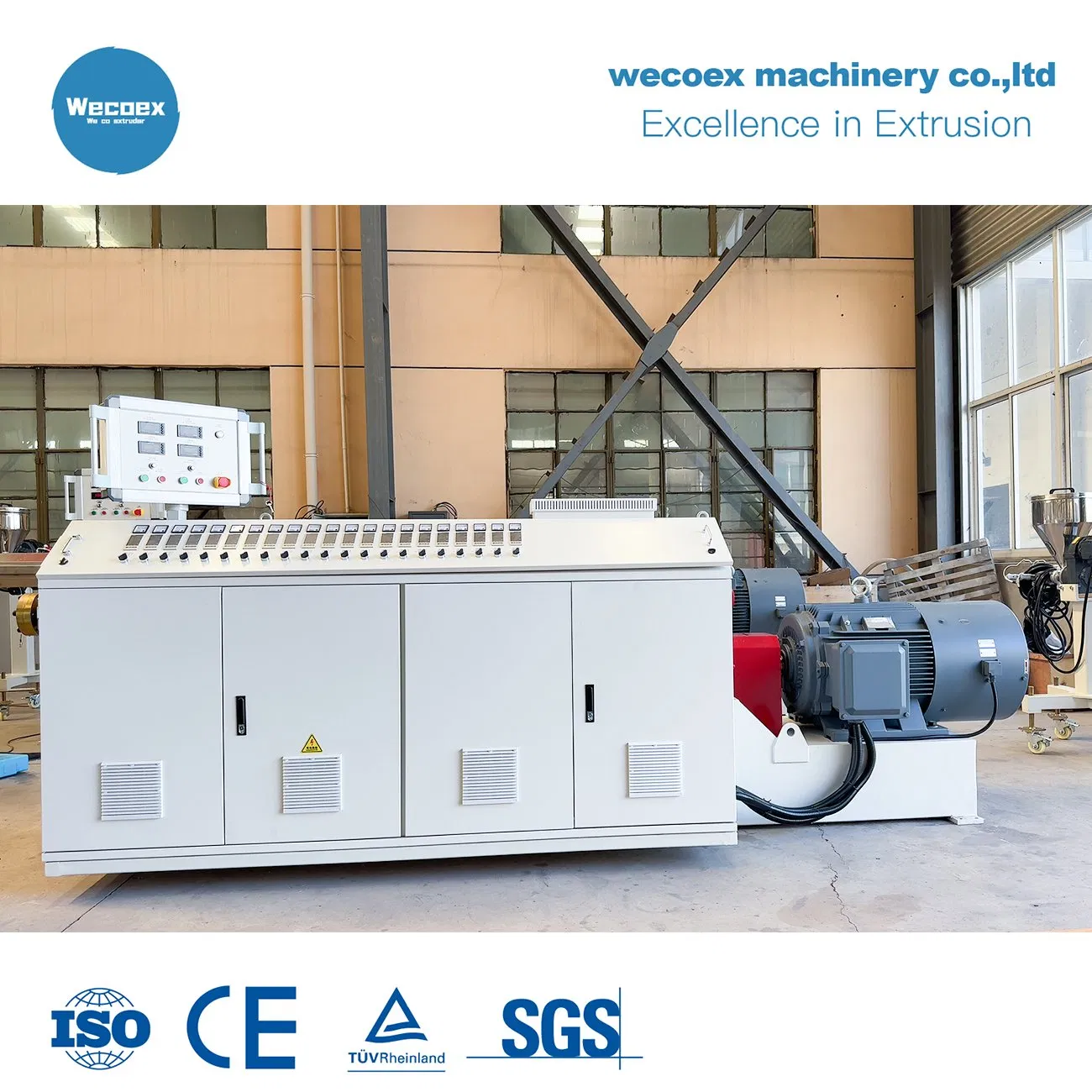

Our HDPE pipe production line covers a wide range from Φ16 mm to 1200 mm, widely used for water supply pipes, gas pipes, drainage pipes, mining pipes, and agricultural irrigation pipes. The core extruder is designed with a high-efficiency screw, automatic temperature control system, and energy-saving motor drive, ensuring excellent plasticization and consistent pipe dimensions.
| Model | Pipe Range (mm) | Max Speed (m/min) | Max Output (kg/h) | Power (kW) | Length (m) |
|---|---|---|---|---|---|
| 63PE | Φ16–Φ63 | 25 | 300 | 165 | 53 |
| 110PE | Φ20–Φ110 | 14 | 300 | 180 | 55 |
| 160PE | Φ40–Φ160 | 8 | 600 | 240 | 59 |
| 250PE | Φ50–Φ250 | 6.5 | 600 | 250 | 59 |
| 315PE | Φ110–Φ315 | 4.5 | 820 | 375 | 63 |
| 450PE | Φ160–Φ450 | 4.5 | 820 | 375 | 63 |
| 630PE | Φ160–Φ630 | 1.6 | 1150 | 515 | 63 |
| 800PE | Φ280–Φ800 | 0.8 | 1400 | 675 | 70 |
| 1000PE | Φ400–Φ1000 | 0.8 | 1400 | 675 | 70 |
| 1200PE | Φ500–Φ1200 | 0.6 | 1400 | 685 | 71 |

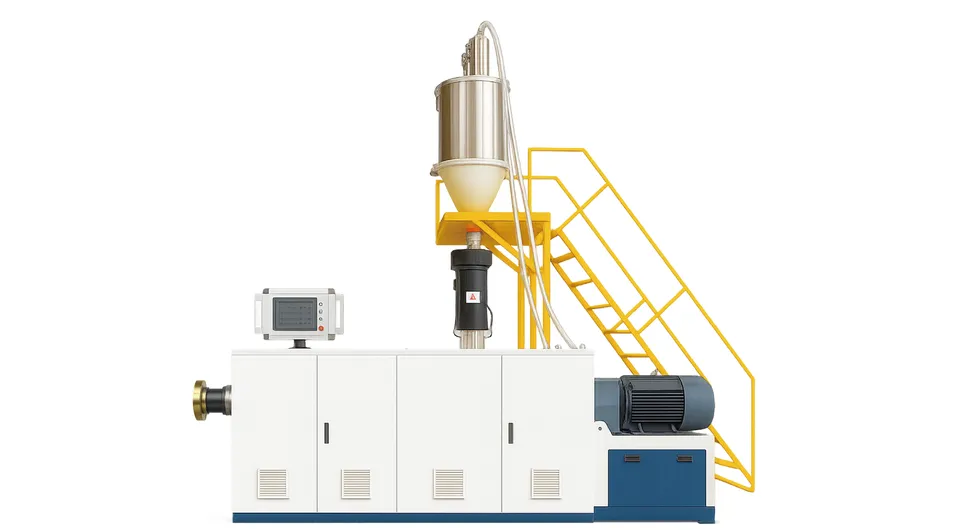

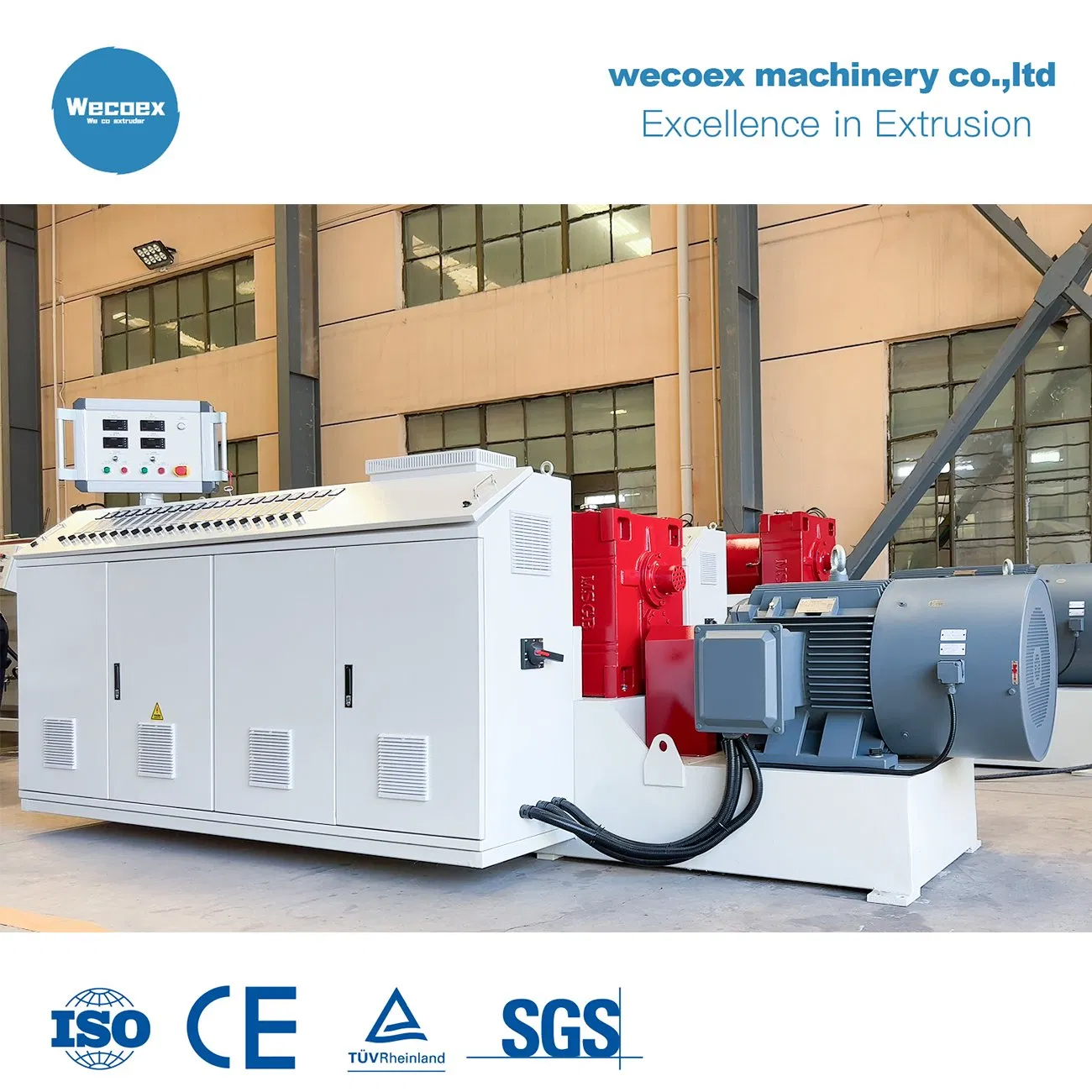

Optimized screw design for excellent plasticization and stable melt. Features multi-zone temperature control and PLC touchscreen for visualized process monitoring.

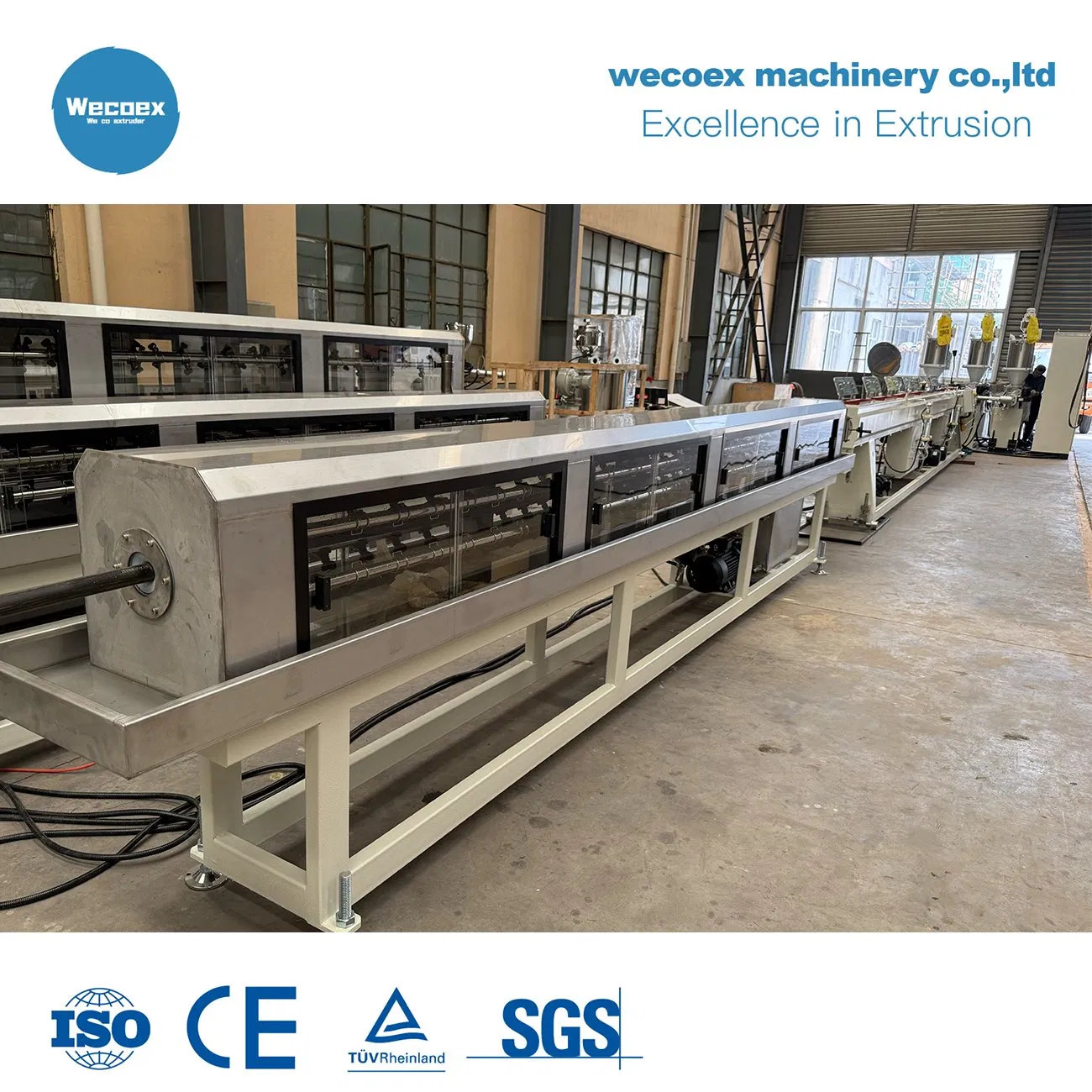

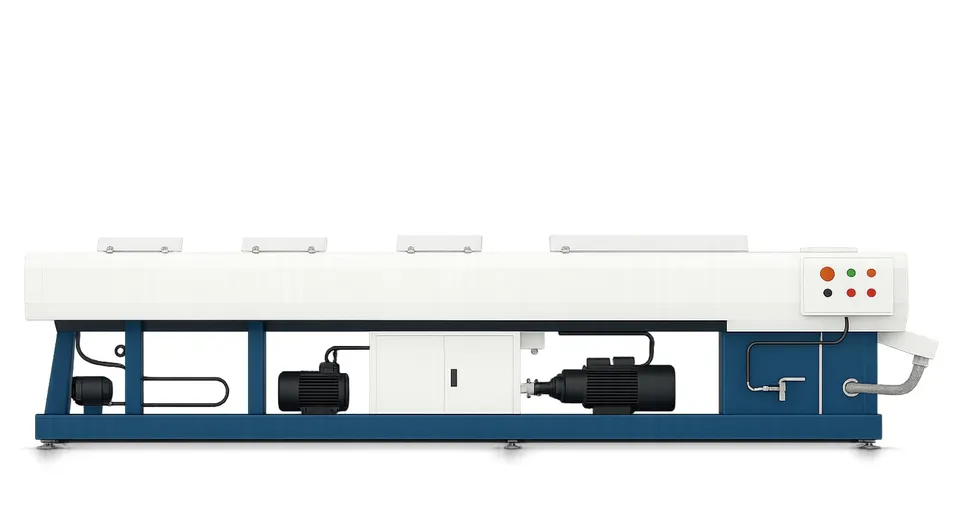

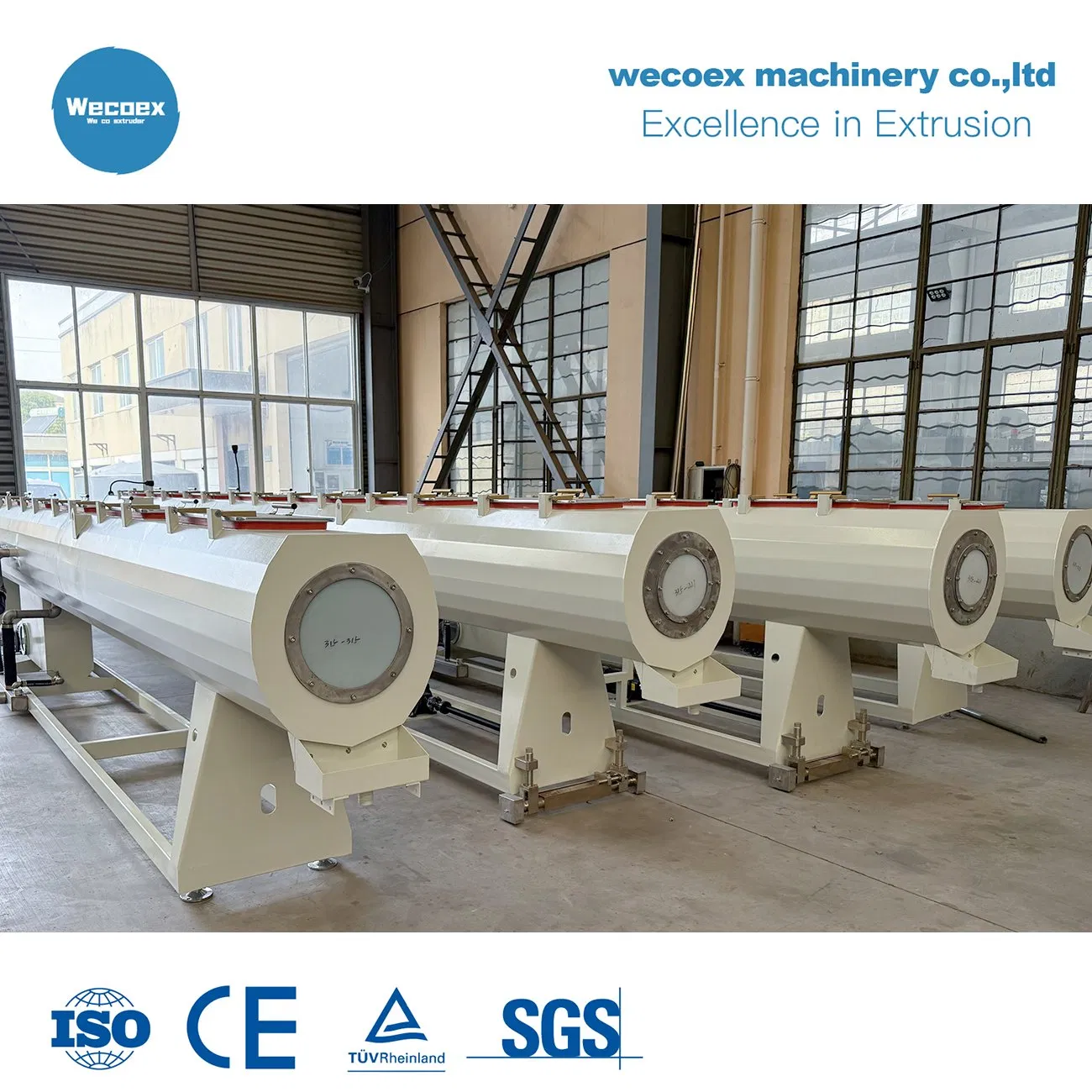

High-performance vacuum pump ensures uniform wall thickness and roundness. Stainless steel body with double water circulation system for faster cooling.

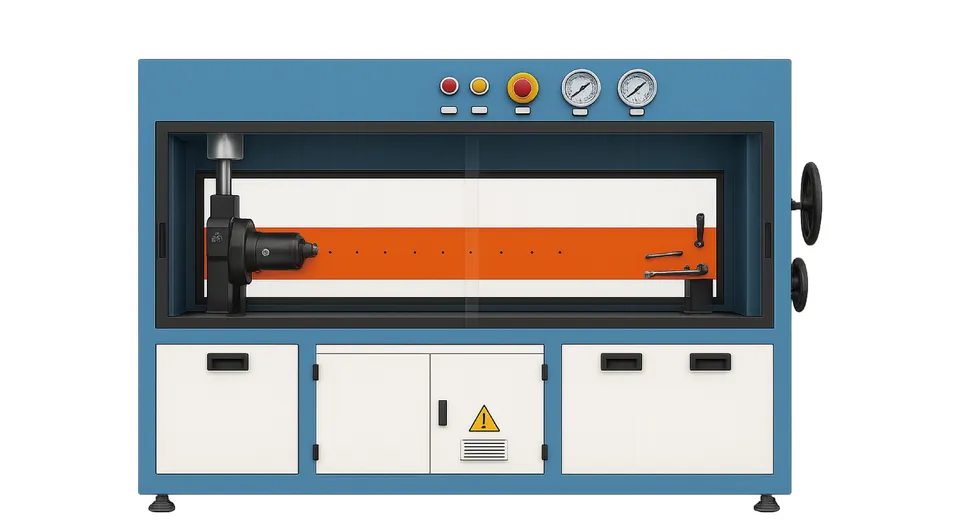

Multi-caterpillar structure provides strong and stable traction. Variable frequency drive synchronized with extrusion process.

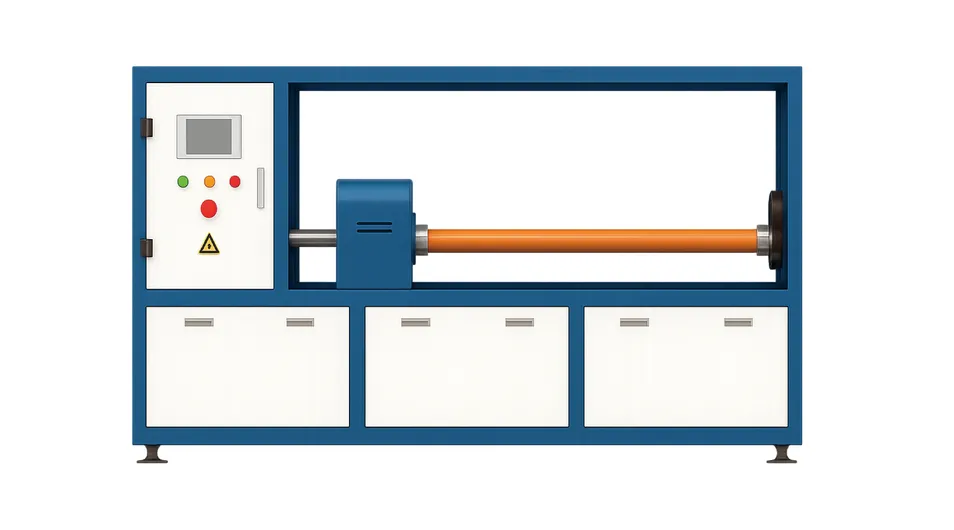

Planetary or chipless cutting for smooth, clean ends. Servo control ensures length error ≤1mm with no secondary finishing required.

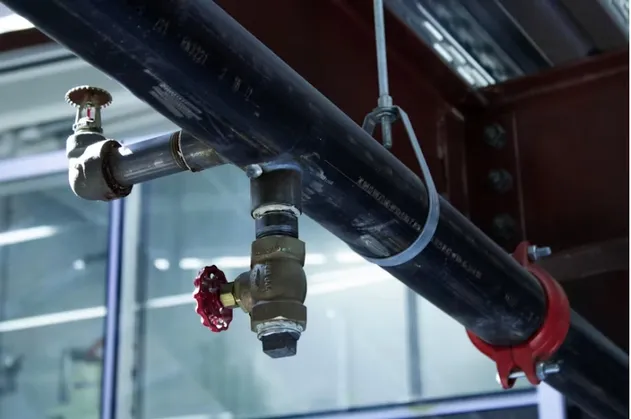

Water Supply Systems

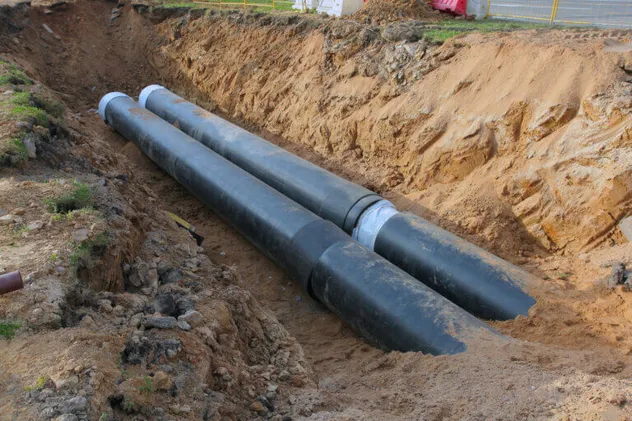

Drainage & Sewage

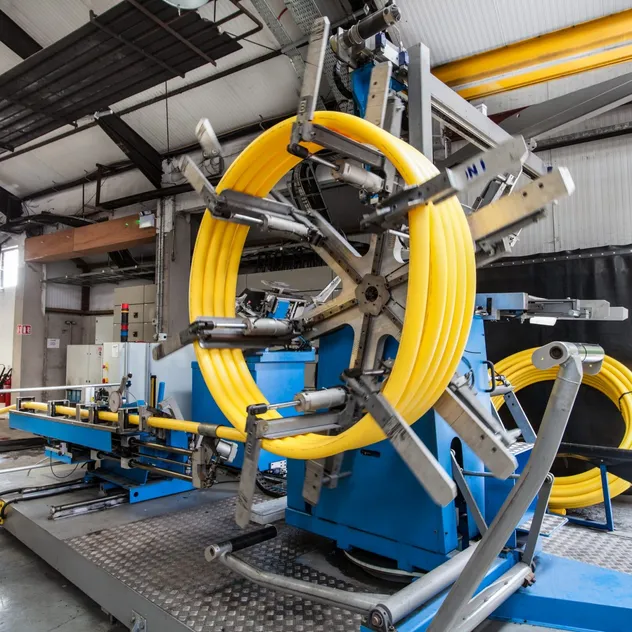

Gas Distribution

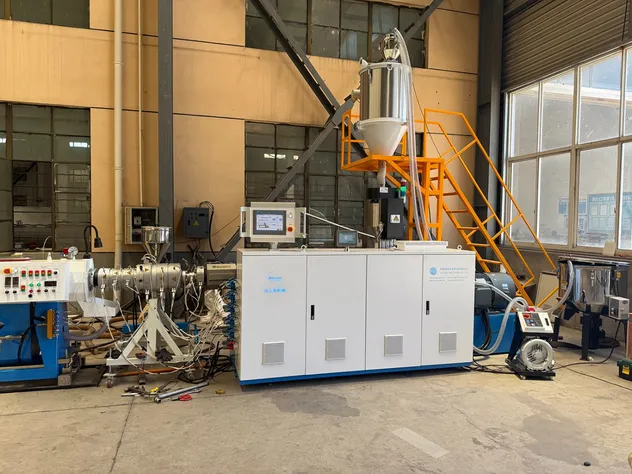

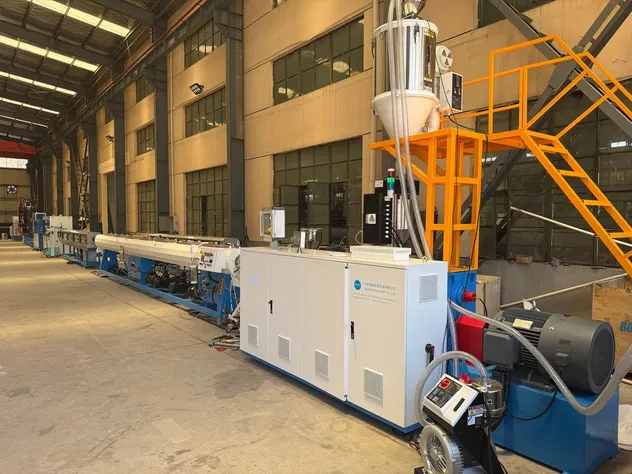

Our facility is a leading provider of complete plastic extrusion solutions. We specialize in plastic pipe extrusion lines for water supply, drainage, gas, and irrigation applications. With advanced CNC machining centers and precision testing equipment, we ensure the durability of all components, including screws, barrels, and sizing sleeves.
Every production line is fully test-run before delivery to guarantee immediate production upon installation. We offer one-stop service from project design and manufacturing to installation, commissioning, and training.
