Customization: Available
After-sales Service: 12months
Warranty: After Sale Service Provided
Send Inquiry

Product Description

Basic Information
Model NO.
SMP-500, SMP-600, SMP-800
Material Processed
Plastic Pellet, Granule, Flake
Plastic Type
PVC, PE, PP, PET, ABS, etc.
Automation
Automatic
Certification
ISO9001:2008
Knife Classification
Blade/Disc
Components
Siemens Contactor, ABB Inverter
Voltage
380V or Customized
Production Capacity
5000 sets/Year
Origin
China
Product Description

Keep on going for new technology on plastic extrusion is our target.

Plastic Pulverizer Overview
New Design Plastic Grinding / Miller / Milling Machine

We provide two specialized types of Plastic Pulverizers to meet various industrial needs:

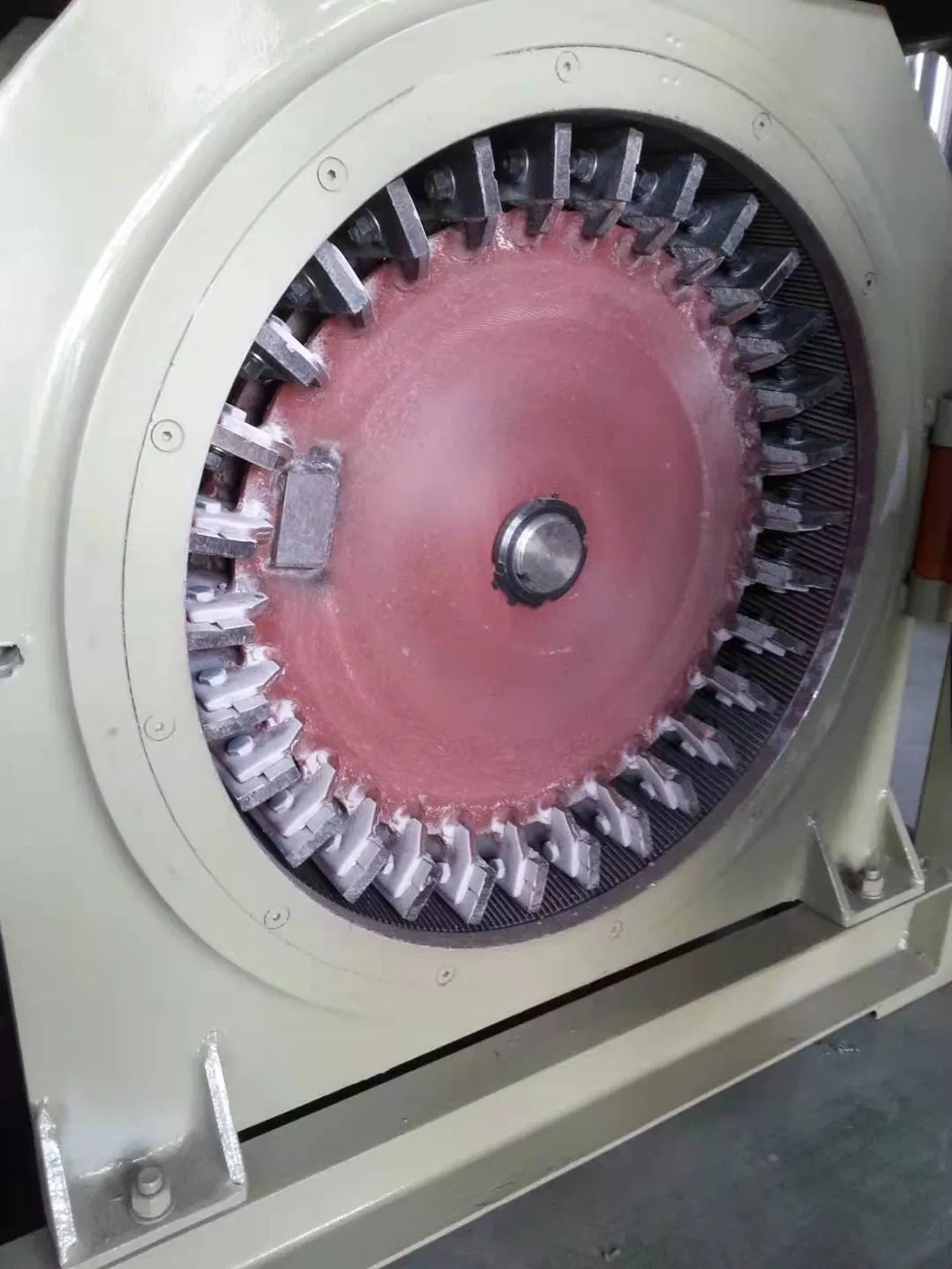

1. Blade Type Pulverizer

Mainly used for hard PVC recycling, such as pipes, profiles, and boards. The produced powder is suitable for mixing with new materials for extrusion. Highly recommended for PVC raw materials with high CaCO3 filler content.

Blade Type Pulverizer Details
Specification SMP-500 SMP-600 SMP-800
Blade Quantity1 set1 set1 set
Rotation Speed2950rpm2950rpm2950rpm
Motor37Kw45/55Kw75/110Kw
Production Output80-280Kg/h150-480kg/h300-880kg/h
Fineness20-80 mesh20-80 mesh20-80 mesh
Weight1280kg1680kg2880kg
Key Advantages:
  • Output improved by 20%-50% compared to similar models at the same power.
  • Equipped with dust collectors to reduce pollution.
  • Automatic regrinding function reduces labor intensity.
  • Door cover design allows for easy maintenance and blade replacement.
  • Wind-water dual cooling system maintains optimal working temperature.
  • Adjustable powder screen ranging from 20-100 mesh.

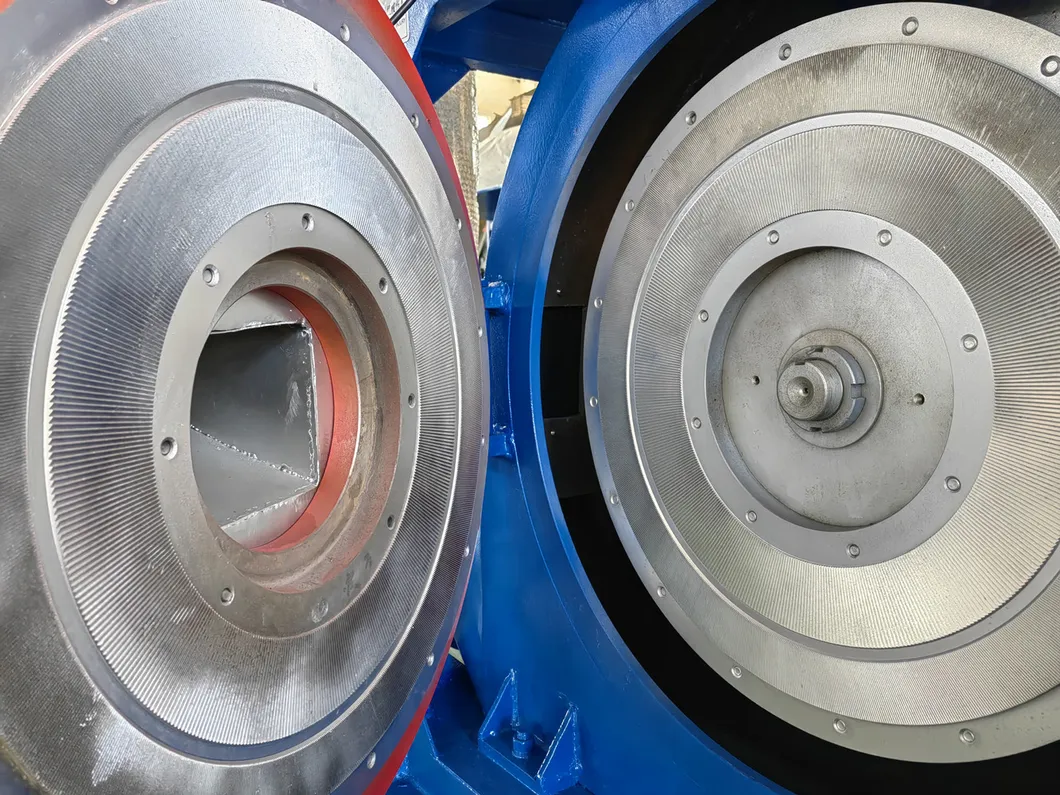

2. Disk Type Pulverizer (MF Series)

The MF series efficiently grinds thermoplastic materials at normal temperatures, producing high-quality, free-flowing powder with high bulk density for rotational molding. Suitable for PE, PVC, PP, ABS, PA, EVA, PET, PS, EPS, PC, and more.

Disk Type Pulverizer Details
Application Fields:
  • Fine plastic and engineering plastic recycling.
  • Extruded plastic and composite plastic production.
  • Rotational molding powder production.
  • Plastic pipe and board crushing.

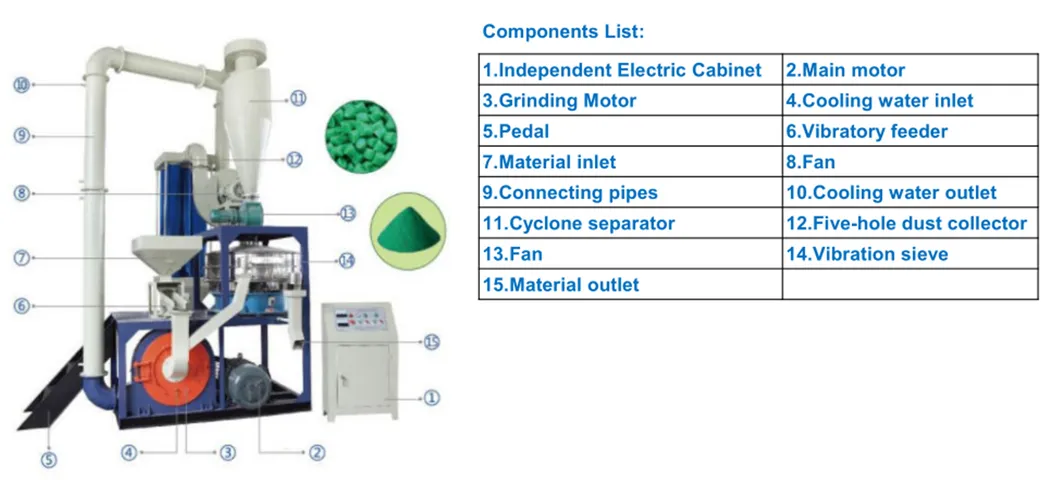

Disk Type Technical Flow
Specification MF400 MF500 MF600 MF800
Main Motor22kw37kw45kw75kw
Blade DiameterΦ400Φ500Φ600Φ800
Draft Fan4kw5.5kw7.5kw11kw
Rotary Valve0.75kw0.75kw0.75kw1.1kw
Production Output50~300kg/h80-500kg/h120-800kg/h200-1200kg/h
Dimension (mm)2800*2600*37003000*2800*39003200*3000*42004000*3500*4500
Key Advantages:
  • Simple adjustment of grinding disc clearance.
  • Automatic regrinding of coarse powder.
  • Advanced water-wind dual cooling system.
  • Various grinding disc configurations available.
  • Precise control over powder size distribution.
Product Gallery
Machine Showcase 1
Machine Showcase 2
Machine Showcase 3

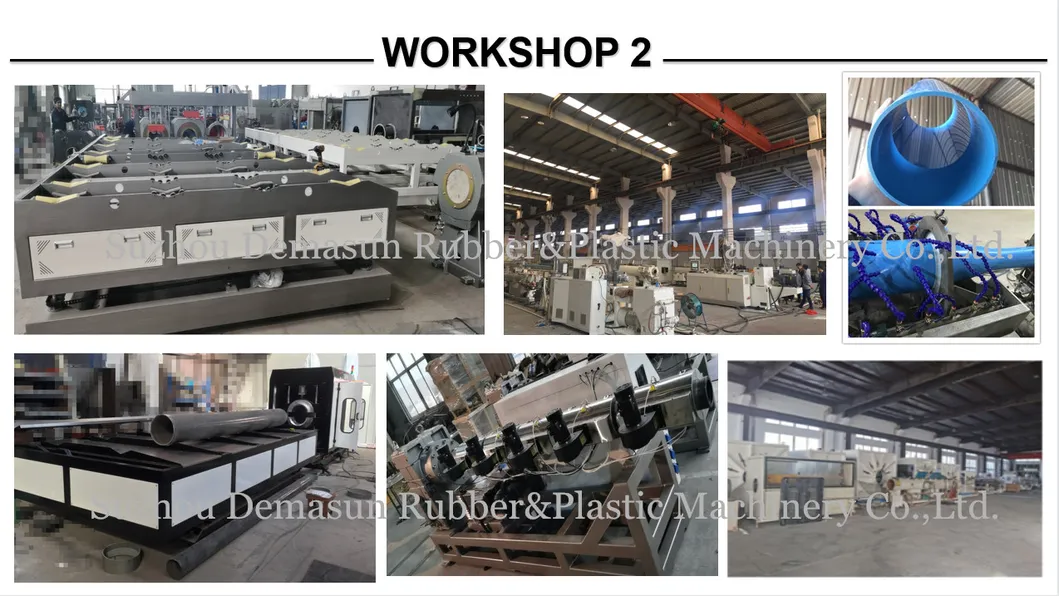

Machine Showcase 4

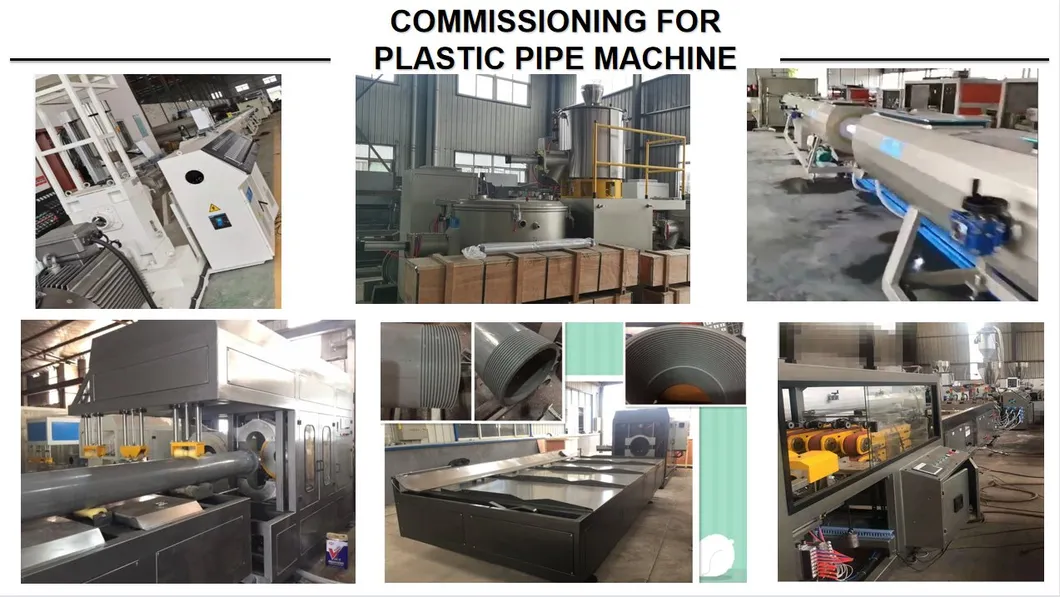

Machine Showcase 5
Frequently Asked Questions (FAQ)
Q: What is the main difference between Blade type and Disk type pulverizers? A: Blade type pulverizers are primarily designed for hard PVC recycling with high filler content. Disk type (MF series) pulverizers are more versatile and suitable for grinding various thermoplastics like PE, PP, ABS, and PET at normal temperatures.
Q: What range of powder fineness can these machines produce? A: Both series offer adjustable fineness, generally ranging from 20 to 80 mesh, with some models capable of reaching up to 100 mesh depending on the material.
Q: How does the cooling system work? A: The machines utilize a dual cooling system combining wind and water. This effectively reduces the working temperature, ensuring the properties of the processed material remain unchanged during grinding.
Q: Is the operation automated? A: Yes, the machines feature automatic regrinding functions and computerized control systems to reduce labor intensity and ensure consistent output quality.
Q: What brands of electrical components are used? A: To ensure reliability and durability, we use high-quality international brands such as Siemens for contactors and ABB for inverters.
Q: What is the expected lead time for an order? A: The standard lead time for our plastic pulverizer machines is approximately 45 working days.
