The Φ20-Φ630 series PVC pipe extrusion machine line is primarily designed for manufacturing plastic PVC pipes with various diameters and wall thicknesses. These pipes are widely used in industries such as agricultural irrigation, constructional plumbing, and cable laying.

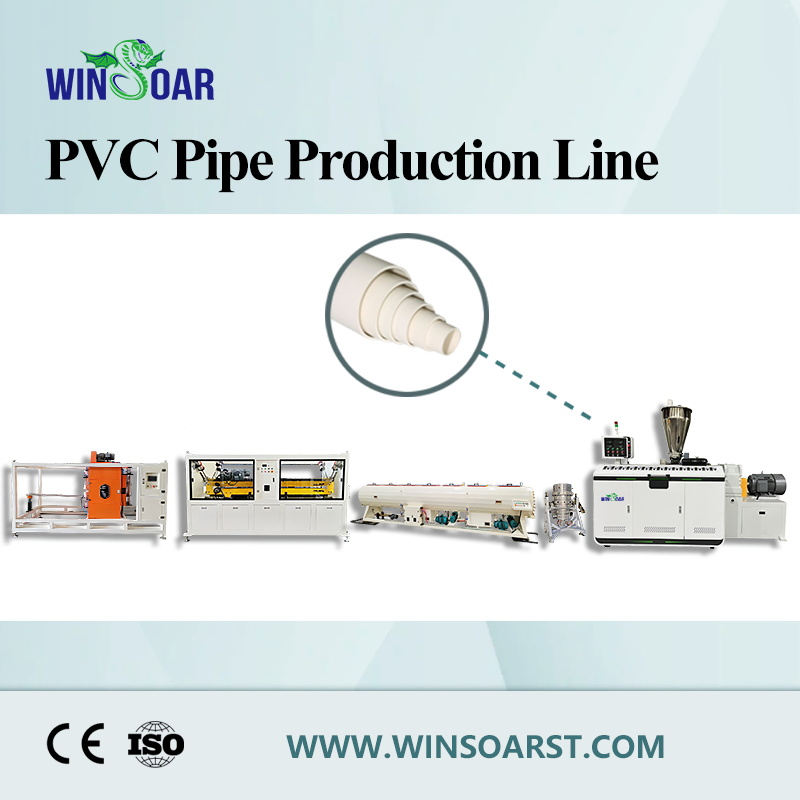

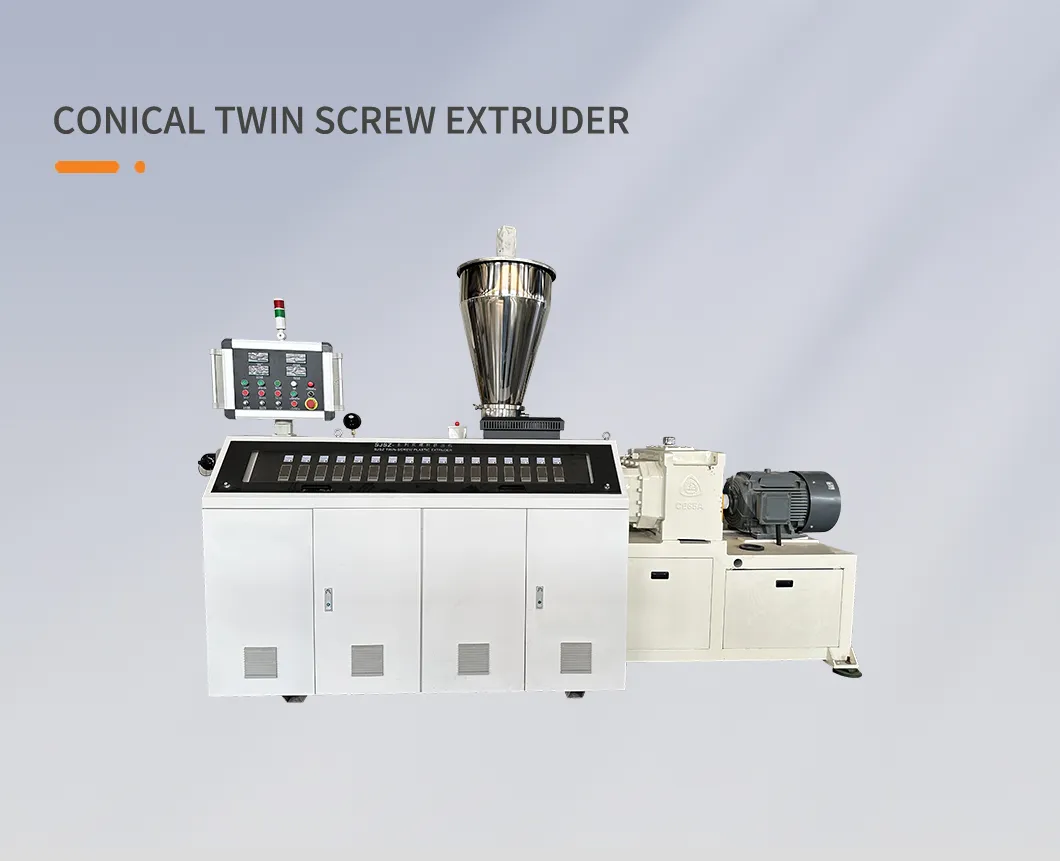

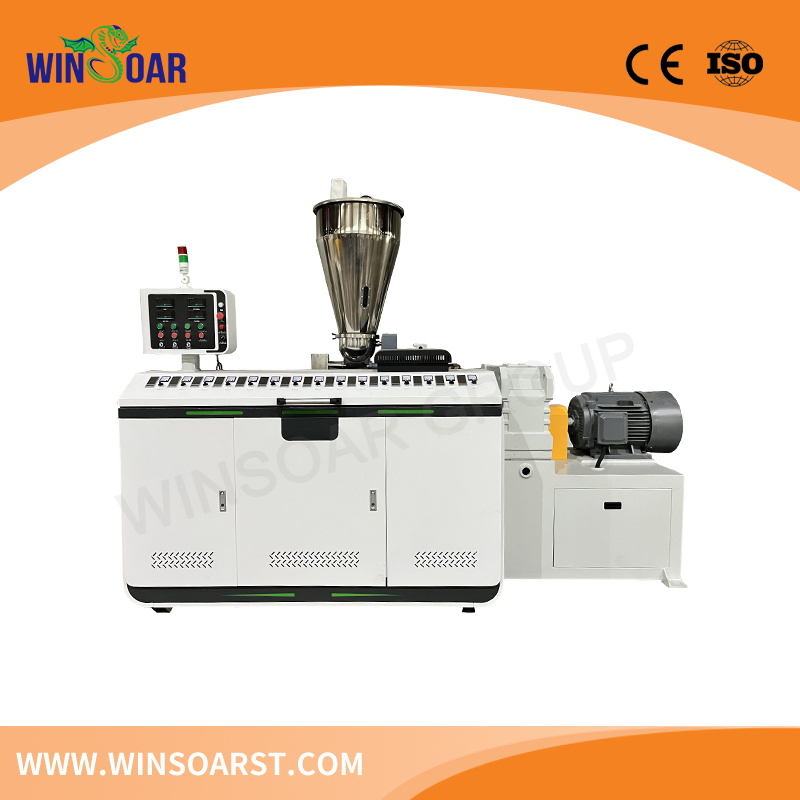

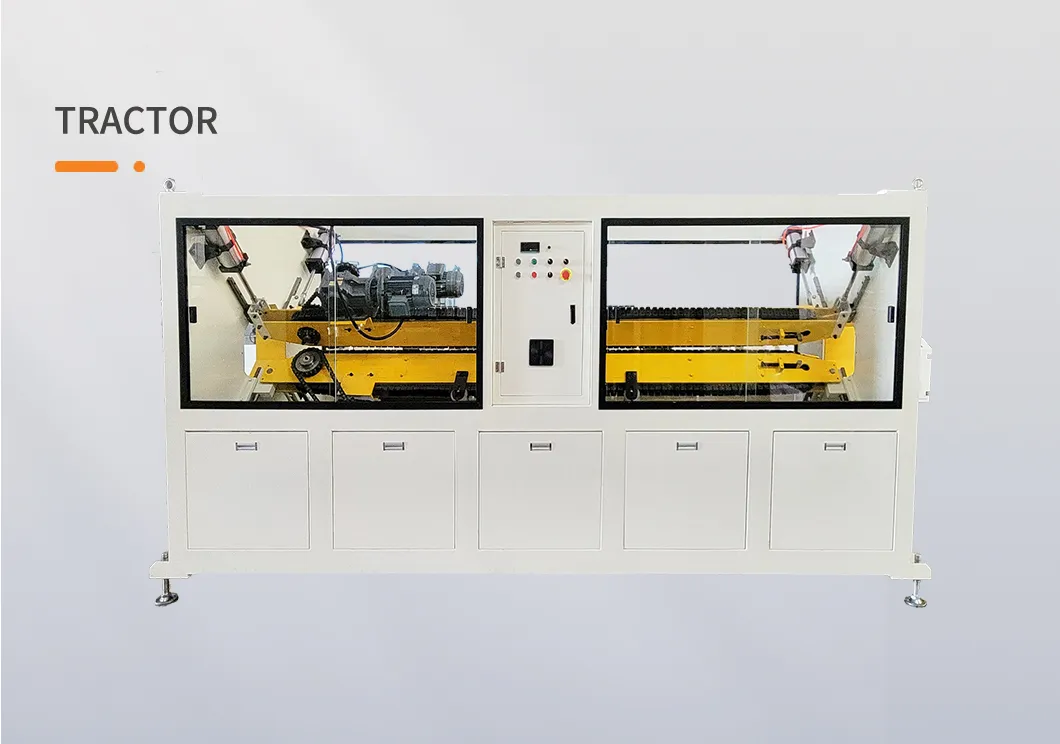

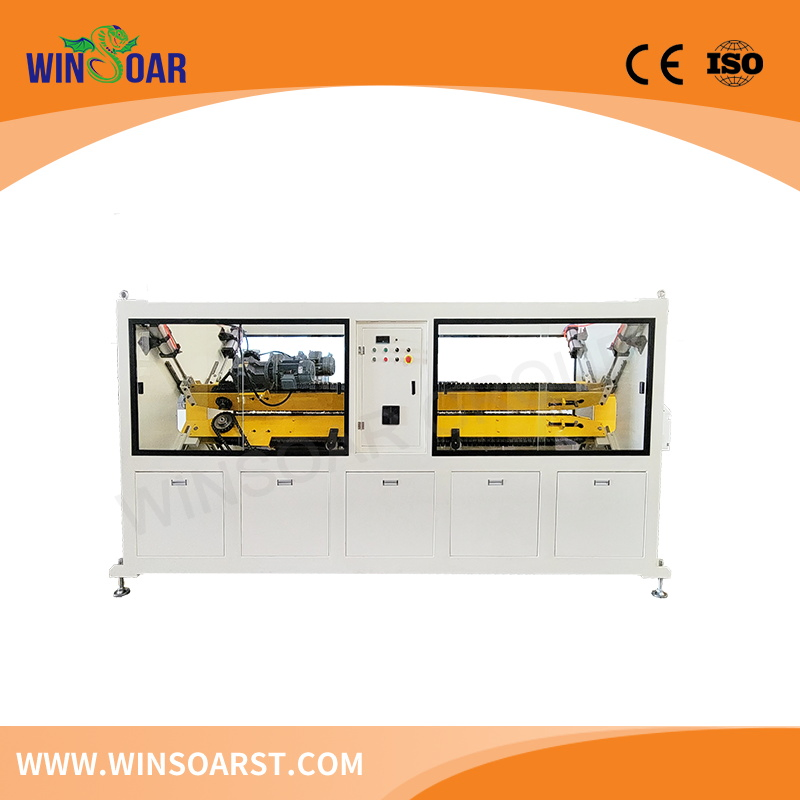

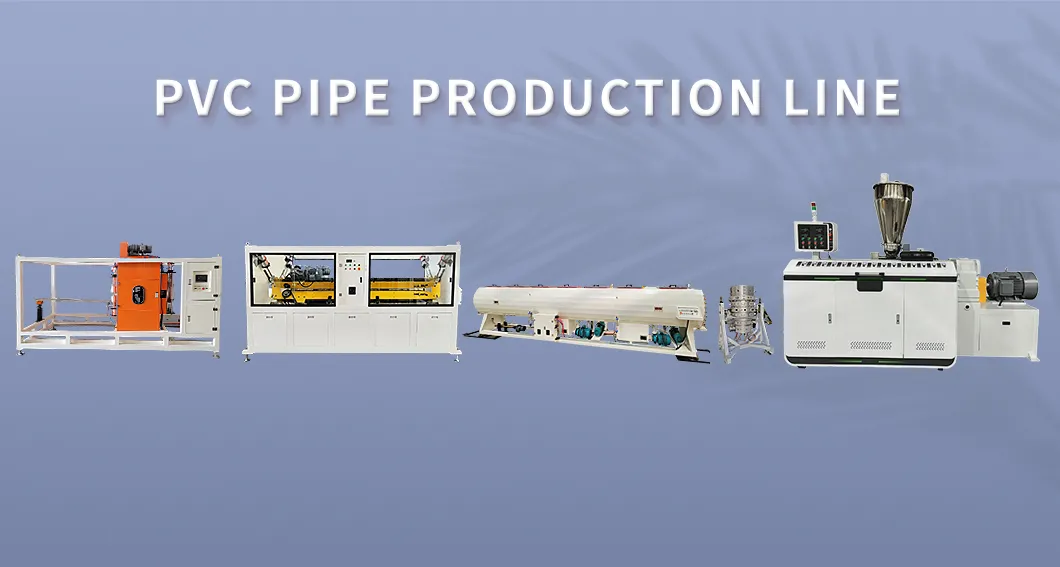

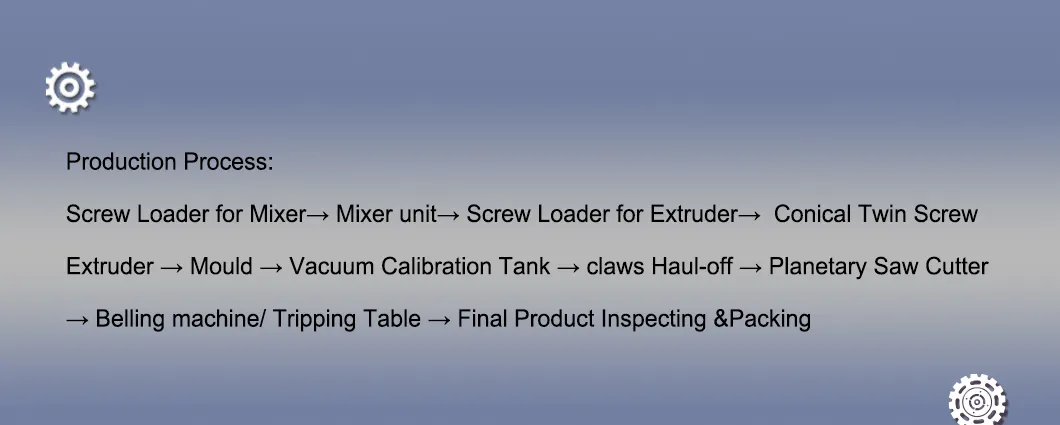

This comprehensive production line consists of a conical twin screw extruder, vacuum calibration tank, haul-off unit, motors, cutter, and stacker.

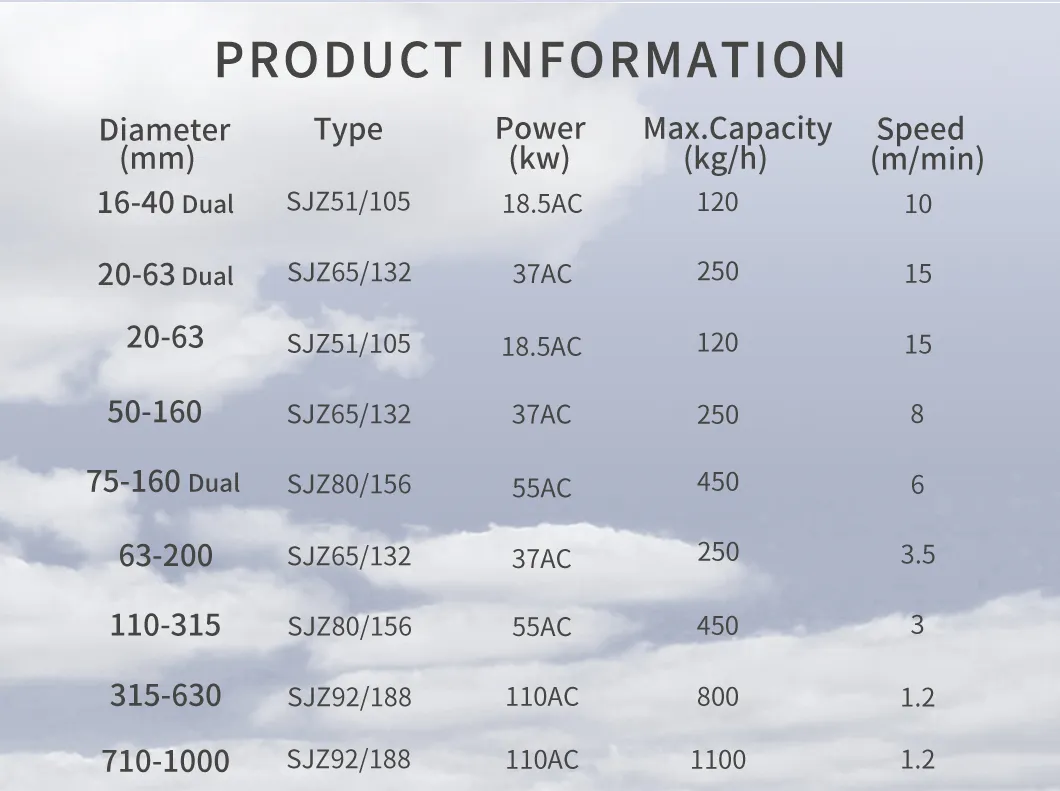

| Diameter Range (mm) | Extruder Type | Extrusion Power (KW) | Max. Capacity (kg/h) | Max. Haul Off Speed (m/min) |
|---|---|---|---|---|
| Ф16-40 Dual | SJZ51/105 | 18.5 AC | 120 | 10 |
| Ф20-63 Dual | SJZ65/132 | 37 AC | 250 | 15 |
| Ф20-63 | SJZ51/105 | 18.5 AC | 120 | 15 |
| Ф50-160 | SJZ65/132 | 37 AC | 250 | 8 |
| Ф75-160 Dual | SJZ80/156 | 55 AC | 450 | 6 |
| Ф63-200 | SJZ65/132 | 37 AC | 250 | 3.5 |
| Ф110-315 | SJZ80/156 | 55 AC | 450 | 3 |
| Ф315-630 | SJZ92/188 | 110 AC | 800 | 1.2 |
Quantitative Feeding: This machine is equipped with a quantitative feeding device, ensuring the extrusion and feeding amounts are matched for stable product output.

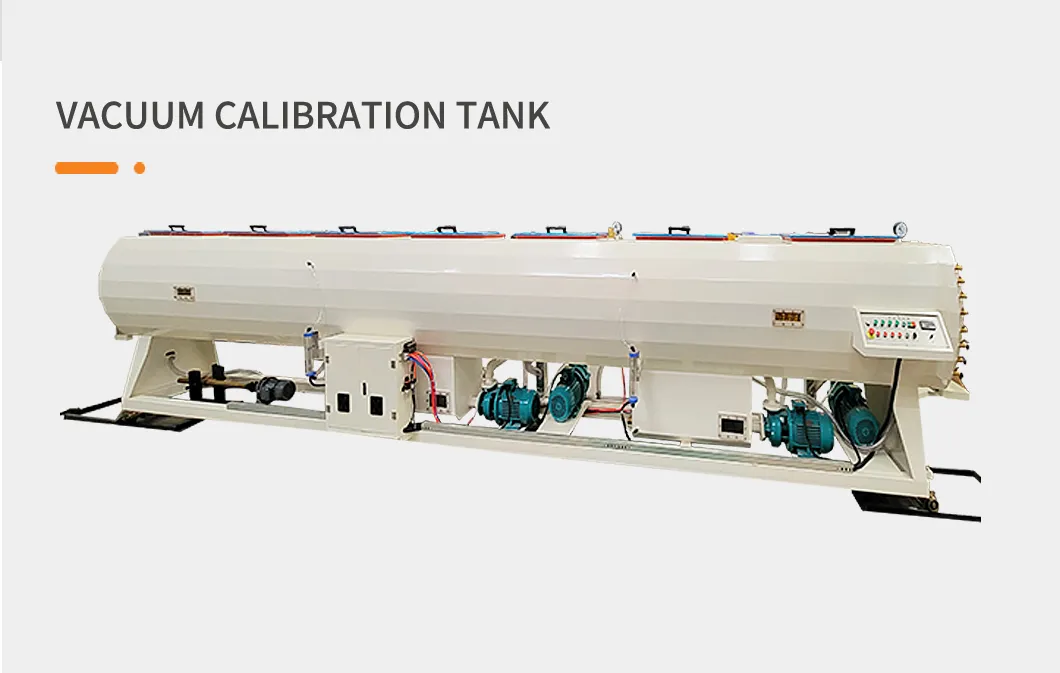

Vacuum Calibration & Cooling: Used for shaping and cooling pipes, equipped with a vacuum system, water circulation, and manual adjustment for height and movement.

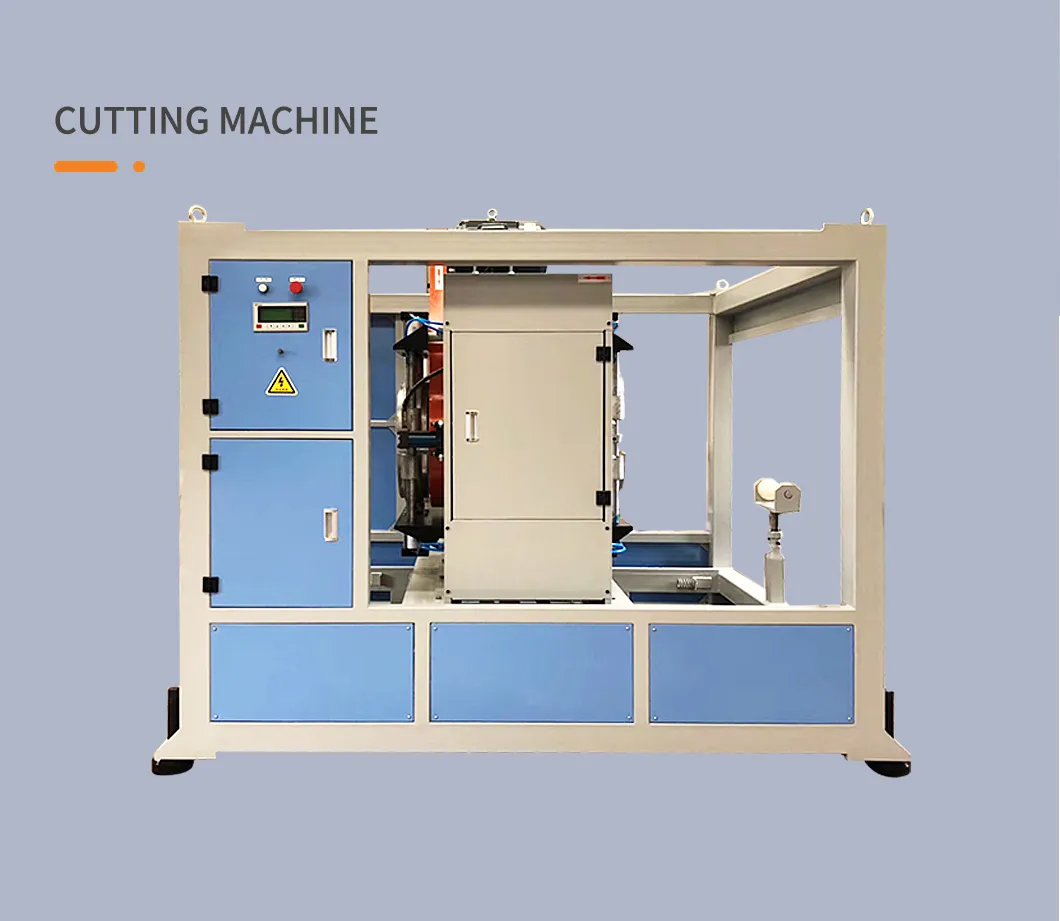

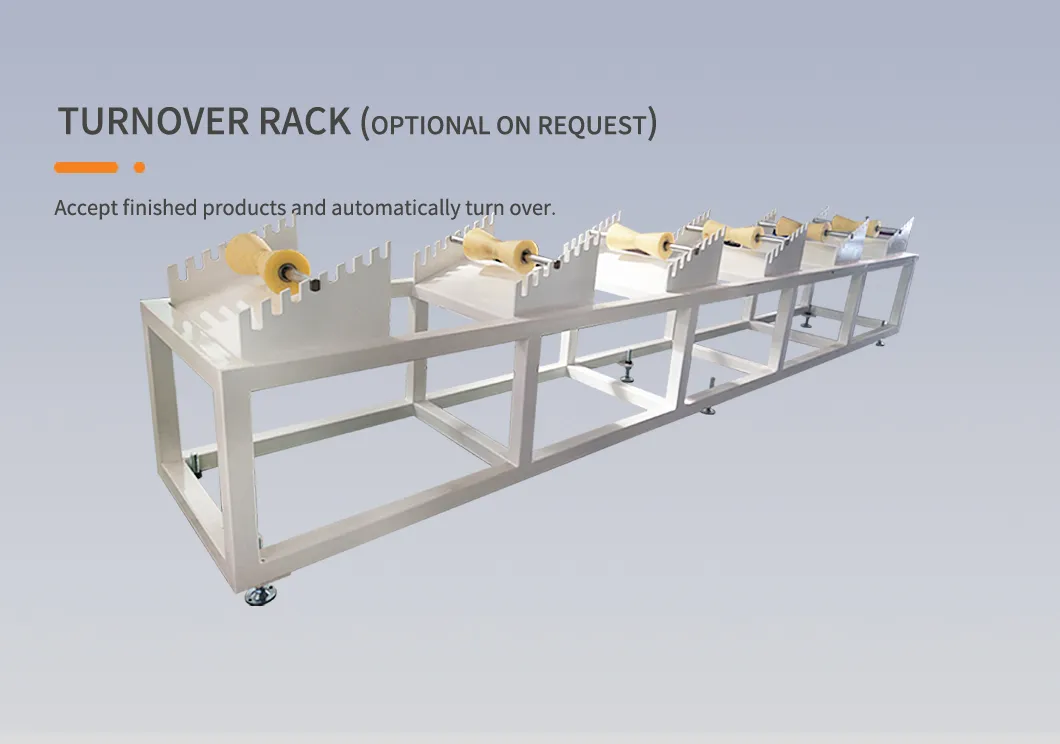

Automatic Cutting & Stacking: Controlled by an encoder for precise length, the system features automatic cutting and delayed turnover stacking for smooth, scrap-free operation.
