Zhida Plastic Machinery
Zhida Plastic Machinery
This Waste PE LDPE Plastic Film PP Jumbo Woven Bag Crushing Washing Line is widely used for processing PE/LDPE/LLDPE film, PP woven bags, PP Jumbo bags, PP cement bags, PP raffia bags, and more.

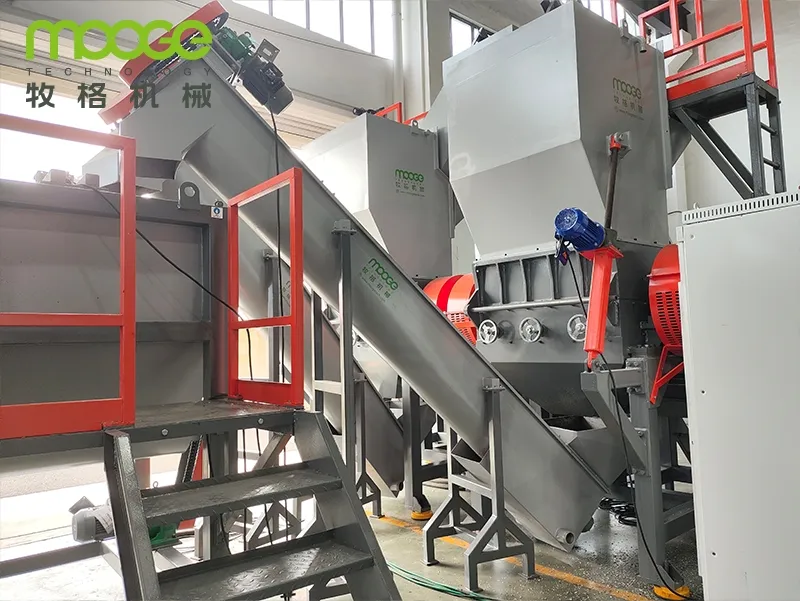

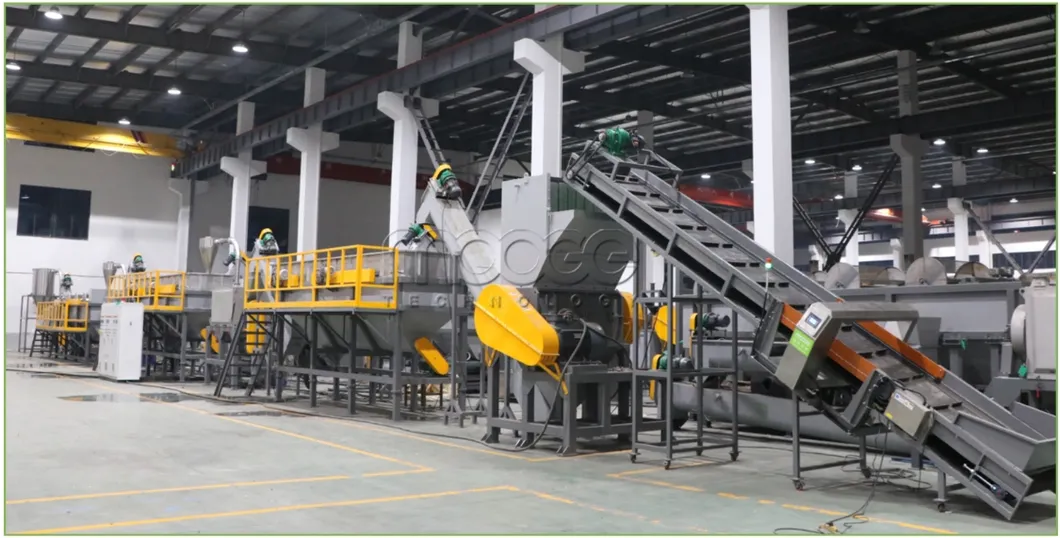

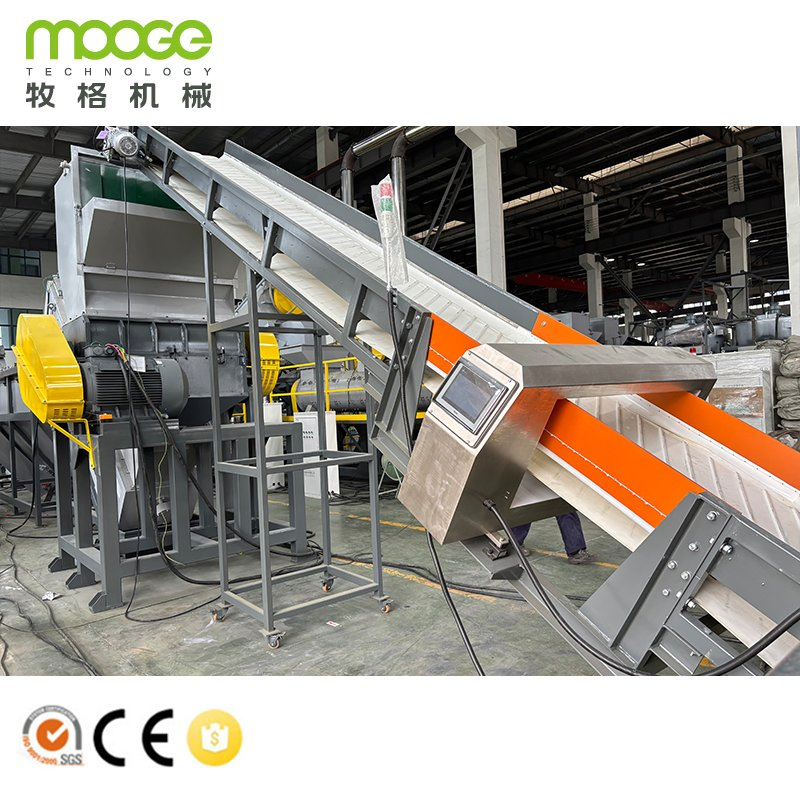

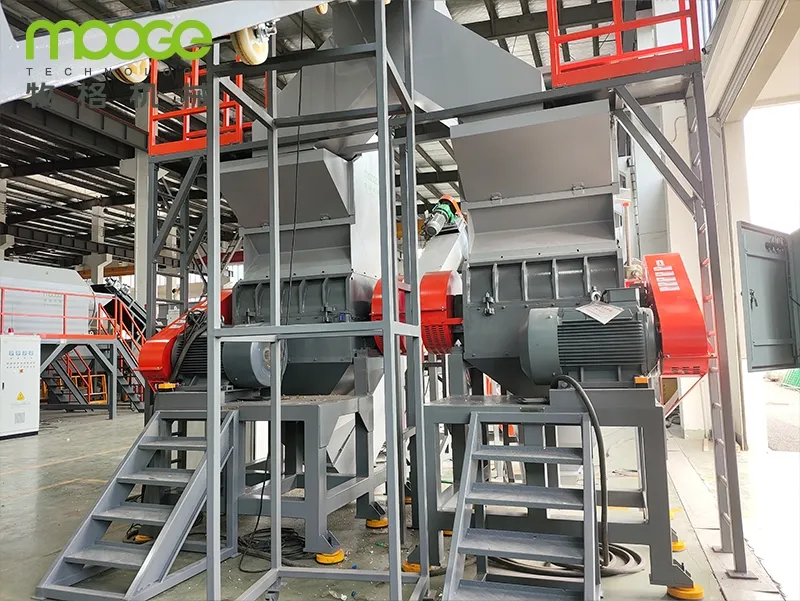

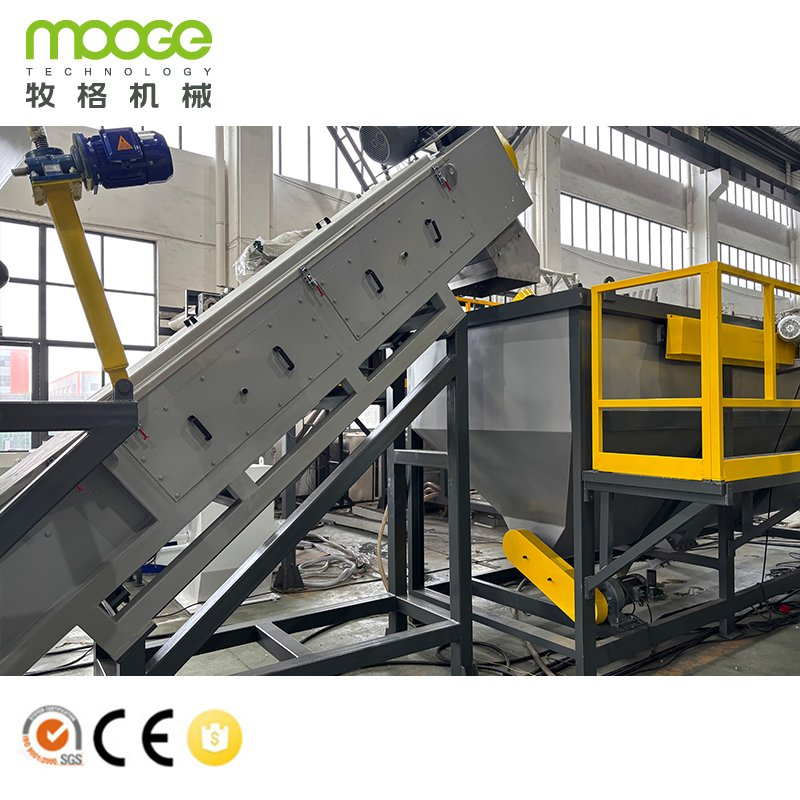

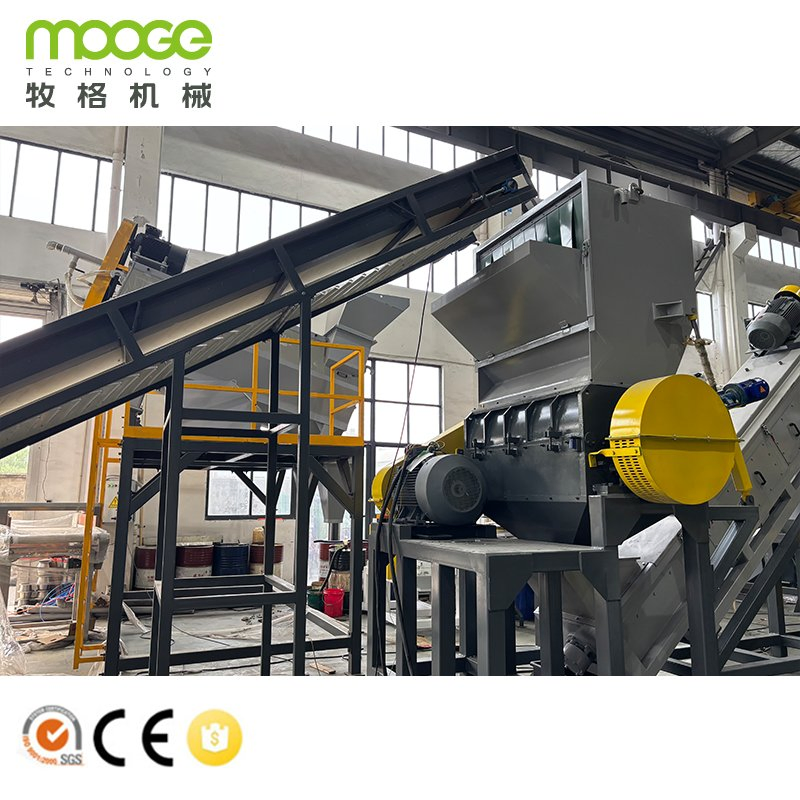

The entire recycling line is composed of a conveyor belt, semi-auto metal detector, wet film crusher, floating washing tank, high-speed friction washer machine, hot washing tank (optional), centrifuge machine, hot air drying system, and film collecting silo. We provide customized configurations to meet specific industrial requirements.
As a national high-tech enterprise, we hold numerous invention patents. Our recycling machinery is certified with CE, SGS, and ISO standards, ensuring world-class performance and reliability.
This line is designed for recycling waste HDPE/PE bottles, buckets, PP hollow containers, and ABS rigid plastics. It integrates crushing, washing, drying, and separation into one efficient process.
| Model | Capacity | Installed Power | Water Supply | Manpower | Area Required |
|---|---|---|---|---|---|
| MEB-300 | 300 kg/hr | 190 KW | 4-5 m³/hr | 4-6 Person | 60*5*5 m |
| MEB-500 | 500 kg/hr | 260 KW | 5-7 m³/hr | 8-10 Person | 80*8*5 m |
| MEB-1000 | 1000 kg/hr | 500 KW | 10-15 m³/hr | 10-12 Person | 80*8*5 m |
| Raw Material | Waste Soft Plastic PE film, HDPE film, PP woven bags, PP film, PP jumbo bags, etc. |
| Finished Product | Clean dry plastic flakes (size customizable). |
| Machine Material | Frame made of carbon steel; washing parts made of SUS 304 stainless steel. |
| Core Components | NSK/SKF bearings, TTO oil sealing, Guomao reducer. |
| Electric System | ABB/Delta inverter, Omron temperature control, Schneider contactor, Siemens motors. |
| After-Sales Service | Layout design, installation assistance, commissioning, and 24-hour online support. |

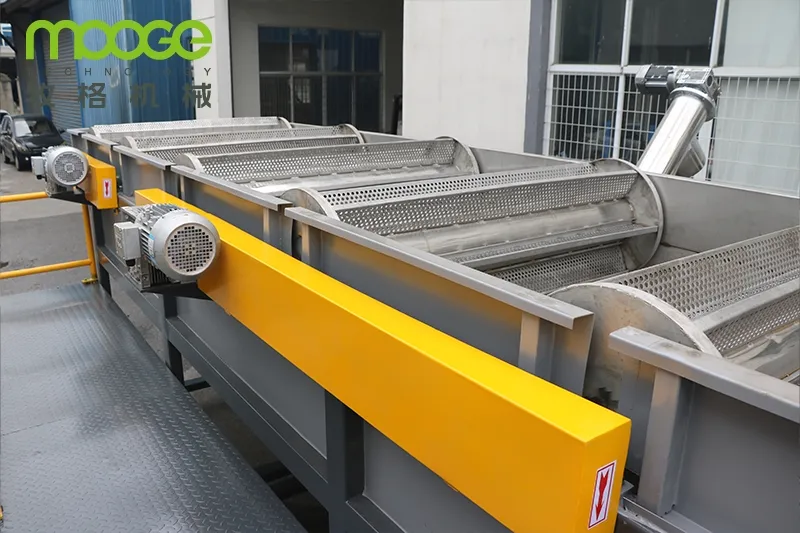

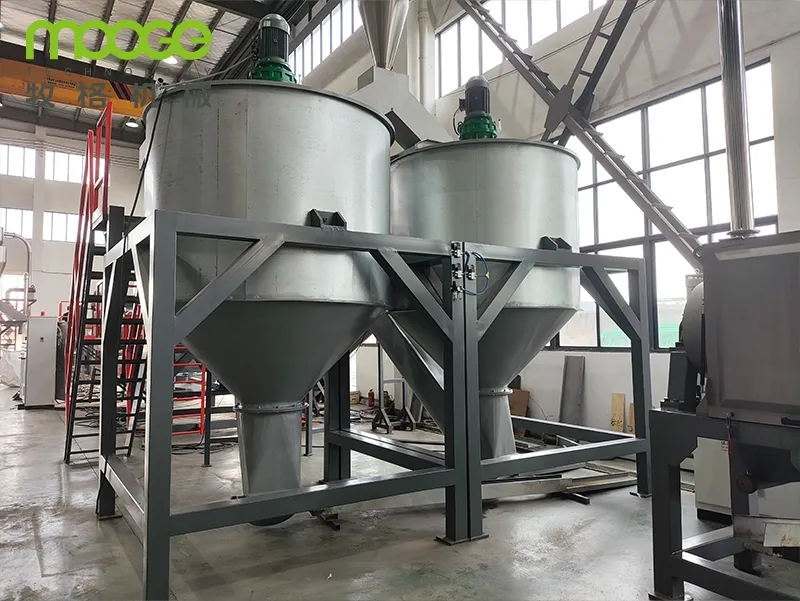

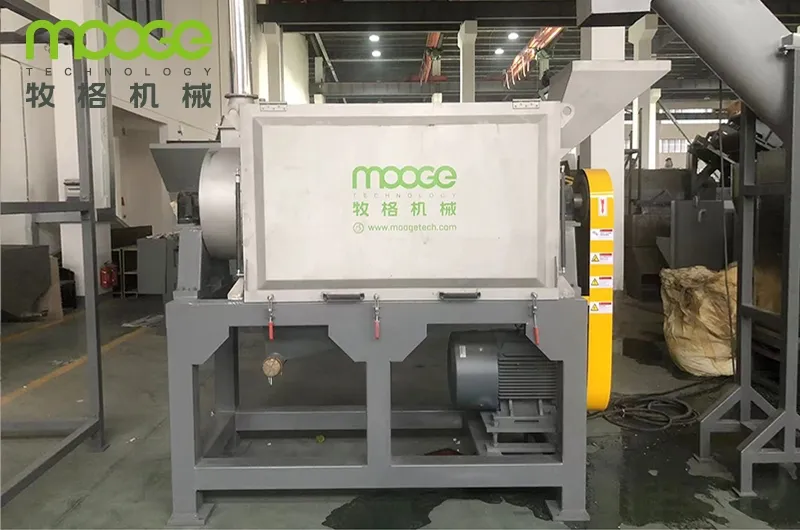

The floating tank removes impurities, while the hot washing tank (with insulation) removes oils and glues. The horizontal dewatering machine operates at 1500rpm for maximum moisture removal.

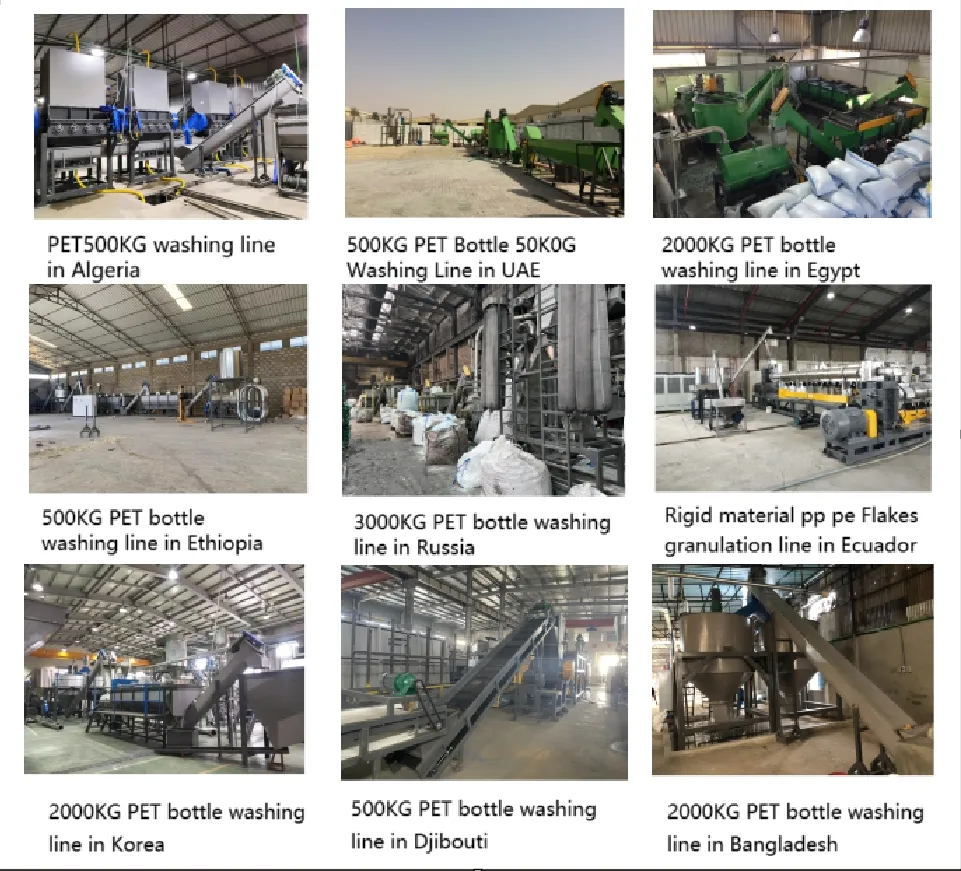

Our recycling solutions have been exported to over 100 countries worldwide. We are committed to providing high-quality machinery and exceptional service to our international partners.
A: This machine is designed to process a wide range of materials, including PE film, PP woven bags, HDPE/PP bottles, PET bottles, and other soft or rigid plastics.
A: We offer several models with standard capacities of 300kg/h, 500kg/h, and 1000kg/h. Larger, customized systems can also be manufactured based on your needs.
A: We have a dedicated project management team that conducts manual inspections throughout the manufacturing process. Every machine is fully installed and test-run in our factory before delivery.
A: Yes, our recycling machines have obtained CE, SGS, and ISO certifications, meeting the safety and quality standards required for global operation.
A: We provide full technical support, including machine layouts, electrical diagrams, and manuals. Our engineers are available for overseas installation, commissioning, and staff training.
A: Absolutely. Our facility is conveniently located near major transport hubs. We can arrange transportation for you from the nearest high-speed train station or airport for a factory tour.
