Product Description

Basic Info

Model NO.

ML130-150

Material Processed

Film

Plastic Type

Screw

Single-Screw

Automation

Computerized

Certification

QS, GMP, ISO9001, CE

Motor Brand

Siemens, Weg

Controller

Siemens PLC

Inverter

ABB/Siemens

Bearing

NSK

Output Capacity

500-1000kg/H

Suitable Material

Post Consumer Film, Agricultural Film, Woven Bag

Product Description

PP PE HDPE LDPE Plastic Pelletizing Machine Waste Plastic Granulator Recycling Machine.

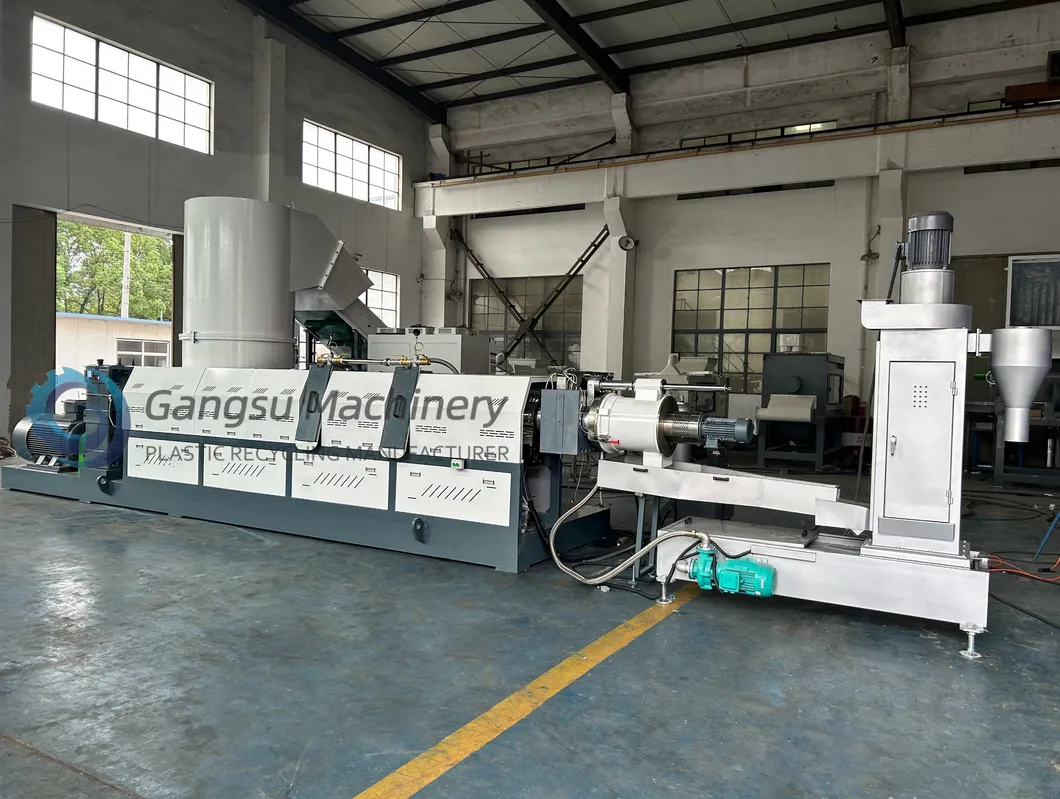

We provide a dedicated single screw pelletizing line for soft plastic film. The system integrates compacting feeding, main screw plasticizing, screen changer filtration, second stage plasticizing, water-ring pelletizing, dewatering, and collection. Output ranges from 200kg/hr up to 1000kg/hr.

⚙️ Applications: Suitable for specialized plastic recycling plants, offering low energy consumption, stable output, and long service life.

Applicable materials: PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc.
Material shapes: Film, bag, fiber, rope scrap.
Material types: Rolls, loose, bundled.
Source: Offcuts, industrial defect materials, washed materials, and printed materials.

The final pellets can be directly used in production lines for film blowing, tube extrusion, and injection molding.

Process Flow

Single Stage Pelletizing Line:
Belt conveyor → Metal detector → Film Agglomerator/Compactor → Single screw extruder → Hydraulic filter changer → Die head → Water ring cutting → Dewatering machine → Vibrator → Air dryer Blowing system → Storage hopper.

Double Stage Pelletizing Line:
Belt conveyor → Metal detector → Film Agglomerator/Compactor → 1# Single screw extruder → 1# Hydraulic filter changer → 2# Single screw extruder → 2# Hydraulic filter changer → Die head → Water ring cutting → Dewatering machine → Vibrator → Air dryer Blowing system → Storage hopper.

Product Parameters

Model	Compactor Volume (L)	Screw Diameter (mm)	L/D Ratio	Productivity (kg/h) LDPE/LLDPE
ML85	600	85	28-33	180-260
ML100	800	100	28-33	260-350
ML130	1200	130	28-33	450-550
ML150	1300	150	28-33	650-750
ML160	1400	160	28-33	800-1000
ML180	1800	180	28-33	900-1200

Detailed System Components

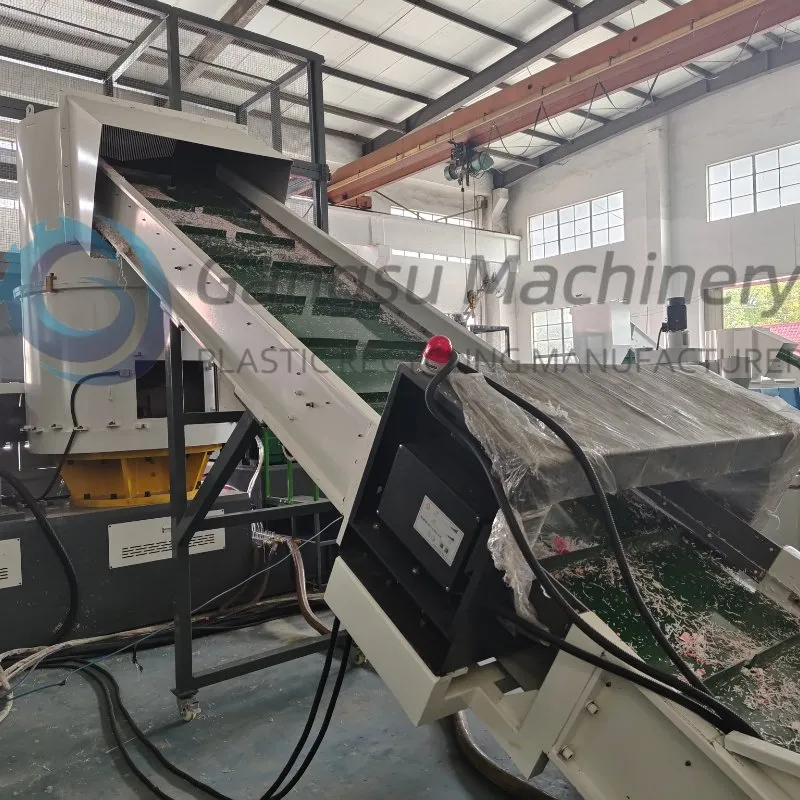

1. Belt Conveyor
Standard feeding device for film, raffia, and woven bags. Can be equipped with an optional metal detector.

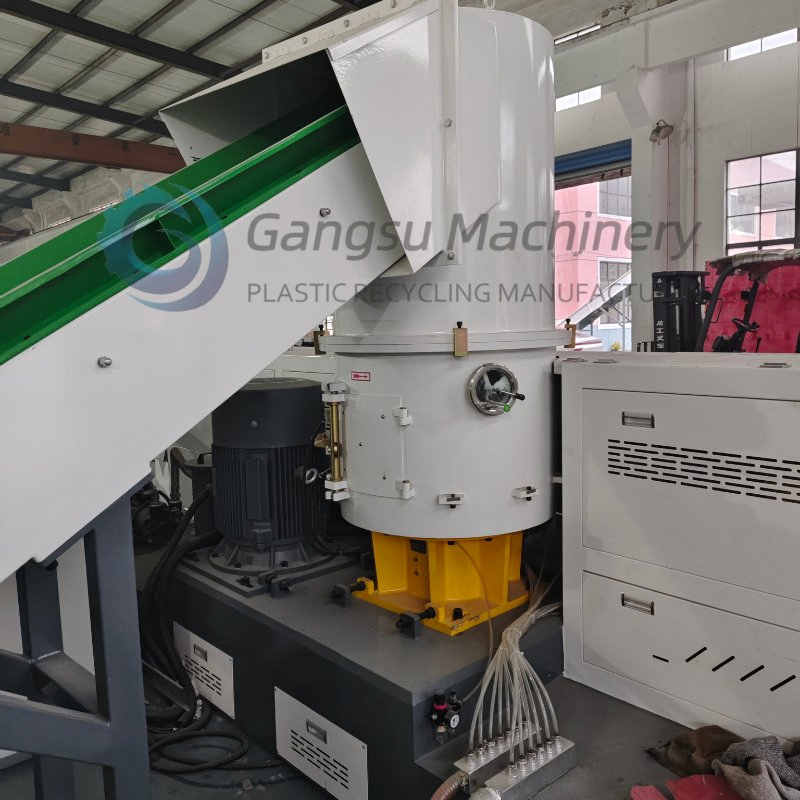

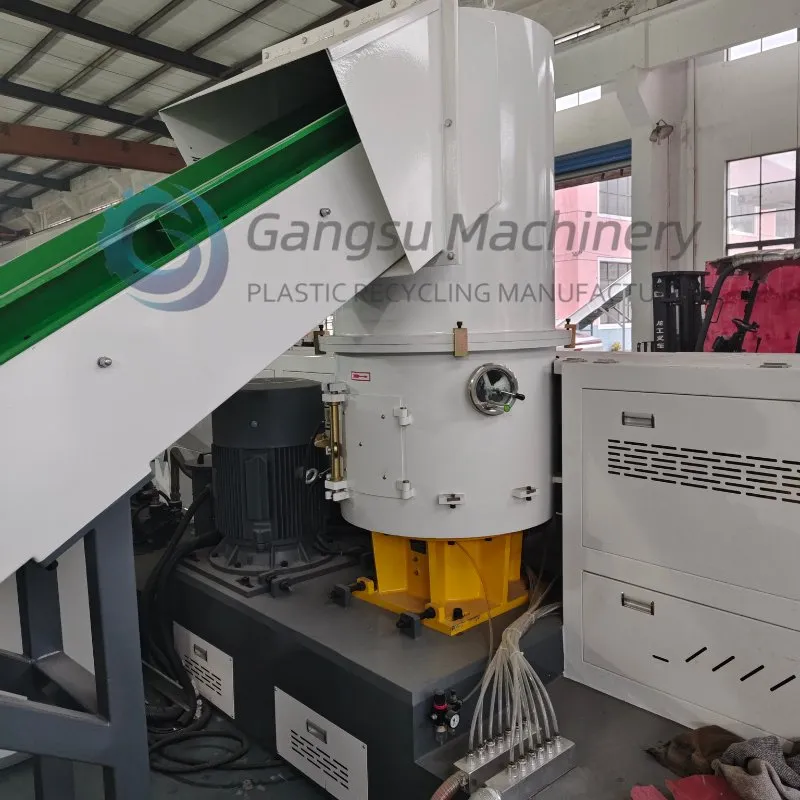

2. Compactor
Optimal rotary and stationary blade design ensures uniform cutting, mixing, and pre-heating.

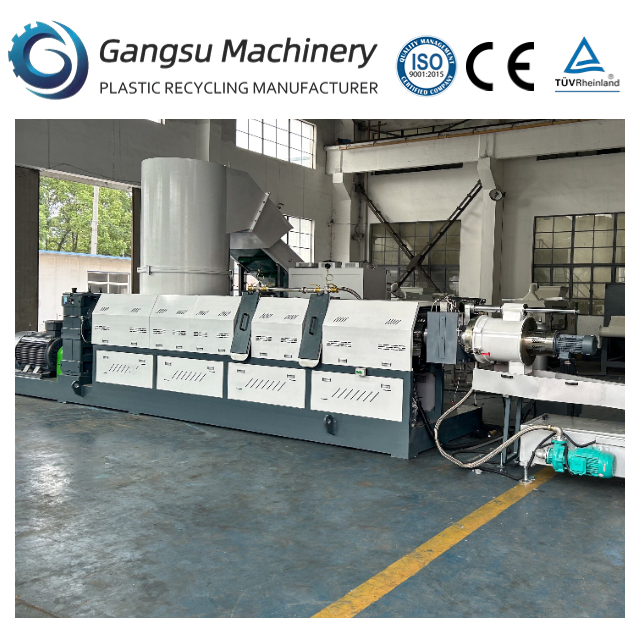

3. Extruder
Specialized single screw with double-zone vacuum degassing to remove volatiles and moisture.

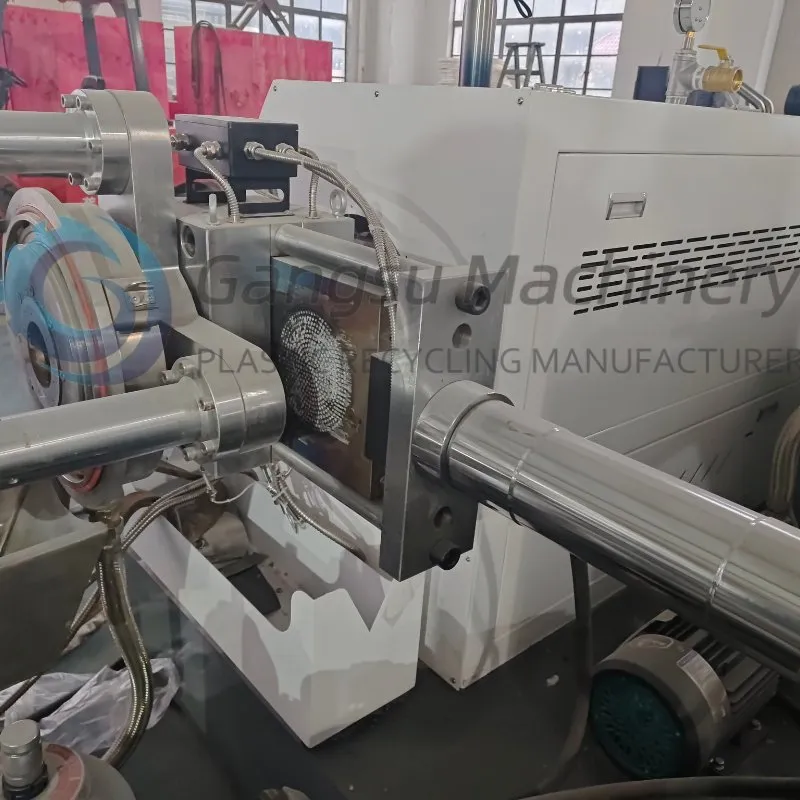

4. Hydraulic Screen Changer
Plate type double stations for continuous operation with high-pressure resistance (0-15MPa).

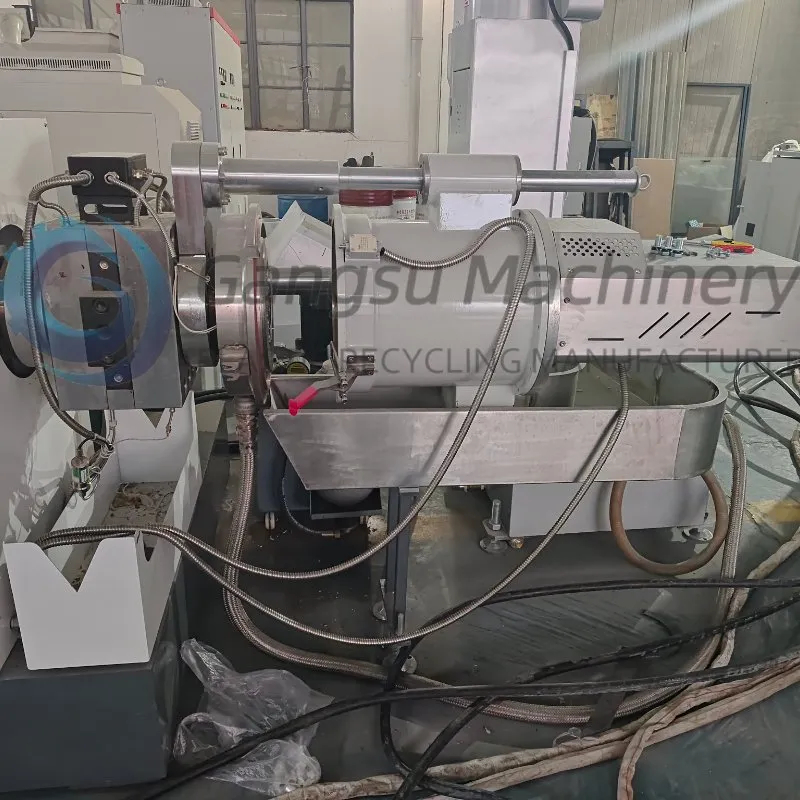

5. Horizontal Cutting Machine
Precision pelletizing with high-quality K2 material blades.

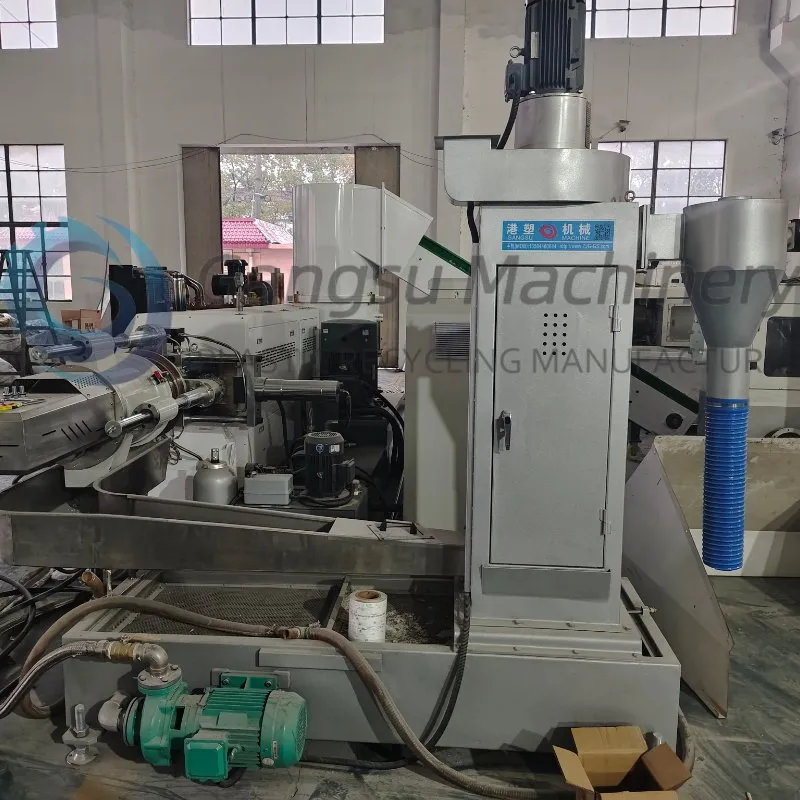

6. Dewatering Device
Horizontal centrifugal drying system ensuring final pellet humidity is less than 1%.

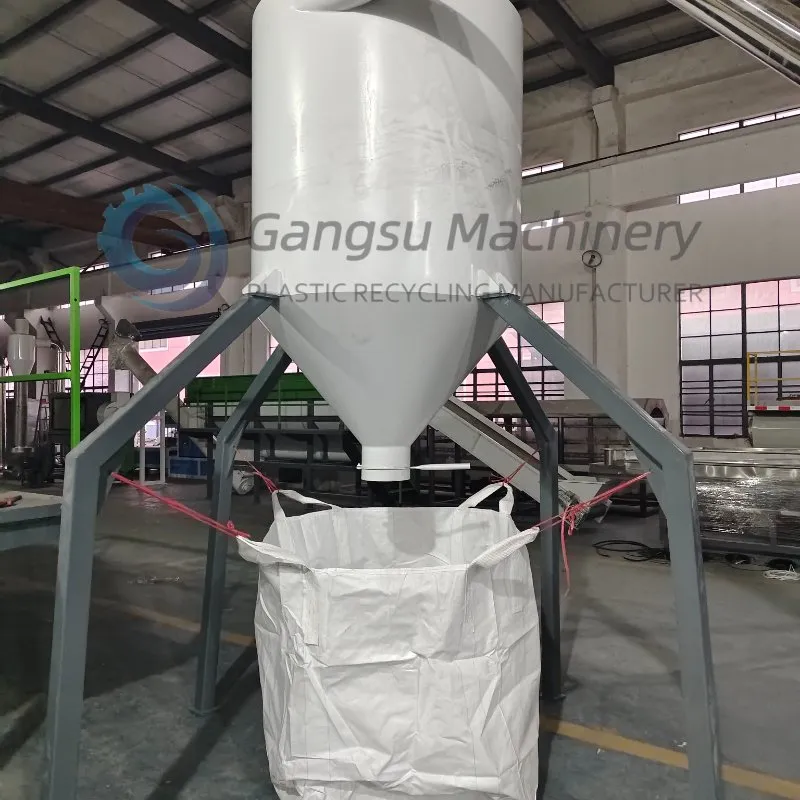

7. Silo
Stainless steel storage with sound insulation cotton, reducing noise from 82dB to 68dB.

Main Products & Production

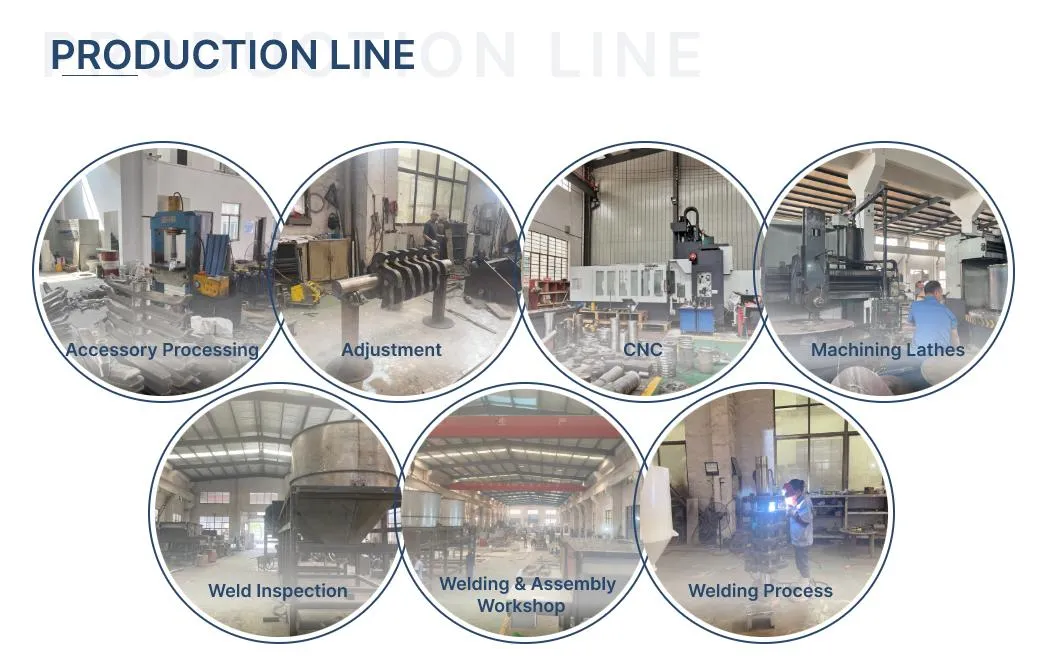

Company & Production Line

Exhibitions & Packaging

Frequently Asked Questions

What types of plastic materials can this machine process?

The pelletizing line is ideal for PE, HDPE, LDPE, PP, BOPP, and PET in various forms such as films, bags, fibers, and ropes.

What is the humidity level of the final pellets?

Thanks to our horizontal dewatering device, the final pellet humidity can be controlled to less than 1%.

How does the machine handle printed or moist materials?

The extruder is equipped with a double-zone vacuum degassing system that efficiently removes volatiles and moisture, making it perfect for heavy printed films.

What are the main electrical components used?

We use world-class components including Siemens or Weg motors, Siemens PLC controllers, ABB or Siemens inverters, and NSK bearings for maximum stability.

Is the machine noisy during operation?

No, our new design includes pipes and silos wrapped with black sound insulation cotton, reducing noise levels significantly from 82dB to 68dB.

What is the production capacity of the ML series?

Depending on the model (from ML85 to ML180), the output ranges from 180kg/h to as high as 1200kg/h for LDPE/LLDPE materials.
