Plastic PE/PP/HDPE/LDPE/LLDPE/BOPP/PS/ABS/Pet/PVC/EPS/EPE/EPP/PC/Film/Bottle/Net/Non Woven/Bag/Fiber/Granulator/Recycling/Machine/Pelletizing Line

Customization:	Available
After-sales Service:	Video Technical Support, Free Spare Parts, Field I
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180

Material Processed

Film

Plastic Type

HDPE LDPE LLDPE PP Film

Screw

Single-Screw

Automation

Automatic

Certification

ISO9001:2008, CE

Extruder Type

Degassing Type

Capacity

300~3000kg/H

HS Code

8477201000

Package Size

1500cm * 600cm * 500cm

Product Description

Plastic PE PP HDPE LDPE LLDPE BOPP PS ABS Pet PVC EPS EPE EPP PC Film Bottle Net Non Woven Bag Fiber Granulator Recycling Machine Pelletizing Line

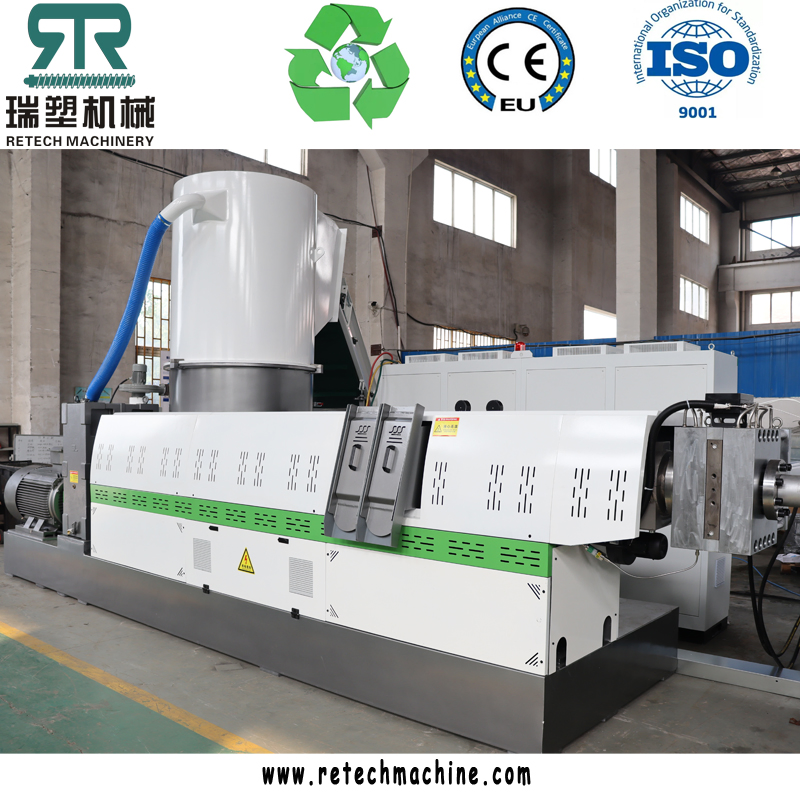

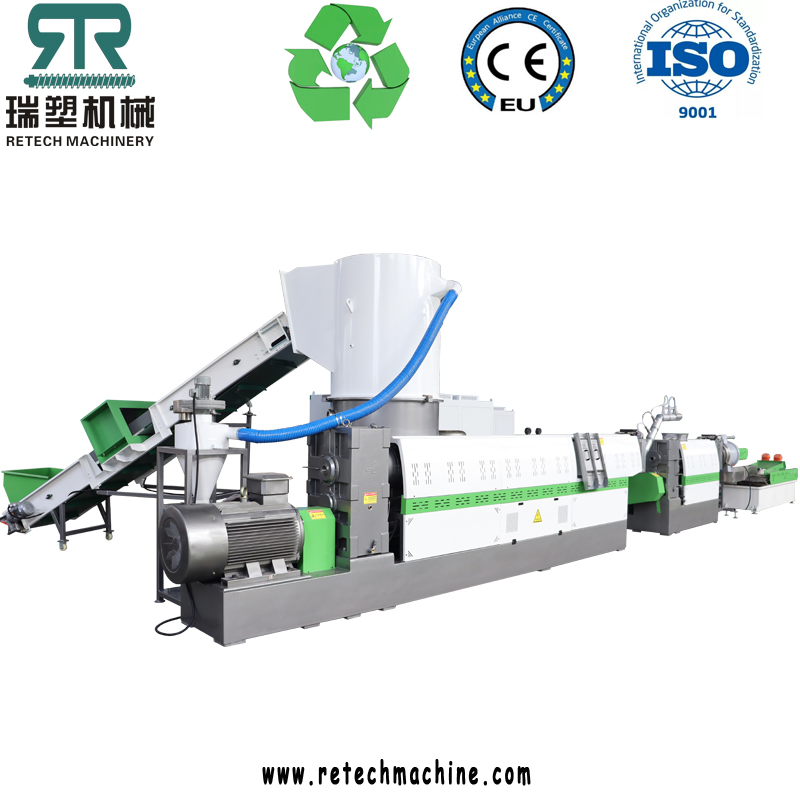

Our RCSJ series PP PE film plastic compacting and pelletizing system combines the functions of crushing, compacting, plasticization, and pelletizing into one single step. This system is a reliable and efficient solution for plastic films, raffias, filaments, bags, woven bags, and foaming materials re-pelletizing.

Final productions are in the form of pellets/granules, which can be directly put back into the production line for film blowing, pipe extrusion, and plastic injection.

Processed Materials

The plastic film pelletizing machine can process:

LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton
PP/OPP/BOPP/CPP film, woven bag, non-woven fabric (melt blown)
PA66 fishing net, silk, factory trim, carpet
PET/BOPET bottle flakes, film, silk, waste cloth, foam, optical film
EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
HIPS/PC/ABS home appliance housing, electronic waste, factory plastic

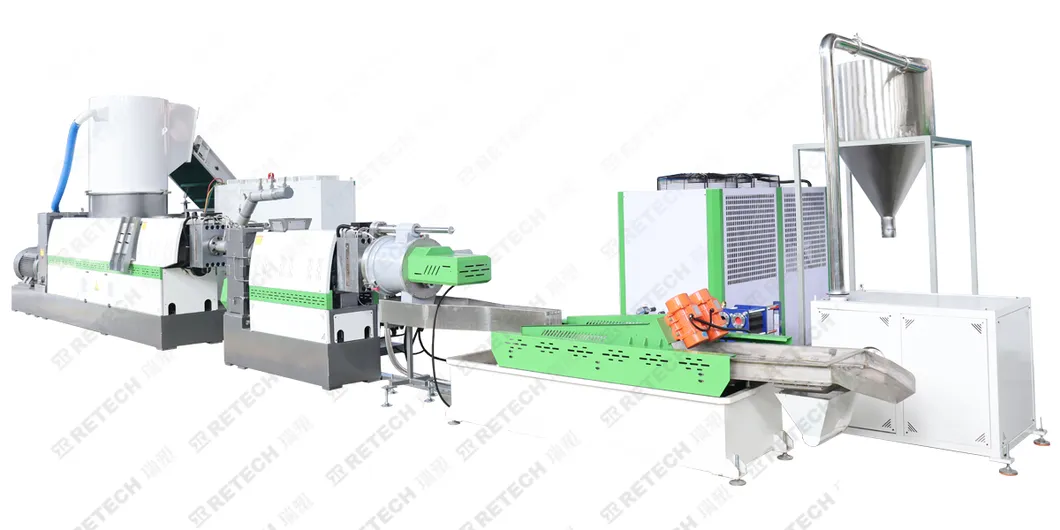

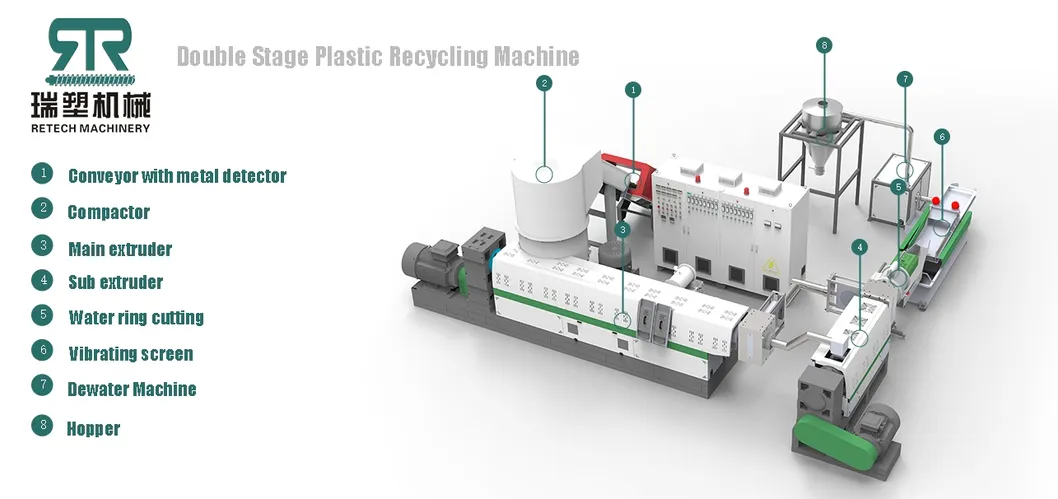

How It Works

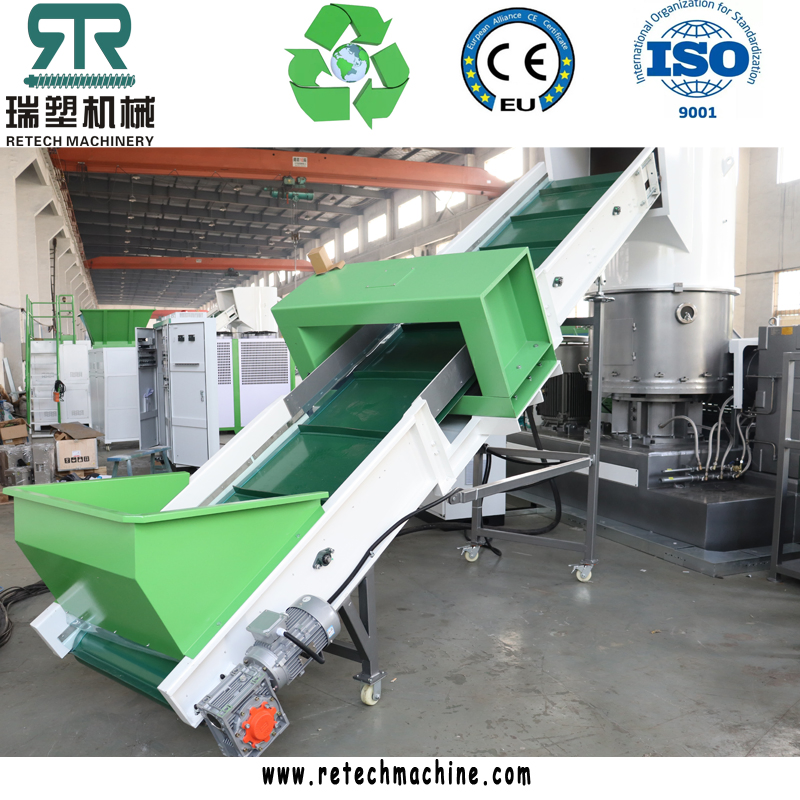

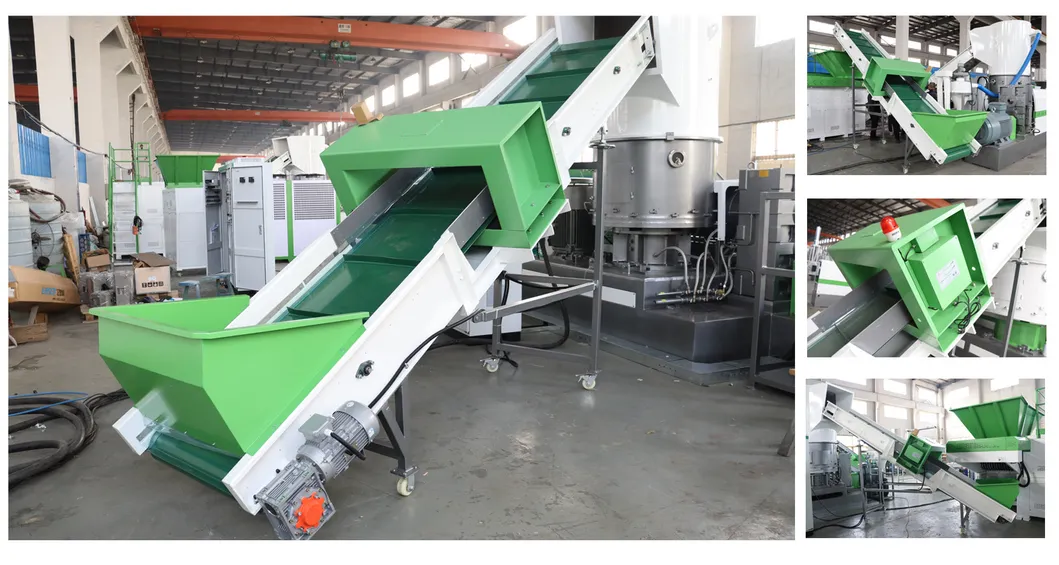

1. Feeding System

Stable feeding by level. Customized components include belt conveyor and nip roller.

Function: Sends material to the compactor; works with a metal detector to protect blades.

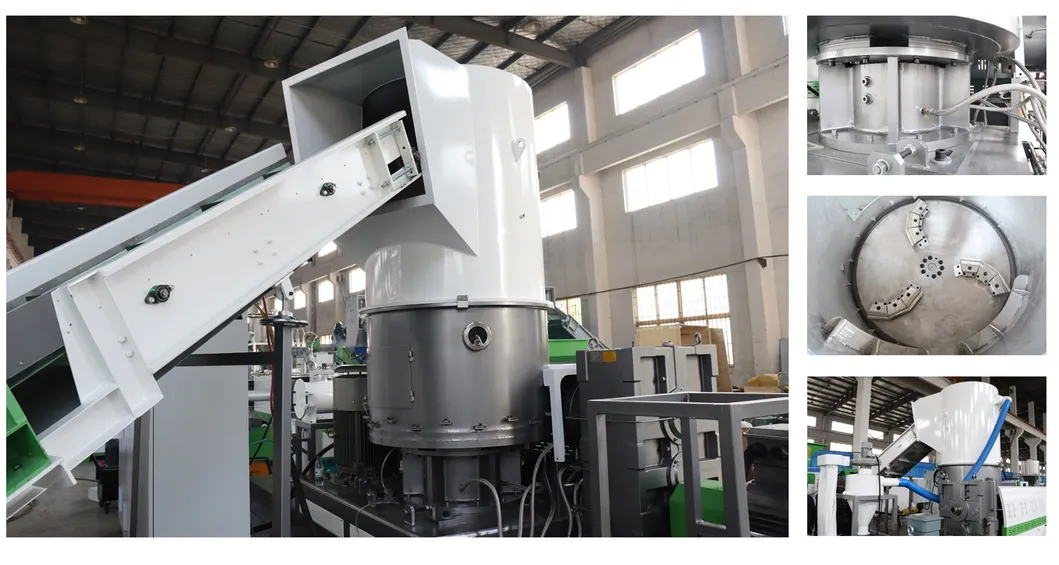

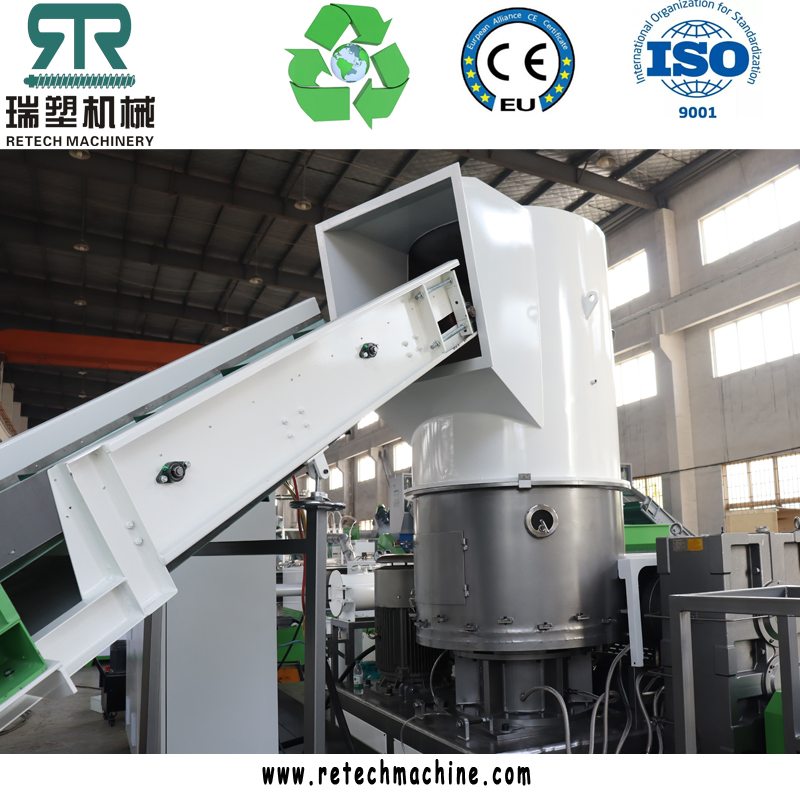

2. Cutter Compactor

Cuts, dries, and compacts the material, enabling fast and stable feeding directly into the extruder.

Function: Cutting and compacting material for efficient processing.

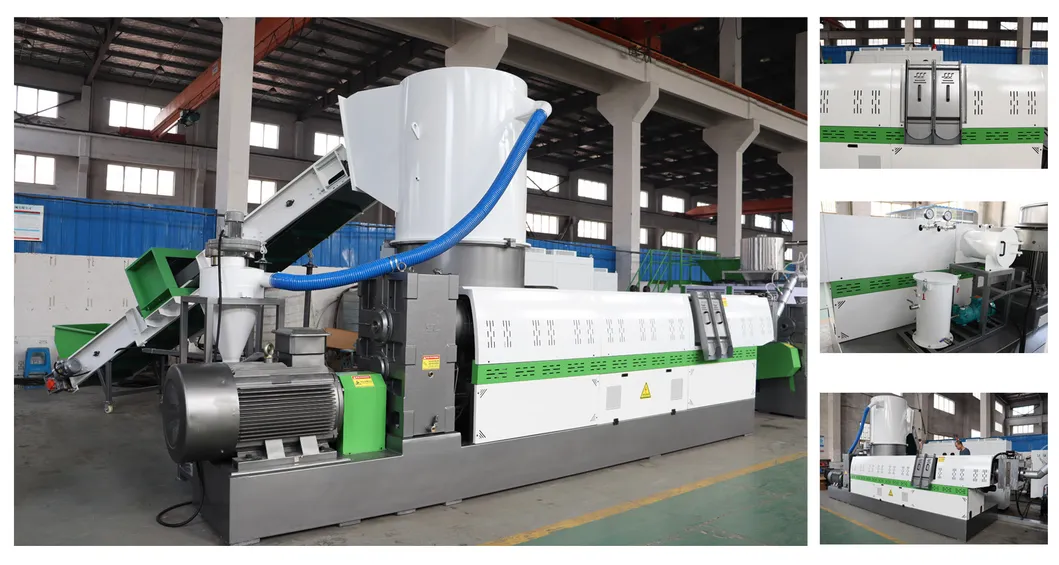

3. Double Degassing Extruder

Able to process both printed and non-printed material efficiently.

Function: Melting and heating via heaters. The degassing unit removes air/gas to ensure strong granules.

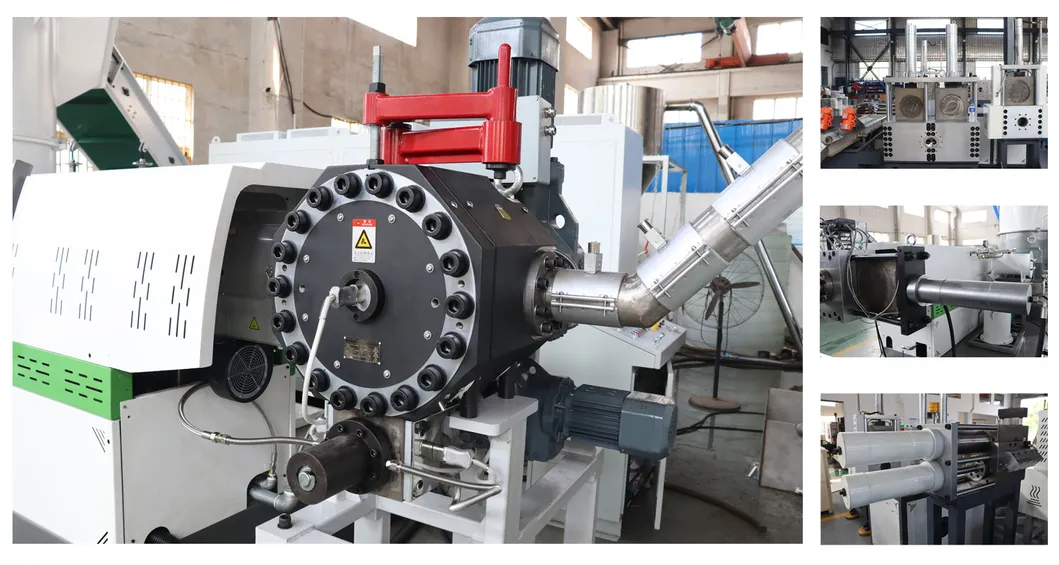

4. Filtration System

Features a dual-channel filter system for non-stop operation and reduced downtime.

Function: Stops impurities via mesh; laser filters are available as an option.

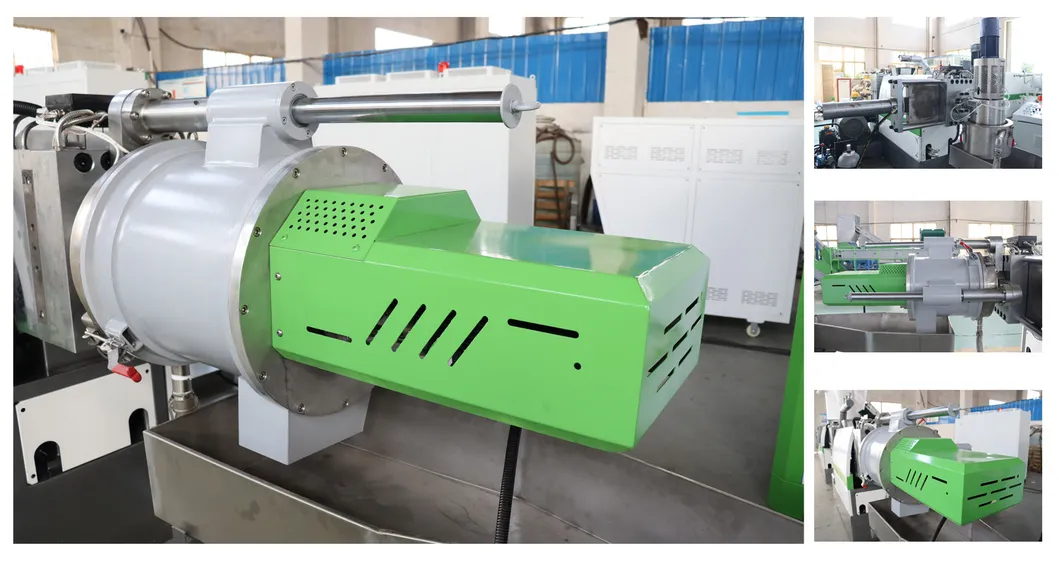

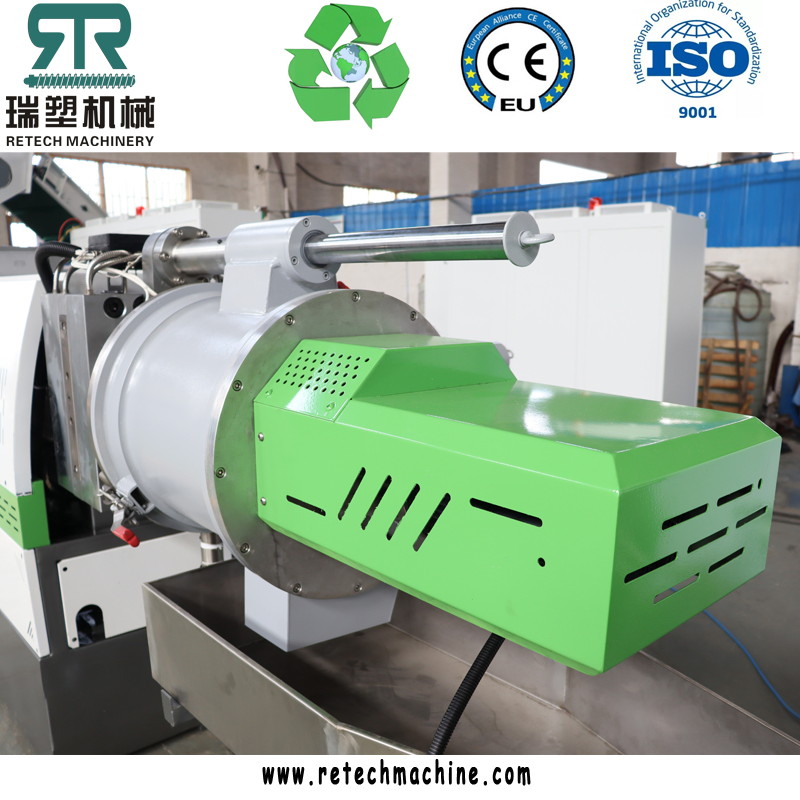

5. Die Face Pelletizing

Produces high-quality plastic pellets. Options include water-ring die face cutters or strand die (spaghetti type).

Function: Cuts the granules with precision pressure and a die head.

Product Parameters

Model	Diameter of Screw	PE Capacity	PP Capacity
RCDJ-85	Φ85mm	150-200kg/h	100-150kg/h
RCSJ-85/100	Φ85/100mm	150-200kg/h	100-150kg/h
RCDJ-100	Φ100mm	280-350kg/h	250-300kg/h
RCSJ-100/120	Φ100/120mm	280-350kg/h	250-300kg/h
RCDJ-130	Φ130mm	480-550kg/h	400-500kg/h
RCSJ-130/150	Φ130/150mm	480-550kg/h	400-500kg/h
RCDJ-160	Φ160mm	650-800kg/h	600-750kg/h
RCSJ-160/180	Φ160/190mm	650-800kg/h	600-750kg/h
RCDJ-180	Φ180mm	800-1200kg/h	750-1000kg/h
RCSJ-180/200	Φ180/200mm	800-1200kg/h	750-1000kg/h

Certifications & Exhibition

Customer Feedback & Shipping

Frequently Asked Questions

Q: What types of plastic materials can this machine recycle?

A: It can process a wide range of plastics including PE, PP, HDPE, LDPE, LLDPE, BOPP, PET, ABS, and PS in the form of films, bags, woven fabrics, and filaments.

Q: Does the machine handle printed plastic films?

A: Yes, the double degassing extruder system is specifically designed to handle both printed and non-printed materials effectively.

Q: What is the production capacity of the pelletizing line?

A: Depending on the model, the production capacity ranges from 100kg/h to 3000kg/h.

Q: How does the filtration system ensure product quality?

A: The dual-channel filtration system stops impurities using a mesh. For high-contamination materials, an optional laser filter can be integrated.

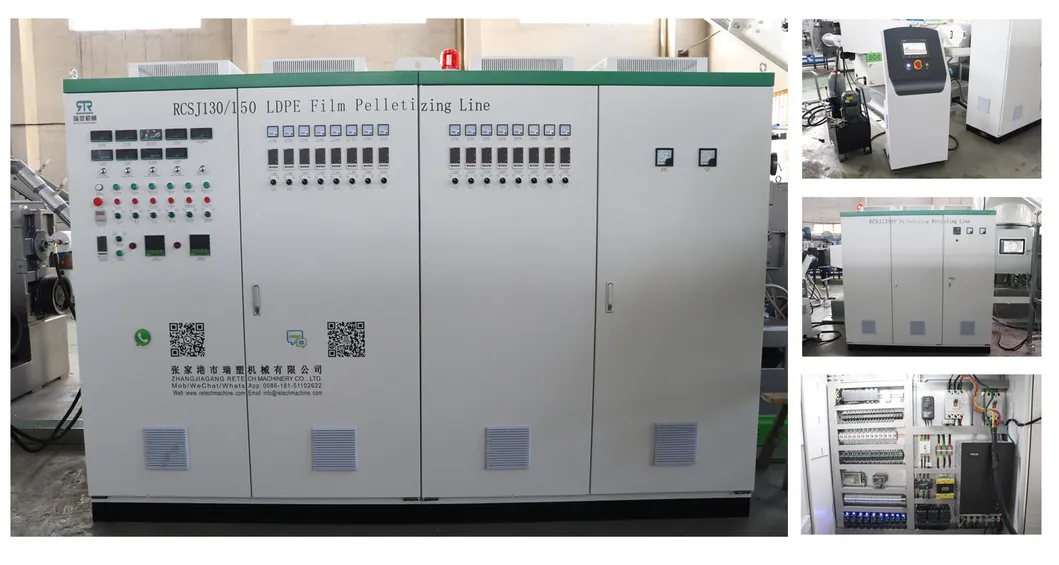

Q: Are the electric components reliable?

A: Yes, we use world-famous brands like Siemens for the electrical panel to ensure stable and long-term operation of the entire line.

Q: Can the final pellets be used directly for manufacturing?

A: Absolutely. The high-quality granules produced can be used directly for film blowing, pipe extrusion, and injection molding.
