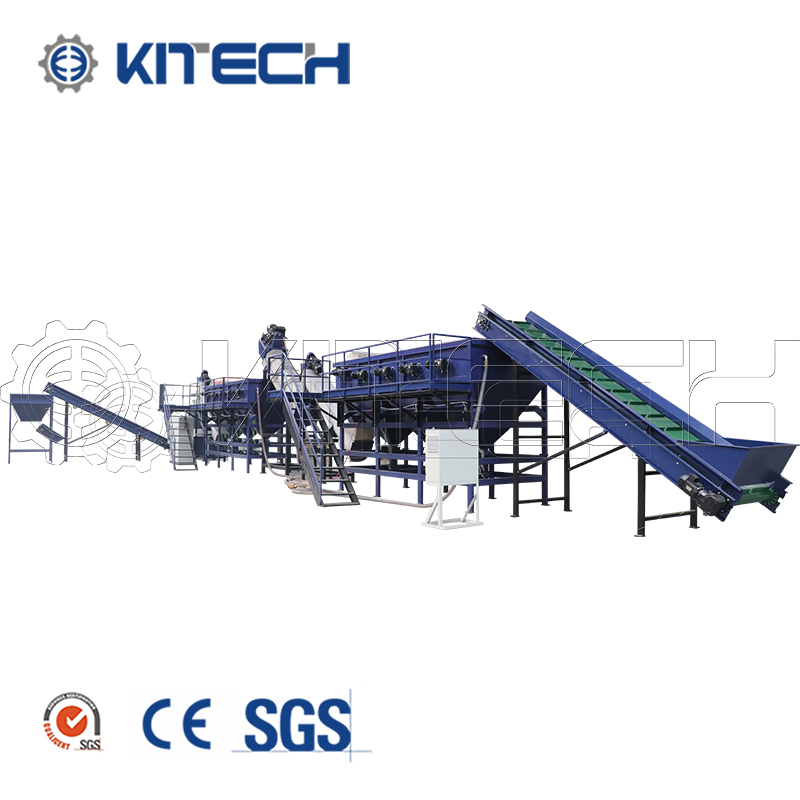

Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
1 / 5
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line
Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line

Plastic Recycling Machine for PE/PP/PA/PVC/ABS/PS/PC/Pet Washing and Pelletizing Granulating Recycling Line

Customization: Available
After-sales Service: Provide
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
LDW/RPW
Material Processed
Plastic Bottle
Plastic Type
PE
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Controller
Siemens PLC
Motor Brand
Siemens, Weg
Inverter
ABB/Siemens
Bearing
NSK
Output Capacity
500-1000kg/H
Suitable Material
Post Consumer Film, Agricultural Film, Woven Bag
HS Code
84778000
Production Capacity
50sets/Year
Packaging & Delivery
Package Size
300.00cm * 100.00cm * 200.00cm
Gross Weight
1000.000kg
Transport Package
Wooden Pallets
Product Description
⚙️

Plastic recycling washing system: This system features a smart modular design aimed at rigid plastics and bottles, such as PE, LD, HD, LDPE, HDPE, PC, PS, ABS, and various types of soft plastic recycling. Modular combinations are designed according to specific requirements and material conditions, offering economy and high-level production lines.

Type RPW500 RPW100 RPW2000 RPW3000
Capacity(kg/h) 400-500 800-1000 1600-2000 2500-300
Dimension(L*W*H) 35*10*5 50*12*6 70*12*6 120*20*6
Steam consumption(kg/h) 0-150 0-200 0-300 0-600
Chemical consumption(kg/h) 0-3 0-5 0-10 0-20
Energy consumption(kwh) 175 198 306 550
Installation power(kwh) 210 330 498 810
Man power (person/shift) 3-5 3-8 3-10 3-12

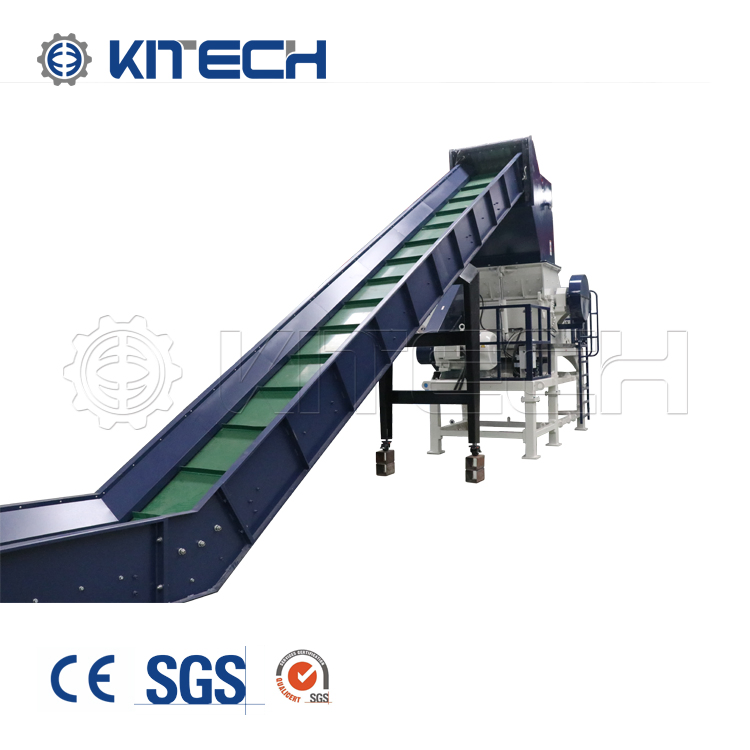

Belt Conveyor Heavy duty type with gear motor and side walls to prevent material spillage.
Crusher Optimally designed sharp blades with an enclosed cutting chamber and externally adjustable knives.

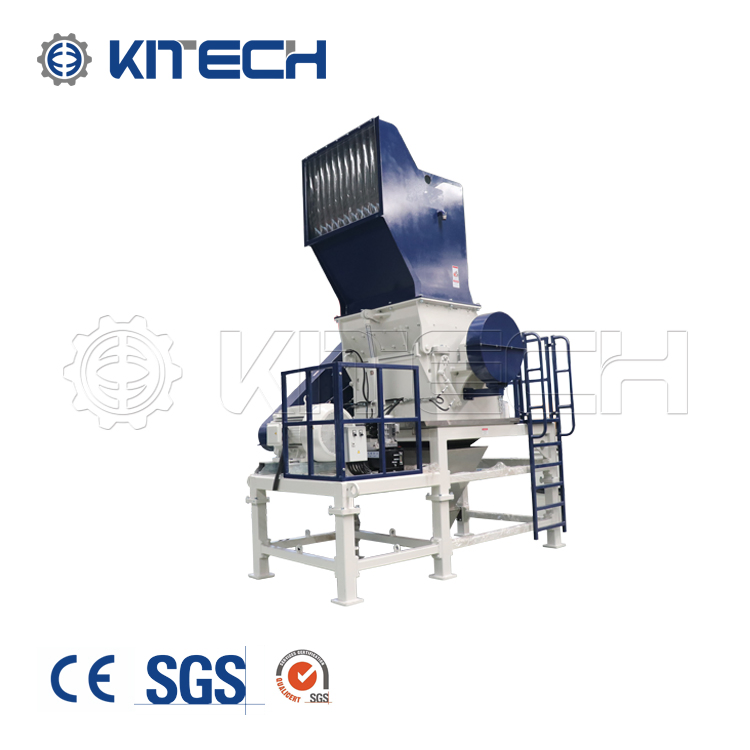

Shredder Special hopper design with 4-way rotating knives, robust pedestal bearing housings, and external bearing designs.

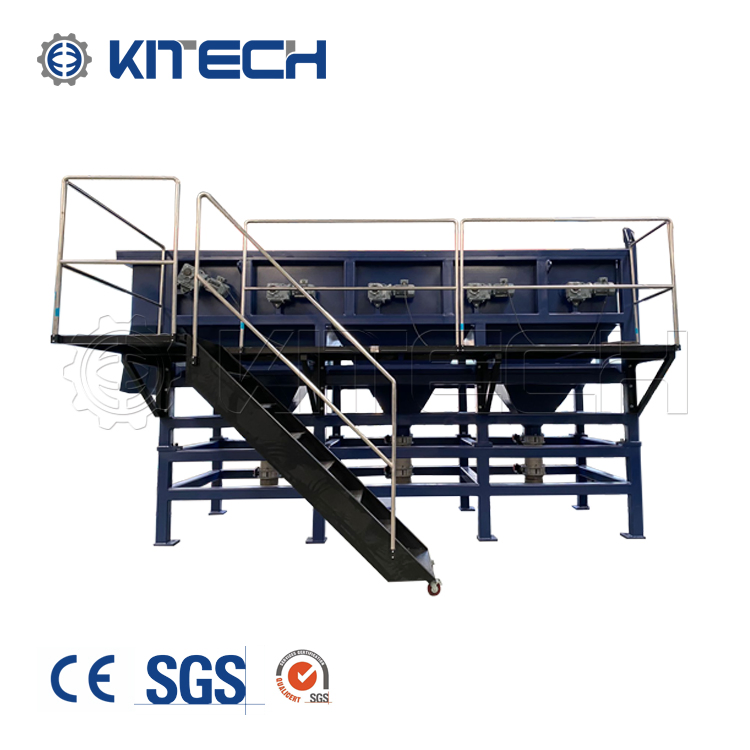

Washing Tank Double station discharge valve at the bottom with inverter-controlled thumb-wheel speed for density separation.

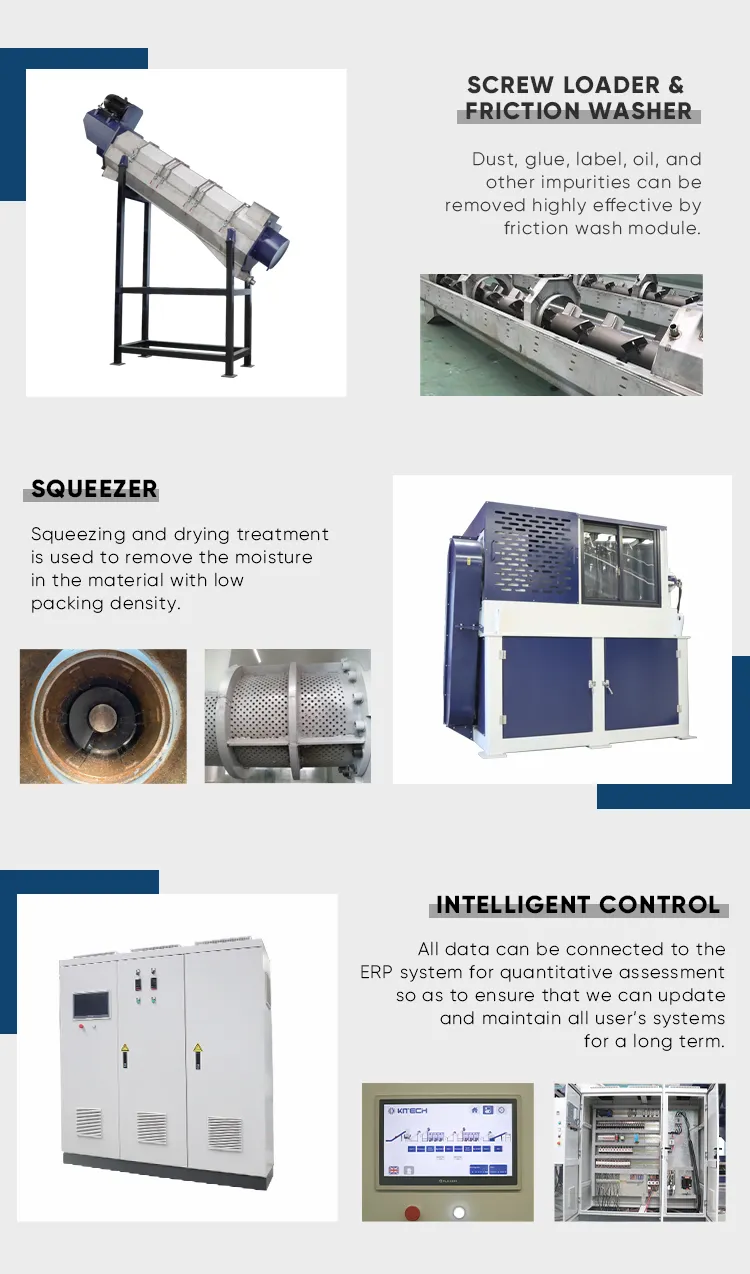

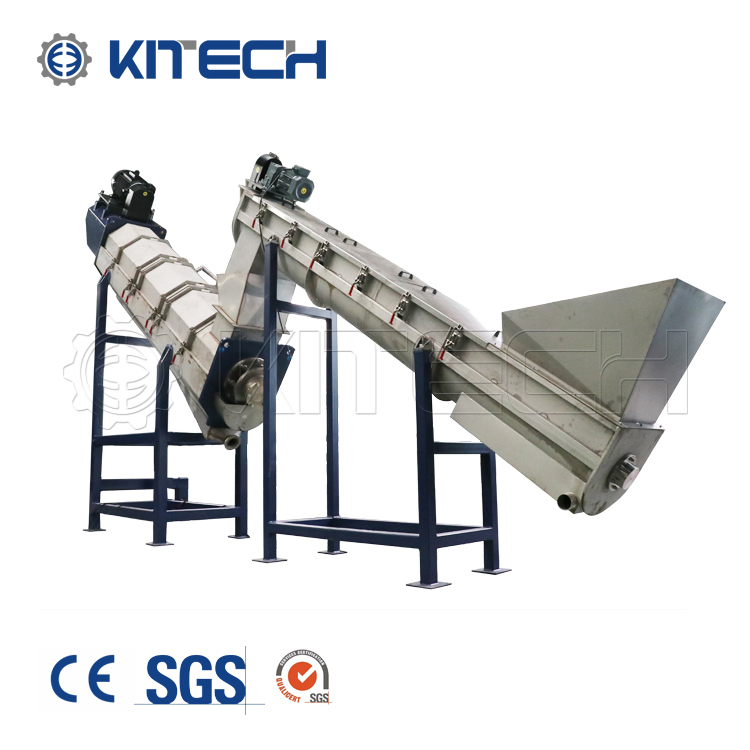

Friction Washer Rotor and blades made of wear-resistant steel with dynamic balance treatment (Accuracy: ±3-5g).
Dryer Systems Includes Centrifugal dryers (stainless steel housing) and Hot air pipe dryers for efficient moisture removal.
Electrical Cabinet Intelligent modular PLC controlling system using international brand low voltage components and double circuit safety relays.
Recycling System Overview

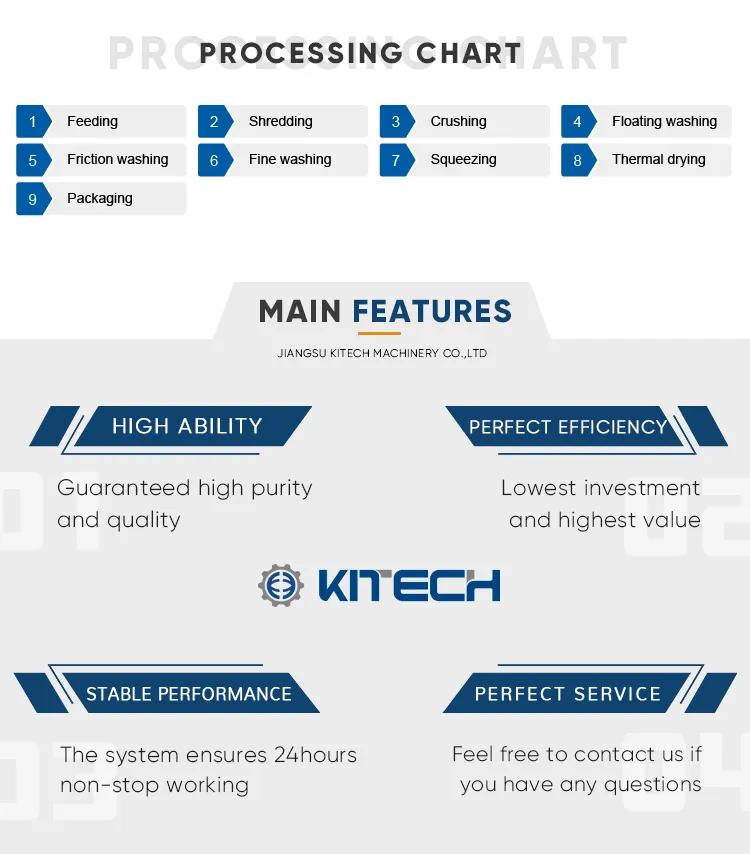

Process Detail
Machine Components
Washing Unit
Drying Section
Control System
Final Product
Recycling Line Layout
Frequently Asked Questions
What types of plastic materials can this washing system process?
The system is designed for both rigid plastics (bottles) and soft plastics (films, woven bags, fiber, rope), including PE, LD, HD, LDPE, HDPE, PC, PS, ABS, and more.
What is the production capacity range for this line?
The capacity varies by model, ranging from 400kg/h (RPW500) up to 3000kg/h (RPW3000), allowing for both economy and high-level production requirements.
Which brands of components are used in the machinery?
The system utilizes high-quality international brands, including Siemens and Weg for motors, ABB or Siemens for inverters, NSK for bearings, and Siemens PLC for the control system.
How does the system ensure the purity of recycled materials?
It uses a combination of heavy-duty washing tanks for density separation, friction washers for active material cleaning, and specialized crushing/shredding units to prepare the material.
What drying technologies are included in the recycling line?
The system features a multi-stage drying process including a centrifugal dryer, a squeezing dryer for soft materials, and a hot air pipe drying system to ensure low moisture content.
Is the recycling system fully automated?
Yes, the system is both automated and computerized, featuring an intelligent modular PLC controlling system with a double circuit safety relay for efficient and safe operation.
