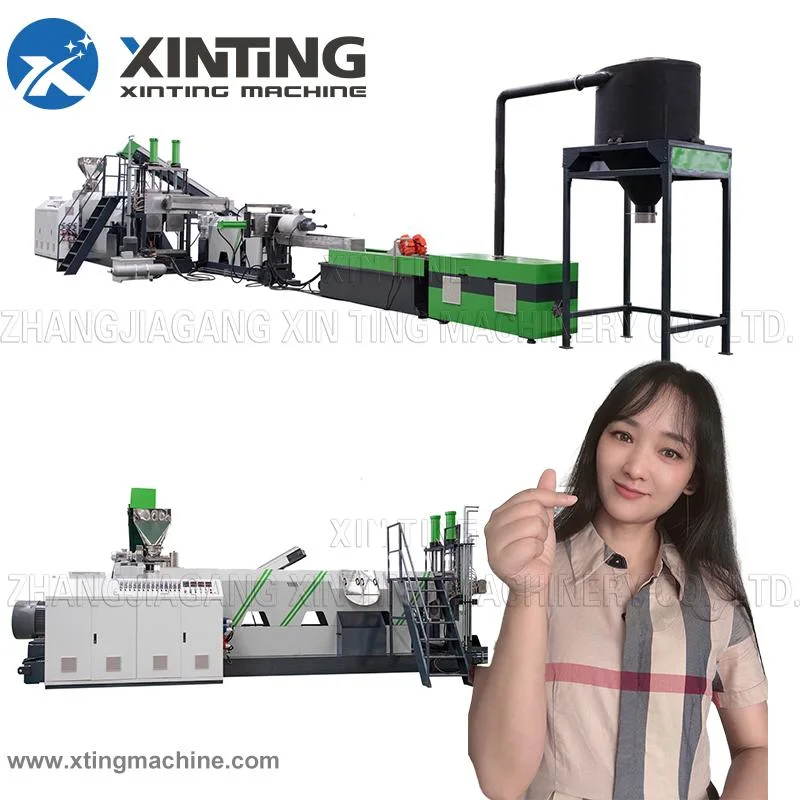

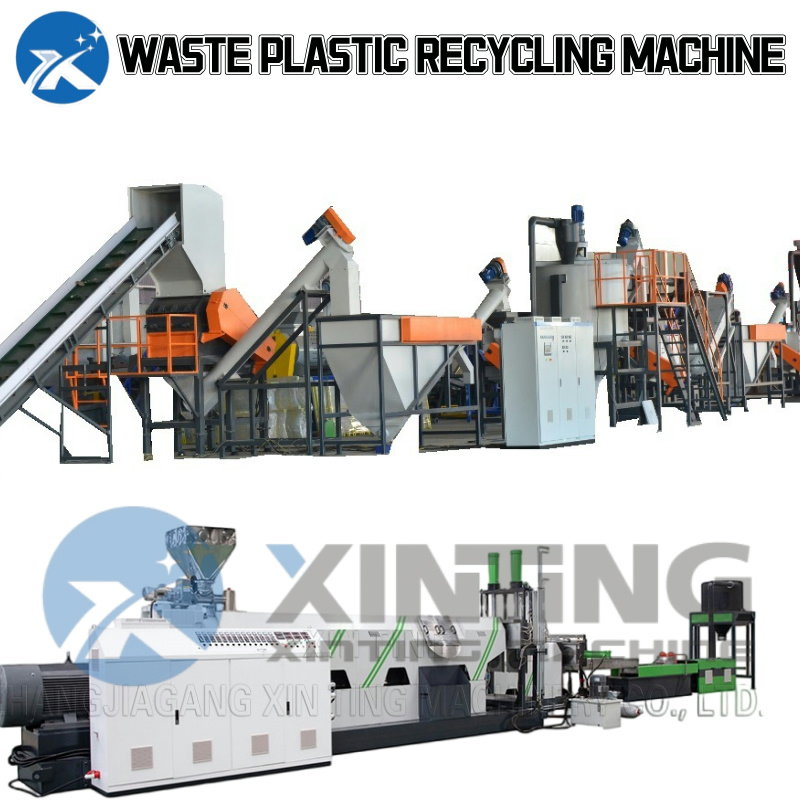

Waste PET/HDPE/LDPE/PP/PE Bottles Films Woven Bags Plastic Recycling Solution: A comprehensive system for pelletizing, granulation, crushing, washing, and shredding plastic scrap.

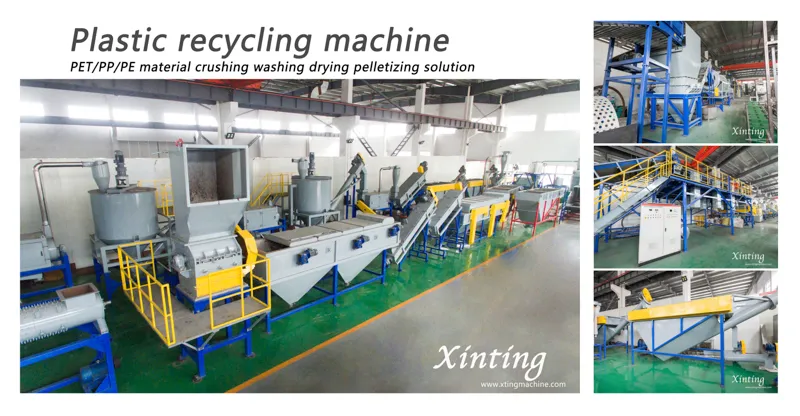

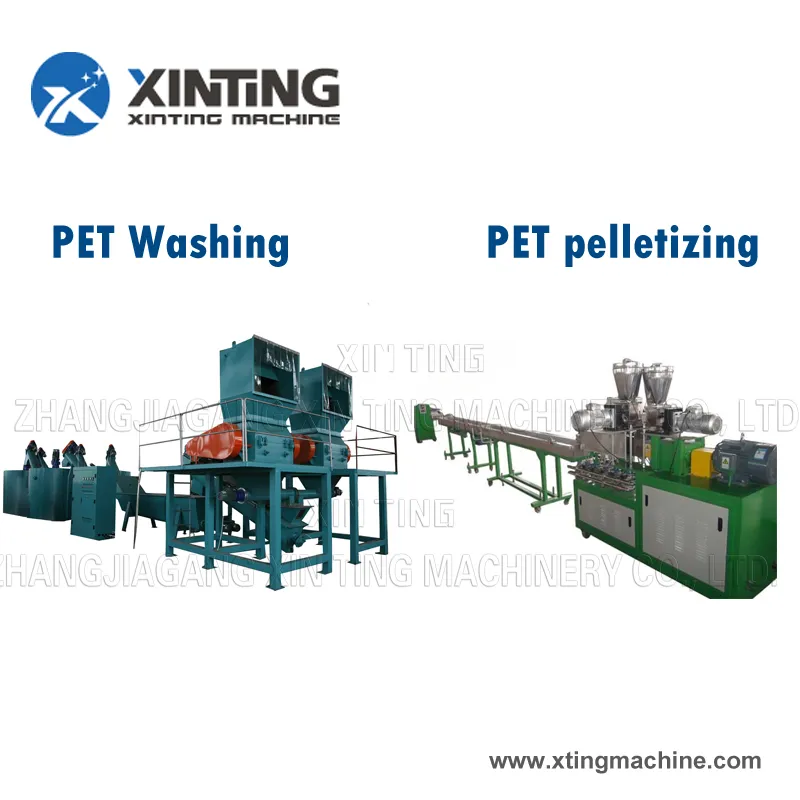

PET BOTTLE WASHING & PELLETIZING MACHINE
| No. | Machine List | Function |
|---|---|---|
| 1 | Belt Conveyor | Bottles conveying |
| 2 | Bottle Label Remover | Remove above 90% labels; No flakes waste |
| 5 | PSJ1200 Crusher | Bottle crushing into flakes |
| 8 | Floating Washer | Wash flakes and remove floating materials (PP/PE) |
| 10 | Hot Washer | Remove oil and glue efficiently |
| 19 | Centrifugal Dryer | Drying flakes to 2% moisture |
| 20 | Pipeline Dryer | Hot air drying, moisture < 1% |
PET Flake Quality Reference:
| Moisture Content | <0.9% | Label Content | <20ppm |
| PVC Content | <20ppm | Glue Content | <10ppm |
| Total Impurity | <100ppm | Flake Size | 12-14mm (Customizable) |
Our specially developed squeezer reduces moisture in washed materials from 30% down to 1-3%. This significantly improves pellet quality and extruder efficiency.
| Film Squeezing Machine Specifications | |
|---|---|
| Motor Power | 180kw |
| Rotating Speed | 10-90r/min |
| Capacity | 1000kg/h - 1500kg/h |
