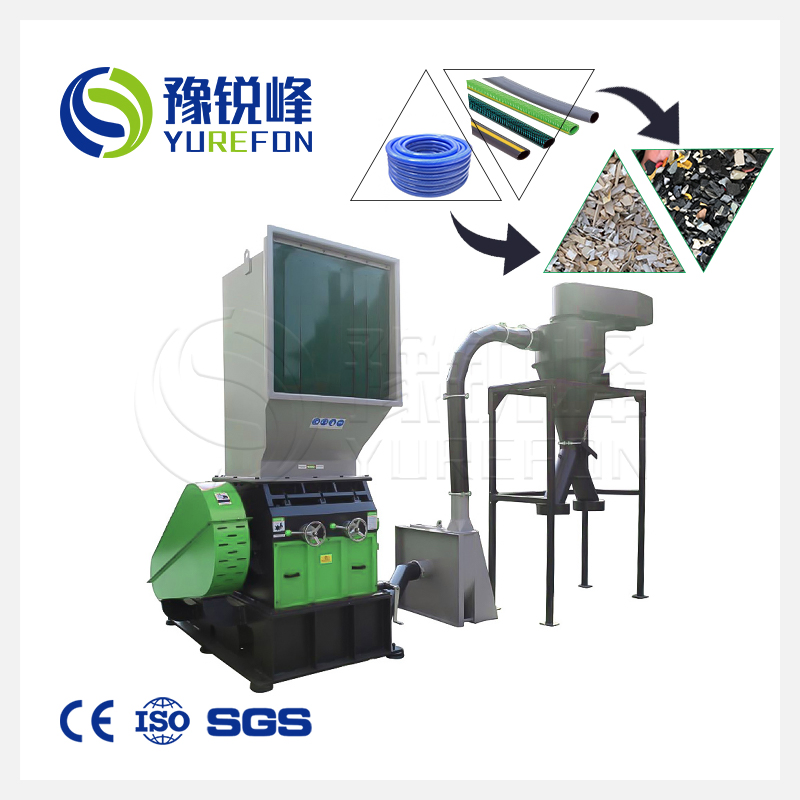

Powerful Plastic Recycling Machine PE Road Barrier Block Barricade Grinder

Customization:	Available
Warranty:	12 Months
Condition:	New

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

Crusher

Capacity

100~800 Kg/H

Blades Material

SKD-11

Application

Plastic Recycling

Voltage

Customized

Delivery Time

40 Days

Product Name

Waste Products Crushing Machine

Color

Customized

Transport Package

Plastic Film Winding

Specification

RFC400

HS Code

84778000

Production Capacity

200 Sets /Year

📝 Product Introduction

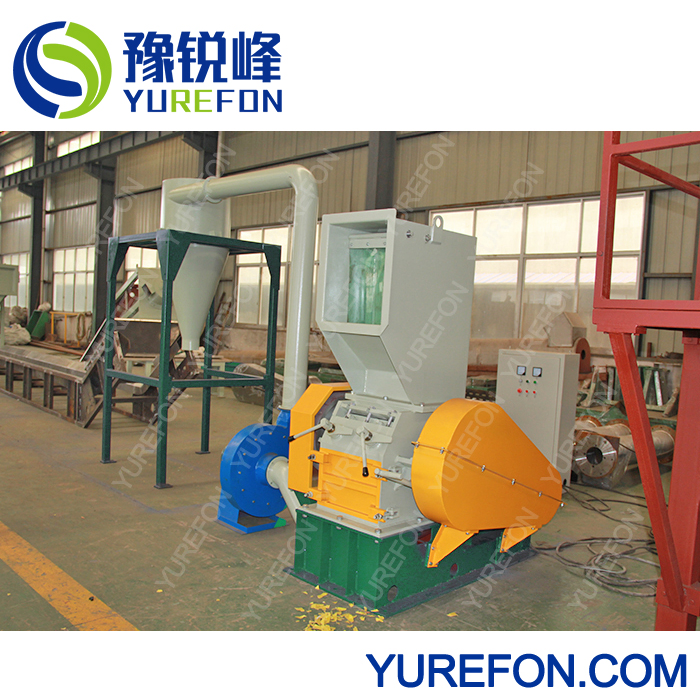

Powerful Plastic Recycling Machine PE Road Barrier Block Barricade Grinder

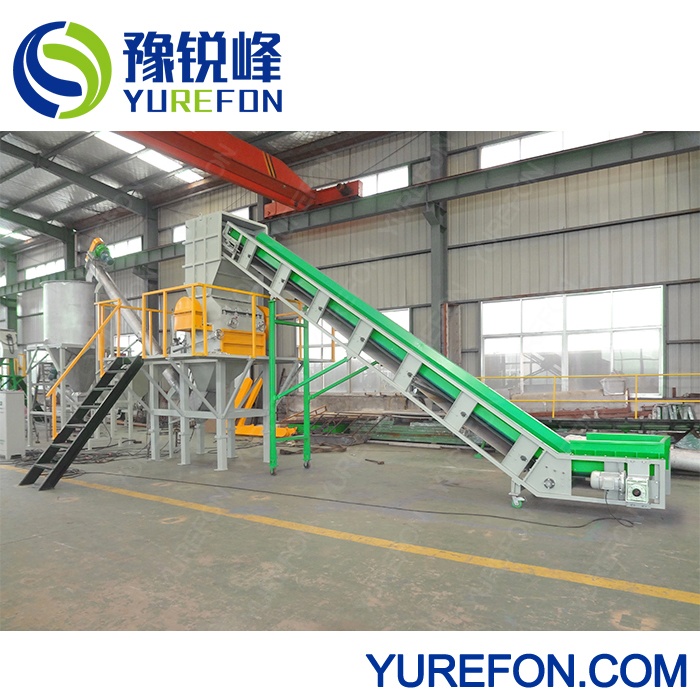

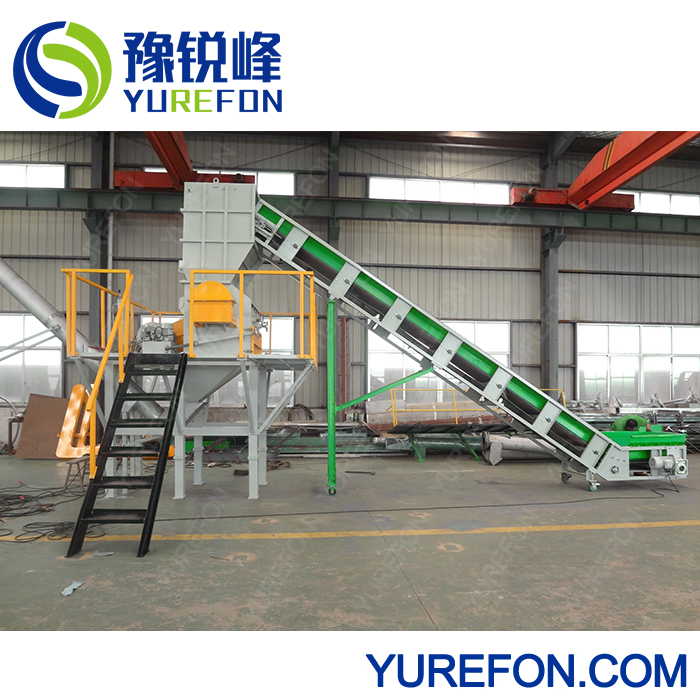

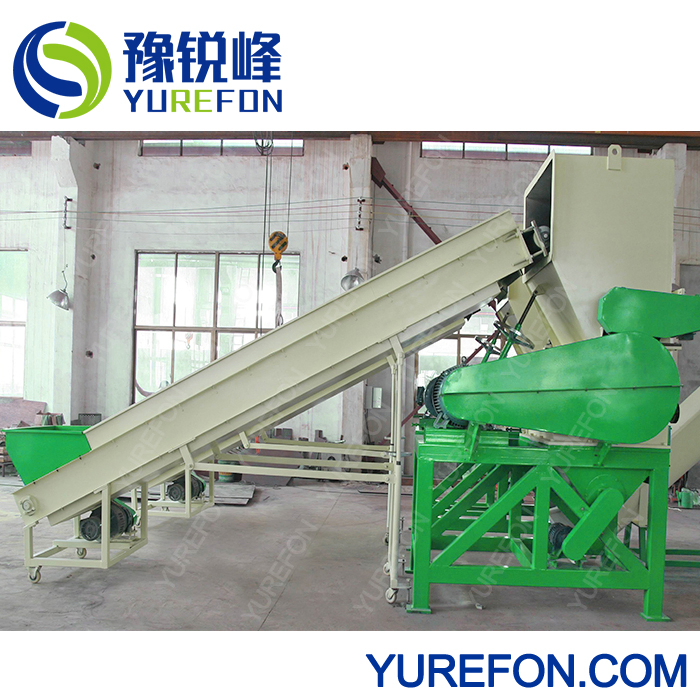

The machine is fitted with a special hopper and can be loaded manually or by conveyor belt. This hopper can be adapted to suit individual requirements and ensures a continuous and efficient supply of the material being processed, without any need for manual assistance.

The PC Series features an extremely robust construction, with the rotor driven by a belt drive configuration. The feeding hopper on top can be opened hydraulically and is fitted with curtains to protect materials from splashing during operation.

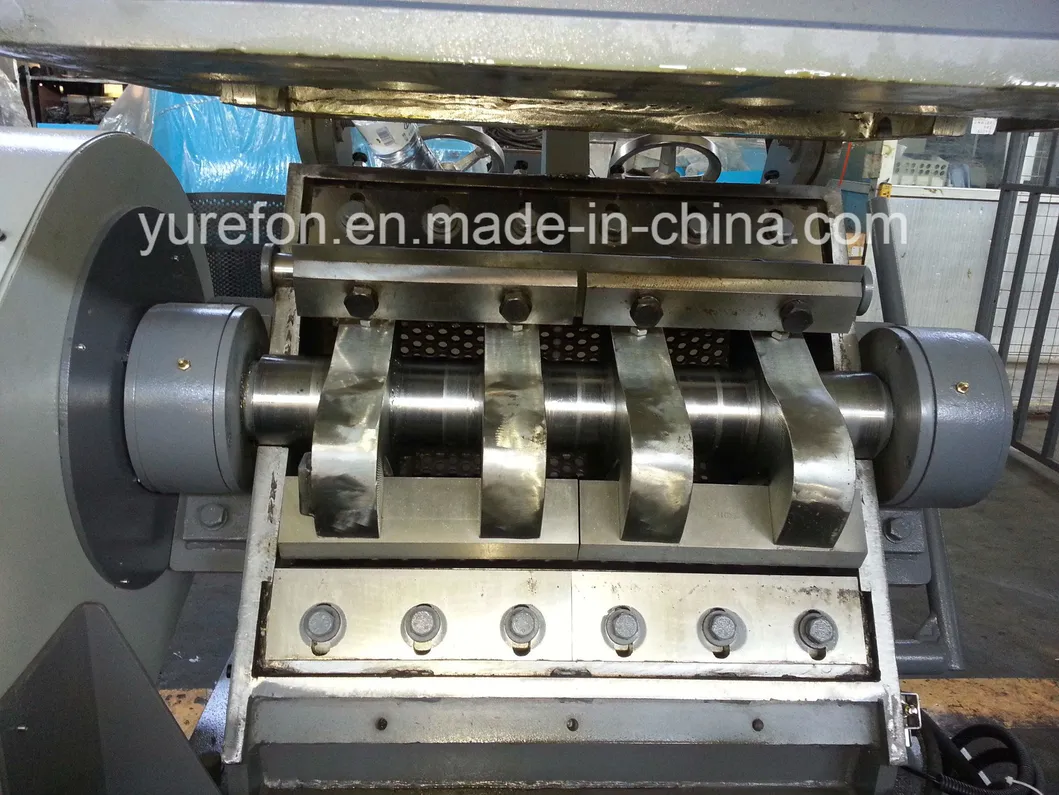

Equipped with a quick-change screen that opens via a hydraulic system, the machine allows easy access to the rotor and cutting profile for simplified maintenance. The standard screen perforation is 60mm, determining the final granulate size. The system is fully electrically connected with CE confirmed safety switches.

💎 Key Characteristics

✔ Easy to operate, low electricity consumption, durable, and low noise operation.

✔ High-quality steel material specifically used for manufacturing crusher cutters.

✔ Stable and durable blades base structure, engineered to resist breakage and damage.

✔ Easy maintenance: Hopper, crusher room, blades, and screen are easily removable.

✔ Compact design requiring less floor space in your facility.

✔ Versatile application: Suitable for recycling PVC, PE, HDPE, LDPE, PP, and other plastics.

♻️ Material Applications

1. Rigid Plastics: PP HDPE Barrels, Containers, PET bottles.

2. Profiles & Sheets: PVC PE PP Pipe, Profile, Sheet, Board.

3. Flexible Materials: PP Woven bags, PE PP Film, Fabrics.

4. Others: General waste plastics and packaging materials.

📊 Technical Parameters

Model	RFC400	RFC500	RFC600	RFC800	RFC1000
Diameter of rotating blade (mm)	250	250	380	400	650
Quantity of rotating blade	12	12	18	24	24
Speed of rotating blade (rpm)	560	560	560	560	560
Quantity of fixed blade	2	2	4	4	4
Sieve hole diameter (mm)	φ10	φ10	φ10	φ10	φ10
Capacity (kg/h)	80-100	120-150	250-350	400-500	700-800
Power (kw)	7.5	11	18.5	30	55
Feeding inlet size (mm)	260×400	320×500	400×600	420×800	600×1000
Weight (kg)	650	650	1200	1500	2000

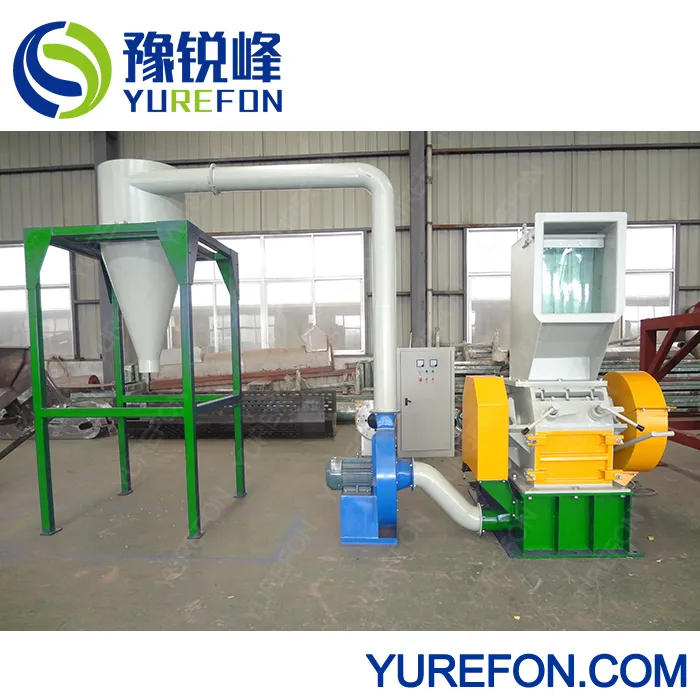

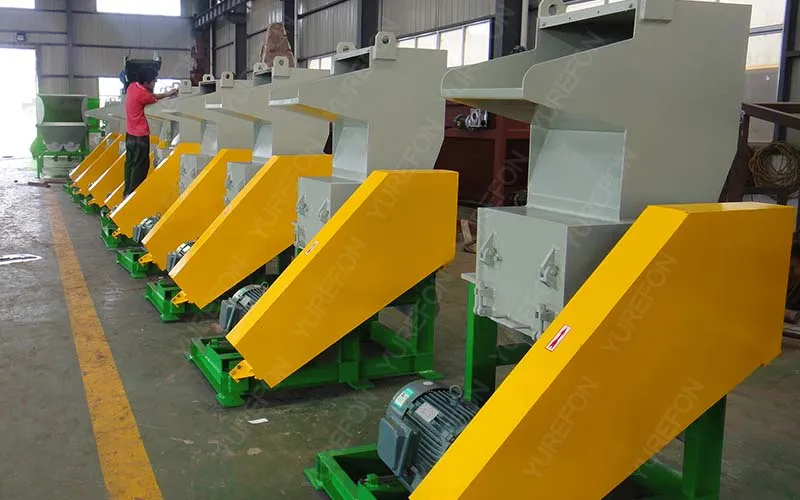

🔍 Detailed Gallery

❓ Frequently Asked Questions

Q1: What materials can this crushing machine handle? A: It is designed for various plastics including PP, HDPE, PET bottles, PVC pipes, PE films, and even bulky items like road barrier blocks.

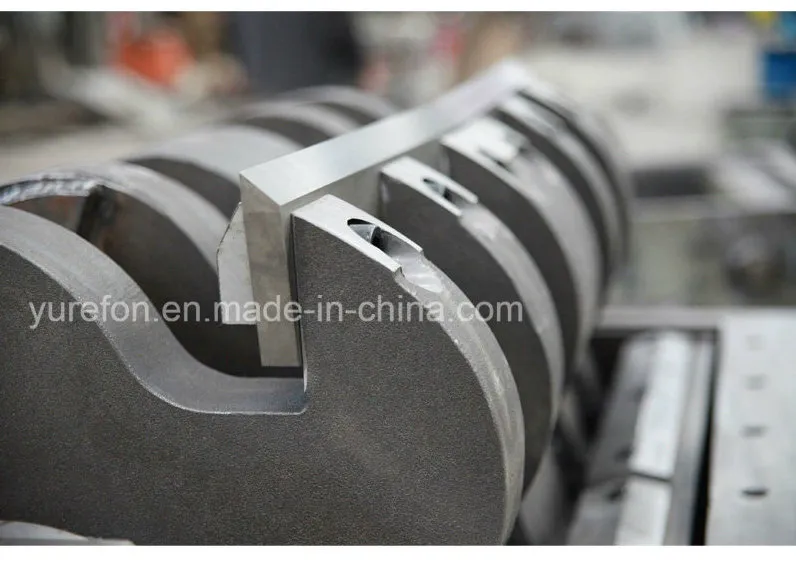

Q2: What is the quality of the cutting blades? A: We use high-quality SKD-11 steel for the blades, ensuring they are durable, stable, and resistant to breakage under high-load operations.

Q3: How difficult is the maintenance of the machine? A: Maintenance is very simple. The hopper and screen can be opened hydraulically, providing quick access to the grinding room and blades for cleaning or replacement.

Q4: Can the voltage be adjusted for our local factory standards? A: Yes, the voltage configuration is customized to meet the specific requirements of your facility and region.

Q5: What determines the final size of the crushed plastic? A: The final granulate size is determined by the screening sieve hole diameter. The standard size is 10mm or 60mm, but it can be adjusted based on requirements.

Q6: Is the feeding process safe for operators? A: Yes, the hopper is fitted with safety curtains to prevent material splash-back, and the entire system is equipped with CE-confirmed safety switches.
