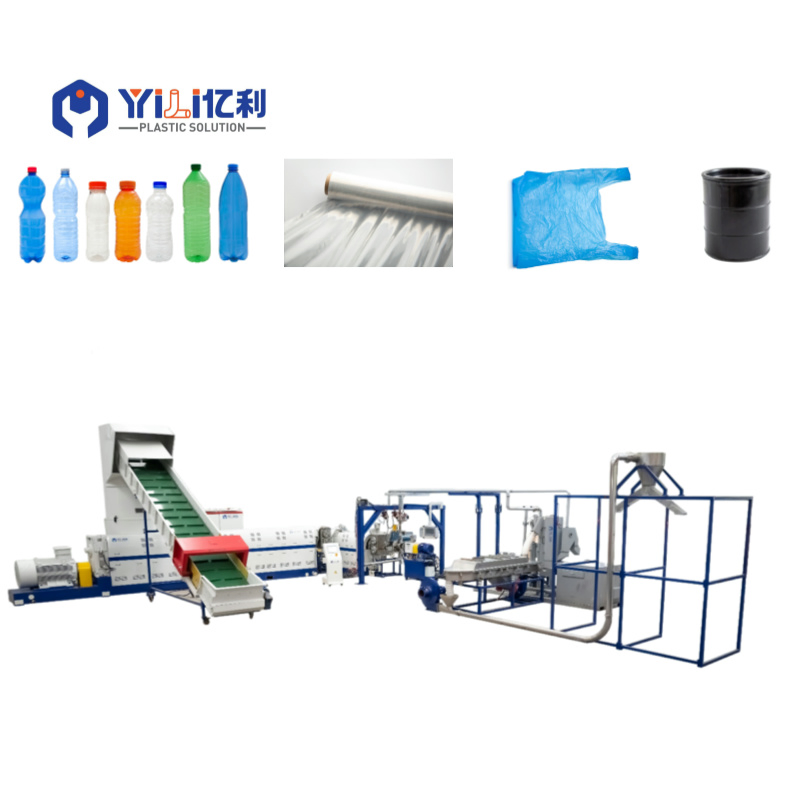

The compacting and pelletizing system combines functions of crushing, compacting, plasticization, and pelletizing into one step. It is a reliable and efficient solution for plastic film, raffias, filaments, bags, woven bags, and foaming materials re-pelletizing.

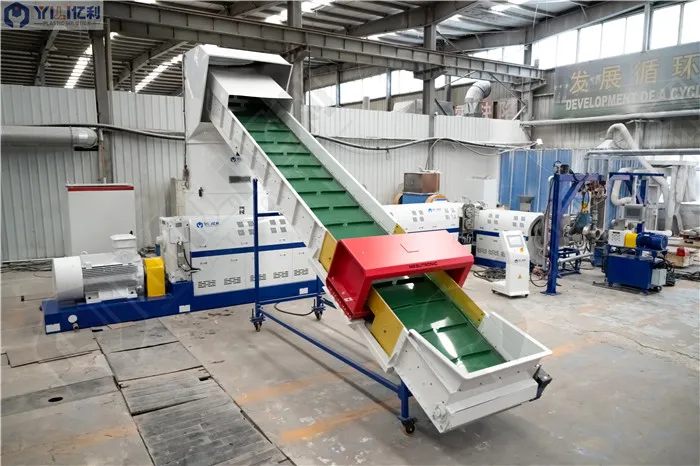

The final product is in pellet form, suitable for blowing film, tube extrusion, and injection molding. The system consists of two sets of Single-Screw Extruders, ideal for heavy printing ink, high moisture, and high impurity content materials requiring double filtration and multiple exhaust systems.
| Model | Capacity (kg/hr) | Screw Size (mm) | L/D Ratio | Energy Consumption (kw/kg) |
|---|---|---|---|---|
| ZL80-100 | 150-200 | 80/100 | 30/8 | 0.35-0.4 |
| ZL100-120 | 250-350 | 100/120 | 30/8 | 0.35-0.4 |
| ZL120-150 | 400-500 | 120/150 | 30/8 | 0.35-0.4 |
| ZL150-180 | 600-700 | 150/180 | 30/8 | 0.35-0.4 |
| ZL180-200 | 800-1000 | 180/200 | 30/8 | 0.35-0.4 |

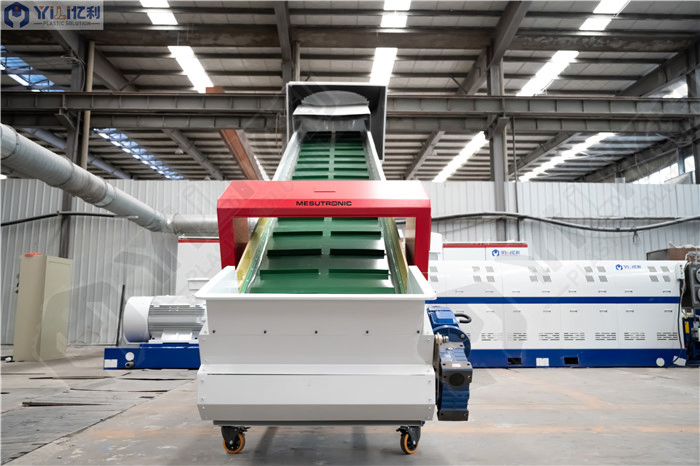

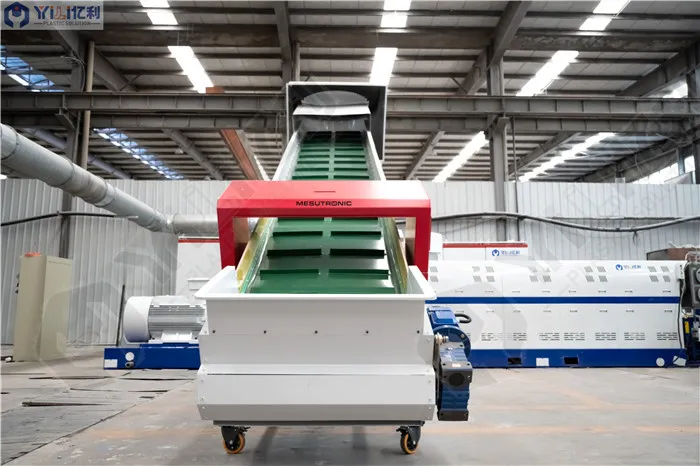

Standard feeding device for soft waste like scraps and films. Speed is controlled by an inverter integrated with the compactor current for automatic feeding.

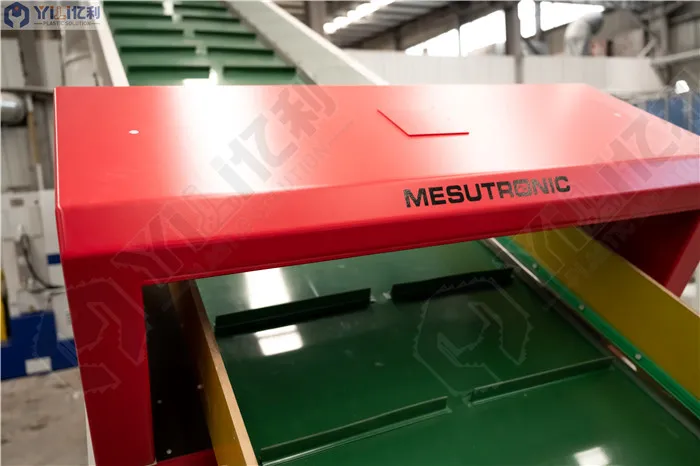

An optional safety feature to protect knives. Detects metals and triggers an alarm while stopping the conveyor automatically.

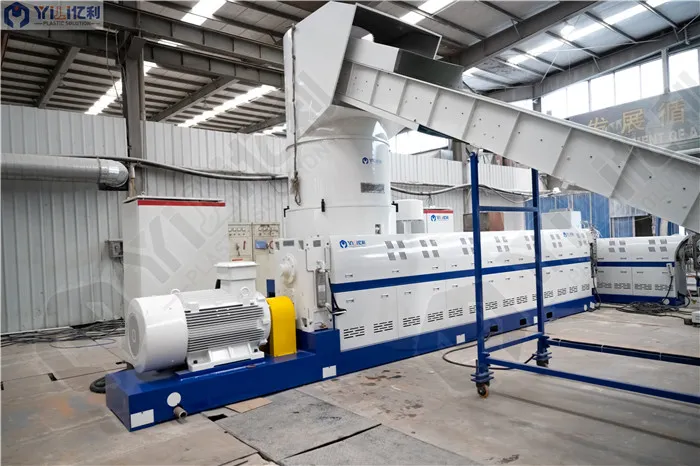

Uses fixed and rotary knives to cut and agglomerate material. Removes moisture and ensures stable feeding into the extruder.

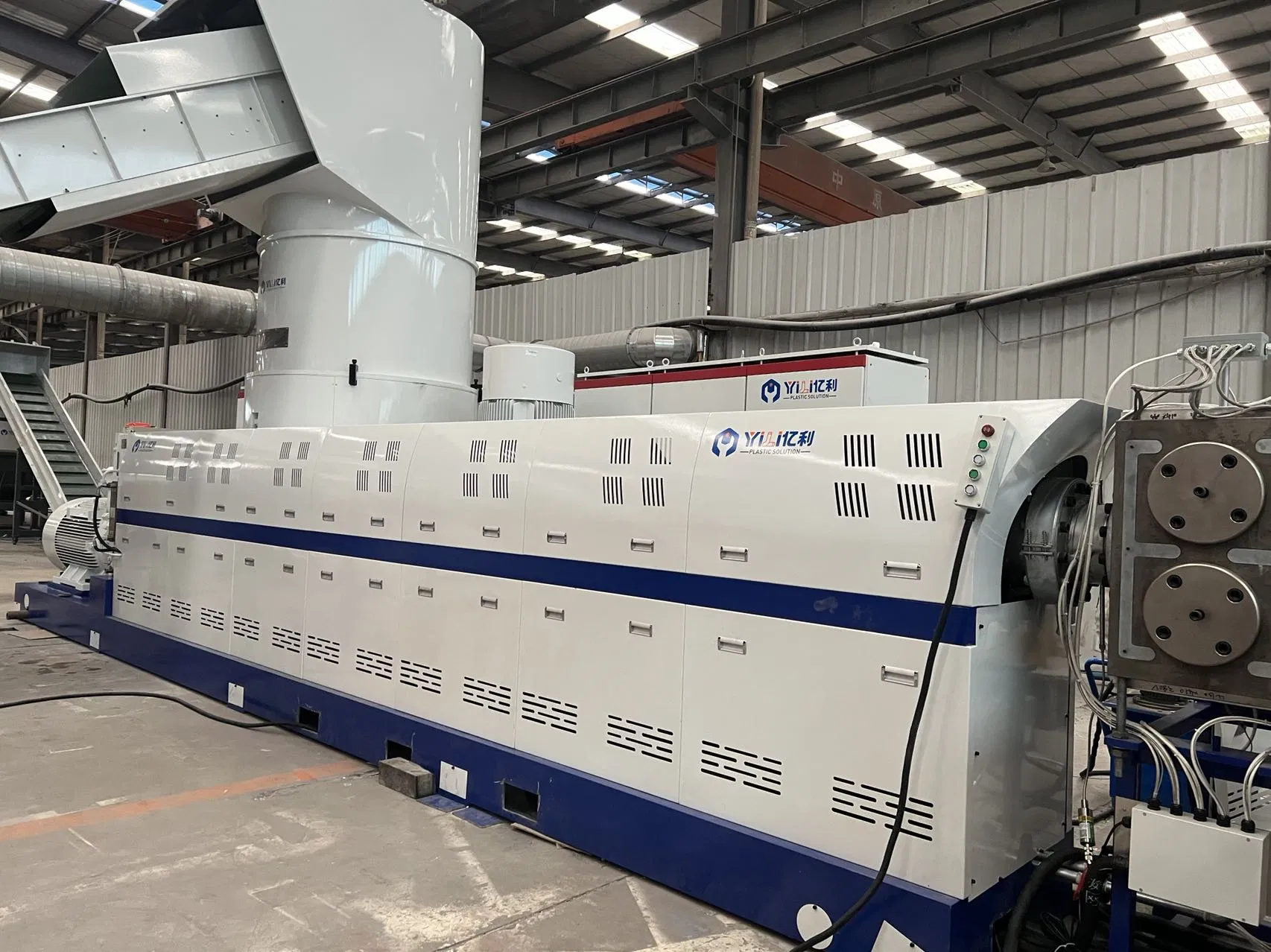

Designed for heavily printed or contaminated materials. Features multiple exhaust ports and advanced filtration for superior granule quality.

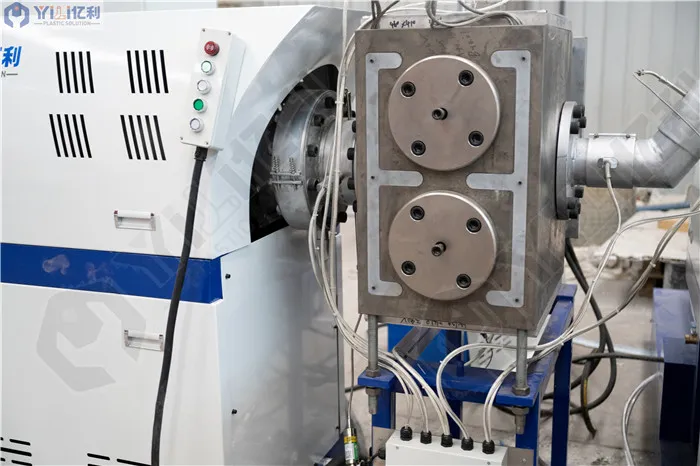

Double-column systems offering large filtering areas. Capable of handling pressures over 25Mpa for high-purity requirements.

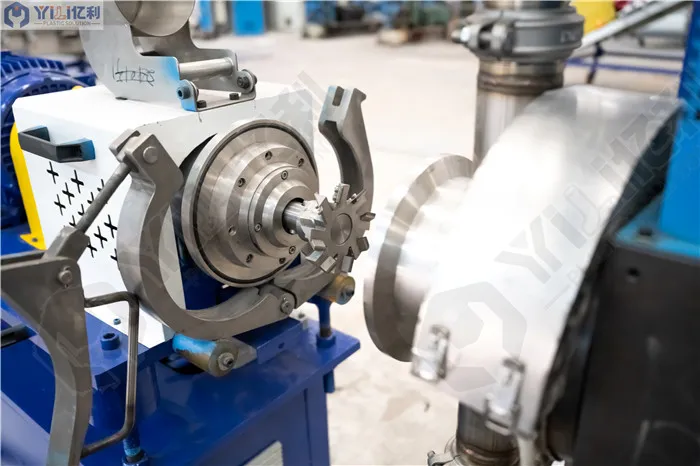

Specially designed for high flow rate and high viscosity polymers. Ensures uniform granule shape and size.

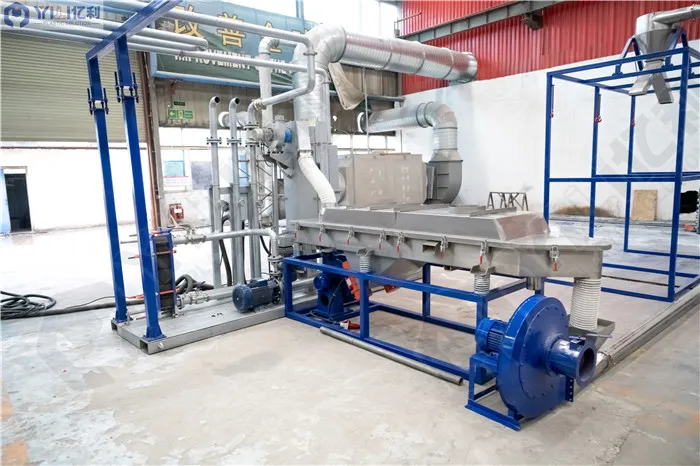

Used for sorting granules to achieve universal sizing and further cooling of the final product.

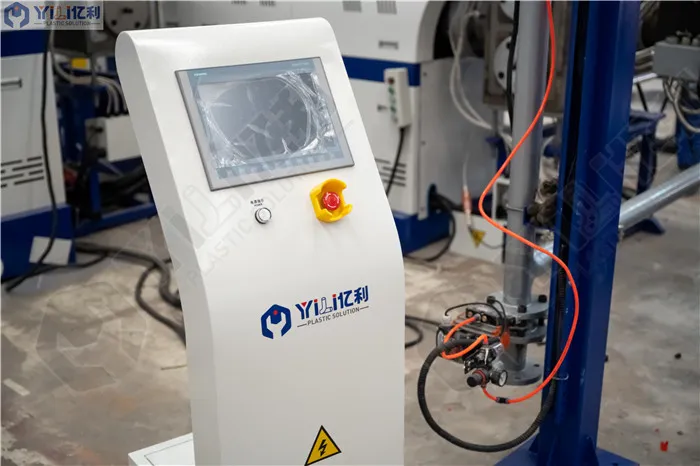

Intelligent Siemens PLC system monitors all parameters. Includes a one-button emergency stop for maximum safety.
