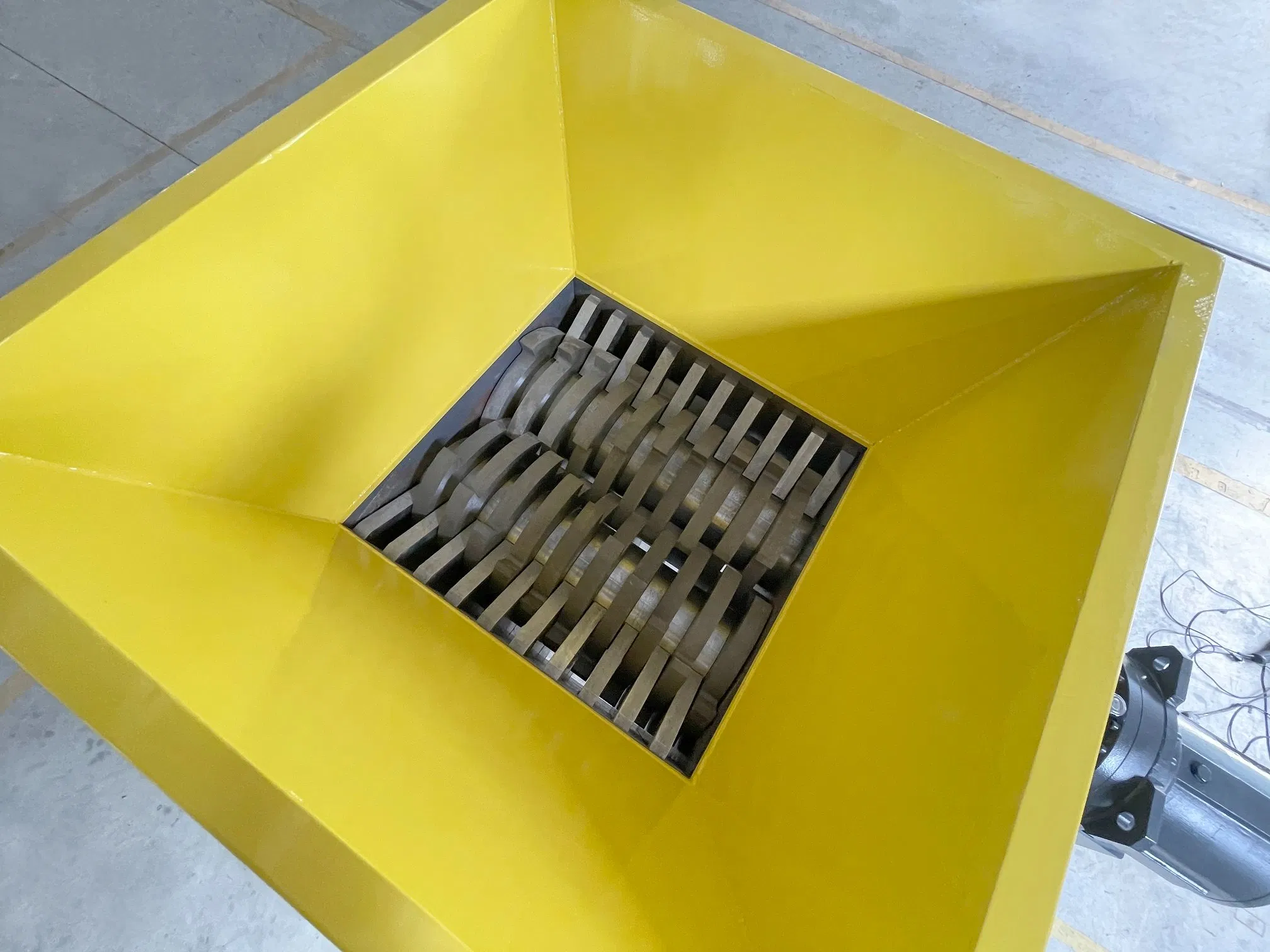

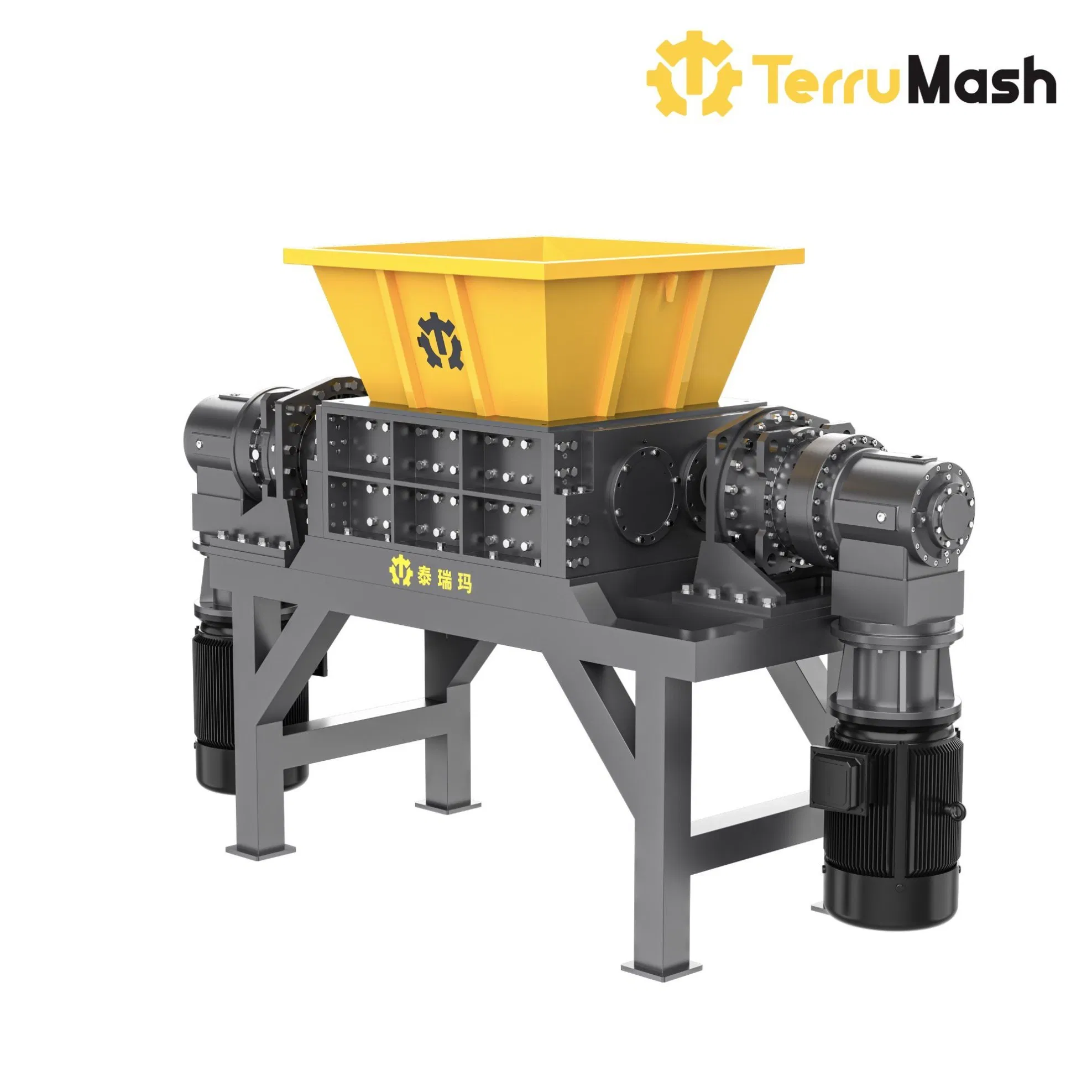

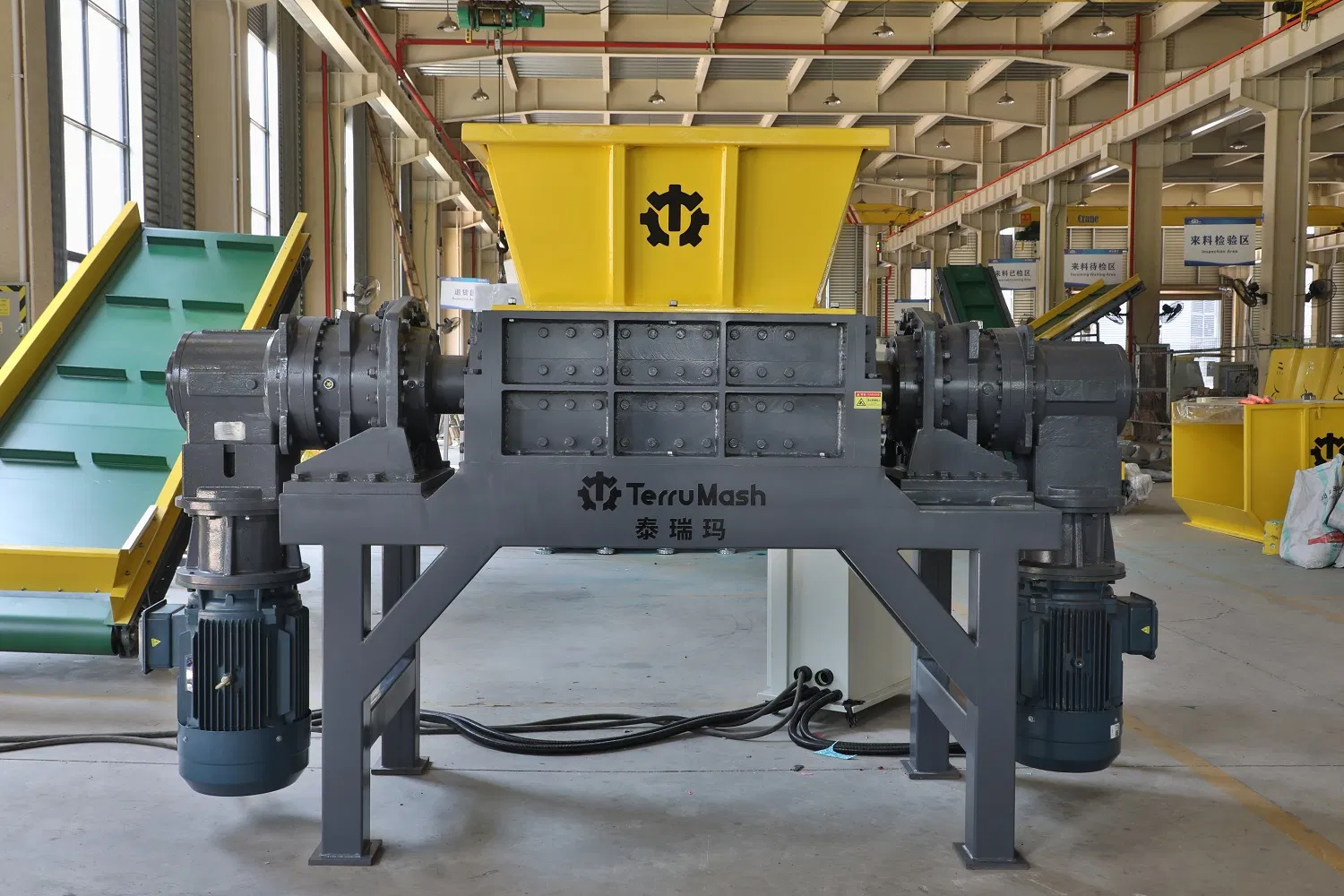

| HSZ800-Double Shaft Shredder | |
|---|---|
| Raw material | Waste electronic wires, film, woven bags, pipes, nylon, profiles, etc. |
| Final product & capacity | 1000-1500kg/h (depends on material condition) |
| Electric current | 3×380V, 50Hz (Customizable) |
| Particle size | 10mm-100mm |
| Technical Specification | |
|---|---|

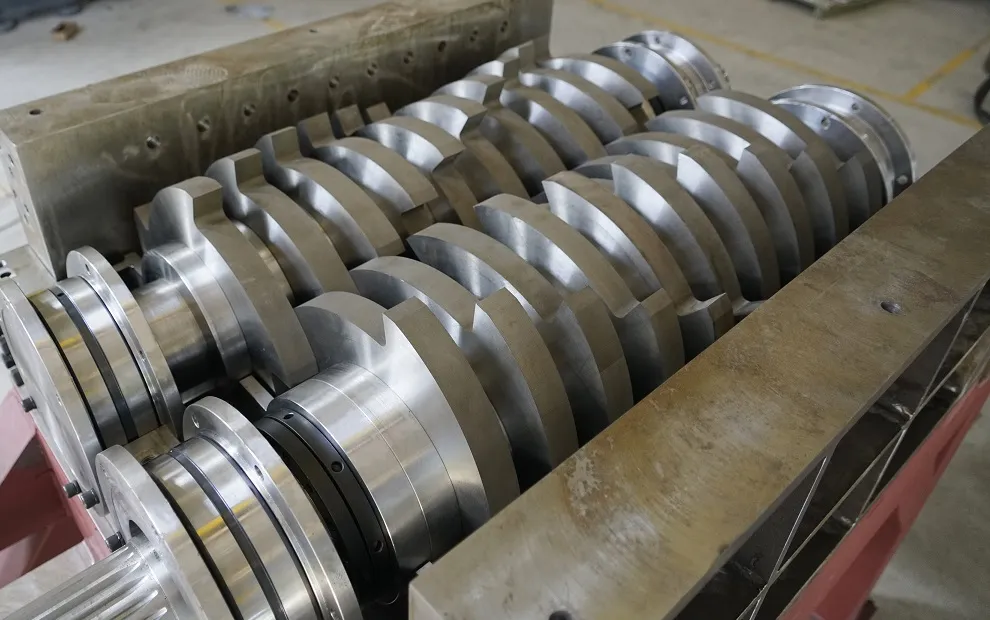

| Rotor diameter (mm) | φ510 |
| Rotor width (mm) | 50 |
| Rotation speed (rpm) | 10-18 |
| Number of blades (pcs) | 14+14 |
| Main motor power (kw) | 45 x 2 |
| Chamber size (mm) | 1420x1000 |

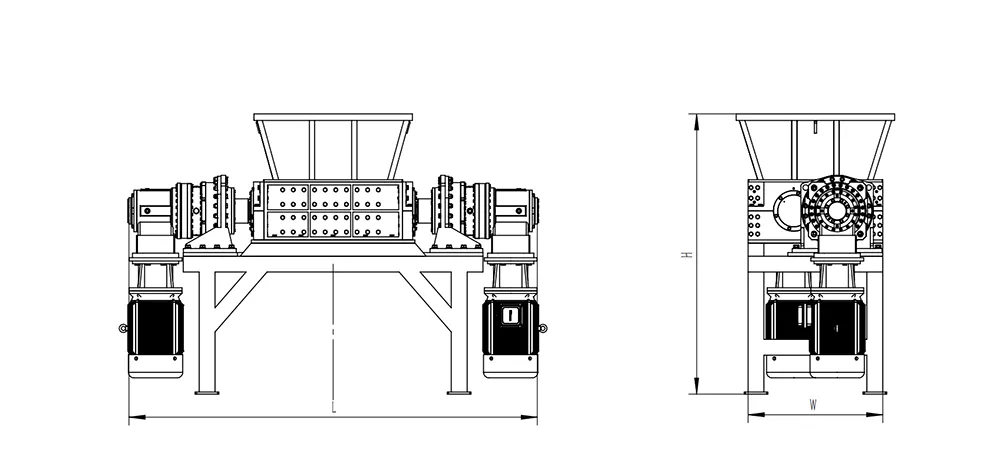

| Machine dimensions (mm) | 5000x2300x2300 |
| Weight (kg) | 12000 |
Using special steel plate welding, exquisite welding technology. With wear resistance, corrosion resistance, low noise, long service life.

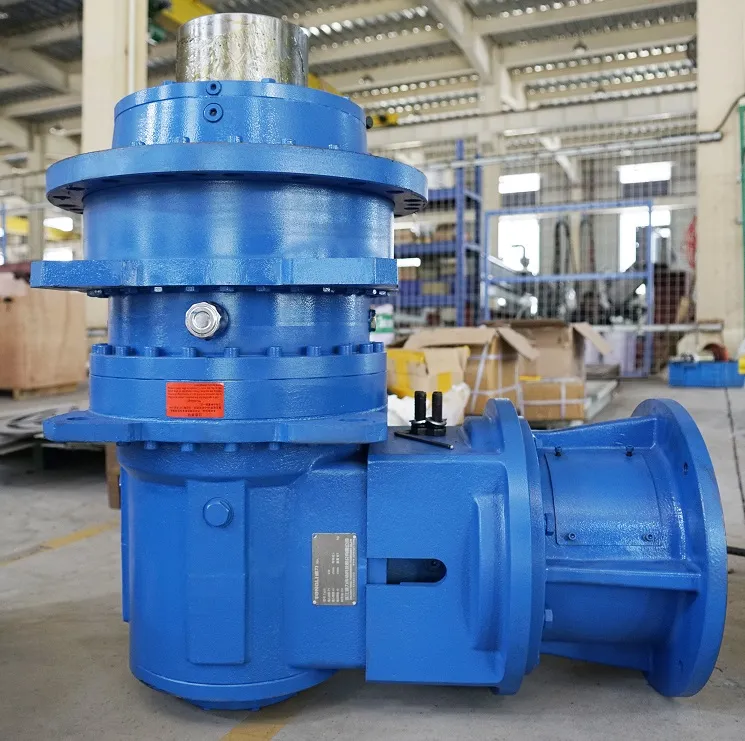

Planetary reducer, spline connection, smooth transmission, low noise, with uniform force, large torque, high fatigue strength characteristics.
According to different needs, different aperture screen can be replaced. The replacement screen adopts hydraulic drive to better solve the shortage of manpower and safety risks.

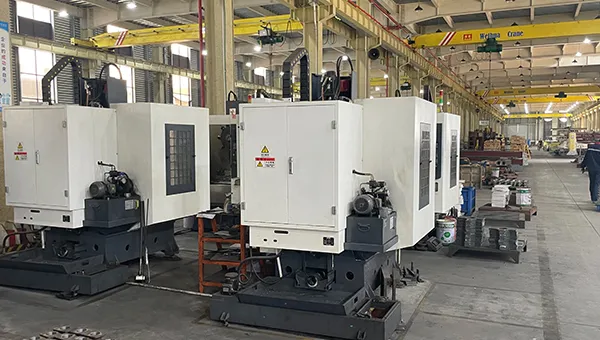

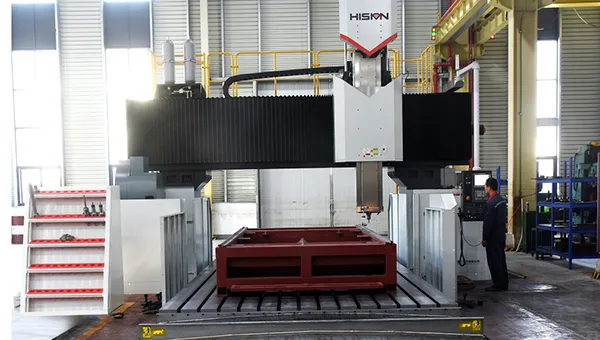

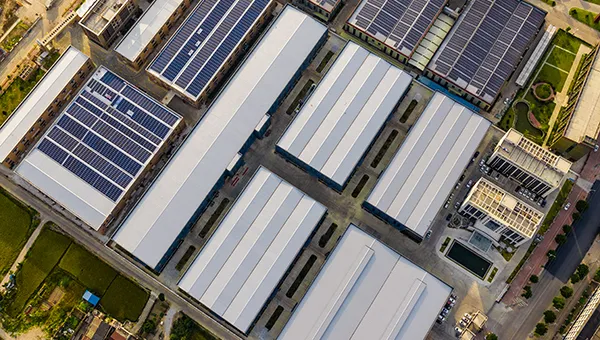

Located in a beautiful coastal city, our plant covers an area of more than 60,000 square meters. We are a domestic enterprise specializing in R&D, manufacturing, sales, and after-sales service of innovative environmental protection equipment. We adhere to the core concept of "people-oriented, innovation-driven" and the spirit of "sincerity, hard work, innovation, and transcendence." By introducing world-class production equipment and choosing the best global raw materials, we ensure high-quality production across the whole process. Our products are exported to the United States, Australia, Southeast Asia, and beyond.

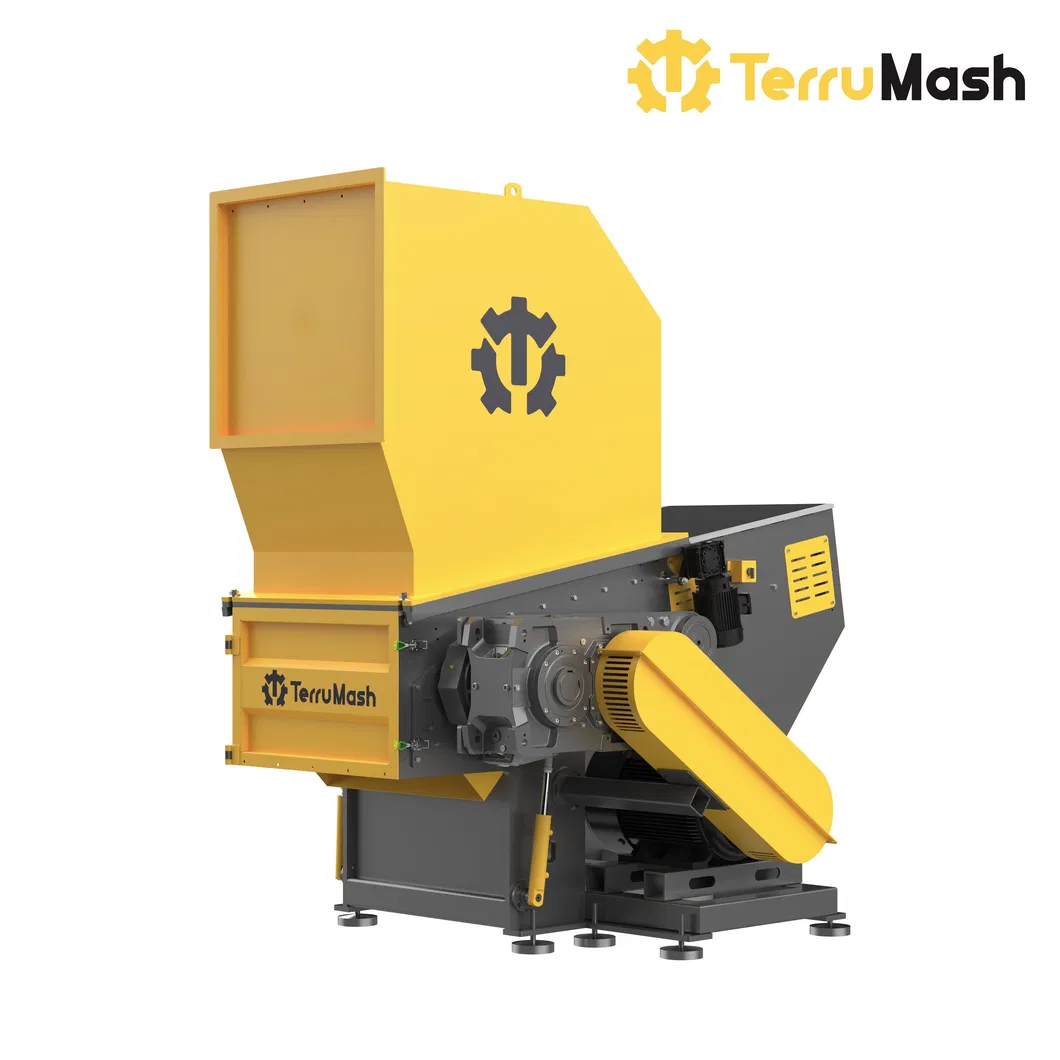

Our product range includes: shredders, single-axis shredders, two-axis shredders, two-roll shredders, and customized full-line systems. We are committed to providing better industrial pollution prevention solutions and promoting sustainable green environmental development.
