Customization: Available
Warranty: 1 Year
Product Type: PVC Pipe
Send Inquiry

Product Description

Basic Information
Model NO.
FG GGPED
Screw No.
Double-screw
Automation
Automatic
Certification
CE, ISO9001:2008
Condition
New
Processing Material
PVC
Application
Produce PVC Pipes
Screw Type
Conic Twin Screw
Pipe Size Range
16-800mm
Production Capacity
100 sets Per Month
Product Introduction
Plastic Single Screw Extruder for Making HDPE PPR Pipes, CPVC, PVC Drainage Water Pipe, and WPC Profile Sheet Board.
Plastic Extruder Machine
Extruder Detail
This high-performance extruder is primarily designed for agricultural water supply, drainage, architectural piping, and cable laying. Our PVC pipe extrusion line incorporates advanced design concepts to ensure efficient extrusion of PVC powder, coupled with a unique plasticization screw design for uniform output and high production capacity.
The complete production line consists of a conical twin screw extruder, high-precision mould, vacuum cooling tank, haul-off machine, cutting machine, and stacker.
Product Parameters
Model Pipe Diameter Extruder Model Speed Max Capacity
FP6316-63mmLSZ51/1051-10m/min120kg/h
FP16075-200mmLSZ65/1321.5-5m/min260kg/h
FP400200-400mmLSZ80/1560.5-1.5m/min400kg/h
FP630400-630mmLSZ92/1880.1-0.8m/min650kg/h

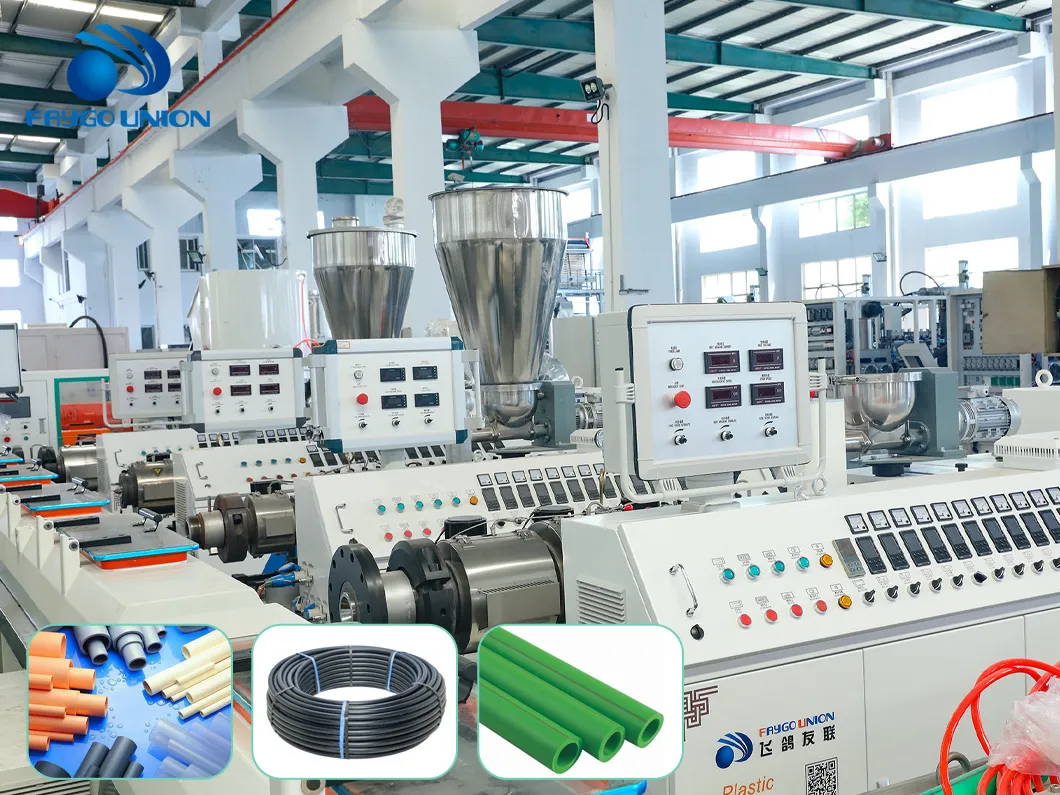

Machine Layout

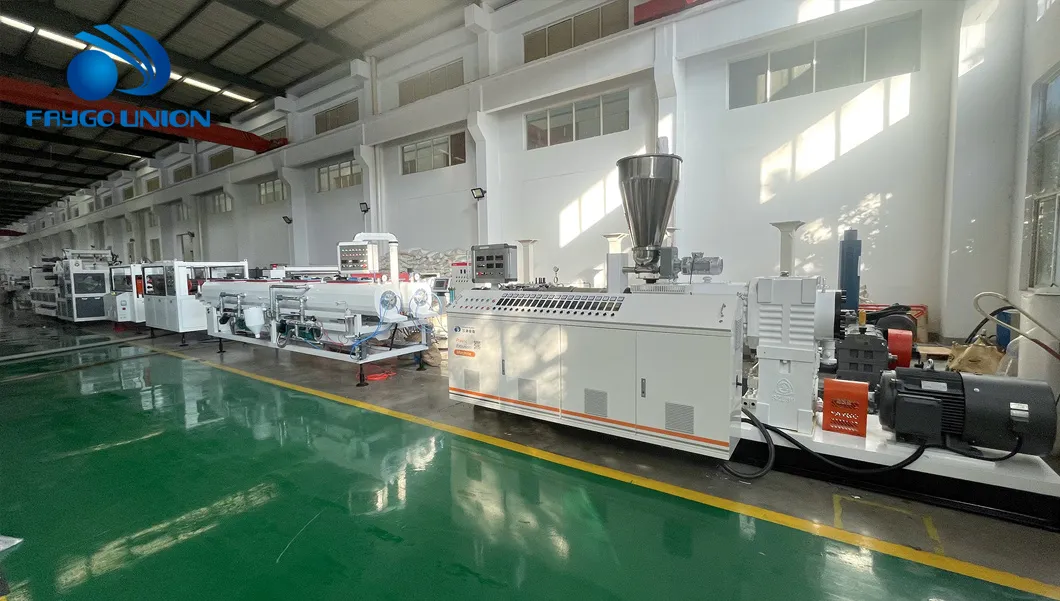

Machine Operation
Product Details

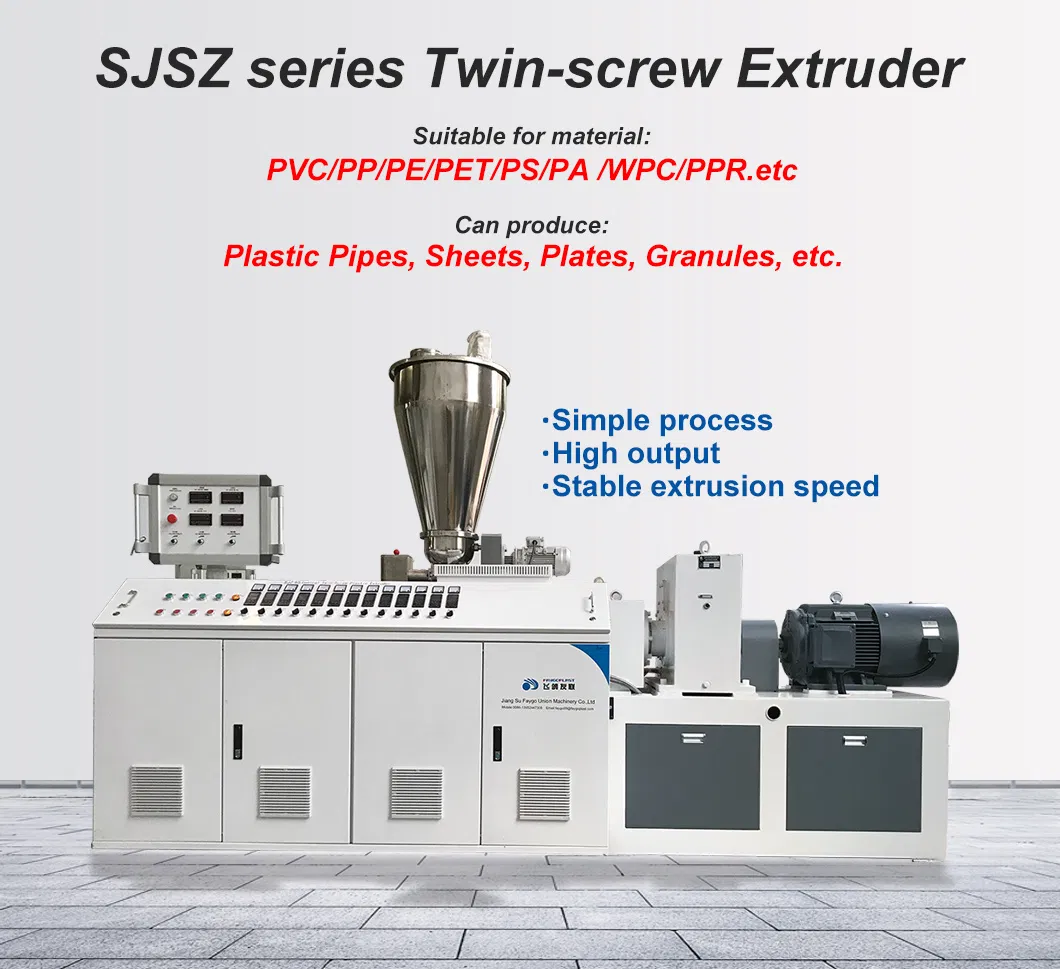

Conical Double-Screw Extruder
Feeding system: Motor Power 1.5kw with Force Feeder Timing.
Screw: Diameter 92/188mm, Material 38CrMoAl for durability.
Barrel: Material 38CrMoAlA with Cast aluminum heating and air blow cooling.
Extruder Unit

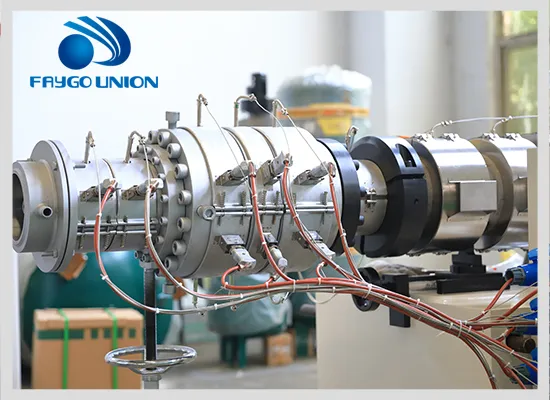

Mould System

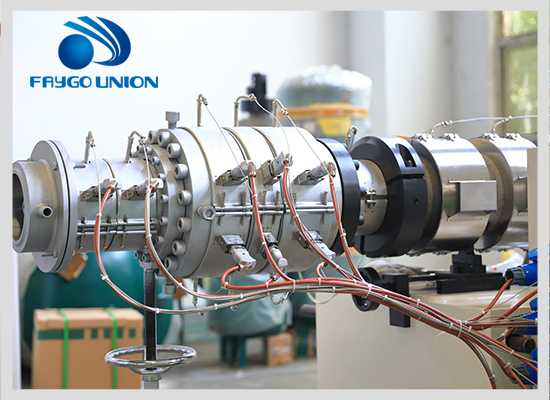

PVC Pipe Extrusion Mould
Material: High-grade 40Cr with polished inner surfaces.
Calibration: Wearable tin bronze ZQSn5-2-5 for precise thickness control.

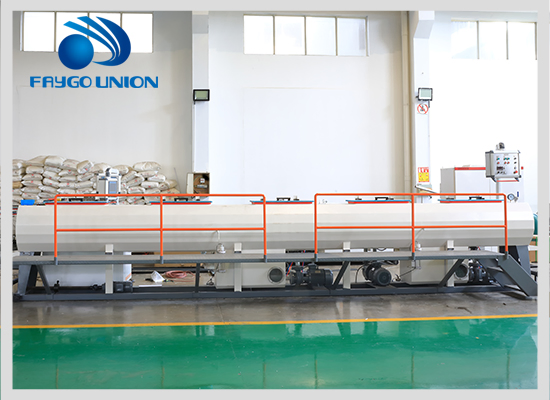

Vacuum Calibration Tank
Dimensions: 4000mm length, made of high-quality stainless steel.
System: Hydroseal vacuum pump (2.2kw x 2) and powerful water pumps.
Vacuum Tank

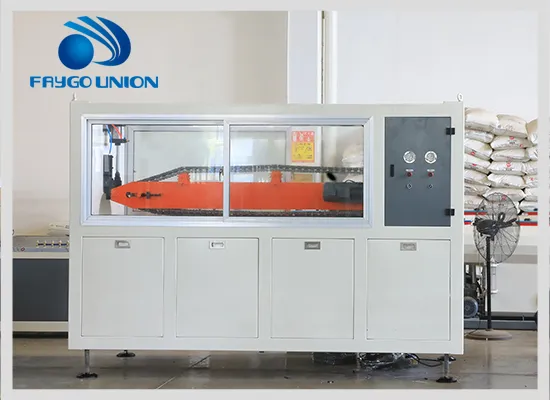

Haul-off Machine
Pipe Haul-off Machines
Speed: 0.5~12 meters/min adjustable via inverter.
Power: 1.1KW x 2 sets for stable pulling force.

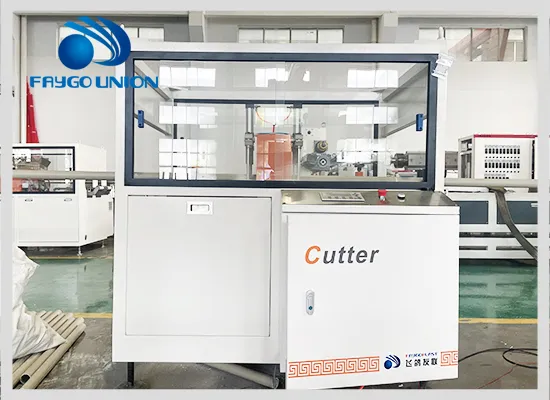

Pipe Cutter & Stacker
Cutter: Saw blade diameter 230mm, suitable for 16~40mm pipes.

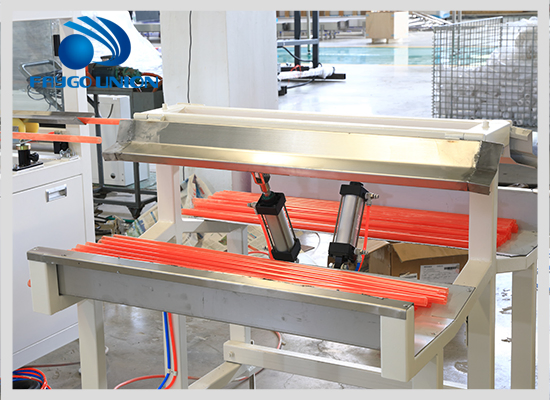

Stacker: 2 meters length with pneumatic working method for fixed length signals.
Pipe Cutter
Equipment List
Compulsory Devices
1. Material charge system1 set
2. Conical twin screw extruder1 set
3. Pipe die head (16-800mm)1 set
4. Vacuum calibrating tank1 set
5. Water spraying cooling tank1 set
6. Multi-caterpillar hauling machine1 set
7. Planetary or Saw cutting machine1 set
8. Pipe stacker (6000mm)1 set

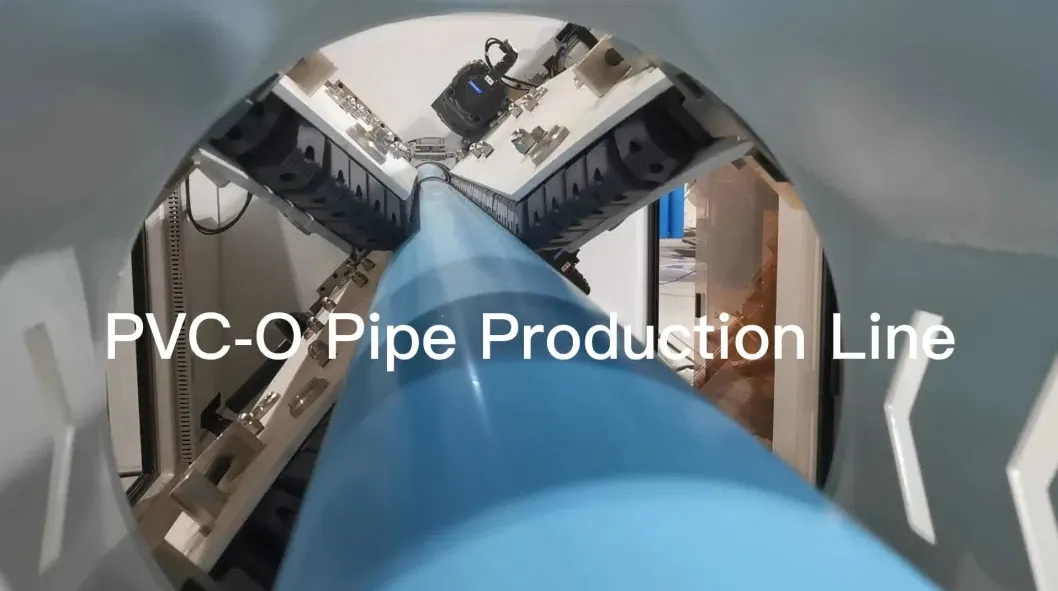

2024 New Technology: OPVC Production Line
The PVC-O pipe making machine utilizes special biaxial stretching technology to significantly reduce material costs by over 70%. This technology ensures enhanced durability and resistance.
OPVC Line
Performance Test
Performance Test: OPVC Pipe remains unscathed after a vehicle run-over.
Recommended Solutions

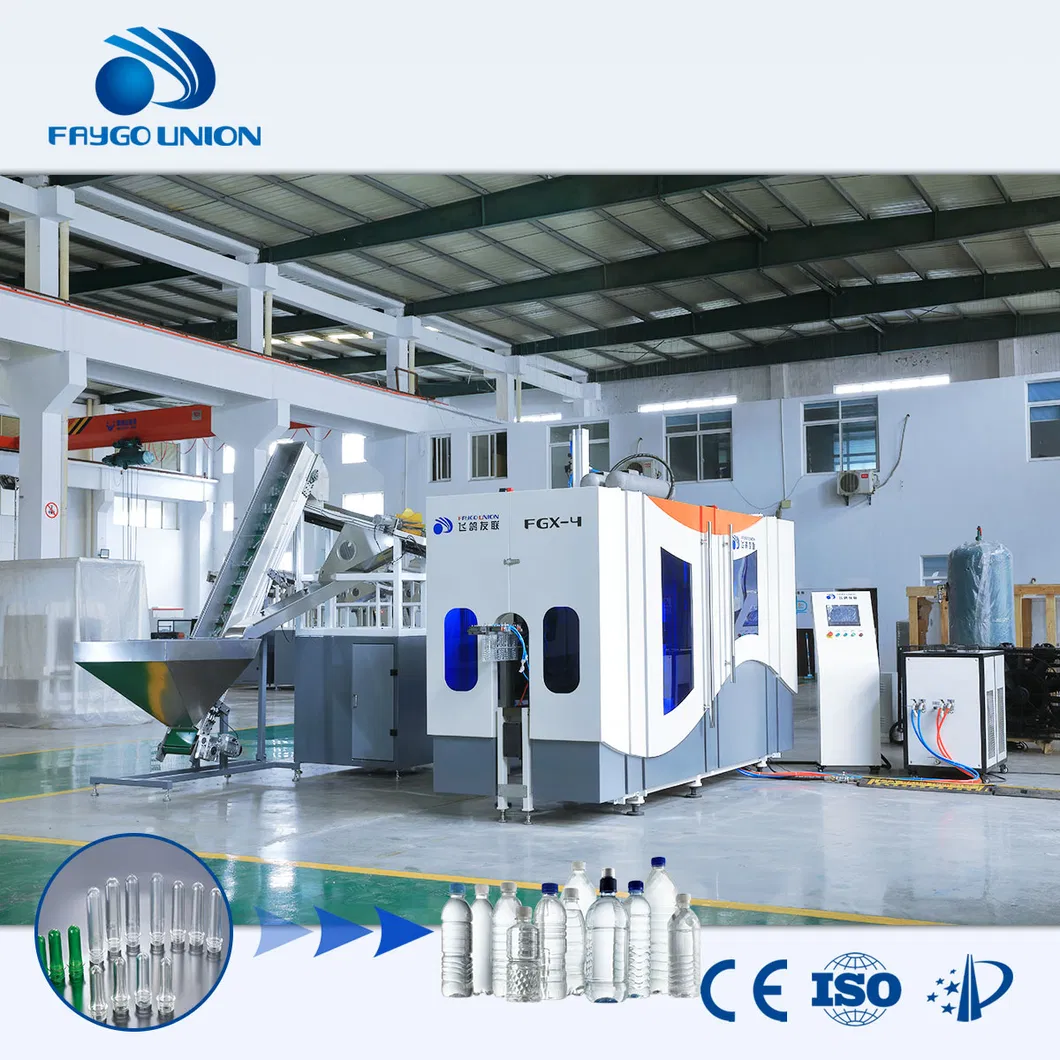

Bottle Machine

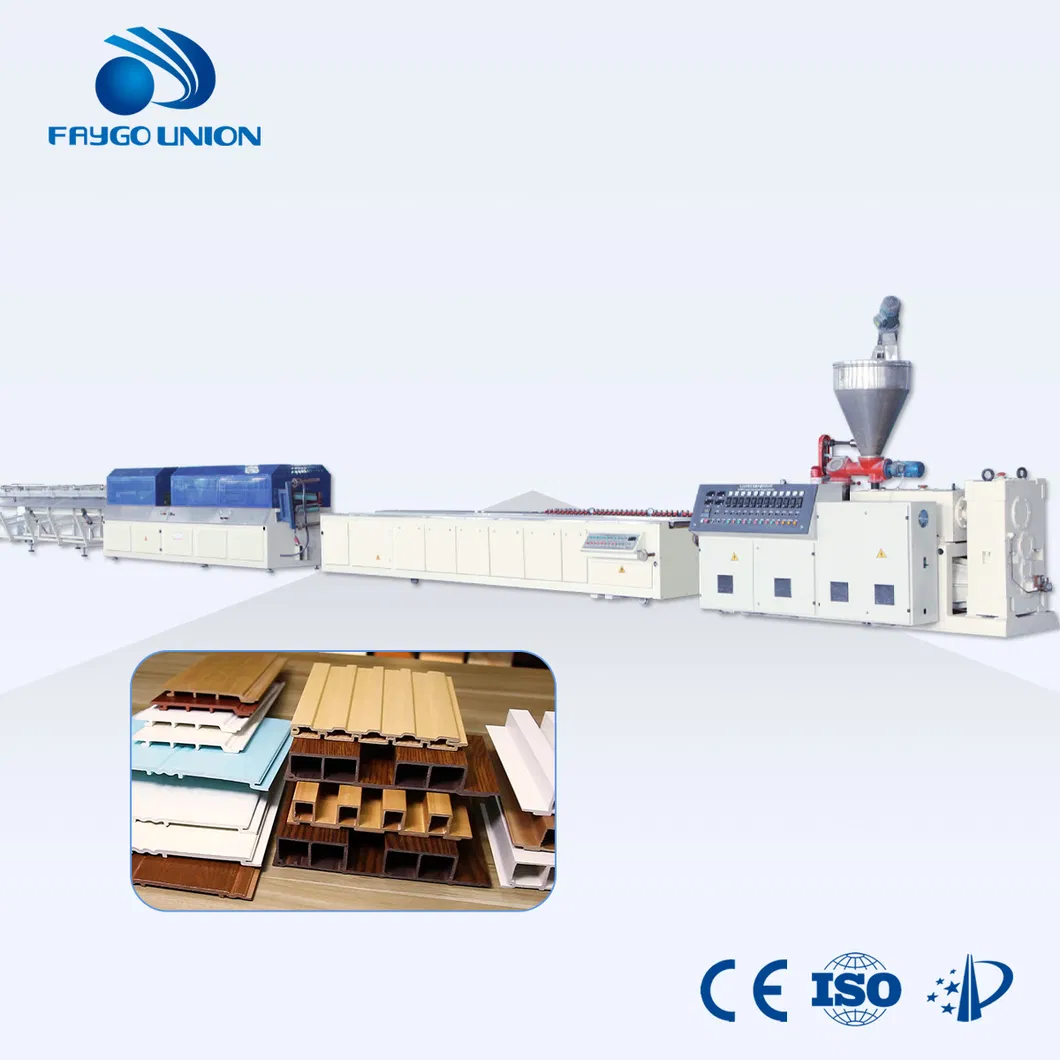

Sheet Machine
Recycling Machine
Company Profile
Workshop
We are a professional manufacturer of plastic machinery, occupying an area of 18,000 square meters. With years of research and development, our expertise covers plastic extrusion lines, blowing machines, recycling systems, and air compressors.
Our Advantages
🏭
20+ years of manufacturing experience with 20,000 sqm standard workshop.
🛠️
Expert engineering team providing customized technical services.
🔧
Experienced after-sales team having debugged 100+ production lines.
Frequently Asked Questions
Q1: Are you a genuine equipment manufacturer?
A: Yes, we are a source manufacturing factory with 24 years of experience. We handle R&D, design, manufacturing, and after-sales service in-house to ensure quality control and competitive pricing.
Q2: Can your equipment produce the specific pipe specifications we need?
A: Absolutely. We cover common PVC pipes (20-1000mm), PE single/multi-layer pipes (16-1600mm), and various building profiles. We provide customized solutions based on your material requirements.
Q3: What brands are used for key components?
A: We use high-quality components from international brands like Siemens or ABB for motors and control systems, ensuring long-term operational stability.
Q4: What are the energy efficiency advantages of your machines?
A: Our lines are equipped with energy-saving motors and inverters. Combined with optimized screw design, they can achieve 15%-30% energy savings compared to traditional methods.
Q5: What value-added services do you provide?
A: We provide "turnkey projects" including formula development, comprehensive on-site operator training, and long-term process optimization to support your production activities.
Q6: How is the after-sales service handled?
A: We offer 18 months warranty for mechanical parts and can dispatch engineers to your factory for installation, testing, and worker training.
