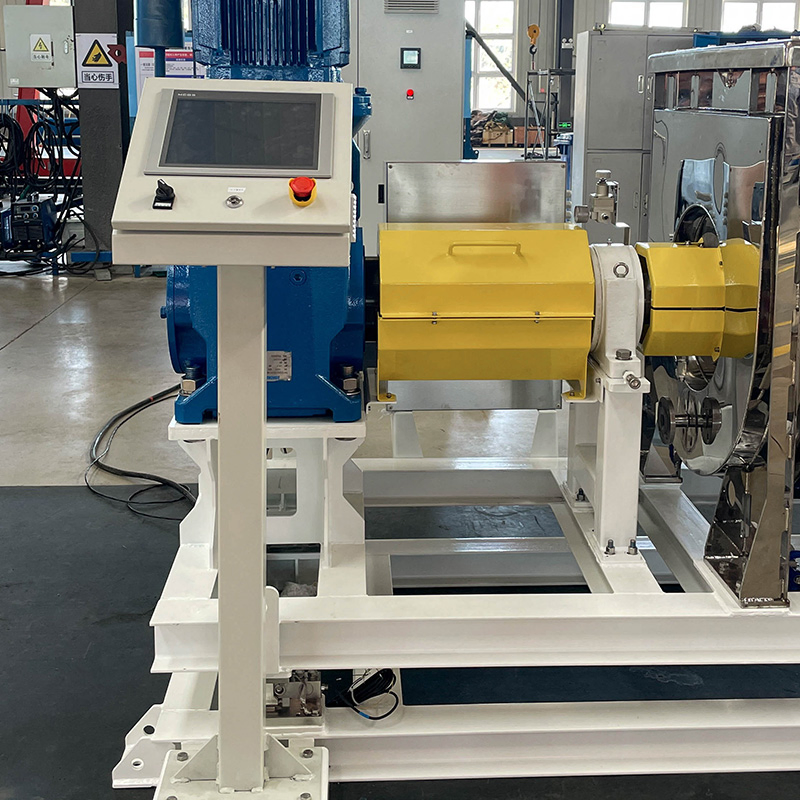

Plastic Mixer Blender Stainless Steel Ribbon Blender Machine

Customization: Available
Additional Capabilities: Heating and Cooling, Drying, Coating
After-sales Service: Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support

Product Description

Basic Information
Application:
Liquid, Powder, Viscous Fluid, Granules
Application Area:
Chemical, Food, Pharmaceutical, Construction
Certification:
ISO, CE
Control System:
PLC Control
Material:
Stainless Steel / Carbon Steel / Ti
Heating Method:
Thermal Oil / Water Cooling
Mixing Capacity:
100 - 10000 L
Speed Range:
0-90 R/Min (Variable)
Product Description
Equipment Introduction

This ribbon blender is suitable for mixing different powders, batches of the same material, or powders with small amounts of liquid to slurry. It is widely used in lithium, chemical, ceramic, dry mortar, and mining industries. Available in horizontal U-shaped and horizontal round structures, it meets various installation requirements.

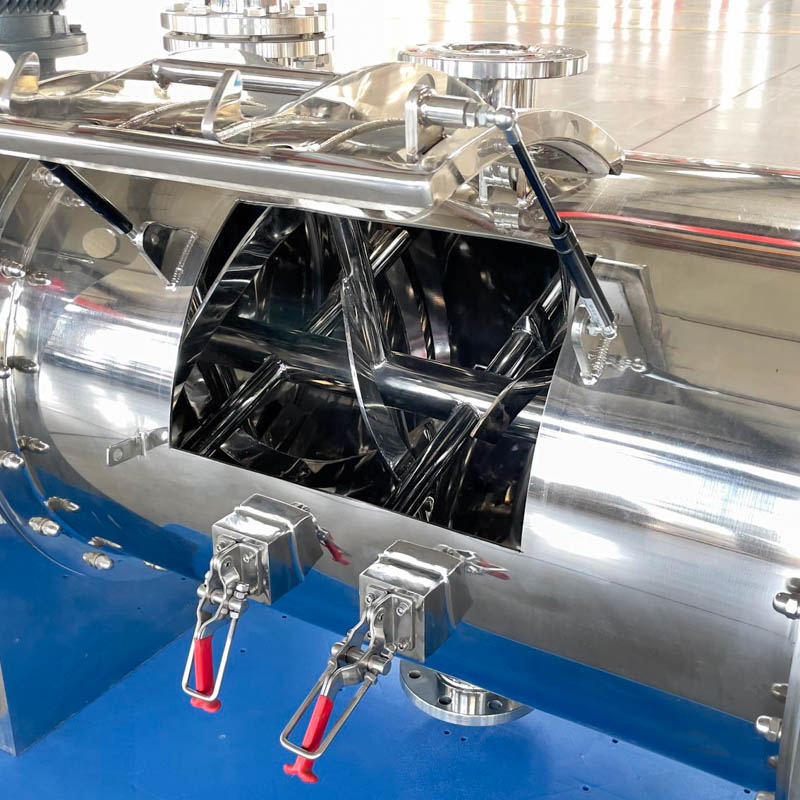

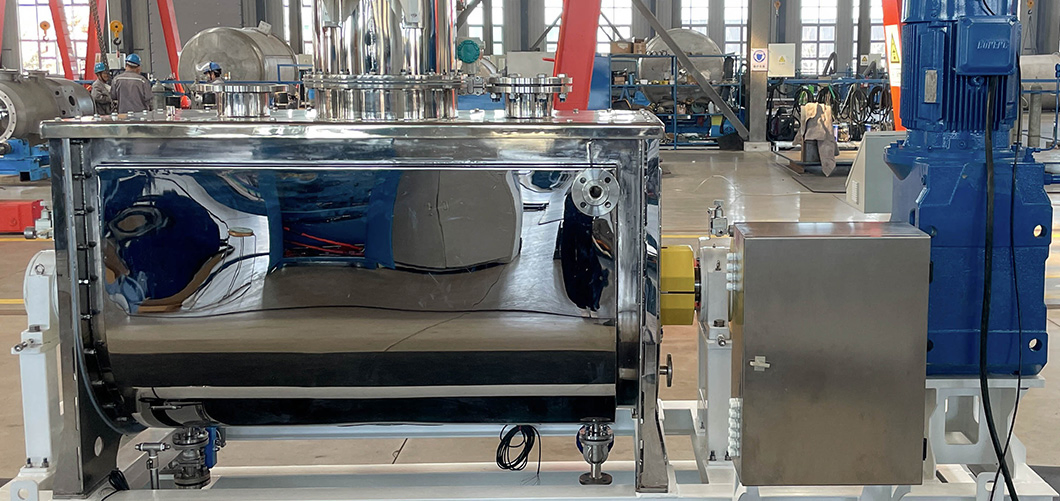

Stainless Steel Ribbon Blender Machine

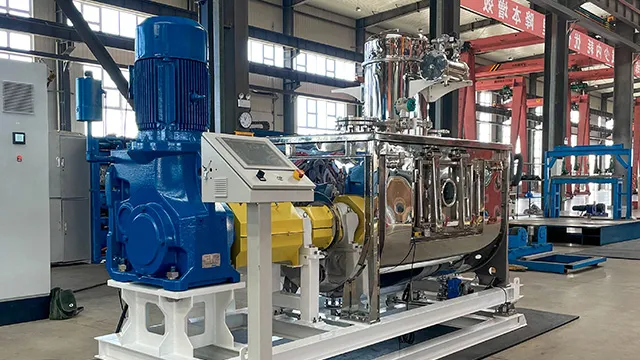

Principle of Operation
Principle of Operation

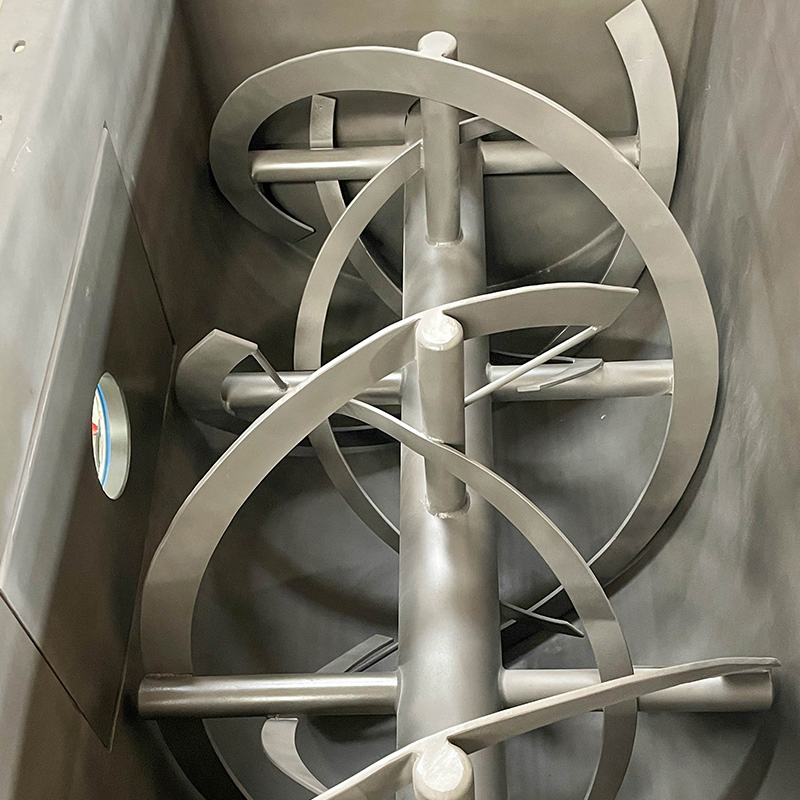

Featuring a double-layer positive and negative rotating spiral belt on a single horizontal axis, the system creates a high-efficiency mixing environment. The outer spiral moves material from sides to the center, while the inner spiral moves it from center to sides, ensuring continuous convective cycling and shear percolation for rapid uniformity.

Design Highlights
  • Easy cleaning with no dead spaces for batch shifts.
  • High mixing uniformity (up to 1:10,000 ratio).
  • Fast mixing speed and high load capacity (up to 60%).
  • Vacuum loading and dust-free discharge capabilities.
  • Gentle mixing process that protects heat-sensitive materials.
  • No pollution; lubrication parts are located outside the barrel.
  • Smooth operation with long-life wearing parts.
  • Efficient for viscous materials regardless of particle density.
  • Pneumatic large door discharge for zero residue.
  • Flexible layout options not constrained by plant height.
Technical Specifications
Model Full Volume (L) Volume Coefficient Power (kW) Speed (r/min)
WLDO-1001000.4-0.62.2-40-90
WLDO-3003000.4-0.64-5.50-65
WLDO-5005000.4-0.65.5-7.50-55
WLDO-100010000.4-0.67.5-220-50
WLDO-200020000.4-0.615-300-35
WLDO-500050000.4-0.630-450-30
WLDO-10000100000.4-0.655-750-20

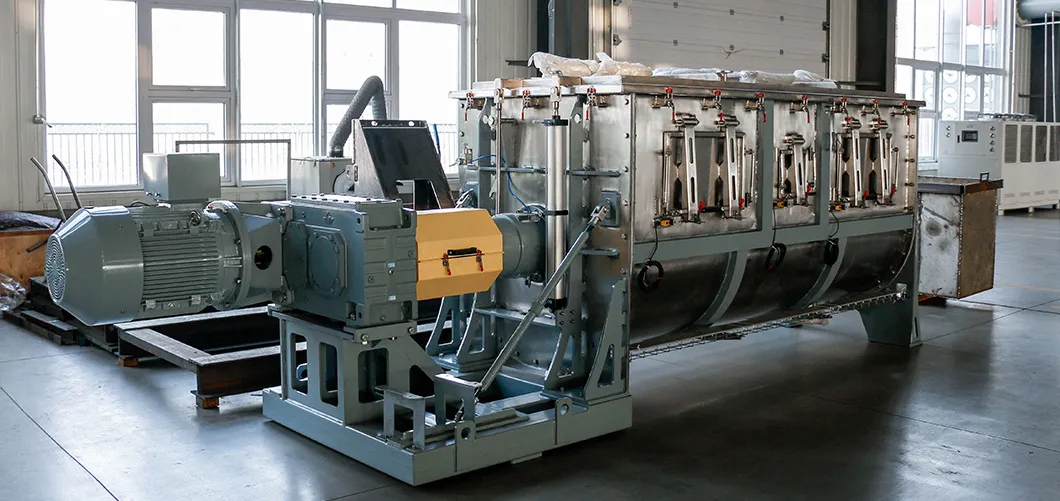

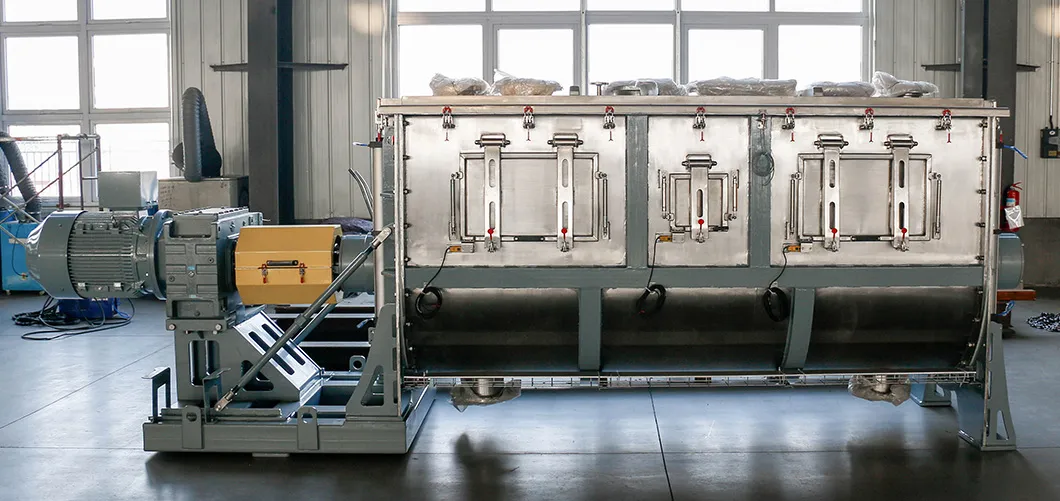

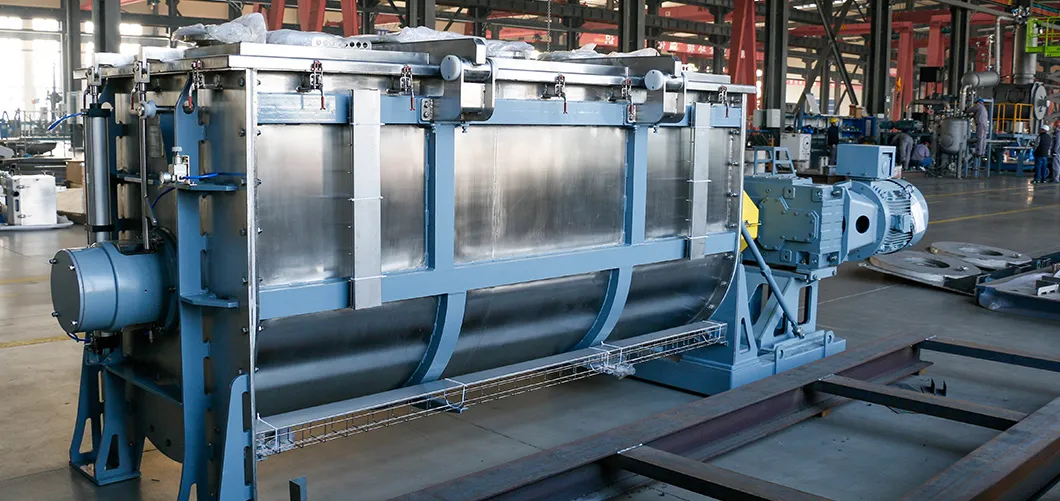

Customer Application Photos

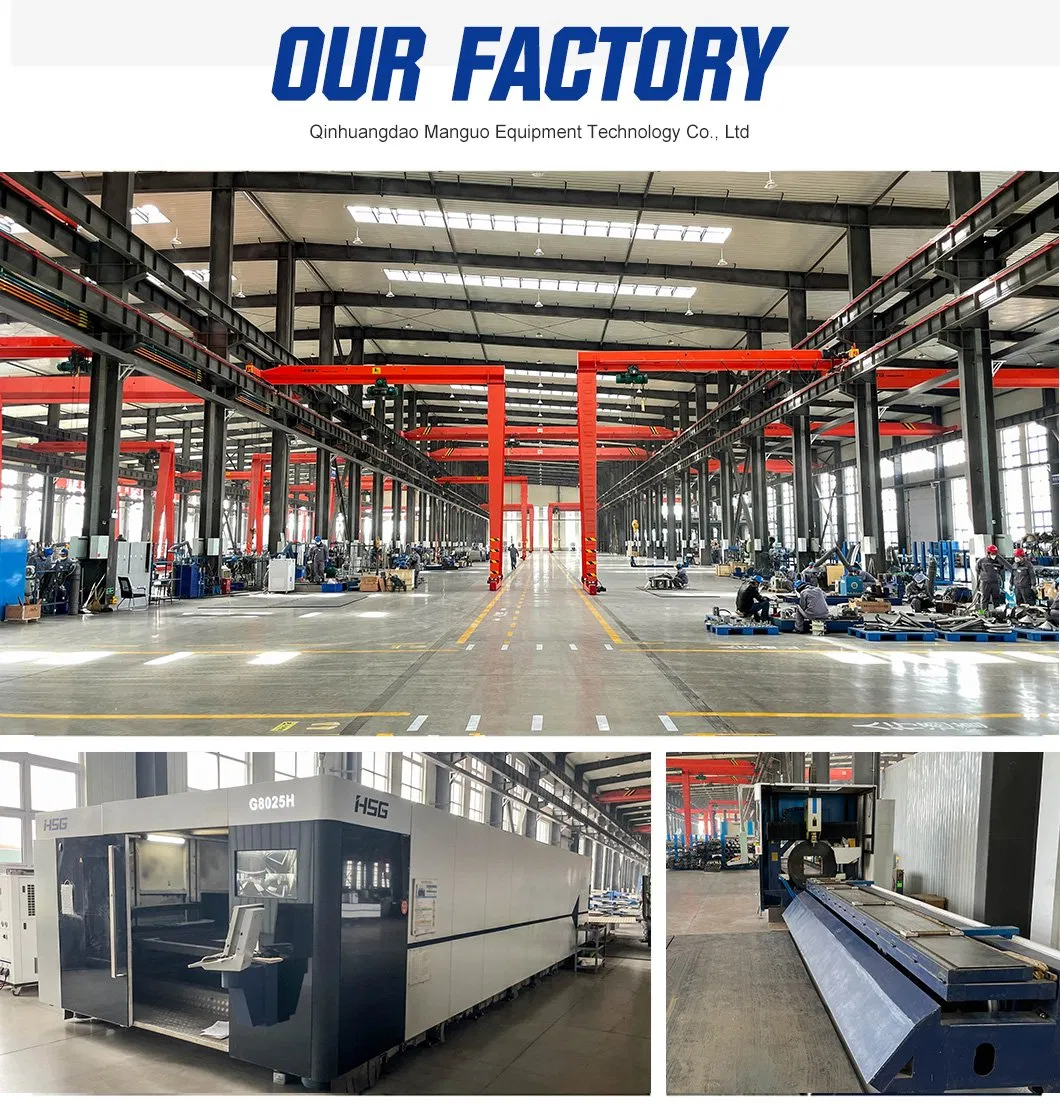

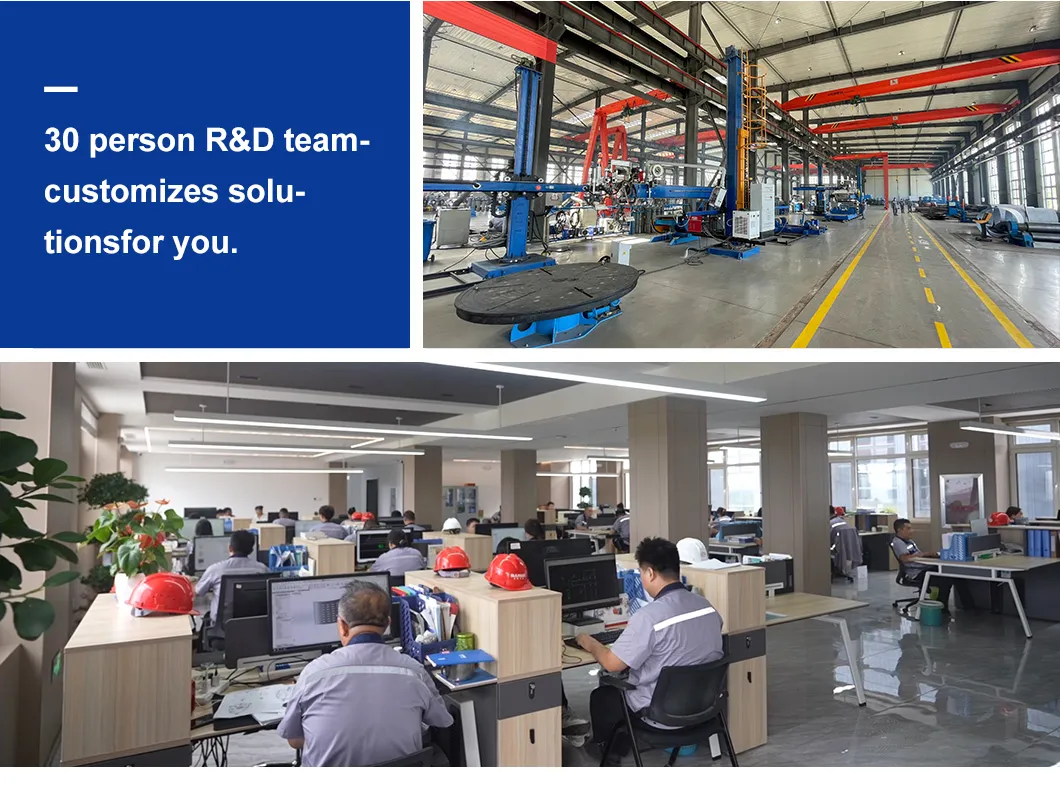

Manufacturing Capabilities

Expertise in a wide range of industrial equipment including plough dryers, vibrating dryers, spiral belt cooling mixers, synthesis reaction kettles, and storage silos. These products are essential for dosing, washing, drying, and transport systems in high-nickel ternary wet cladding lines.

Frequently Asked Questions
What materials can this ribbon mixer process?
It is designed for mixing various powders, granules, and viscous fluids. It can also handle mixing powders with small amounts of liquid to create slurries.
Is the mixing process safe for heat-sensitive materials?
Yes, the mixing process is very gentle. It does not produce overheating, ensuring that the original state and particles of sensitive materials remain intact.
How uniform is the mixing result?
The double-layer spiral design allows for a mixing uniformity ratio of up to 1:10,000, which is especially advantageous for materials with specific gravity differences.
Does the machine support dust-free operation?
Yes, it caters for vacuum loading and dust-free discharge to prevent dust flying during the entire loading and mixing process.
What are the main safety features of the mixer?
The equipment is equipped with an emergency stop button, overload protection, and a safety lock system for secure industrial operation.
What is the maintenance and service life like?
The equipment runs smoothly with low residuals. All lubrication parts are located outside the barrel to prevent oil contamination, and wearing parts are designed for a long service life.
