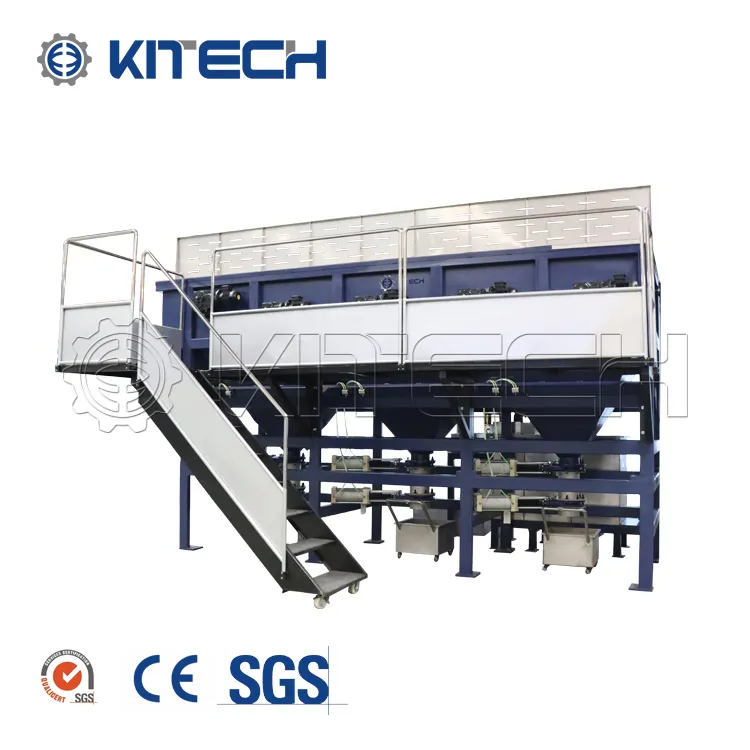

Plastic Waste Recycling Washing Machine for Plastic Film Big Bag

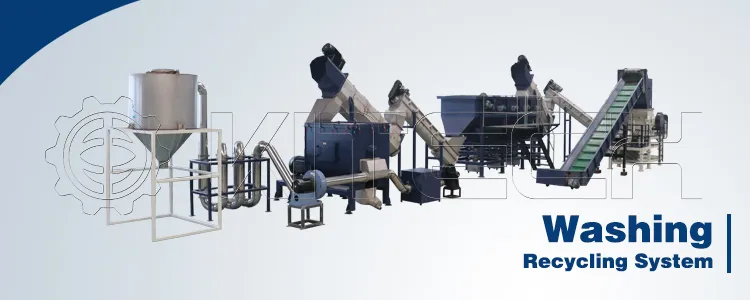

The Soft Plastic (Film/woven bag/fiber/rope) Washing Line features a smart modular design aimed at agricultural film, industrial packaging film, bags, and electronic waste recycling. This comprehensive system includes sorting, size reduction, metal removal, cold and hot washing, high-efficiency friction washing, and drying modules. It efficiently removes contaminants such as metals, sand, oil, glue, and paper labels.
| Type | LDW300 | LDW500 | LDW1000 | LDW1500 |
|---|---|---|---|---|
| Capacity(kg/h) | 250-300 | 400-500 | 800-1000 | 1250-1500 |
| Dimension(m) | 29x10x5 | 35x12x6 | 50x12x6 | 70x15x6 |
| Steam(kg/h) | 0-150 | 0-200 | 0-300 | 0-450 |
| Energy(kWh) | 120 | 180 | 280 | 395 |
| Installation(kWh) | 195 | 290 | 446 | 530 |

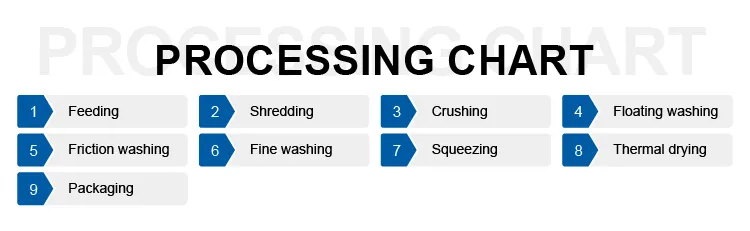

Main process includes: Pretreatment of raw material → Crushing → Washing → Drying → Package → Granulation.

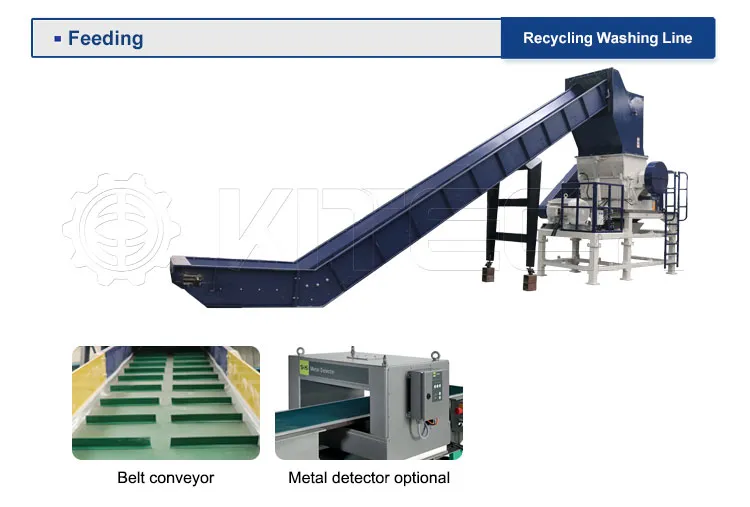

Feeding System: Belt conveyor is standard for film and woven bags. Metal detectors can be installed to protect shredders effectively.

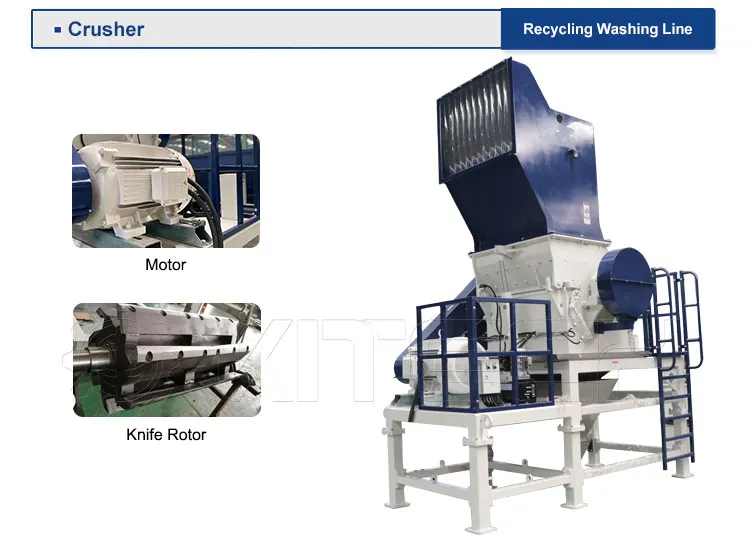

Crushing: Granulators can process films, bags, and bottles with a capacity range of 100-5500kg/h.

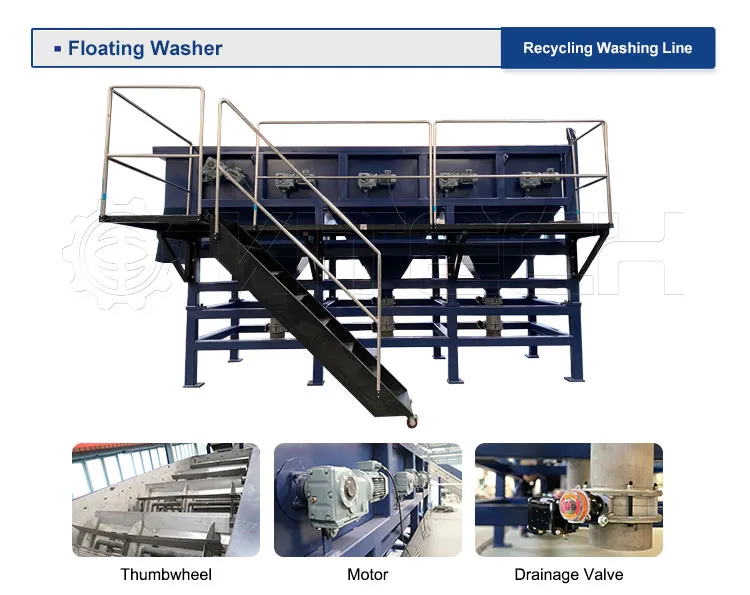

Washing: Flotation washers remove dust, sand, and soil by utilizing the specific gravity of water and rotary paddles.

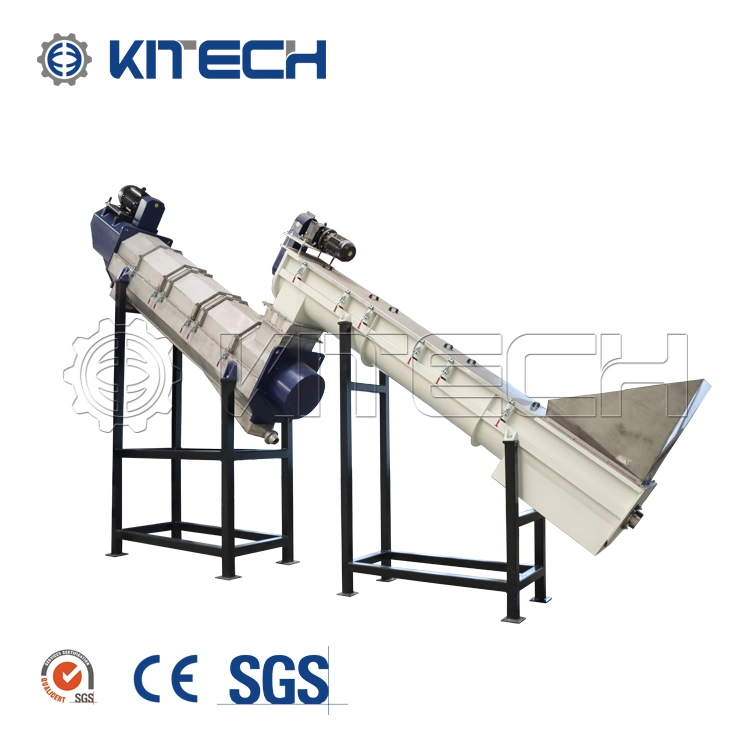

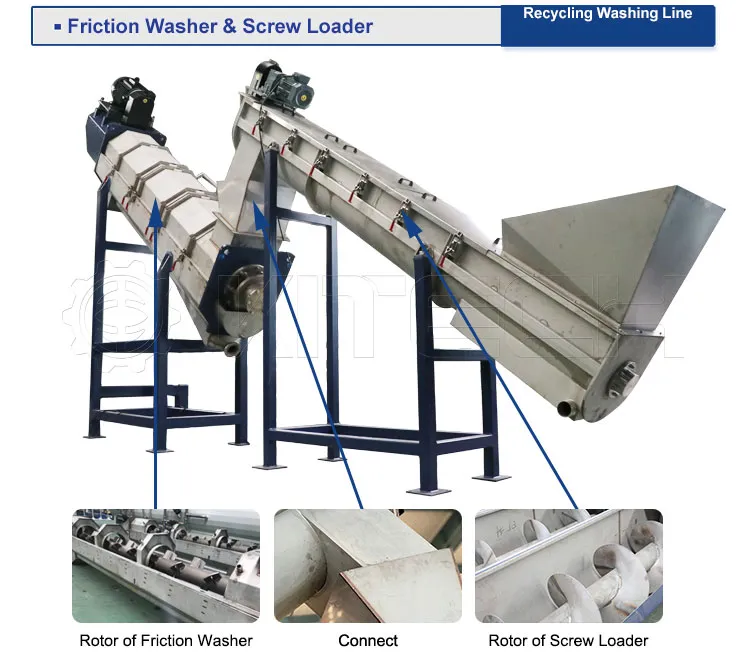

Friction Cleaning: Strong centrifugal action removes stubborn contaminants and fine sediment.
Removes difficult contaminants from PP/PE/PS/ABS, achieving nearly 100% purity.
Designed for 24-hour non-stop operation with top-brand components to minimize downtime.
Low consumption of electricity, water, and chemicals for reduced operating costs.
Flexible system elements can be combined freely to meet specific technological needs.
