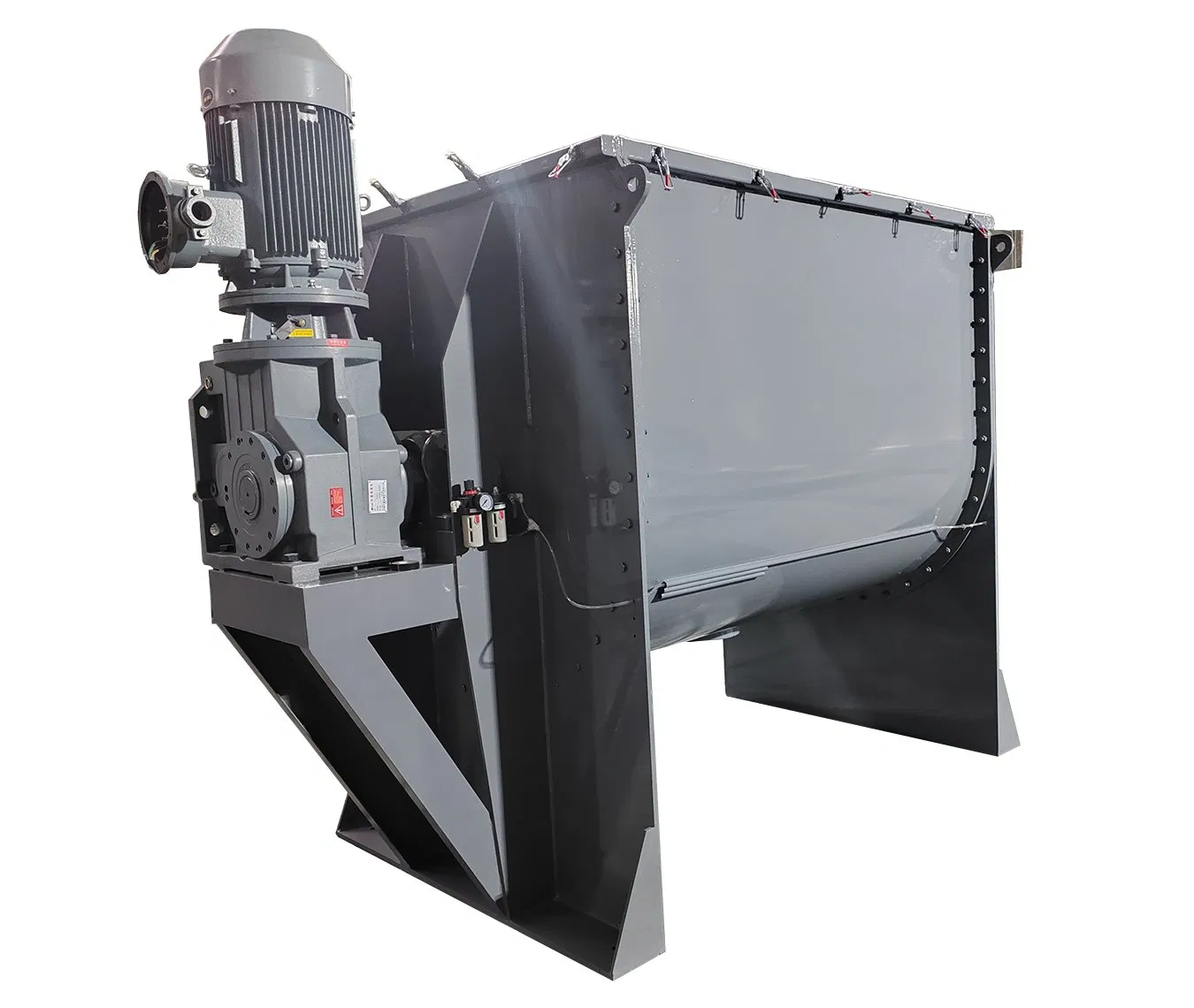

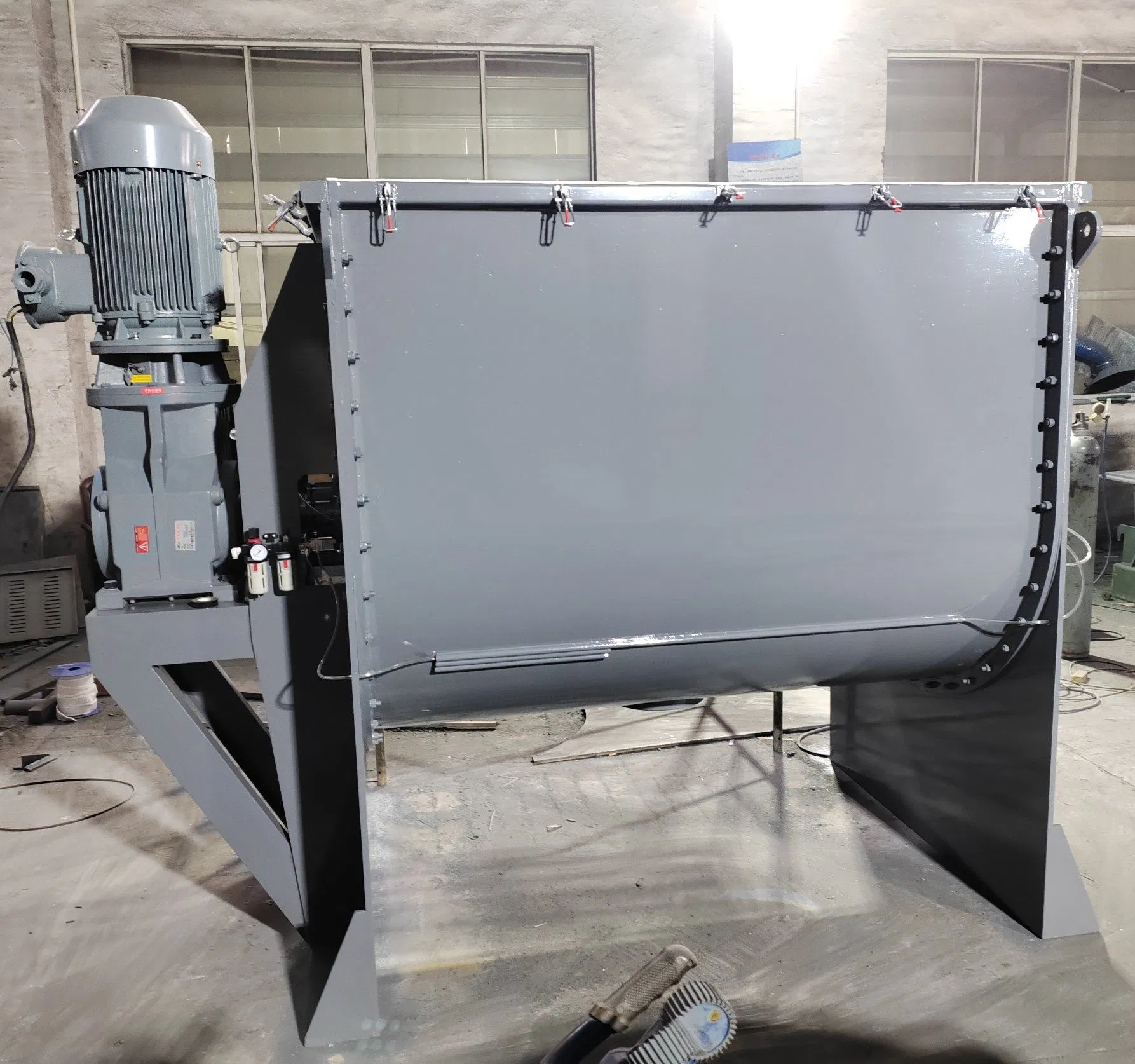

The Ribbon Mixer is a specialized industrial mixer designed to handle liquid with powder such as putty or textured coatings. It is equally effective for mixing 100% dry powder materials.

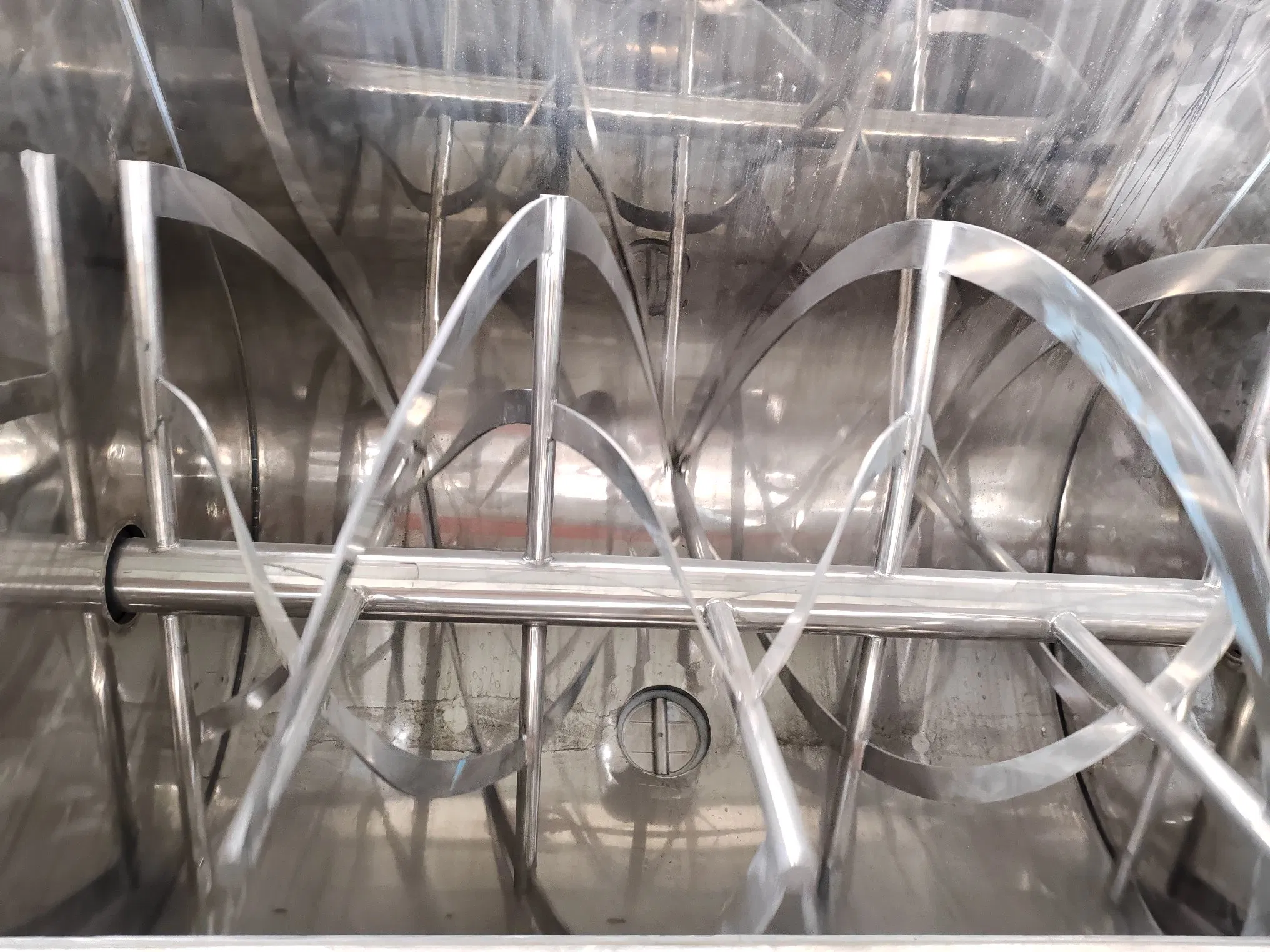

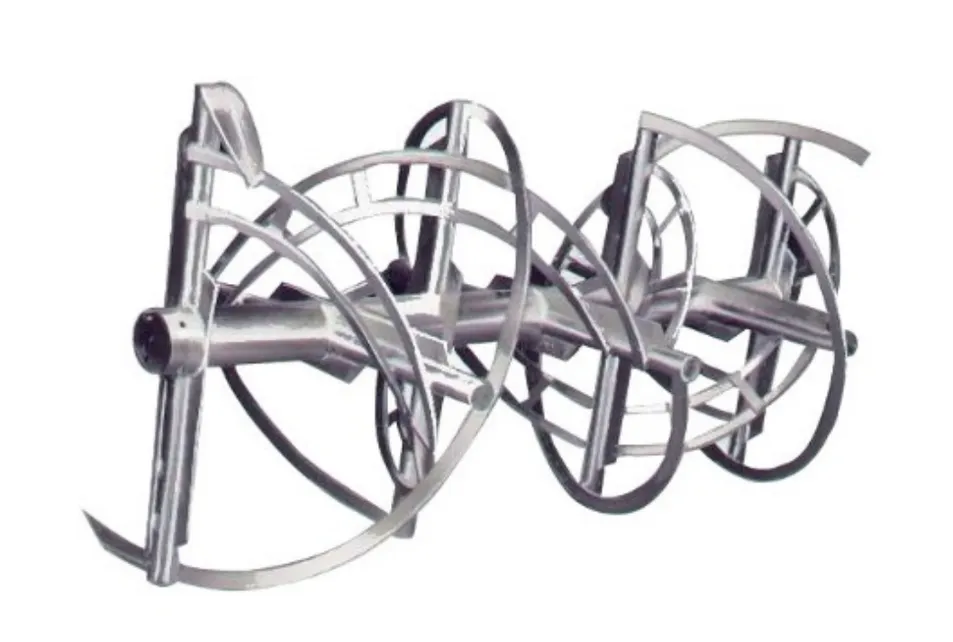

Features a U-shape container, transmission parts, and spiral belt agitating blades with double or triple layers for convection mixing.
Provides excellent results for viscosity or cohesion powder and blending liquid or mash materials into powder.

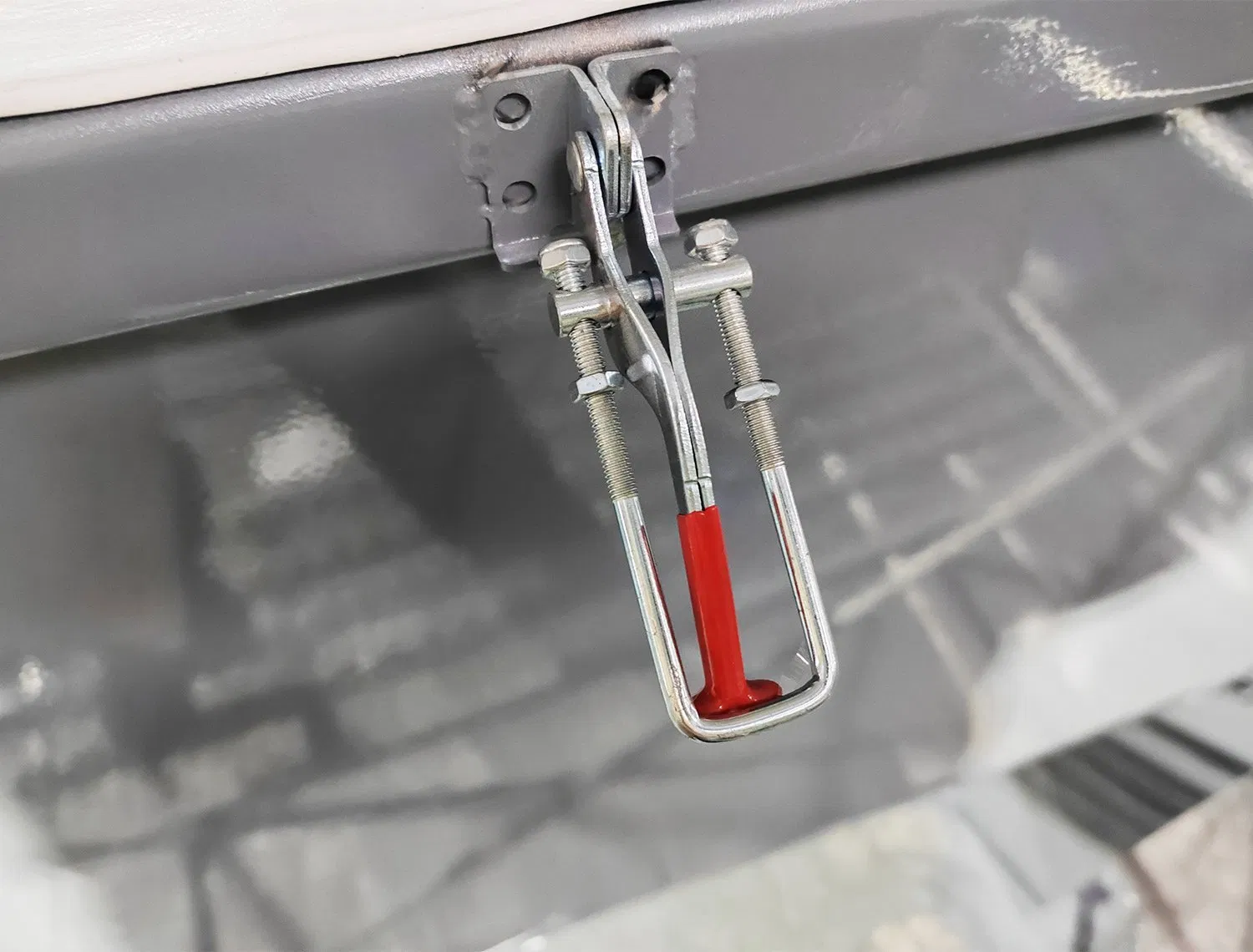

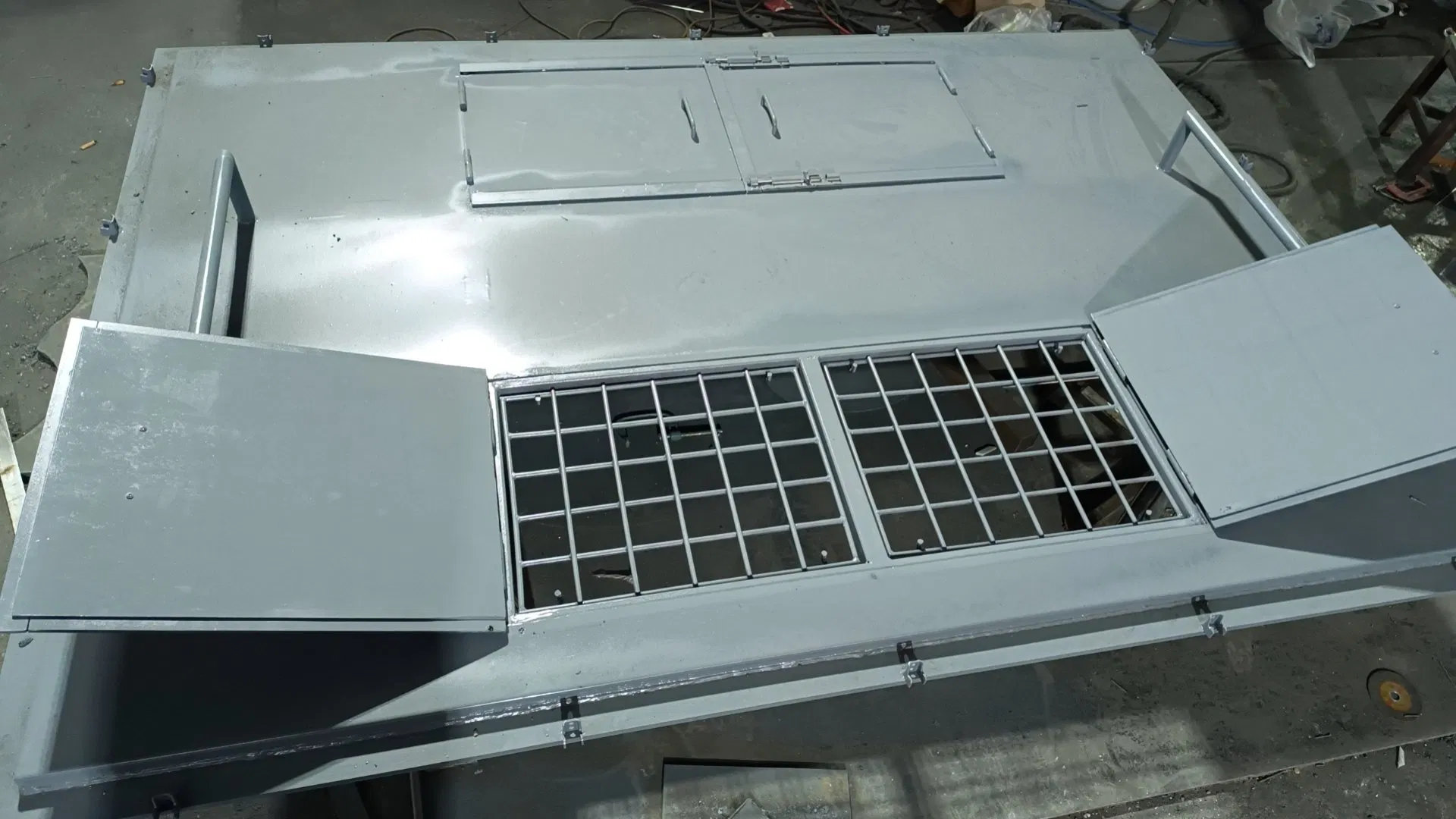

The cylinder cover can be fully opened, facilitating easy cleaning and device changes.
| Type | PRM Series | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Spec (m³) | 1 | 3 | 5 | 6 | 8 | 10 | 12 | 15 | |
| Power (kW) | 11 | 18.5 | 30 | 37 | 45 | 55 | 55 | 75 | |
| Speed (rpm) | 41 | 33 | 26 | 26 | 26 | 20 | 20 | 17 | |
| Dimension (mm) | L | 1970 | 2880 | 3518 | 3905 | 4398 | 4500 | 4486 | 5363 |
| W | 1437 | 1895 | 1945 | 1683 | 1960 | 2070 | 2250 | 2250 | |
| H | 1500 | 2083 | 2233 | 2286 | 3150 | 2667 | 2737 | 3070 | |
| Weight (Kg) | 1400 | 3300 | 4620 | 5300 | 6800 | 8902 | 9520 | 9950 | |

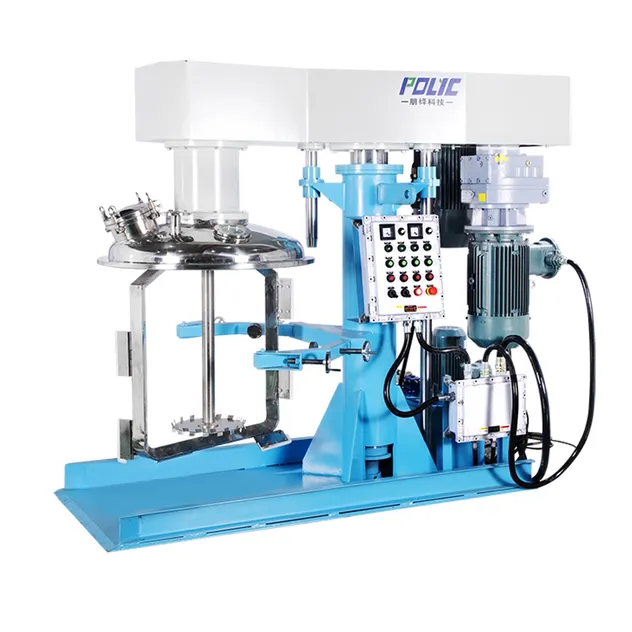

Concentric Double Shaft Mixer

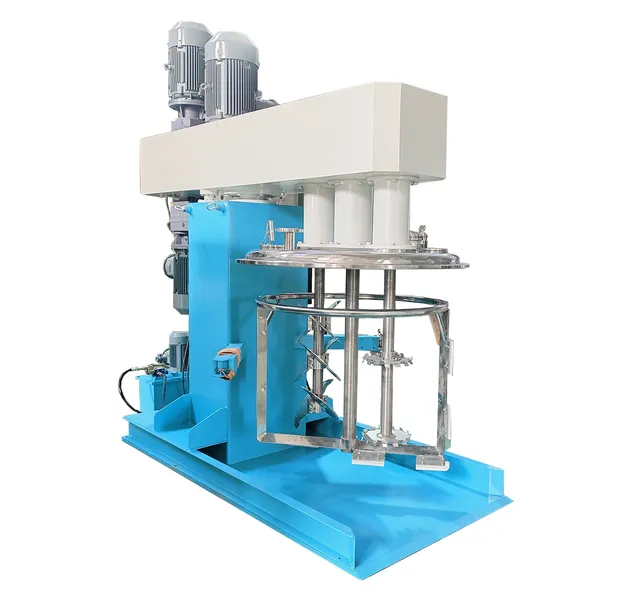

Triple Shaft Mixer

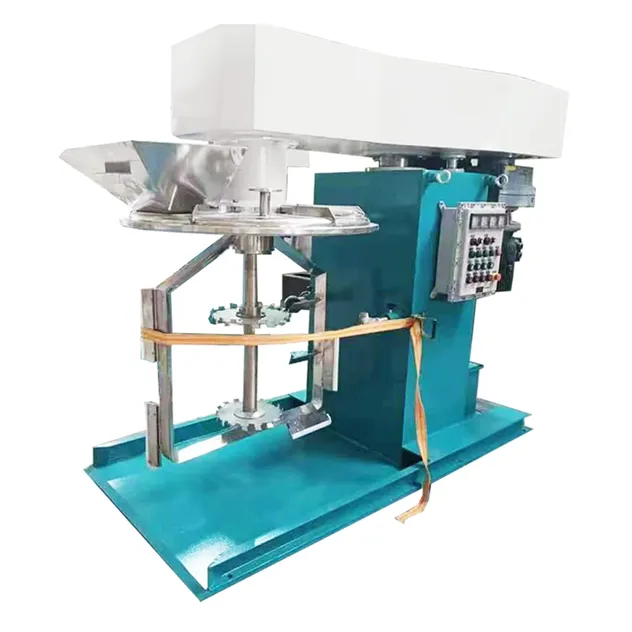

Double Shaft Mixer with Hopper
▶
