Customization: Available
Warranty: One Year
Product Type: PE Pipe
Send Inquiry

Product Description

📊 Basic Information
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Customized
Customized
Condition
New
After-sales Service
12 Months
Name
HDPE Pipe Machine Production Line
Power Supply
380V 3phase 50Hz
Motor
Siemens
Inverter
ABB
Application
Water/Gas Supply, Drainage
Diameter Range
250mm-630mm
Cutting Type
Planetary Cutter
Cooling Way
Water Cooling
Temperature Control
Omron
Production Capacity
5 Sets/Month
⚙️ Product Description

Single Screw Extruder Pipe Machinery PE HDPE PPR Pipe Extrusion Production Line

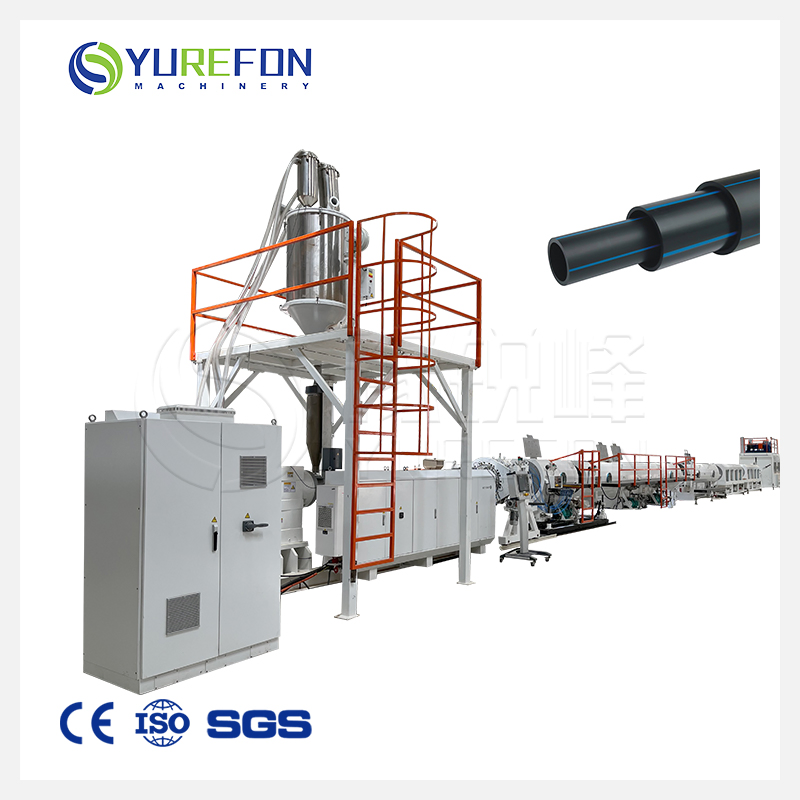

Pipe Extrusion Line

HDPE Pipe Applications: Agricultural Irrigation water supply, Sewage drainage, Discharge systems, Gas supply systems, and Architectural water supply.

Production Flow:

Material → Color Mixer → Automatic Feeder → Hopper Dryer → Single Screw Extruder → Extrusion Mould & Calibrator → Vacuum Calibration Cooling Tank → Spray Cooling Tank → Printer → Haul-off Unit → Cutter → Stacker or Coiler

⭐ Key Features
  • Up to 30m/min maximum lineal extrusion speed with low power consumption.
  • Wear-resistant copper bush prevents material leakage for stable operation.
  • Efficient transmission via spiral groove reduces back-pressure.
  • Unique screw design (barrier, shearing, mixing) ensures uniform plasticizing.
  • High torque gearbox with low noise and high transmission efficiency.
  • Pipe Air Cooling system (PCA) increases speed and improves inner surface quality.
  • Intelligent PLC control system with user-friendly interface.
  • Chip-free planetary cutter ensures smooth, flat cutting surfaces.
📋 Technical Parameters
Machine Model Pipe Diameter Vacuum Calibration Tank Spray Cooling Tank Haul-off Unit Cutter
Vacuum Pump Water Pump Length Water Pump Length Caterpillars Motor Type
HDPE-630 Φ250mm-φ630mm 7.5kw*2 7.5kw*2 6000mm 7.5kw*1 6000mm 6 1.1kw*6 Planetary
📸 Detailed Photos

Extrusion Machine & Cooling Systems:

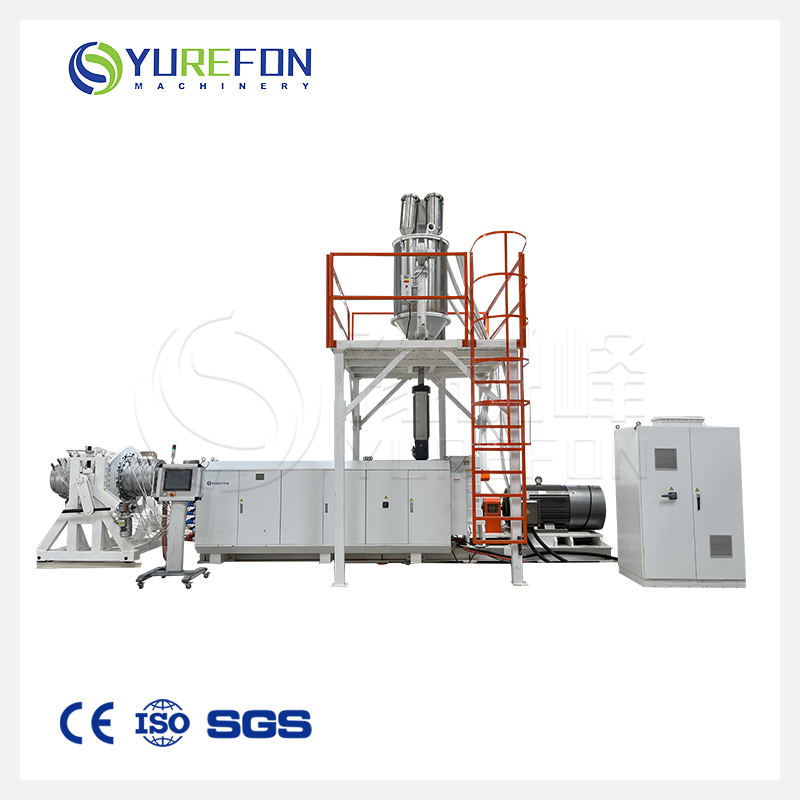

Extrusion Machine

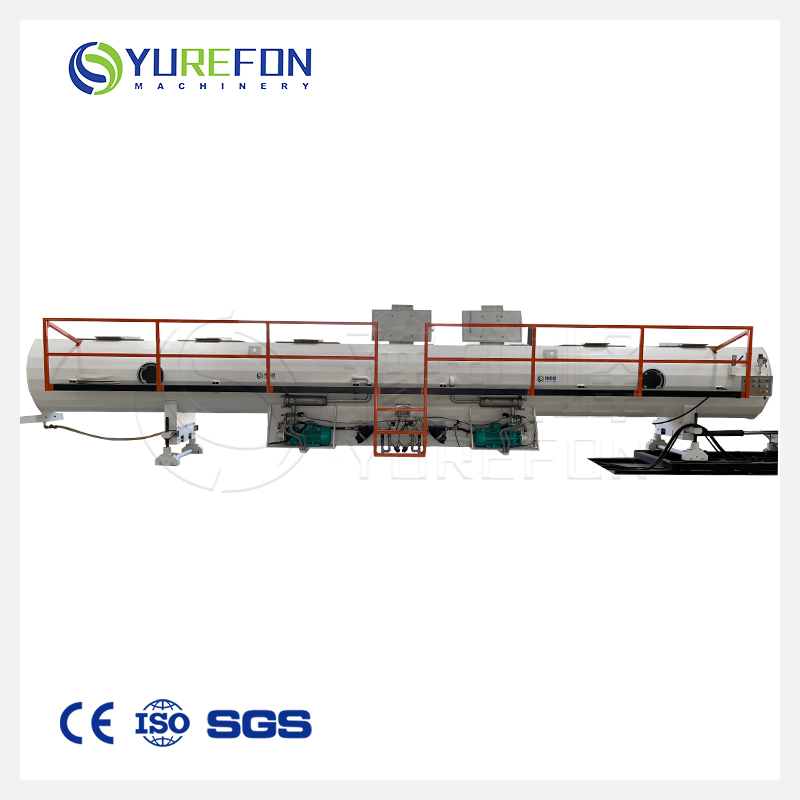

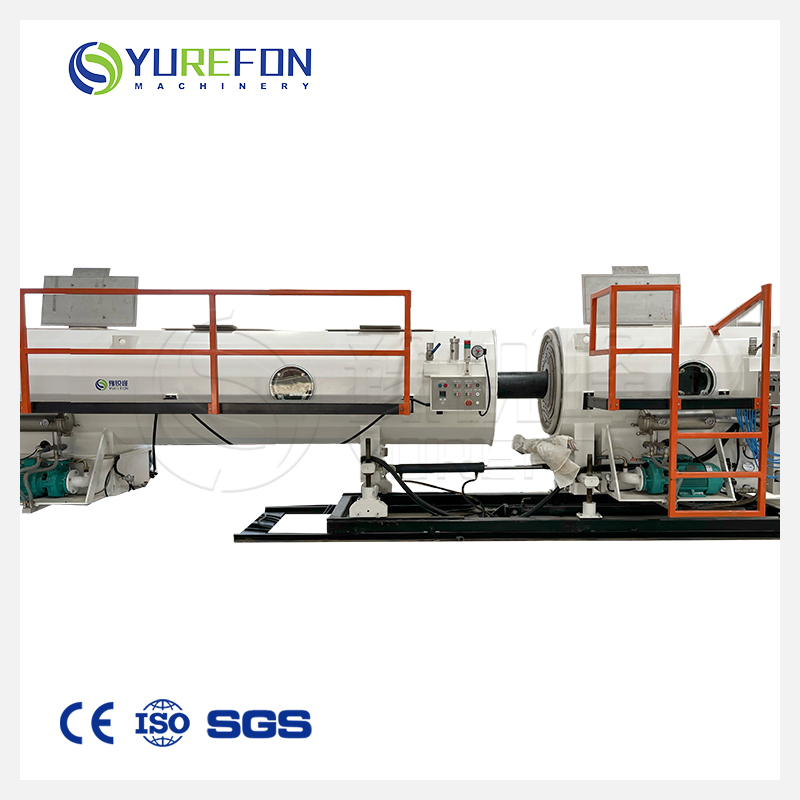

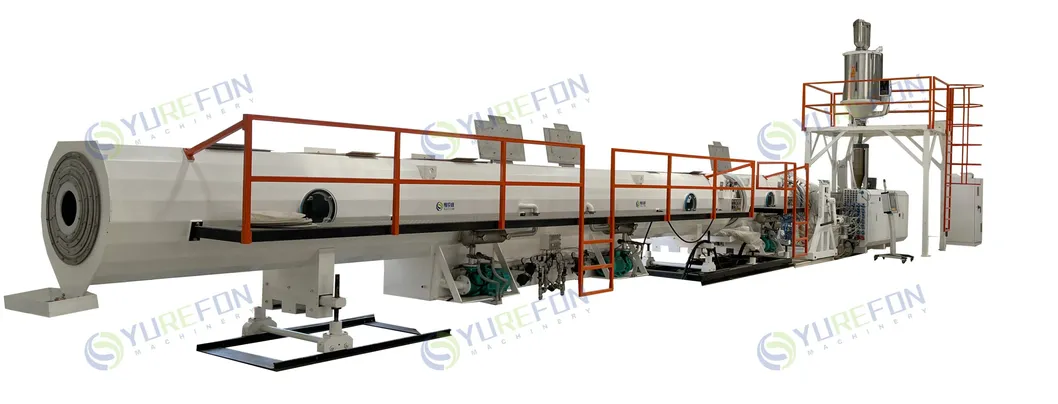

Vacuum Calibration Tank

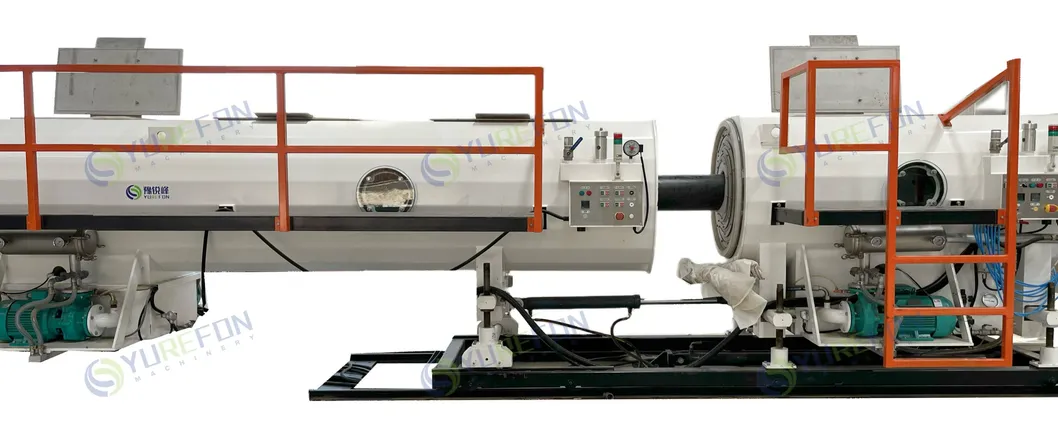

Cooling System

Haul-off & Cutting Units:

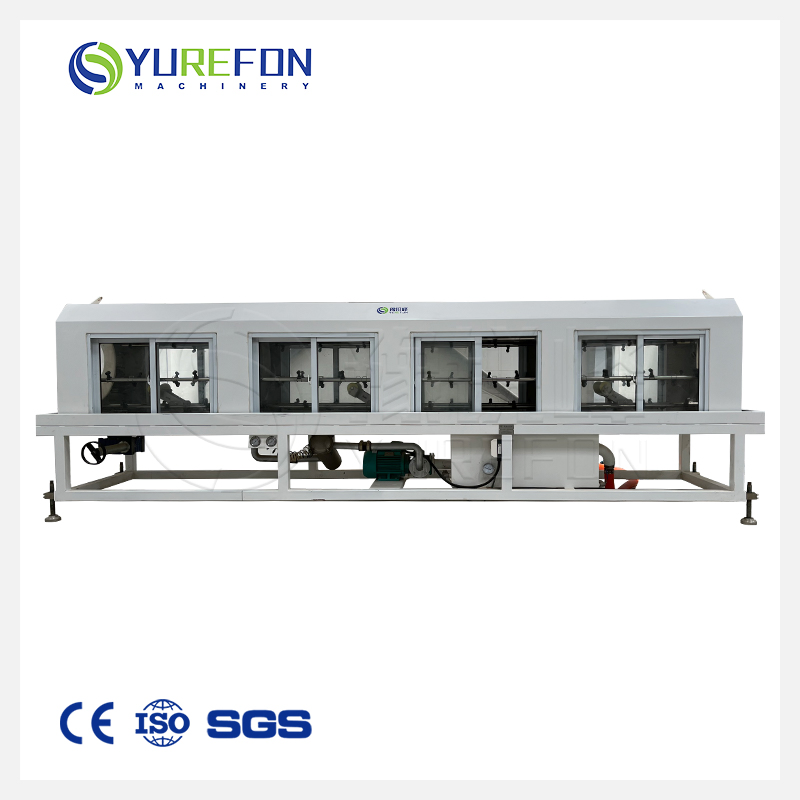

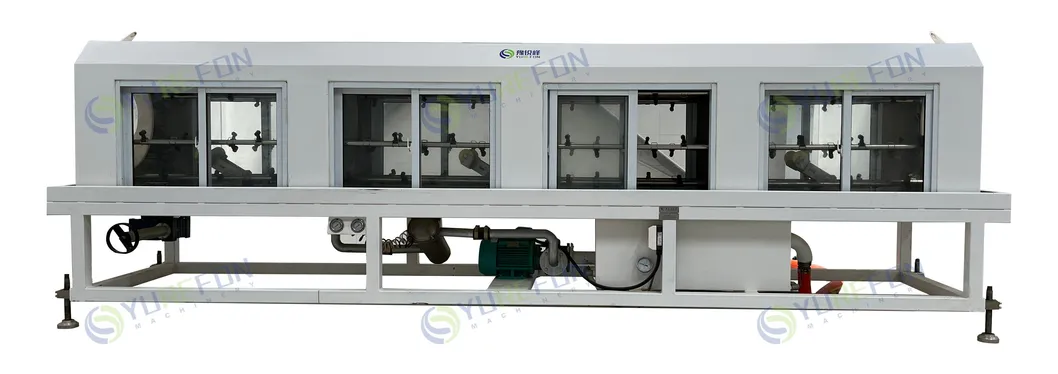

Spray Tank

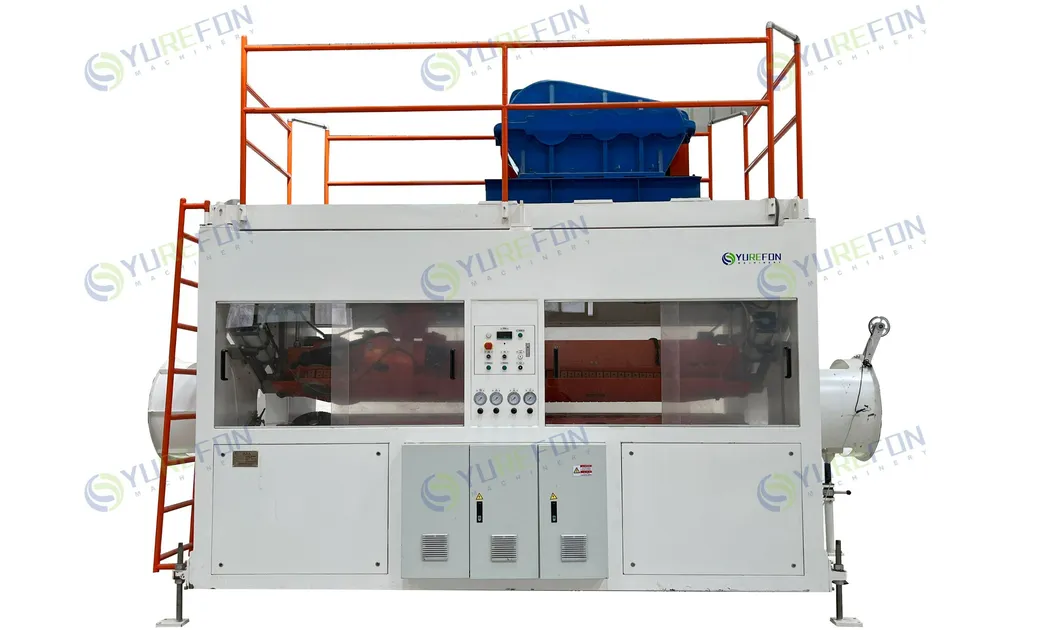

Haul-off Unit

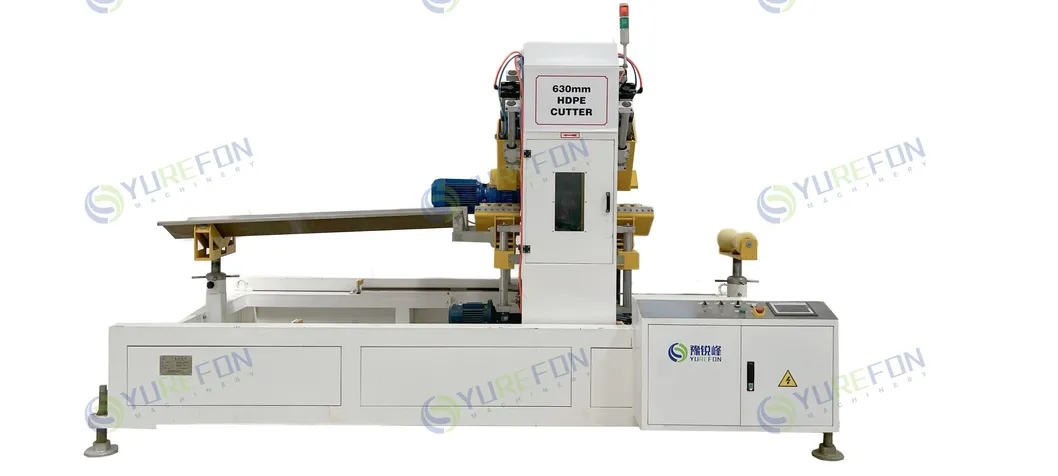

Planetary Cutter
🏭 Production Environment

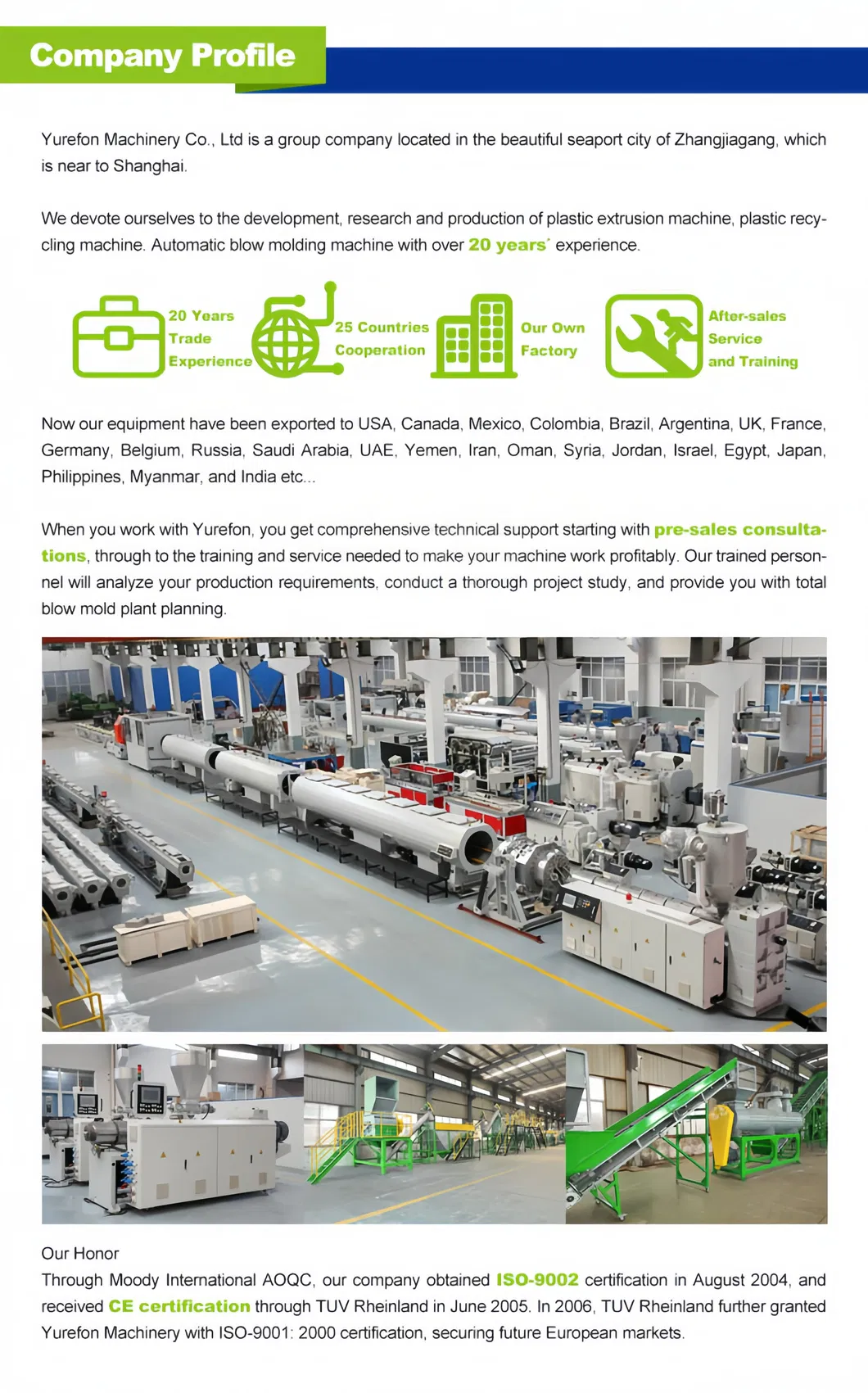

Production Facility
Machine Quality
❓ Frequently Asked Questions
What types of pipes can this machine produce?
This production line is designed for HDPE, PE, and PPR pipes, suitable for water supply, gas transport, and sewage drainage.
What is the range of pipe diameters supported?
The HDPE-630 model specifically handles pipe diameters ranging from 250mm up to 630mm.
Which brands of electronic components are used?
We use world-class components including Siemens motors and contactors, ABB inverters, and Omron temperature control systems for reliability.
How is the pipe cut during production?
The system utilizes a chip-free planetary cutter which ensures a very smooth and flat cutting surface without material waste.
Is the machine customizable for different power supplies?
Yes, while the standard configuration is 380V 3-phase 50Hz, the power supply can be customized to meet local industrial standards.
What is the warranty and after-sales service?
The equipment comes with a 12-month after-sales service guarantee to ensure long-term operational stability.
