Polymer PP Woven Jumbo Bag LDPE Plastic Film Pelletizing Recycling Granulating Machine

Customization:	Available
After-sales Service:	Provide
Warranty:	1year

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.	KCP/KSP
Raw Material	PE
Screw	Single-Screw
Automation	Automatic
Certification	CE, ISO9001:2008

Output Capacity	1500-1000kg/H
Motor Brand	Siemens, Weg
Bearing	NSK
Control System	Siemens PLC
HS Code	84772010

⚙️ Product Description

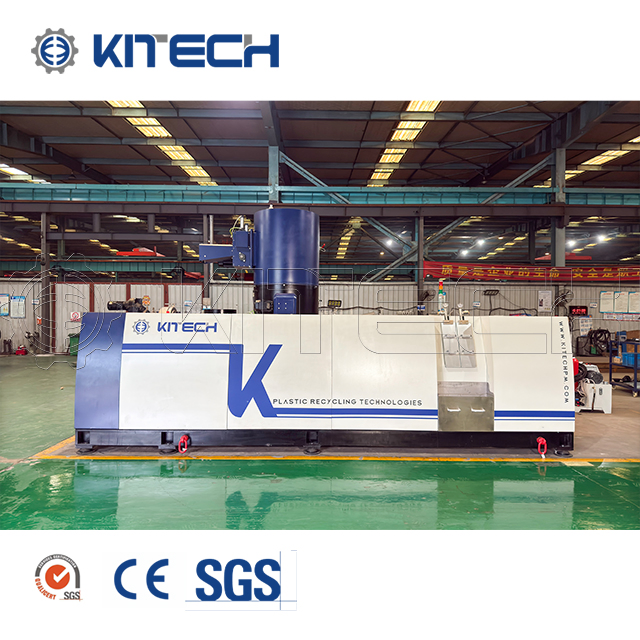

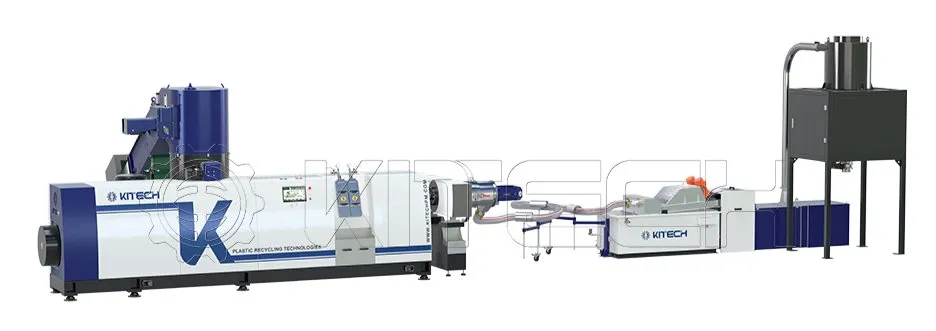

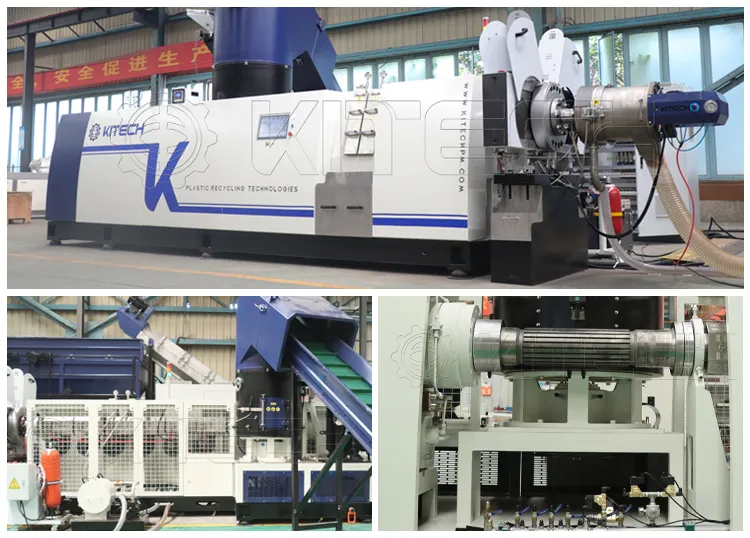

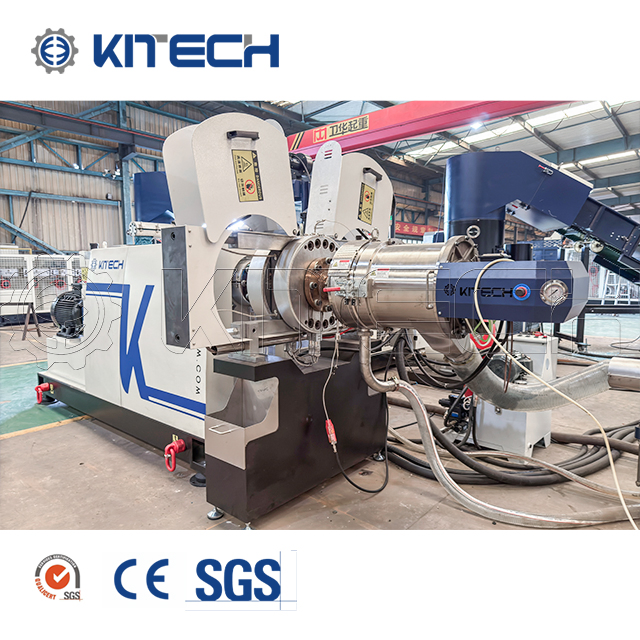

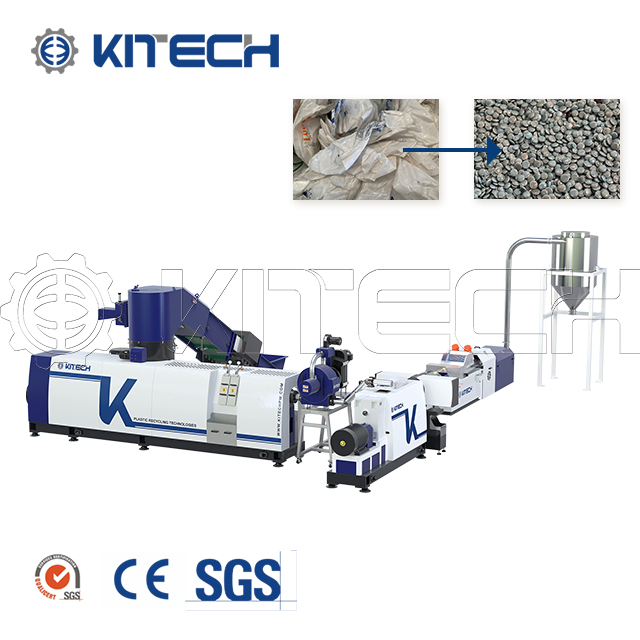

KCP Series Compacting Water Ring Plastic Pelleting Machine
The KCP series compacting pelletizing system is a high-efficiency three-in-one recycling machine designed for low-density plastic articles. It provides an excellent re-pelletizing and recycling solution for films, raffia, filaments, woven bags, and nonwoven fabrics. It is widely applicable for PE, PP, CPP, BOPP, PS, EPS, ABS, PA, PLA, and PET waste recycling.

📊 Technical Parameters

Type	KCP80	KCP100	KCP120	KCP140	KCP160
Capacity (kg/h)	150-250	300-420	400-600	600-750	800-950
Screw Diameter	φ80	φ100	φ120	φ140	φ160
Motor Power (kW)	55-75	90-110	132-160	160-200	250-315

🔍 System Components

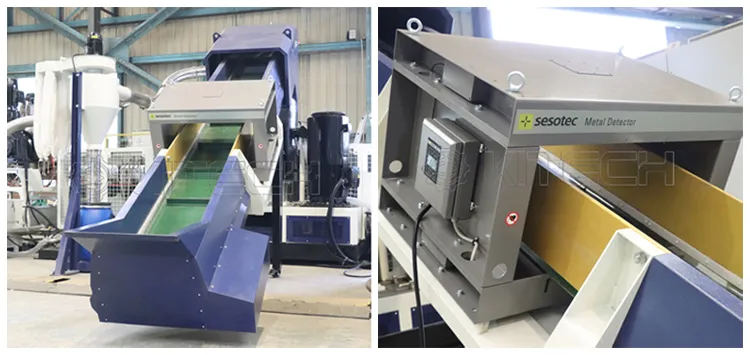

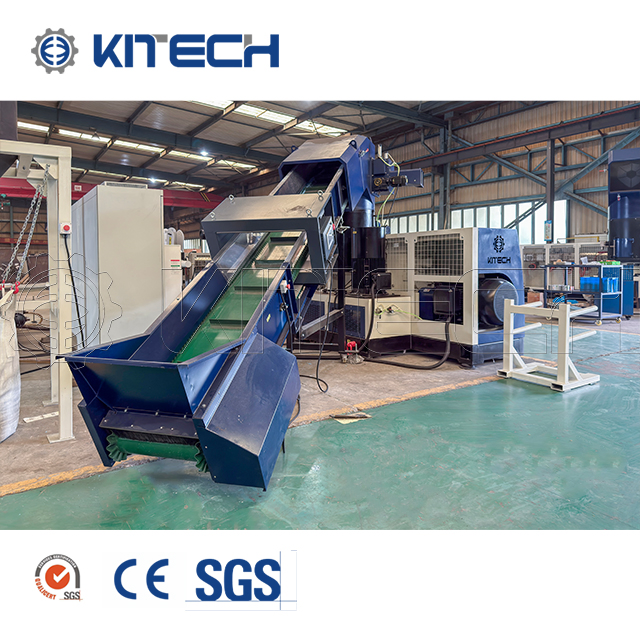

Belt Conveyor

Equipped with an optional metal detector to protect the compactor and extruder by identifying and separating metal contaminants.

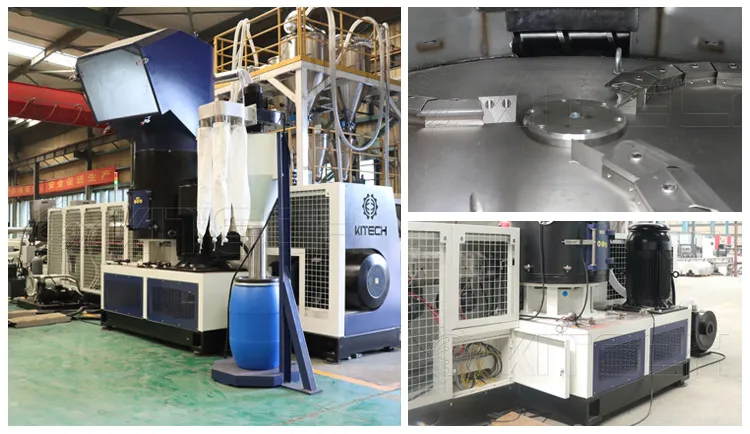

Compactor & Drying Unit

Optimal design of rotary and stationary blades ensures material is cut, mixed, and dried effectively for stable feeding.

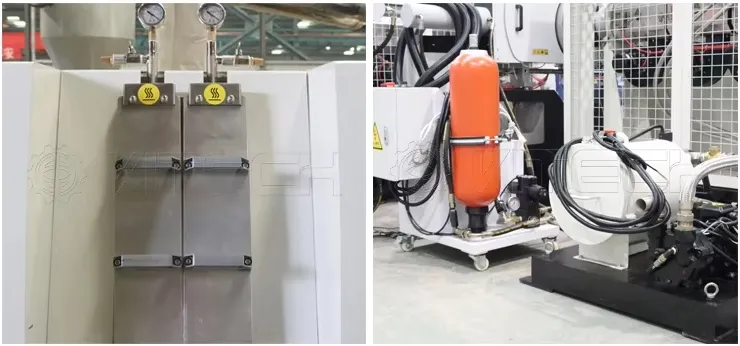

Degassing Unit: Force vacuum degassing system with two vents to effectively remove moisture and printing ink.

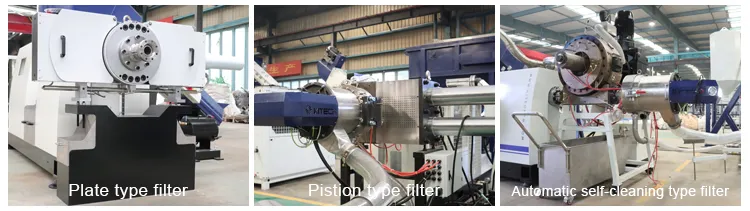

Filtration Options: Choose from Plate Type, Piston-Type, or Automatic Self-Cleaning Laser Filters for continuous operation.

💧 Pelletizing & Drying

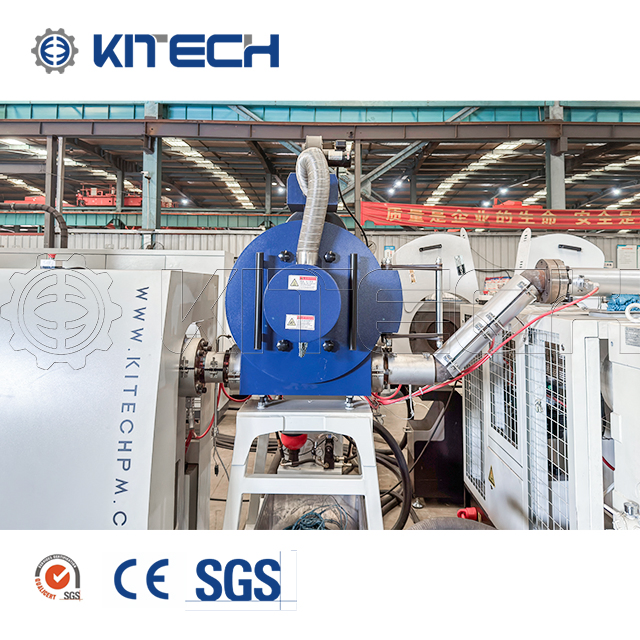

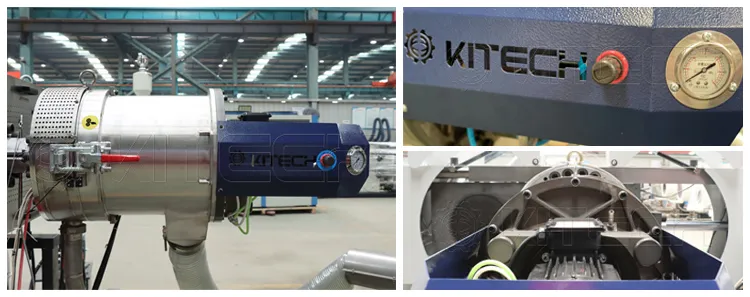

Water Ring Pelletizer: Speed controlled automatically by PLC based on die head pressure.

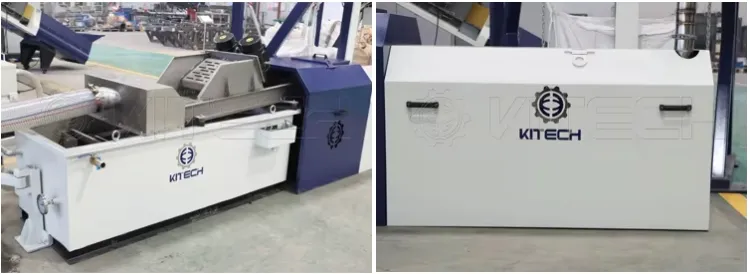

Centrifugal Dryer: Achieves final pellet humidity of less than 1% with high-speed rotation.
Silo & Blower: Sound-insulated transport system reduces noise from 82dB to 68dB.

🏢 Professional Manufacturing

We are a leading Chinese manufacturer specializing in high-performance plastic recycling systems, including shredding, washing, and pelletizing lines. Our engineering integrates European standards to deliver unmatched efficiency and durability.

Global Reach: Serving 300+ clients across 55 countries including the USA, UK, Germany, and Australia. Systems are CE and UL certified.

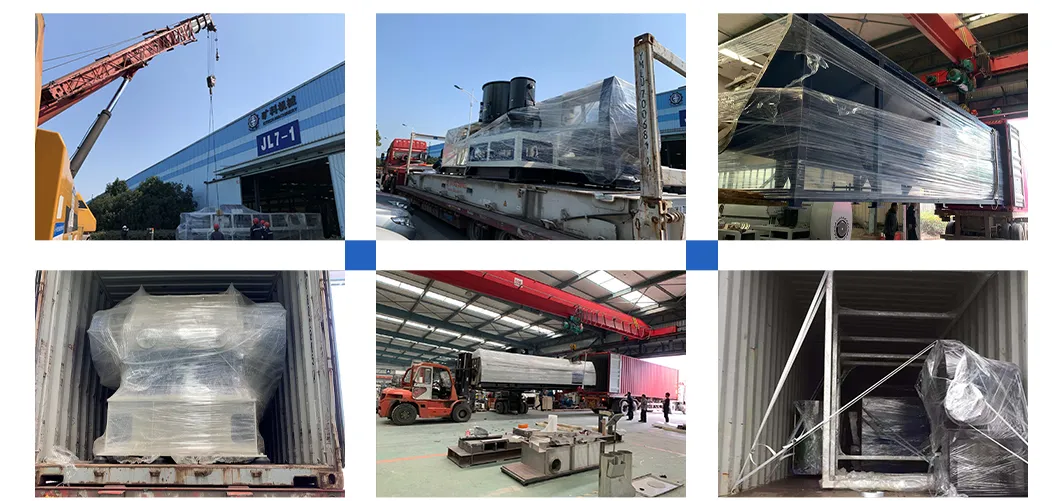

📜 Certifications & Packaging

🛠️ After-Sales Service

Installation & Training: Seasoned technicians arranged for equipment installation, debugging, and test production.

Online Support: 7/24 online assistance and machine running video demonstrations.

Quality Guarantee: 12 months warranty with free wearing parts provided during the period.

Technical Support: Long-term technical maintenance and offline troubleshooting at customer factories.

❓ Frequently Asked Questions

How can I verify the quality of the machinery?

We use professional processing equipment and strict inspection for every component. Completed lines are run for at least 12 hours before shipment to ensure stability.

Is on-site installation provided?

Yes, according to customer requests, we arrange engineers to your factory for installation, commissioning, and staff training.

What materials can this pelletizing machine process?

It is ideal for PE, PP, CPP, BOPP, PS, EPS, ABS, PA, and PLA materials, specifically film, raffia, woven bags, and nonwoven fabrics.

How is the delivery time and fund safety guaranteed?

We support Letter of Credit (L/C) and other guarantee services to ensure on-time delivery and secure transactions.

What is the noise level during operation?

With our sound insulation design for pipes and silos, the noise level is significantly reduced from 82dB to approximately 68dB.

Can I see the machine running before purchasing?

Yes, we can provide videos of the machine running or potentially arrange a visit to a running recycling line in your region.
