Basic Specifications
Assembly Structure
Integral Type Extruder
Production Capacity
3 Sets Per Month
Product Overview

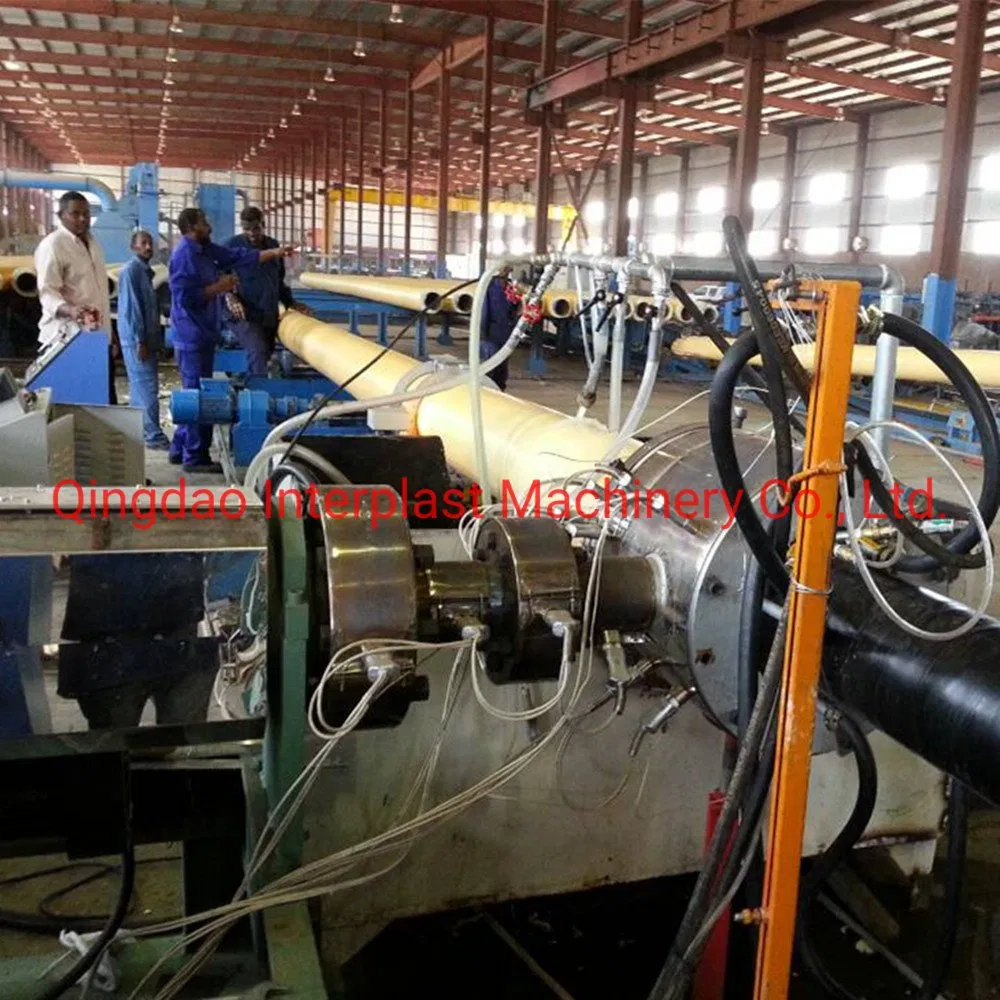

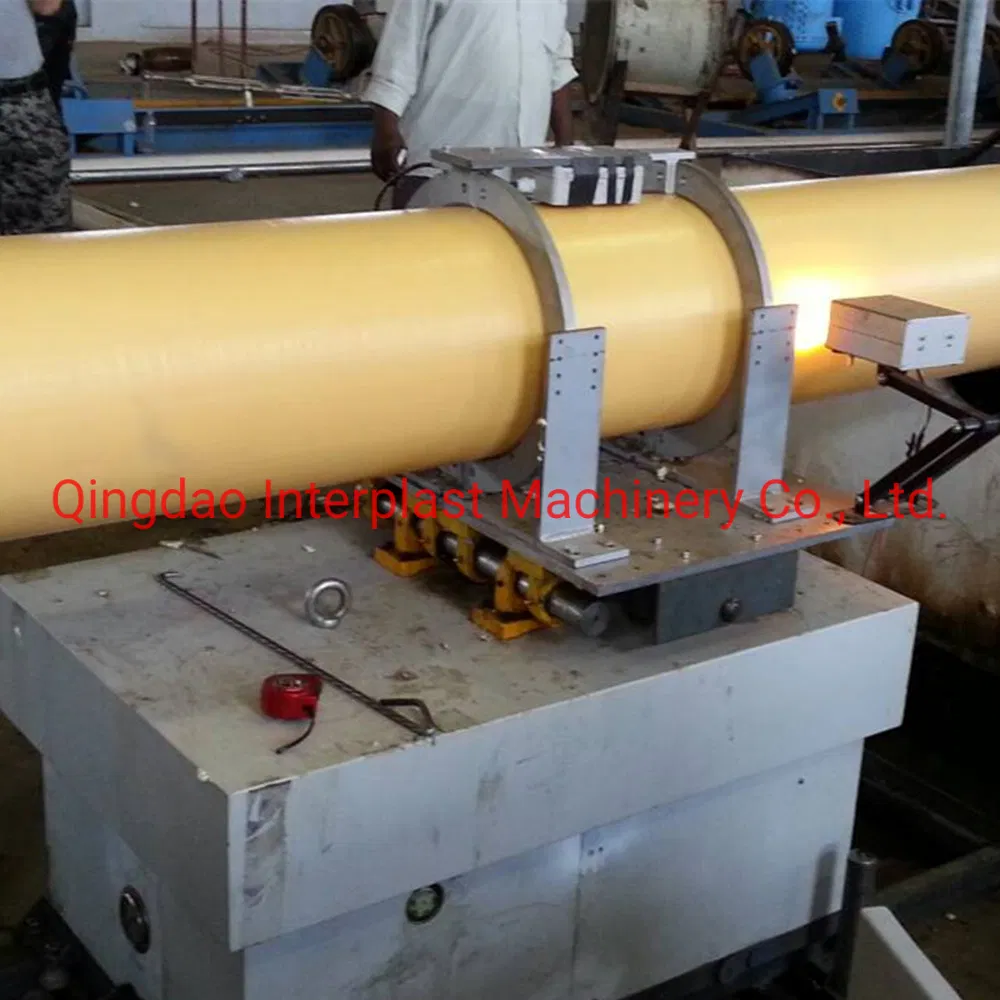

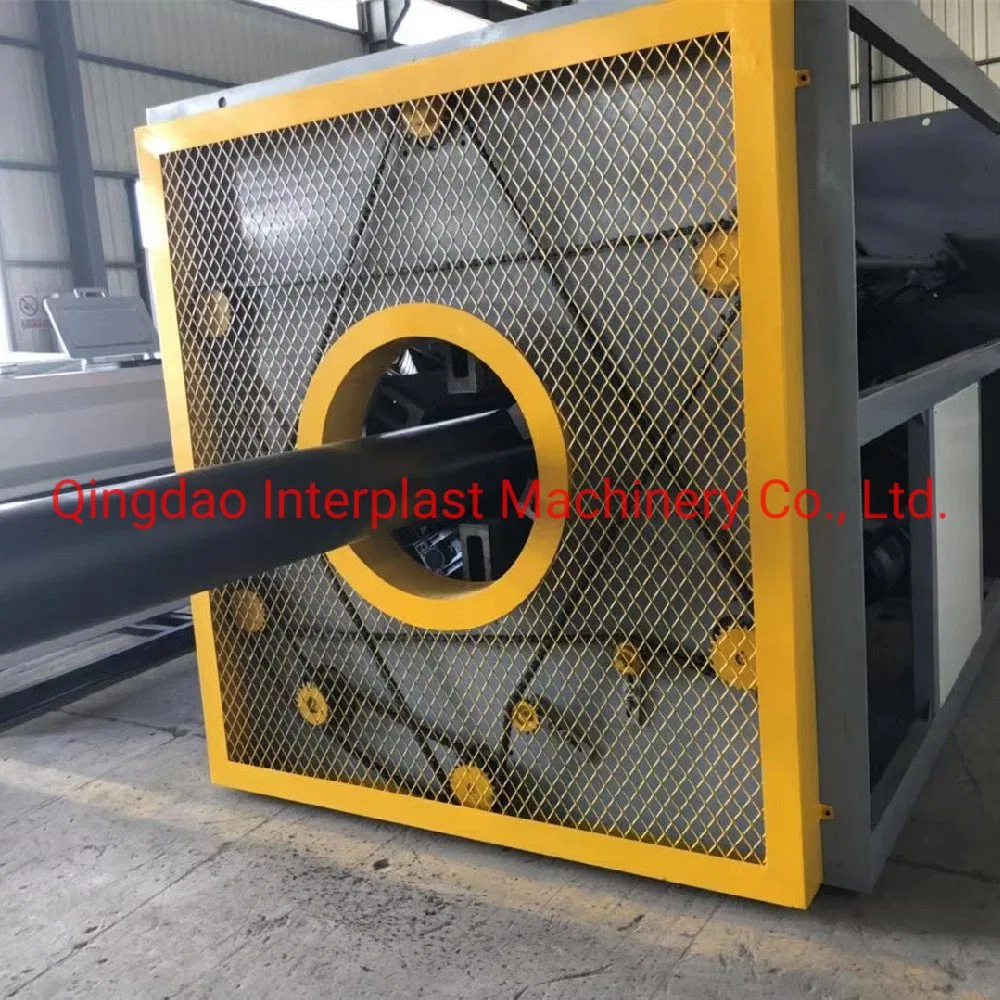

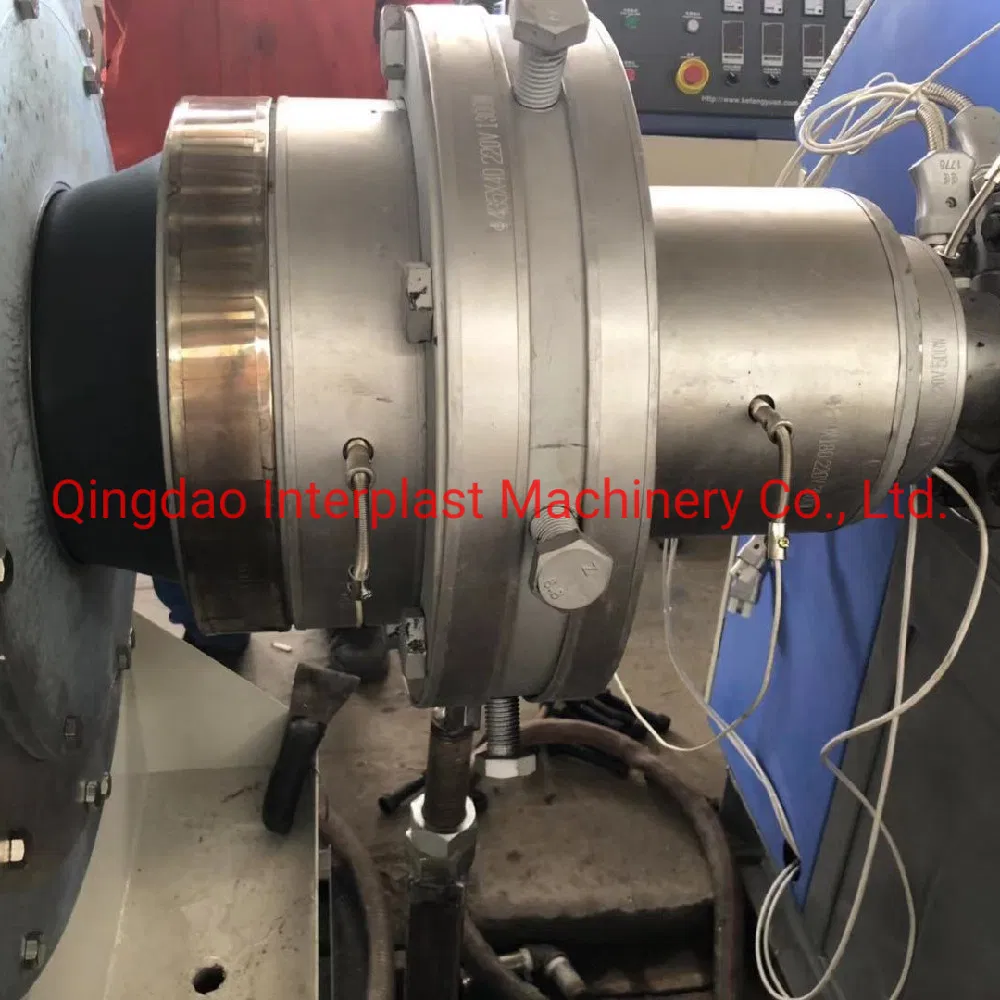

Pre-Insulated Pipe Making Machine HDPE Jacket Pipe Extrusion Machine

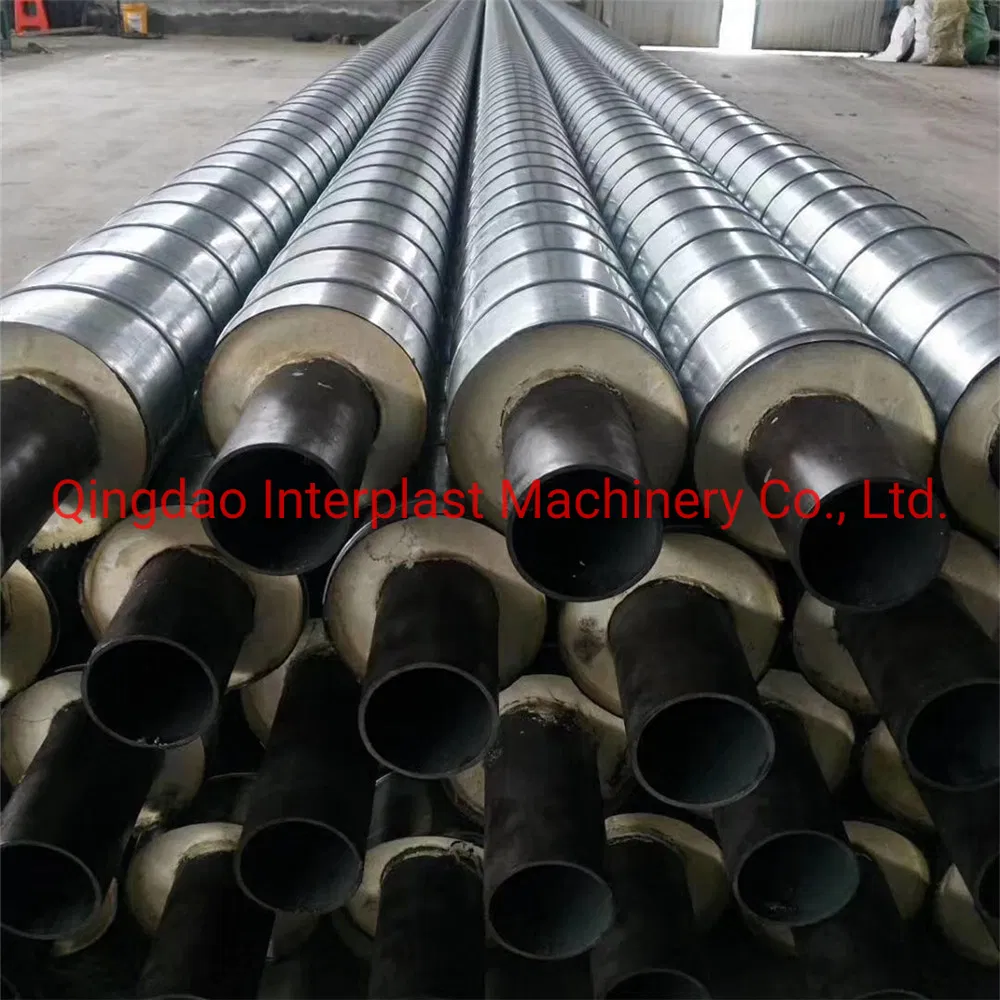

- Isolated heat layer and anti-corrosion layer wrapped on steel pipe simultaneously.
- Continuous production with high efficiency and low operational costs.
- In-line ball blast, de-rusting, and antirust treatment capabilities.
- Full automatic hydraulic deviation revising for high precision and stability.
- Multi-roller pressing transmission ensures stable steel pipe conveyance.
- Wide production range: 75-1400mm (Spiral type up to 2000mm).

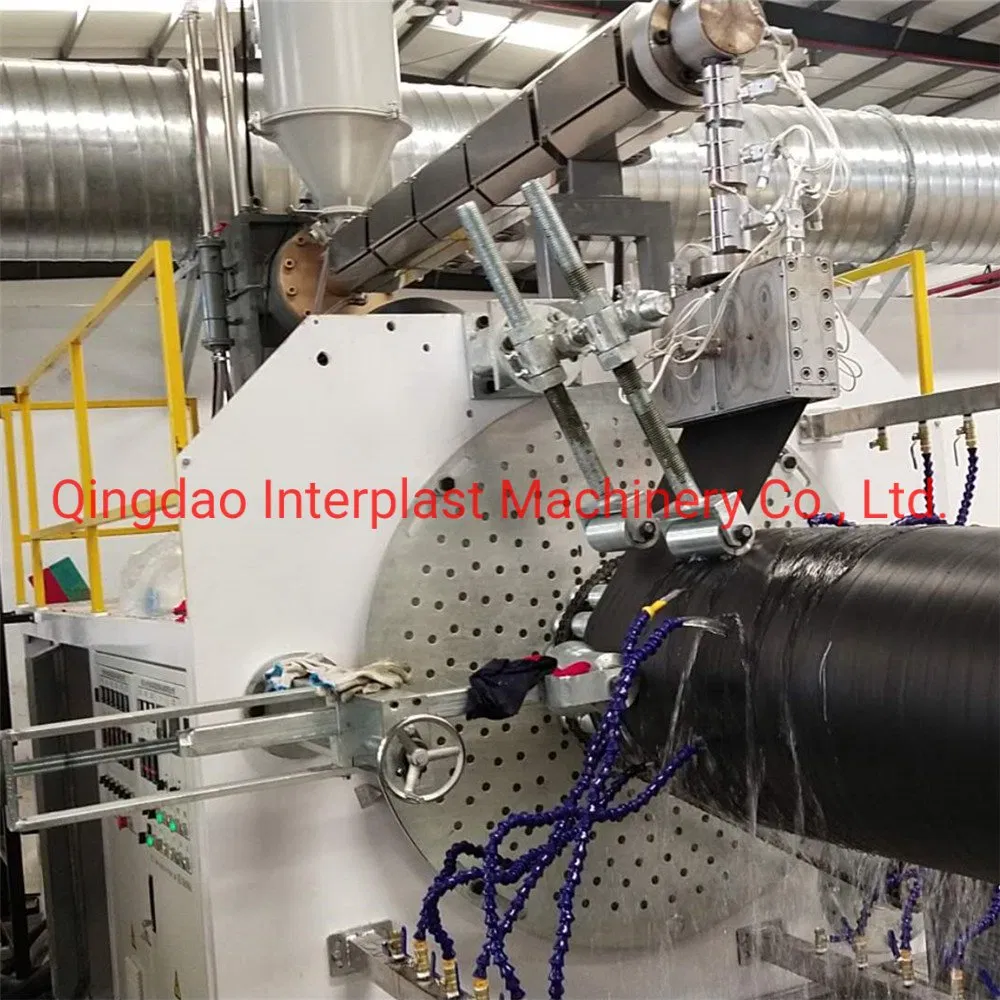

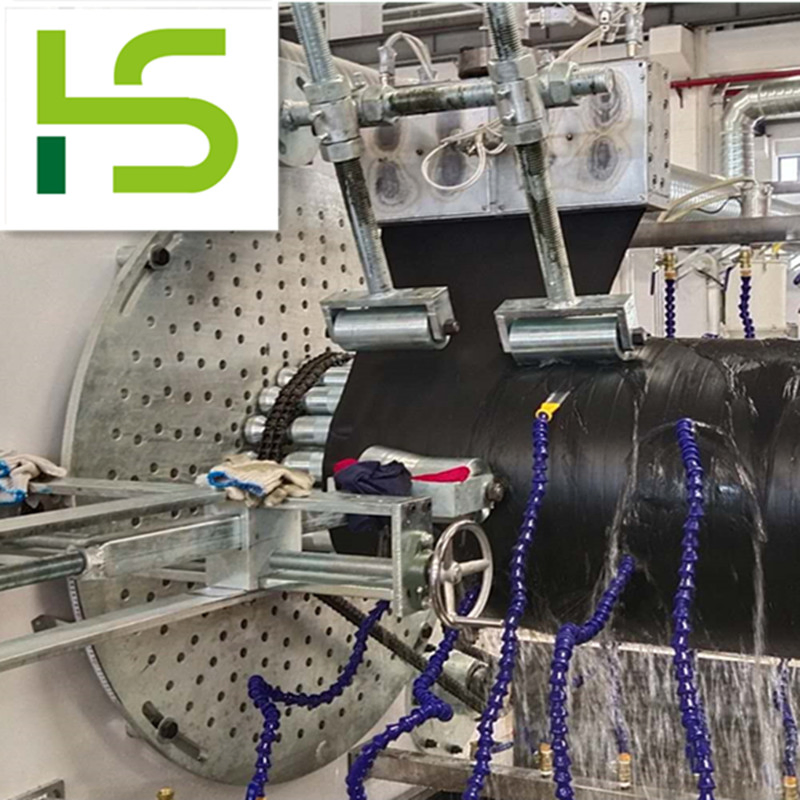

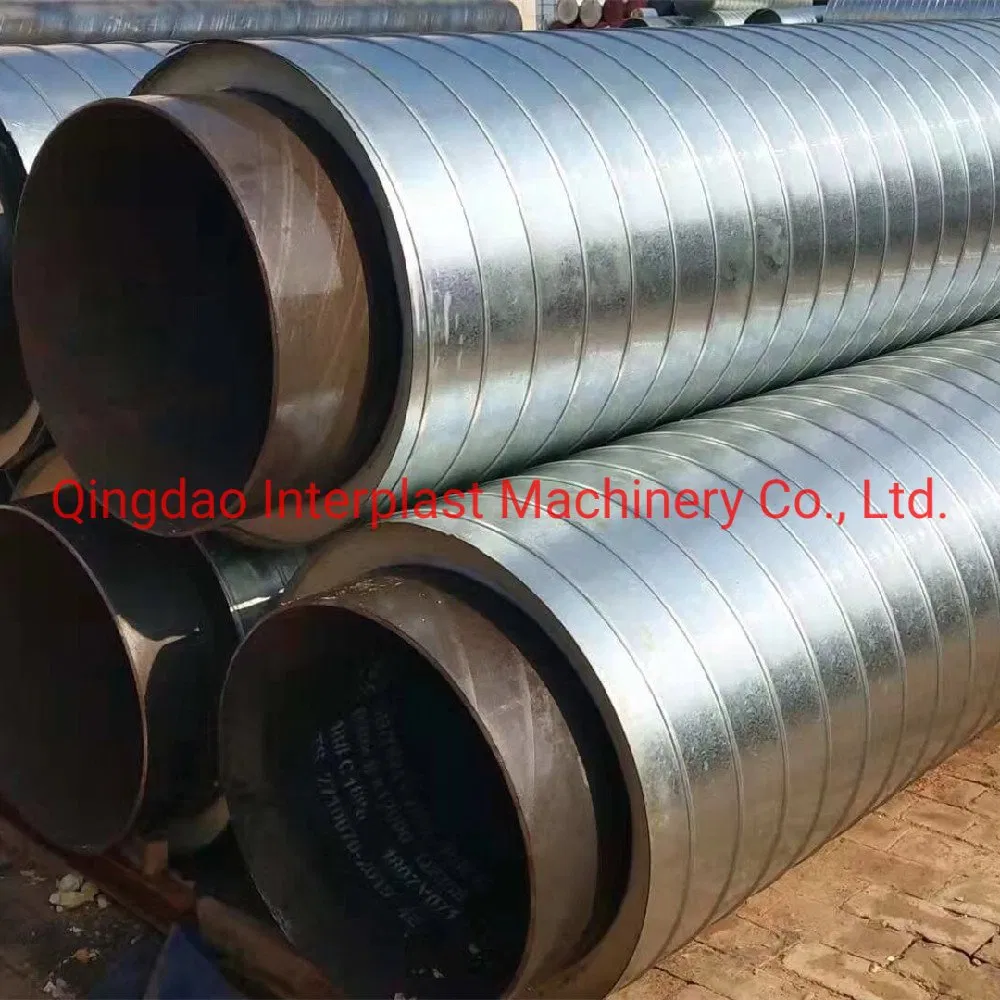

1. Spiral Jacket Insulation Pipe Application
Thickness range: 3-6mm

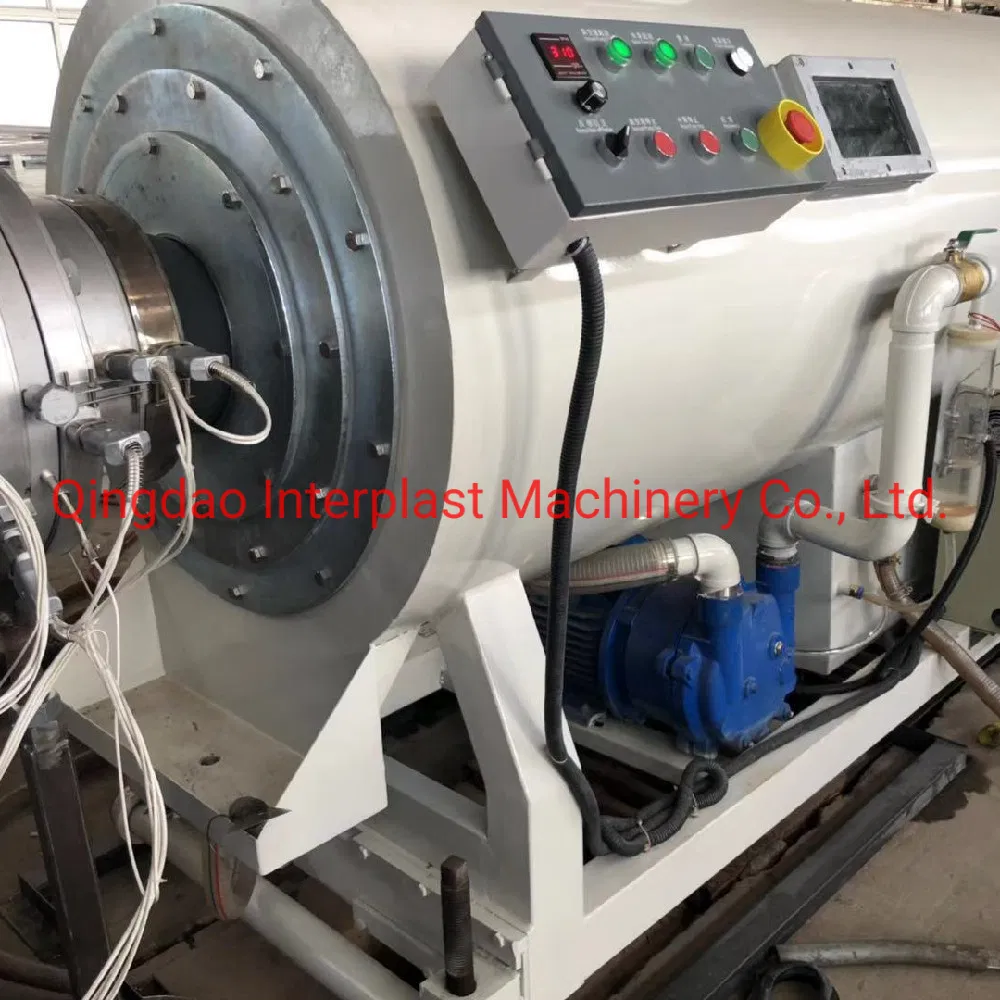

2. Straight/Plain HDPE Jacket Insulation Pipe
| Extruder |
Haul-off Machine |
Die |
Pipe Range |
| SJ-90 |
SJGF-400 (4 claws) |
Φ110-Φ250 |
Φ75-Φ400 |
| SJ-120 |
SJGF-800 (6 claws) |
Φ420 |
Φ400-Φ760 |
| SJ150 |
SJGF-1500 (8 claws) |
Φ760 |
Φ600-Φ1400 |

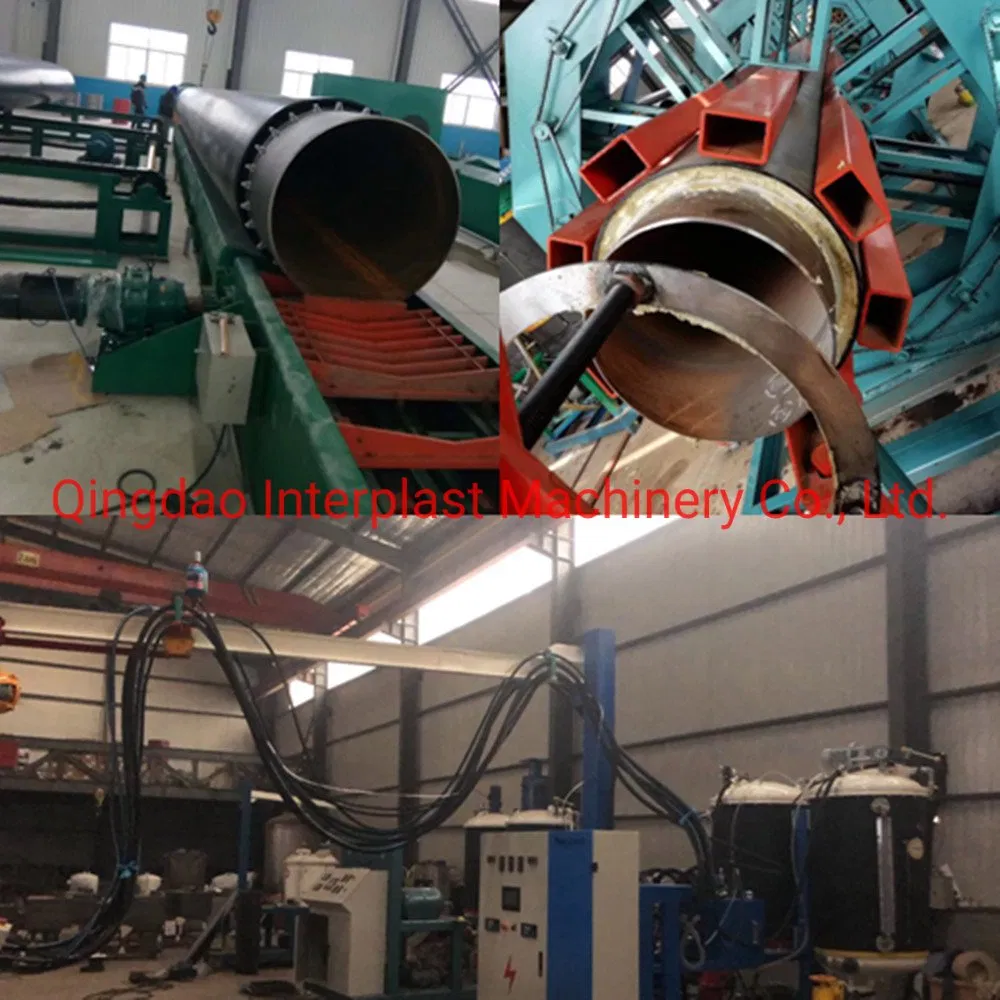

3. Foaming and Insulation Process
Two foam platform types available: Non-bracket type and with-bracket type (requires spacer). High-pressure foaming machine adopted for high injection efficiency.
Frequently Asked Questions
What materials can be processed by this extrusion machine?
This machine is specifically designed for processing PE (Polyethylene) to produce high-quality HDPE jacket pipes for insulation purposes.
What is the diameter range for pipe production?
The standard production range is between 75mm and 1400mm. For spiral type insulation HDPE jacket machines, the maximum diameter can reach up to 2000mm.
What are the main advantages of the integrated production line?
It allows for continuous production of heat-isolated and anti-corrosion layers on steel pipes simultaneously, which significantly improves efficiency and reduces costs compared to separate processing.
Does the machine include surface treatment for the steel pipes?
Yes, the line features in-line ball blast, de-rusting, and antirust painting treatments to ensure the highest quality of the final insulated pipe.
Is the operation of the machine automated?
The system is fully automatic and computerized, featuring high-precision hydraulic deviation revising to maintain stability throughout the extrusion process.
What types of foaming platforms are available?
We offer two platform types: a non-bracket type and a with-bracket type that utilizes spacers, both working with high-pressure foaming technology for maximum efficiency.
