Precision Cooling System for Optimal Temperature Control in Plastics

Customization:	Available
After-sales Service:	24h Online Service
Warranty:	13 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

MT100

Raw Material

Inverter

Equipped

Heater

Electromagnetic

Automation

Automatic

Certification

CE, ISO9001:2008

Application

Granules Production

Capacity

100~1000kg/H

Service

24h Online Service

Rotary Blade

2 PCS

Fixed Blade

6 PCS

HS Code

84772090

Product Overview

Granulator agglomerator machines are widely used in aggregating plastics such as PE film, PP, BOPP, PET film, and fibers. The processed material can be fed into the extruder machine more easily, thereby increasing the capacity of the granulator machine. The agglomerator can directly convert waste plastic films, PET chips, PET/PP fiber, and other textile products into granules. It is suitable for agglomerating waste products or films made of soft PVC, PET, HDPE, LDPE, PP, and other thermoplastics.

Key Advantages

Robust Construction: Strong double-bearing design for holding the main shaft securely.
High Efficiency: Equipped with high-performance blades for rapid processing.
Intelligent Control: Precision temperature control system for optimal material handling.

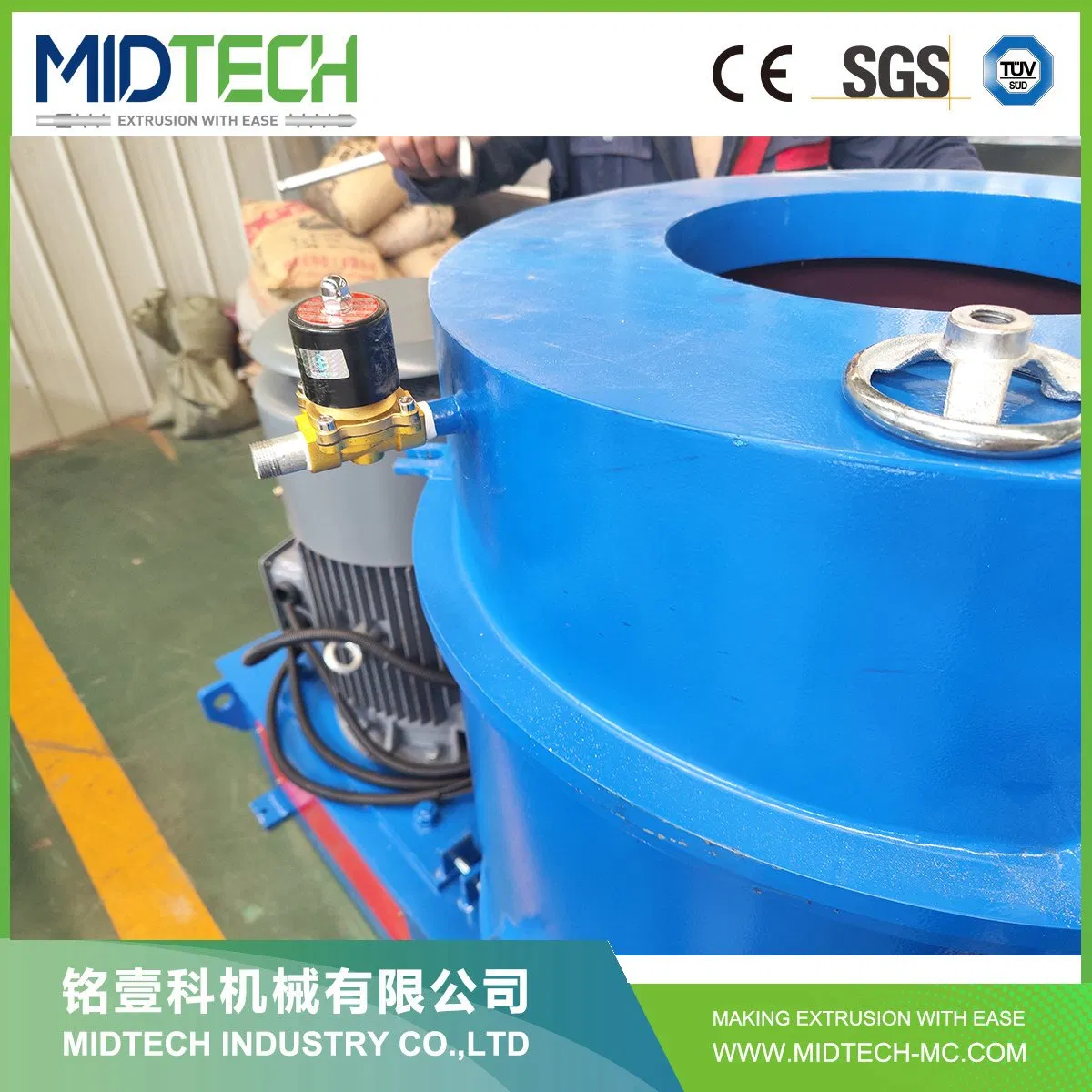

Automated Cleaning: Features automatic water flushing for maintenance ease.
Eco-Friendly: Low energy consumption with high-quality output for PE/PET/Fiber.
Scalable Capacity: Processing range available from 100kg/h to 1000kg/h.

Equipment Showcase

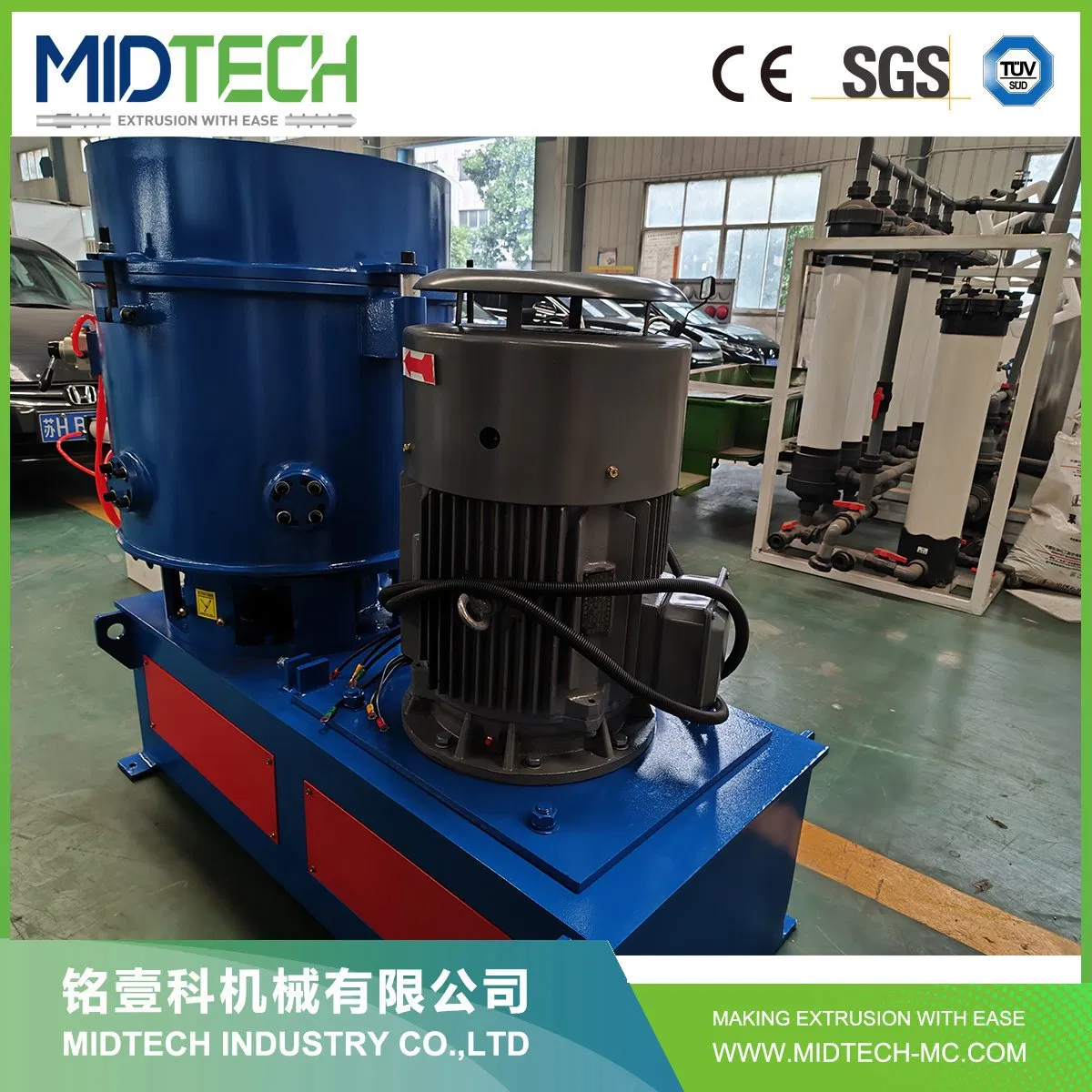

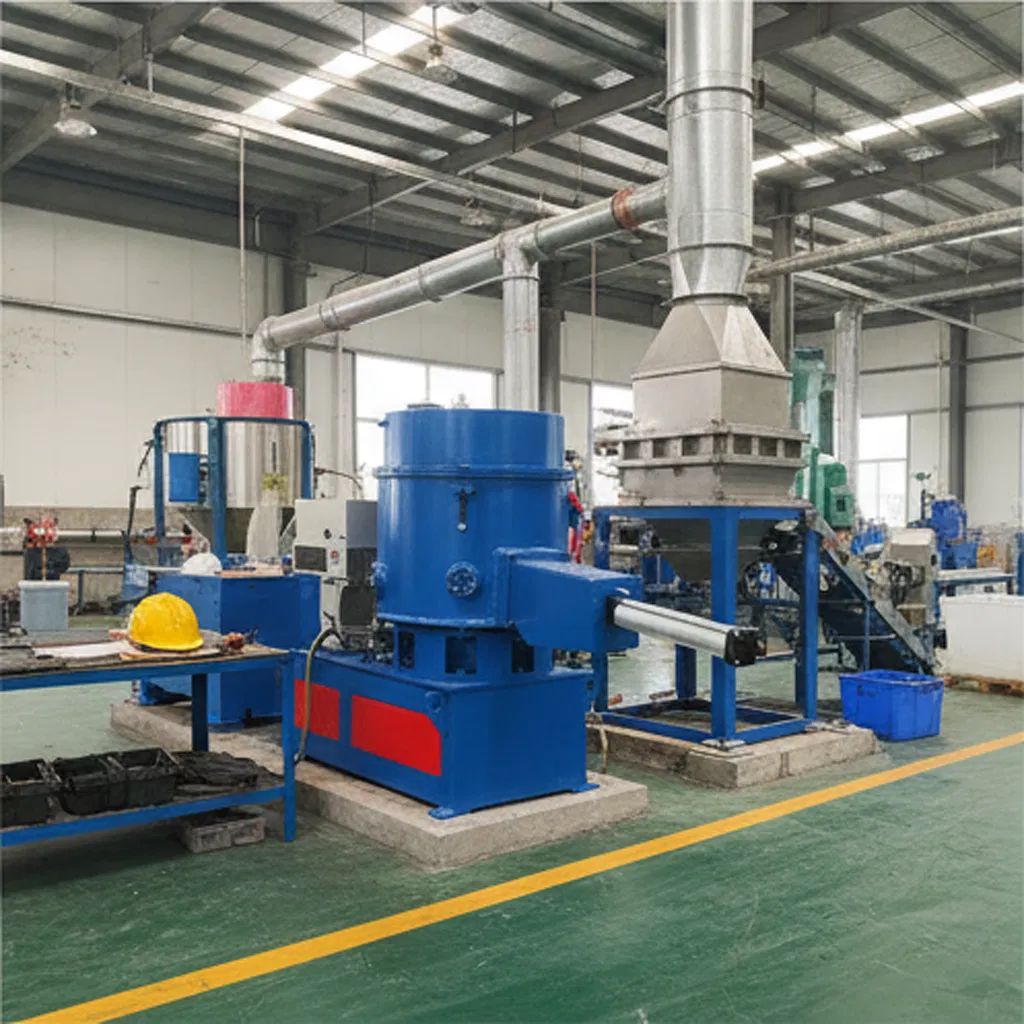

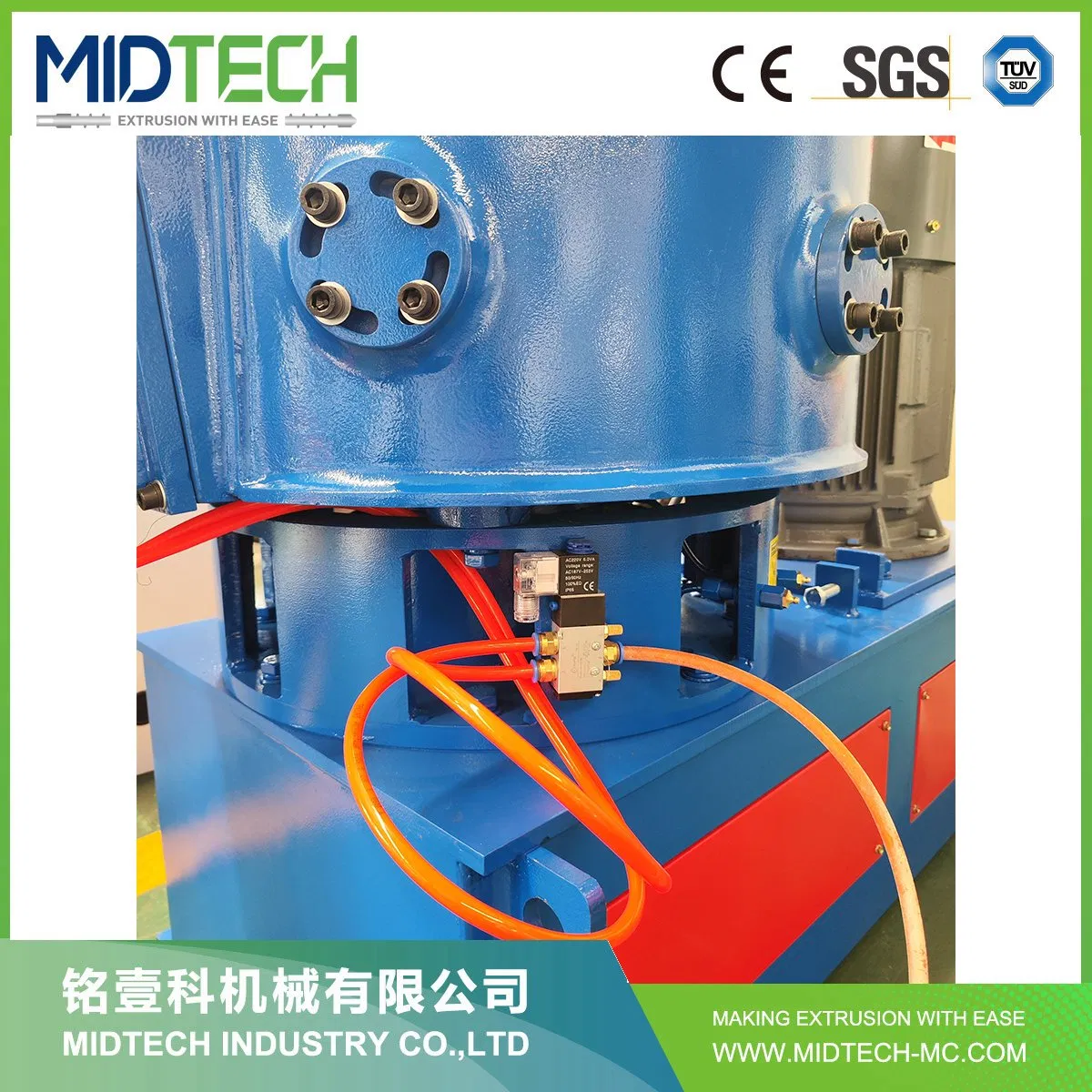

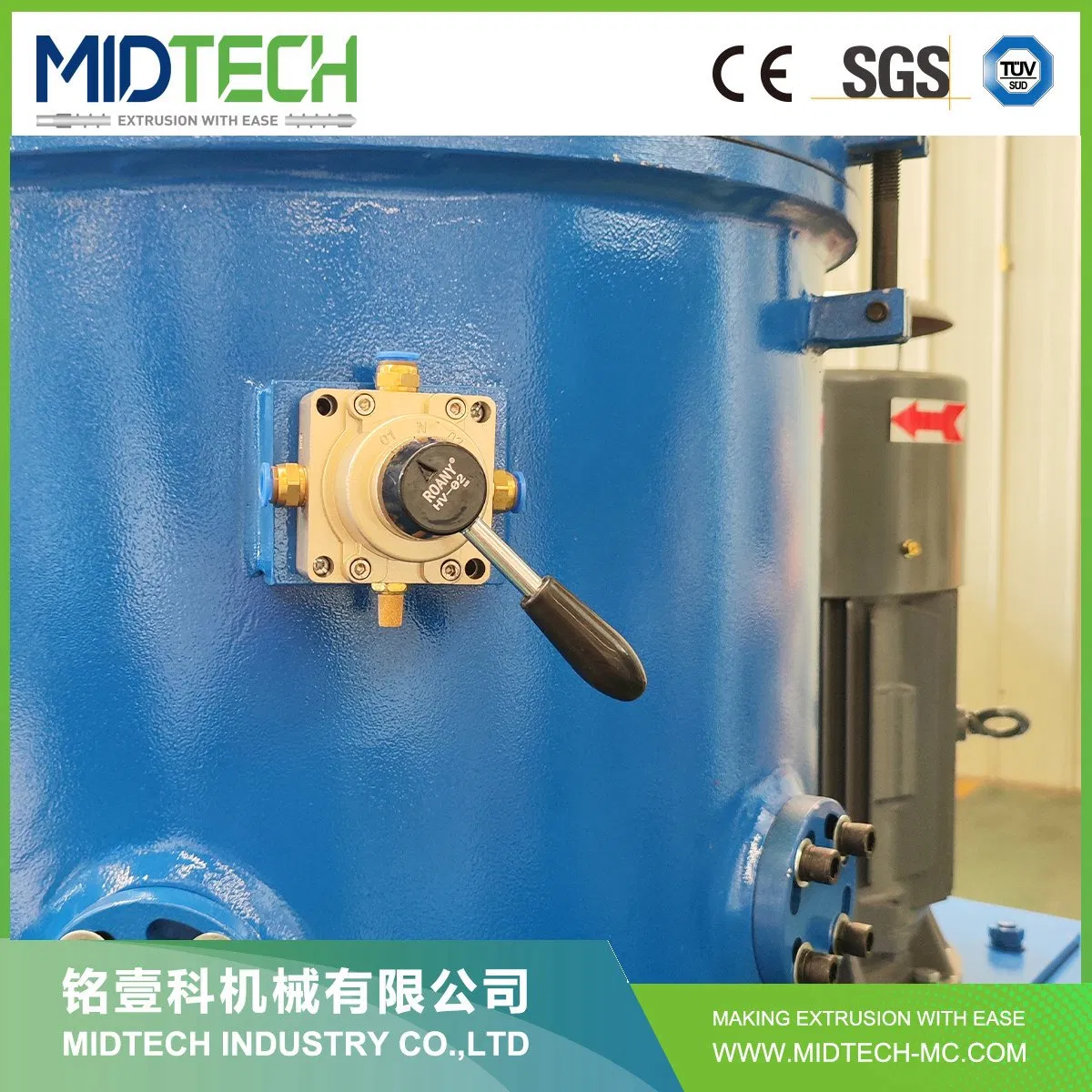

Cooling System and Agglomerator Structure

Technical Parameters

Parameter	100L	300L	450L	800L
Effective Volume (L)	75	200	350	550
Rotary Blades (Qty)	2	2	2	4
Fixed Blades (Qty)	6	6	8	8
Speed (r/min)	1050	950	950	760
Power (KW)	37	55	75	110
Output (T/Day)	2.4	6	8	12
Weight (KG)	800	1000	1200	1500
Size (M)	1.70.751.5	21.11.8	2.351.251.95	2.61.42.3

Frequently Asked Questions

What materials can this machine process?

The machine is designed for various thermoplastics including PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS, and PET fibers or films.

How does the agglomerator improve extrusion efficiency?

By converting loose films and fibers into dense granules, it allows the extruder to feed more consistently and rapidly, significantly increasing overall production capacity.

What is the capacity range for the MT series?

Depending on the model, the capacity ranges from 100kg/h (approx. 2.4 tons per day) up to 1000kg/h (approx. 12 tons per day).

Does the machine include temperature control?

Yes, it features a specialized temperature control system and automatic water flushing to prevent material overheating during the densification process.

Is the machine suitable for PET waste?

Absolutely. It is highly effective for PET chips, PET films, and PET textile fibers, turning them into high-quality granules for recycling.

What kind of maintenance is required for the blades?

The machine uses high-performance rotary and fixed blades. Regular inspection is recommended, and the design allows for easy access to sharpen or replace blades as needed.
