PVC Cooling Mixing System for Plastic Production

Customization:	Available
Additional Capabilities:	Coating, Mixing and Heating
After-sales Service:	Engineers Available to Service Machinery Overseas, Online Support, video Technical Support

Send Inquiry

Product Description

Basic Information

Model NO.

SHL

Application

Granules, Powder, Viscous Fluid

Application Area

Chemical, Daily Chemical, Engineering

Certification

Condition

New

Cooling Method

Water Cooling

Heating Method

Self Friction and Electrical Heating

Main Material

Stainless Steel

Mixing Capacity

10-6000L

Speed Range

0-1400 Rpm

Stirring Type

Forced

Warranty

1 year

Mixer Type

Powder Mixer

Main Motor Power

5.5kw-30kw

Discharging Method

Cylinder

Mixing Time

12-15 Min/Pot

Packaging & Delivery

Package Size

600.00cm * 230.00cm * 230.00cm

Gross Weight

3000.000kg

Transport Package

Wooden Case Packing

Product Description

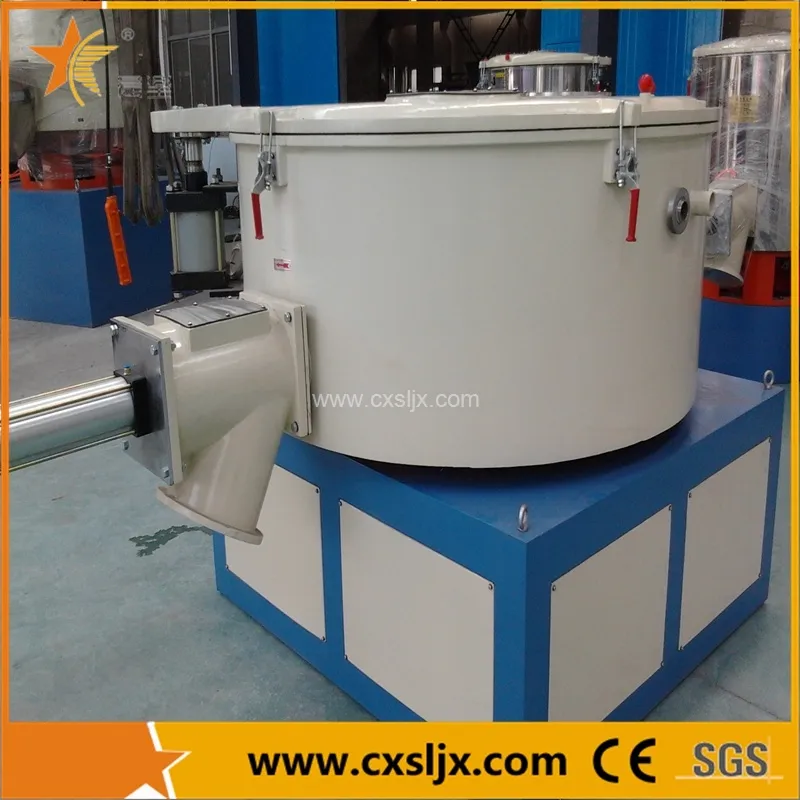

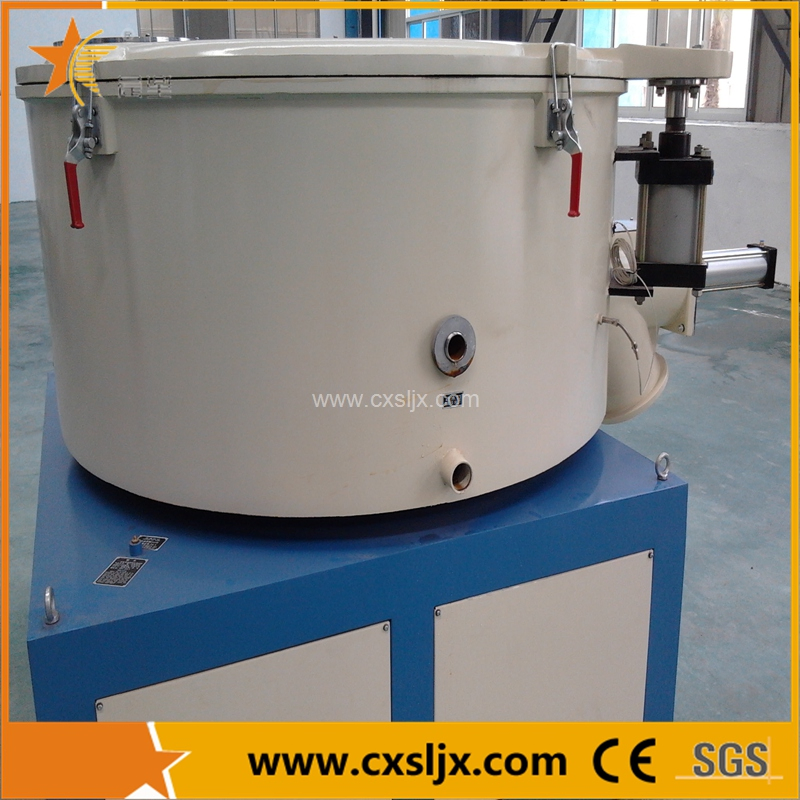

PVC COOLING MIXING SYSTEM FOR PLASTIC PRODUCTION / PVC resin powder cooling mixing machine / PVC resin powder cooling mixer for extrusion injection production lines.

SHL series cooling mixer combined with SHR series high speed mixer is widely used in the process of mixing, drying and coloring of various plastics. It can cool materials fast after heat mixing to get rid of gas remaining in heat mixed materials. It is beneficial for material storage, transfer and post-processing. It is essential equipment in the field of plastic processing.

Key Features

Dual pipe inlet and outlet system for optimized cooling effects.

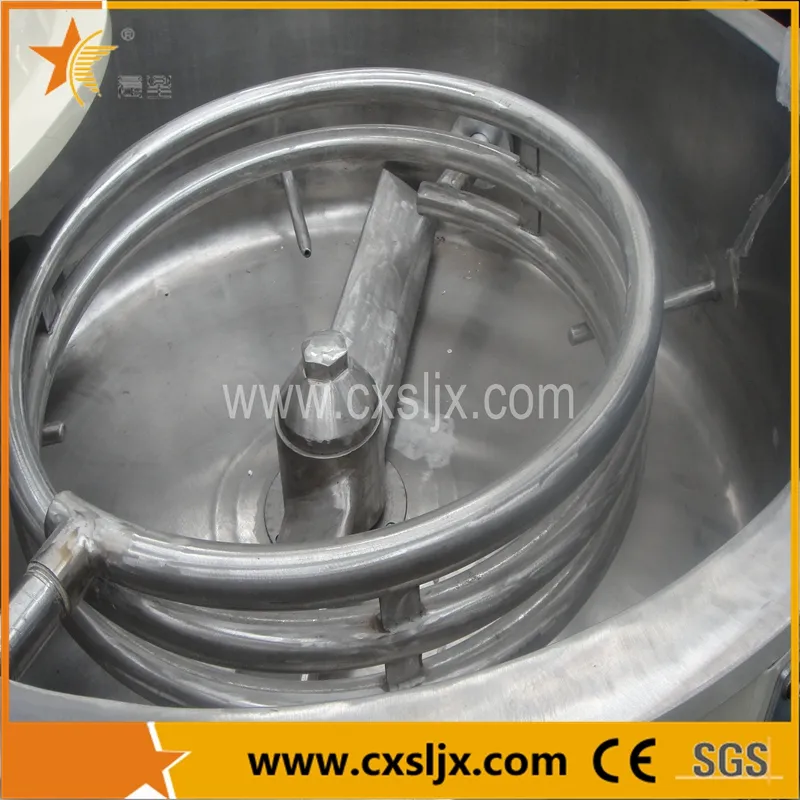

Circulating water between the wall, blades, and cooling pipes for rapid temperature reduction.
Versatile volume options ranging from 100L up to 3000L (Custom larger sizes available).

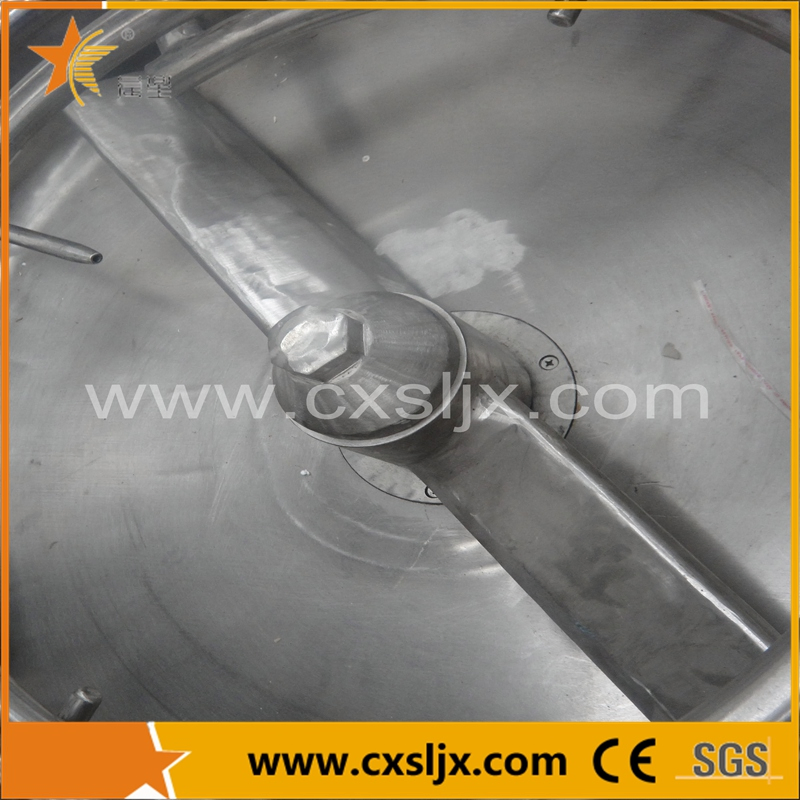

High-quality stainless steel construction for internal barrels and blades.
Standard high-thickness wall materials ensuring durability.

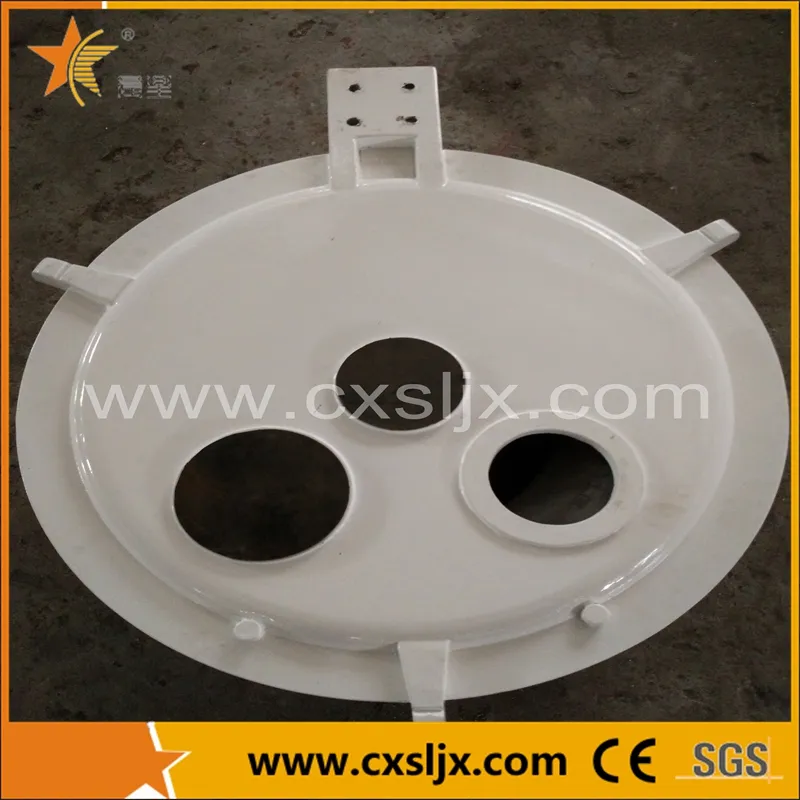

Triple-hole cover design for material management with optional small hopper.

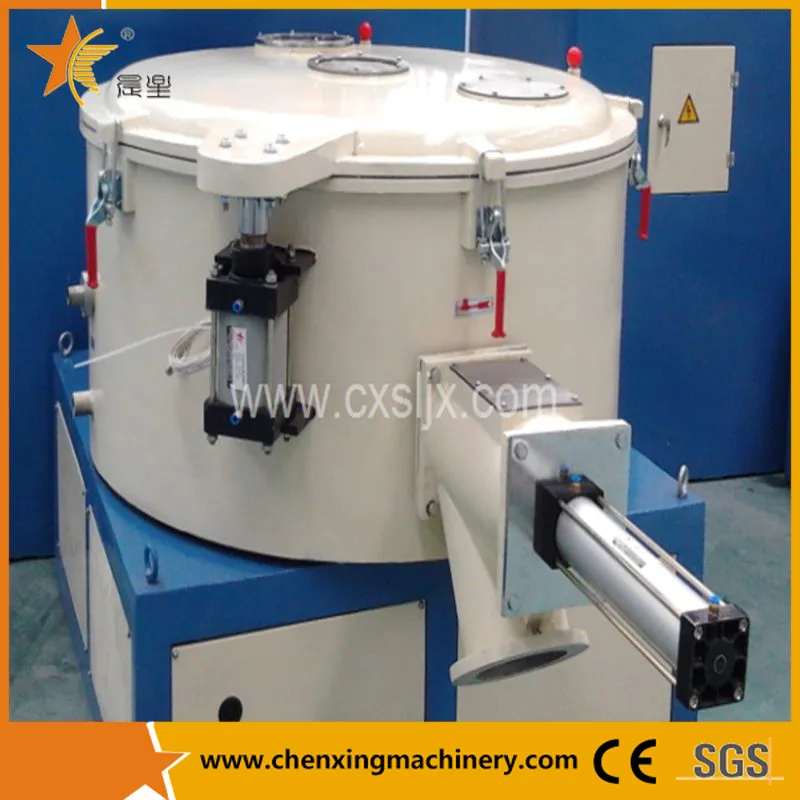

Pneumatic cylinder discharging system.

Main Technical Parameters

Model	Total Capacity (L)	Effective Capacity (L)	Motor (kW)	Main Shaft Speed (rpm)	Cooling Method	Discharge
SHL-200A	200	130	7.5	≤200	Water	Pneumatic
SHL-500A	500	320	11	≤130	Water	Pneumatic
SHL-800A	800	500	15	≤100	Water	Pneumatic
SHL-1000A	1000	640	15	≤86	Water	Pneumatic
SHL-1600A	1600	1050	18.5	≤50	Water	Pneumatic

Detailed Photos

Frequently Asked Questions

What materials can the SHL series mixer handle?

The system is designed for granules, powders, and viscous fluids, specifically optimized for PVC resin powder used in extrusion and injection production lines.

How does the cooling system work?

It utilizes a water-cooling method featuring a circulating pipe system and hollow bars, with water flowing through the walls and internal components for fast temperature reduction.

What is the capacity range of these mixers?

The standard mixing capacity ranges from 10L to 6000L, with effective capacities for SHL models ranging from 130L to 1050L.

What is the construction material of the barrel and blades?

The inner barrel and blades are made of high-quality stainless steel to ensure durability, hygiene, and resistance to corrosion.

How is the finished material discharged from the mixer?

The machine uses a pneumatic cylinder discharging method, ensuring a clean and efficient material release after the cycle is complete.

What is the typical mixing time per batch?

The average mixing time is approximately 12 to 15 minutes per pot, depending on the material type and processing requirements.
