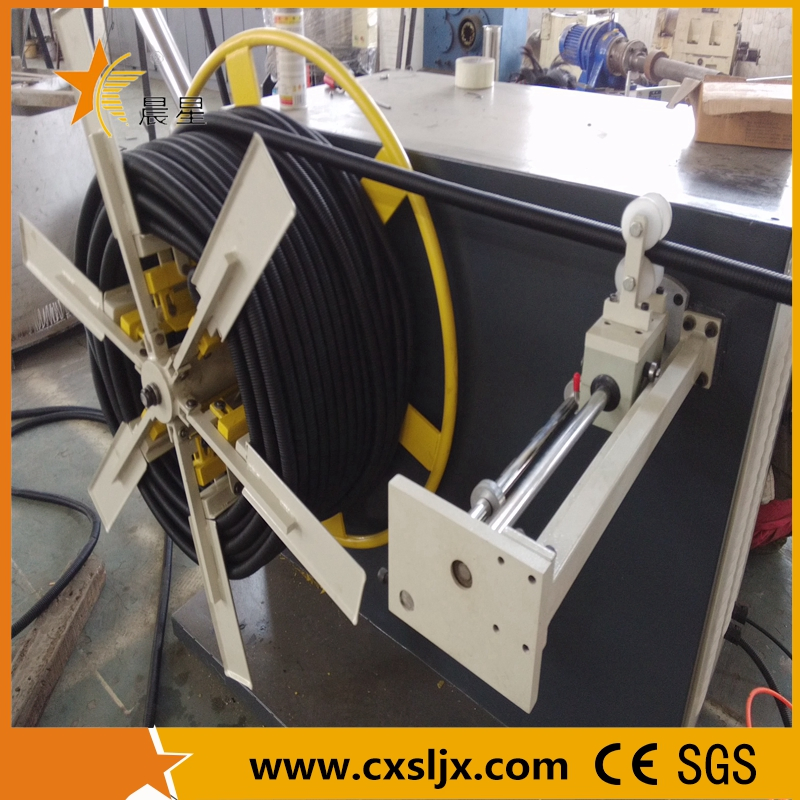

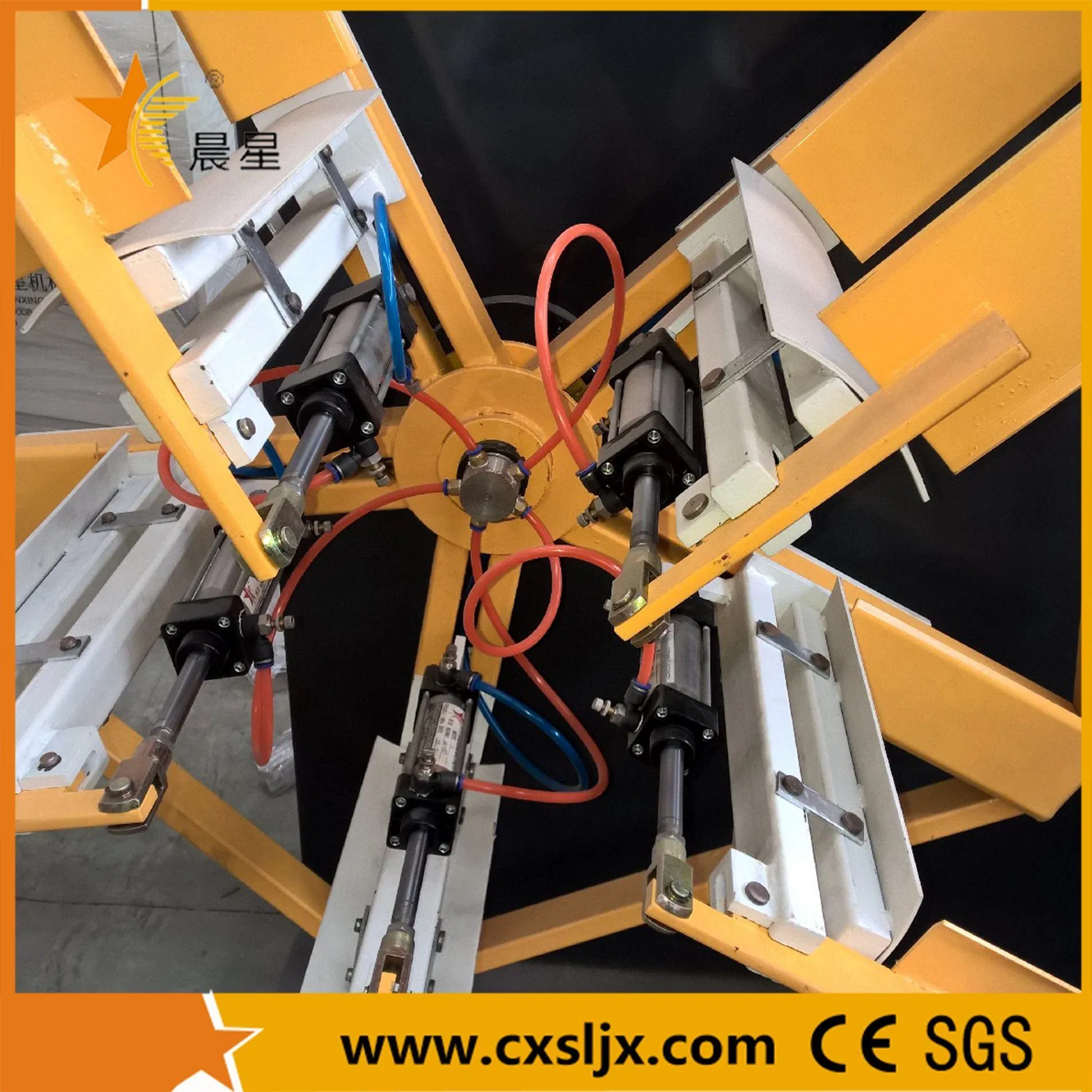

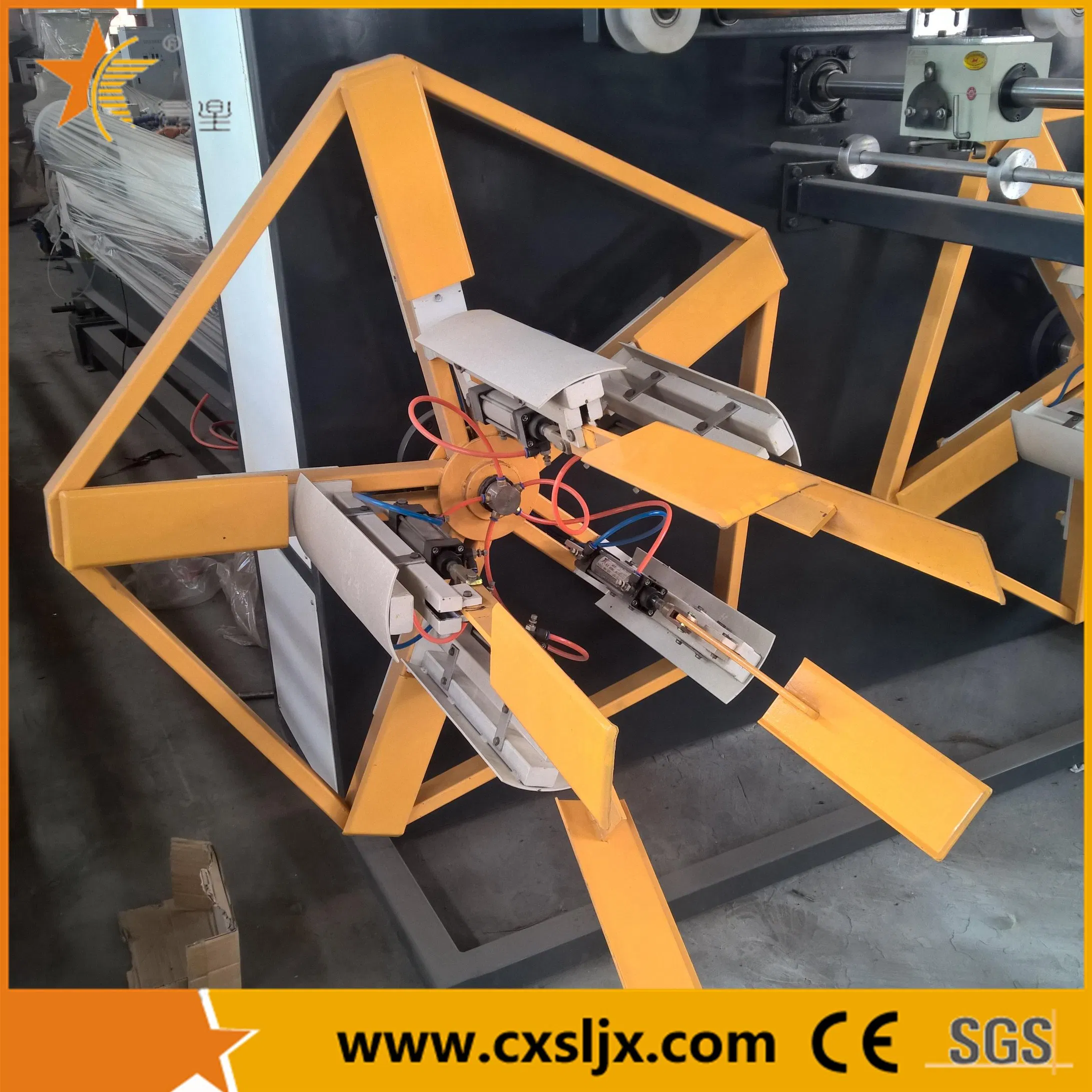

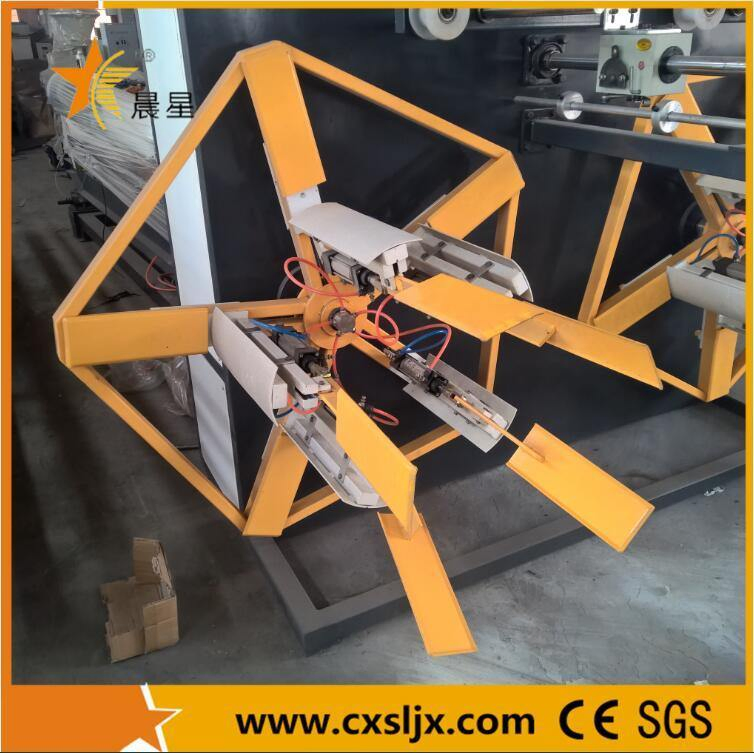

Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
1 / 5
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine
Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine

Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

■ Basic Product Information
Model NO.
sps
Inner Diameter of Coils
500-1500 mm
Winding Speed
0-15 M/Min Adjustable
Air Pressure
0.8 MPa
Motor Type
Torque Motor
Motor Quantity
2PCS
Max Pipe Diameter
110mm
Production Capacity
1000PCS/Year
⚙ Product Description

Plastic PVC HDPE LDPE PE Corrugated Pipe Winding Machine

The double working station winder is suitable for winding plastic wire and small-to-medium plastic soft pipes. It is designed to be used with extruders, calibration tables, and haul-off units to ensure straight and orderly winding of plastic materials.

✔ Main Features
✦
Adopts automatic winding with adjustable speed and single station continuous winding capabilities.
✦
Utilizes an air-operated method; the wheel rib opening and closing are cylinder-operated.
✦
Equipped with a ray creel stand for automatic winding displacement.
✦
Compact machine structure with high-level automation for orderly winding.
✦
Aesthetic design and convenient operation for improved efficiency.
📊 Technical Parameters
Model SPS400 SPS1200 SPS1800
Coil pipe specification Φ16-40 mm Φ 20-63mm Φ50-110mm
Coil inner diameter Φ400 Φ700 Φ1200
Coil speed 0.5-15m/min 0.8-8/min 3-12m/min
Coil width 300mm 500mm 660mm
Air pressure 0.6Mpa
🖼 Detailed Photos

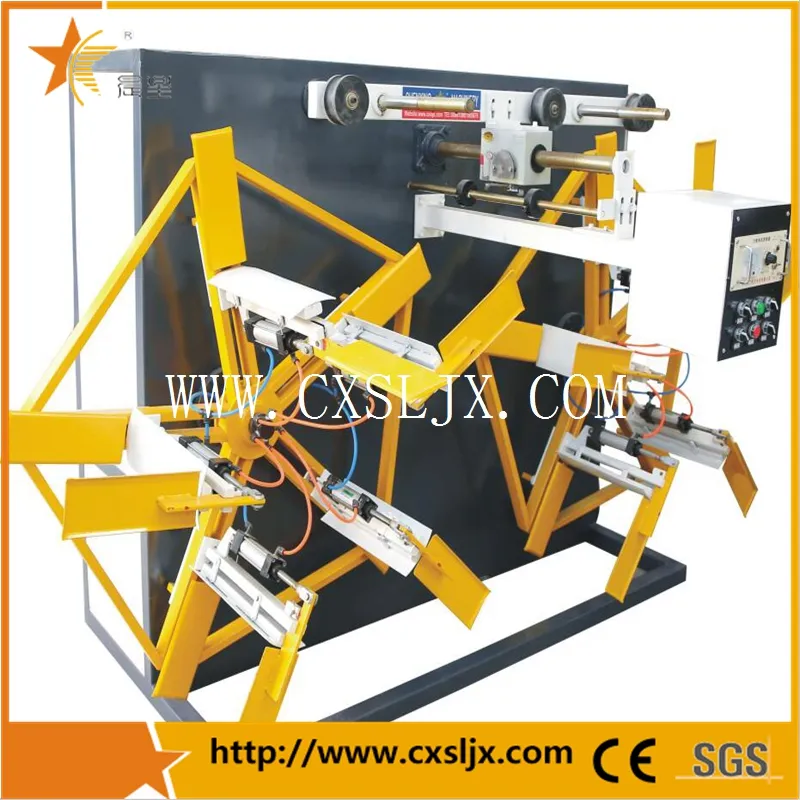

Winding Machine Photo 1

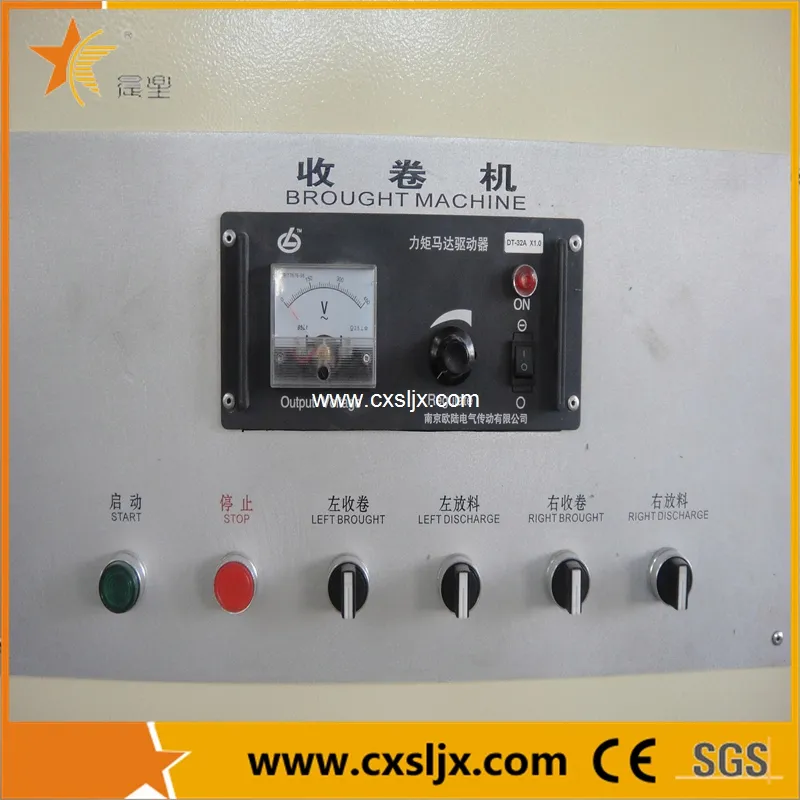

Winding Machine Photo 2

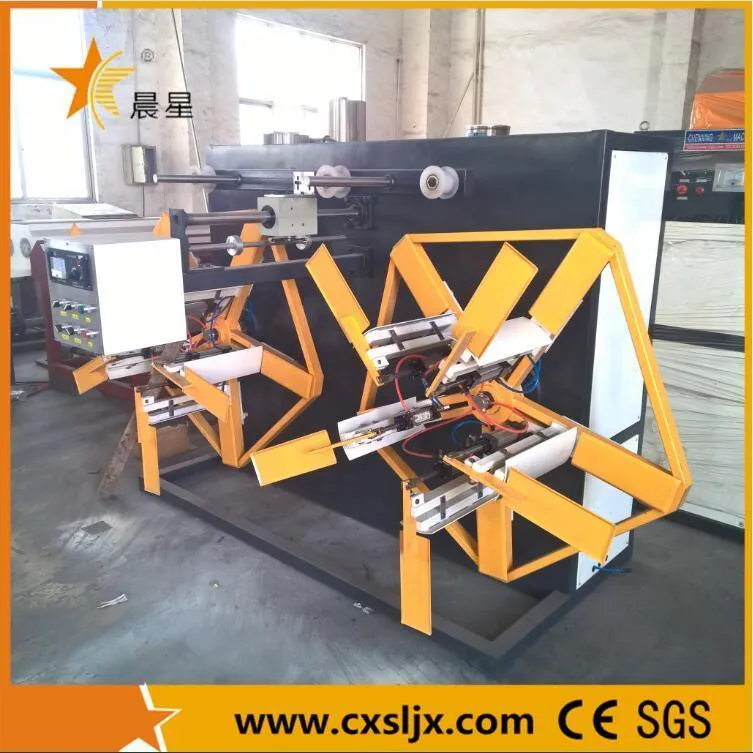

Winding Machine Photo 3

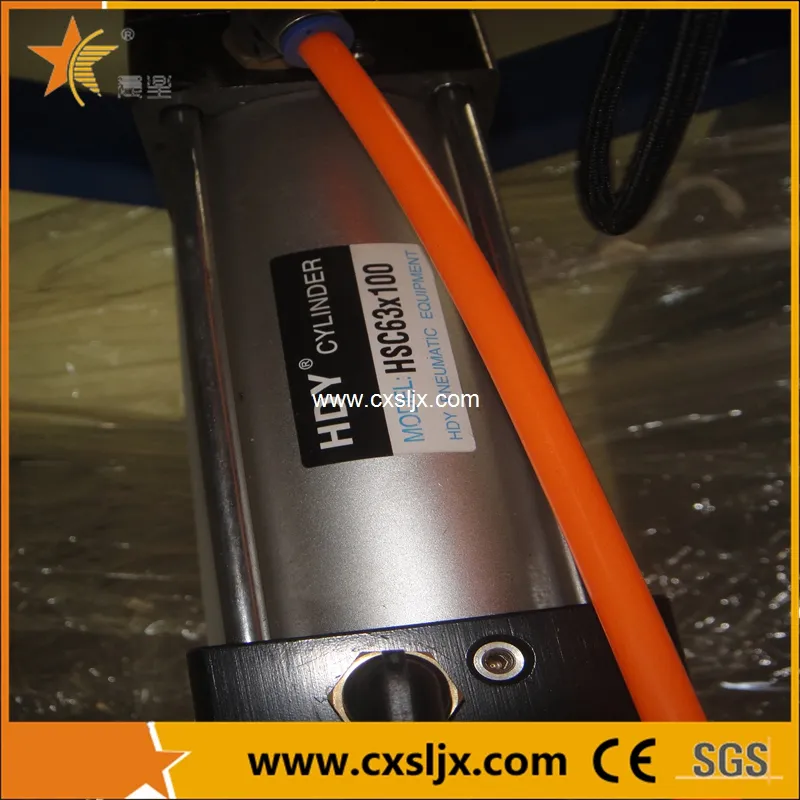

Winding Machine Photo 4

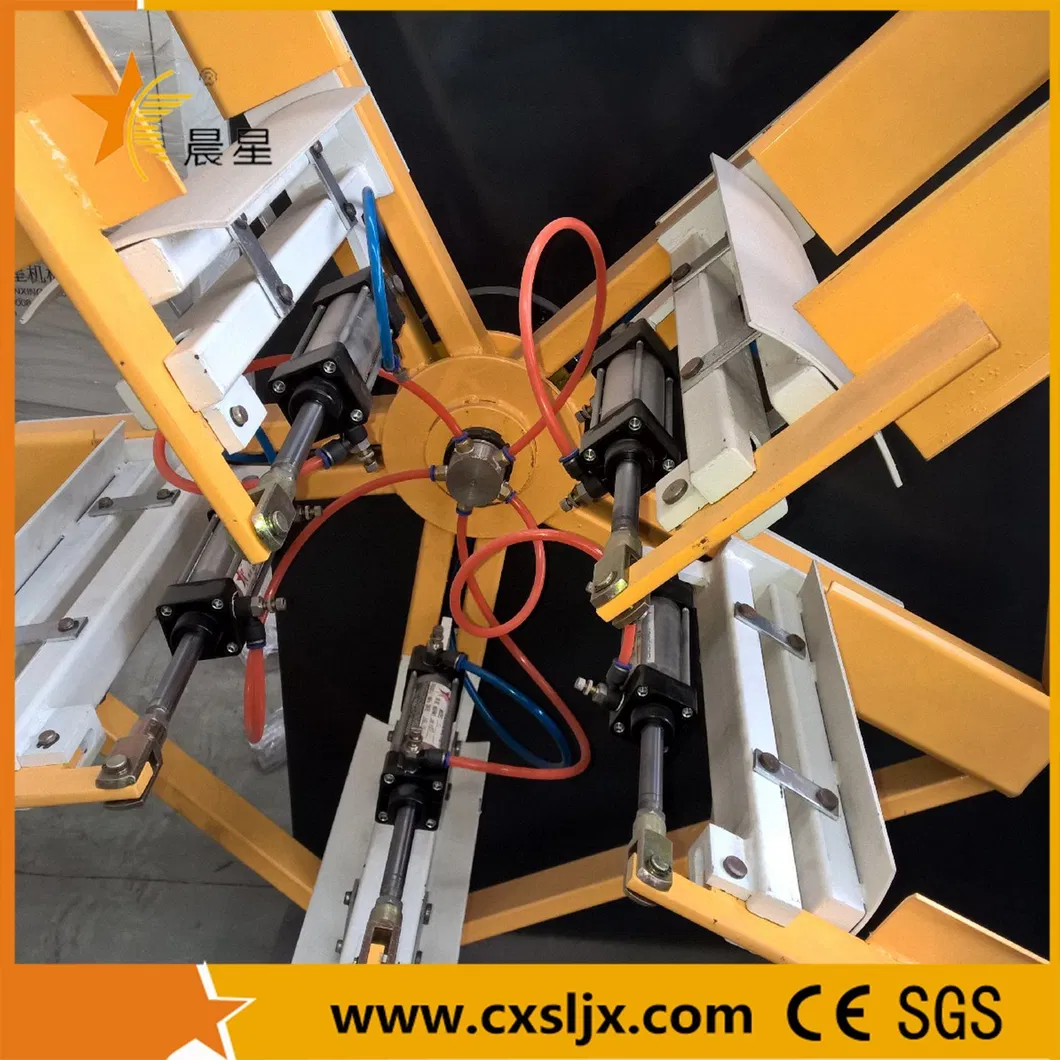

Winding Machine Photo 5
🏭 Factory Display

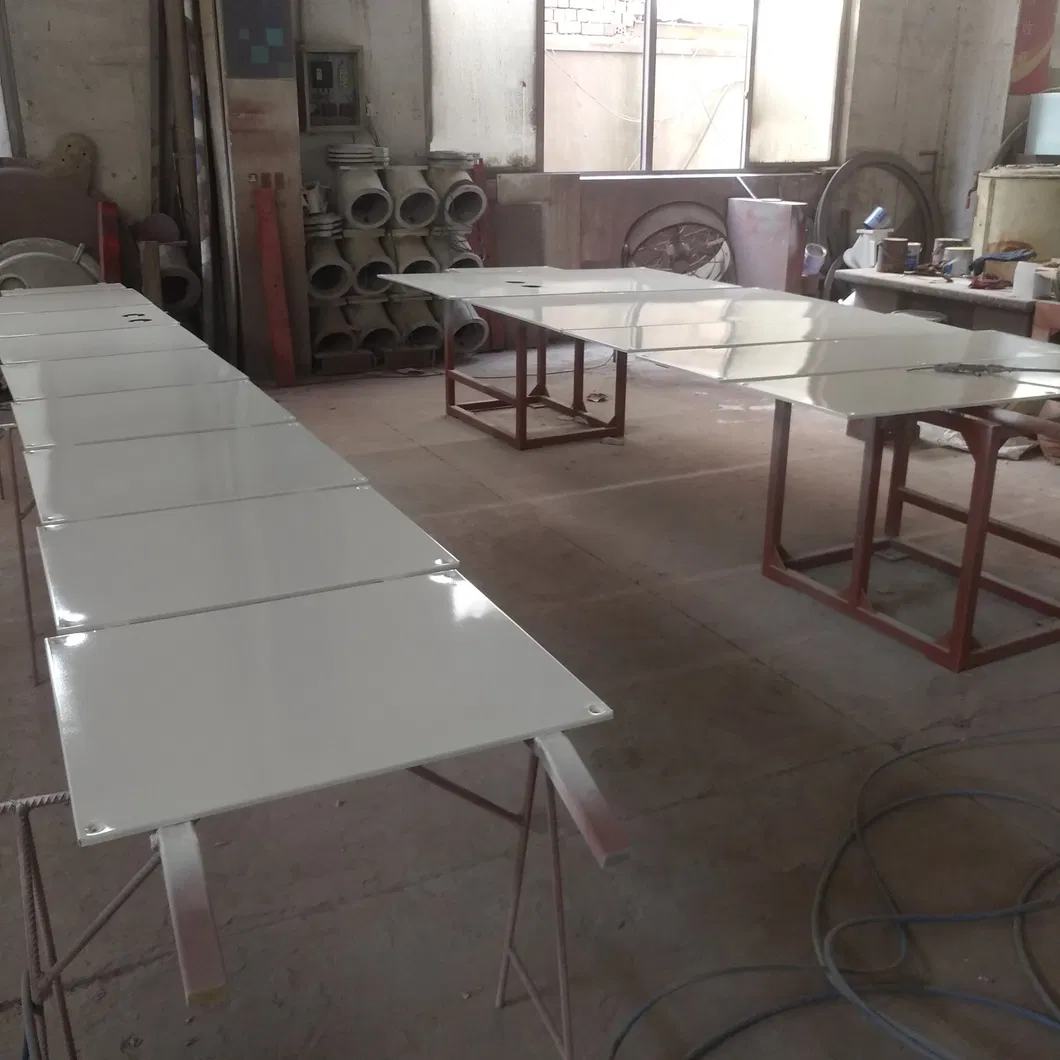

Factory Display 1

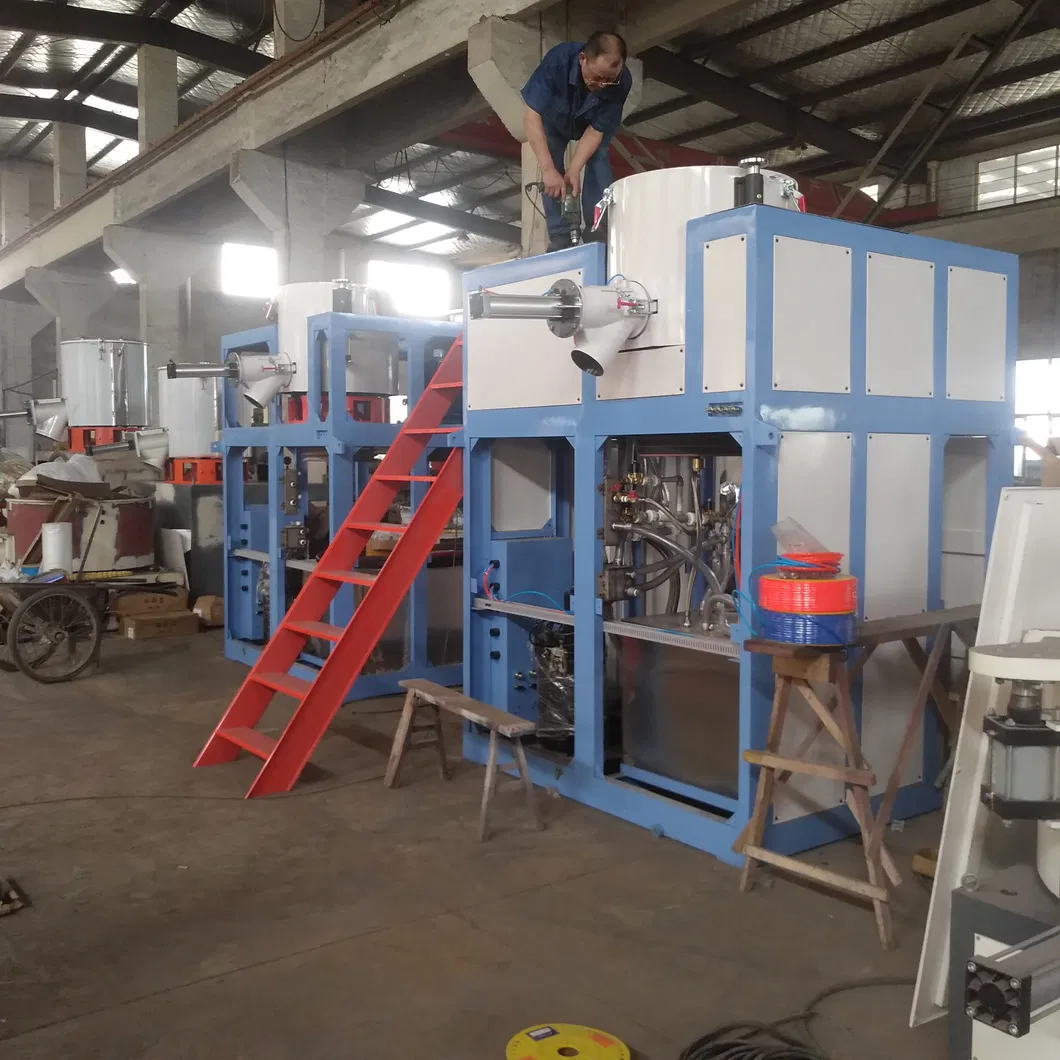

Factory Display 2

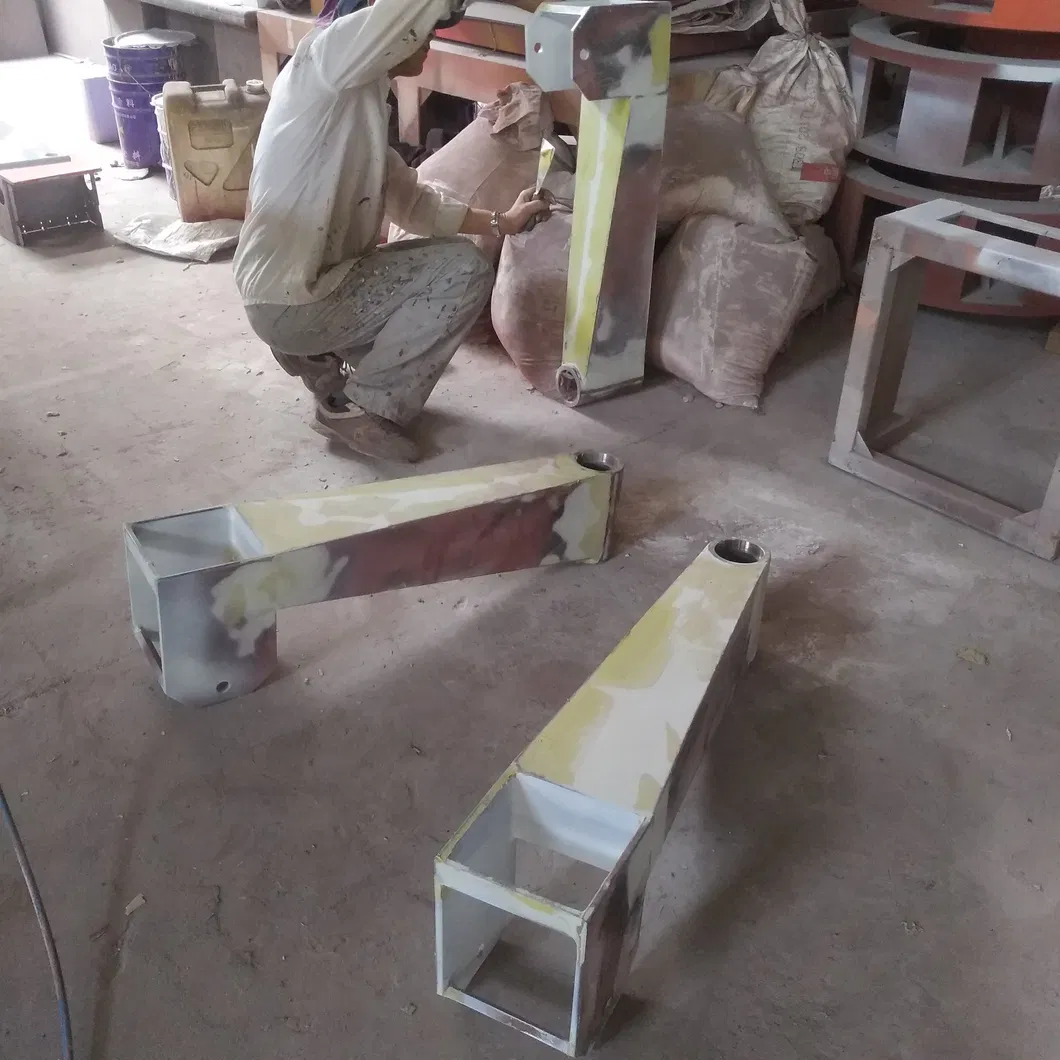

Factory Display 3
🏢 Professional Manufacturing
Production Facility

Focusing on the production of plastic machinery for more than 20 years, we are a progressive enterprise integrating new product development, product manufacturing, and sales. The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, and more.

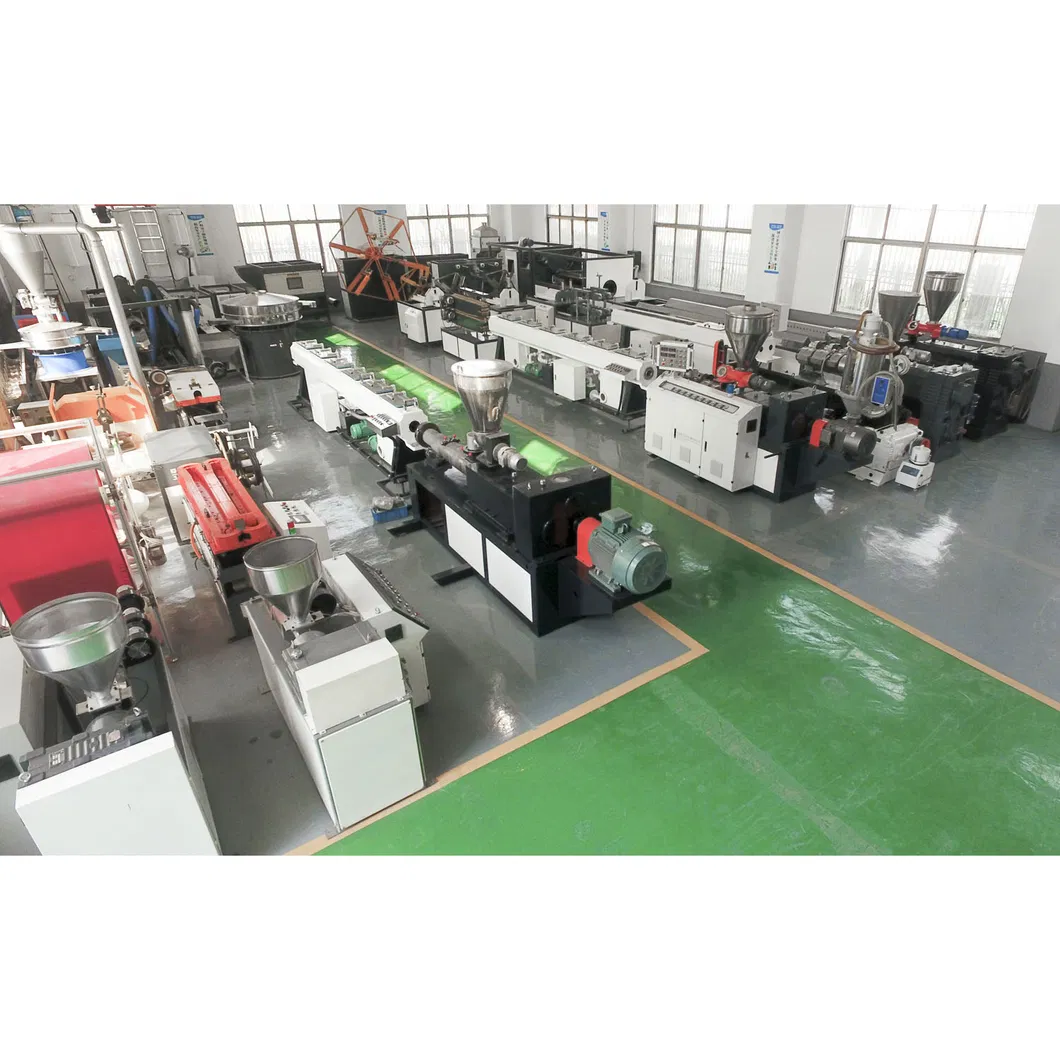

Additional Equipment 1

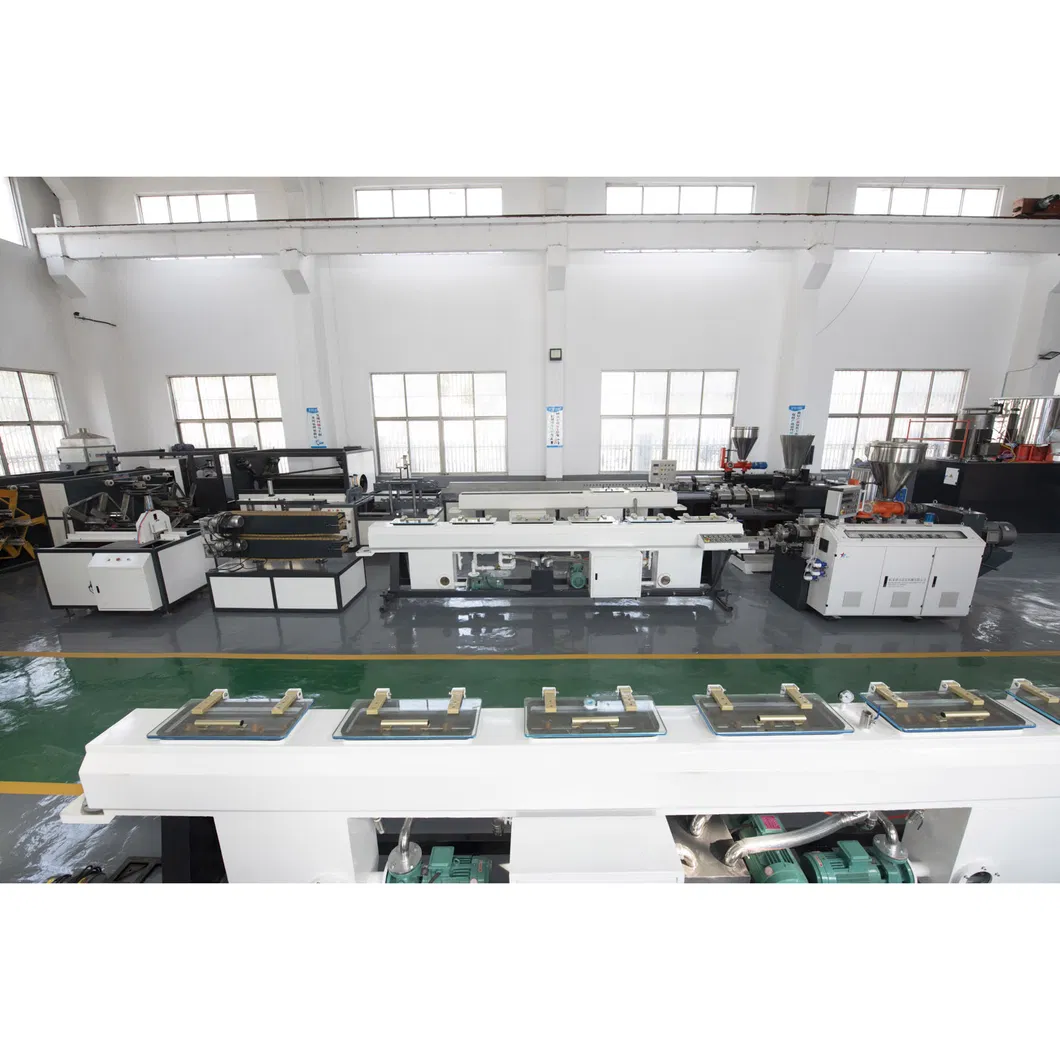

Additional Equipment 2
❓ FAQ
Are you a factory or trading company?
We are a professional manufacturer in the plastic machinery industry with over 20 years of experience.
How can you guarantee your quality?
We test each machine before delivery to ensure that it is in perfect condition and meeting all specifications.
What kind of after-sales service do you offer?
We offer a 12-month warranty period. During this period, we provide free parts for issues arising from manufacturing quality (excluding human error).
What types of pipes is this winding machine suitable for?
It is suitable for winding PVC, HDPE, LDPE, and PE corrugated or soft pipes, as well as plastic wire.
Can the winding speed be adjusted?
Yes, the winding speed is fully adjustable, typically ranging from 0 to 15 M/Min depending on the model.
What information is needed for a quotation?
Please provide the pipe diameter (inside and outside) and your local voltage requirements (e.g., 380V, 50HZ, 3 phase).
