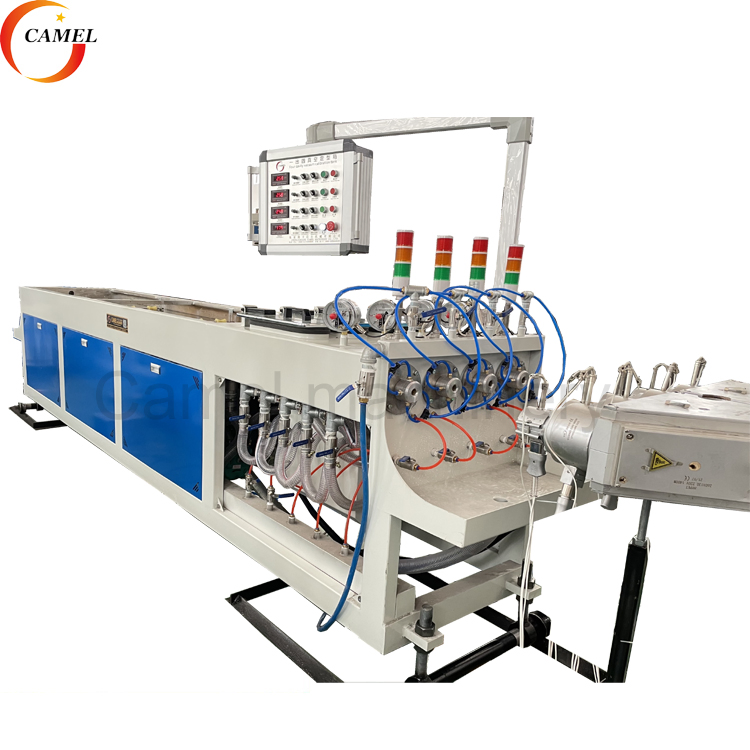

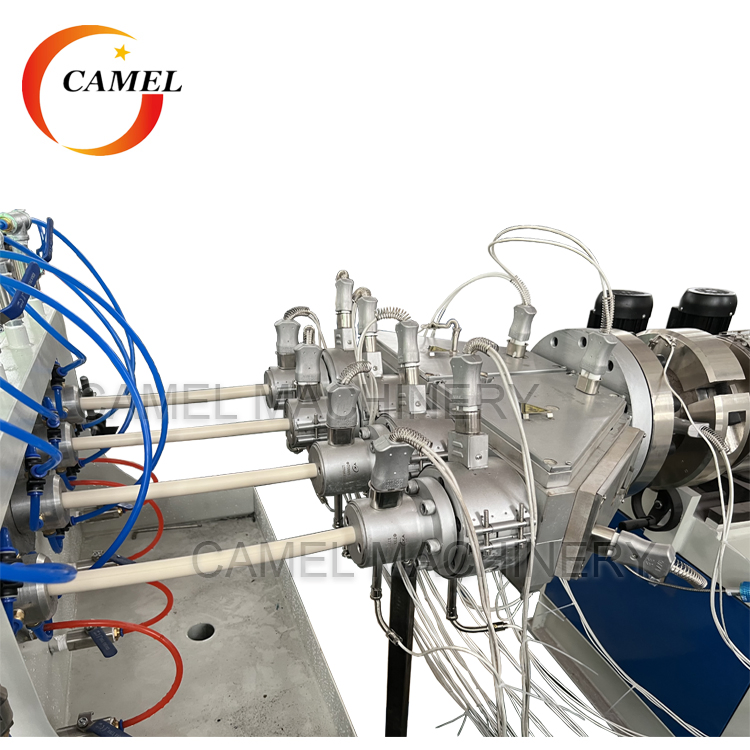

16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
1 / 5
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine
16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine

16-32mm Four Cavity Plastic Electric Pipe Extruding PVC Pipe Making Machine

Customization: Available
Warranty: 1 Year
Product Type: PVC Pipe
Send Inquiry

Product Description

Basic Information
Model NO.SJSZ-PVC Screw No.Double-screw
AutomationAutomatic ComputerizedComputerized
CertificationCE, ISO9001:2008 ConditionNew
Raw MaterialPVC Resin+CaCO3 MotorSiemens Beide/Weg
InverterABB/Delta Temperature ControllerOmron/Rkc
Pipe Size16-800mm Production Speed0.5-14m/Min
Voltage220V--480V(Customized) After-sales ServiceOn-Site Installation, Testing and Training
Product Description
Four Cavity PVC Electric Conduit Pipe Making Machine Plant

This PVC pipe extrusion line is mainly used in producing various diameters and wall-thickness of PVC pipes for agriculture and constructional plumbing, electrical conduit, etc.

PVC Pipe Extruding Machine

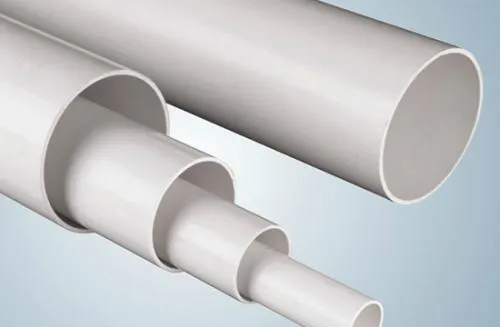

Pipe Extrusion Detail

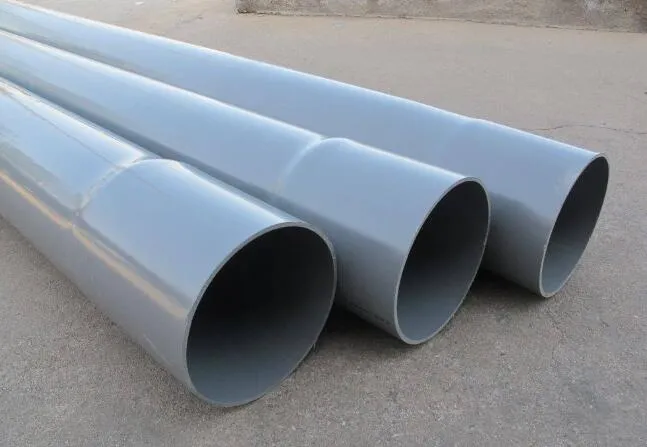

Pipe Extrusion Detail

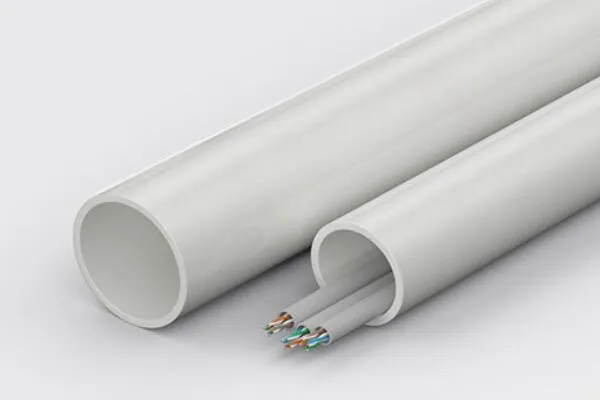

Pipe Extrusion Detail
Technical Features
  • Low energy consumption and high output with stable running.
  • Includes: material feeder, SJSZ series conic twin screw extruder, mould, vacuum calibration tank, spray cooling tank, haul-off, cutter, stacker/automatic belling machine.
  • Main electrics: Siemens motor, Siemens contactor, ABB inverter, RKC temperature controller.
Diameter range(mm) Extruder Model Main motor (KW) Max. Capacity (KG/H) Max. Speed (m/min)
16-32 FourSJSZ65/13237 AC25010×4
20-63 DualSJSZ65/13237 AC25012×2
20-110SJSZ51/10518.5 AC12015
50-160SJSZ65/13237 AC2508
110-315SJSZ80/15655 AC4503
315-630SJSZ92/188110 AC8001.2
Detailed Photos & Specifications
Extruder SJSZ65/132

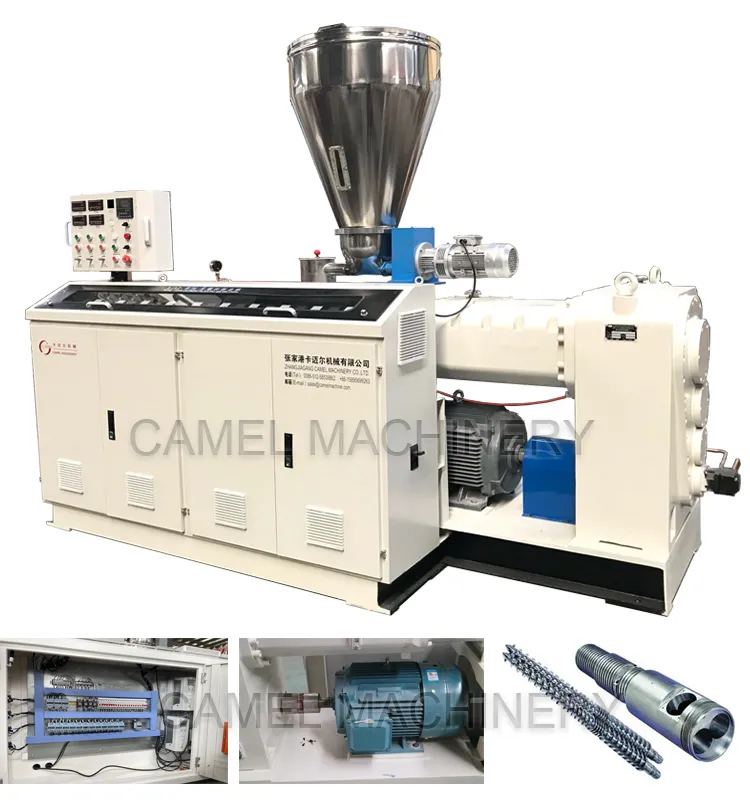

Extruder Unit

Screw/Barrel: 38CrMoAlA, Nitriding Treatment.
Rotation speed: 1-38r/min.
Capacity: 200-300kg/h.
Motor: Siemens 37kw.

High Precision Mould

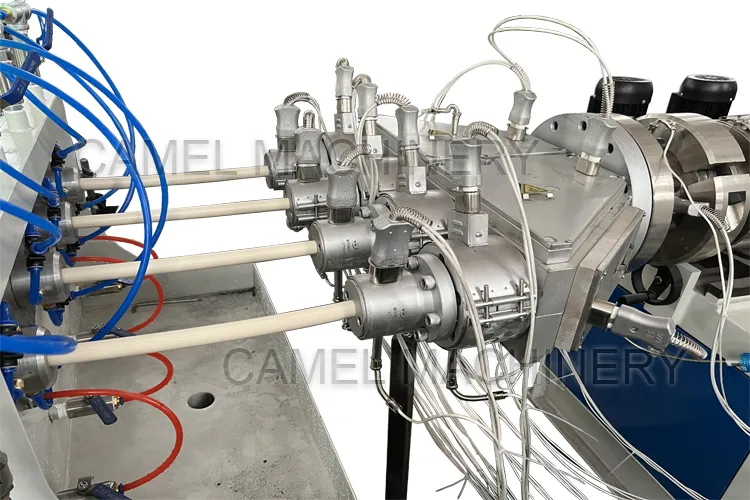

Mould Detail

Pipe range: 16-32mm.
Material: 40Cr, Inner surface polished.
Calibrator: Stannum Bronze.

Vacuum & Cooling System

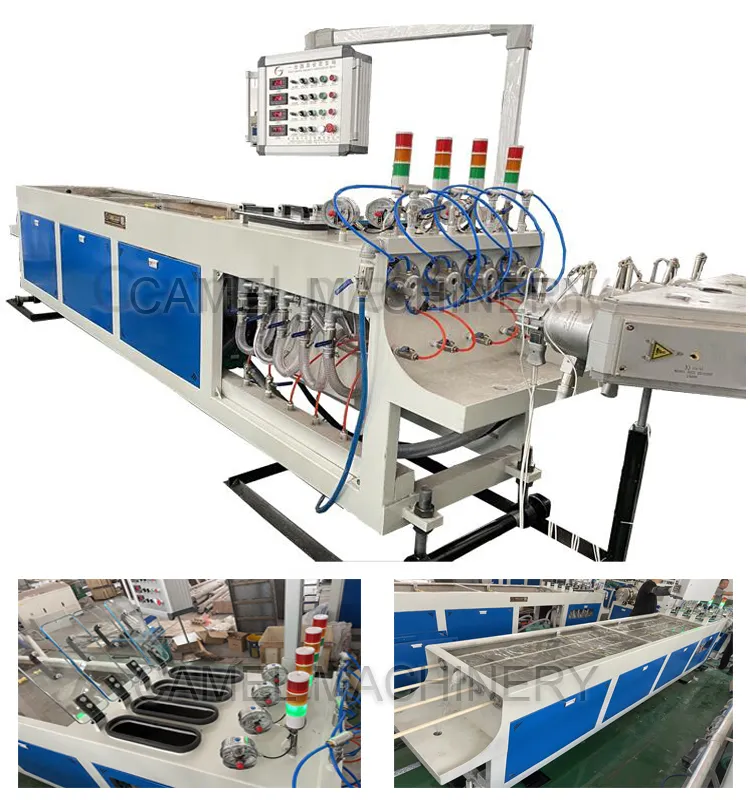

Cooling Tank

Material: Stainless steel 304.
Vacuum tank: 1 meter.
Water cooling tank: 3 meters.

Haul-off & Cutter

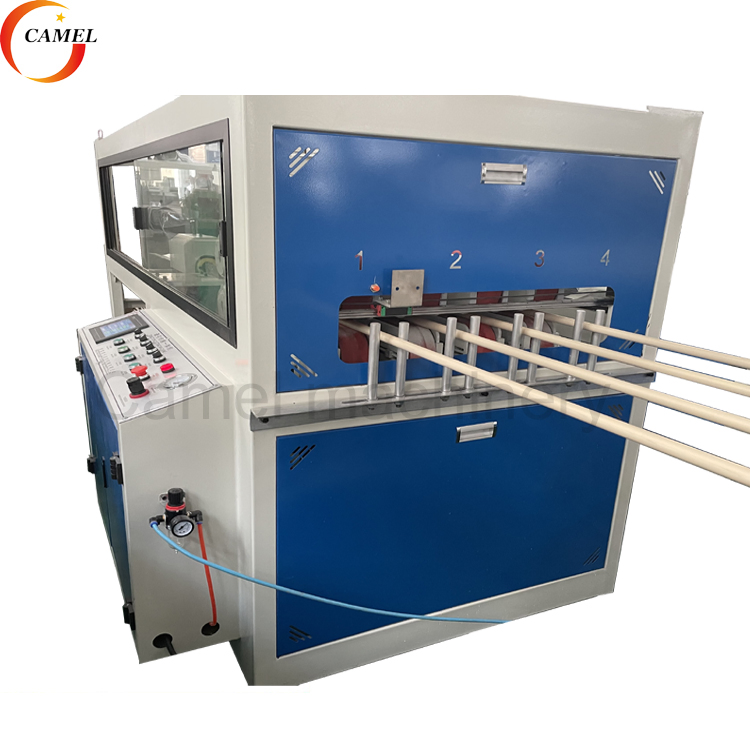

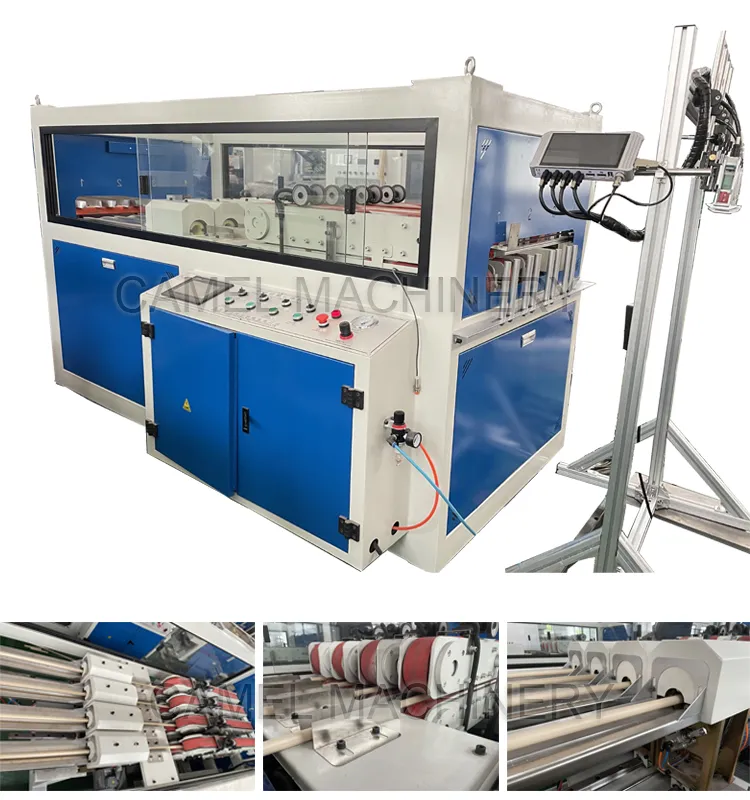

Cutter Unit

Drive: Pneumatic clamping.
Speed: 0.3-25m/min (ABB Frequency adjustable).
Cutting: Dust-free cutting with meter counter.

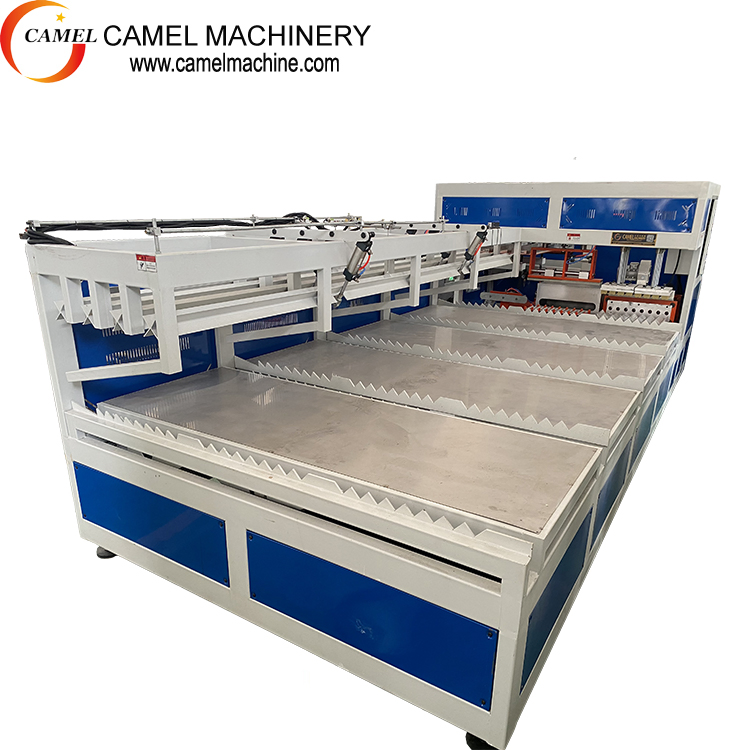

Automatic Belling Machine

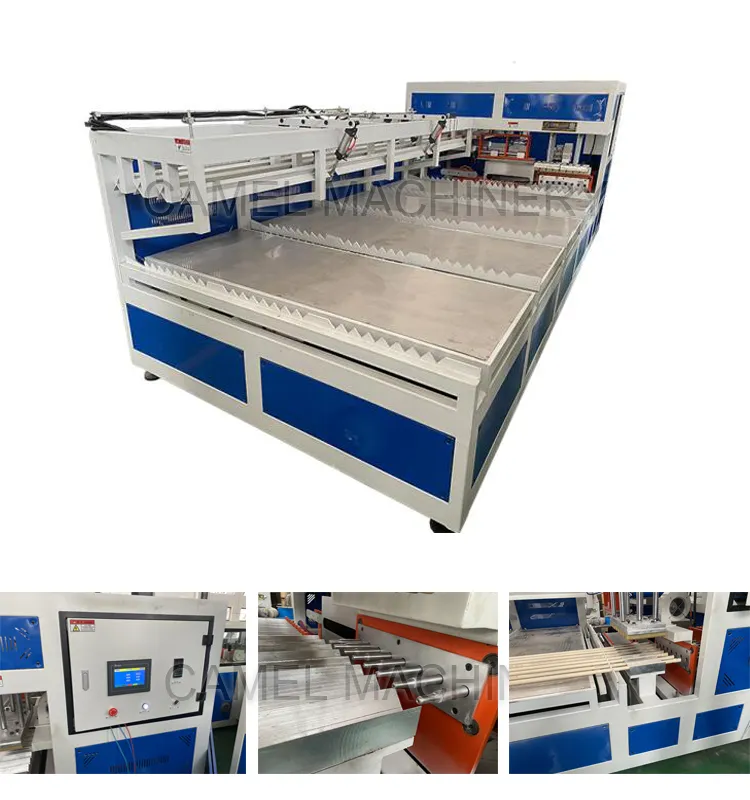

Belling Machine

Control: Delta PLC touch screen.
Efficiency: 8 Pipes heating and belling simultaneously.

Production Line Overview
Factory View
Frequently Asked Questions
What are the payment terms?
Normally 30% down payment as deposit, with the 70% balance paid before shipping.
What payment methods do you accept?
We accept TT (Telegraphic Transfer) and L/C at sight.
Do you provide engineer support for installation?
Yes, we send professional engineers to your factory to assist with installation, testing, and staff training for every machine set.
Are the machines certified?
Yes, our machines come with CE, SGS, and ISO certificates. We can also assist with other certifications if required.
What is the warranty and spare parts policy?
We provide a 1-year guarantee and offer 1 year's worth of wear-out spare parts for free. Our engineers are available for remote troubleshooting and on-site repairs.
Can the voltage be customized?
Standard voltage is 380V 50Hz 3-phase, but we can customize it to any voltage according to your local requirements.
