| Model | Power(kw) | Grinding chamber(mm) | Fixed blades(pcs) | Rotary blade-A(pcs) | Rotary blade-B(pcs) | Output(kg/h) | Dimension (L*W*H)mm | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| SHXR-400 | 7.5 | 370*400 | 2 | 6 | 24 | 50-100 | 1420*930*1410 | 535 |
| SHXR-500 | 11 | 370*500 | 2 | 6 | 30 | 100-150 | 1420*1030*1410 | 600 |
| SHXR-600 | 15 | 480*600 | 4 | 6 | 30 | 150-250 | 1760*1170*1835 | 1030 |
| SHXR-700 | 18.5 | 480*700 | 4 | 6 | 36 | 200-400 | 1760*1270*1835 | 1130 |
| SHXR-800 | 22 | 480*800 | 4 | 6 | 42 | 300-600 | 1760*1370*1835 | 1245 |
| SHXR-820 | 30 | 800*800 | 4 | 6 | 30 | 500-1000 | 2895*1610*2880 | 2870 |
| SHXR-1000 | 45 | 800*1000 | 4 | 6 | 39 | 1000-1500 | 2895*1825*2880 | 3236 |
| SHXR-1200 | 55 | 800*1200 | 4 | 6 | - | 1500-2000 | 2895*1995*2880 | 3720 |

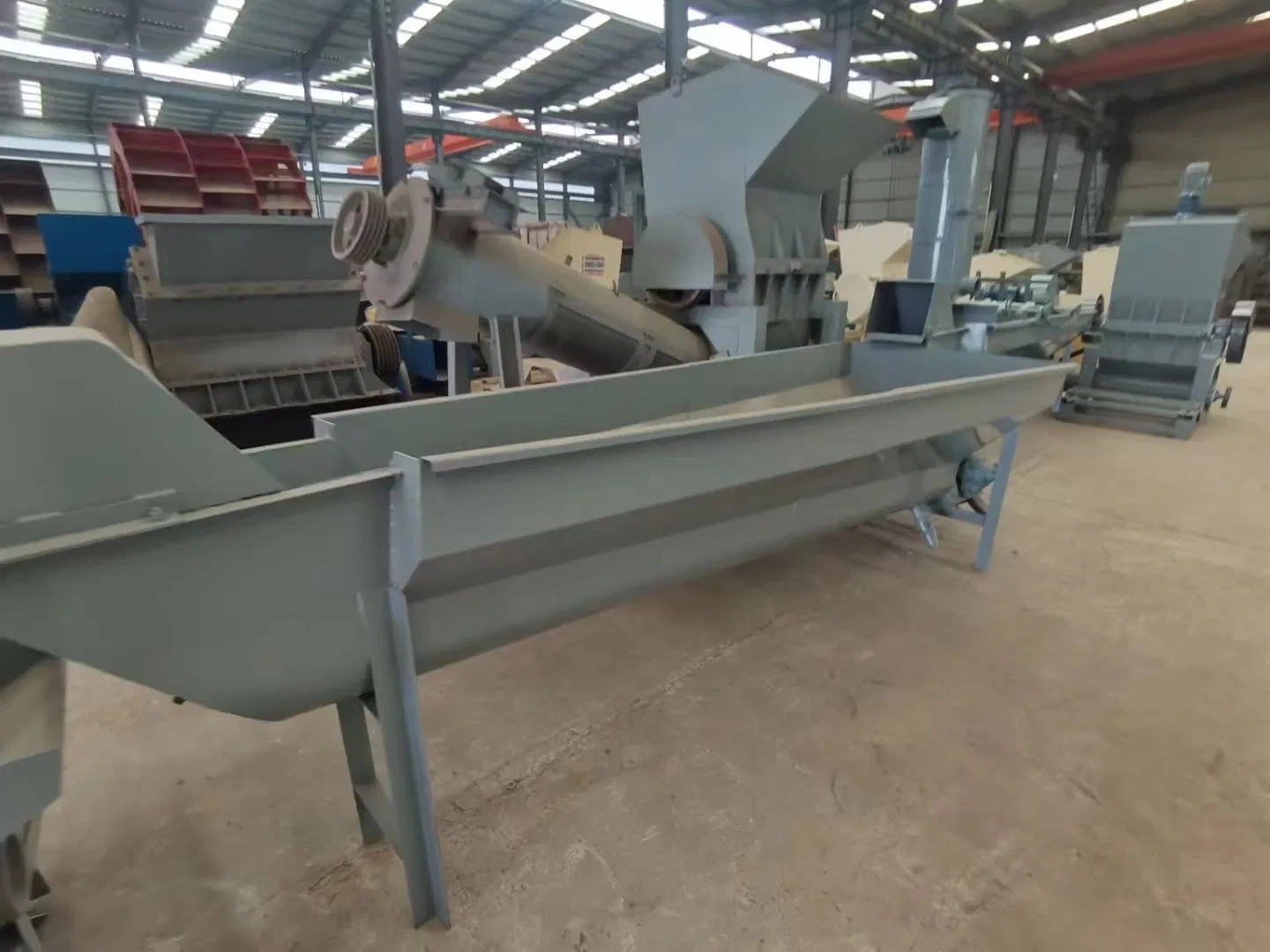

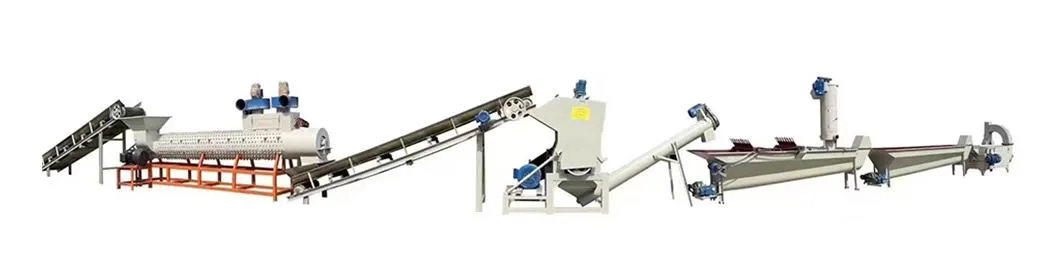

| S/N | Item Name | Function / Remark |
|---|---|---|
| 1 | Conveyor | Feeding material |
| 2 | Label removal machine | Remove labels from bottles |

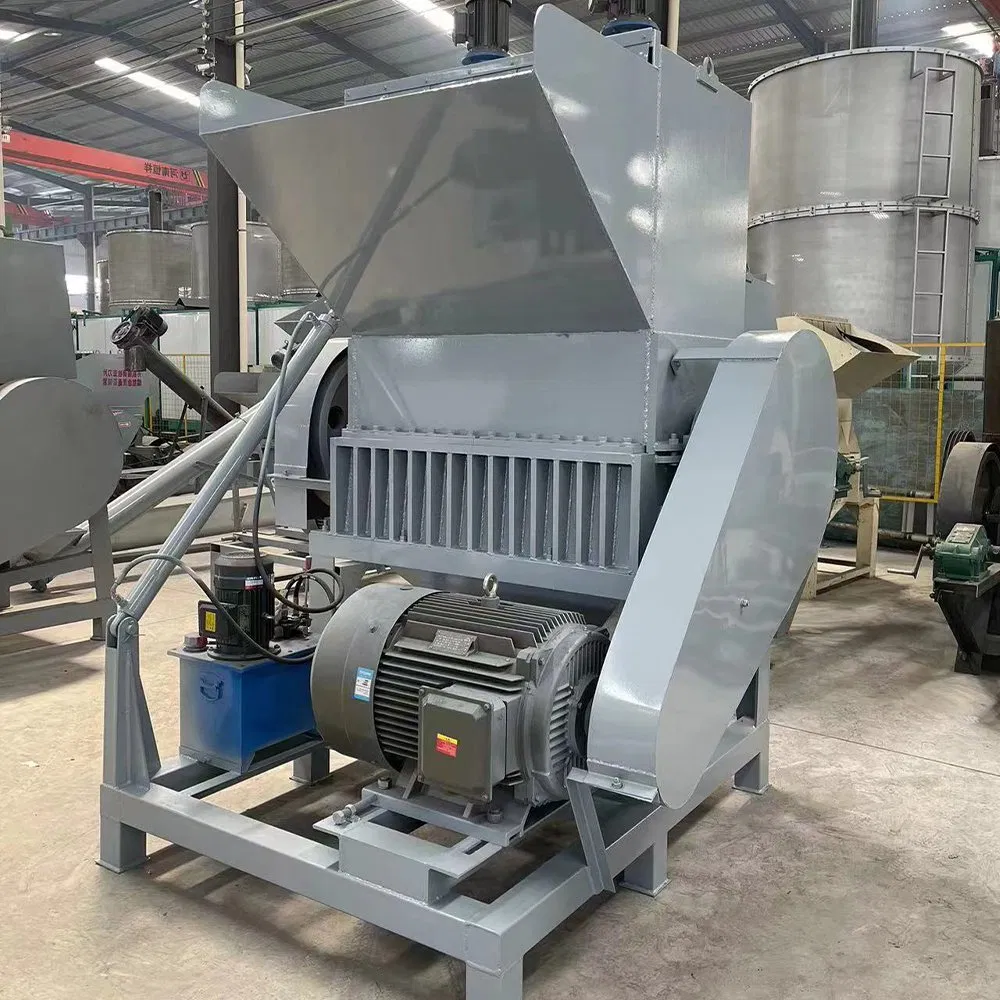

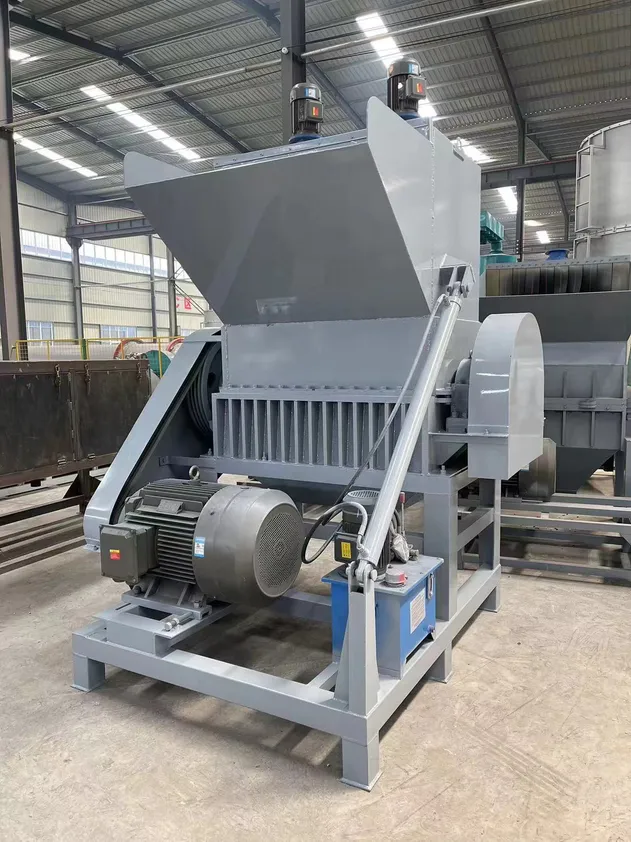

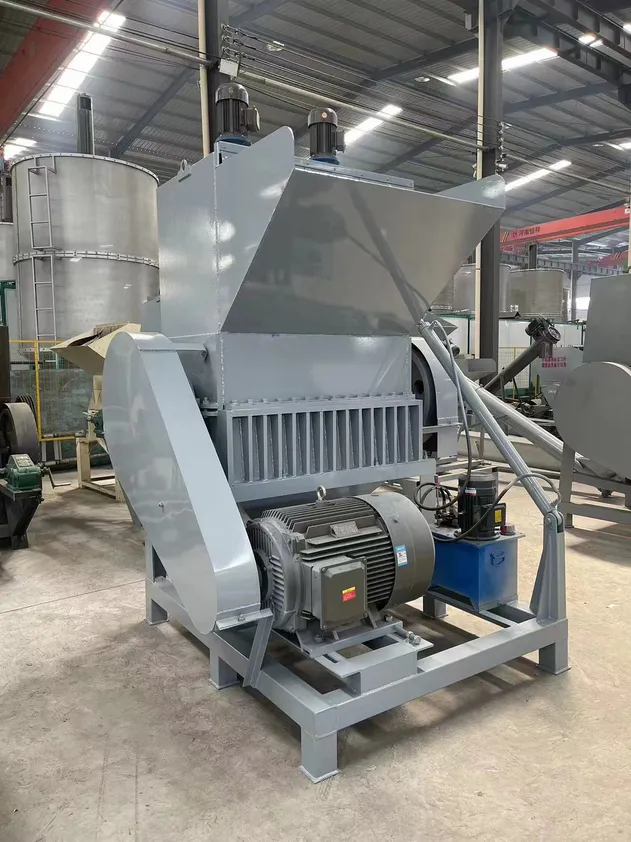

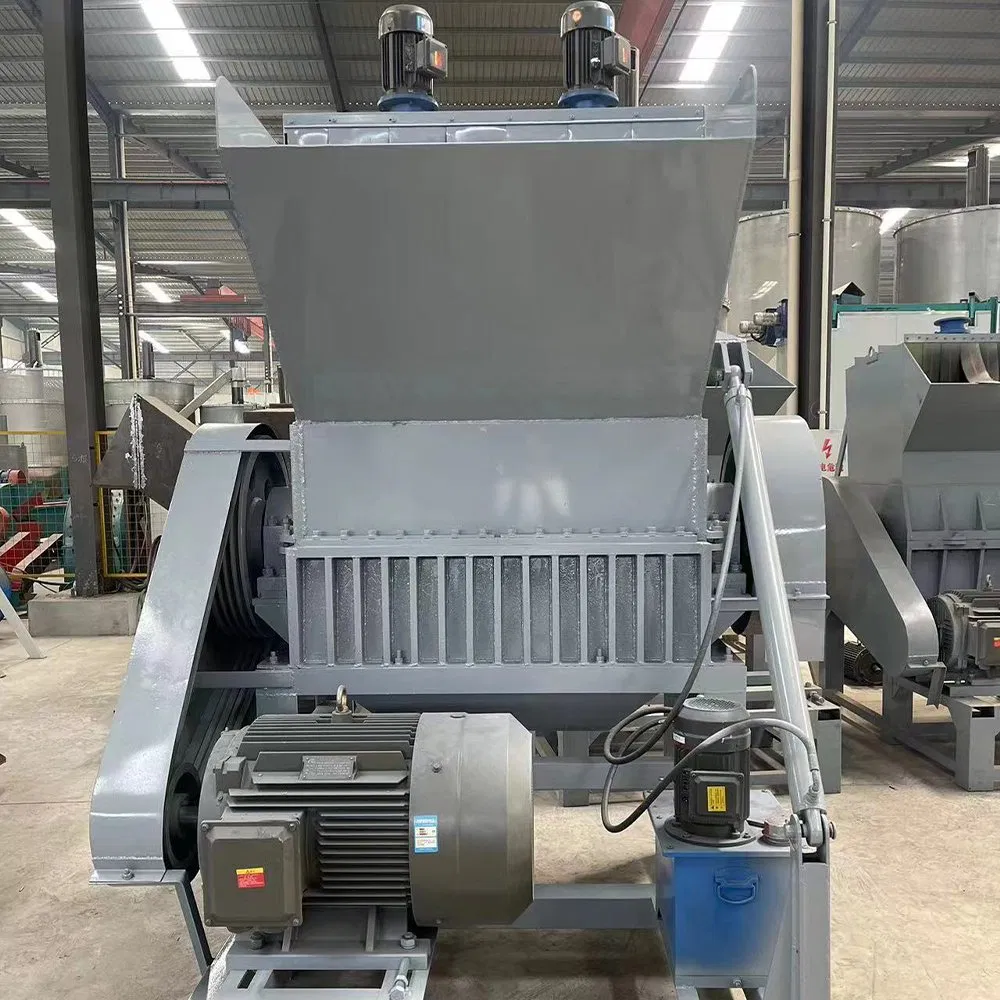

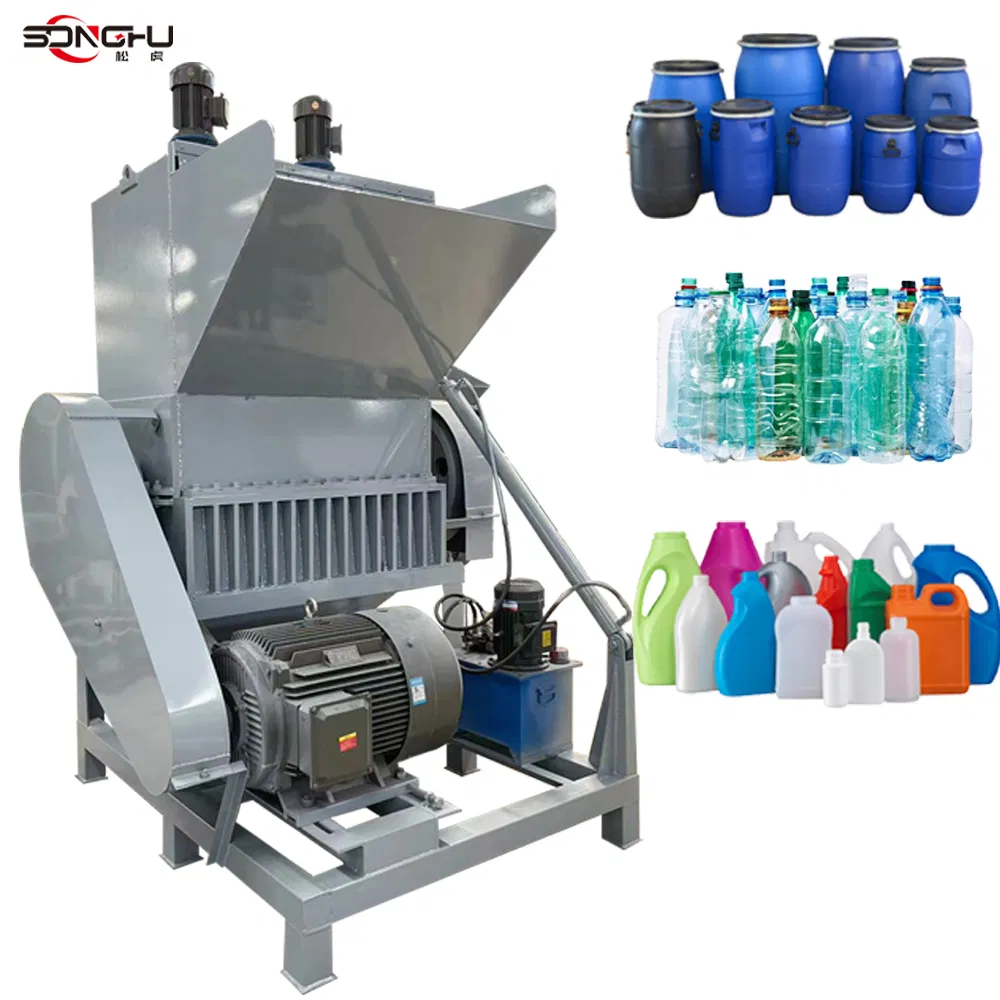

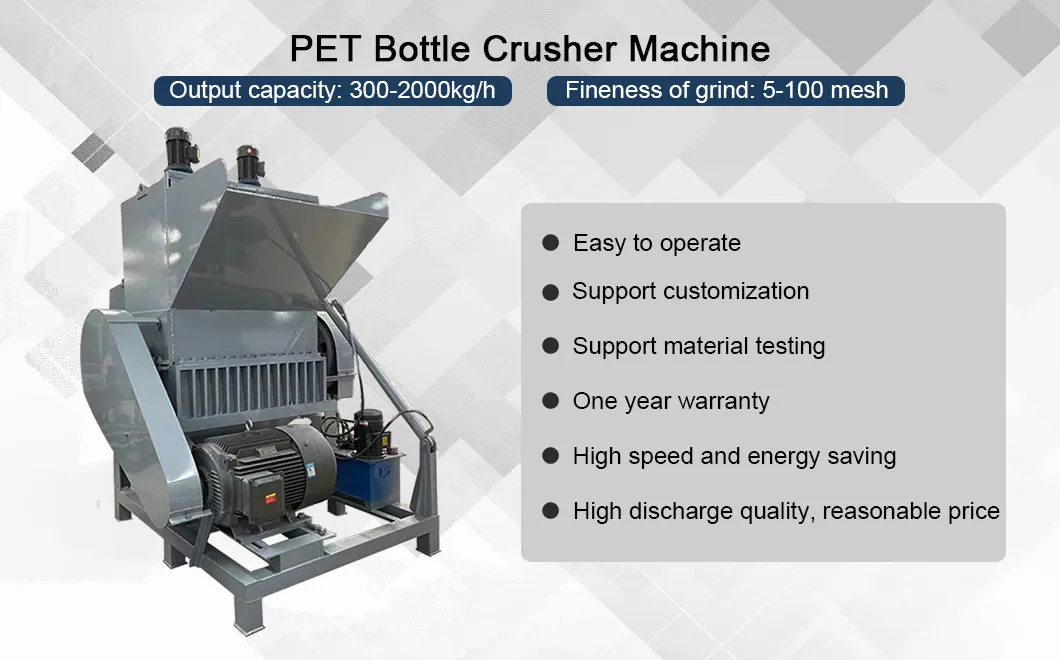

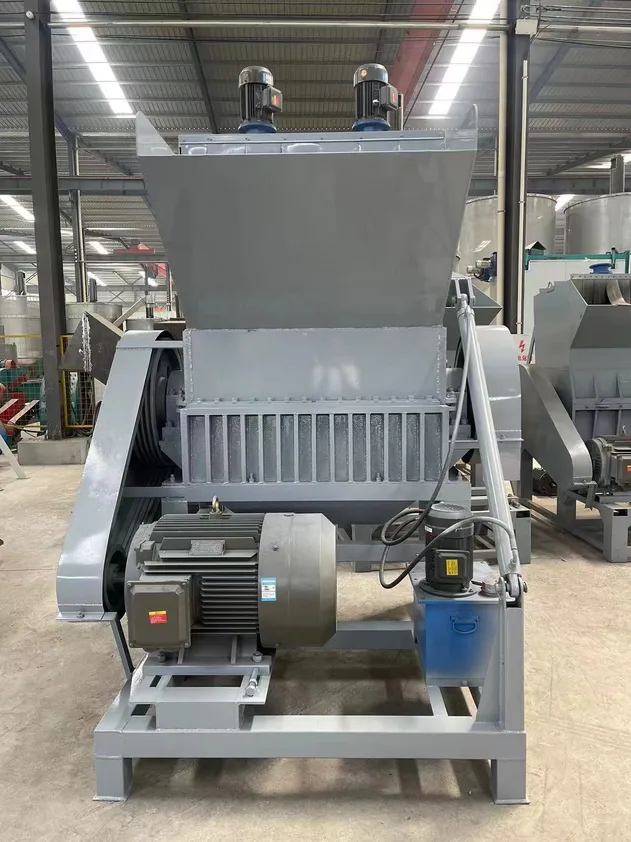

| 3 | Crusher | Crushing the material into small size |
| 4 | Flotation Washing | Floating washing separate the sand, soil and other dirties |
| 5 | Second Flotation Washing | Floating washing separate the sand, soil and other dirties |

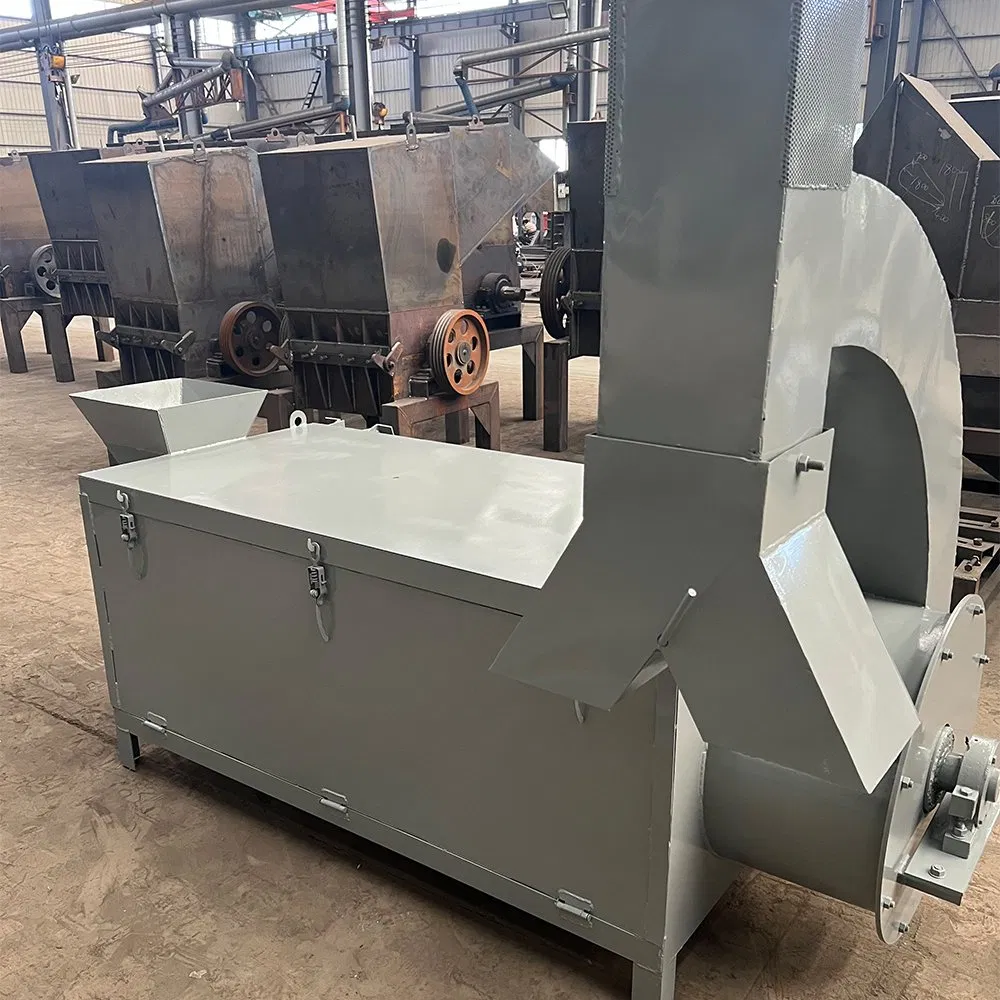

| 6 | Drying machine | Material drying collection and packaging |
Handles common plastic wastes:

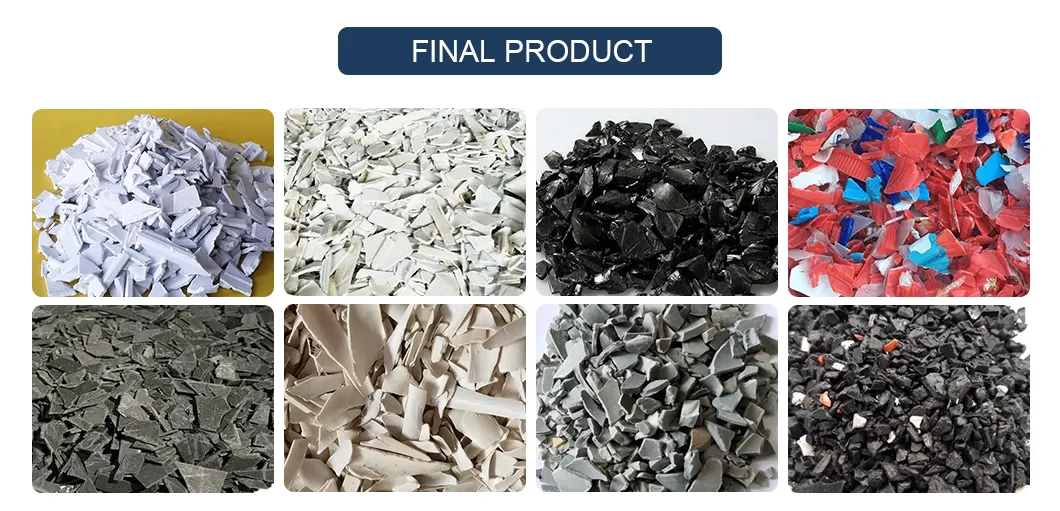

Final Output: High-purity flakes suitable for fiber and tape production.
