Auto Plastic PVC Powder Automatic Batching Dosing & Compounding Weighing Mixing High Speed Mixer Conveying System for PVC Pipe Profile Spc Flooring Factory

Customization:	Available
Additional Capabilities:	Auto Weighing
After-sales Service:	Engineers Available to Service Machinery Overseas, Free Spare Parts, Online Support, video Technical Support

Send Inquiry

Product Description

Product Overview

Model NO.

SR-2000

Application

Granules, Powder

Application Area

Chemical, Daily Chemical, PVC Production

Certification

CE, ISO

Cooling Method

Water Cooling

Heating Method

Friction Heating

Main Material

Stainless Steel SUS304

Control Method

Siemens PLC

Mixing Capacity

500-999L

Production Capacity

100 Set /Year

Packaging & Delivery

Package Size

400.00cm * 180.00cm * 200.00cm

Gross Weight

2000.000kg

Product Description

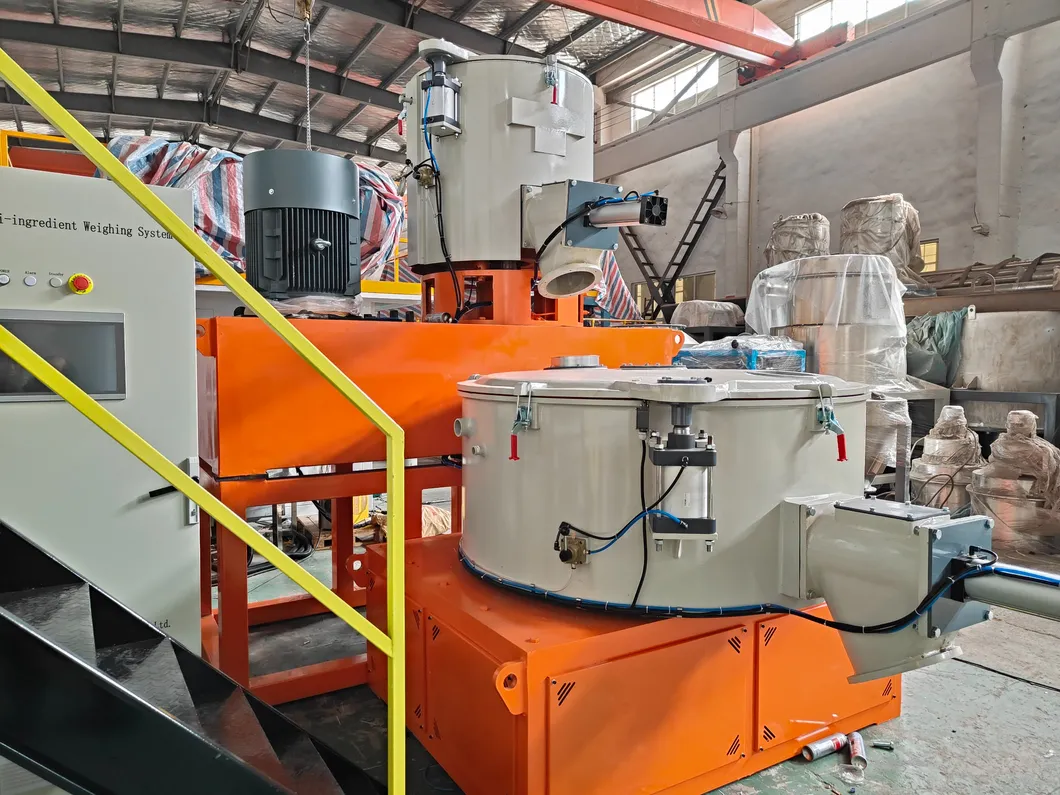

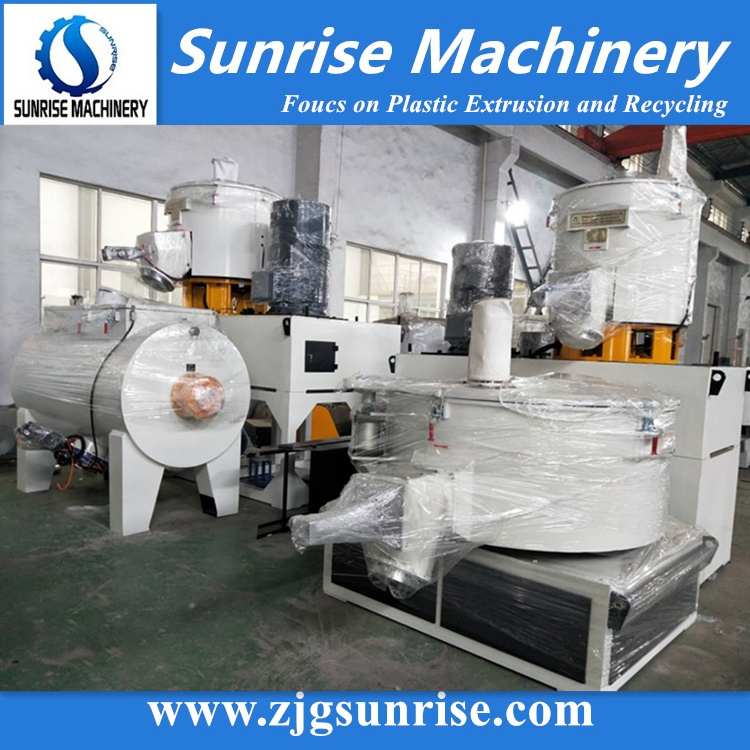

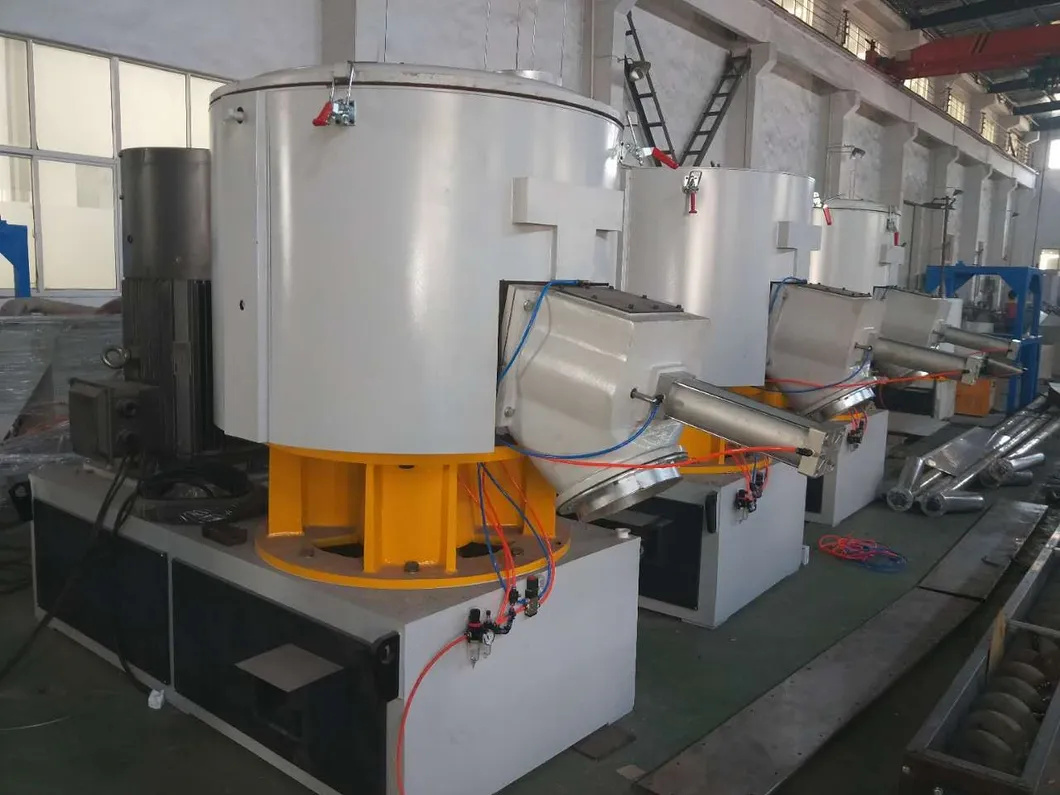

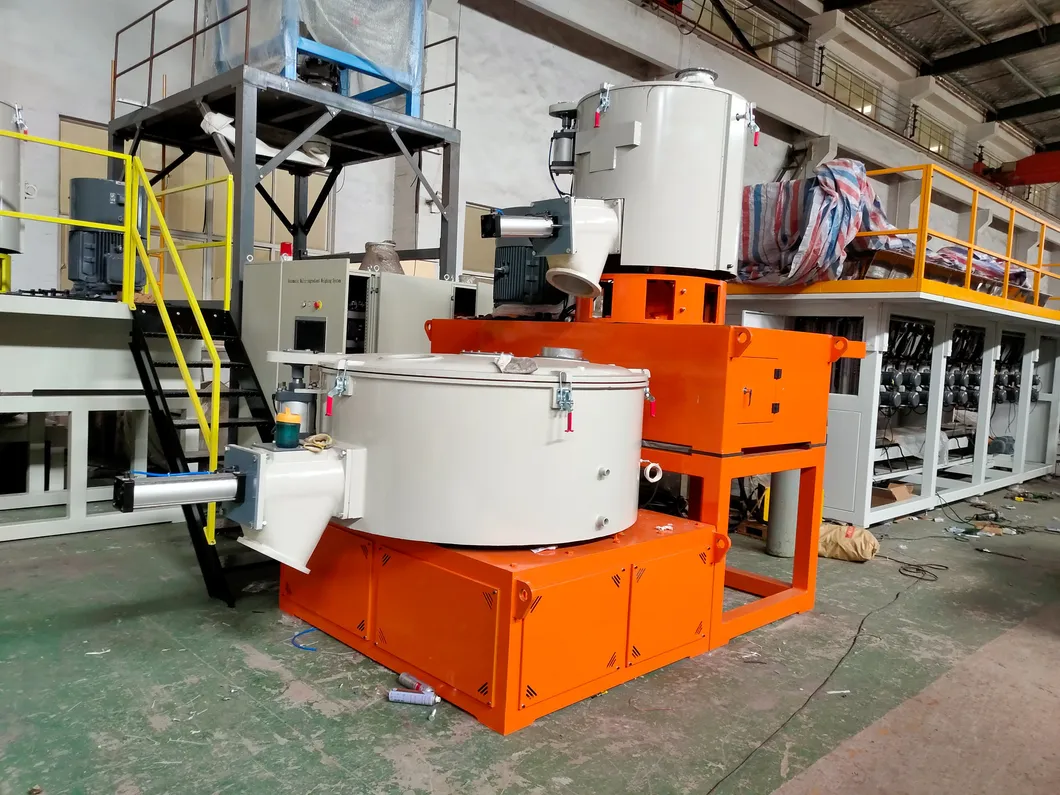

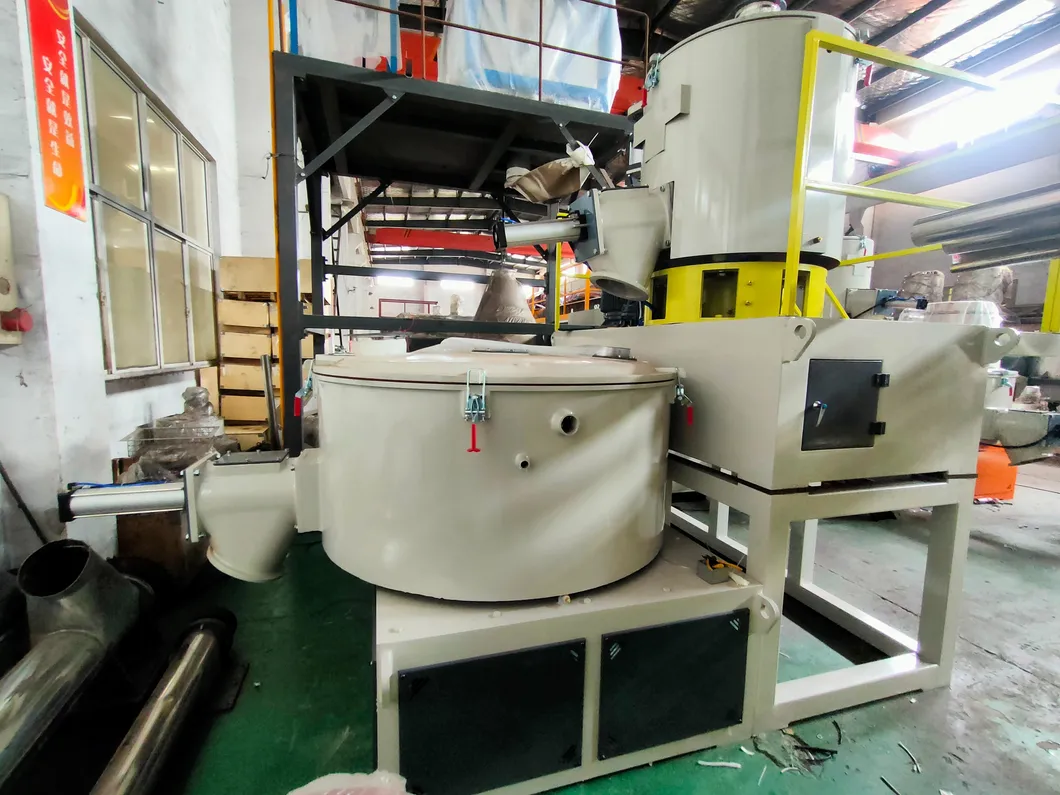

High Speed Mixer / PVC Hot and Cool Mixer Machine

PVC mixer machine is an necessary auxiliary machine for making plastic pipes, plastic profiles, plastic board, WPC extrusion line, cable production line, etc. Its function is to mix the raw material with different kinds of additives. Usually, for PVC powder material, you need to use high speed hot mixer and low speed cool mixer, which means mixer unit. SRL series ranges from 10L-2000L, with batch capacities from 3kg-600kg.

Technical Model List

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/2500
Effective volume(L)	75/160	150/320	200/360	375/650	600/1500
Motor power(KW)	14/22-7.5	30/42-11	40/55-11	55/75-18.5	83/110-30
Mixing time (Min)	8-10	8-10	8-10	8-10	10-12
Gross weight (KG)	2200	3400	3600	6500	9800

⚙️

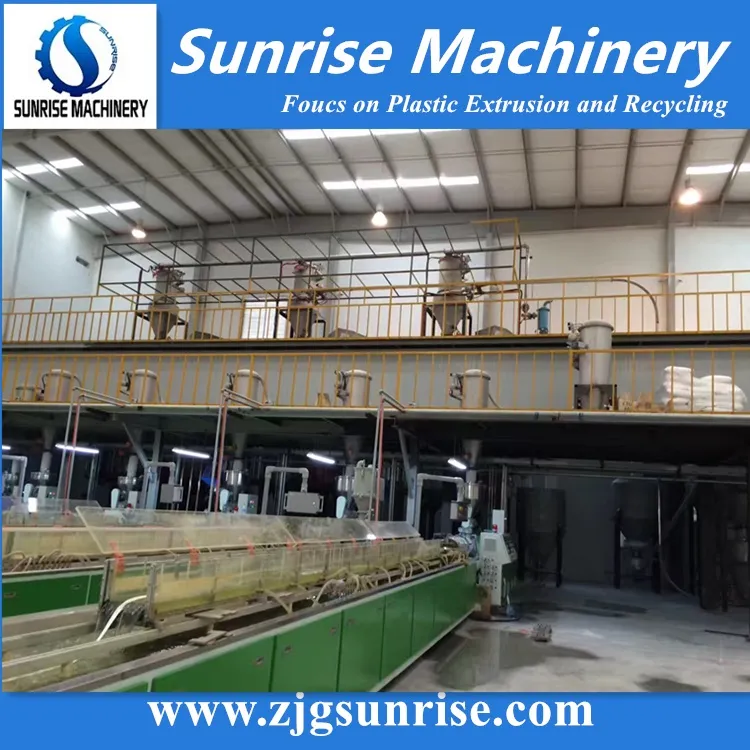

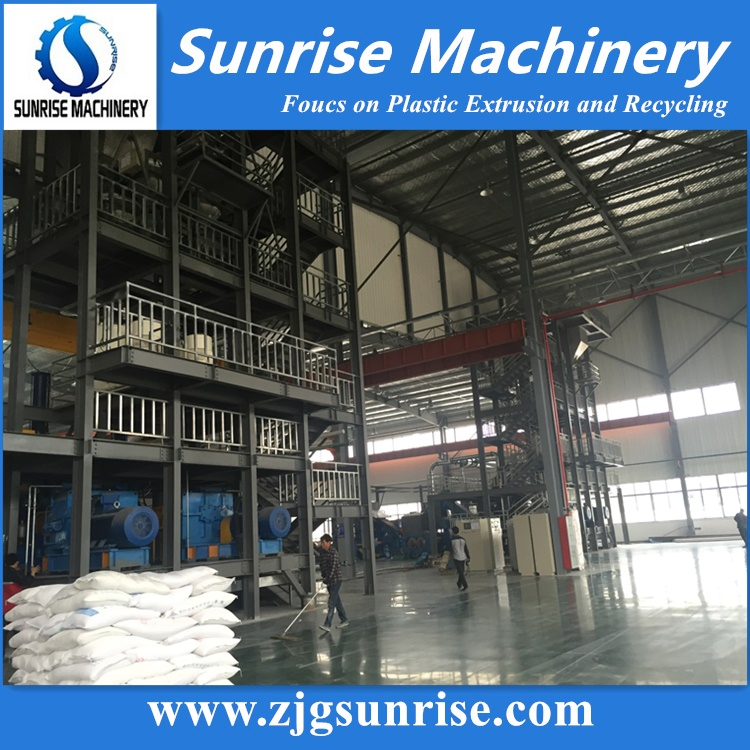

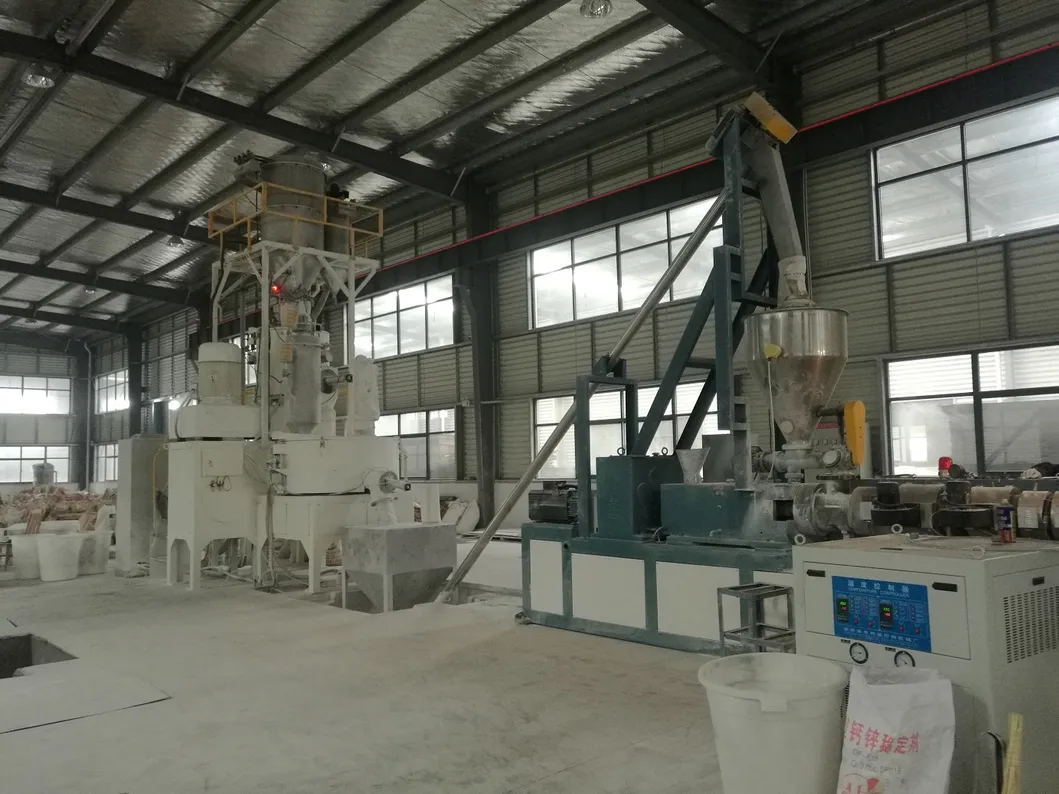

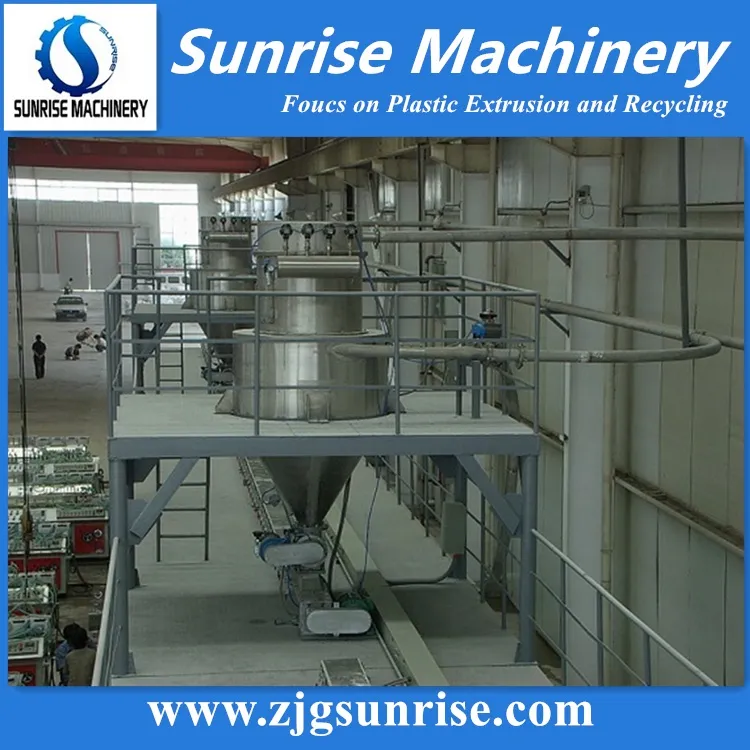

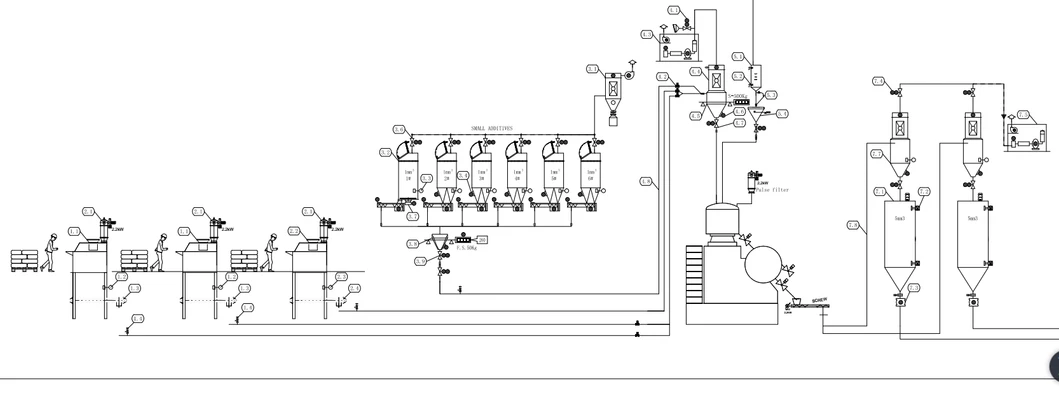

PVC auto weighing, mixing and feeding system is specially used for PVC pipe & PVC profile production. This system could auto weigh the PVC, CaCO3 and other additives and auto feed to the mixer. It features non-dust operation (reducing at least 95% dust), labor-saving, high efficiency, and fully automatic operation.

Frequently Asked Questions

What are the main applications for this mixer?

The SR-2000 series is designed for mixing granules and powders in chemical, daily chemical, and PVC production environments, specifically for pipes, profiles, and cable production lines.

What materials are used in the construction of the mixer?

The main materials include Aluminum and high-grade Stainless Steel SUS304 to ensure durability and prevent contamination during the mixing process.

How is the temperature controlled during high-speed mixing?

The system utilizes friction heating for the hot mixing stage and a water-cooling method for the cooling mixer stage to ensure precise material processing.

Does the system support automatic weighing?

Yes, the system includes an automatic weighing module from Siemens and Toledo sensors to accurately dose PVC, CaCO3, and other additives.

What is the control system used for operation?

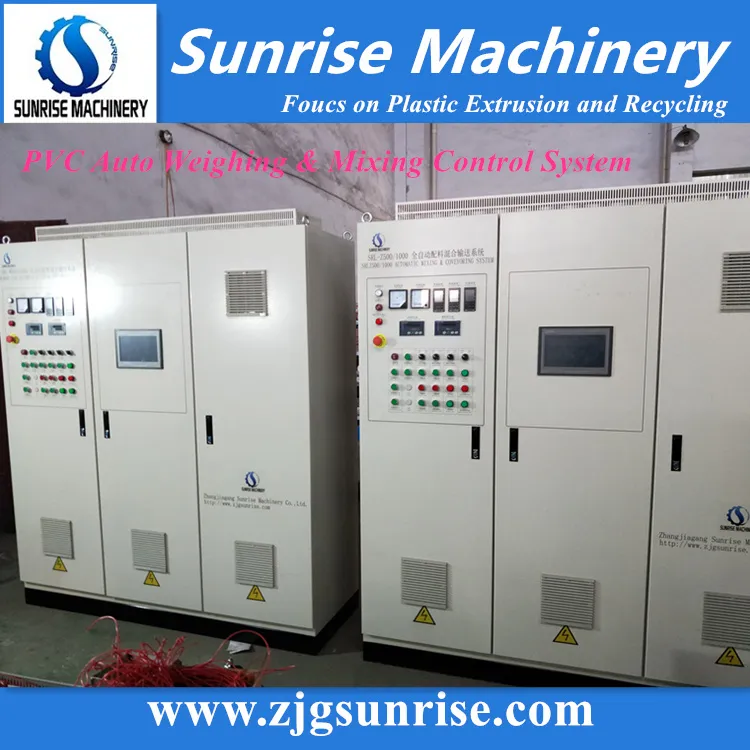

The machine is equipped with a Siemens PLC control system for fully automatic cycle operation and variable speed control.

How does the system reduce environmental dust?

The automatic batching and conveying system is designed to be fully enclosed, which can reduce dust by at least 95% compared to traditional manual mixing methods.
