Customization: Available
Additional Capabilities: Drying
Application: Liquid with Suspended Solids, Powder, Granules, Powder
Send Inquiry

Product Description

Basic Information
Model NO.
SRL-W
Application Area
Chemical
Condition
New
Stirring Type
Spiral
Working
High Speed Mixer
Wall Material
Stainless Steel SUS304
Wall Thickness
8mm
Model Number
SRL-W500/1000A
Power(W)
67/15kw
Voltage
380V/50Hz/3phase
Main Electrics
Siemens
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Wood Pallet+Stretch Film
Origin
Jiangsu Suzhou
Production Capacity
30sets/Month
Product Description

This high-speed mixing unit is designed for all kinds of plastic powder mixing, drying, coloring, and other processes. The unit consists of one hot mixer and one cooling mixer, making it an ideal choice for the production of profiles and pipe manufacturers.

1
Essential equipment for PVC pipe, profile, board, and PVC foam board production.
2
Internal manufacturing of critical components like the pan, agitator, and distribution box to ensure quality.
3
Mixer lid features double sealing and pneumatic opening for convenience and efficiency.
4
Abrasion-resistant coating on stirring paddles ensures long service life and smooth operation via balance testing.
5
Precision-ground barrel walls and Japan-imported RKC thermo control meters for accurate temperature management.
Main Technical Parameters
Item Model Total Volume (L) Effective Volume (L) Capacity (kg/h) Speed (r/min) Motor Power (kw) Heat/Cool Medium Weight (t)
SRL-W 300/600300/600225/384550-600480/964/7040/55/119kw/water3.5
SRL-W 500/1000500/1000375/660800-1000441/886/6047/67/159kw/water7.8
SRL-W 500/1600500/1600375/1024800-1000441/886/5147/67/18.59kw/water8.5
SRL-W 800/2000800/2000560/12801300-1500330/660/51110/18.5Self-friction/Water10
SRL-W 800/2500800/2500560/16001300-1500330/660/51110/22/11
SRL-W 1000/35001000/3500750/2240800-2000330/660/51132/37/12
Scene Pictures

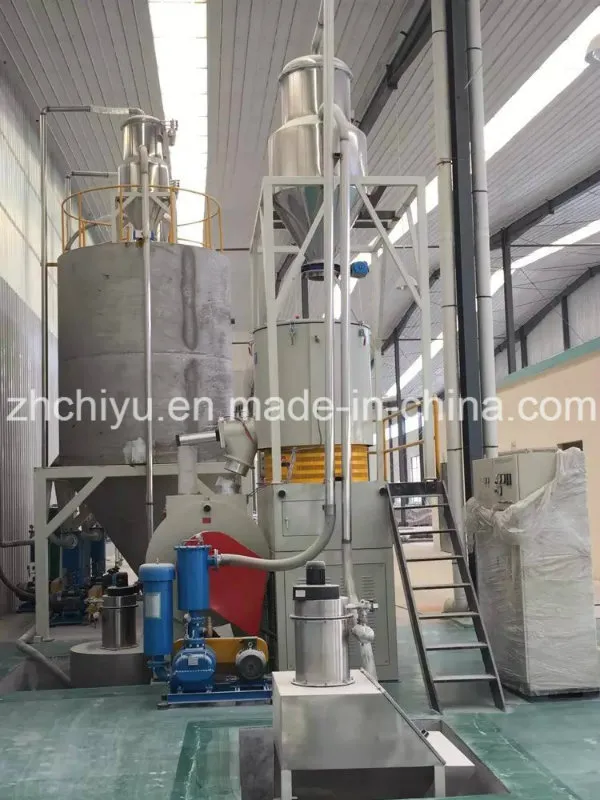

PVC Powder Mixer Scene 1

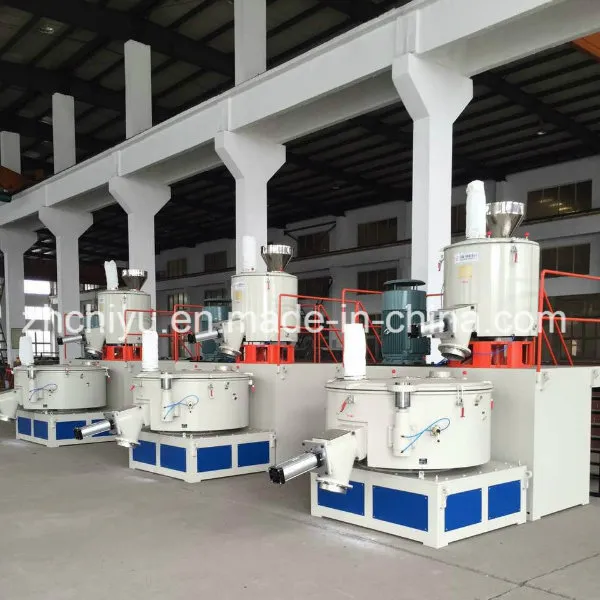

PVC Powder Mixer Scene 2

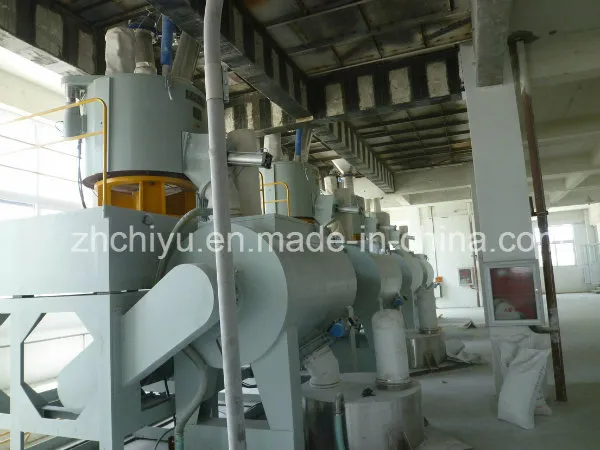

PVC Powder Mixer Scene 3
Advanced Automation & Industry Solutions

Specializing in bulk solid handling plants, providing optimized solutions for powder and pellet processing across plastic and chemical industries.

Key Systems Provided:
  • High speed mixer and cooling mixer units up to 2000/6000 liters.
  • Automatic batch weighing and mixing systems.
  • Pneumatic conveying (positive pressure and vacuum).
  • Workshop dust removal and environmental protection equipment.
Storage & Discharge: Automated extraction from silos, big-bags, and containers with mechanical support for small capacities.
Automated Conveying: Mechanical and pneumatic transport over great distances without human intervention.
Metering & Weighing: High accuracy metering and recipe management for consistent product quality.
Frequently Asked Questions
Q1: What materials can the SRL-W series mixer process? A: It is designed for all types of plastic powder mixing, drying, coloring, and is especially suited for PVC pipe, profile, and board production.
Q2: What is the material used for the mixer barrel? A: The barrel wall is made of high-quality Stainless Steel SUS304 with a thickness of 8mm for durability and corrosion resistance.
Q3: How is the temperature controlled in the mixing process? A: The unit utilizes precision Japan-imported RKC thermo control meters to ensure accurate and stable temperature management.
Q4: Does the mixer support automated operation? A: Yes, it features pneumatic opening for the mixer lid and can be integrated into automatic batch weighing and conveying systems.
Q5: What are the main electrical components used? A: The system uses premium Siemens electrics to ensure long-term stability and global compatibility for maintenance.
Q6: Is the equipment tested for vibration and balance? A: Yes, the stirring paddles undergo strict static and dynamic balance tests to ensure smooth operation and extended service life.
