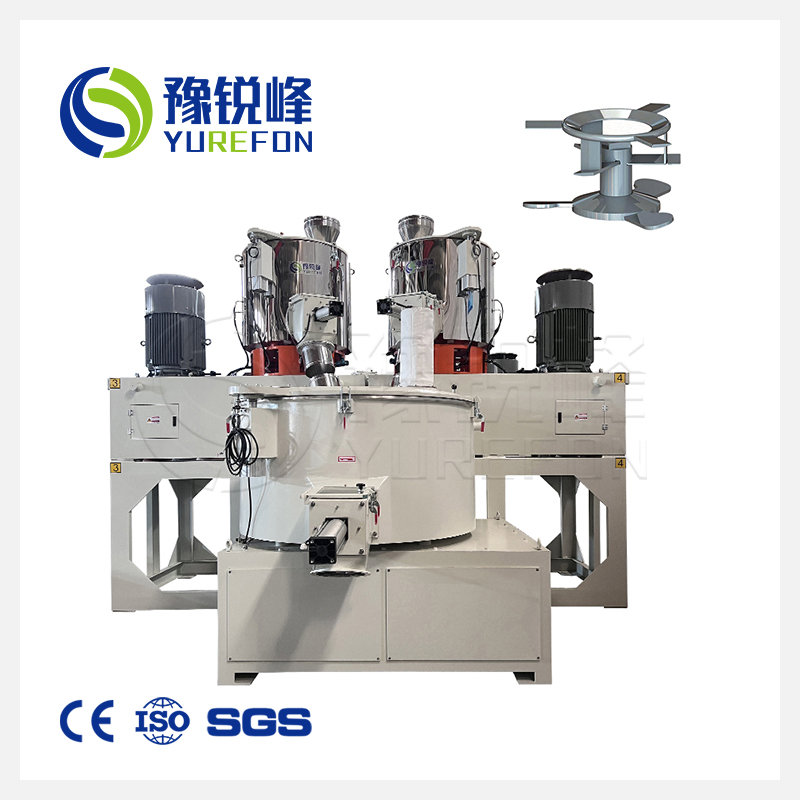

Plastic PVC Resin Vertical Compounding Heating Cooling Mixing System

1 / 5

Plastic PVC Resin Vertical Compounding Heating Cooling Mixing System

Customization:	Available
Additional Capabilities:	Drying
Application:	Granules, Powder

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SRL-Z 500/1000

Application Area

Chemical

Certification

CE, ISO

Condition

New

Cooling Method

Water Cooling

Heating Method

Thermal Oil Heating

Mixing Drum Shape

Disc

Speed Control

Dual Speed

Stirring Type

Spiral

Warranty

18 months

Working

High Speed Mixer

Capacity

500kg/H

Inverter

ABB

Main Motor

AC Motor Siemens Original

Temperature Control

Omron

Motor Power

75kw

⚙️ Product Description

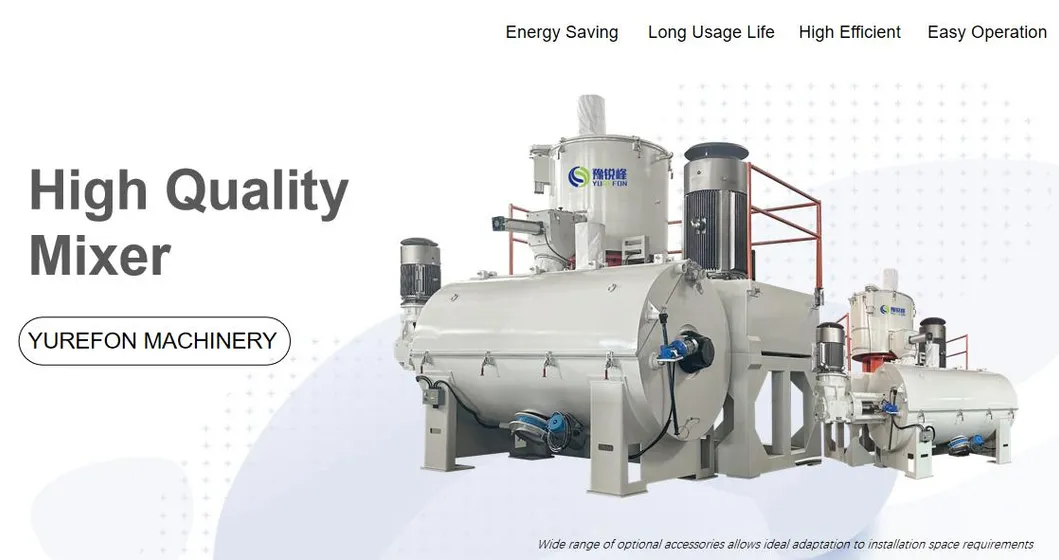

Plastic PVC resin vertical compounding heating cooling mixing System PVC Resin Mixing System

Key Features

Mixed materials are processed using negative pressure mixed principle.
Electrical instruments feature PLC programmable control with well-known imported components.
High degree of automation and rapid mixing speeds.

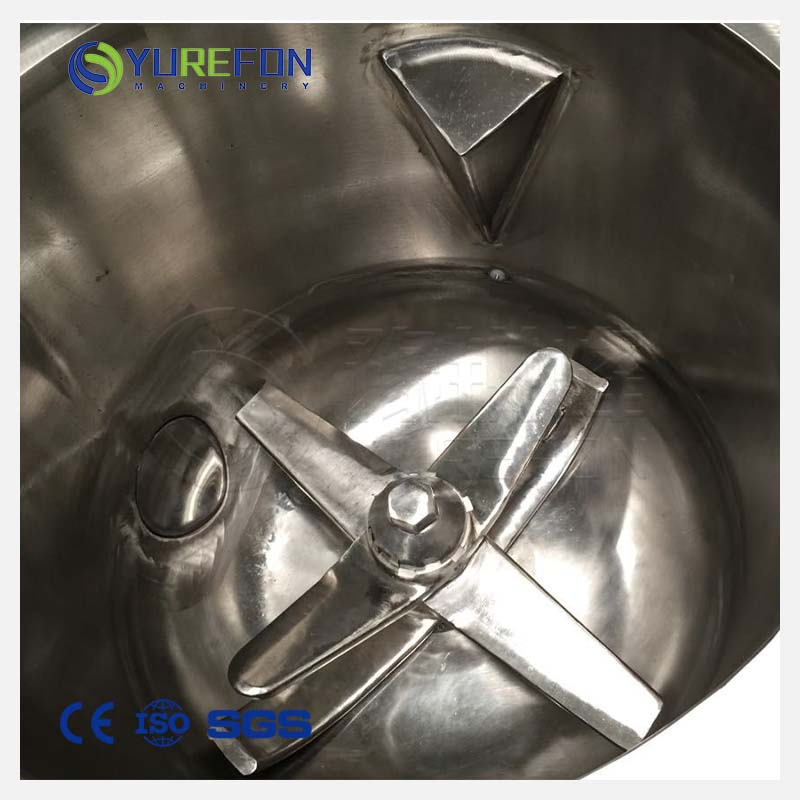

Blades constructed from stainless steel, passing rigorous static and dynamic balance tests.
Advanced spiral mixing structure for the coolant blade ensures no dead angles and clean discharging.
Large volume capacity suitable for mixing PVC powder, CACO3, and other additives.

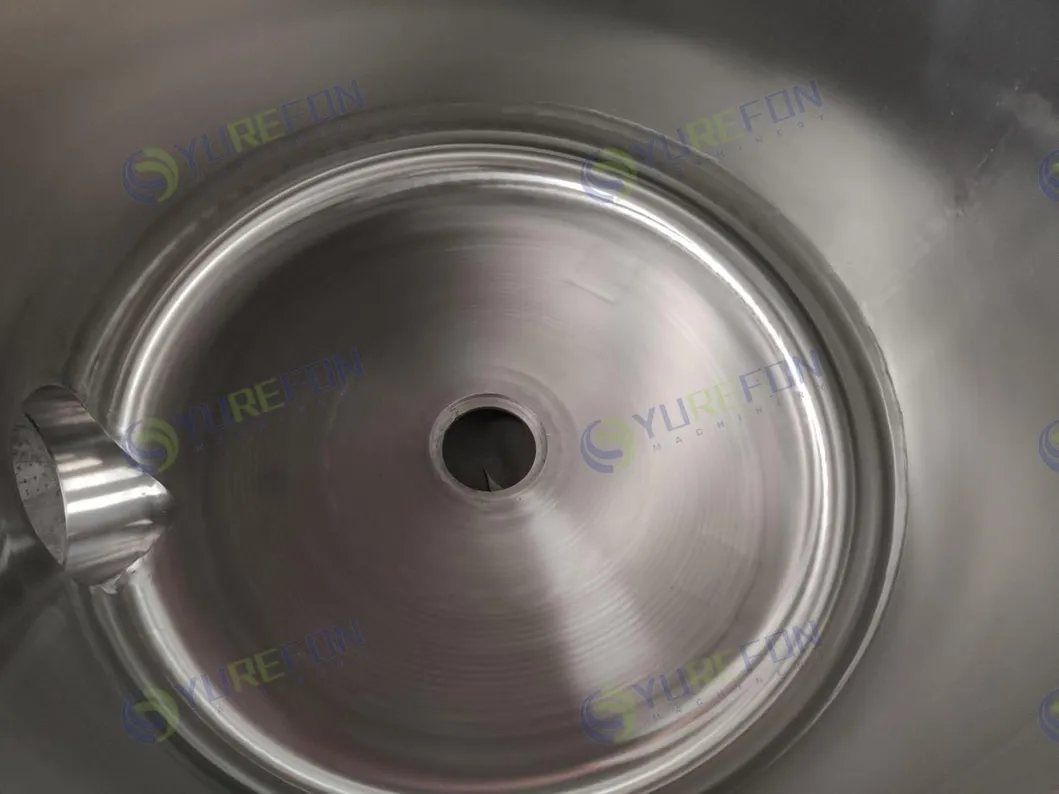

Constructed with 6-8mm SUS304 stainless steel for the internal walls to ensure long-term durability under high friction.

📊 Product Parameters

Main Technical Parameters (Vertical Cooler):

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	375/650	600/1024
Rotating Speed (RPM)	650/1300-180	475/950-87	475/950-87	430/860-60	357/714-50
Mixing time (Min.)	8-10	8-10	8-12	8-10	8-12
Motor power (KW)	14/22-7.5	30/42/11	40/55/11	55/75/15	83/110/22
Weight(kg)	2500	3600	4500	5800	8300

📸 Detailed Photos

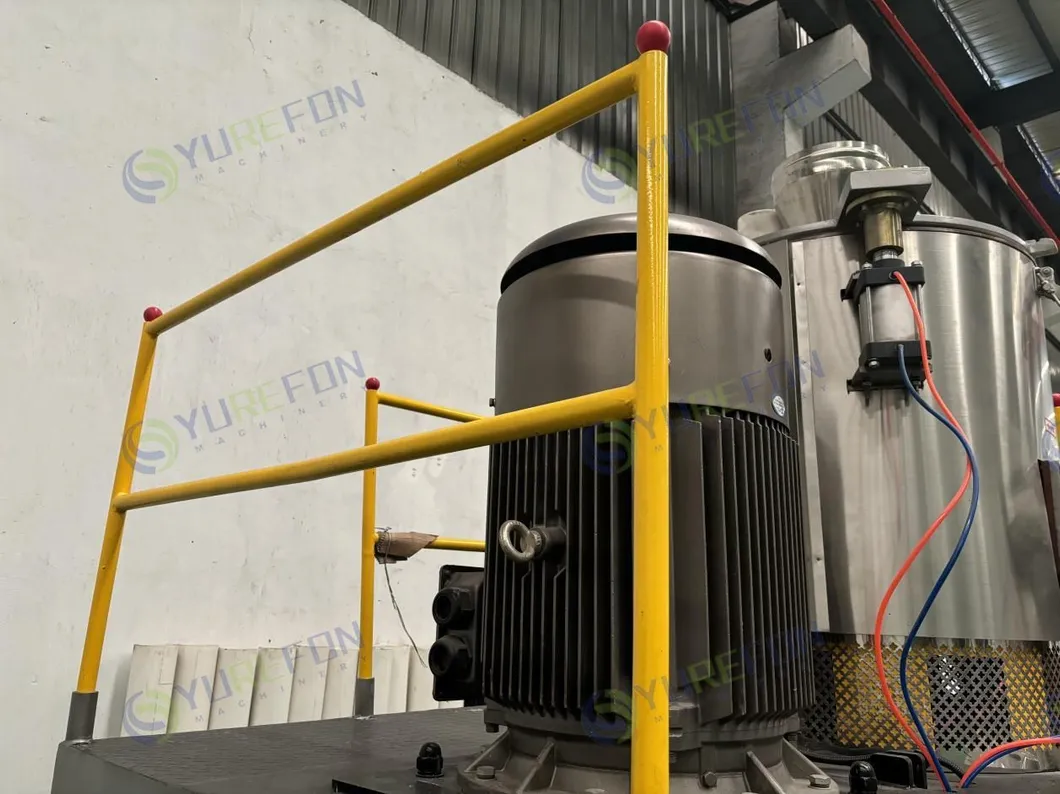

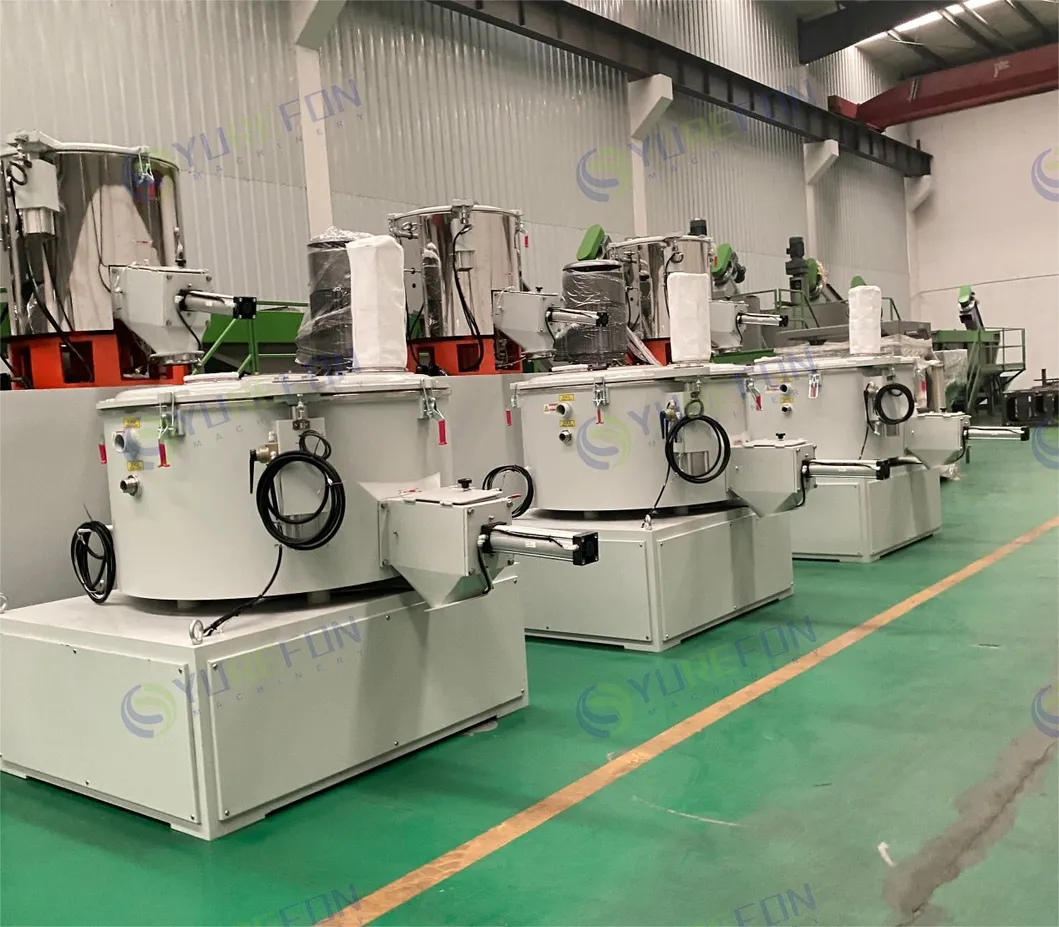

Vertical Motors & Security: Vertical motors are directly connected to drive the equipment, reducing energy consumption. The guardrail design ensures maximum operator safety.

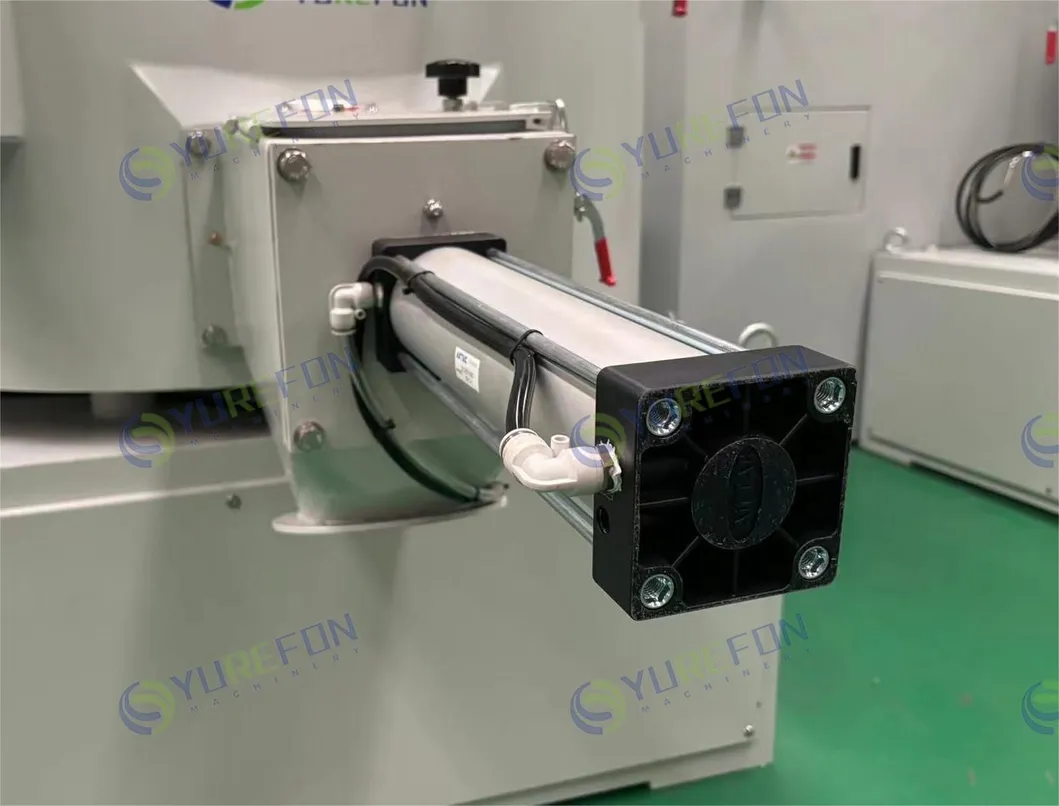

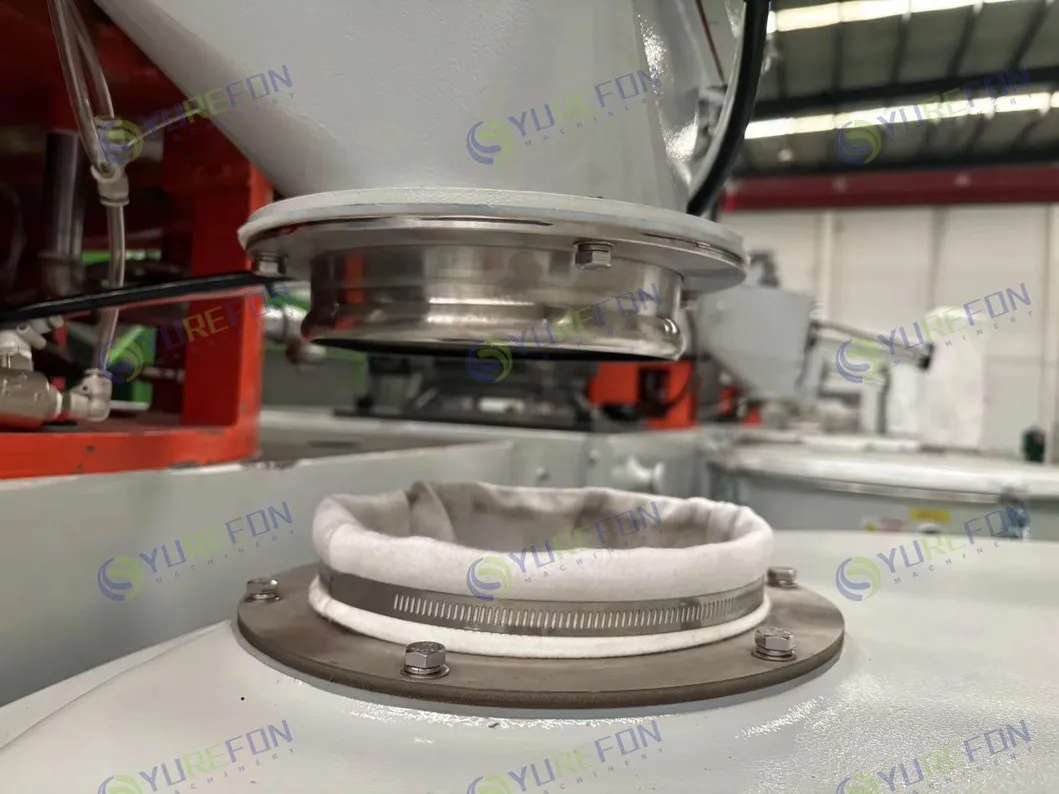

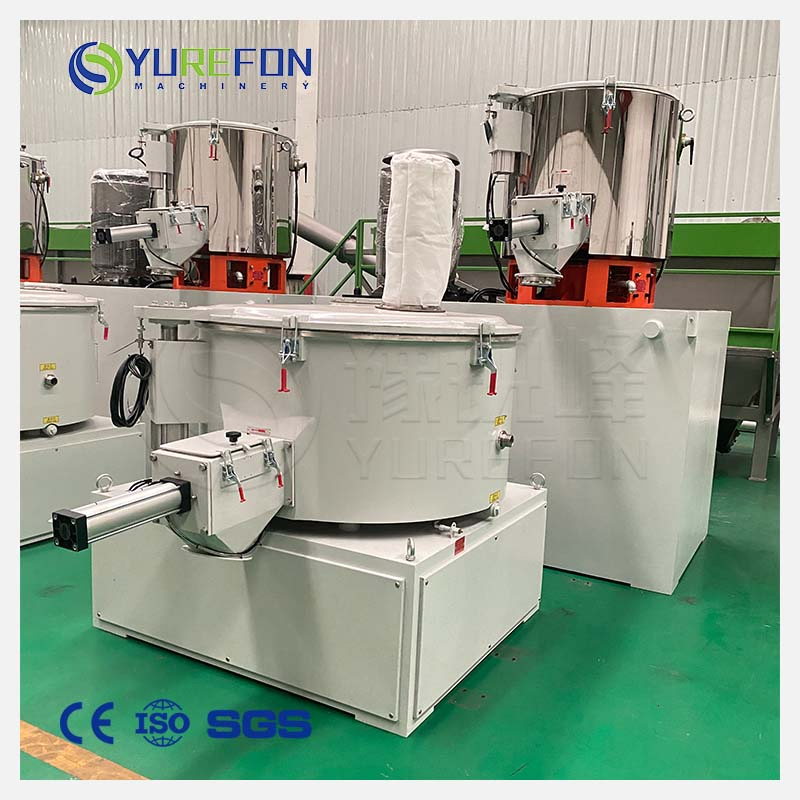

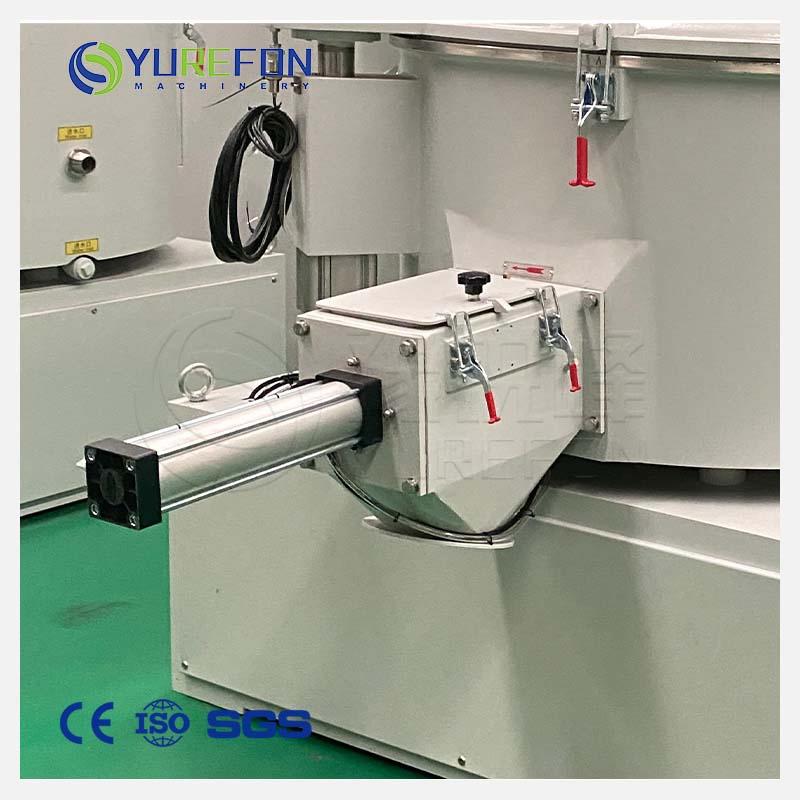

Components: The heating mixer is connected to the cooling mixer via flexible materials for stability. The discharging valve utilizes a plunger-type gate and axial seal to eliminate blind spots and prevent leakage.

🏭 Application

🏢 Production Facilities

Frequently Asked Questions

What is the primary use of the SRL-Z series mixer?

It is designed for mixing, coloring, and drying various resins such as PVC and PE, as well as compounding engineering plastics before processing.

How does the cooling system ensure efficiency?

The system uses a vertical cooler with an advanced spiral mixing structure, ensuring high cooling speeds and no material "dead zones" inside the container.

What materials are used for the mixer's internal construction?

We use high-quality SUS304 stainless steel with a thickness of 6-8mm to guarantee durability and resistance against high friction.

Is the machine automated?

Yes, the machine is equipped with PLC programmable control and high-quality electrical components like Siemens motors and ABB inverters for high automation.

What is the warranty period for this equipment?

The equipment comes with an 18-month warranty, providing long-term reliability for your production line.

How is material leakage prevented?

The discharge valve adopts a plunger-type gate and axial seal, which perfectly aligns with the internal wall to prevent any material leakage or blind spots.
