Customization: Available
Warranty: 1 Year
Raw Material: PE
Send Inquiry

Product Description

Basic Specifications
Model NO.
PNHS
Screw
Single-Screw
Inverter
Inverter
Heater
Electromagnetic Heater
Automation
Automatic
Certification
CE, ISO9001:2008
Application
PP Woven Bag Recycling
Motor Brand
Siemens
Screw Diameter
100mm
Degassing Method
Two Vacuum Degassing Ports
Temp. Controller
Japan RKC
Capacity
200-1000kg/H
Product Description

Recycle Waste Mulching PE Film Polyester Yarn Fiber Compounding Cooling Strand Cutting Double Stage Plastic Pelletizing Granulating Machine

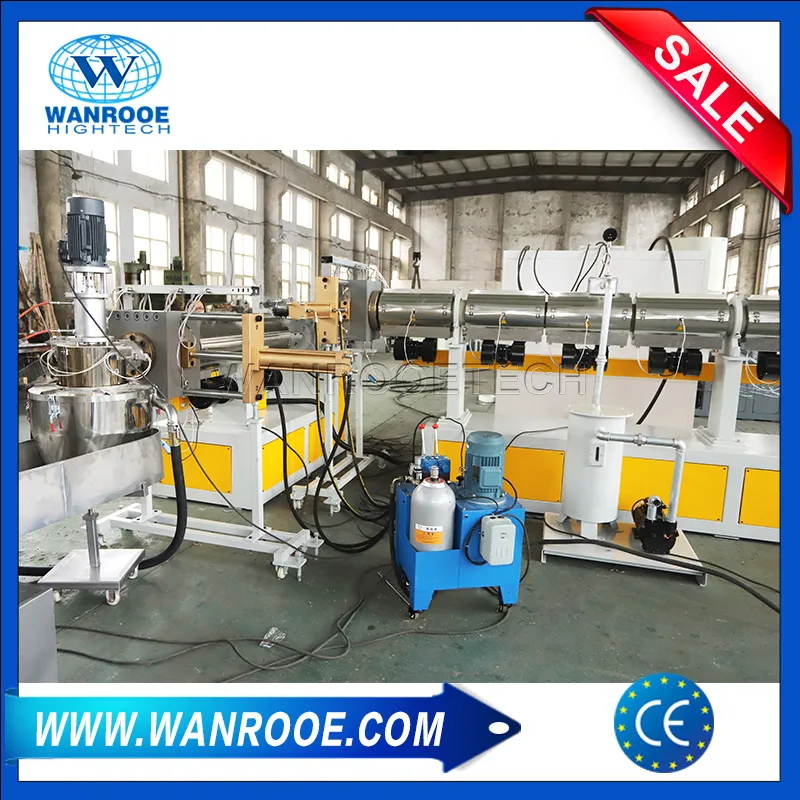

Plastic Pelletizing Granulating Machine
◈
Applications: Double Stage PP PE Plastic Film Woven Bag Plastic Granulating Line is a regenerative pelletizer suitable for PE, HDPE, LDPE, PP, BOPP plastic film, bags, fiber, and rope scrap.
◈
Material Shapes: Suitable for rolls, loose, or bundled offcuts, industrial defective materials, washed materials, and printed materials.
Process & Features

The double stage pelletizing line is specifically designed for raw materials with high moisture and high impurities. The first stage uses an exhaust type barrel screw for effective de-gassing, while the second stage ensures stable extrusion and final filtration.

➔
Process Flow: Feeding → Metal detector → Compactor → 1# Degassing Extruder → 1# Hydraulic Filter → 2# Extruder → 2# Hydraulic Filter → Die Head → Water Ring Cutting → Dewatering → Drying → Silo.

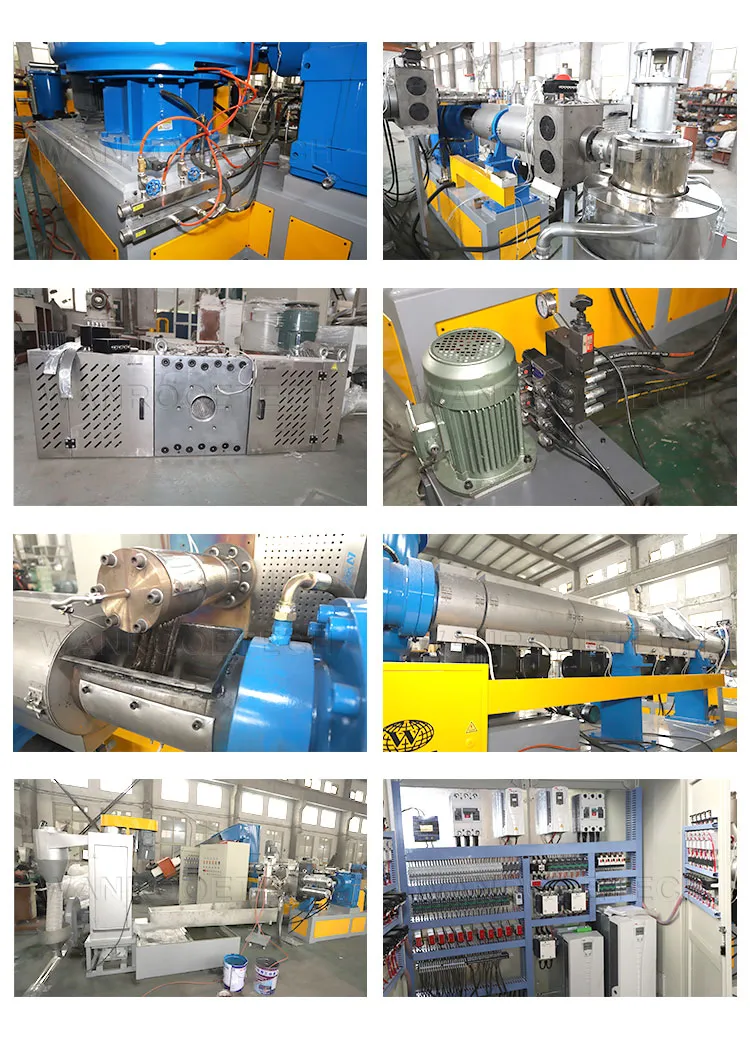

Main Specifications Chart
Equipment List
No. Equipment Item
1Belt conveyer
2Crushing barrel (Compactor)
3Extruder System
4Die head and screen changing device
5Water ring cutter
6Vibrating screen
7Vertical dewatering machine
8Air drying system
9Cyclone hopper (Silo)
Technical Specifications
Model Extruder Screw Diam.(mm) L/D Ratio Power(kw) Capacity (PE) Capacity (PP)
PNHS-100SJ100/3310033:1210280-350 kg/h250-300 kg/h
PNHS-130SJ130/3313033:1300480-550 kg/h400-480 kg/h
PNHS-160SJ160/3316033:1370650-750 kg/h550-650 kg/h
PNHS-180SJ180/3318033:1460800-1000 kg/h750-850 kg/h
Professional Service
  • ✔ One year guarantee for the whole machine.
  • ✔ 24 hours technical support via various channels.
  • ✔ Overseas engineering services available for installation and training.
  • ✔ Lifetime maintenance instruction and spare parts supply at best prices.
  • ✔ Comprehensive operator training services.

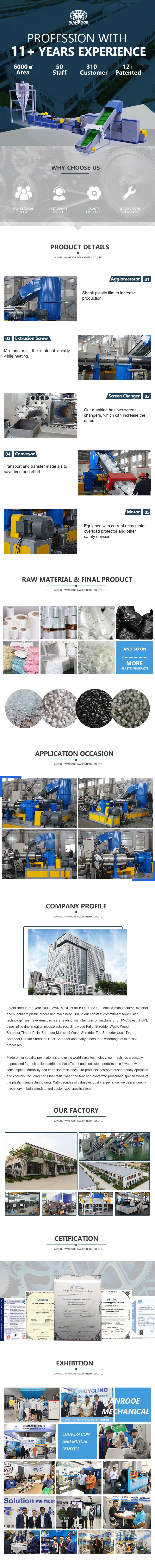

Machine Details Wide View
Frequently Asked Questions
What materials can this machine recycle?
It is designed for various plastic wastes including PE, HDPE, LDPE, PP, BOPP films, woven bags, fibers, and rope scraps.
Why is a double-stage extruder used?
The double-stage design is ideal for materials with high moisture or impurities. The first stage handles de-gassing and primary melting, while the second stage focuses on stable extrusion and fine filtration.
What is the maximum production capacity?
Depending on the model (PNHS-100 to PNHS-180), the capacity ranges from 200kg/h up to 1000kg/h for PE materials.
How is the quality of the final pellets ensured?
The system uses Siemens motors, RKC temperature controllers, and a dual hydraulic net-exchanging system to filter impurities, ensuring uniform and high-quality pellets.
Does the machine support customized configurations?
Yes, the screw components can be assembled based on your specific raw material type, and different pelletizing styles (water ring, underwater, or hot face) can be selected.
What kind of after-sales support do you offer?
We provide a one-year warranty, 24-hour technical support, and the option for engineers to provide on-site international installation and operator training.
