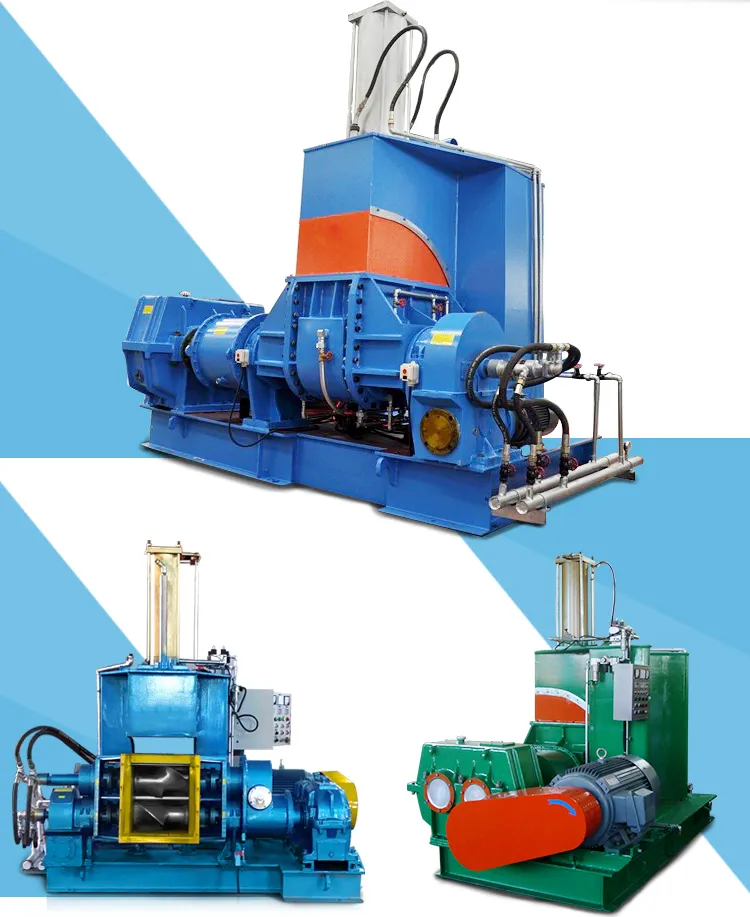

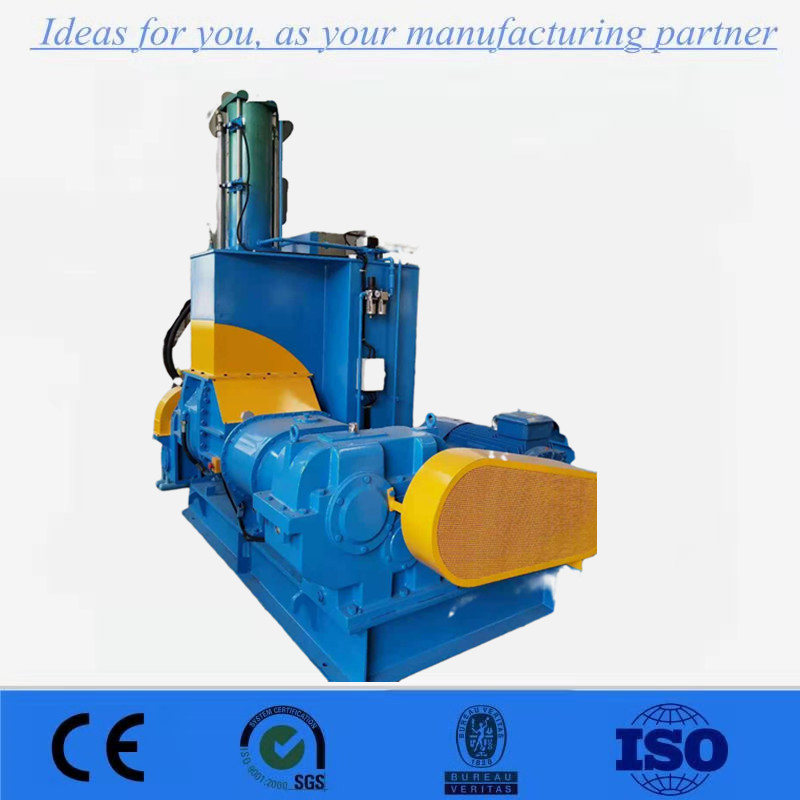

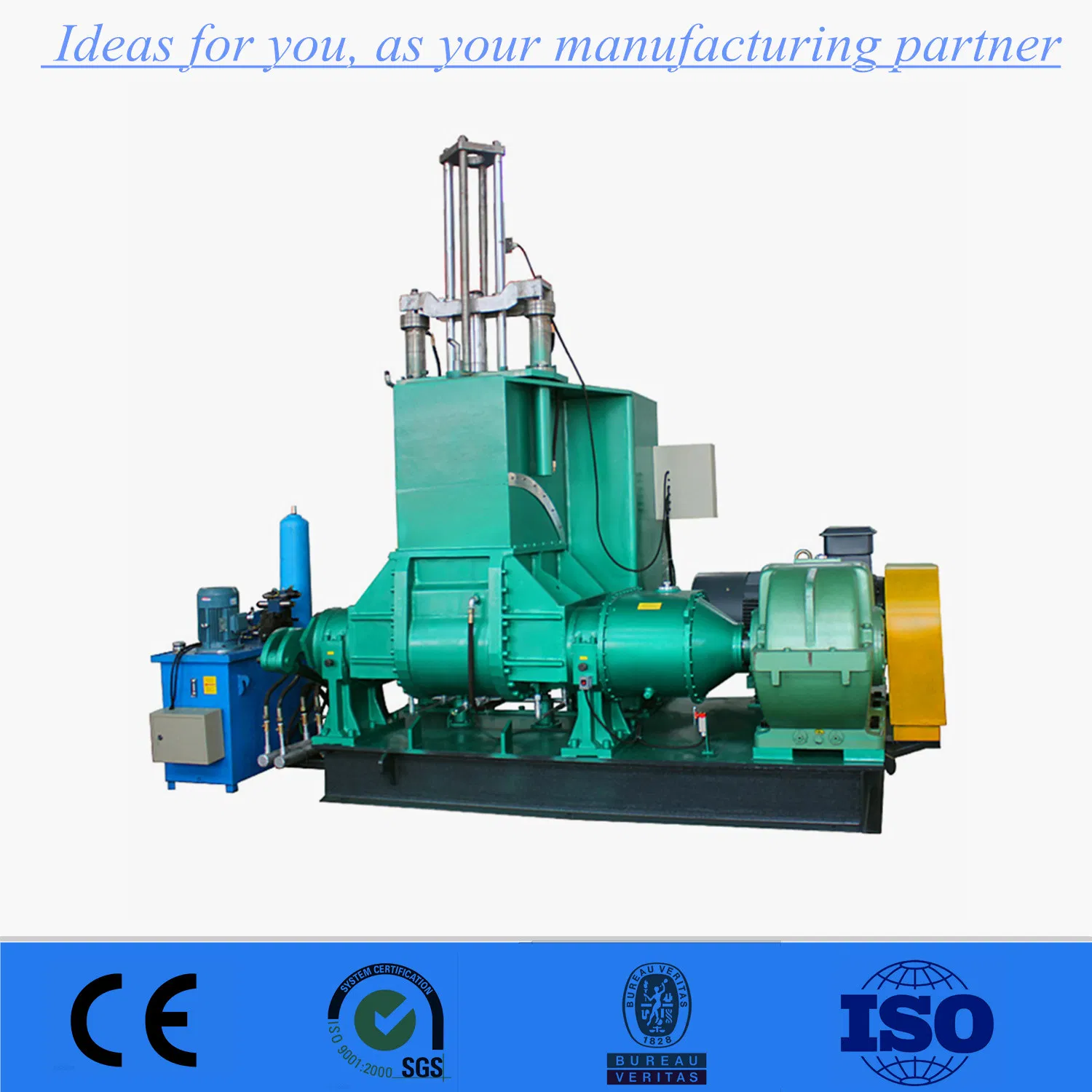

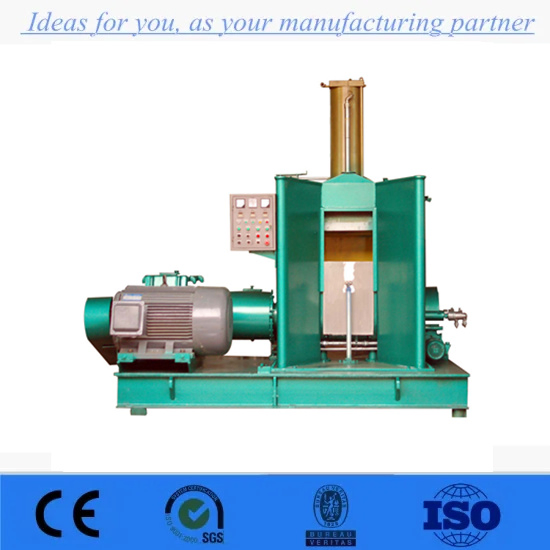

Rubber Banbury Kneader Machine for Rubber or Plastic Internal Mixing

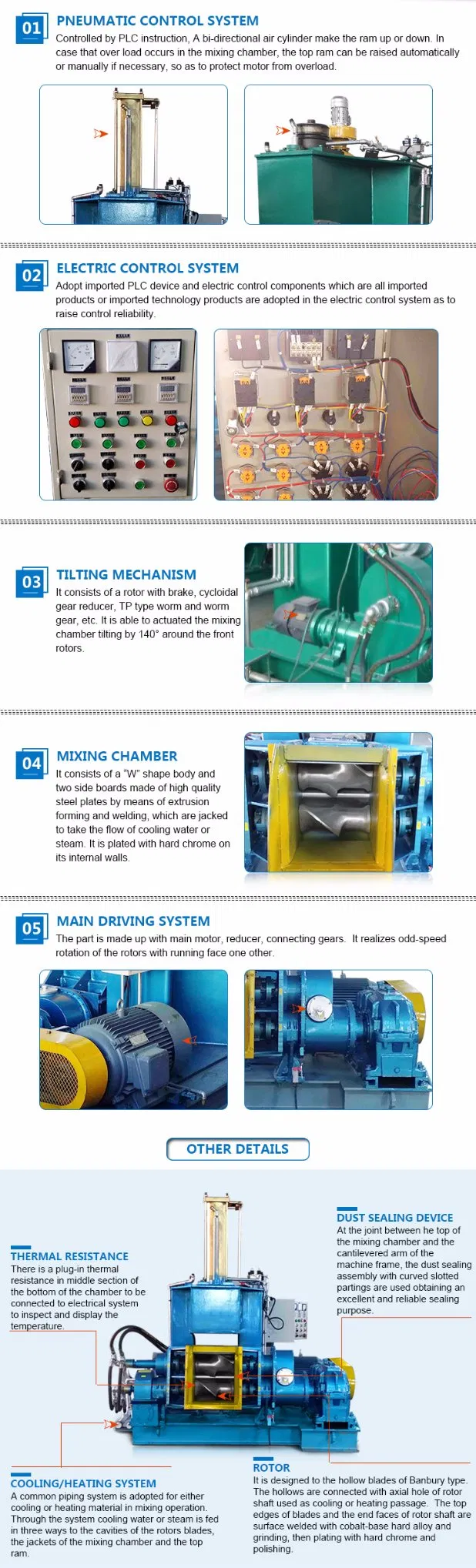

It consists of a "w" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.
Timing injection pump to the sealing system on a regular injection of hydraulic oil, lubrication sealing effect.
There is a plug-in thermal resistance or thermal couple in middle section of the bottom of the chamber to be connected to electrical system to inspect and control the mixing temperature.
It is designed to the hollow blades of banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges and the side faces of blades are surface welded with hard alloy and ground, then plated with hard chrome and polished.
A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the jackets of the mixing chamber and the top ram.
It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc. It is able to actuate the mixing chamber tilting by 140° around the front rotors.
Mixing chamber catchy interface rack cantilever the oil dust seals and timing effect oiling dust, unique structure, the use of copper materials, good sealing performance, no leakage of glue or powder, ensuring a clean environment with easy maintenance.
| Item / Model | Unit | X(S)N-3 | X(S)N-5 | X(S)N-25 | X(S)N-35 | X(S)N-55 | X(S)N-75 | X(S)N-110 |
|---|---|---|---|---|---|---|---|---|
| Total Volume | (L) | 8 | 15 | 55 | 75 | 125 | 170 | 250 |
| Working Volume | (L) | 3 | 5 | 25 | 35 | 55 | 75 | 110 |
| Motor Power | (KW) | 5.5 | 11 | 37 | 55 | 75 | 110 | 185 |
| Rotor Speed | (r/min) | 30/24.5 | 32/23.5 | 32/27 | 30/24.5 | 30/24.5 | 30/24.5 | 30/24.5 |
| Gross Weight | (t) | ~2 | ~2.1 | ~4.5 | ~6.3 | ~7.1 | ~9.5 | ~14.9 |
Professional technicians perform trial runs for each product to ensure full functionality. Machines are fixed tightly with wire rope during loading for secure container transport.
