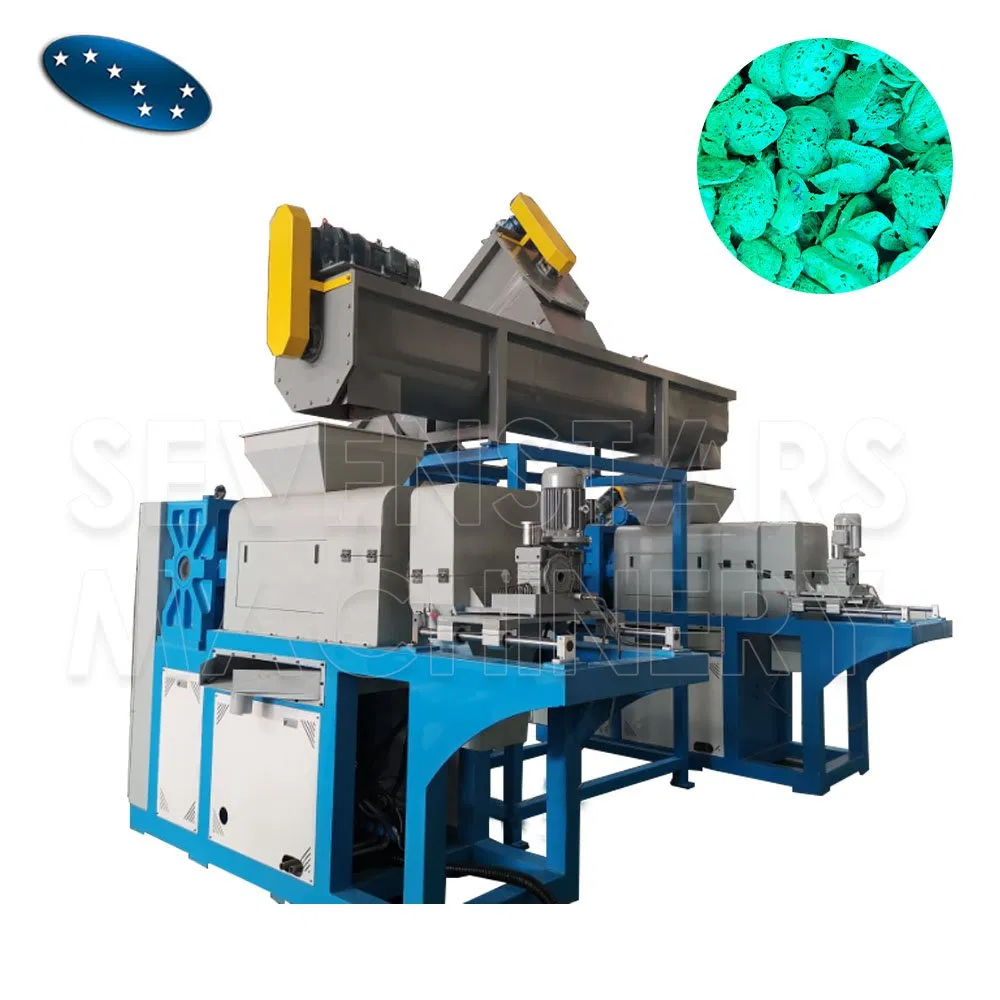

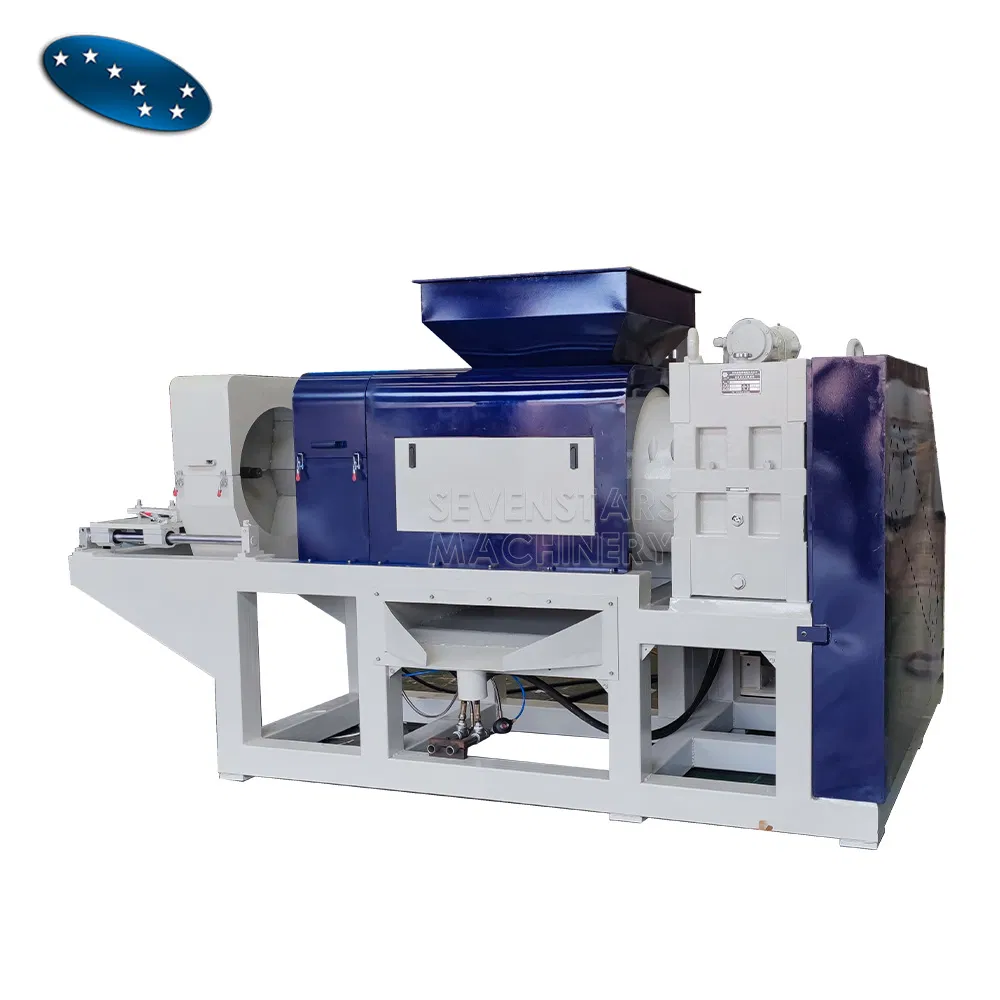

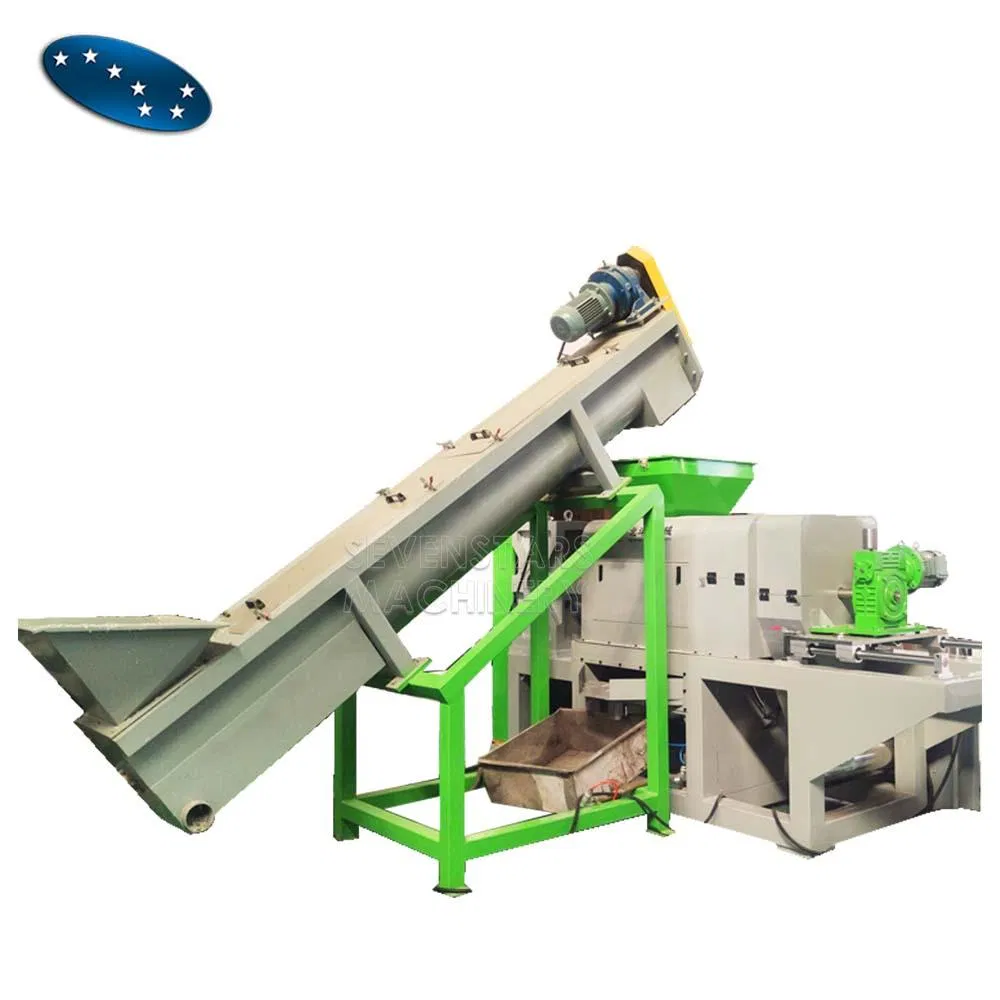

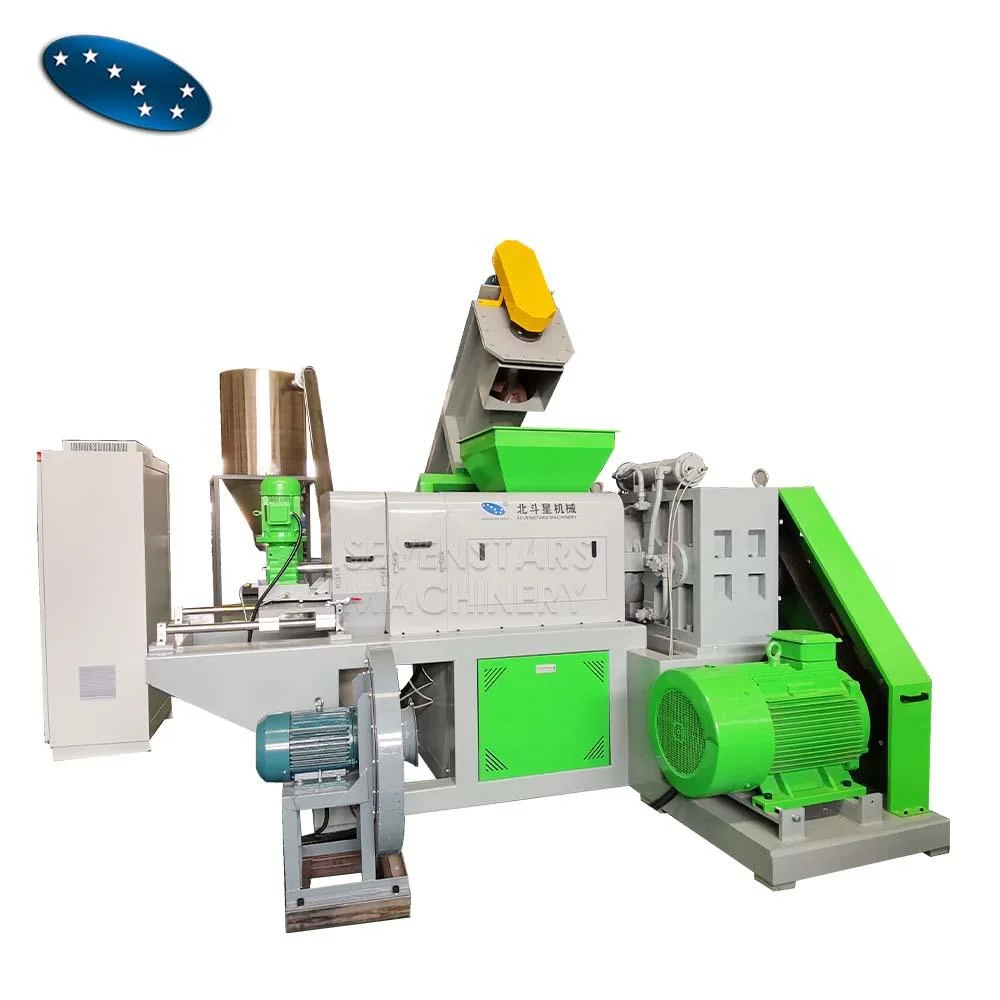

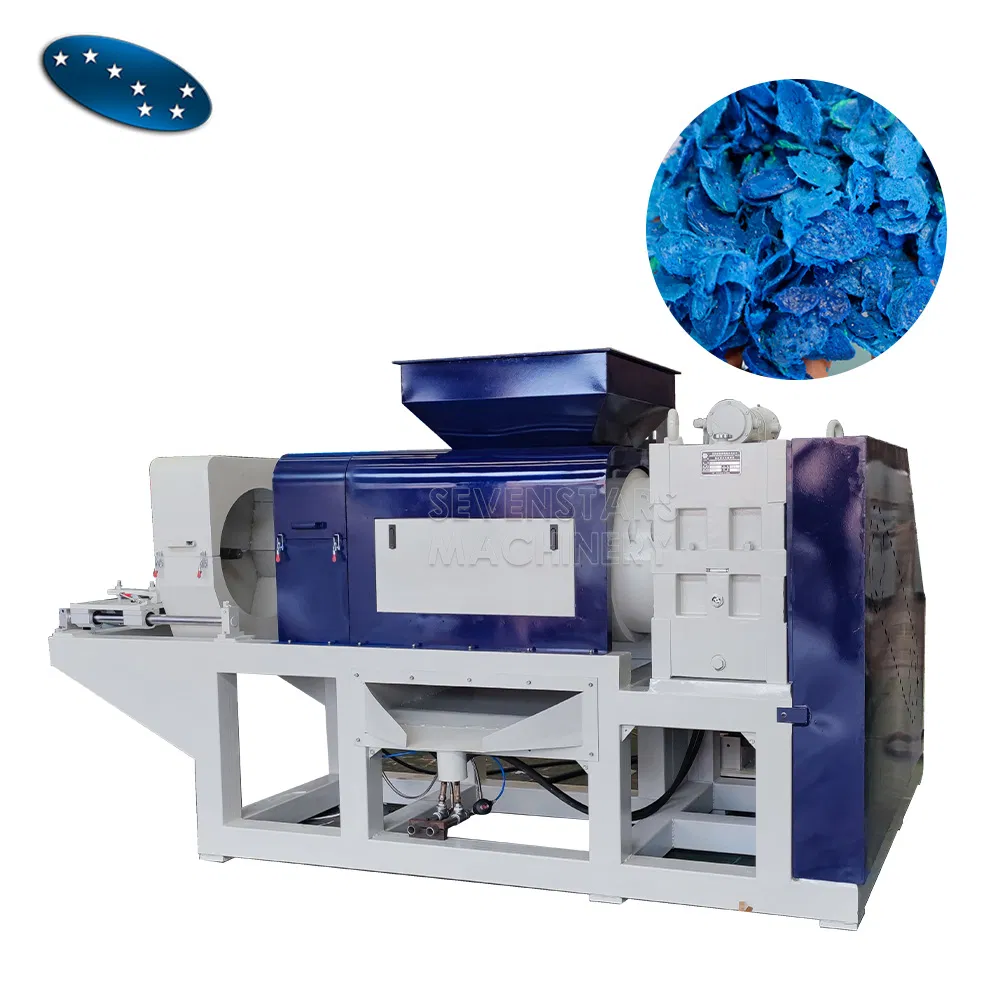

Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
1 / 5
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine
Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine

Sevenstars Plastic PP Raffia Bags Squeezer Machine Plastic Recycling Drying Machine

Customization: Available
After-sales Service: Testing and Installation
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
BDX500
Material Processed
Film
Plastic Type
PE
Screw
Single-Screw
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008, CE
Process Material
PE PP Film and Bags
Thickness of Barrel
40mm
Screw Material
38crmoala
Capacity
500kg
Final Material
Half-Plasticizing
Product Description

Plastic PP Raffia Bags Squeezer Machine & Recycling Drying Machine

📌 Usage:

Designed to squeeze and granulate wet PE film and PP woven bags. The final material is a semi-plasticizing product, making the recycled material highly suitable for PE PP pelletizing machines.

✨ Key Features:
  • ✔ Adopts Siemens PLC control with the latest technology.
  • ✔ Pelletizer and main screw driven by frequency converting control.
  • ✔ Low power consumption combined with high production capacity.
  • ✔ Long working life, operational stability, and easy to operate.
  • ✔ Final product size can be adjusted by changing the mould mouth.
  • ✔ Can operate independently or within a washing line (replaces dewatering machines and pipe dryers).
Model Screw & Barrel (mm) Gear Box Motor (kw) Rotate speed (r/min) Output (kg/h) Heating power (kw) Size (mm)
BDX-250 250*312*1100 280 75 70 250-300 20 2800*1500*2650
BDX-300 300*402*1230 375 90 70 400-500 20 3000*1580*2700
BDX-320 320*480*1560 420 110 or 132 70 500-600 25 3450*1630*2720
BDX350 350*422*1714 450 160 70 800 25 4000*1850*2850
Product Showcase

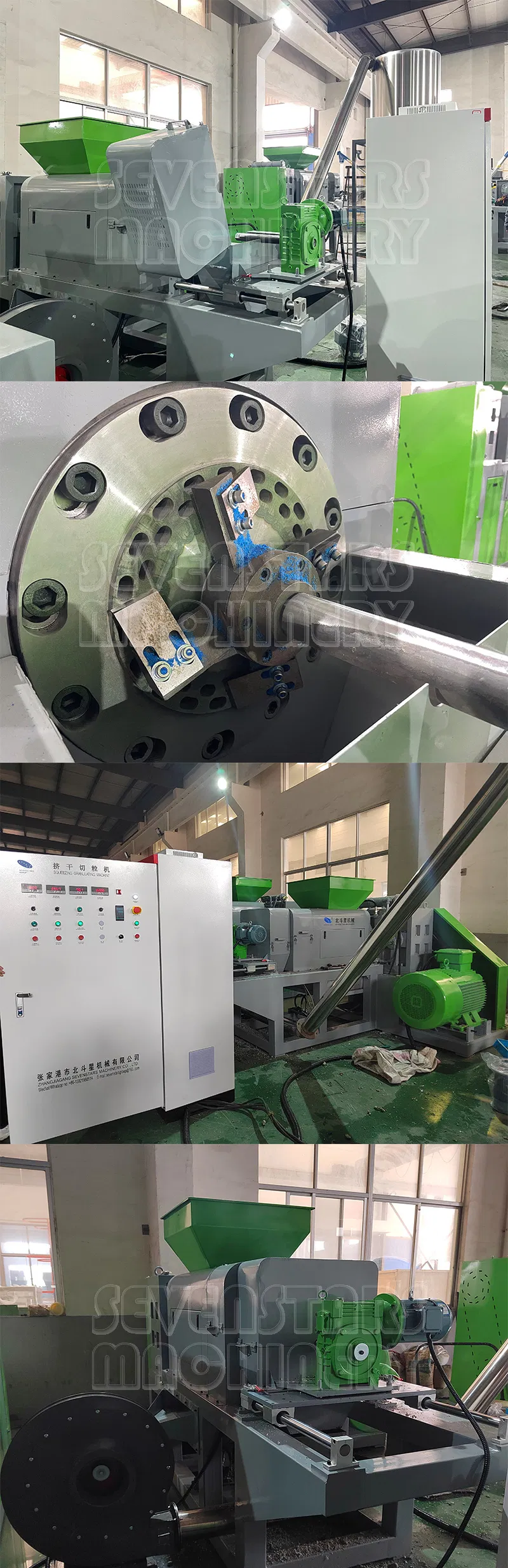

Squeezer Machine Structure
Recycling Process

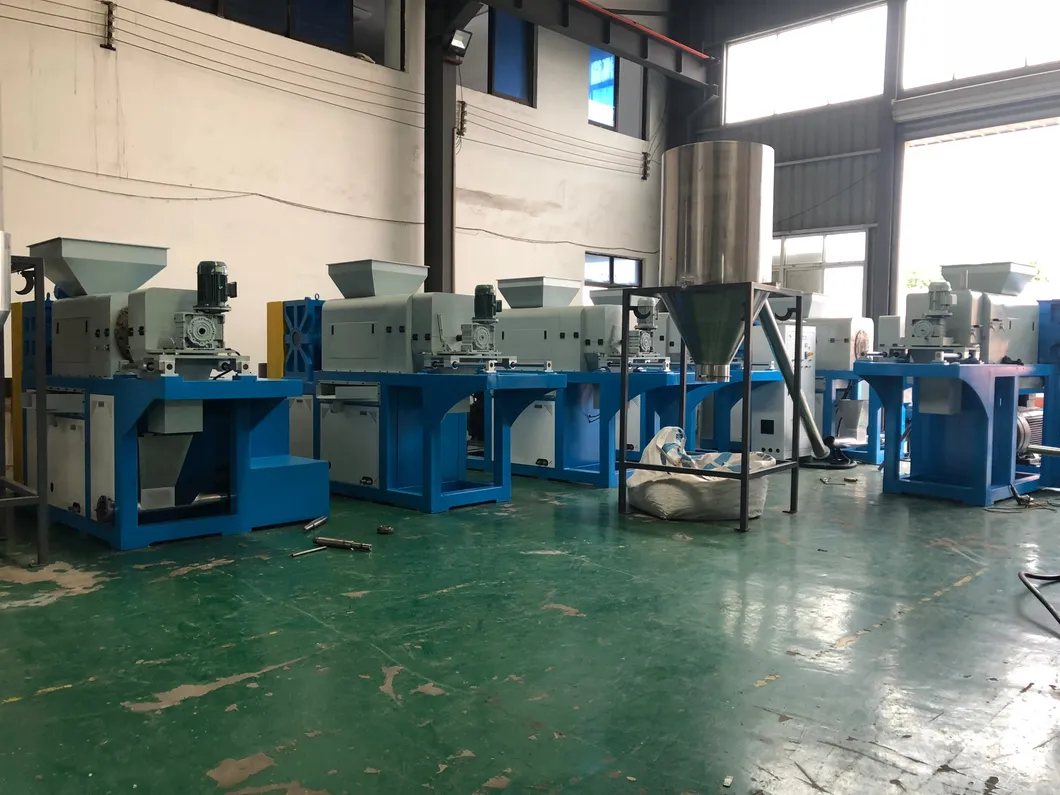

Machine Detail 1

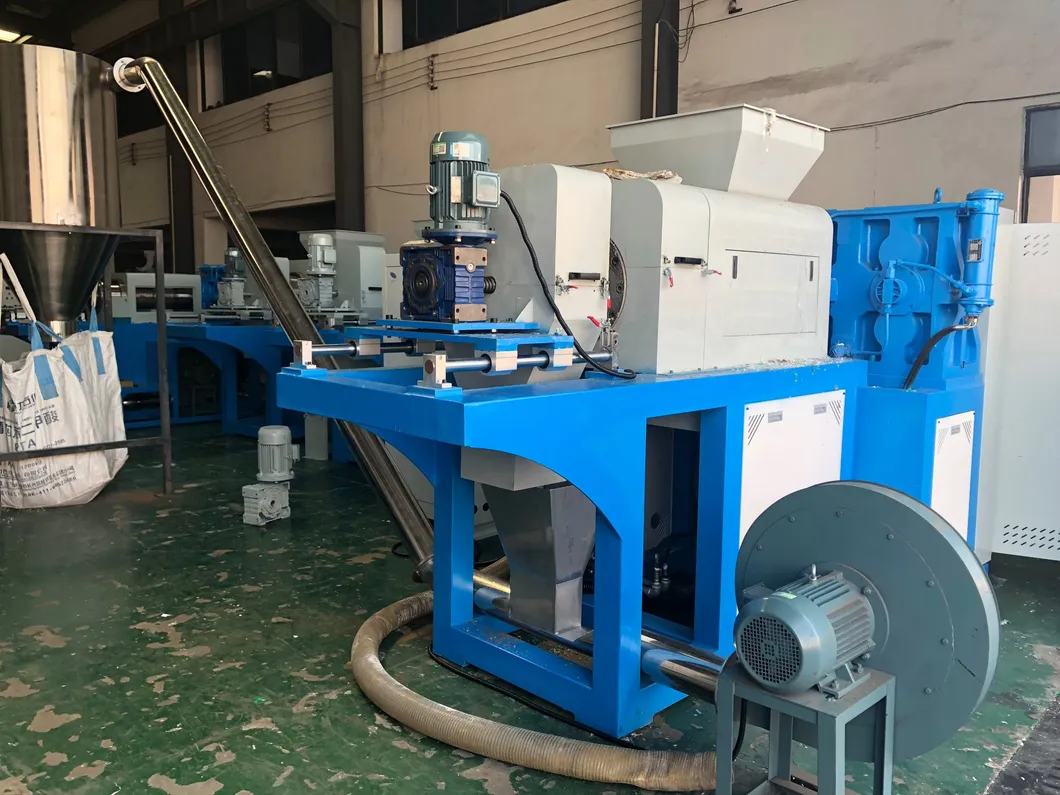

Machine Detail 2
Machine Component
Internal Screw
Operation Panel
Final Product Output
Frequently Asked Questions
What materials can this squeezer machine process?
This machine is specifically designed for processing wet PE films, PP woven bags, and raffia bags, effectively drying and semi-plasticizing them for further recycling.
How does the Siemens PLC control benefit the operation?
The Siemens PLC system provides stable, automated control over the entire process, ensuring precise adjustments, higher safety, and easier troubleshooting during production.
Can this machine replace a traditional dryer?
Yes, it can effectively replace traditional centrifugal dewatering machines and pipeline dryers, especially when integrated into a plastic washing line, saving space and energy.
What is the "half-plasticizing" final product used for?
The semi-plasticized output is in a compressed, densified form which is much more efficient to feed into a pelletizing extruder, improving the overall throughput of the granulation line.
Is the output capacity adjustable?
We offer various models ranging from 250kg/h to 800kg/h to meet different production requirements. The screw speed can also be adjusted via the frequency converter.
What is the durability of the screw and barrel?
The screw and barrel are made from high-quality 38CrMoAlA material, ensuring high wear resistance and a long service life even under continuous heavy-duty operation.
