| Model NO. | ST series |
| Material Processed | Bottle and Film |
| Plastic Type | PET PE PP |
| Screw | Single-Screw |
| Automation | Automation |
| Certification | CE ISO |
| Production Name | Waste Plastic Recycling Machine/Line/System |
| Origin | China |
| HS Code | 84778000 |
Pet Bottle Recycling Washing Line Plastic Flakes Washing Drying Recycling Machine
The PET bottle washing recycling line is a full automatic crushing, washing, dewatering, and drying production line. It is the ideal equipment for waste mineral water bottles, cola bottles, and PET bottle sorting, label removing, crushing, washing, dewatering, and drying.
Key Features:
| Model | PET-500 | PET-1000 | PET-1500 | PET-2000 | PET-3000 |
|---|---|---|---|---|---|
| Capacity | 500kg/h | 1000kg/h | 1500kg/h | 2000kg/h | 3000kg/h |
| Total Power | 180kw | 240kw | 350kw | 440kw | 653kw |
| Actual Power | 126kw | 168kw | 245kw | 308kw | 457kw |
| Workers | 5-6 persons | 7-8 persons | 9-10 persons | 11-12 persons | 14-15 persons |
| Water Needed | 3-5 t/h | 5-6 t/h | 6-8 t/h | 6-8 t/h | 7-10 t/h |

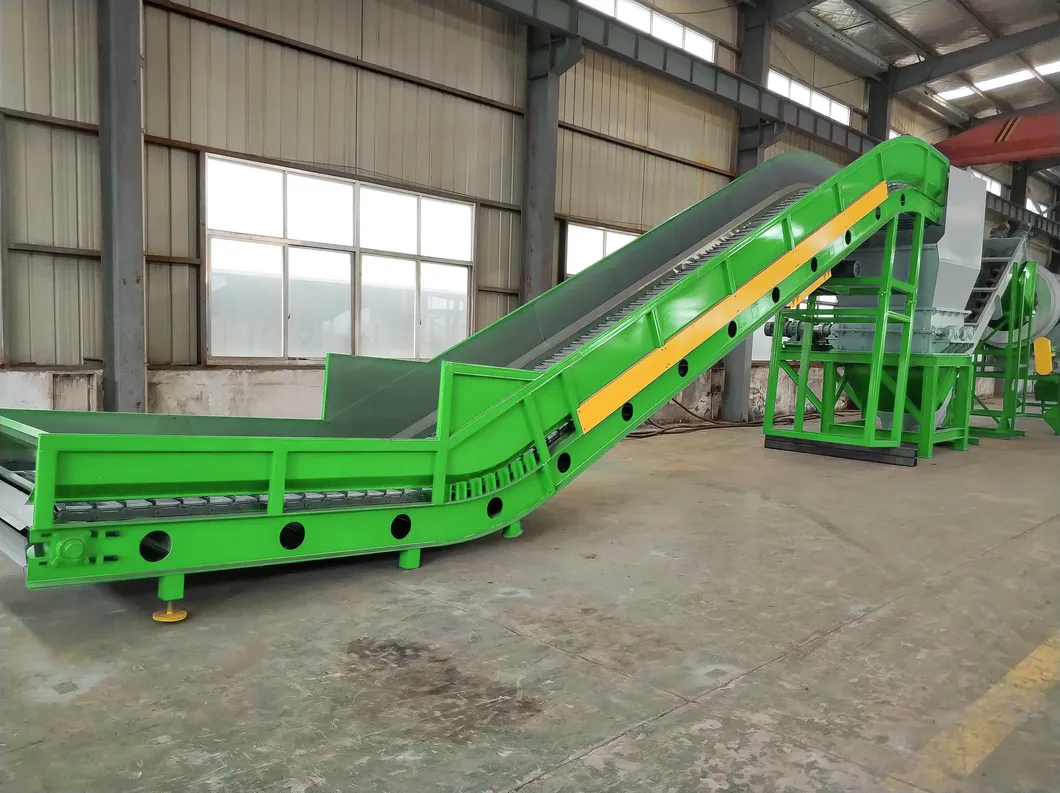

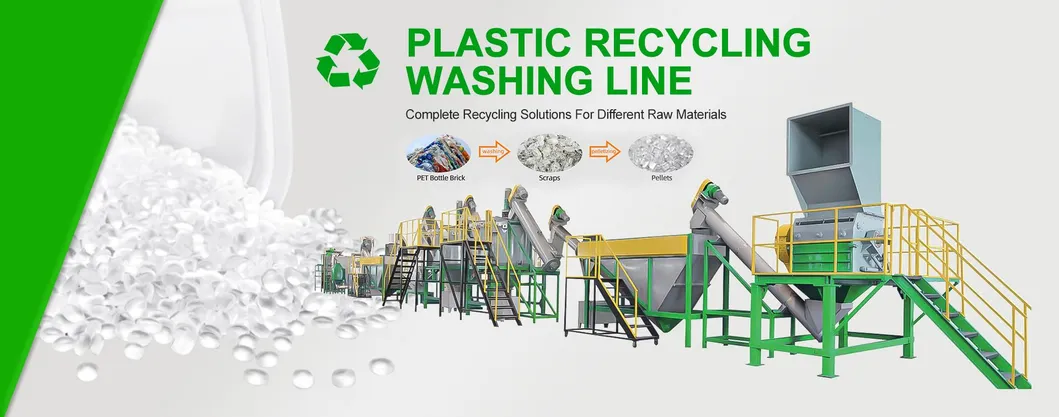

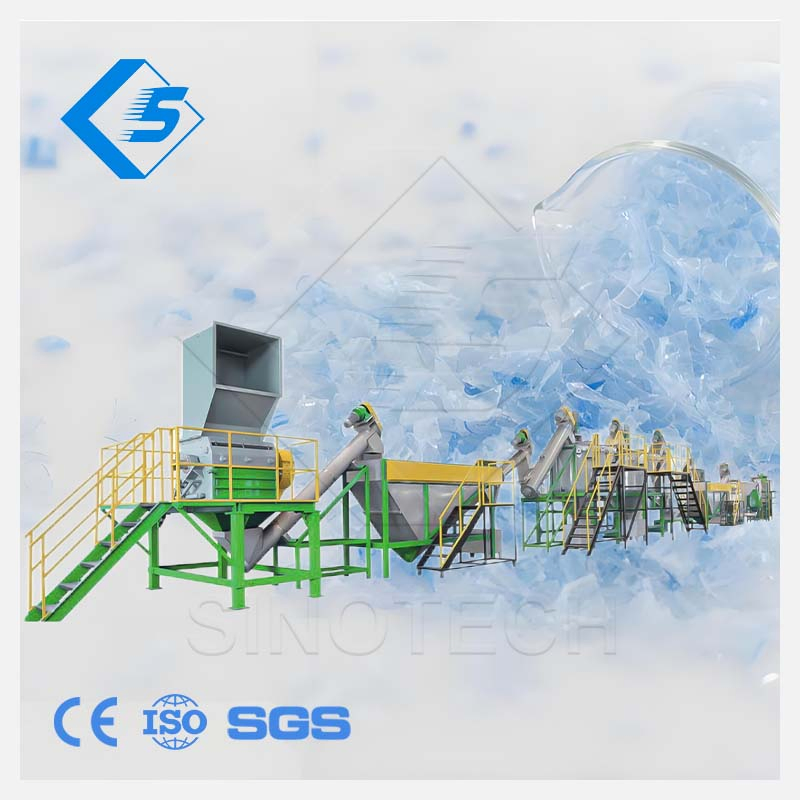

Comprehensive production line including: De-baler, conveyor, trommel, label remover, sorting table, crusher, floating tank, hot washer, and centrifugal dewatering machine.

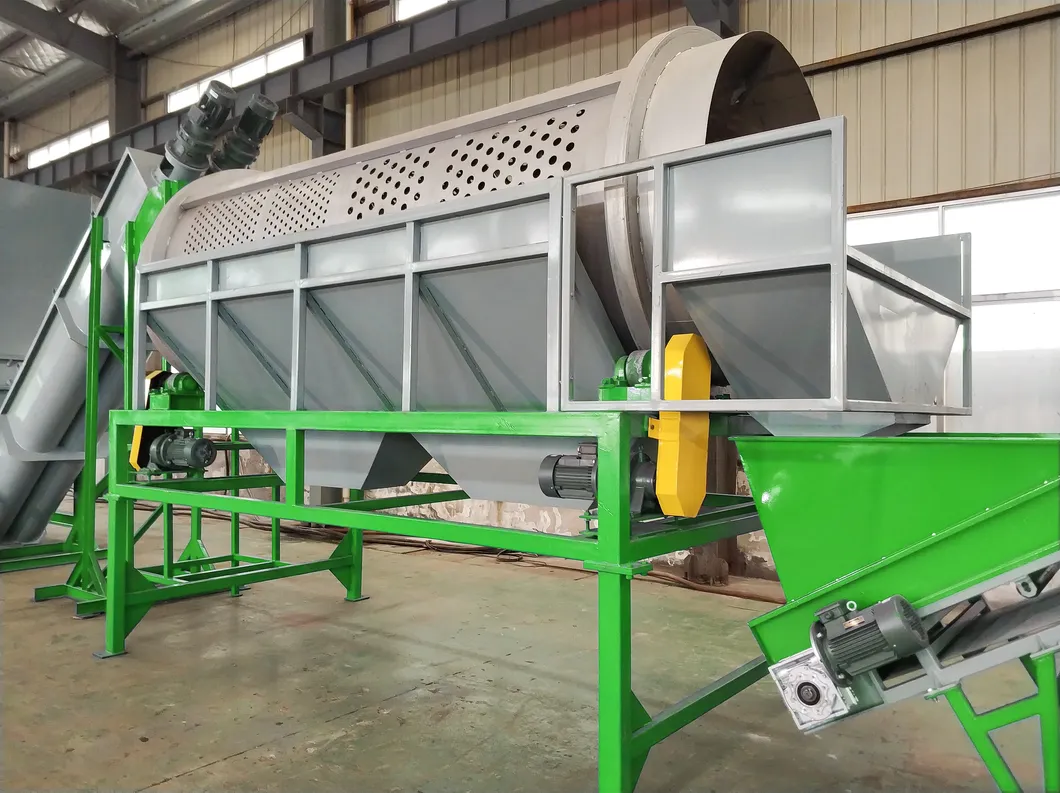

03 Trommel
Separates impurities such as sand, rocks, and metals.

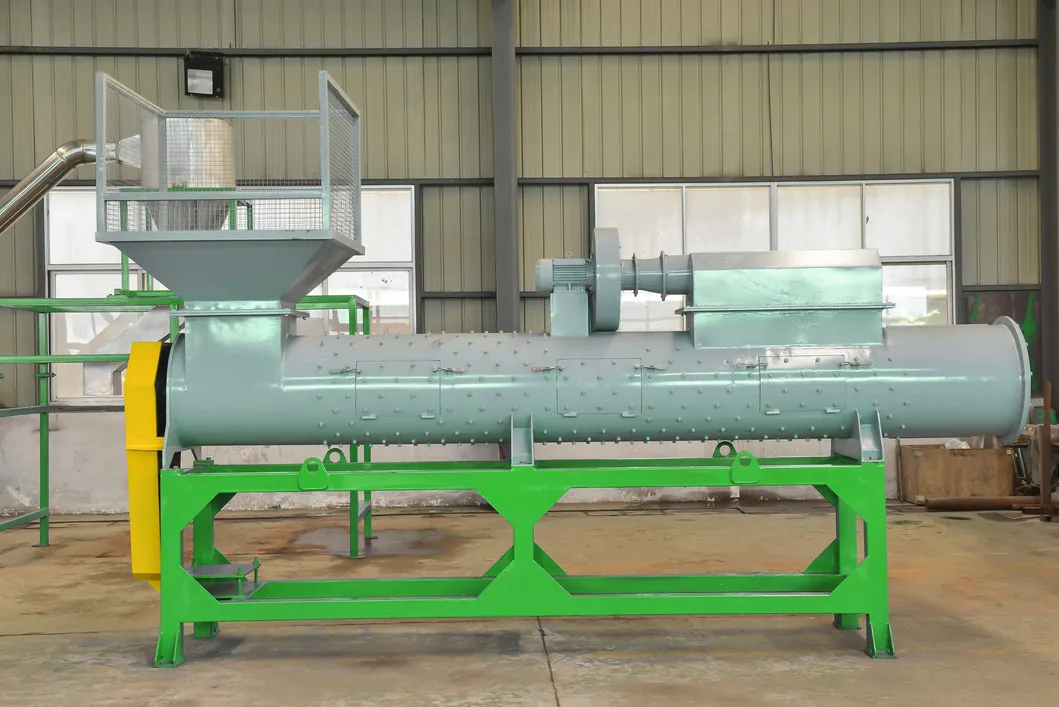

04 Label-remover
Removes labels via friction between screen and arms.

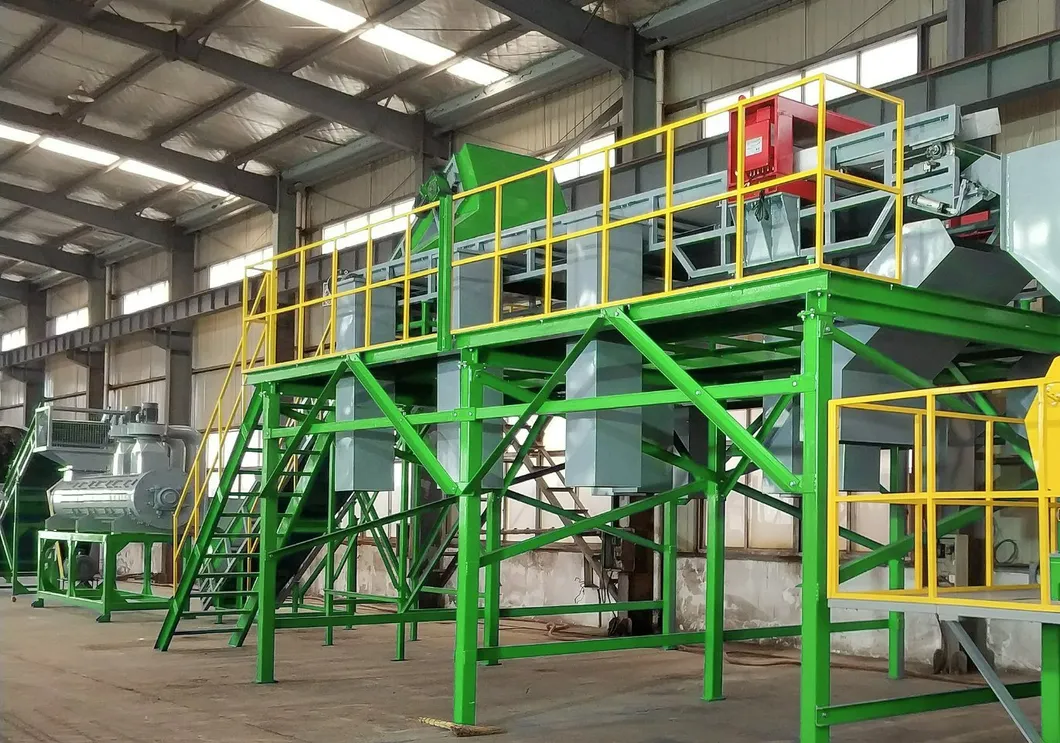

05 Sorting Platform
Manual separation of visible impurities and colored bottles.

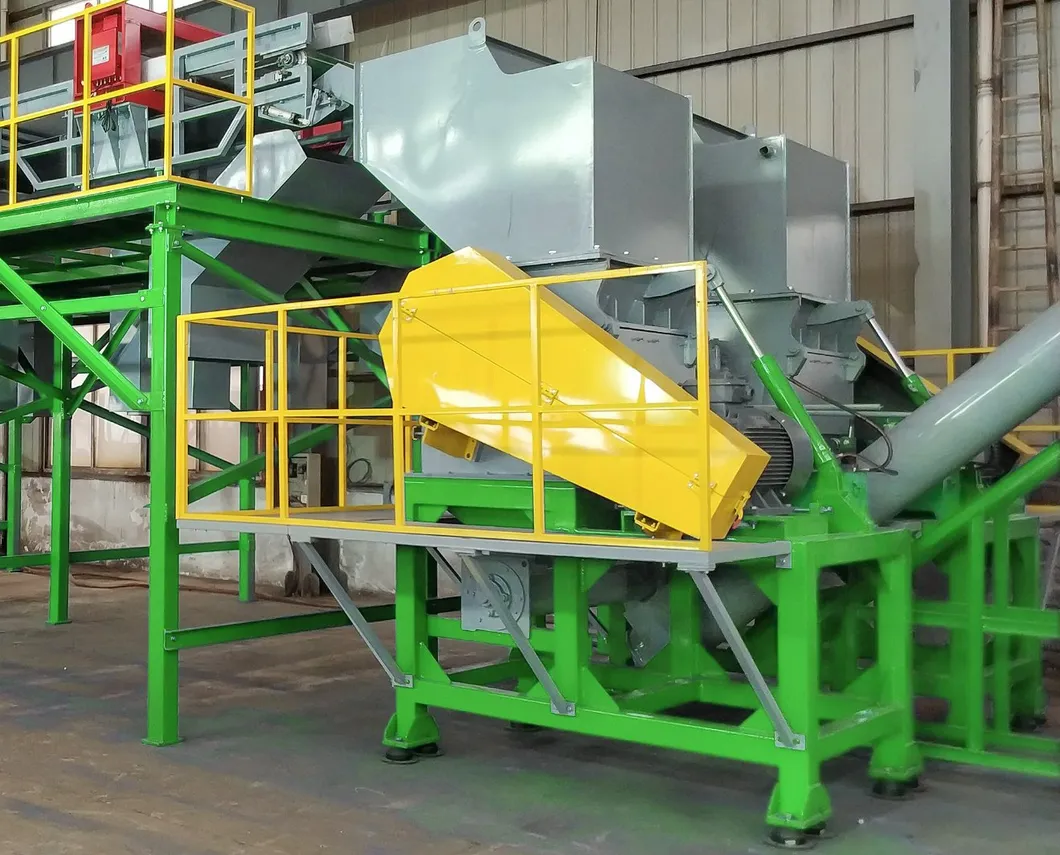

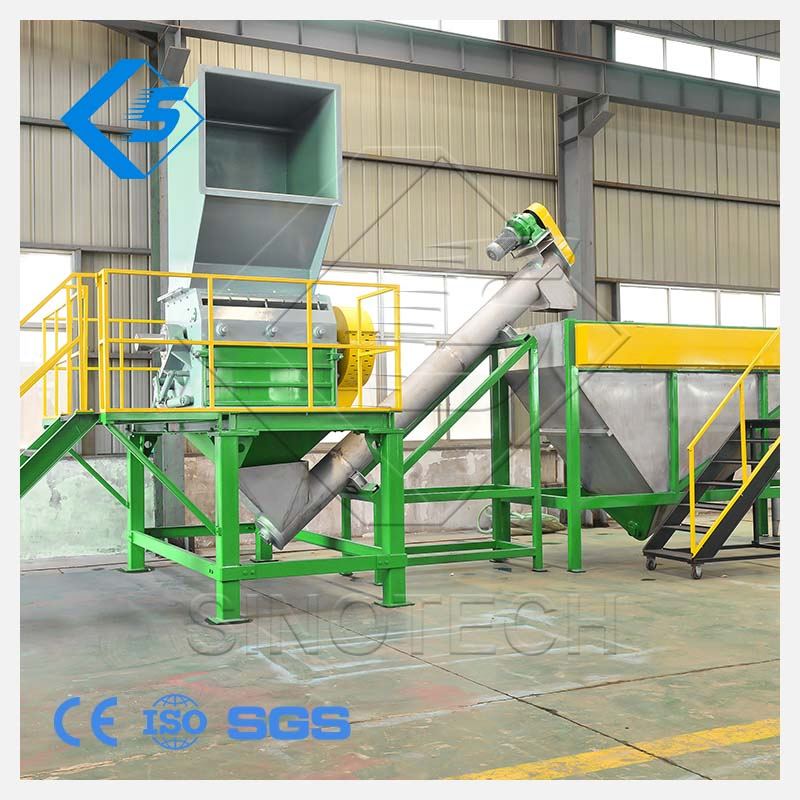

06 Wet Crusher

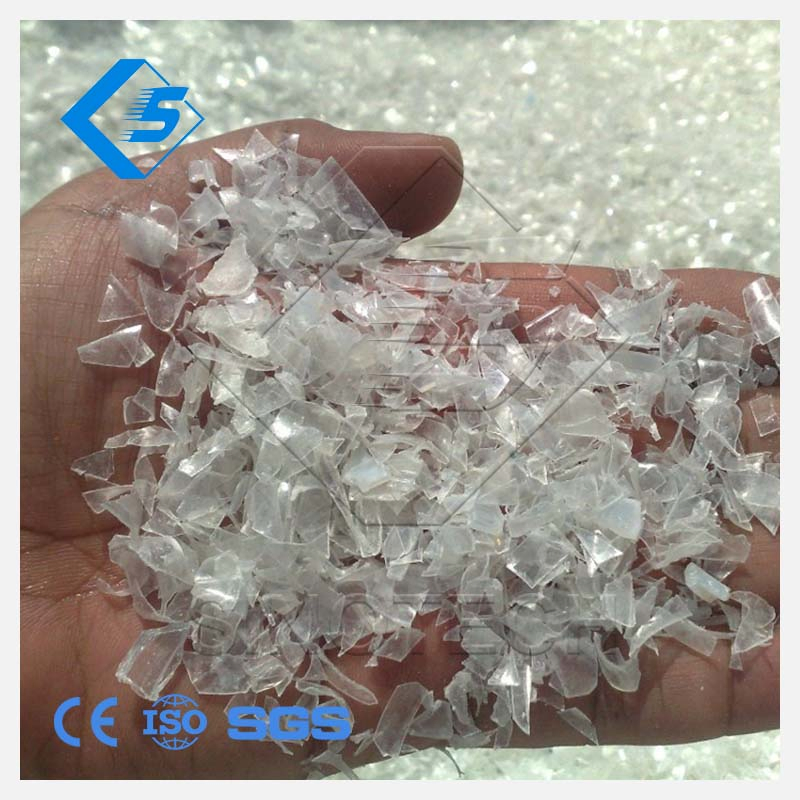

Crushes PET bottles into high-quality flakes.

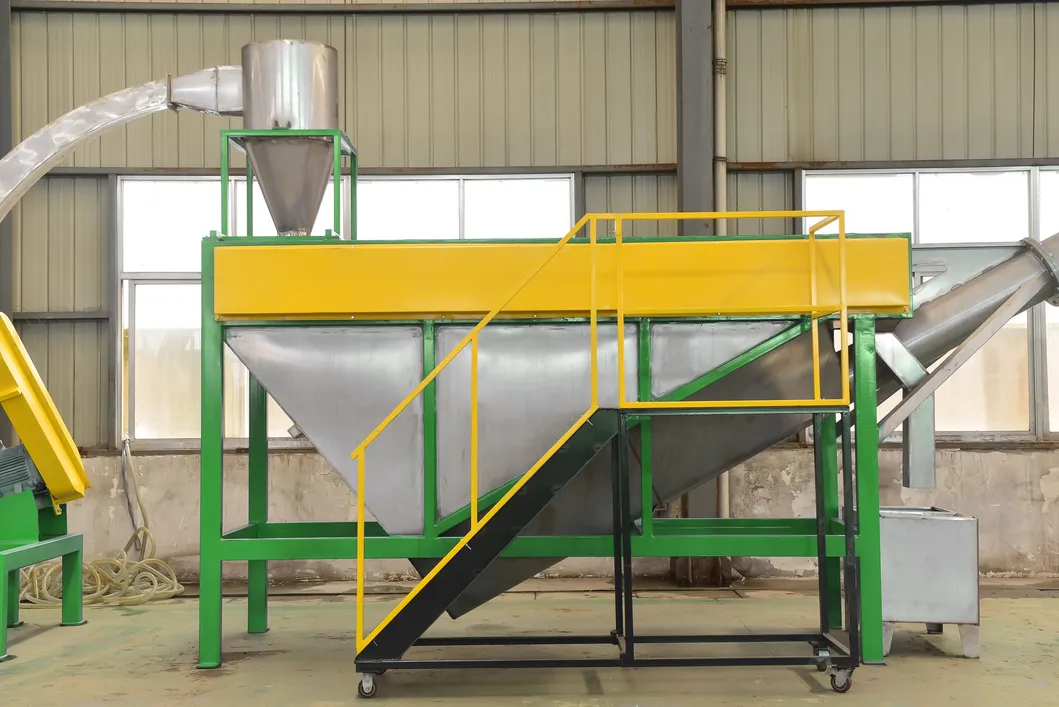

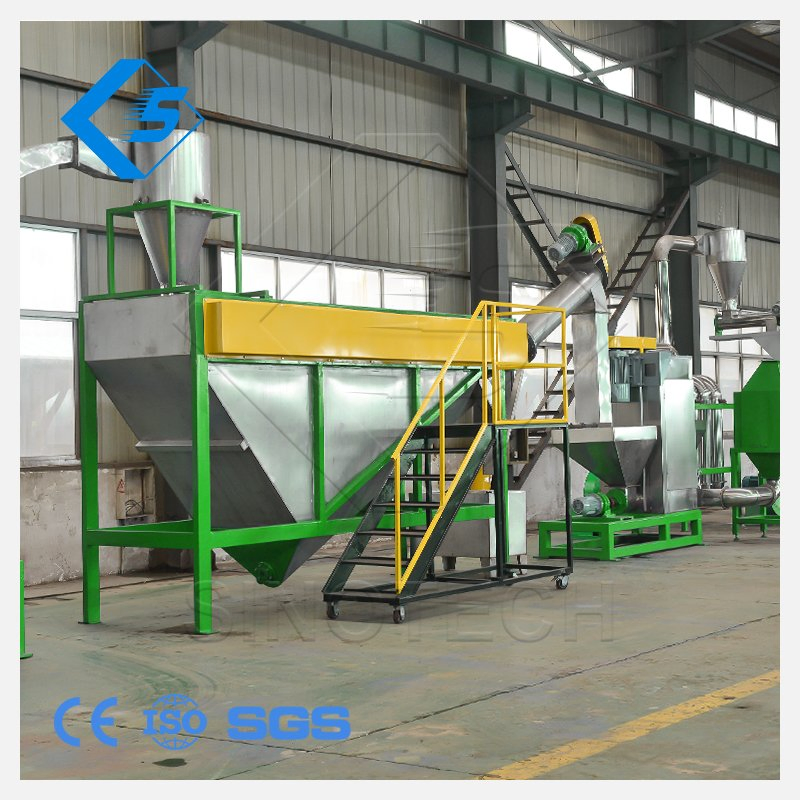

07 Floating Washing Tank
Removes labels, caps, and chemical dirt.

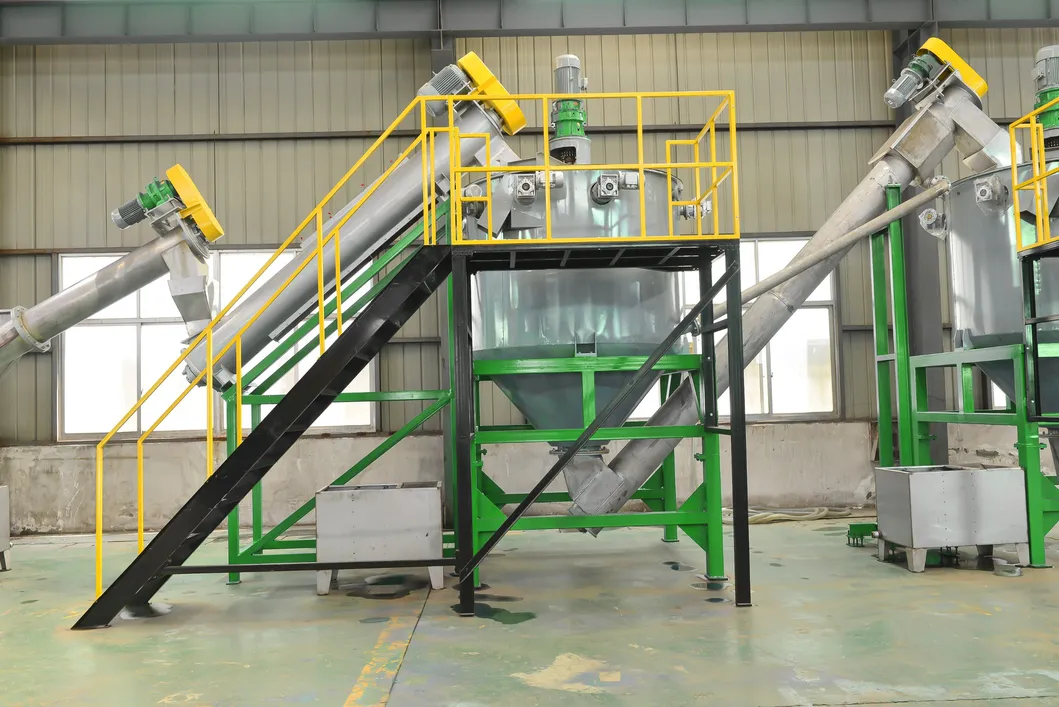

08 Hot Washer
Uses hot water and detergent to remove oil and dirt.

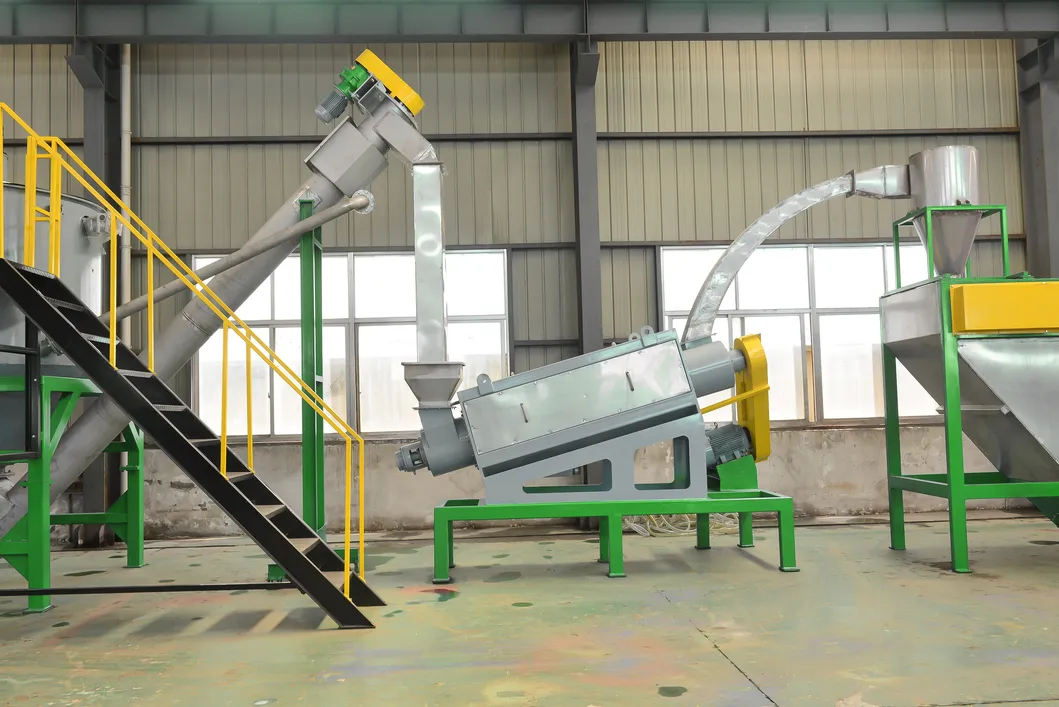

09 Friction Washing Machine
High-pressure water injection for chemical removal.

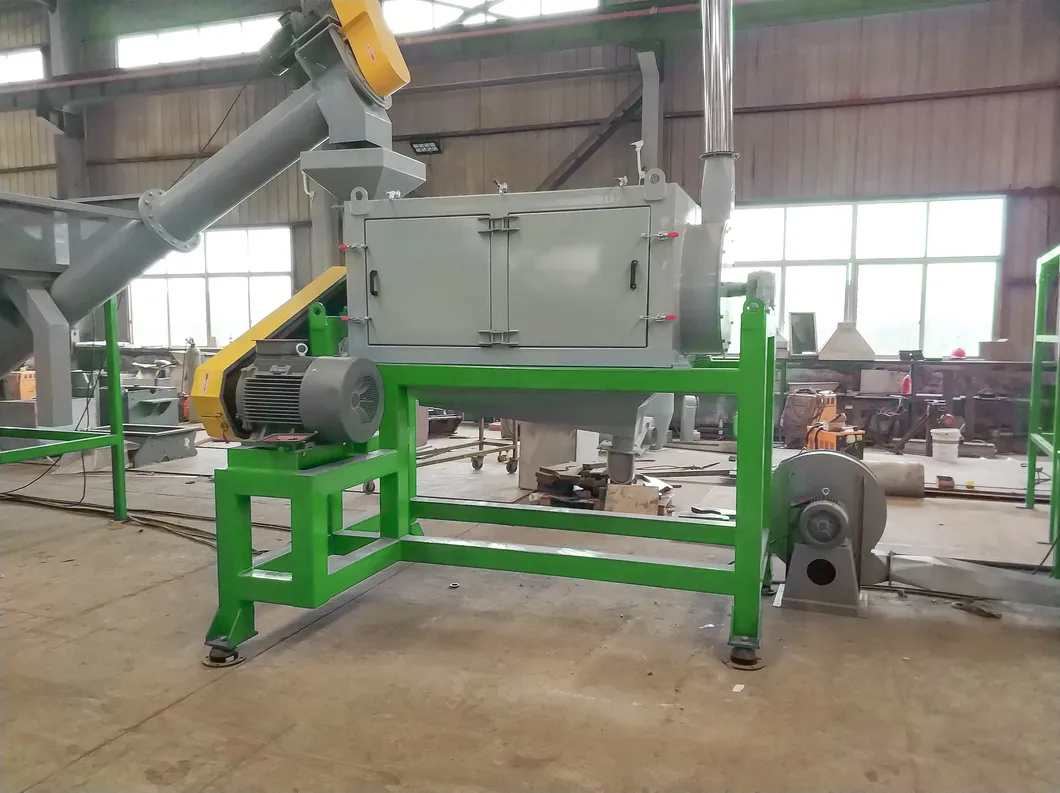

10 Centrifugal Dewatering
Efficiently removes glue, oil, and water.

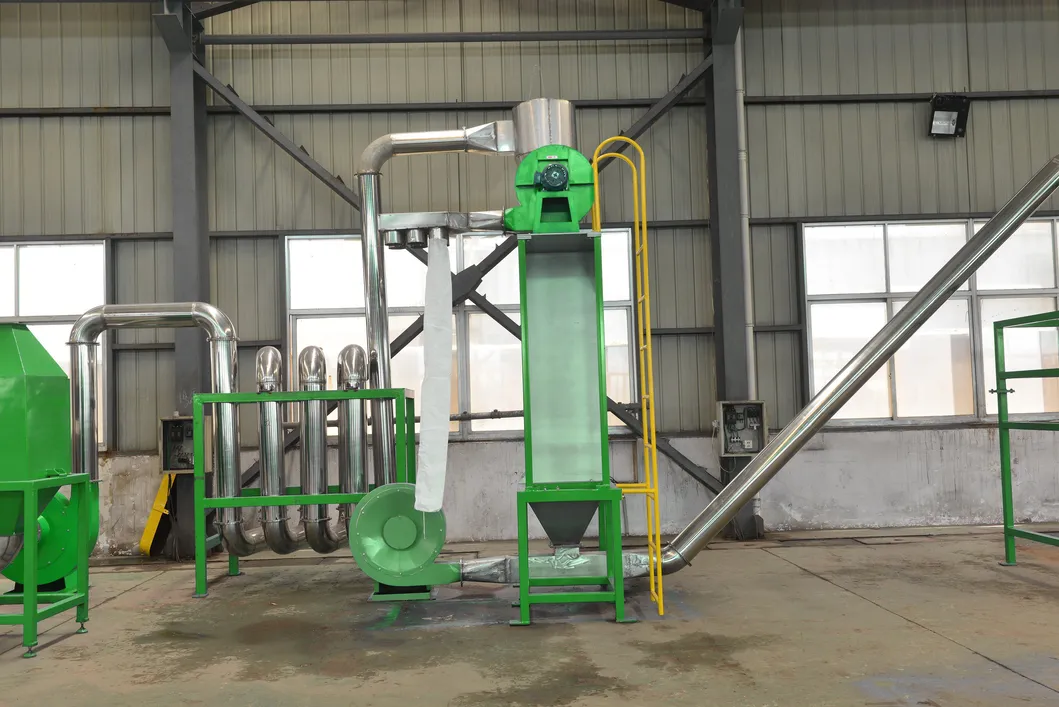

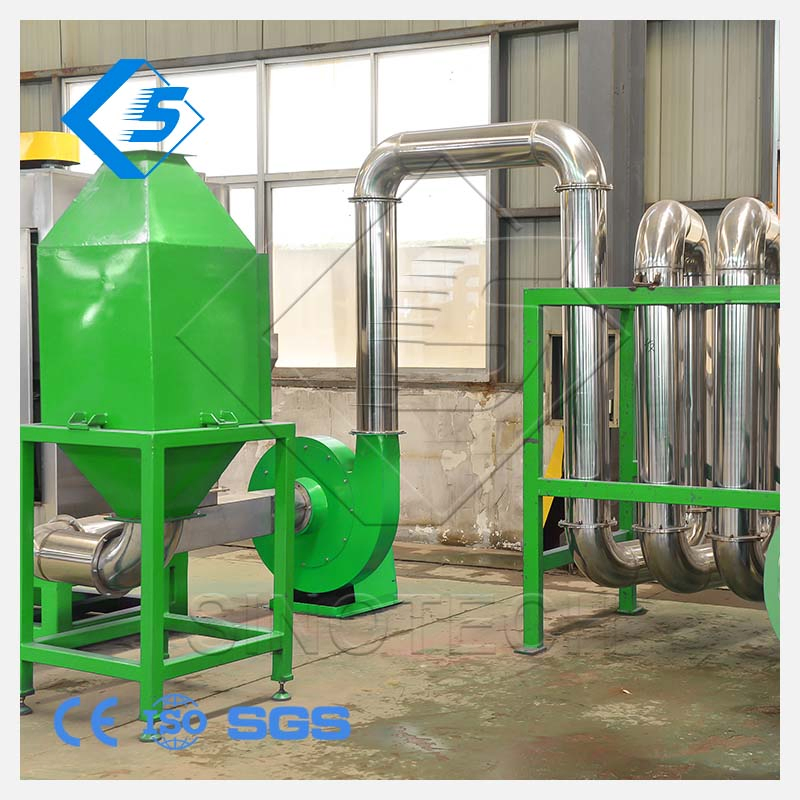

11 Zig-zag Label Blower
Final separation of labels and dust from flakes.
All machines are securely packed for international transport, typically using metal bases and protective wrapping to ensure safety during transit.
