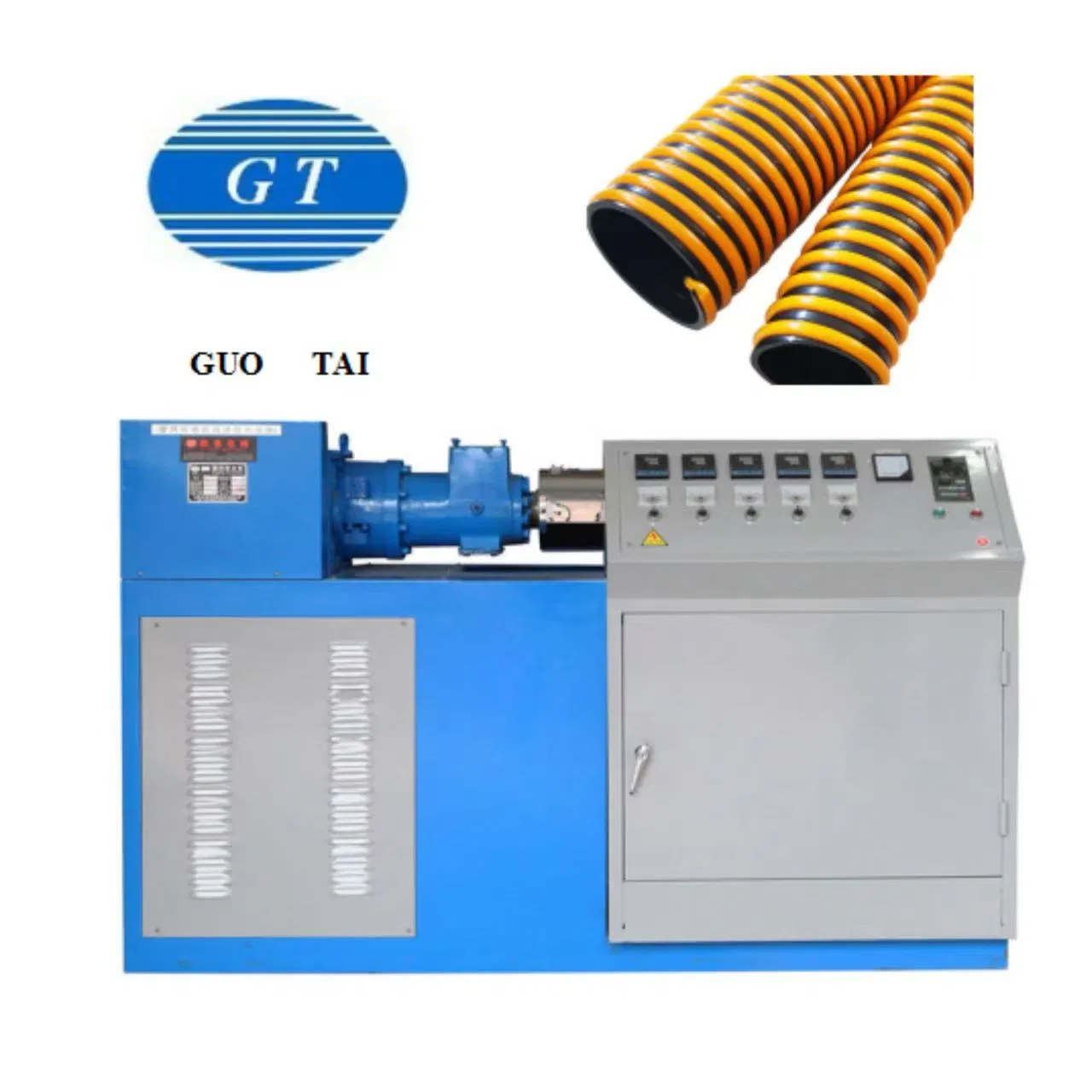

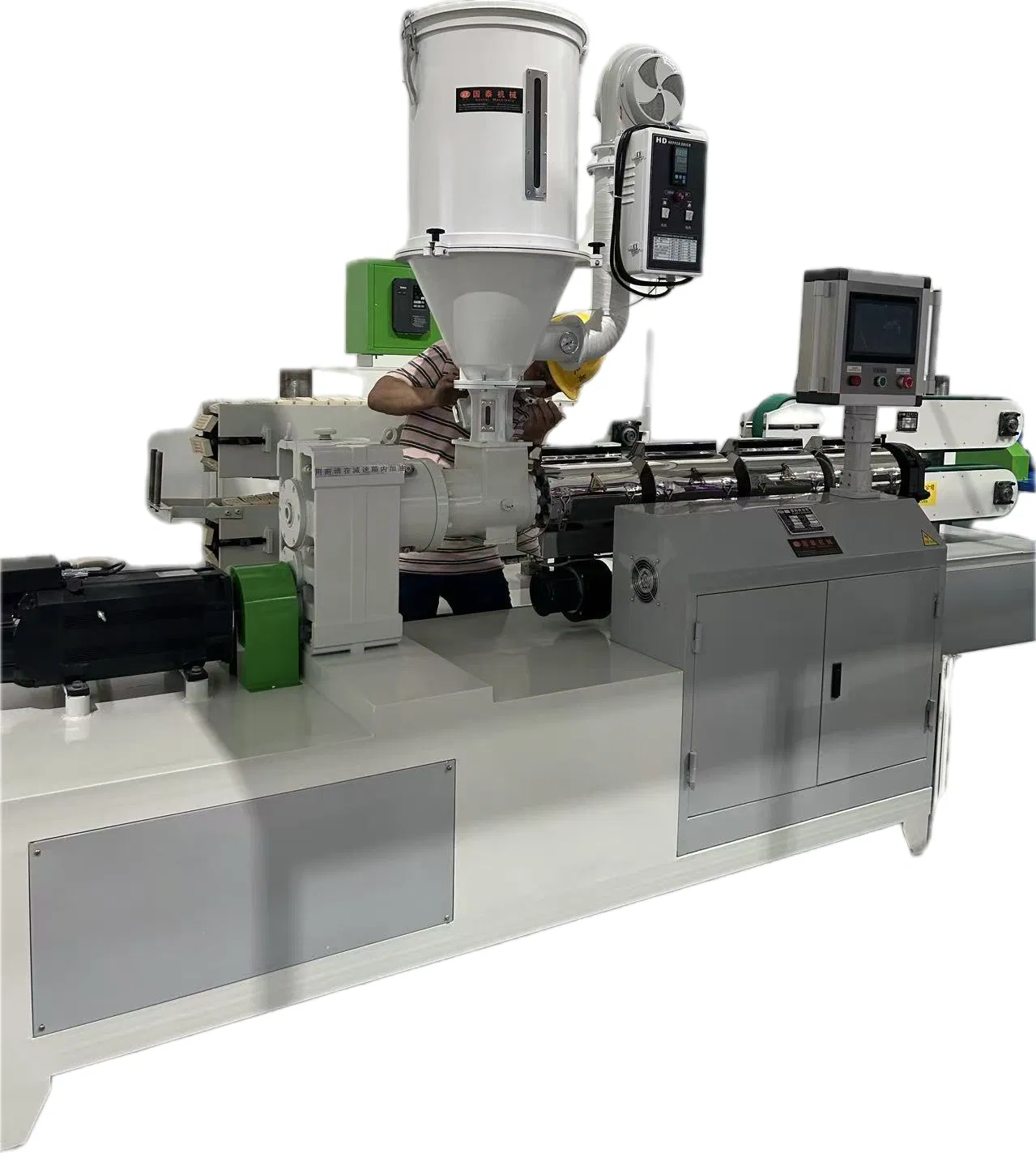

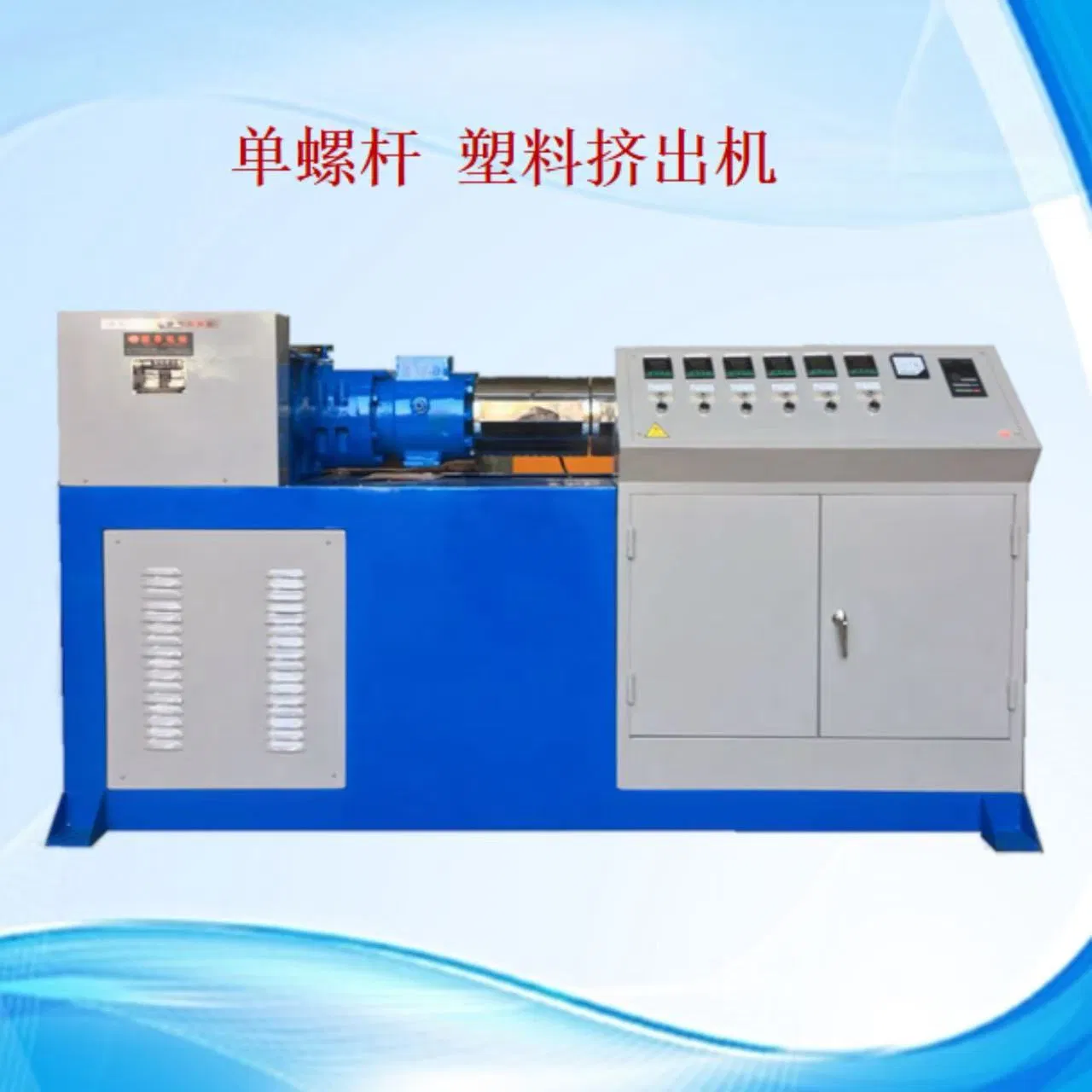

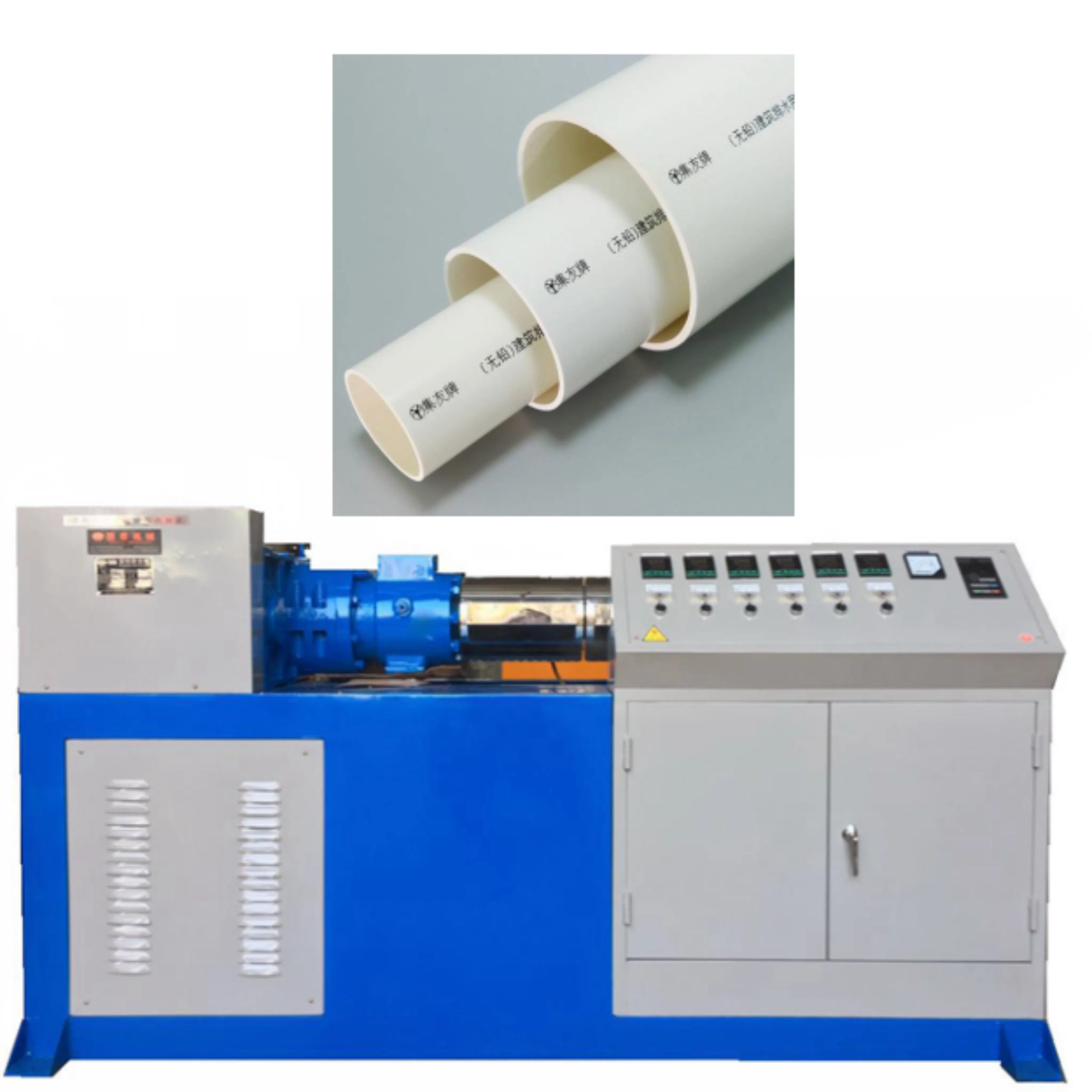

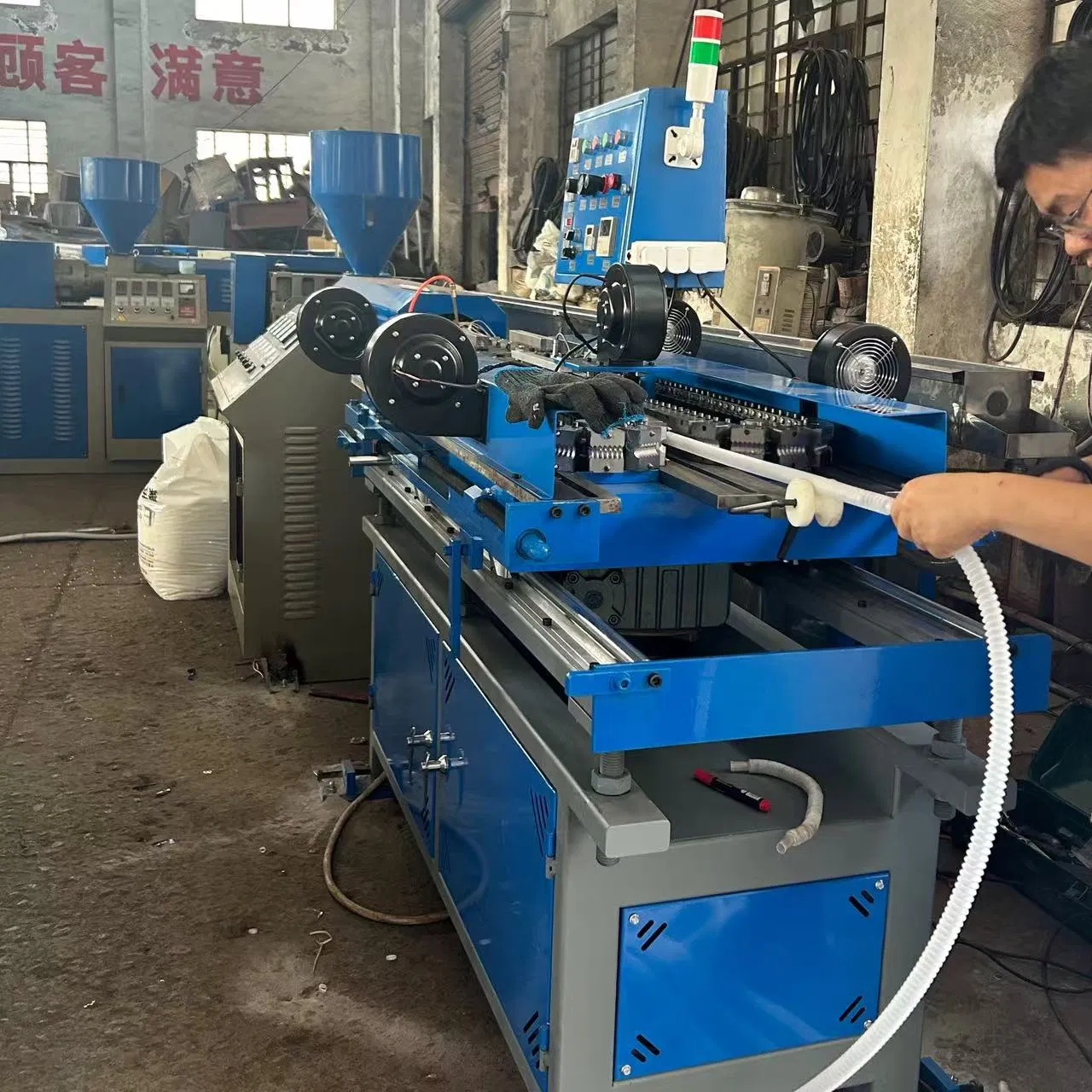

Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
1 / 5
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator
Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator

Source Factory Sj-65/25hy PP PE Pipe Extruder/Profile Extruder Plastic Granulator

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Product Information

Model NO.
SJ 65/25HY
Type
Pipe Extruder
Plastic Processed
PE, PVC, PP, ABS
Product Type
Profile Extrusion Molding Machine
Feeding Mode
Multiple Feed
Screw
Single-Screw
Automation
Automatic / Computerized
Screw Diameter
65mm
Screw Material
High Quality Alloy Steel
Production Capacity
100 sets / Month
📦

Packaging & Delivery

Package Size
280.00cm * 100.00cm * 155.00cm
Gross Weight
1000.000kg
Transport Package
Wood Bottom Case
⚙️

Product Description & Applications

Our plastic extrusion production lines are versatile and designed for high-performance manufacturing. Key product categories include plastic pipe extruder lines, profile extrusion lines, wire/cable lines, and granulation units. We support custom mold manufacturing based on mapping to samples.

Support to Map to Sample Custom Mold
  • Plastic bellows production line
  • TPR TPE rubber band production line
  • Profile production line
  • Imitation wood pencil production line
  • PP/PE Pipe production line
  • Plastic granulator production line

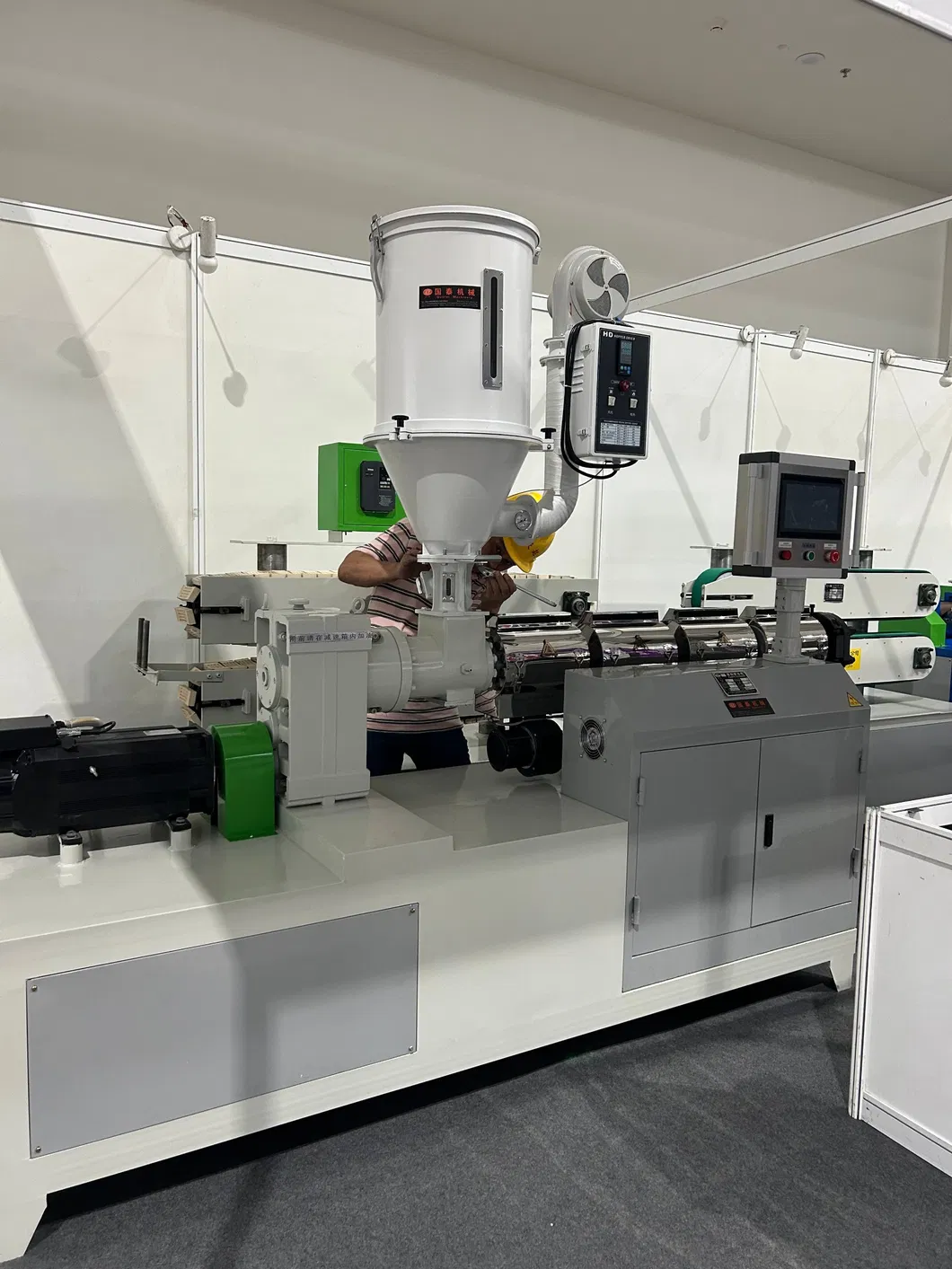

Pipe Extruder 1

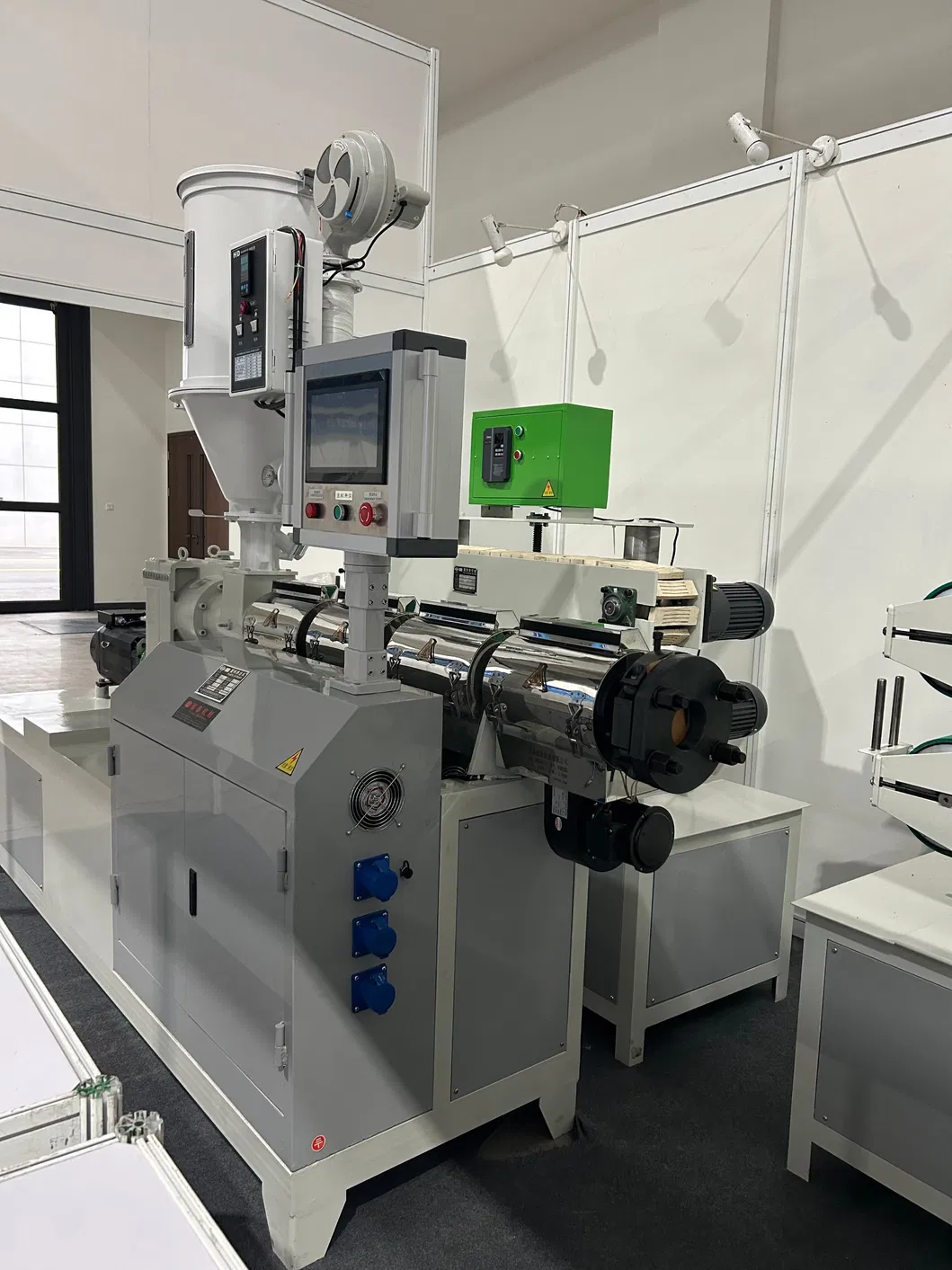

Pipe Extruder 2

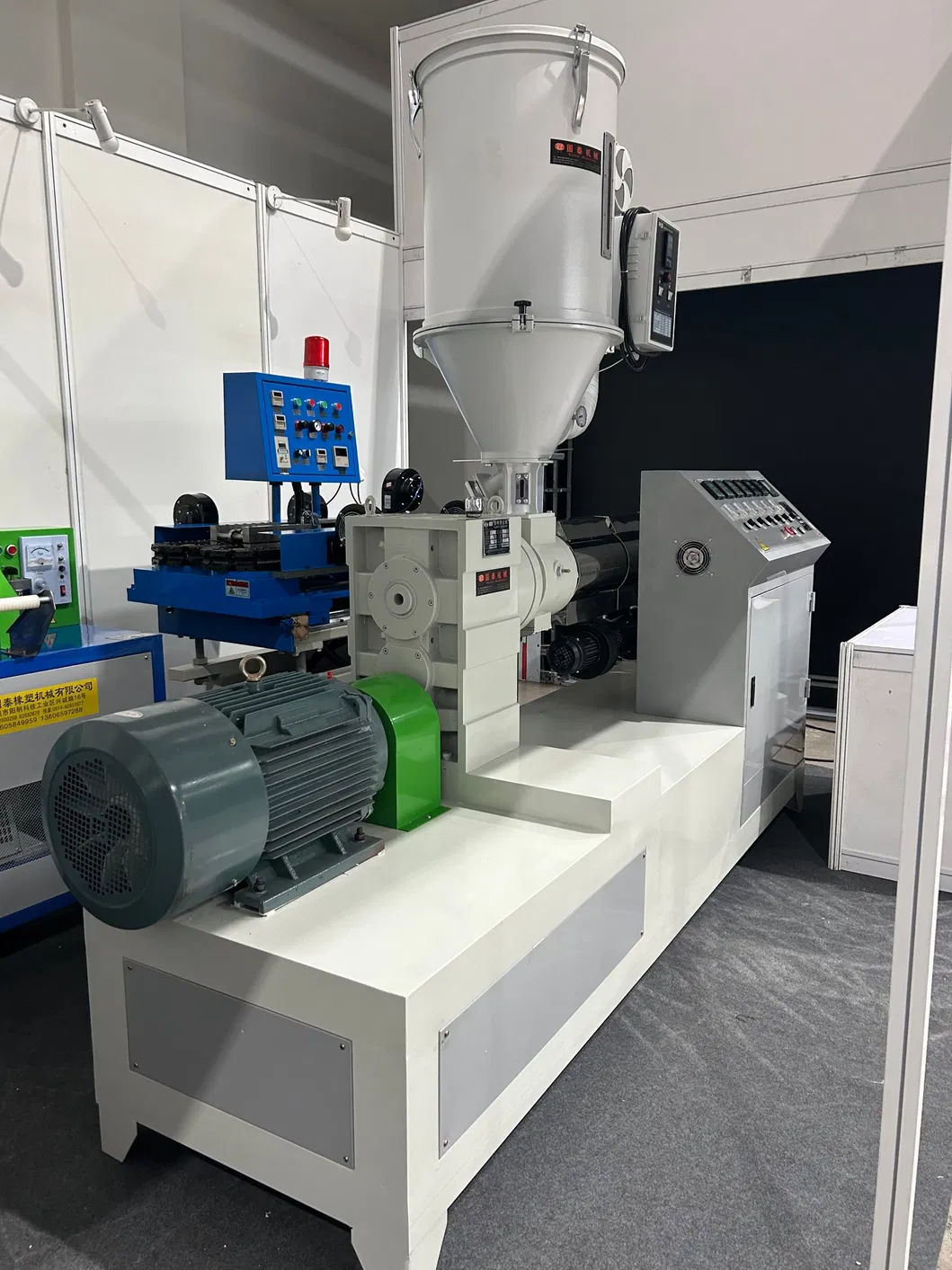

Pipe Extruder 3

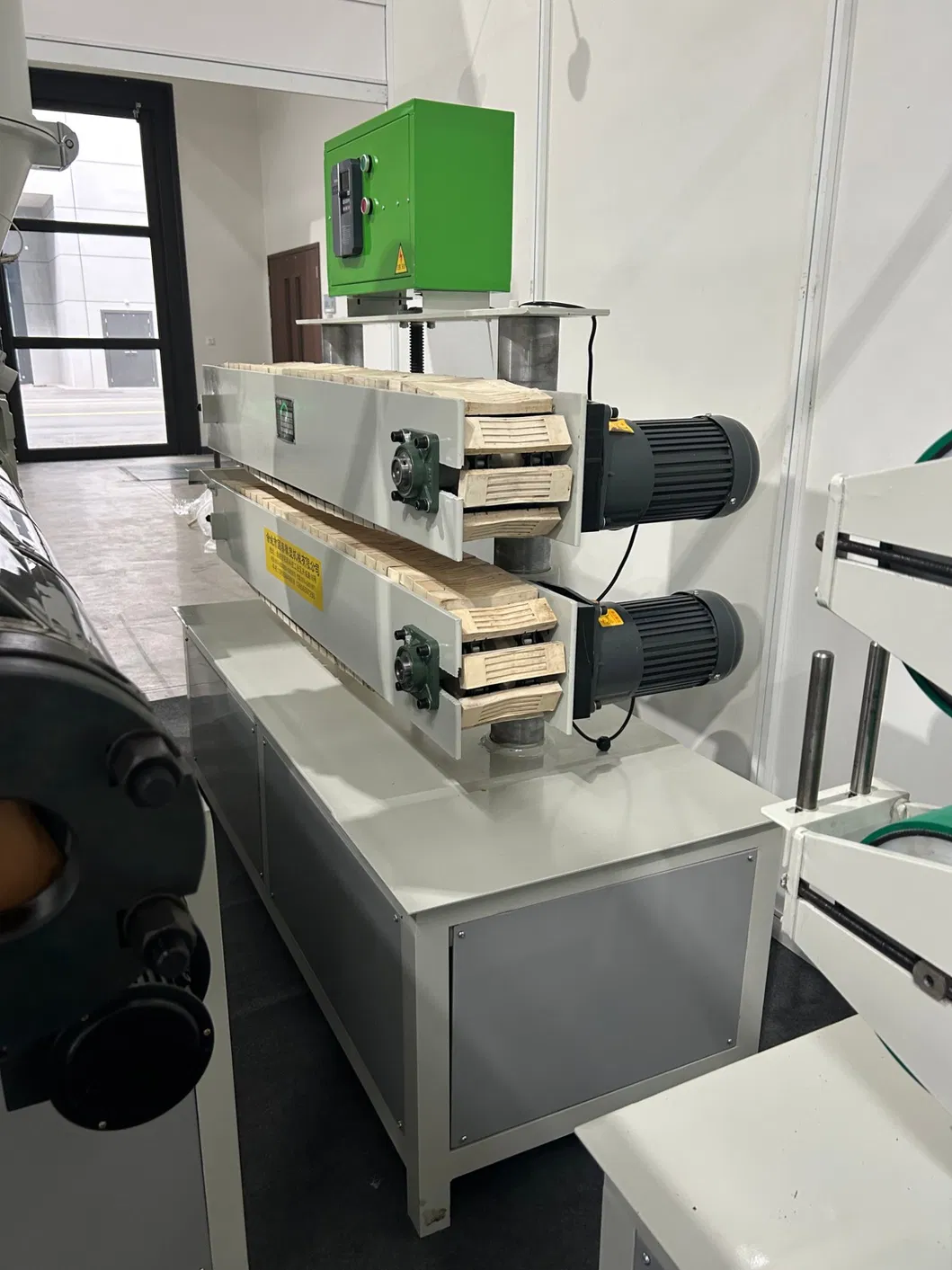

Pipe Extruder 4

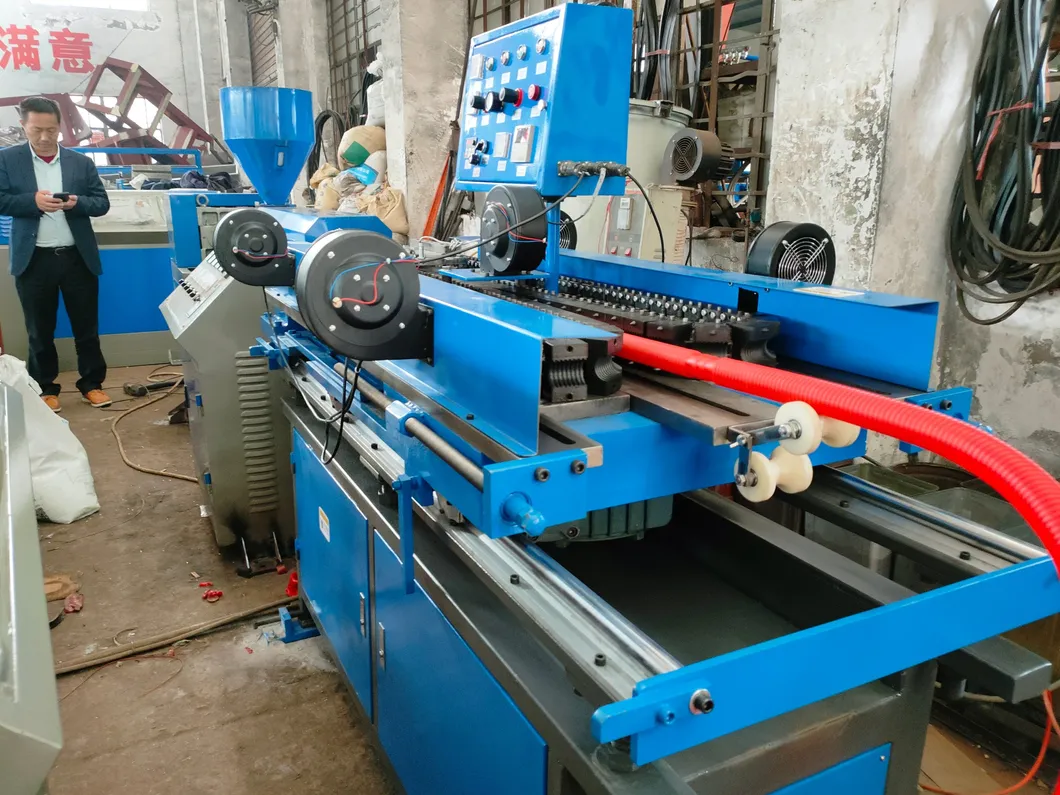

Bellows Production

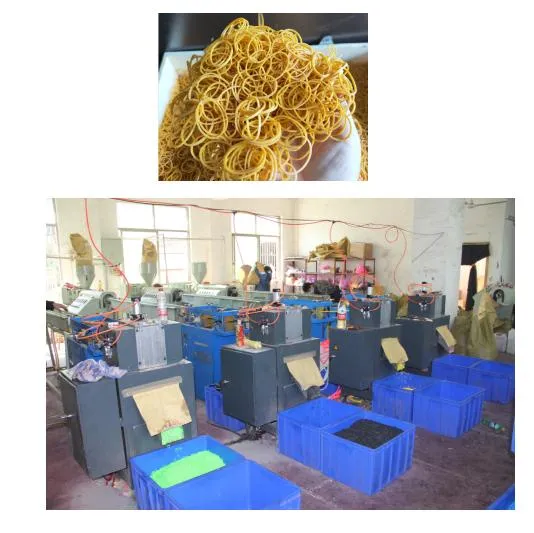

TPR TPE Production

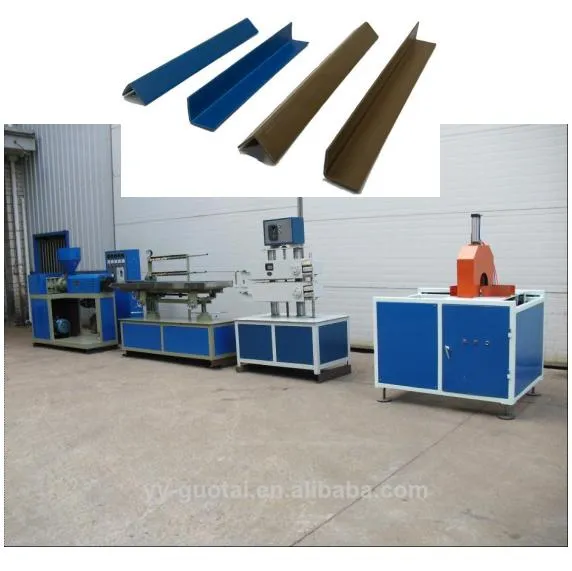

Profile Production

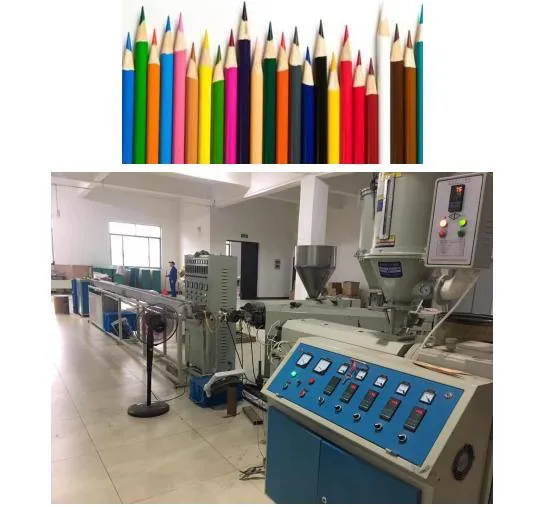

Pencil Production

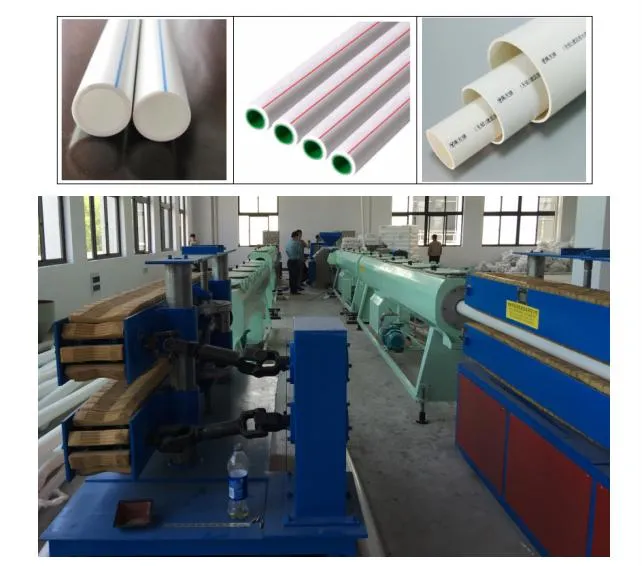

PP PE Pipe Line

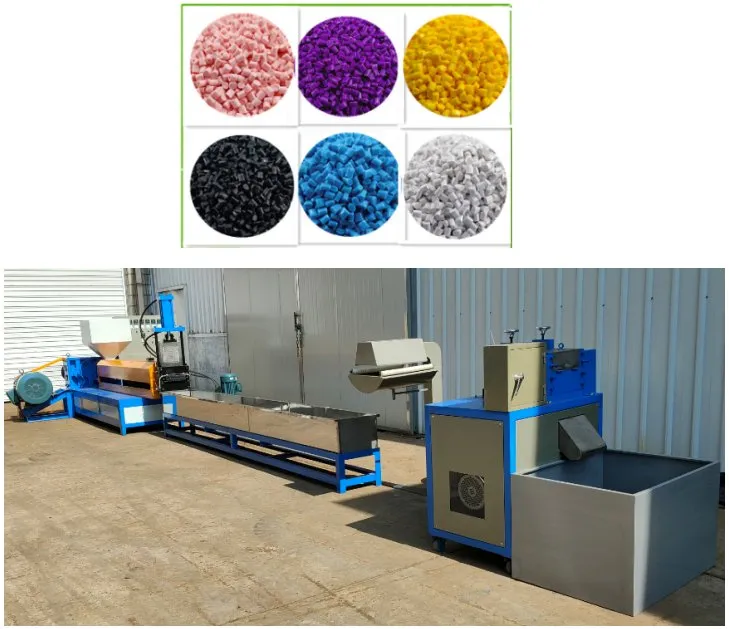

Granulator Line
🛠️

Technical Specifications & Features

This series of extruders is designed for wide application across various plastic materials including HDPE, PP, ABS, PVC, PET, PC, and PS.

  • High Performance: Equipped with imported thermal controllers and inverters.
  • Durability: Hardened gear reducer box with forced cooling system for low noise and long life.
  • Advanced Screw/Barrel: Made of nitrided 38CrMoALA for superior wear and corrosion resistance.
  • Efficiency: High capacity and high-speed extrusion with low energy consumption.
Technical Drawing 1
Technical Drawing 2
Model Screw Dia. L/D Ratio Screw Speed Center Height Capacity Motor Power
SJ-30/25CY30mm25:110-160 r/min1000mm19.5kg/h2.2-3kw
SJ-45/25CY45mm25:116-160 r/min1000mm35kg/h7.5-11kw
SJ-65/25HY65mm25:18-80 r/min1000mm100kg/h18.5kw
SJ-90/25HY90mm25:110-100 r/min1000mm155kg/h30-55kw
SJ-120HY120mm25:130-90 r/min1000mm250kg/h75kw
❓

Frequently Asked Questions (FAQ)

Q: What types of plastic materials can this extruder process?
A: The machine is highly versatile and can process a wide range of materials including HDPE, PP, ABS, PVC, PET, PC, and PS to produce pipes, profiles, sheets, and granules.
Q: What is the screw and barrel made of?
A: The screw and barrel are manufactured from nitrided 38CrMoALA alloy steel, ensuring the machine is wear-resistant, corrosion-resistant, and maintains high strength during operation.
Q: Does the machine come with an automated control system?
A: Yes, the extruder is fully computerized and automatic, featuring imported thermal controllers and inverters for precise production management.
Q: What kind of cooling system is used for the gearbox?
A: It uses a hardened gear reducer box with a forced cooling system to ensure high performance, low noise, and a significantly extended service life.
Q: Can you provide customized molds?
A: Yes, we support custom mold development based on your specific samples or drawings to meet unique profile or pipe requirements.
Q: What is the average production capacity?
A: Depending on the model, capacity ranges from approximately 19.5kg/h for smaller units up to 250kg/h for larger industrial models like the SJ-120HY.
