Advanced Steel Cooling System for Plastic Molding Equipment

Customization:	Available
After-sales Service:	Lifetime After-Sales
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

CLP-825

Cooling Method

Counter Flow

Ventilation Mode

Mechanical Ventilation

Material

Metal

Air Contact Form

Wet and Dry

Air Contact Way

Closed

Tower Shape

Square

Noise Level

Ultra Low

Certification

RoHS, UR, ISO, CE, CCC

Housing Material

Aluminum Zinc Plated Sheet and Stainless Steel

Production Capacity

5000sets/Year

Packaging & Delivery

Package Size

500.00cm * 255.00cm * 400.00cm

Package Gross Weight

5110.000kg

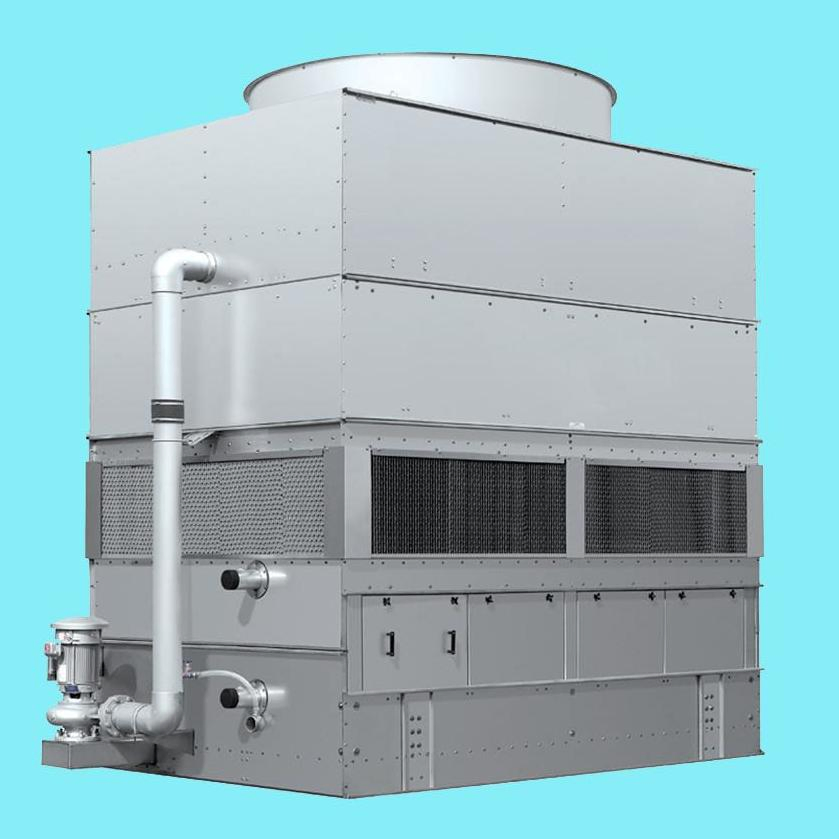

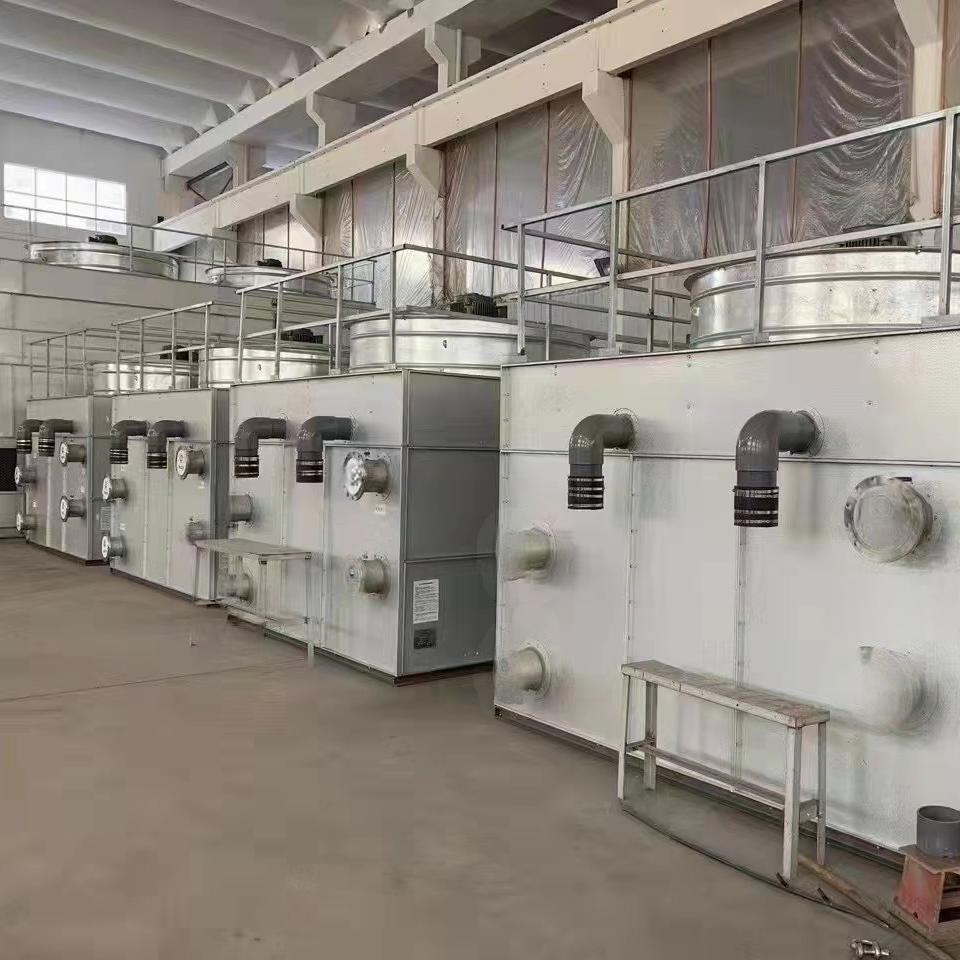

REVERSE FLOW CLOSED COOLING TOWER

Cooling medium: water, oil, or other liquids. Condenser Material: Copper Tube Condenser, Stainless Steel Tube Condenser shell material: 304 stainless steel plate, Galvanized sheet, magnesium aluminum zinc plated plate. Compact structure, small footprint, and relatively high height. Adopting modular design, maintenance is convenient and fast. Meanwhile, due to the adoption of a closed-loop system, impurities and dirt in the cooling water are less likely to accumulate, reducing the maintenance cost of the equipment.

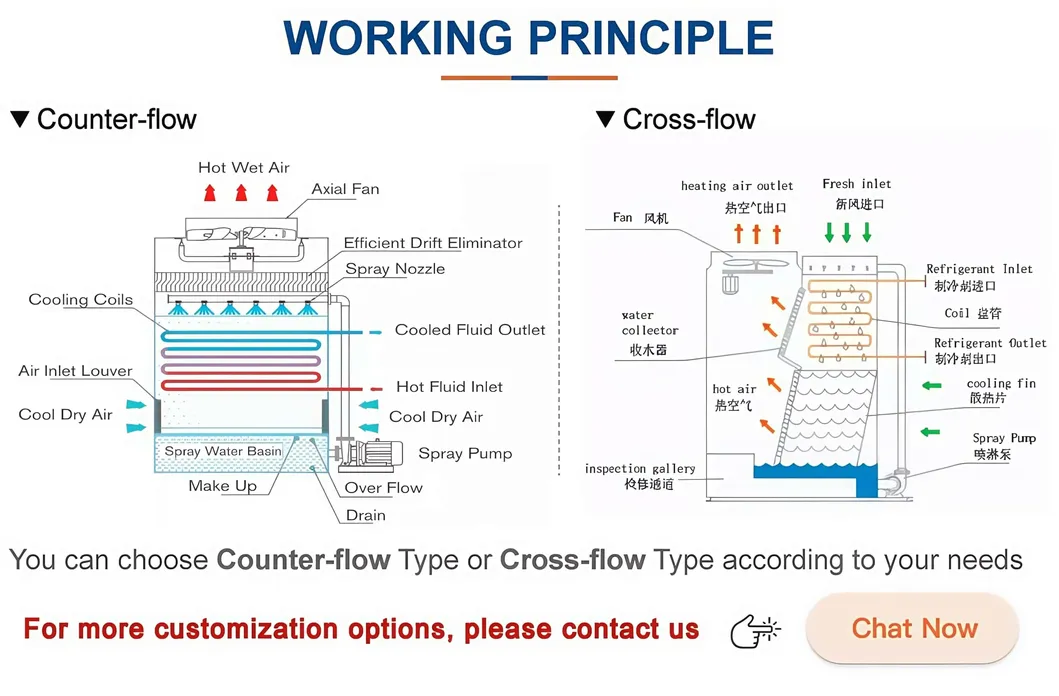

Working Principle

A counter current closed cooling tower is a type of cooling tower where the wind direction is opposite to the direction of the spray water. The inlet form is a bottom inlet, and dry low-temperature air is sucked in from the lower part of the tower, alternating with the falling spray water in the opposite direction.

Product Advantages

⚡ Efficient Cooling

Counterflow design increases cooling area and efficiency.

💧 Energy Conservation

Closed loop system reduces evaporation loss and saves water.

⚙️ Stable & Reliable

Steel structure design adapts to harsh environments.

Exquisite Craftsmanship

Space Saving: Fully enclosed internal circulation, no need for water tanks.
Environmental: Sustainable water use with low spray evaporation.
Anti-Scaling: Soft water circulation prevents scale formation at high temperatures.
Extended Lifespan: High-quality metal materials with minimal maintenance.

Selection Parameters Table

Model	Cold Capacity (kcal/h)	Water Volume (m³/h)	Fan Power (KW)	Pump Power (KW)	Inlet/Outlet (mm)	Dimensions (LxWxH mm)	Net Weight (Kg)
ZM-BNL200	50000	10	0.37*1	0.75	DN50	1630x910x2180	400
ZM-BNL400	100000	20	0.37*2	0.75	DN65	2380x910x2380	700
ZM-BNL800	200000	40	0.75*2	1.5	DN65	2880x1160x2425	900
ZM-BNL1200	300000	60	1.5*2	2.2	DN65	2880x1410x2635	1200
ZM-BNL2000	500000	100	1.5*4	3	DN100	3480x1910x2655	1600
ZM-BNL4000	1000000	200	4*2	7.5	DN150	4100x2200x3365	3000

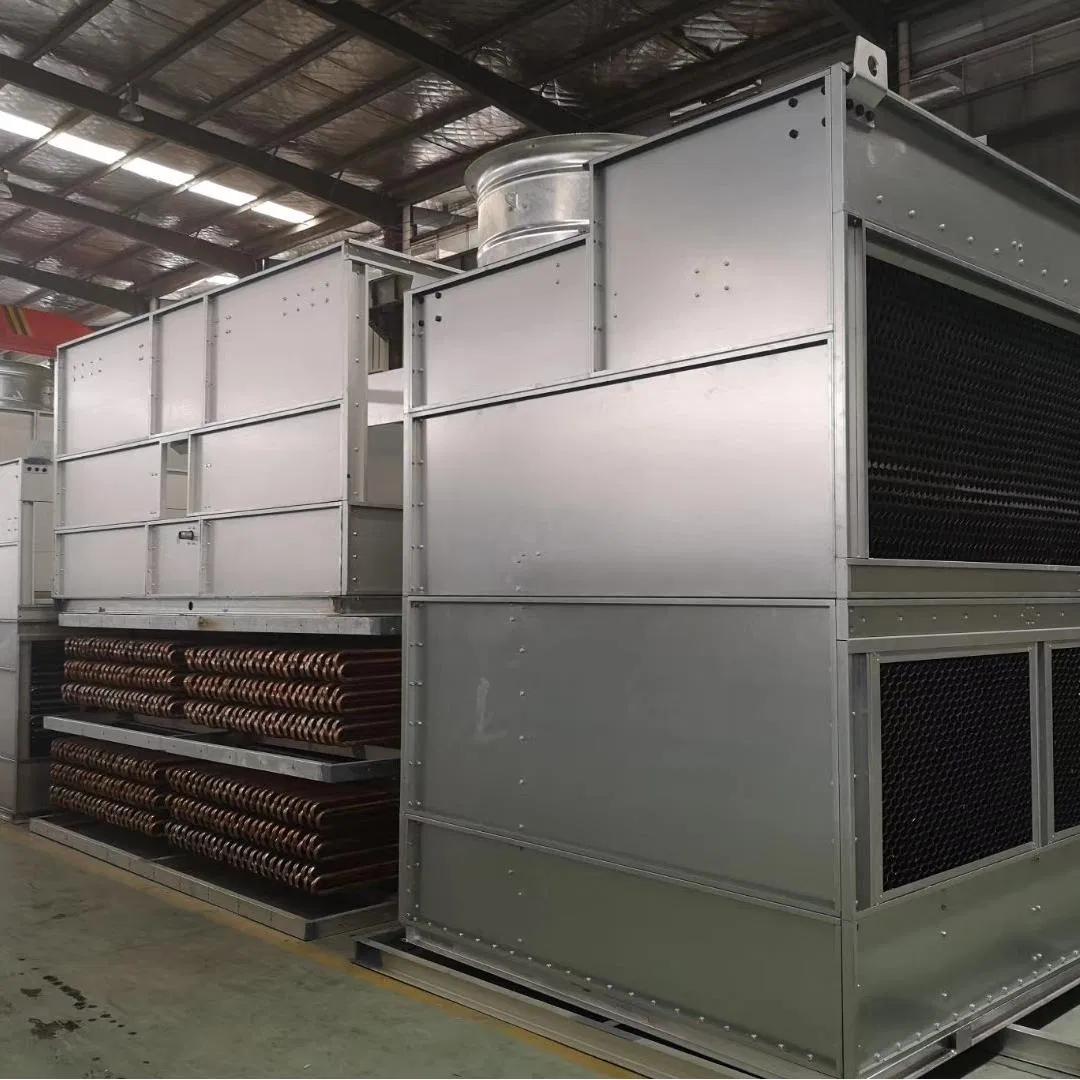

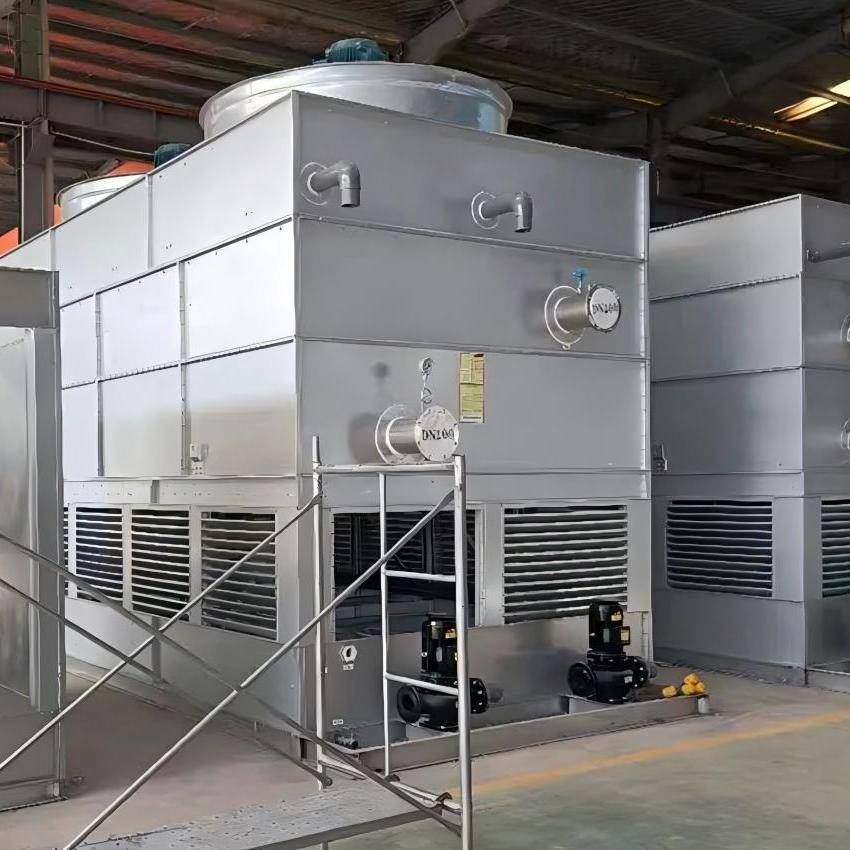

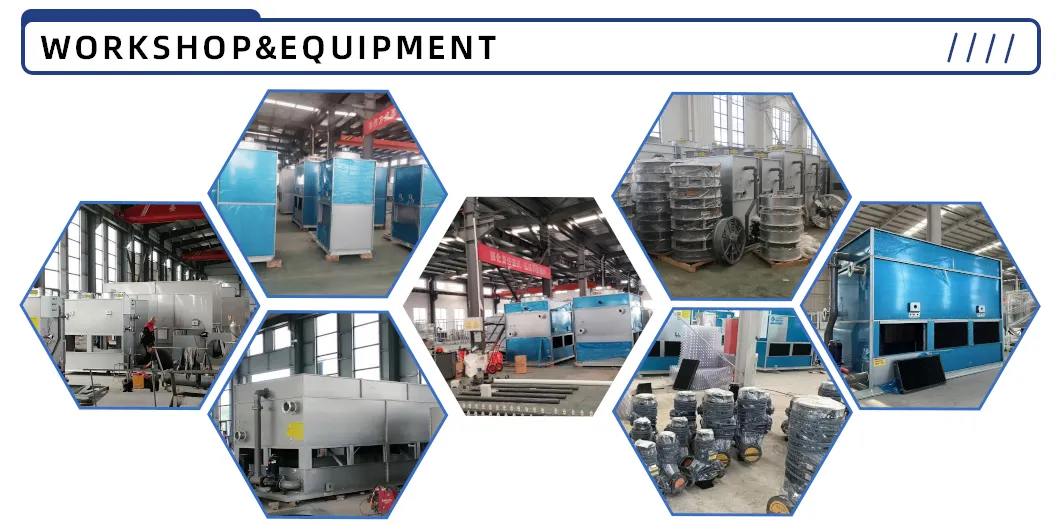

Workshop & Equipment

Certifications

Frequently Asked Questions

Q1: What types of cooling towers can be produced?

A: We support a full range of cooling towers including Industrial reflux towers (Stainless Steel 304/316L), Commercial cross-flow towers, and anti-freezing cooling towers for cold regions.

Q2: Does it support non-standard customization?

A: Yes. Customization includes size (up to 25m), flow rate (50~5000m³/h), specific temperature drops, and noise control (minimum ≤ 55dB).

Q3: How do you control product quality?

A: We use a four-level quality control system: Incoming inspection (salt spray test), process monitoring (welding X-ray), 72-hour load testing before delivery, and a full traceability system via unique ID codes.

Q4: What is the typical production cycle?

A: Standard cooling towers typically take 15-25 days. Large industrial towers require 30-45 days. We also have an expedited channel for urgent orders.

Q5: What OEM/ODM services are available?

A: We provide brand customization (logo engraving, exclusive packaging) and technical adaptation (adjusting formulas based on local climate or water quality).

Q6: How does after-sales technical support respond?

A: We offer a global 4-hour emergency response mechanism, including 24-hour video diagnosis and common accessories shipment within 48 hours.
