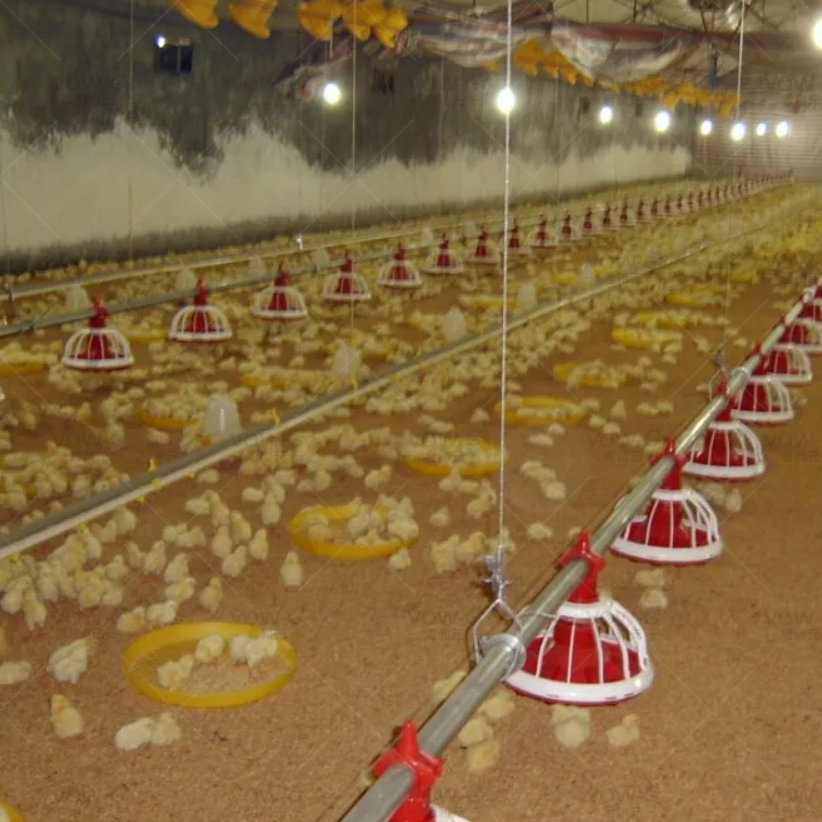

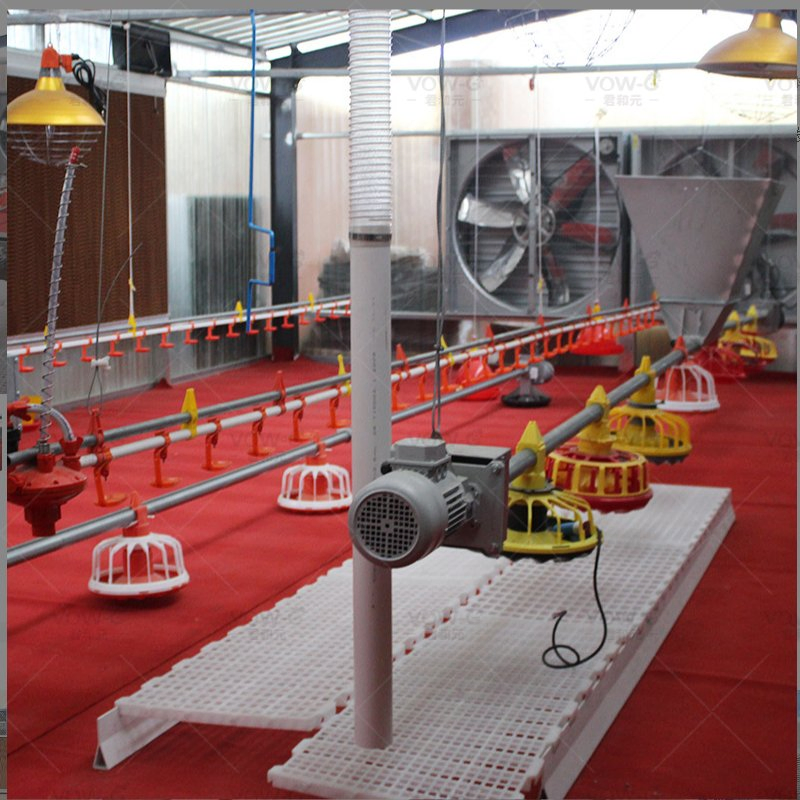

Steel Structure Poultry Chicken House Automatic Broiler Floor System Pan Feeding System Equipment

Customization: Available
After-sales Service: Online
Type: Breeder Layer Broiler Farm House

Product Description

📦 Basic Info Overview
Usage
Broiler Equipment
Application
Breeder Layer Broiler Farm House
Power Source
Electric
Equipment Type
Cooling Pad/Tunnel Fan/Blower Fan
Epidemic Prevention
Mobile Vaccination Car
Computerized
Computerized Control
Certification
CE
Warranty
1 Year
Main Material
Stainless/Hot Galvanized Steel and Raw Plastic
Operation
Full Automatic
Design Scheme
Professional Plan and Install Provided
Production Capacity
10,000 PCS/Year
📜 Product Description

Complete Poultry Farm Project Broiler Equipment

We offer complete automatic equipment solutions for modern poultry houses, integrated with advanced technology to ensure optimal growth environments.

🛠️ System Components
  • Feed storage systems (Silos and Hoppers)
  • Broiler pan feeding system
  • Nipple drinking system
  • Environmental control system (Ventilation, Air inlets, Cooling pads)
  • Advanced digital controllers
📷 Detailed System Overview

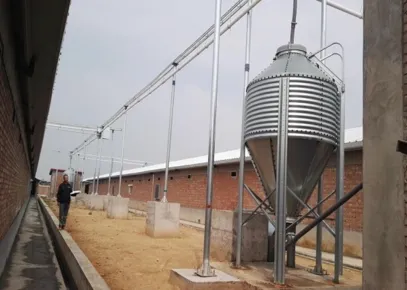

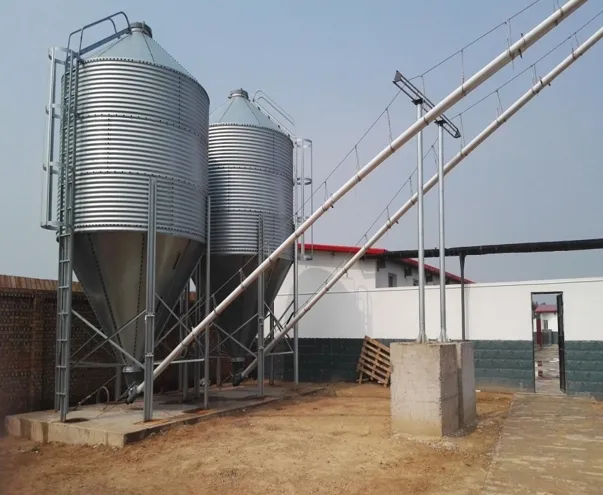

1. Feed Storage System

This system delivers feed from the silo to the hopper in the poultry house. A feed sensor at the end of the main line controls the motor automatically for seamless delivery. Includes silo, drive system, sensor, and auger.

Feed Storage 1

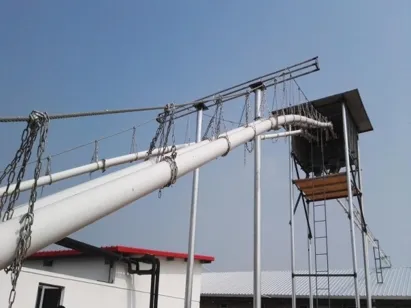

Feed Storage 2
Feed Storage 3

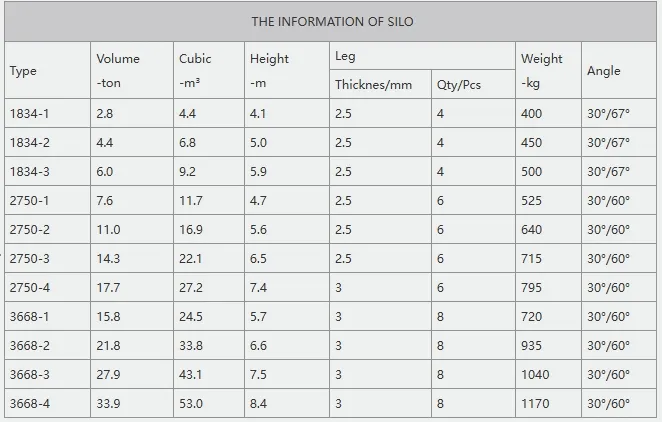

Silo System

Galvanized sheet silos with capacity from 2.8 tons to 33 tons.

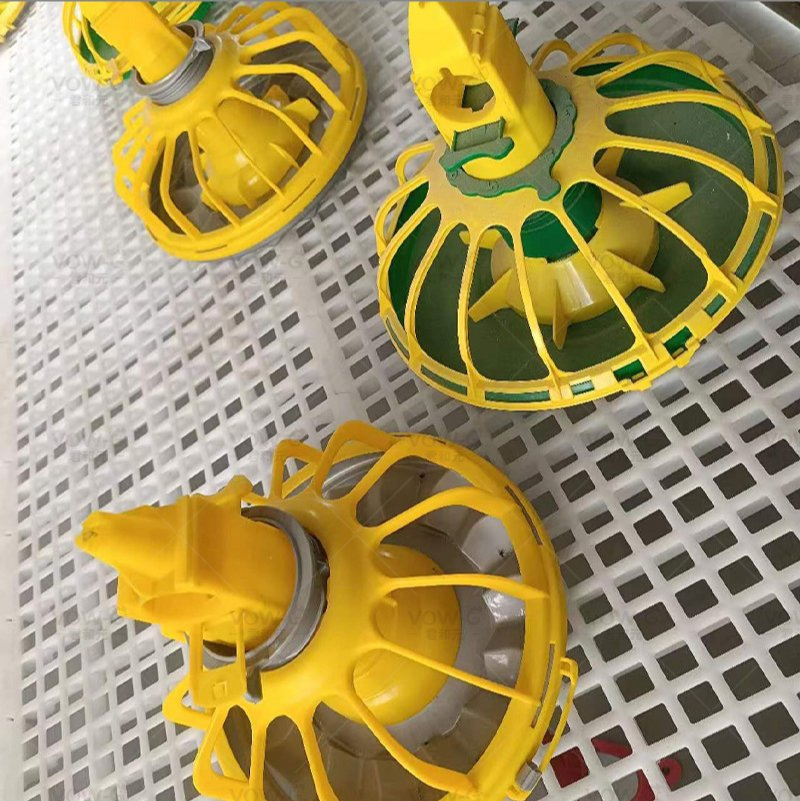

2. Broiler Pan Feeding System

Designed to achieve the best FCR (Feed Conversion Ratio). Adjustable levels accommodate different growth stages to minimize feed waste.

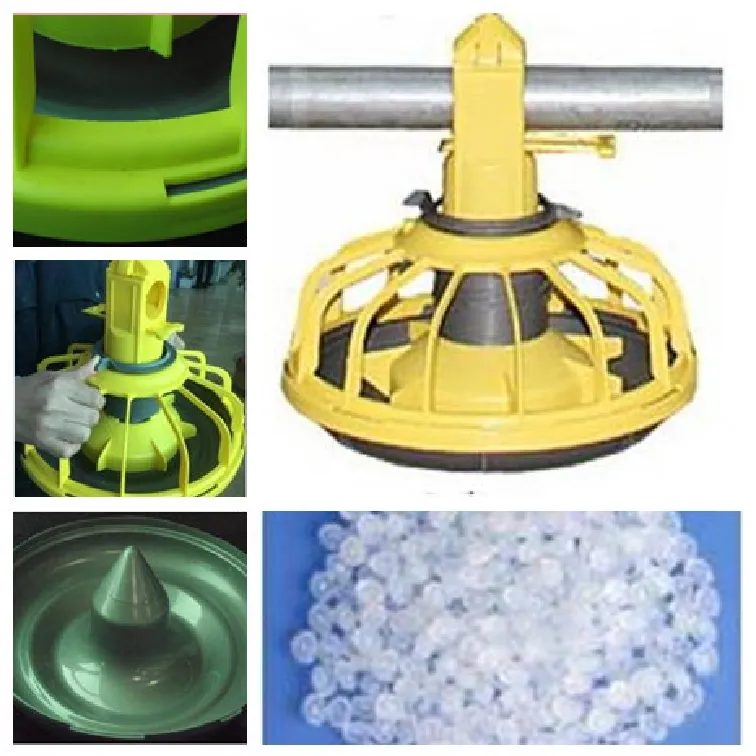

Feeding Pan 1

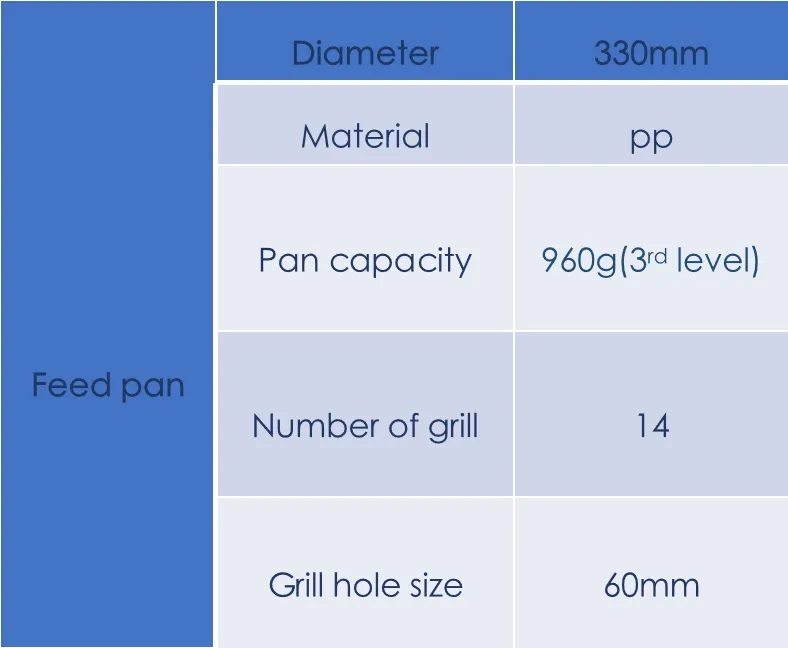

Feeding Pan 2

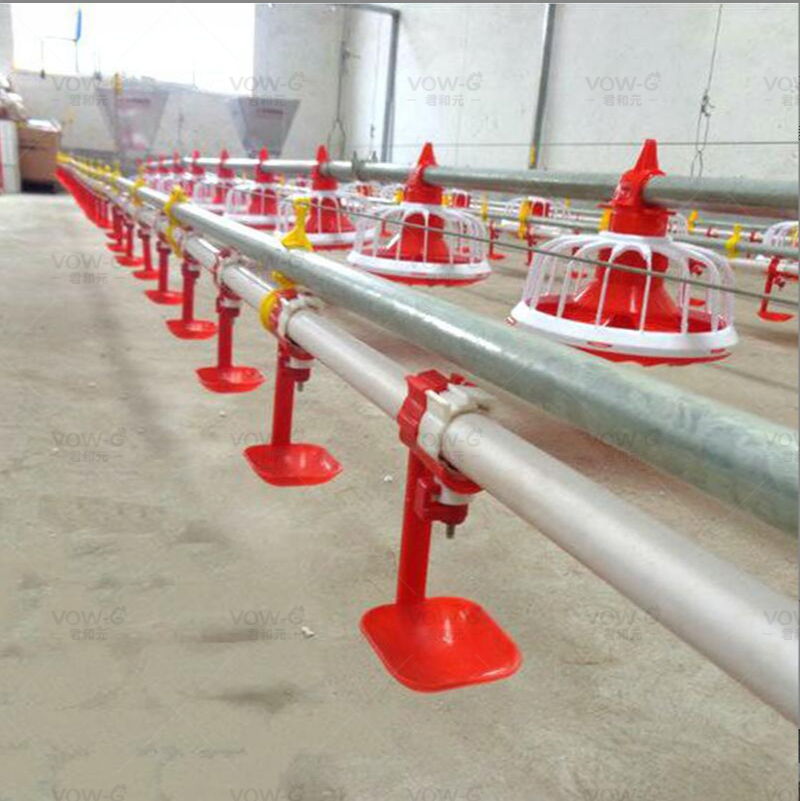

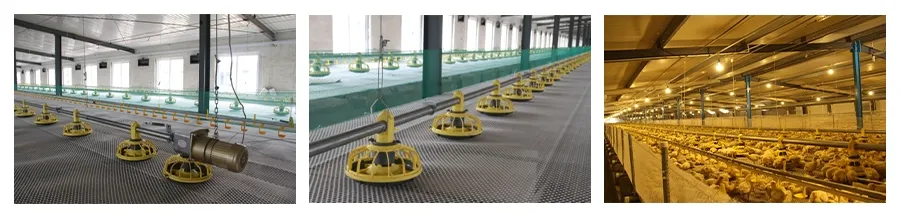

Feeding Line
3. Nipple Drinking System

Provides fresh and clean water via 360-degree triggered drinkers, essential for bird health and growth.

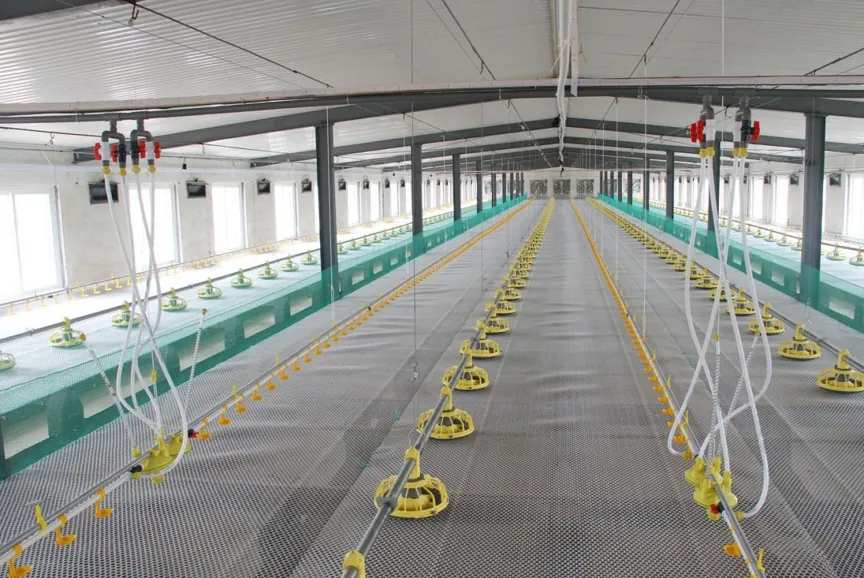

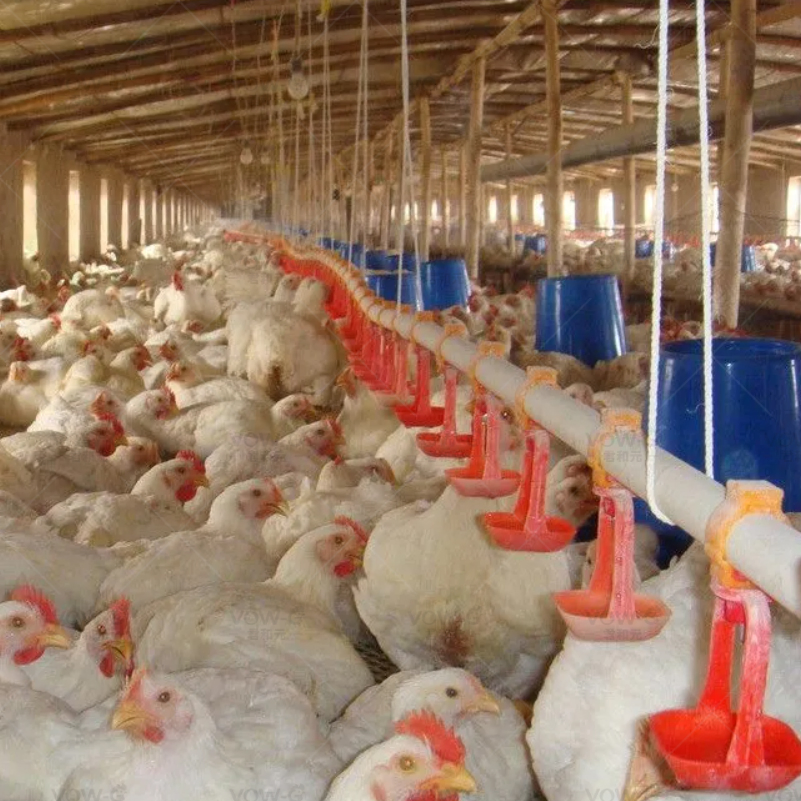

Drinking System Overview

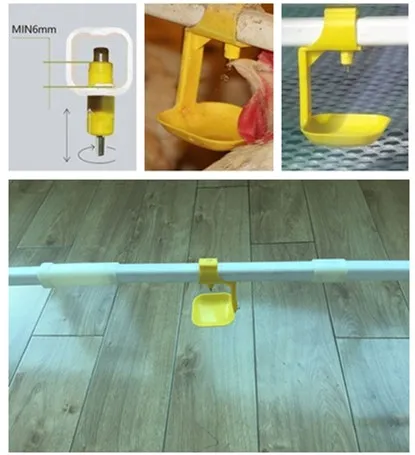

Nipple Details
  • Nipple shell top designed to avoid sediment
  • 360-degree activation (up-down, left-right)
  • Zero leakage under quiescent state
  • Flow rate: 120ml/min for broilers
  • 30% higher water flow than standard regulators
  • Adjustable bottom knob for ideal pressure
  • Water flush valves for easy maintenance

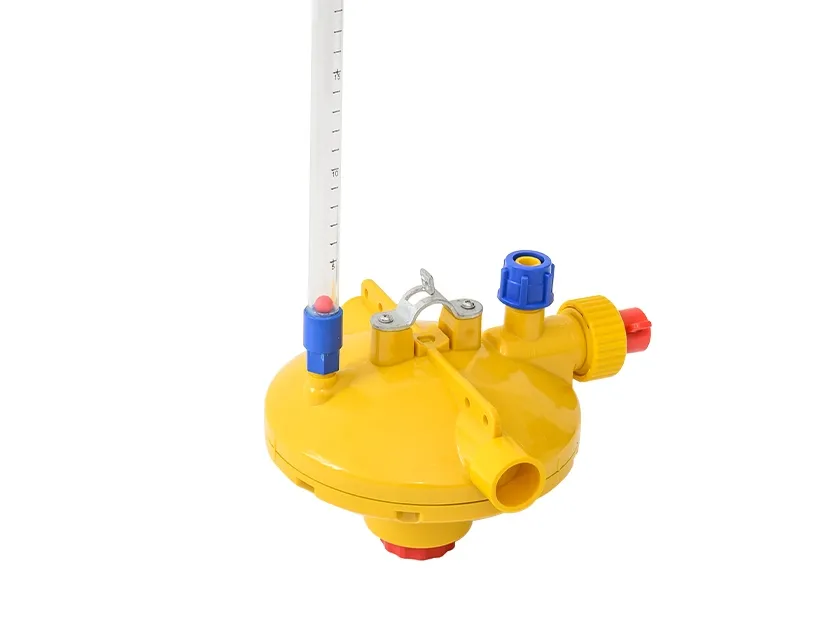

Pressure Regulator
4. Environmental Control System

Maintains optimal temperature, humidity, and fresh air to maximize production efficiency.

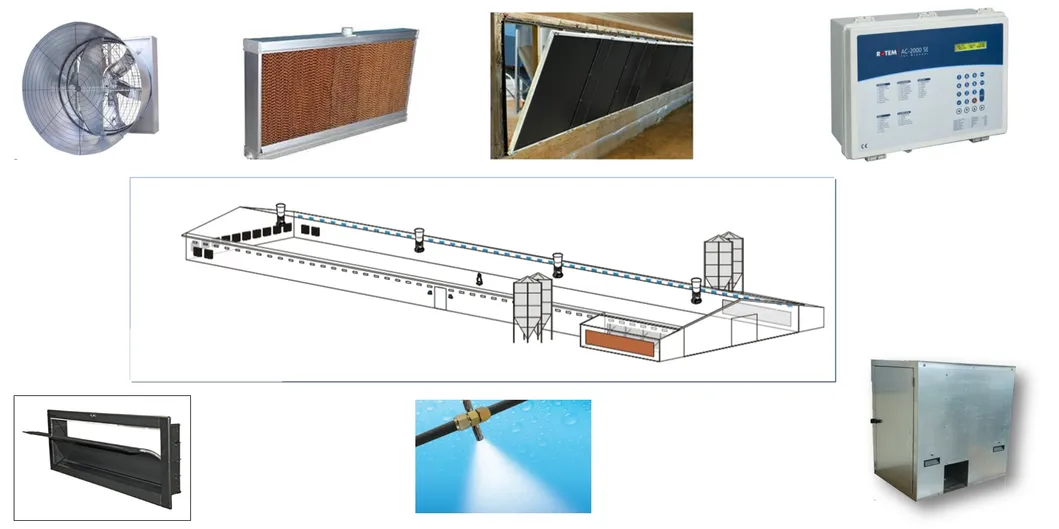

Environment Control

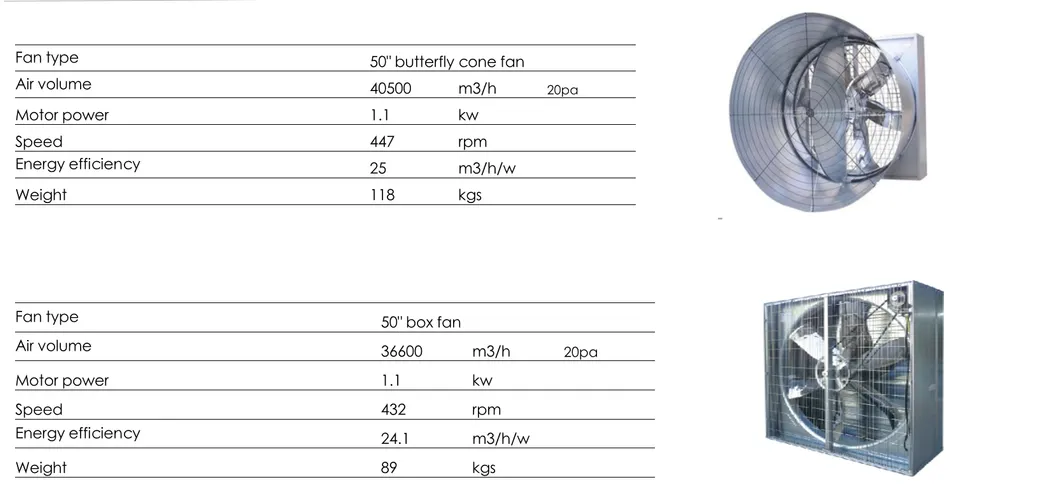

a. Ventilation Fans
Ventilation Fans

Push-pull exhaust fans and butterfly cone fans are available.

b. Air Inlets

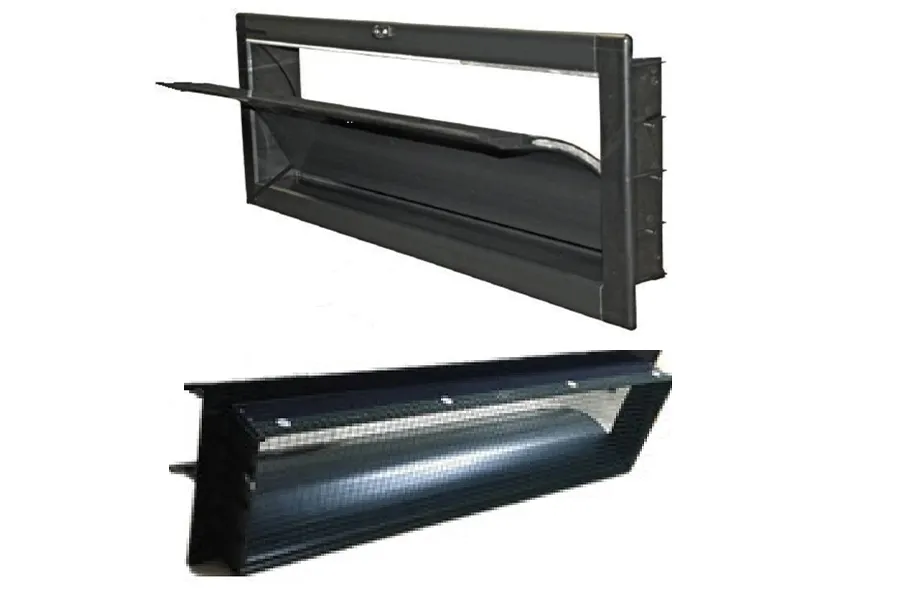

Air Inlet 1
Curved Inlet Features:
  • Size: 1100mm x 330mm
  • Capacity: 4800m³/h @ 20pa
  • Directs fresh air to the center of the house
Gravity Inlets:
  • No spring design for longevity
  • Insulated to prevent condensation
  • Strong, deformation-resistant structure

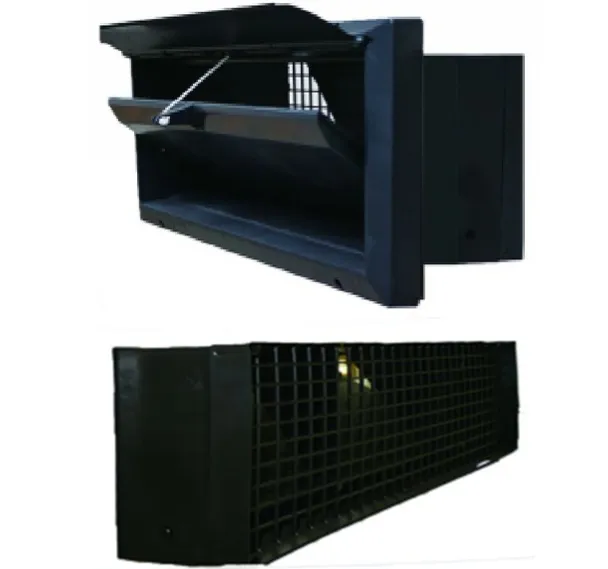

Air Inlet 2
c. Cooling Pads & d. Tunnel Doors

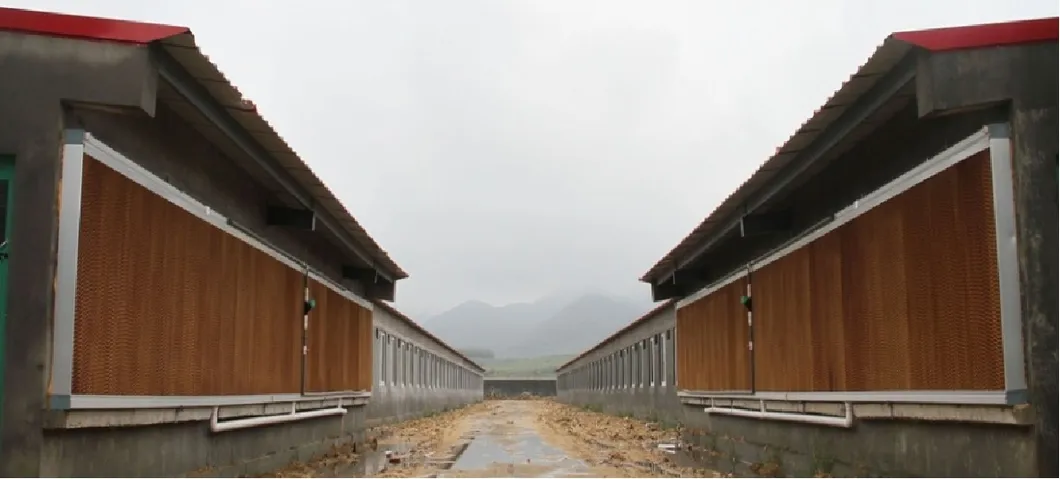

Cooling Pads

Aluminum frames with long-life paper. Special angles provide maximum surface area for air-water exchange.

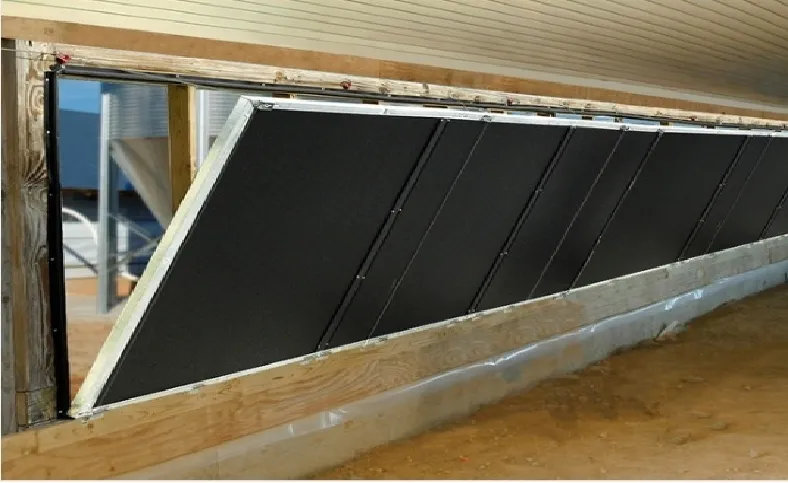

Tunnel Door

Tunnel doors made from polyurethane board for superior insulation with edge seals.

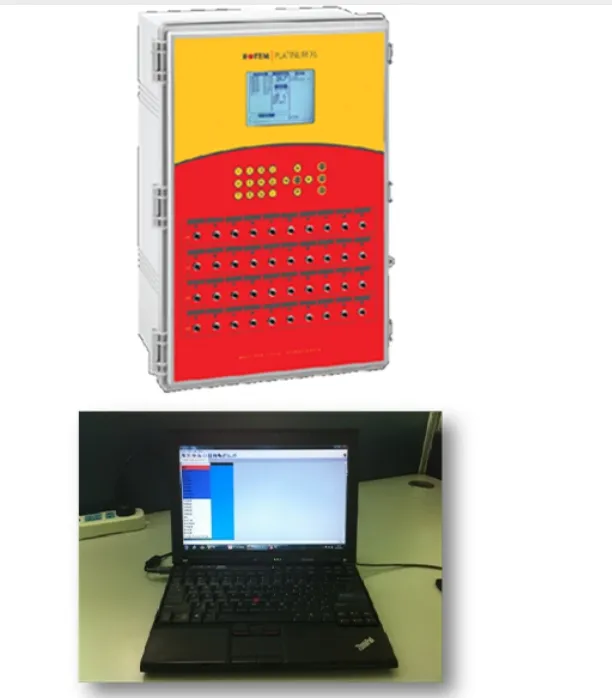

e. Intelligent Controller
Controller
  • Remote monitoring via computer
  • Real-time analysis of humidity, pressure, and lighting
  • 40 relay outputs and automatic alarm functions
  • Unique ventilation precision technology
🏭 Our Workshop & Company Profile

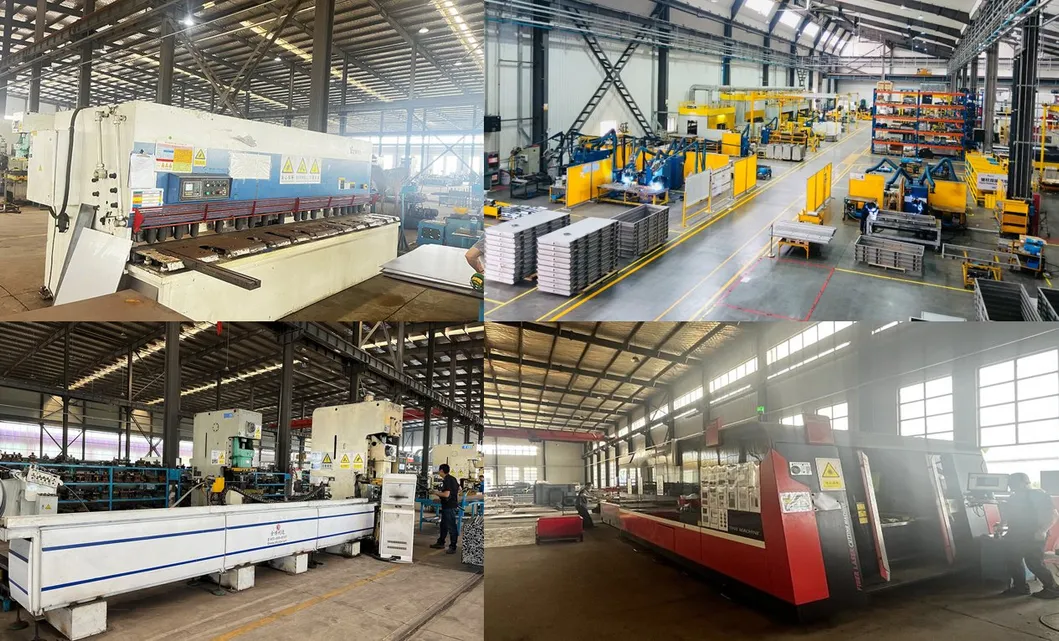

Workshop
Company Profile

We specialize in providing a full set of equipment required for modern poultry production. Following a philosophy of "Premium products and precise control," we focus on the development of modern poultry equipment, providing satisfactory products and considerate services to international customers.

❓ Frequently Asked Questions
Q: Can the products be customized?
A: Yes, we can produce the equipment according to your specific farm requirements and dimensions.
Q: What information is needed for a solution quotation?
A: Please provide the size of the poultry house (L*W*H), bird quantity, target sale weight, and your local climate conditions.
Q: What main poultry equipment do you offer?
A: Our range includes automatic feeding pan systems, nipple drinking systems, environmental controllers, and ventilation systems.
Q: What is the material used for the equipment?
A: We use high-quality stainless steel, hot galvanized steel, and durable raw plastics to ensure longevity and hygiene.
Q: Do you provide installation services?
A: Yes, we offer full services including house design, equipment production, on-site installation, and comprehensive after-sale support.
Q: What is the warranty period for your equipment?
A: We provide a 1-year warranty on our main equipment to ensure customer satisfaction.
