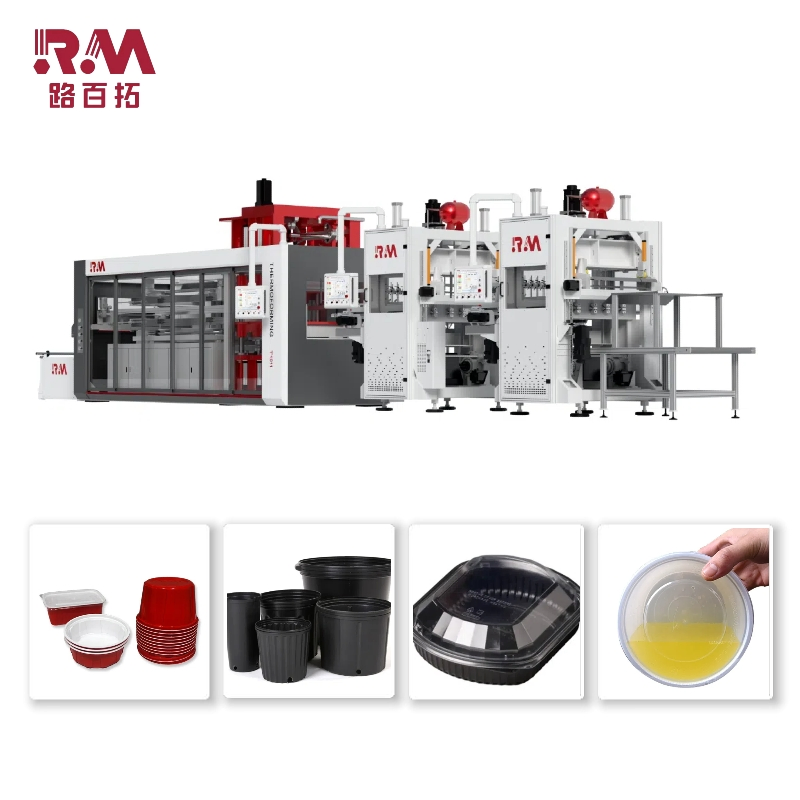

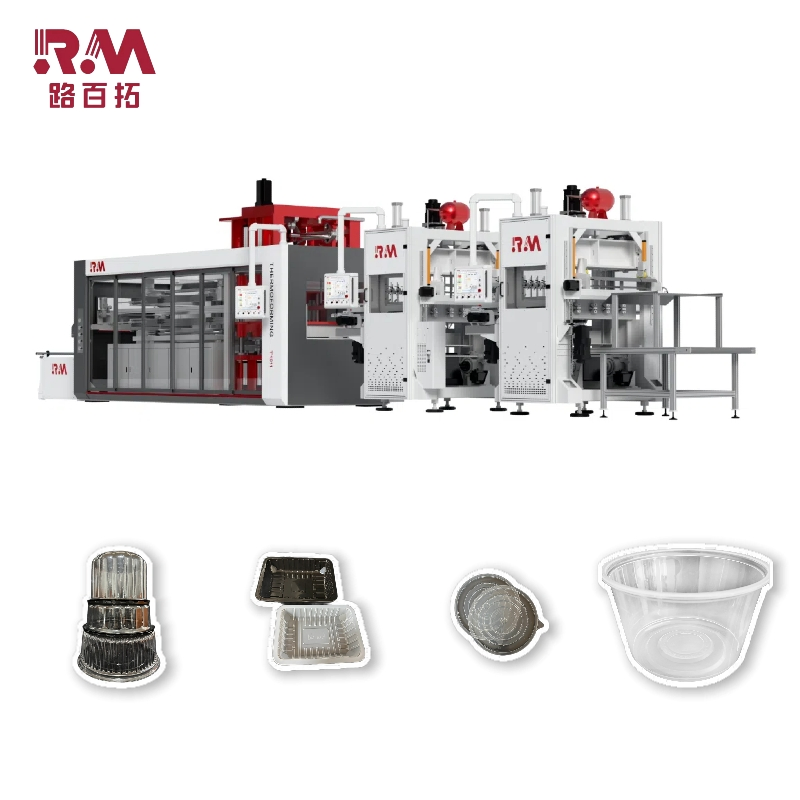

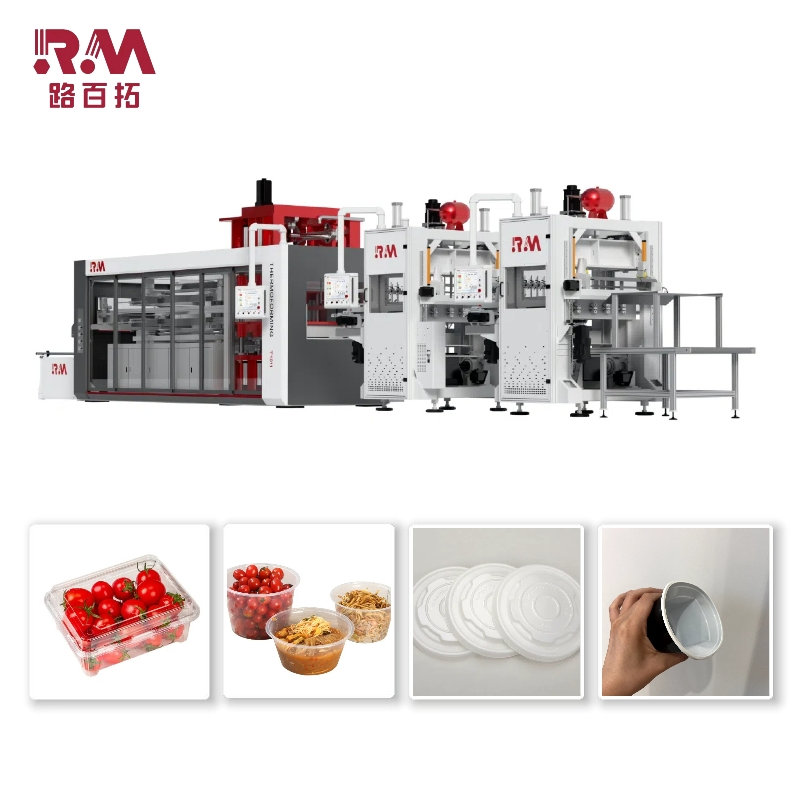

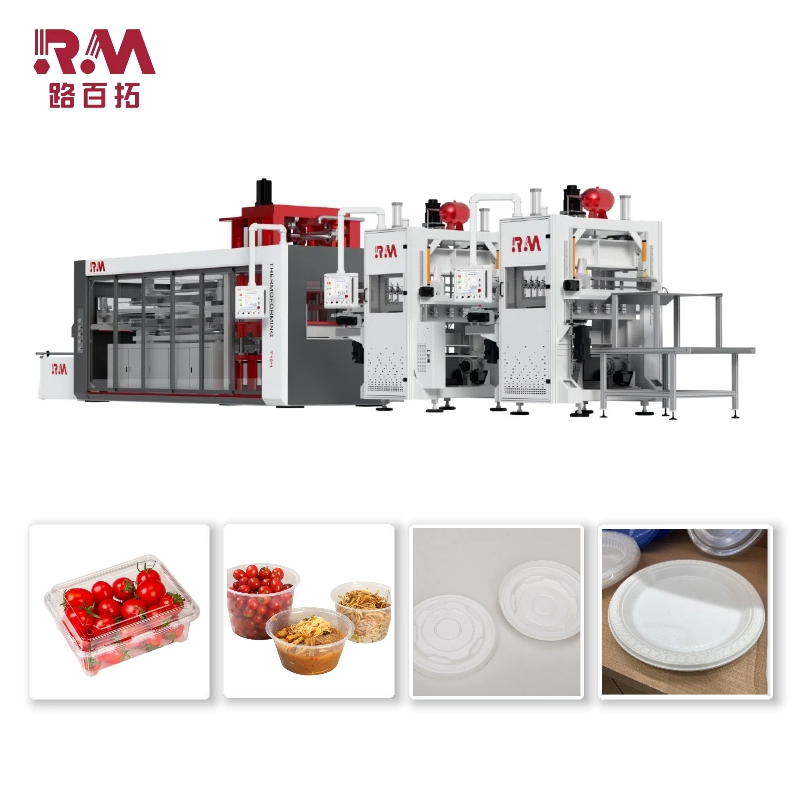

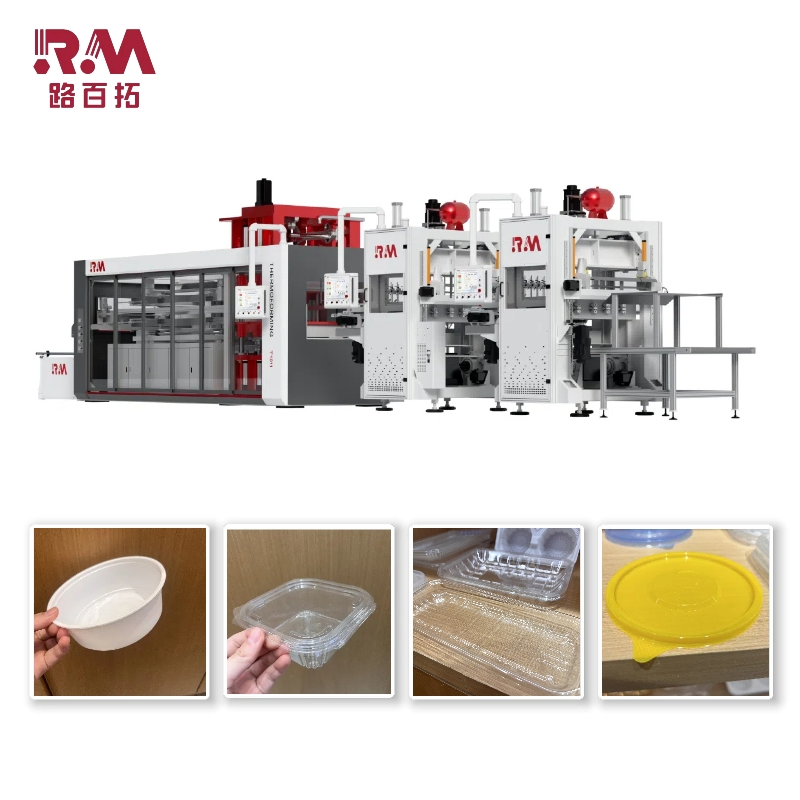

Thermoforming Machine for Disposable Plastic Coffee Cup Lids

Customization: Available
After-sales Service: Forever
Warranty: One Year

Product Description

Basic Specifications

Model NO.
RM-T1011
Certification
CE, ISO
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Max. Mould Size
1100mm×1170mm
Max. Forming Area
1000mm×1100mm
Min. Forming Area
560mm×600mm
Production Speed
≤25 times/Min
Forming Height
150mm
Sheet Width
560mm-1200mm
PLC
Keyence
Servo Motor
Yaskawa
Reducer
Gnord
Thermoforming Machine Overview
Thermoforming Machine Detail

Product Description & Technical Data

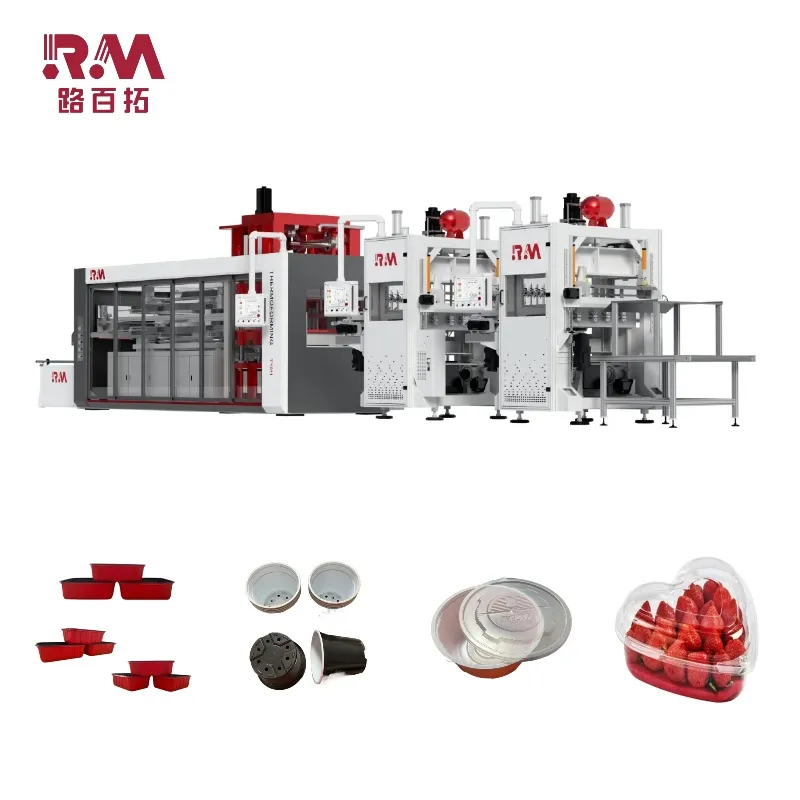

RM-T1011 Main Unit
Model: RM-T1011
  • Max. clamping force: forming-50T, punching-7T and cutting-7T
  • Power supply: 300KW(heating) + 100KW(operating) = 400kw
  • Application: trays, containers, boxes, lids, etc.
  • Suitable Material: PP, PS, PET, CPET, OPS, PLA
  • Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
Forming Area Clamping Force Punching Force Blanking Force Forming Height Forming Pressure Operation Speed Punching/Blanking Area Material
1000*1100mm 50T 7T 7T 150mm 6 Bar 35r/min 1000*320mm PP, HI PS, PET, PS, PLA
We are a research and development enterprise specializing in the design and manufacture of various types of plastic machinery and professional customization of molds. With a professional management, design, and production team, we are committed to providing customers with disposable plastic products machinery production line solutions, delivering excellent products and services.
Application 1
Application 2
Application 3
Application 4
Application 5
Application 6

Frequently Asked Questions

Q: How do you handle quality control?
A: We have a dedicated QC department in charge of monitoring and ensuring the quality of all products throughout the manufacturing process.
Q: What is the warranty period for the machines?
A: All of our machinery comes with a standard one-year warranty.
Q: Can the equipment be customized to specific requirements?
A: Absolutely. We can adjust relevant parameters and customize the equipment to meet your factory's specific production requirements.
Q: Is it possible to see the machines in operation?
A: Yes, we have our own plastic products facility where you can observe all machinery in full operation.
Q: What is the annual production capacity?
A: The production capacity is flexible and depends primarily on your specific needs and machine configuration.
Q: Where is your production base located?
A: Our factory is located in Guangdong Province, China, and we welcome professional visits.
