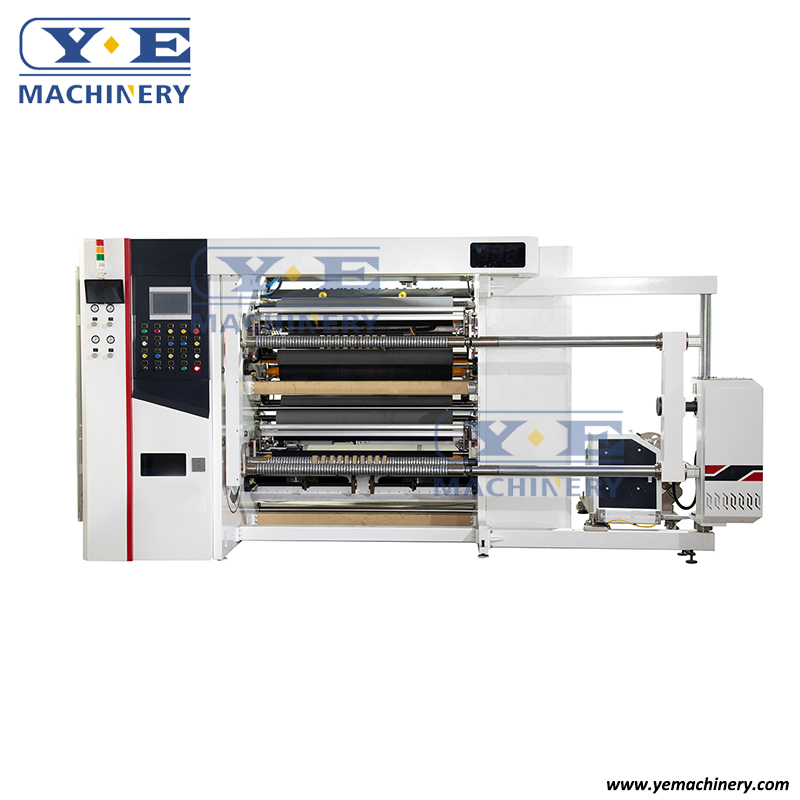

Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
1 / 5
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film
Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film

Turrent Slitter Rewinder Machine for Flexible Package Plastic Film, Laminating Film, BOPP Film

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specification
Model NO.FQJ-H
TypeHigh-Speed Slitting Machine
ApplicationMachinery & Hardware
ClassificationPlastic Film Slitter
Work MethodFlat Knife Slitting
Speed500m/Min
PLC SystemSiemens Germany
Rewinder4PCS of Friction Shafts
Automatic GradeAutomatic
Rewinder TensionServo Motors Control
StructureUnibody Slitter
Packaging & Delivery
Package Size280.00cm * 420.00cm * 210.00cm
Package Gross Weight4200.000kg
Packaging MaterialFilm Wrap and Wood Fixation
Product Description

High speed Servo motor Turrent slitter rewinder machine for Flexible Package Plastic Film, Laminating Film, BOPP Film

Machine Key Features
✓Four sets rewinding pneumatic slip-shafts automatically changeover system
✓Automatically cutting rewinding roll system
✓Max machine speed up to 600m/min
✓Rewinding press roller automatically control system
✓Finished roll automatically unloading system
✓Intelligent Laser tube core positioning
✓Servo drive system with closed-loop auto tension
✓3 inch and 6 inch shaft-less unwinding
Main Parameters
Model: FQJ-1300H
Max. width of roller: 1300mm
Max. diameter of raw material: 1000mm
Max. diameter of rewinding: 600mm
Max machine speed: 600m/min
Mini slit width: 27mm
Rewind accuracy: ±0.2mm
Unwind Paper tube: 3/6inch
Detailed Components
Turrent Slitter Rewinder

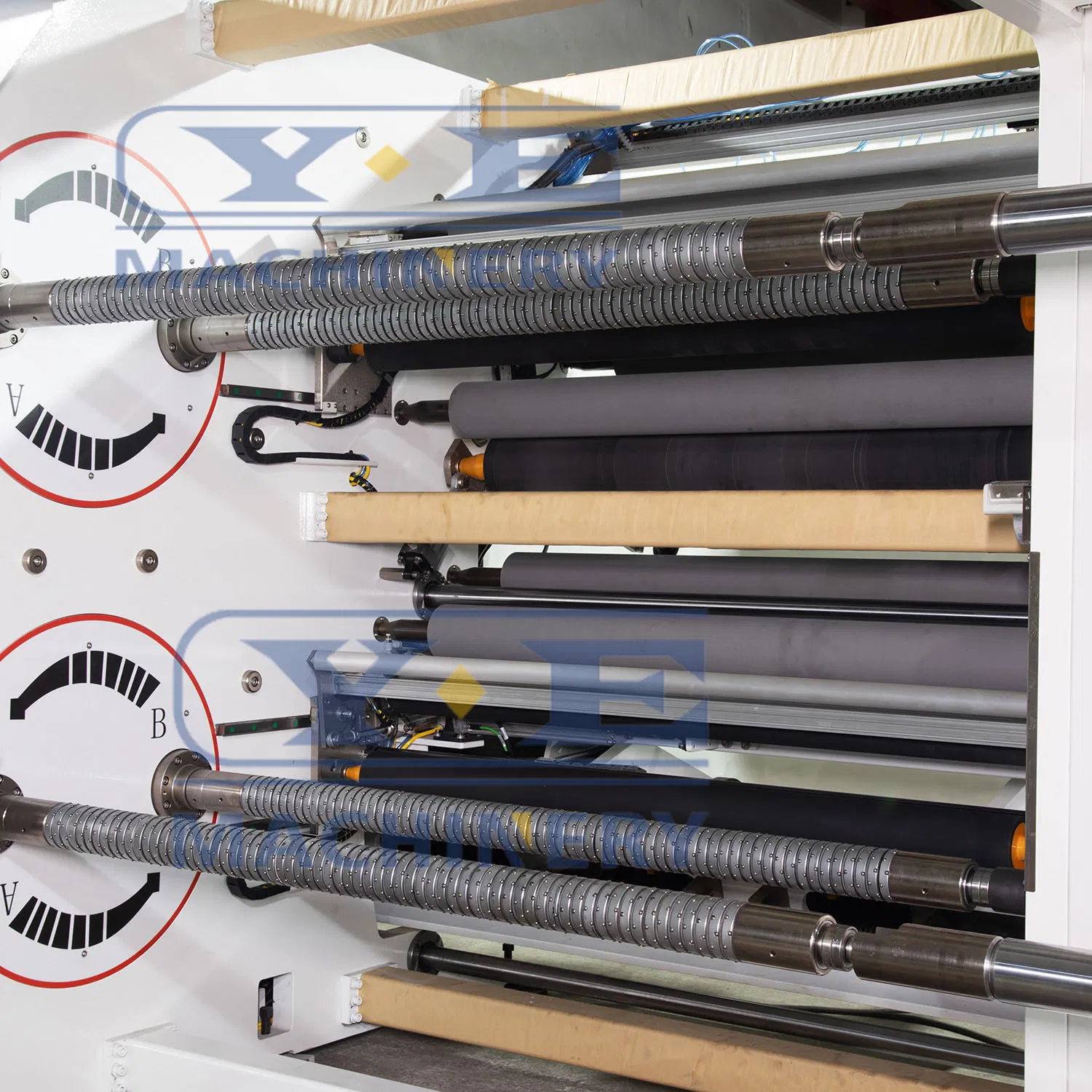

Turret rewinder with auto changer:

  • Center rewind with four working stations.
  • Friction shaft pneumatically controlled with Germany proportional valve.
  • Four-set rewind shafts independently controlled by servo motors.
  • Encoder detects rewind diameter for PLC feedback.

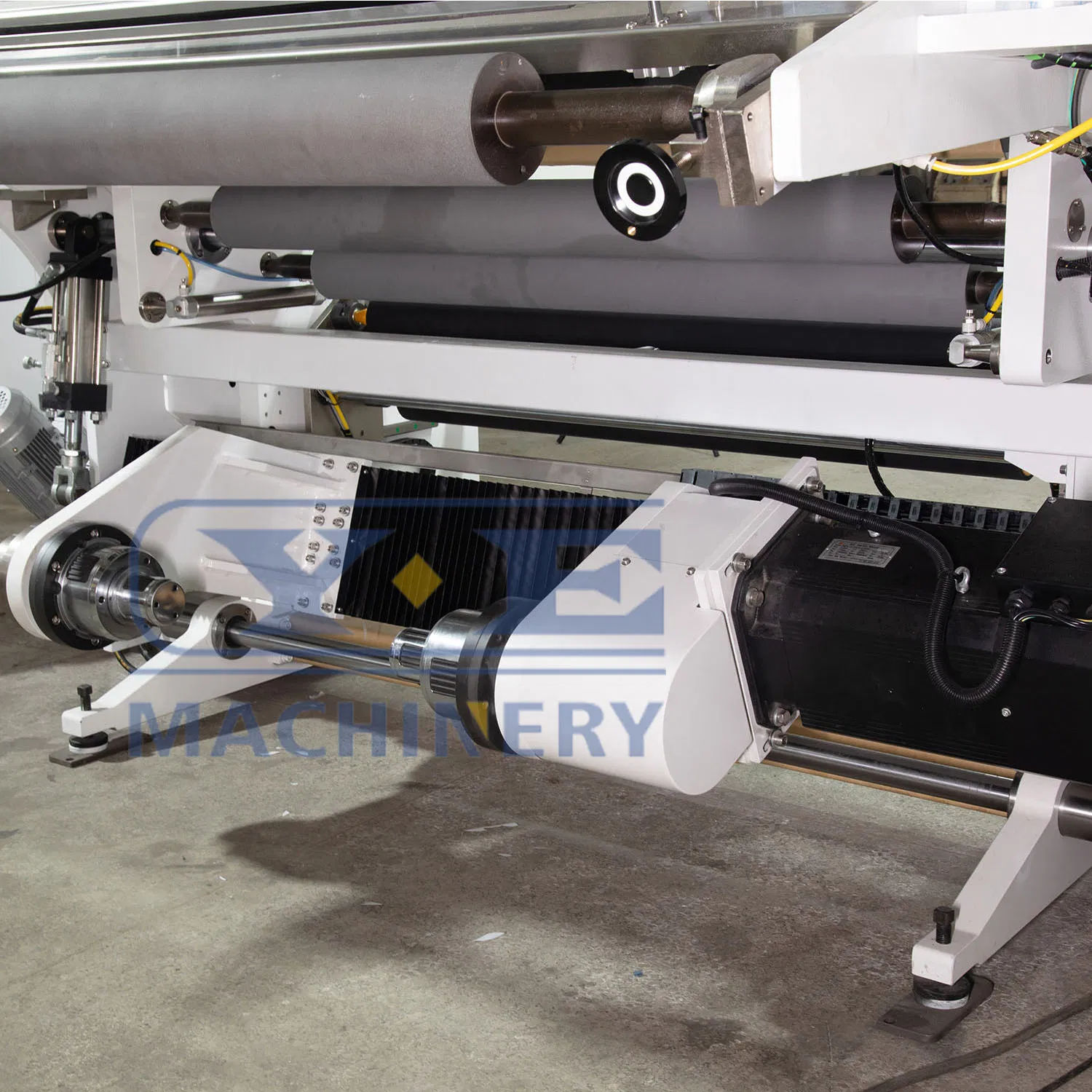

Unibody unwinder (Servo motor):

  • Shaft-less arms with 3/6 inch chucks.
  • Hydraulic loading system for heavy materials.
  • Taiwanese HIWIN guide rails for high precision.
  • Web guiding system for tracking material edge/printing line.
  • Air type splicing table with milled groove for easy cutting.
Unibody Unwinder
Detail Images
Detail 1
Detail 2

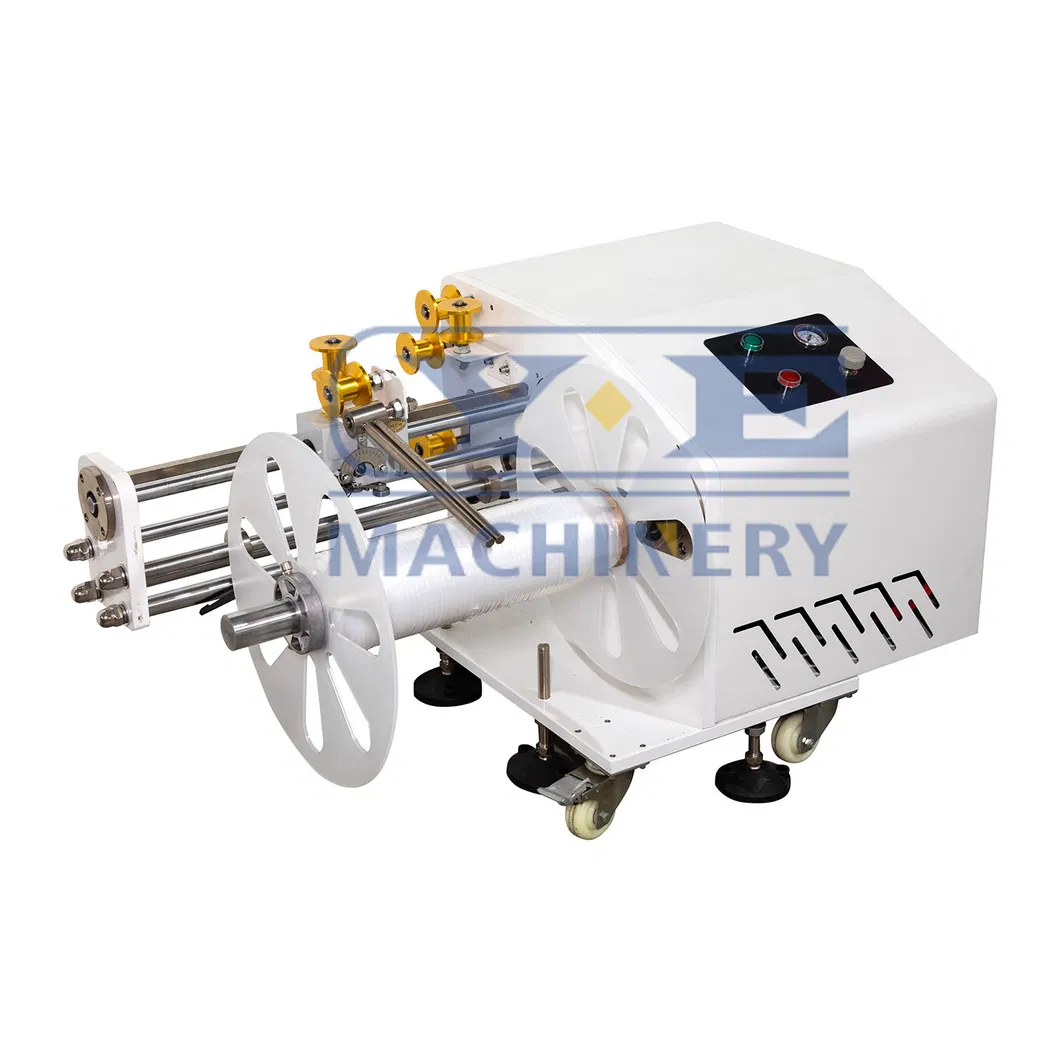

Detail 3
Frequently Asked Questions
What materials can this machine process?
This high-speed slitter rewinder is specifically designed for flexible packaging materials, including Plastic Film, Laminating Film, and BOPP Film.
What is the maximum production speed of the FQJ-H model?
The machine is capable of reaching a maximum mechanical speed of 600 meters per minute, with a standard working speed of 500 meters per minute.
How does the automatic changeover system work?
It features a turret rewinding system with four sets of pneumatic slip-shafts that automatically change over and cut the material once the set length is reached.
What brand of control system is used?
The machine utilizes a high-end Siemens PLC system from Germany for intelligent control of the slitting and rewinding process.
How is tension stability maintained?
Tension is managed through a closed-loop servo drive system and German proportional valves, ensuring stable and precise output even at high speeds.
Does the machine support different core sizes?
Yes, the shaft-less unwinding system is equipped with core chucks for both 3-inch and 6-inch paper tubes.
