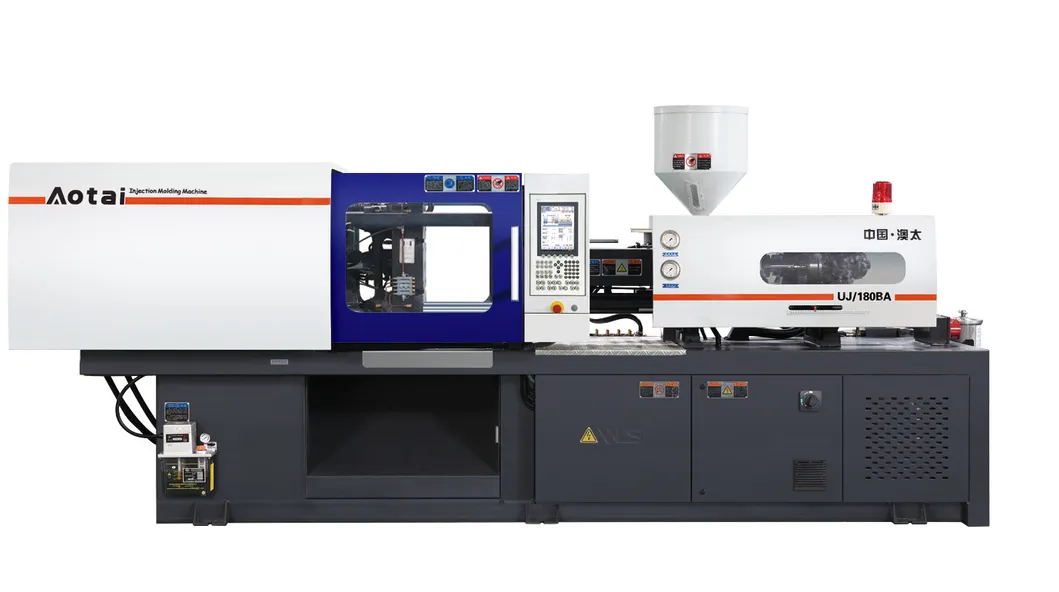

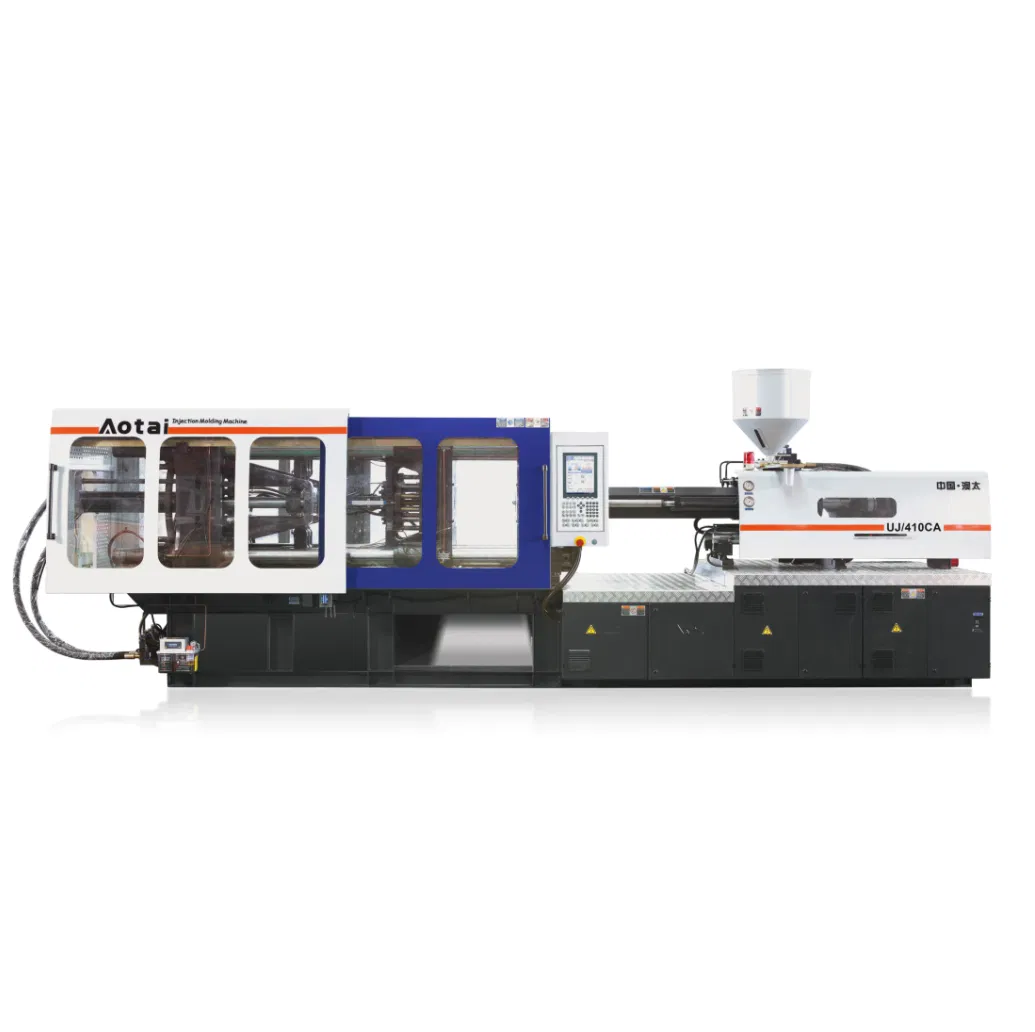

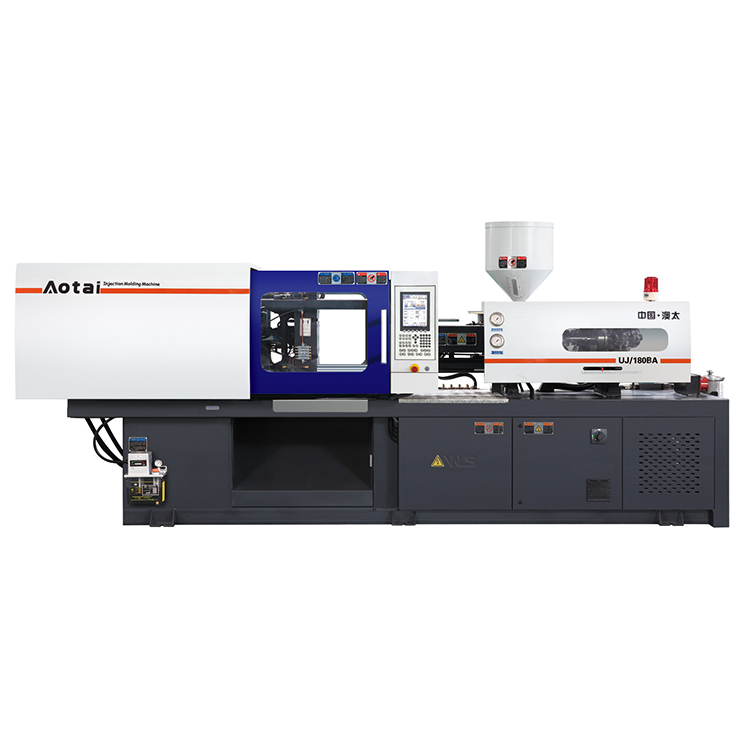

U560 Standard Plastic Injection Blow Molding Machine for Global B2B Suppliers High Efficiency and Reliability

Customization:	Available
Type:	Tube Head Injection
Structure:	Horizontal

Key Machine Specifications

Model NO.

U/560

Plastic Type

Thermoplastic, Tube Head Injection

Plasticizing Way

Screw Type

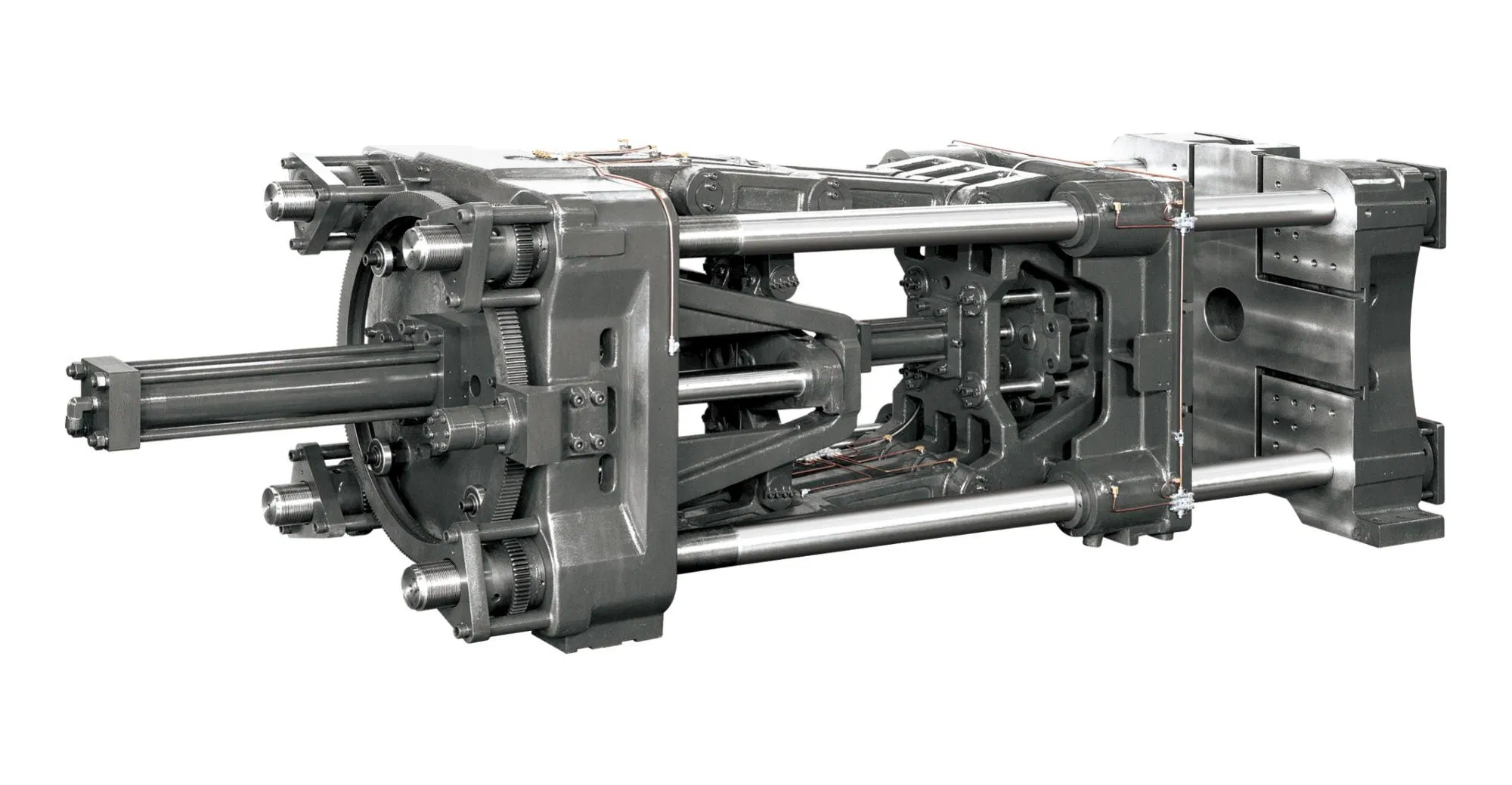

Clamping Way

Hydraulic & Mechanical

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Distance Between Bars

830 mm

Ejector Force

150 Kn

Warranty

1 Year

Open Stroke

850 mm

Injection Weight

2013 G

Product Overview

The U/560 Standard Plastic Injection Blow Molding Machine is designed for high-precision manufacturing of thermoplastic components. Utilizing an advanced screw-type plasticizing method and hydraulic-mechanical clamping, this automated system ensures consistent production quality for various plastic materials.

Detailed Specifications (U/560)

Parameter	Type A	Type B	Type C	Type D
Screw Diameter (mm)	80	85	90	100
Screw L/D Ratio	22	20.7	19.6	17.6
Shot Volume (cm³)	2212	2497	2799	3456
Injection Weight (g)	2013	2272	2547	3145
Pump Max Pressure	16 Mpa
Heating Segments	5+1
Machine Dimension	8.45m x 2.15m x 2.84m

Professional Manufacturing & Facilities

The facility utilizes advanced CAM manufacturing and production systems. Every stage of the process—from material selection and parts assembly to final testing—is governed by a rigorous quality guarantee system. Our engineering center employs CAD simulation optimization and ERP operation systems to ensure precision.

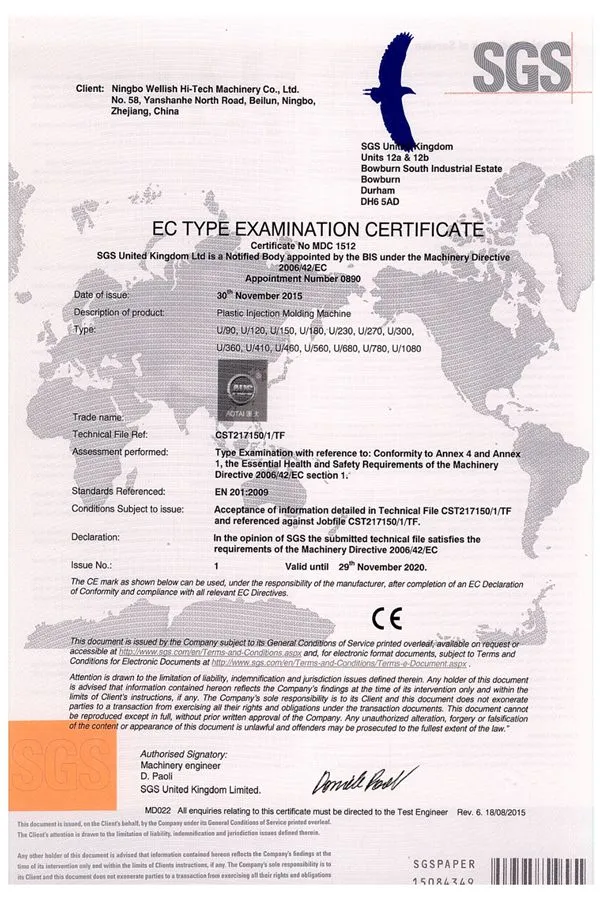

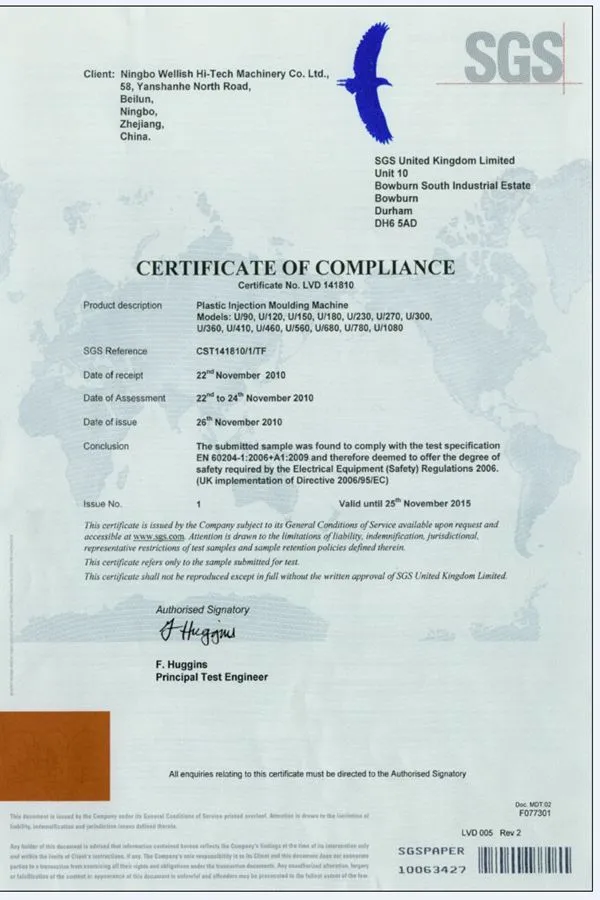

Quality Certification & Exhibition

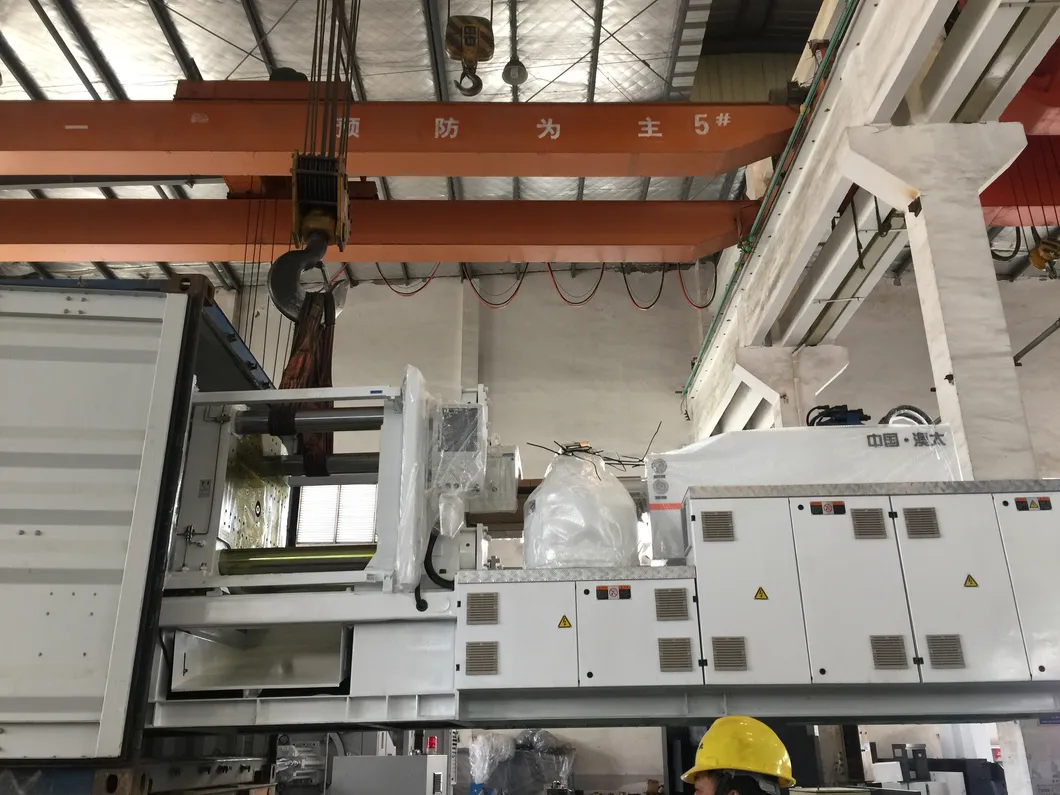

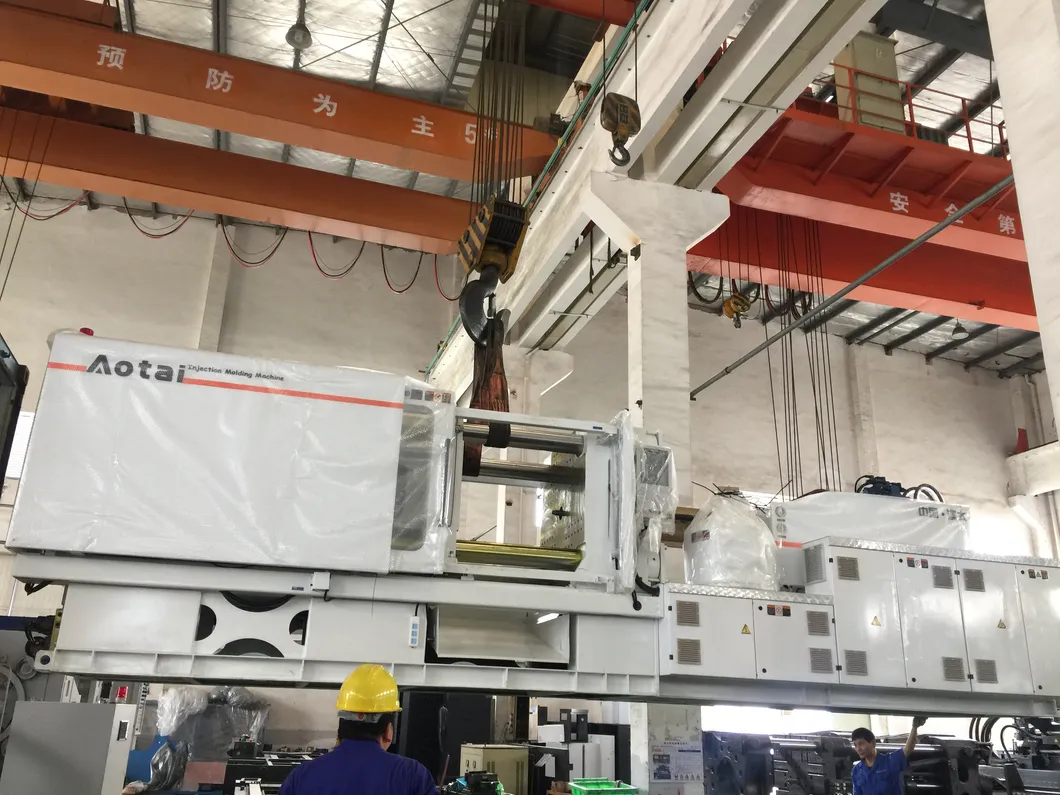

Packing & Delivery

Frequently Asked Questions

1. What kind of plastic material can be used on this machine?

PP, PE, PS, ABS and other general materials can be used. For special materials such as PC, PMMA, or PVC, please consult our technical team for configuration adjustments.

2. What is the guarantee time for this machine?

The standard warranty is 12 months after installation or 18 months from the Bill of Lading (B/L) date.

3. What kind of shipping container is required?

The choice of container (20HQ, 40HQ, 40GP) depends on the specific dimensions of the machine model ordered.

4. How long does installation and commissioning take?

If all utilities (power, water, hydraulic oil, molds) are ready, the installation and commissioning period is typically within 7 days, including operator training.

5. How many workers are needed to operate this machine?

Only one worker is required to operate this machine under normal production conditions.

6. What is the power consumption?

Power consumption is determined by the specific product. Different product designs and cycle times require different power loads.
