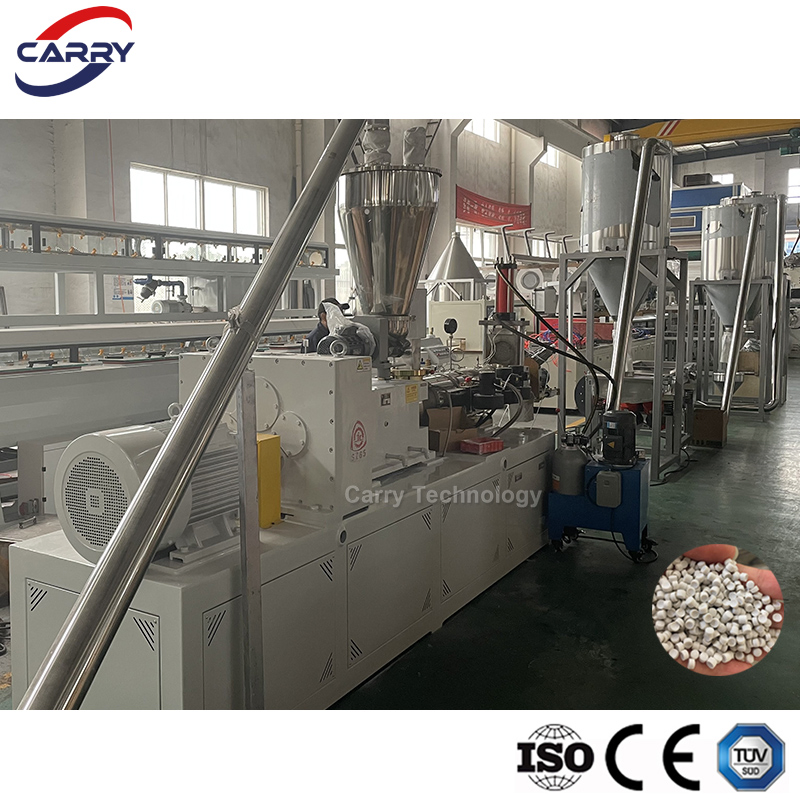

UPVC Recycling Granulator Machine 100-800kg/h CPVC PVC Pelletizing Extrusion Production Line Plastic Granule Maker Compounding Pelletizer

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Basic Information

Model NO.

SJSZ 65/132

Raw Material

PVC

Screw

Double-Screw

Automation

Automatic

Certification

CE, ISO9001:2008

Screw Barrel Material

Bimetallic Material

Machine Capacity

100-800kg/H

Electric Components

Siemens, ABB, Omron, FUJI, Rkc

Motor Brand

Siemens

HS Code

84772010

Product Description

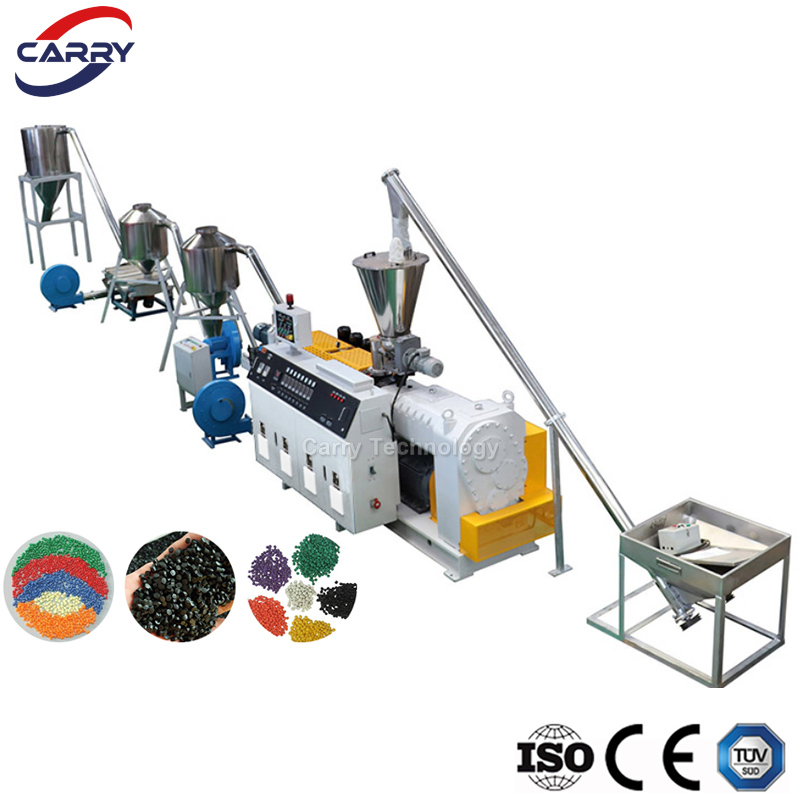

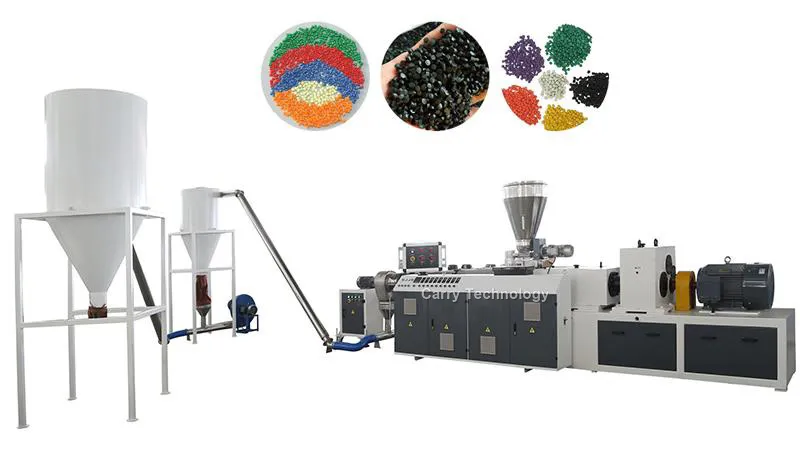

Machine Introduction

The PVC plastic compounding pelletizing machine is designed for both soft and hard PVC materials. It is a versatile solution for high-quality production requirements.

PVC scraps recycling and re-pelletizing (waste pipes, sheets, flakes).

Soft PVC hose raw material compounding.

Soft PVC cable skin material pelletizing.

Hard PVC compounding for high-quality profiles and pipe fittings.

Production range: 100-800kg per hour.

Process Flow: Feeding → Heating → Melt → Cutting → Cooling

Item/Spec	SJZ-51/105	SJZ-55/110	SJZ-65/132	SJZ-80/156	SJZ-92/188
Screw diameter (mm)	51/105	55/110	65/132	80/156	92/188
Screw rotating speed (r/min)	1-30	1-33.7	1-34.7	1-36.9	1-32.9
Motor power (kw)	18.5	30	37	55	90
Capacity (kg/hr)	80-120	150-200	200-300	300-450	600-700
Dimension (LWH)(mm)	326010502157	392015302250	423515202450	475015502460	672515502814

Main Features

Reliable high-torque gear box

Bi-metallic screw and barrel for long life

Precision oil cooling system

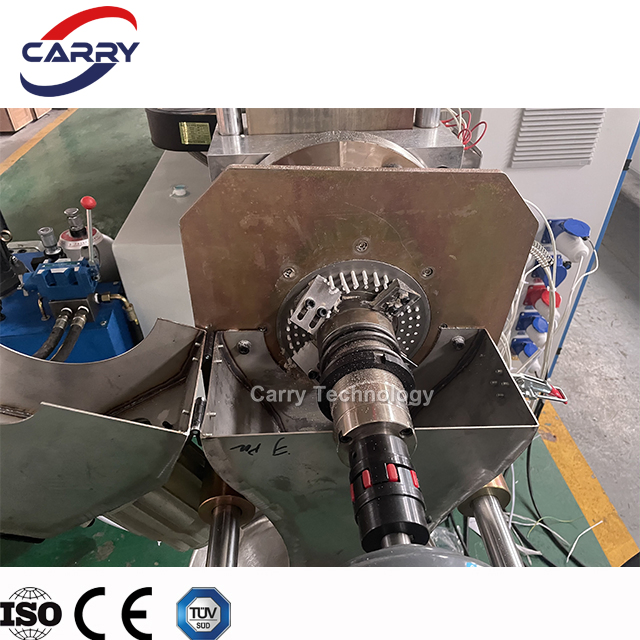

Hot face cutting with sight window

Advanced air cooling by air blower and silo

Inverter control for pellet length cutting

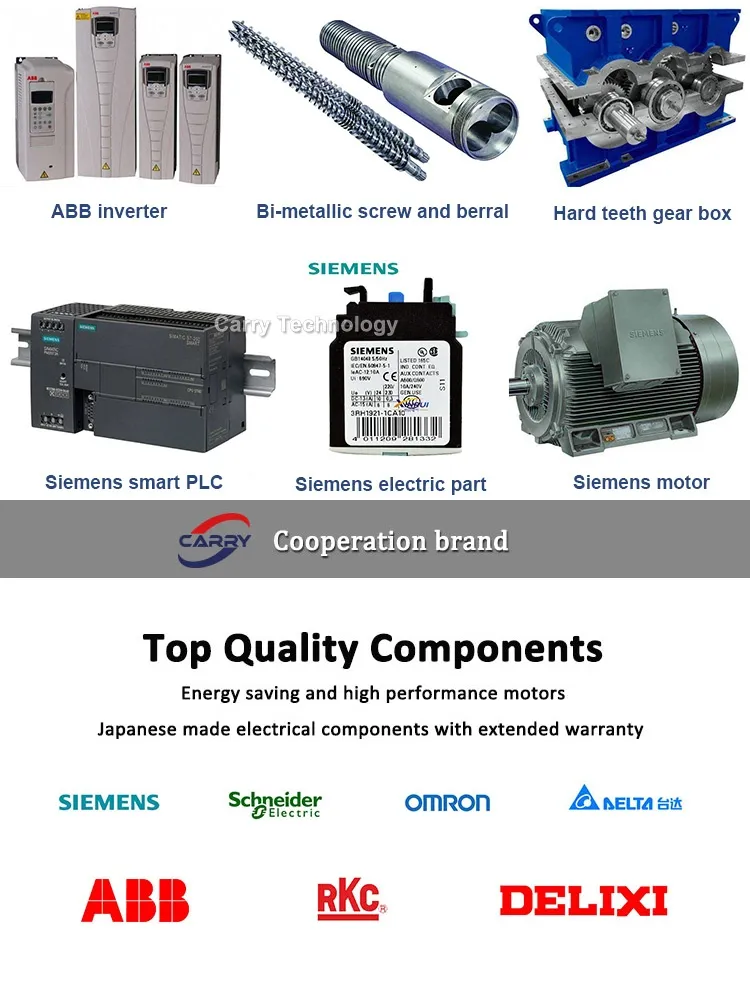

International brand electrical parts (Siemens/ABB)

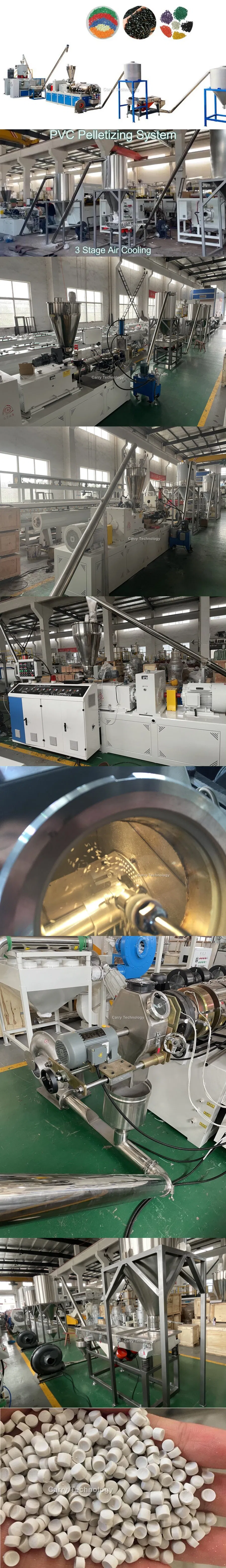

Detailed Photos

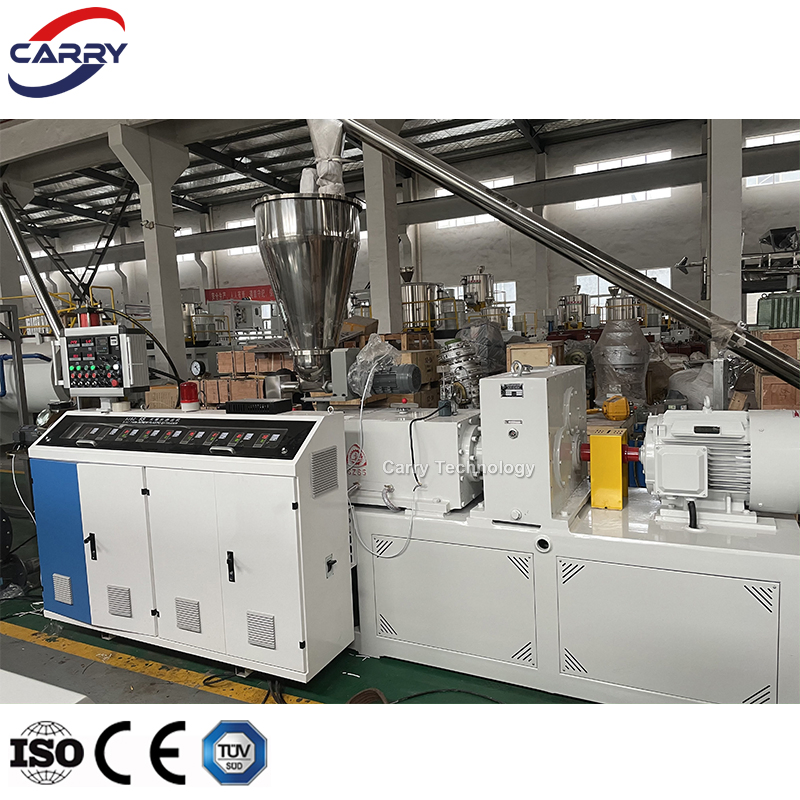

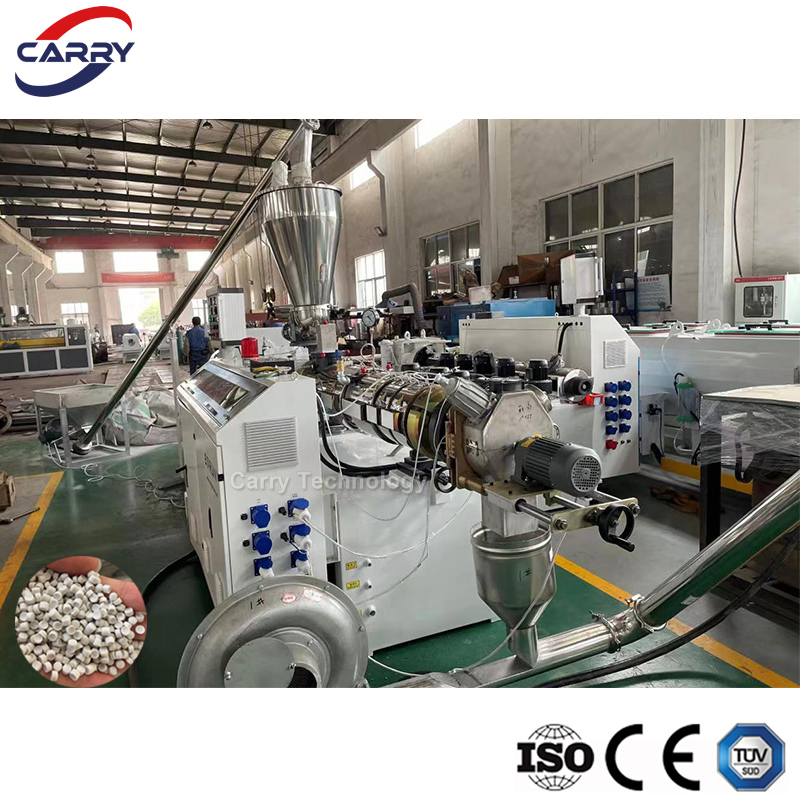

Machine Components

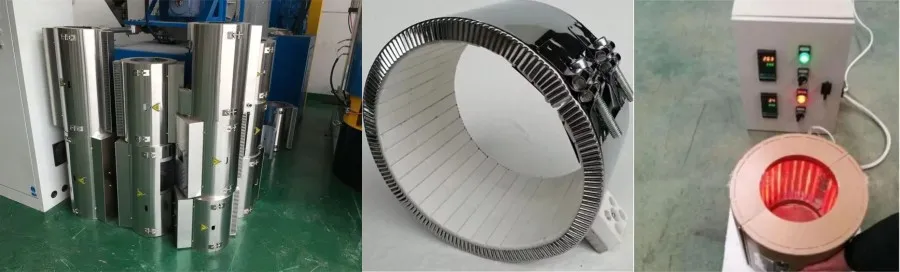

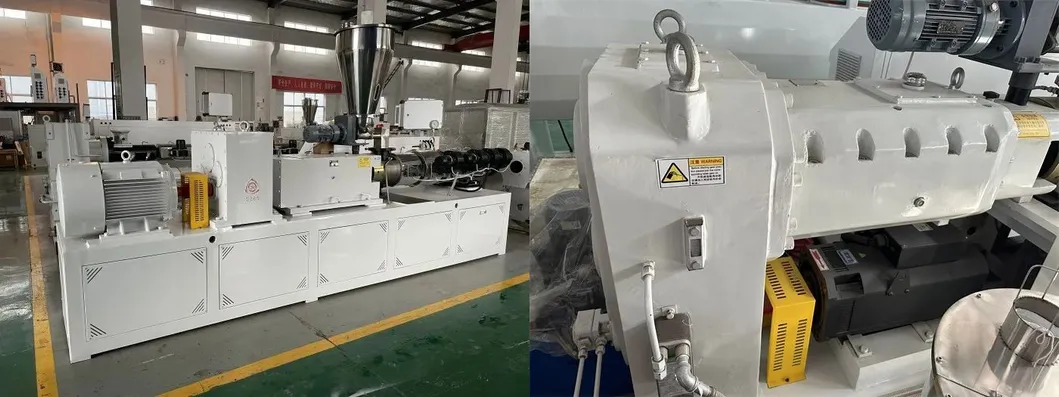

Barrel Heater & Gearbox

Certifications & Cases

Packaging & Shipping

Frequently Asked Questions

Q1: What are the payment terms for the machine order?

Generally, we require a 30% down payment as a deposit, with the remaining 70% balance paid after inspection and before shipping.

Q2: What is the standard guarantee period?

Our standard guarantee time is 12 months from the date of installation or delivery.

Q3: Do you provide on-site installation and testing services?

Yes, for every set of machinery, we can dispatch professional engineers to your facility to assist with installation, commissioning, and staff training.

Q4: Which certifications do your machines hold?

Our machines are fully compliant with CE, SGS, and ISO standards. We can also assist in applying for other specific certificates if required.

Q5: Are spare parts provided with the purchase?

Yes, we provide one year's worth of wear-out spare parts for free with the machine purchase. Our engineers will also provide maintenance guidance.

Q6: Can the machine voltage be customized?

Yes, the standard is 380V 50Hz 3-phase, but we can customize the voltage to match your local requirements.
