UV LED Curing Conveyor System for Plastic Bonding Used UV Adhesive

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview

Model NO.EB-FR300

StructureConveyor System

MaterialAluminium

ConditionNew

Power900W

UV Wavelength365nm/395nm/405nm

Belt Width300mm

HS Code8543709990

Product Description

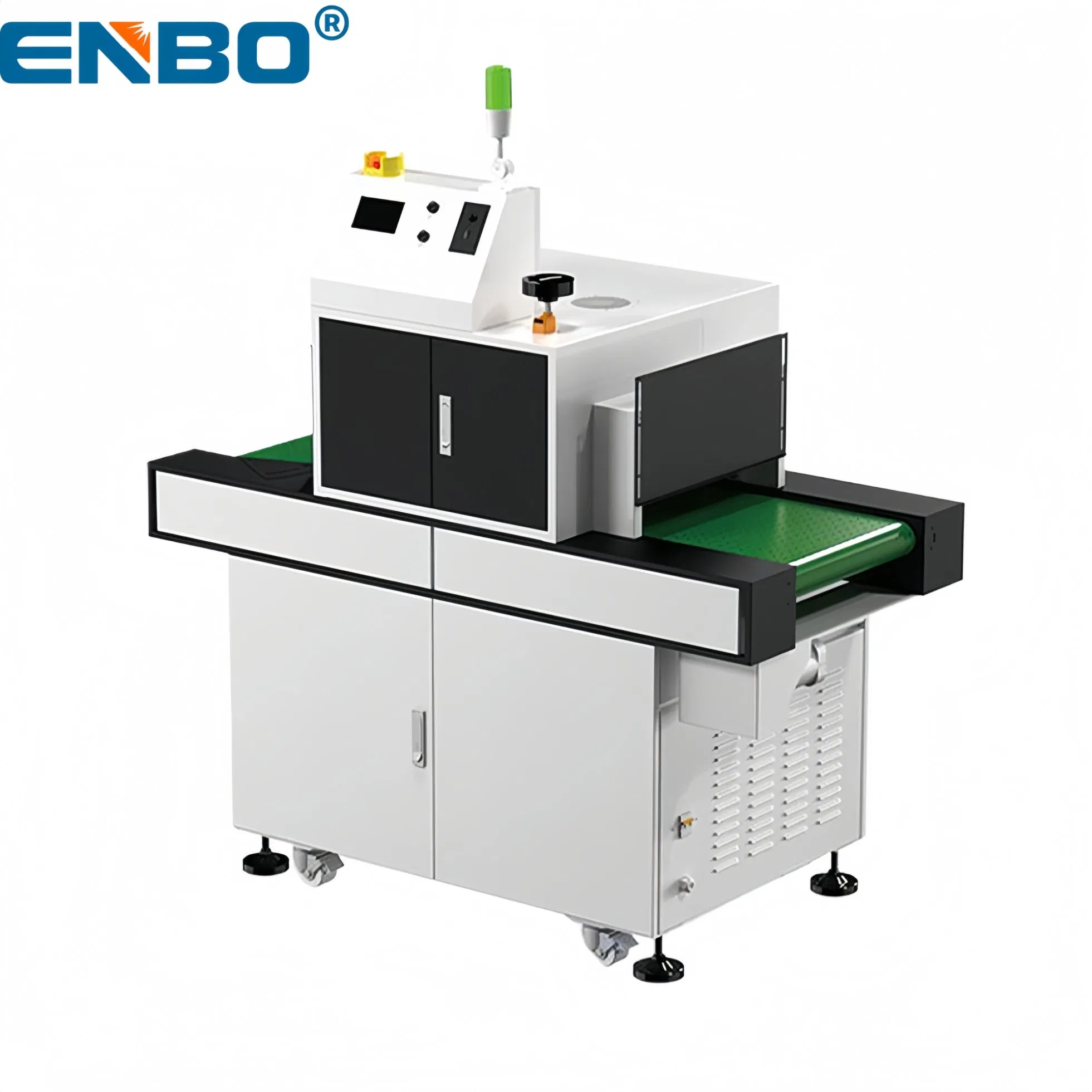

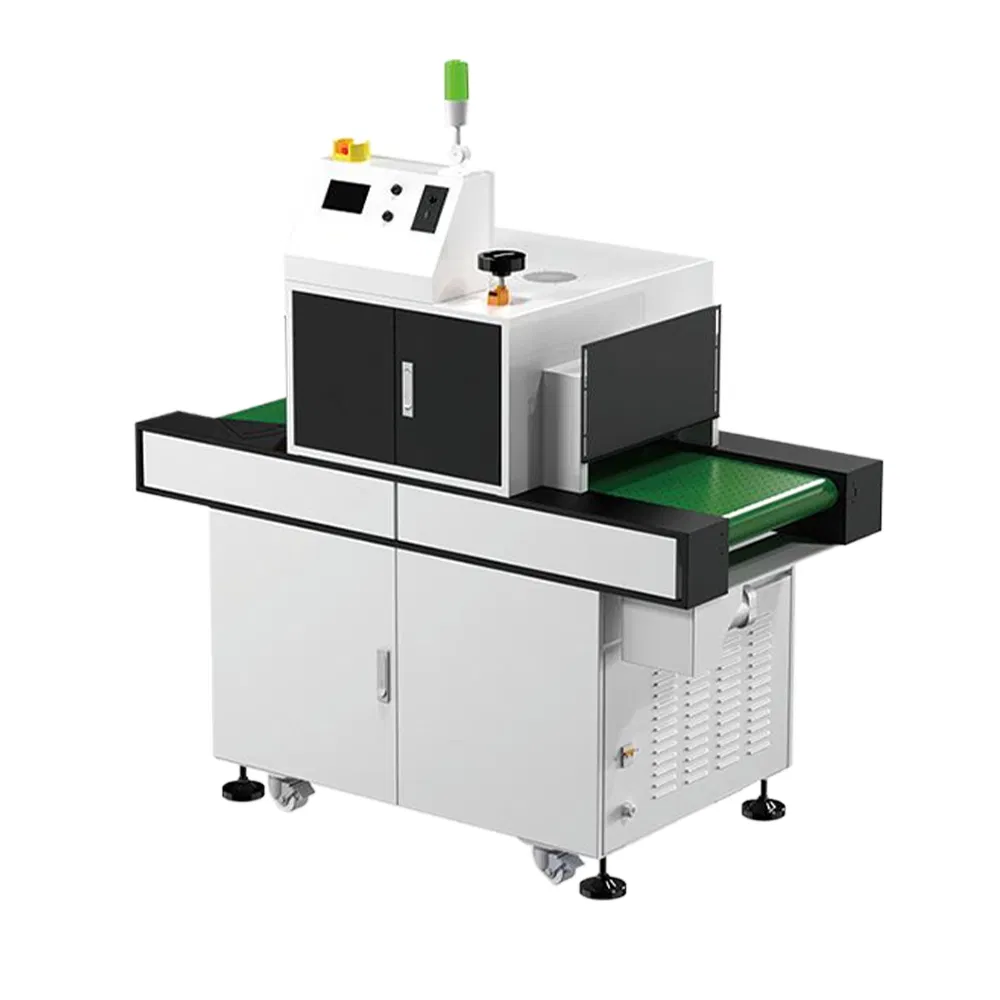

LED UV Curing Floor Type Conveyor Introduction

The EB-FR300 is a floor-type LED UV curing conveyor system featuring a 300mm conveyor belt width. It offers an optional intensity range of 600mw to 18000mw/cm², providing a compact and efficient solution for professional curing needs. The system is designed with adjustable height from the lamp heads to the belt (10mm to 180mm) and supports various belt materials such as stainless steel and PVC.

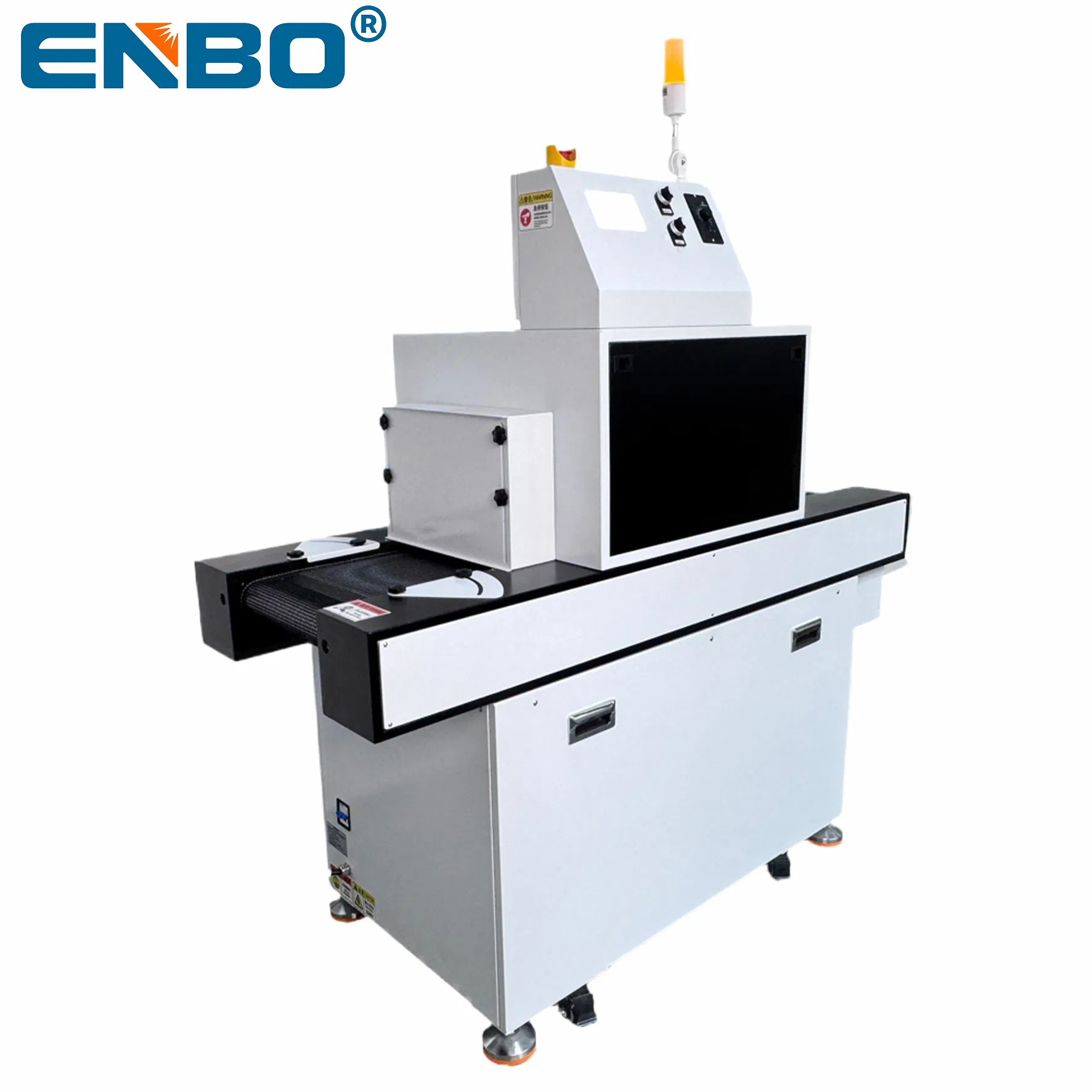

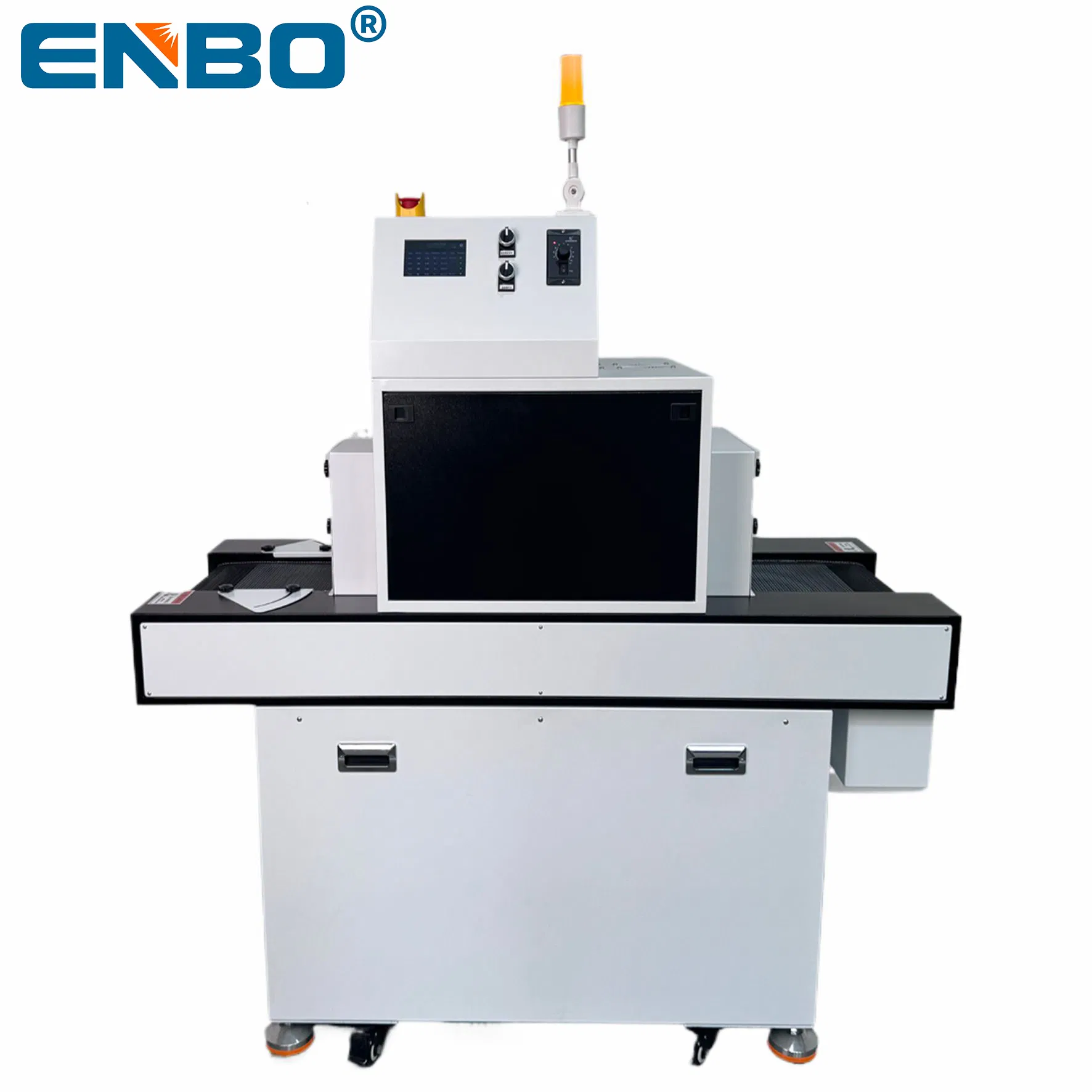

Floor-Standing Conveyor System

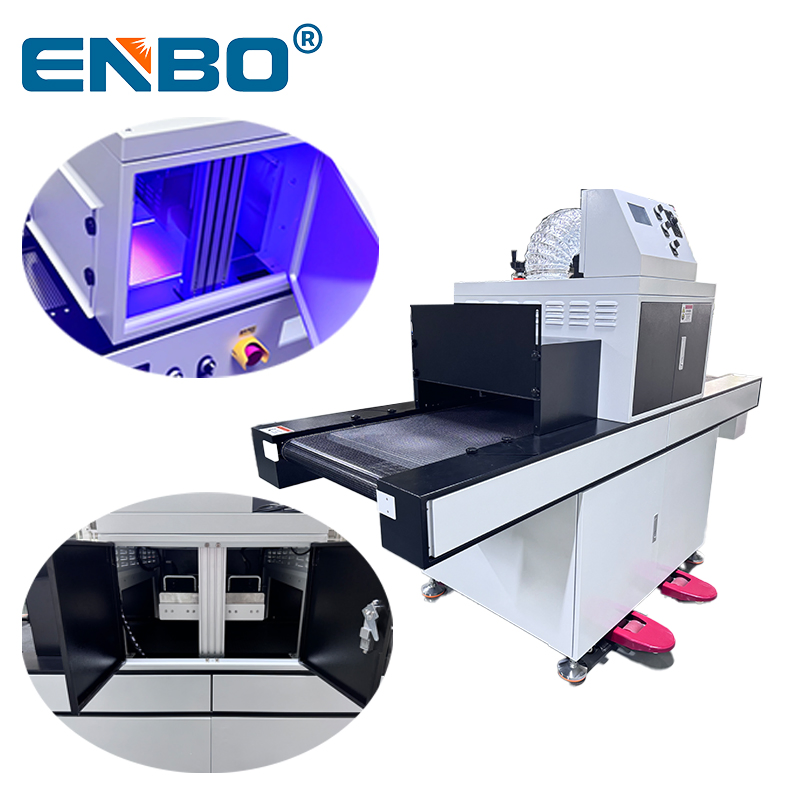

Customizable LED UV Lamp Head

The machine can be equipped with a Flood Curing Lamp allowing for 0-100% control of internal power. Its small footprint and adaptable wavelength intensity make it an ideal choice for curing UV materials like adhesives, inks, and coatings in diverse industrial settings.

Product Parameters

Power	900W	UV Wavelength	365nm/395nm/405nm/485nm
Cooling Method	Air Cooling or Water Cooling	UV Intensity	9000-18000mw/cm²
Display	5-inch Touch Screen	Belt Width	300mm

Key Features

01. High Efficiency: Capable of reaching a UV intensity of up to 18000w/cm² for rapid curing of UV materials.

02. Versatility: Offers multiple UV wavelength options (365nm, 395nm, 405nm, etc.) to accommodate a variety of material requirements.

03. User-Friendly Design: Features a 5-inch touch control display for easy operation and power control from 0-100%.

04. Material Customization: Standard width of 200mm/300mm with material options including stainless steel, PVC, and more.

05. Professional Applications: Ideal for precision work in medical, electronic, and laboratory settings.

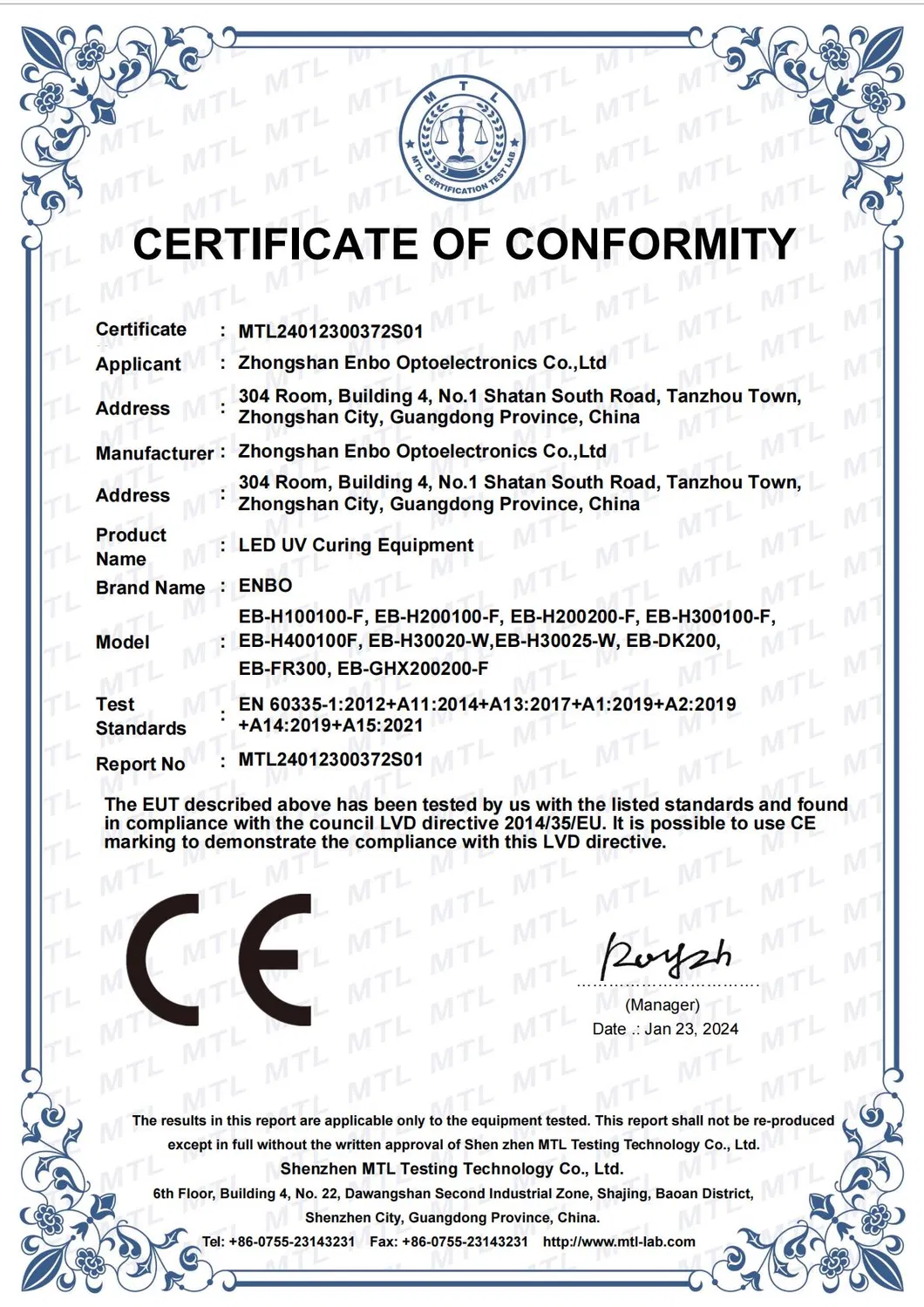

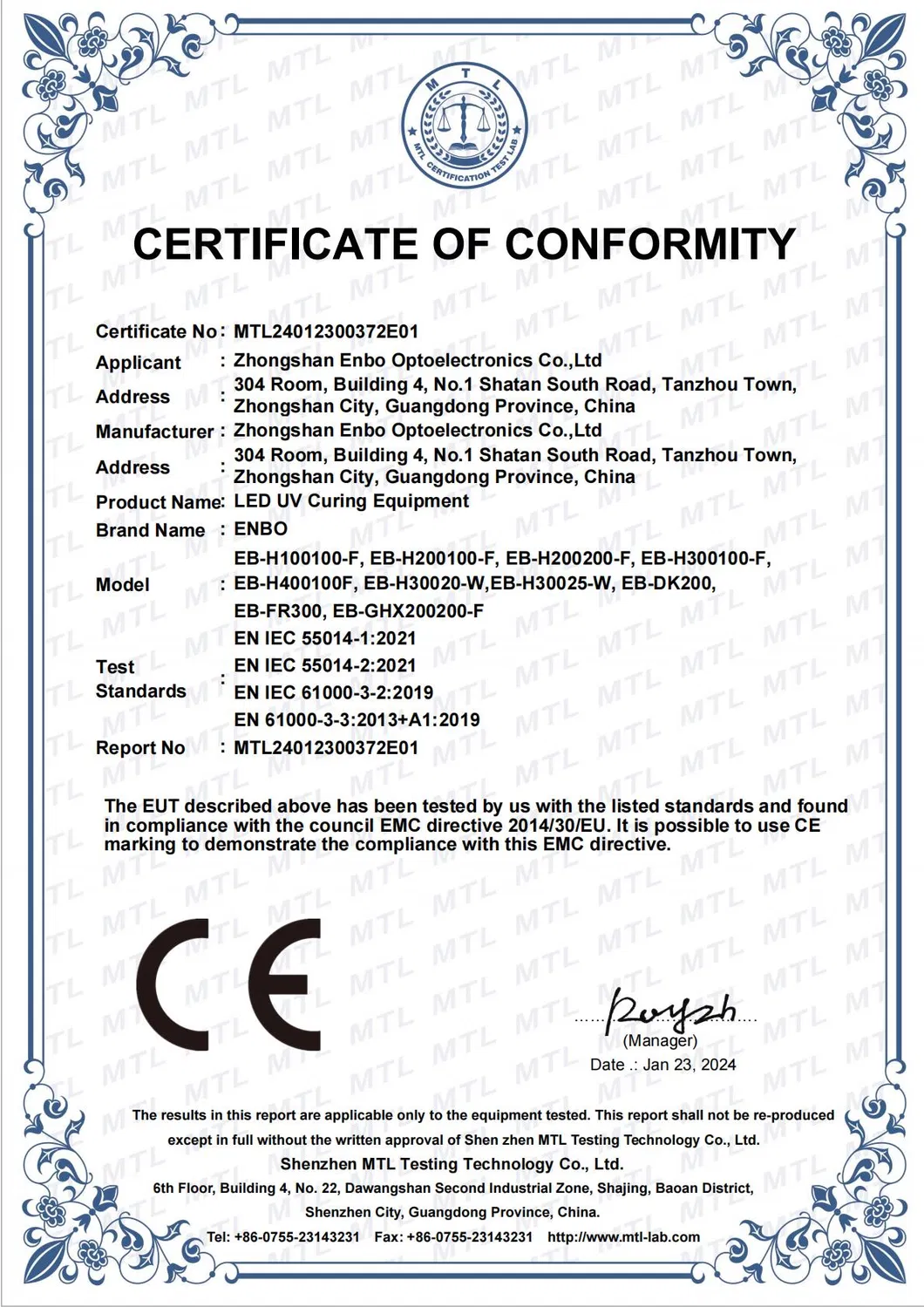

Certifications

Packaging & Shipping

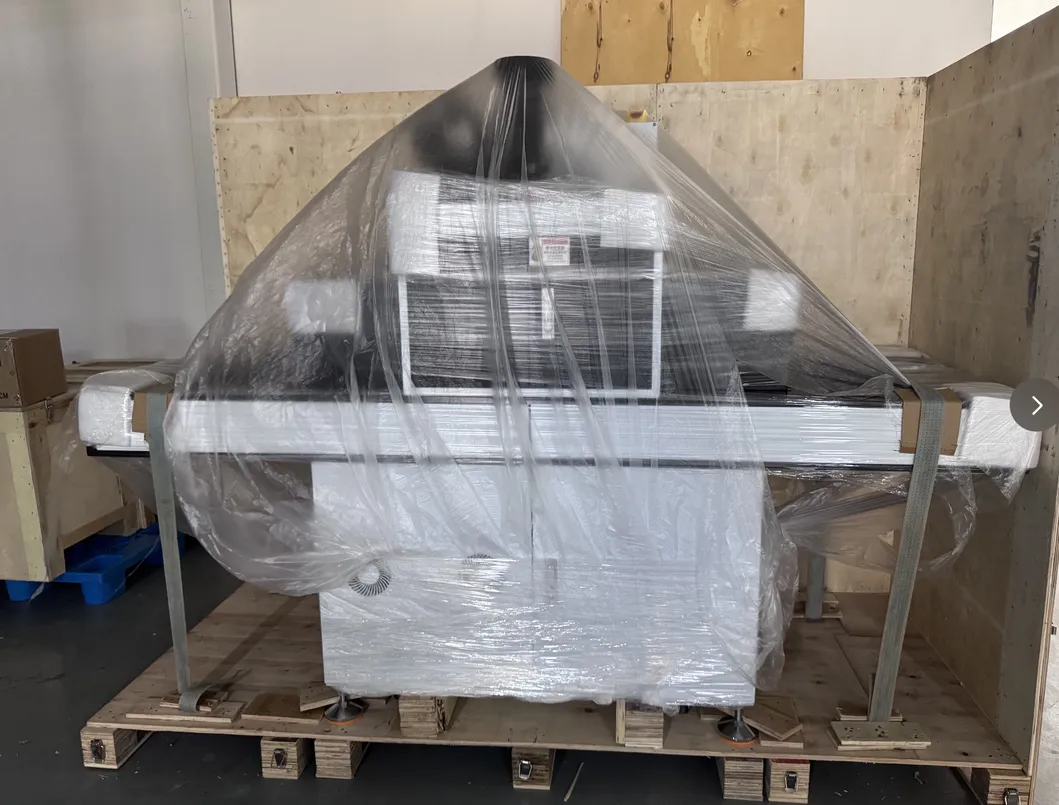

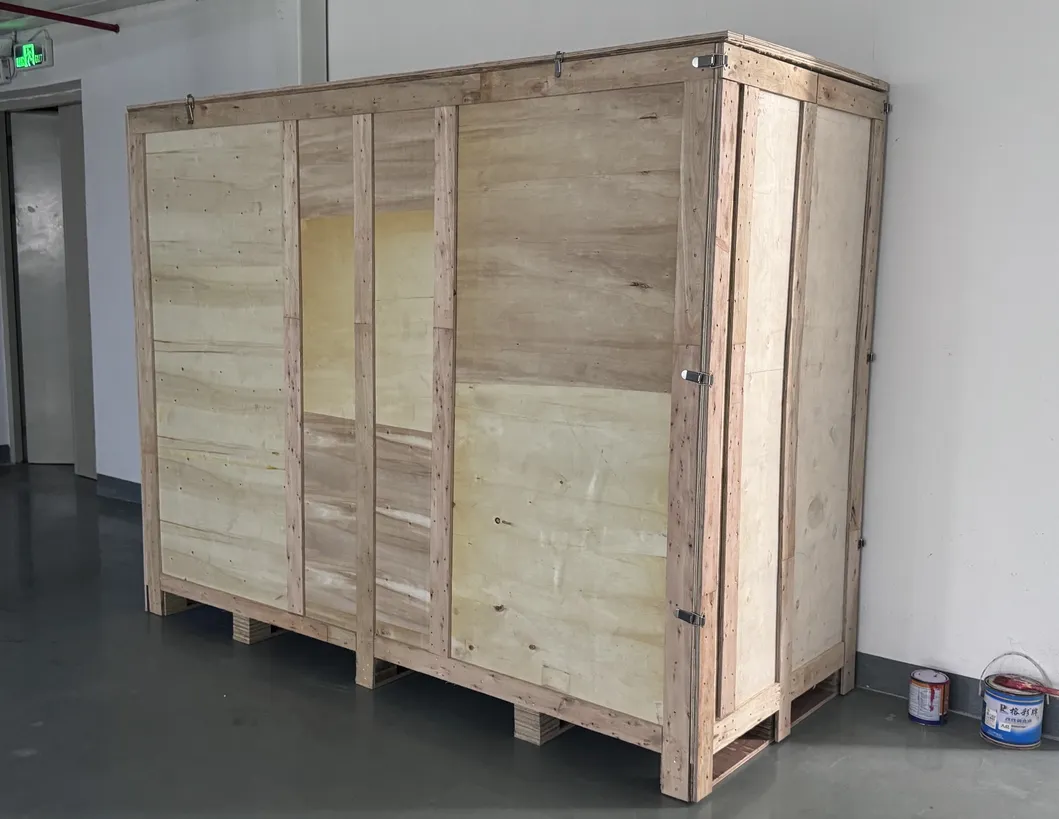

We utilize professional export-grade packaging and reinforced wooden crates to ensure the complete safety of the equipment during international transportation.

Frequently Asked Questions

1. What components are included in the full UV LED curing system?

The complete system includes the UV LED Curing Conveyor, the UV LED Lamp, and the specialized Controller System.

2. Is it possible to integrate my own PLC and Electric cabinet?

Yes, absolutely. Our UV LED drivers are designed with RS485 communication protocols for seamless integration.

3. How do I proceed with an order for the UV LED curing system?

First, share your application requirements. We will provide a quote based on your needs. Once samples are confirmed and a deposit is placed, we move to formal production.

4. Can I have my custom logo printed on the curing system?

Yes. Please inform us during the pre-production phase and confirm the design based on our provided samples.

5. What kind of guarantee and installation services are provided?

We offer a 20,000-hour service life guarantee and a 1-year free warranty. Installation services are available upon request depending on the region and system type.

6. Are there options for customization of belt materials and speeds?

Yes, we provide various belt material options (PVC, Stainless Steel) and customizable conveyor speeds to match your specific production requirements.

For product trials, detailed specifications, or customization inquiries, please feel free to reach out.
